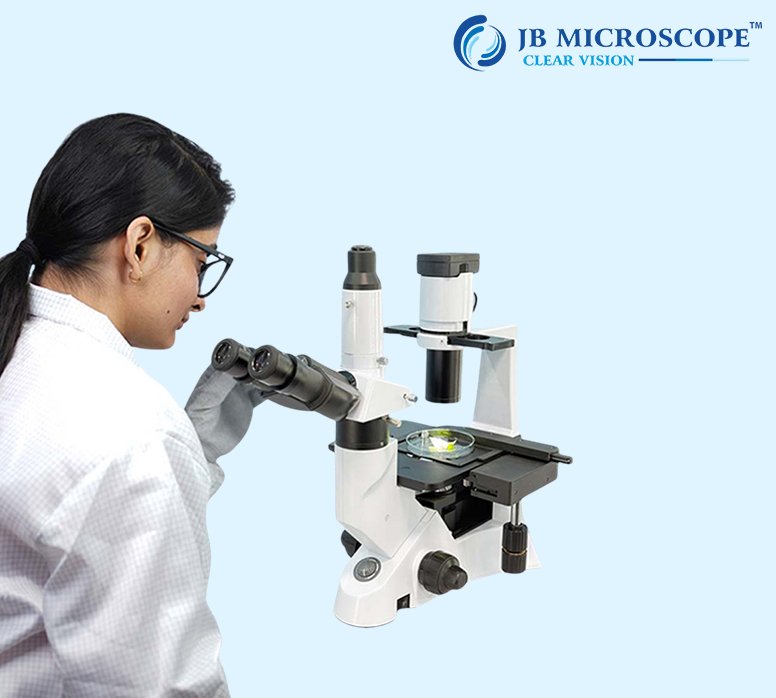

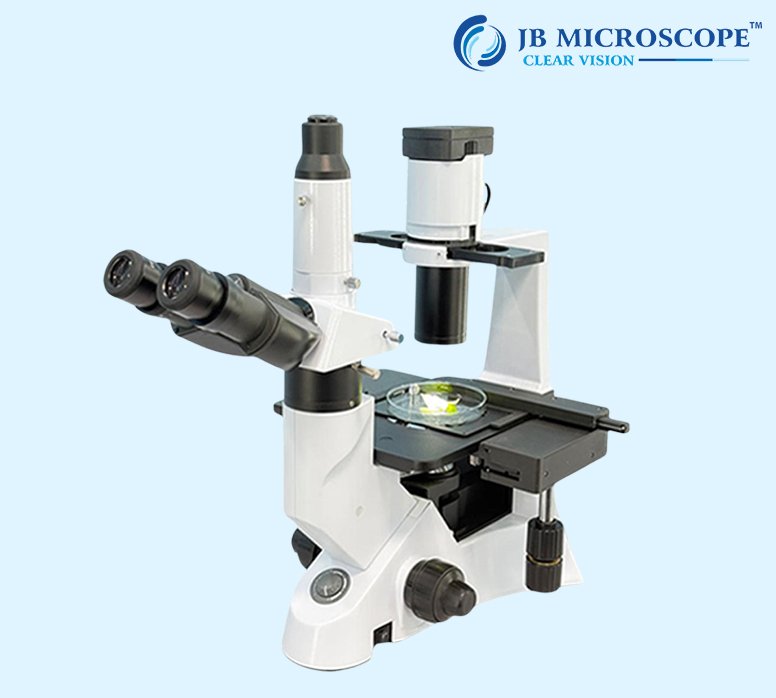

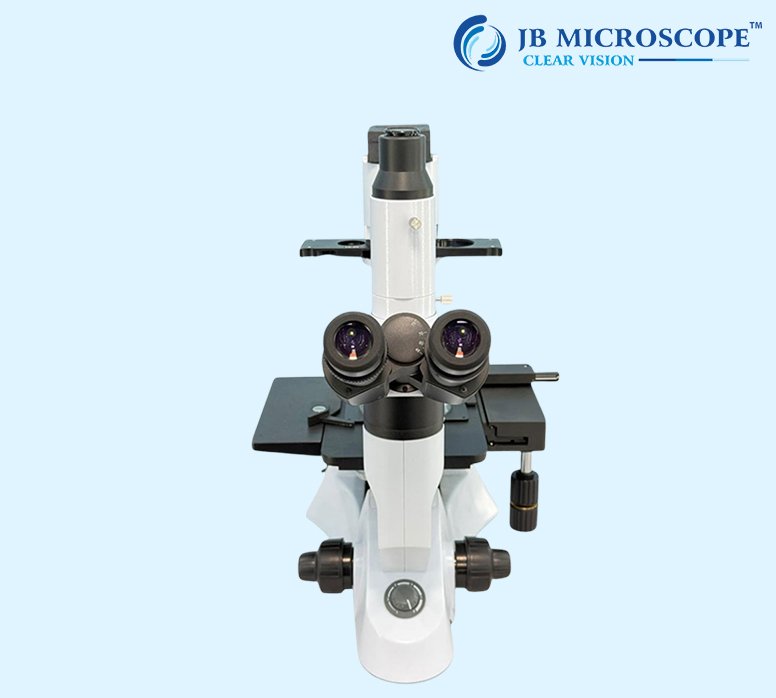

The JBM-41 Tissue Culture Inverted Biological Microscope is a high-performance inverted microscope specially designed for cell culture observation, tissue culture research, live cell imaging, microbiology, and clinical laboratory applications. Built with an infinity color-corrected optical system, it delivers exceptional image clarity, high contrast, and accurate color reproduction for detailed biological analysis.
Designed with energy-efficient illumination and intelligent automation, the microscope features an ECO function that automatically powers down after periods of inactivity, reducing energy consumption. Its trinocular viewing head allows seamless integration with digital cameras for image capture and documentation, while the fluorescence illumination system supports advanced fluorescence imaging. The JBM-41 is an ideal choice for universities, research laboratories, hospitals, biotechnology companies, and pharmaceutical industries.
JBM-41
Tissue Culture Inverted Biological Microscope
Infinity Color-Corrected Optical System
Infinity Plan Achromatic Objectives: 4X, 10X, 20X, 40X, 60X
45° Inclined Trinocular Head, 360° Rotatable
50–75 mm
5:5
High Eyepoint Wide Field Plan Eyepiece PU10X/22 mm with Adjustable Diopter, Micrometer Attachable
Coaxial Coarse & Fine Focus
9 mm (6.5 mm Up / 2.5 mm Down)
0.002 mm
Cold/Warm Color LED Illumination
Cool: 5000 K, Warm: 3000 K
External Wide Voltage Transformer, 100–240V AC Input, 12V/5A Output
Automatic power-saving mode after inactivity
Köhler Illumination with 385 nm, 470 nm & 560 nm LED Light Sources
UV, Blue (B), Green (G)
215 × 250 mm
120 × 80 mm
Extension Plate, Slide Holder, Petri Dish Holder, Terasaki Holder, Metal Plate, Glass Plate
NA 0.3 Long Working Distance Condenser, Demountable
0.35X, 0.5X, 0.65X, 1X C-Mount Adapter
