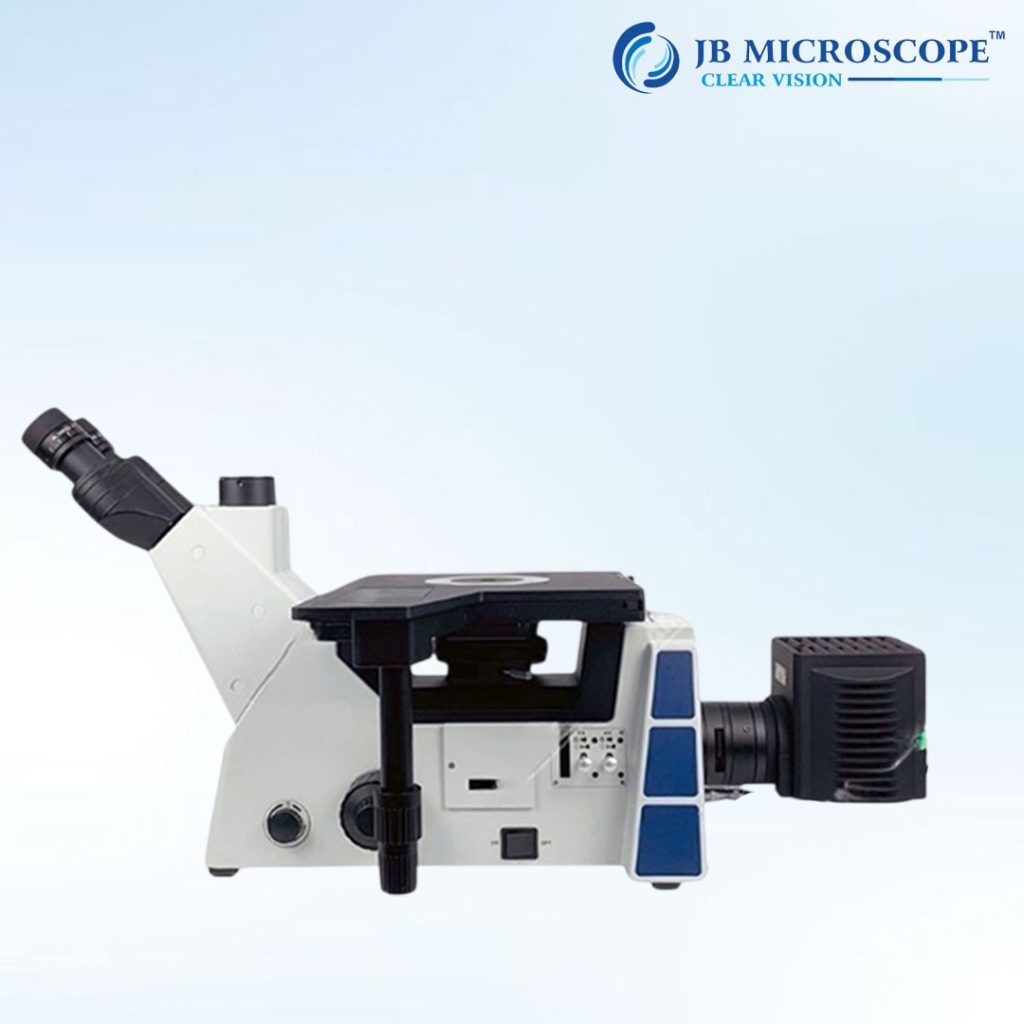

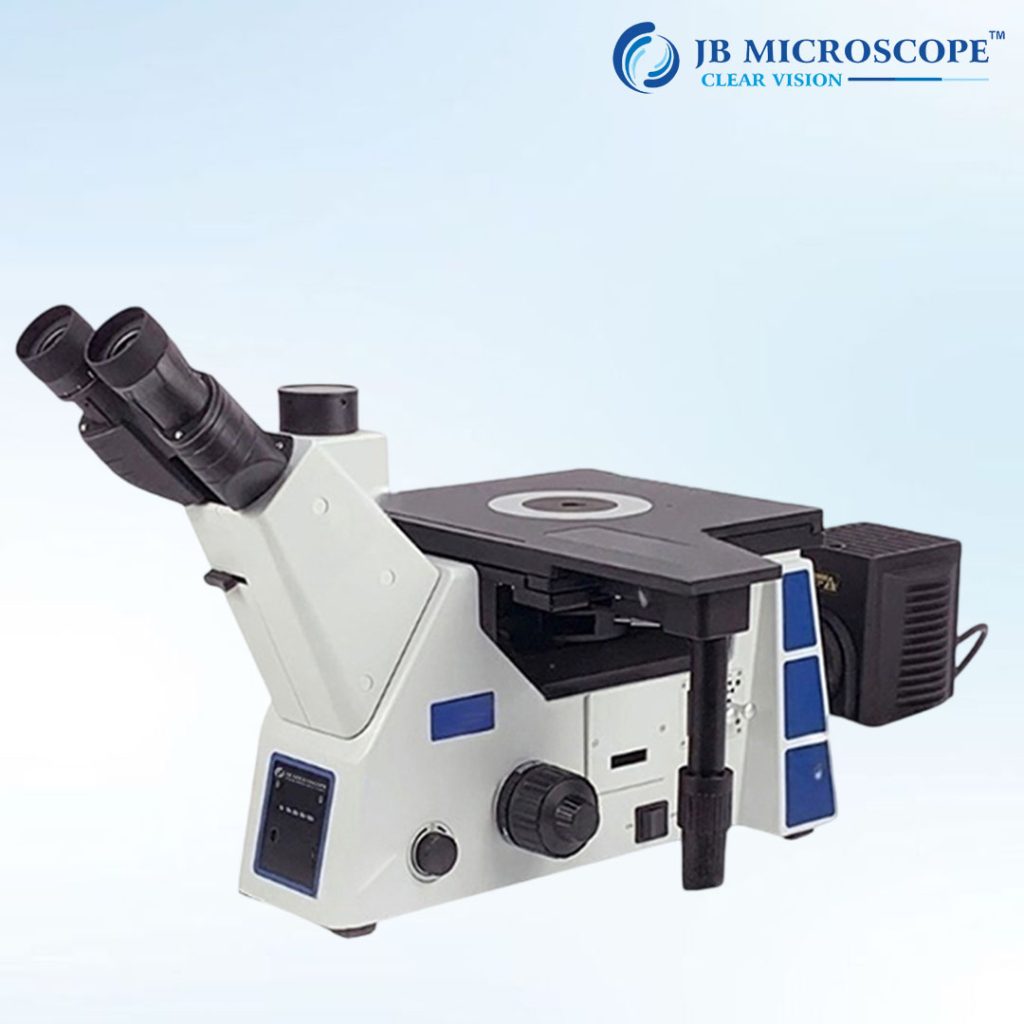

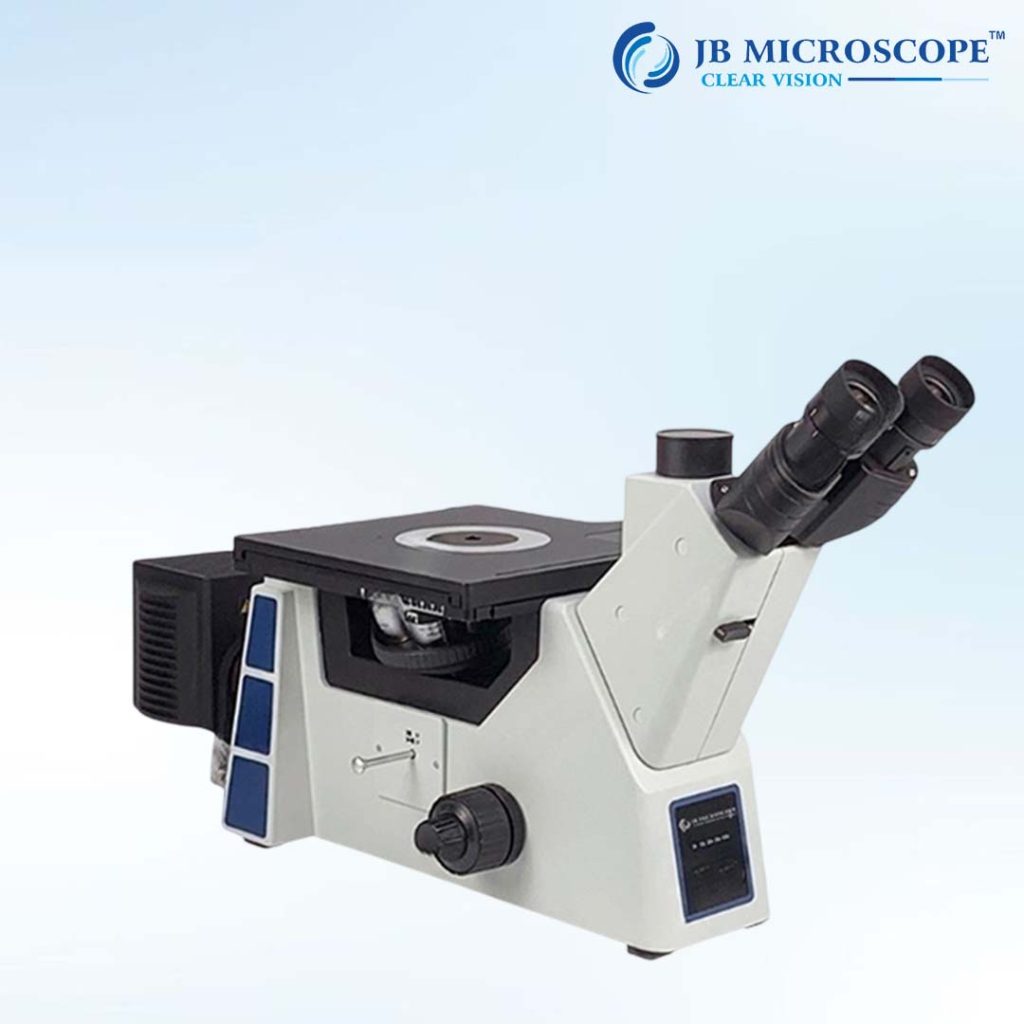

JBM-MM19 microscope is professional inverted metallurgical microscope, it is EPI-KOHLER illumination and metallurgical objective which brings the clear and sharp image. it also has wide field eyepiece and long working distance bright & dark field infinite plan objective and polarization device, it is a large scientific research level metallurgical microscope, it meets the demand of all kinds of metallography analysis and casting & forging metal inspection.

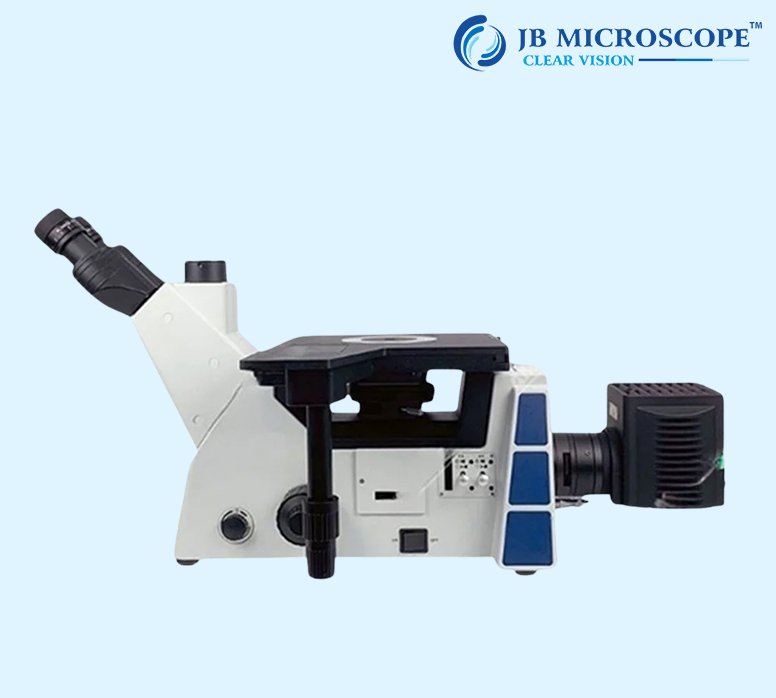

| Optical System | Infinity Colour Corrected Optical System |
| Frame | One-piece Construction, With Filter Slot & Polarizing Slot |
| Head | Trinocular Head, Split Ratio 100:0 or 0:100, 45° Inclined, 360° Rotatable, IPD 50-75mm |
| Eyepiece | Plan WF10x/22mm, Diopter Adjustable, Reticle Attachable, High Eye-point |
| Field | Bright & Dark Filed, With BD Shifter |
| Objective | Infinity LWD BD Plan Achromatic Metallurgical Objective DIC-5x/0.15 WD11mm |
| Infinity LWD BD Plan Achromatic Metallurgical Objective DIC-10x/0.3 WD9.5mm | |
| Infinity LWD BD Plan Achromatic Metallurgical Objective DIC-20x/0.45 WD3.4mm | |
| Infinity LWD BD Plan Achromatic Metallurgical Objective 50x/0.55 WD7.5mm | |
| Focus System | Coaxial Coarse & Fine Focusing System With Adjustable Tension, Coarse Range 9mm (6.5mm up & 2.5mm down), Fine Precision 2μm |
| Nosepiece | BD Quintuple Nosepiece With DIC Slot |
| Stage | Right Hand Controls, Low Positioned, Three-Layer Mechanical Stage, Size 240x250mm, Moving Range 50x50mm, Bothway Linear Guide Rail |
| Metal Specimen Holder (Dia. 25) | |
| Light Source | Reflected Halogen Lamp, 12V100W |
| Light Indicator | |
| Brightness Adjustable | |
| ECO Infared Induction System (Auto on/off) | |
| External Wide Voltage Transformer, 100V-240V Input, 12V13.4A Output | |
| Polarzation | Polarizer & 360° Analyzer |
| Other | Power cord |
