The JBM-PL12 Stereo Zoom Microscope is a professional trinocular stereo microscope designed for precision inspection, research, quality control, and industrial applications. It features a 0.63X–8X continuous zoom objective with a 12.5:1 zoom ratio, providing clear, high-resolution stereoscopic images with excellent depth perception across a wide range of magnifications.
The microscope is equipped with a tilting trinocular viewing head, allowing comfortable observation as well as digital image capture through a C-mount camera adapter. Its coarse and fine coaxial focusing system ensures accurate focusing, while the integrated body design provides excellent stability during prolonged operation. With multiple auxiliary objective options and adjustable LED illumination, the JBM-PL12 is an excellent choice for electronics inspection, PCB repair, precision assembly, biological research, laboratories, educational institutions, jewelry inspection, and quality assurance.
JBM-PL12
Trinocular Stereo Zoom Microscope
Tilting trinocular viewing head
5°–45° adjustable
50–76 mm
Fixed eyepiece tube with lock screw
High Eyepoint Wide Field Plan Eyepiece P10X/22 mm, diopter adjustable
0.63X–8X
12.5:1
Yes
0.63X, 0.8X, 1X, 1.25X, 1.6X, 2X, 2.5X, 3.2X, 4X, 5X, 6.3X, 8X

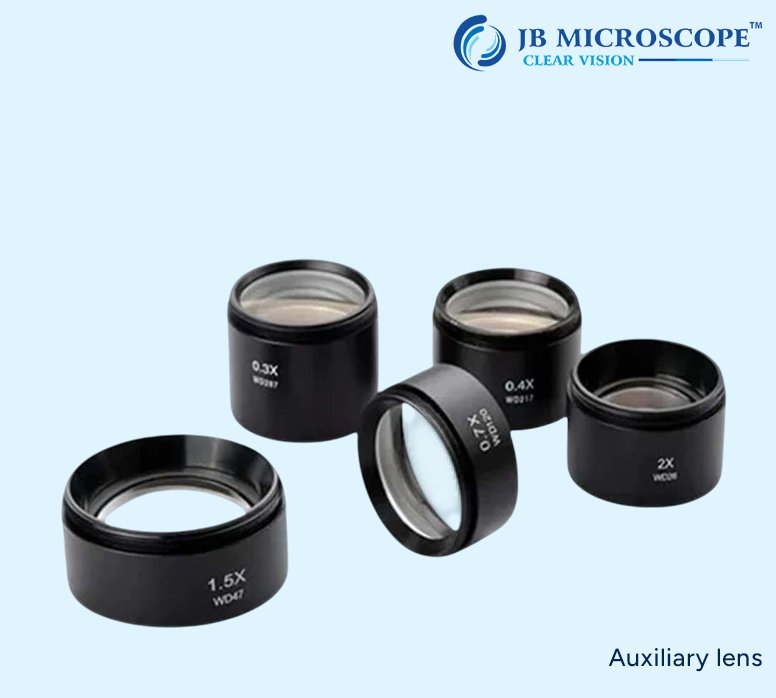

0.5X (WD 70.5 mm), 1X (WD 80 mm), 1.5X (WD 31.1 mm), 2X (WD 20 mm)
Coarse & Fine Coaxial Focus
50 mm
Plan Base (without illumination), Black & White Plate (Ø100 mm)

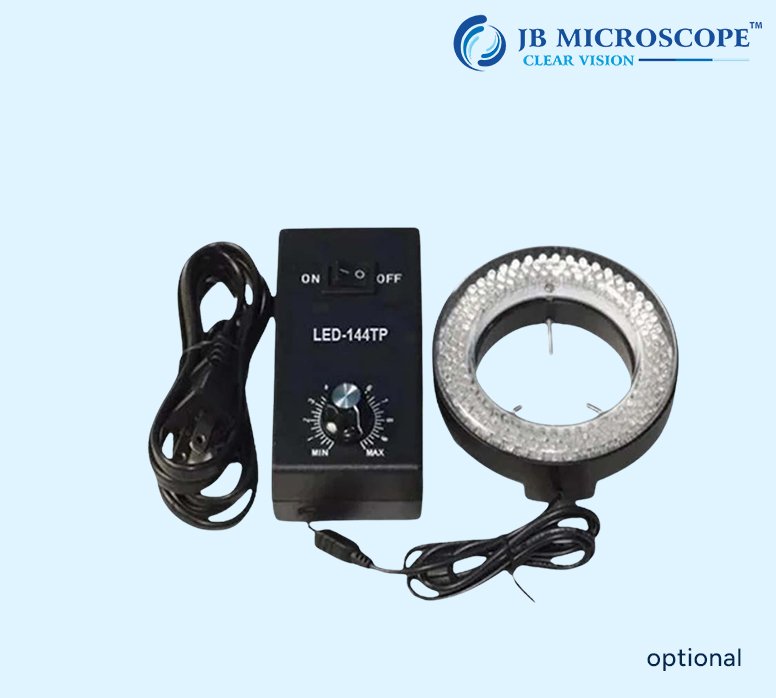

With digital light intensity & color temperature display
5W LED (Top Ø270 × 100 × 130 mm), Fiber Optic 500 mm
5000–5500 K
100–240V AC, 50–60 Hz
