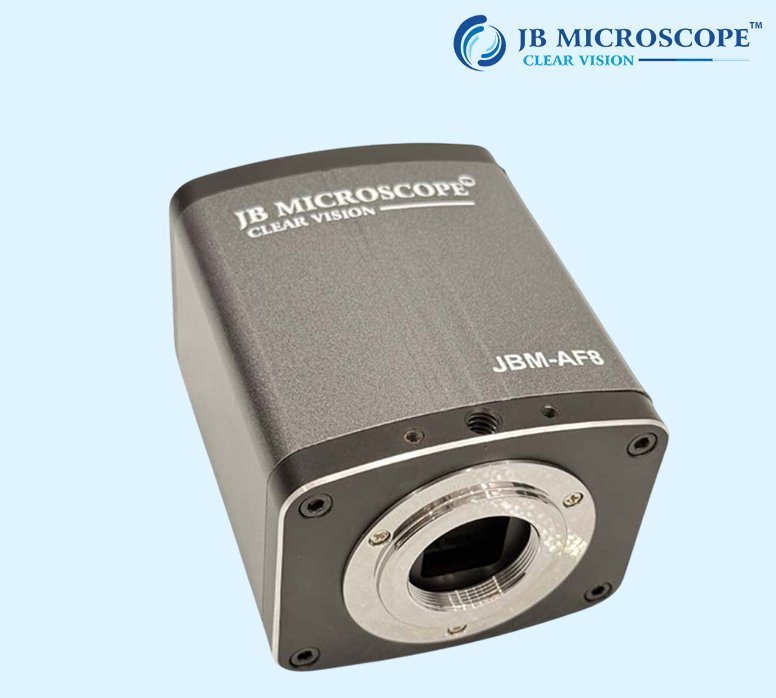

The JBM-AF8 4K HDMI Autofocus Microscope Camera is designed for high-precision industrial inspection, laboratory research, electronics, and educational applications. Featuring an 8 MP Color CMOS sensor, it delivers ultra-clear 4K video at up to 60 FPS with smooth, real-time performance. The camera supports HDMI output, mouse-based operation, and an intuitive all-digital user interface for easy control.
Advanced imaging features include automatic and manual exposure, one-click white balance, high-speed shutter control, digital zoom, and line-by-line scanning to ensure sharp, accurate image capture. With support for USB 2.0/USB 3.0 external storage, internal camera storage, and a 10 cm to infinity working distance, the JBM-AF8 provides a reliable and versatile imaging solution for professional microscopy applications.
JB Microscope
Color CMOS
8 MP
1/2.8"
All-digital UI Design
Mouse
DC 12V
HDMI
4K @ 60 fps / 4K @ 50 fps
Line-by-line Scanning
Manual / Auto / One-click
Auto / Manual
1/50 s (1/60 s) ~ 1/10000 s
Diagonal (D): 78.6° (Wide) – 6.16° (Tele) Horizontal (H): 69.2° (Wide) – 5.22° (Tele) Vertical (V): 45.4° (Wide) – 3.26° (Tele)
10 cm ~ ∞
1× – 28×
1× – 3×
Supported
Supports USB 2.0 / USB 3.0 external storage and camera internal storage
