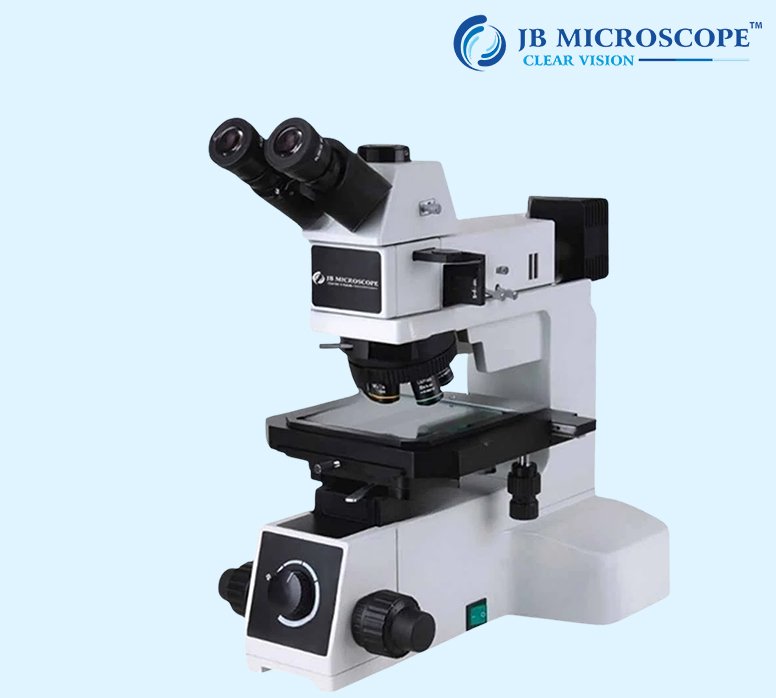

The JBM-06RF Upright Metallographic Microscope is a professional-grade microscope designed for metallurgical analysis, semiconductor inspection, electronics manufacturing, wafer inspection, materials science, and industrial quality control. It combines Bright Field (BF) and Dark Field (DF) observation with an advanced infinity optical system to deliver exceptional image clarity, contrast, and resolution for detailed surface analysis.
Equipped with a 5–35° tilting ergonomic viewing head, precision Infinity LWD Plan Achromatic Metallurgical Objectives, and a high-accuracy focusing mechanism, the JBM-06RF provides comfortable operation and precise inspection. The microscope supports both reflected and transmitted illumination, making it suitable for a wide range of industrial and research applications. Its trinocular head also enables digital camera integration for image capture, measurement, and documentation.
JBM-06RF
Upright Metallographic Microscope (Bright & Dark Field)
High Eyepoint Wide Field Plan Eyepiece PL10X/22 mm (supports 22/23/16 mm field of view)
5–35° tilting trinocular head, erect image, interpupillary distance 50–76 mm, light split ratio 100:0 / 0:100
Infinity LWD Bright & Dark Field Plan Achromatic Objectives: 5X, 10X, 20X, 50X, 100X
Infinity LWD Bright & Dark Field Semi-Apochromatic Objectives: 5X, 10X, 50X, 100X
DIC Slider for Infinity LWD B&D Objectives (5X, 10X, 20X)
Backward Quintuple Nosepiece with DIC Slot
Coaxial coarse and fine focusing with coarse stop and tension adjustment
33 mm
0.001 mm
Double-layer stage, 445 × 240 mm
Reflected Light: 158 × 158 mm; Transmitted Light: 100 × 100 mm
Supports reflected and transmitted observation
Double-layer stage, 230 × 215 mm
105 × 105 mm (Reflected Light)
Bright & Dark Field reflected illumination with iris field diaphragm, aperture diaphragm, central condenser adjustment, filter slot, and polarizing slot
12V/100W Pre-centered Halogen Lamp
Built-in 5W LED illumination system
360° Rotatable Polarizer and Fixed Analyzer (Reflected Light)
6-inch rotatable plate suitable for 4", 5", and 6" wafers
Blue (
