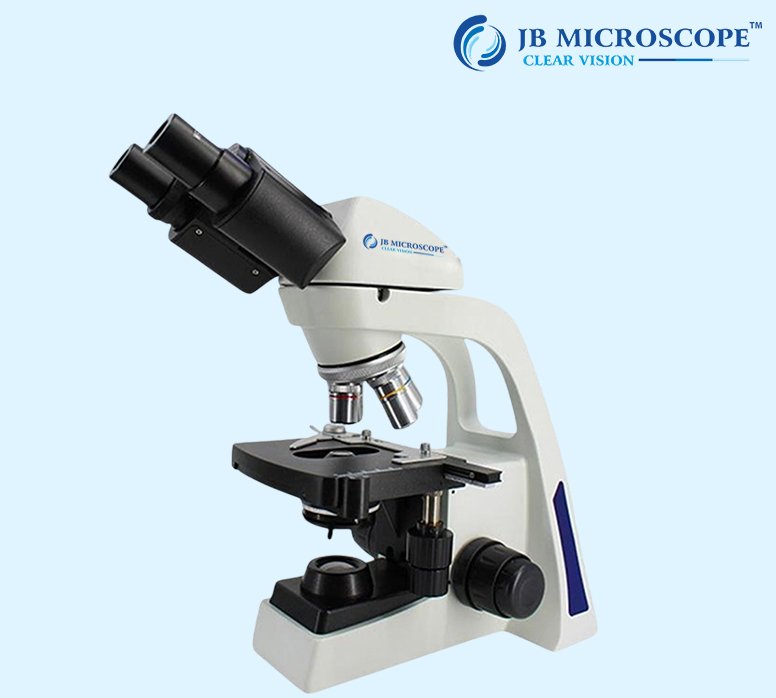

The JBM-202B Biological Microscope is a professional laboratory microscope designed for clinical diagnostics, biological research, educational training, microbiology, and pathology applications. Featuring a finite color optical system or an optional infinity color-corrected optical system, it delivers sharp, high-contrast images with excellent color fidelity for accurate specimen observation.
The microscope is equipped with an ergonomic 30° inclined binocular or trinocular viewing head, precision achromatic objectives, a coaxial coarse and fine focusing mechanism, and a rechargeable LED illumination system. Its integrated digital imaging capability allows users to connect a microscope camera for image capture, documentation, and live viewing, making it an ideal solution for laboratories, hospitals, research institutes, universities, and educational institutions.
JBM-202B
Biological Microscope
Finite Color Optical System / Optional Infinity Color-Corrected Optical System
30° inclined binocular head, interpupillary distance 50–75 mm, ±5 diopter adjustment
30° inclined trinocular head, interpupillary distance 50–75 mm, ±5 diopter adjustment
WF10X/18 mm, WF10X/20 mm, PL10X/18 mm (Optional)
Achromatic Objectives: 4X, 10X, 40X, 100X (Oil Immersion)
Plan Achromatic Objectives: 4X, 10X, 40X, 100X
Coaxial coarse and fine focusing with tension adjustment
28 mm
0.004 mm
Double-layer mechanical stage with smooth X-Y movement
N.A. 1.25 Abbe Condenser with Iris Diaphragm
3W LED with adjustable brightness
Built-in rechargeable battery with charging module
AC 100–240V, 50/60Hz, DC 12V/2A Output
0.35X / 0.5X / 1X C-Mount Camera Adapter
