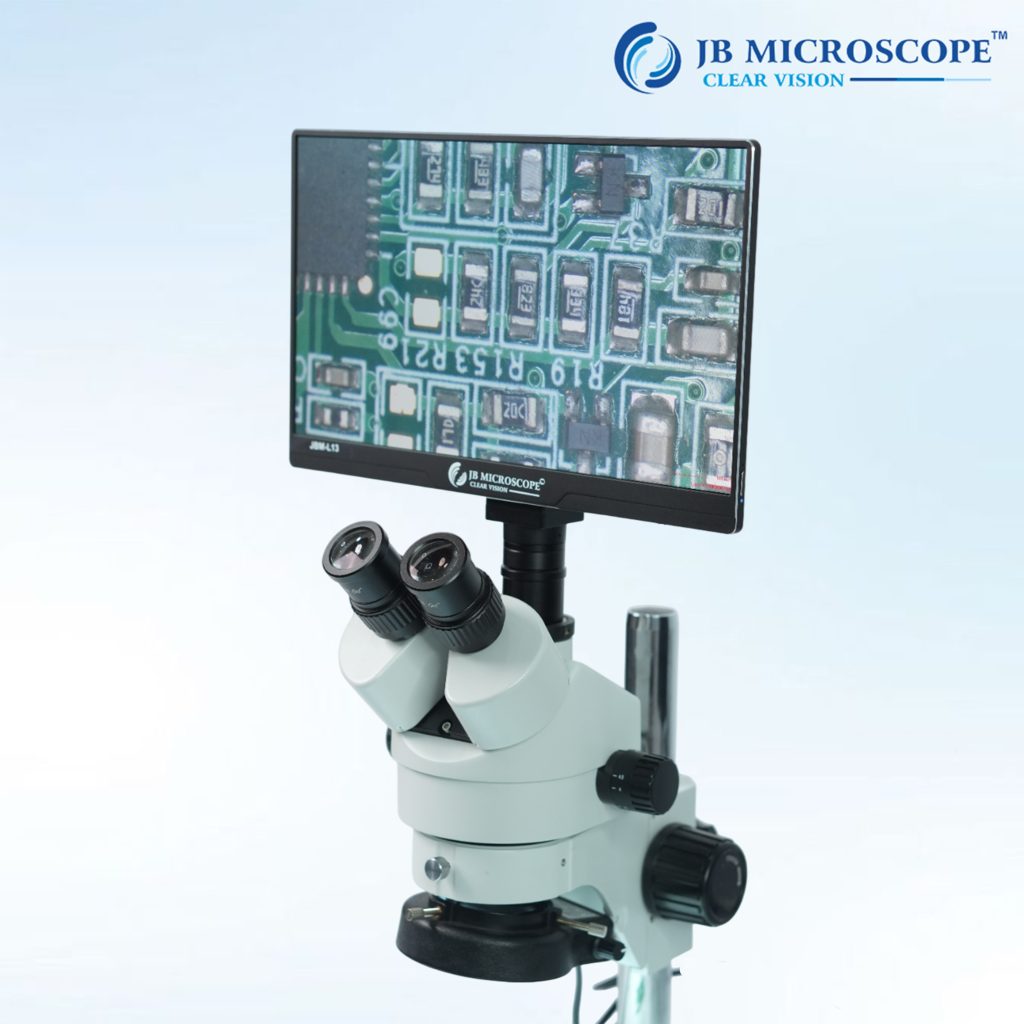

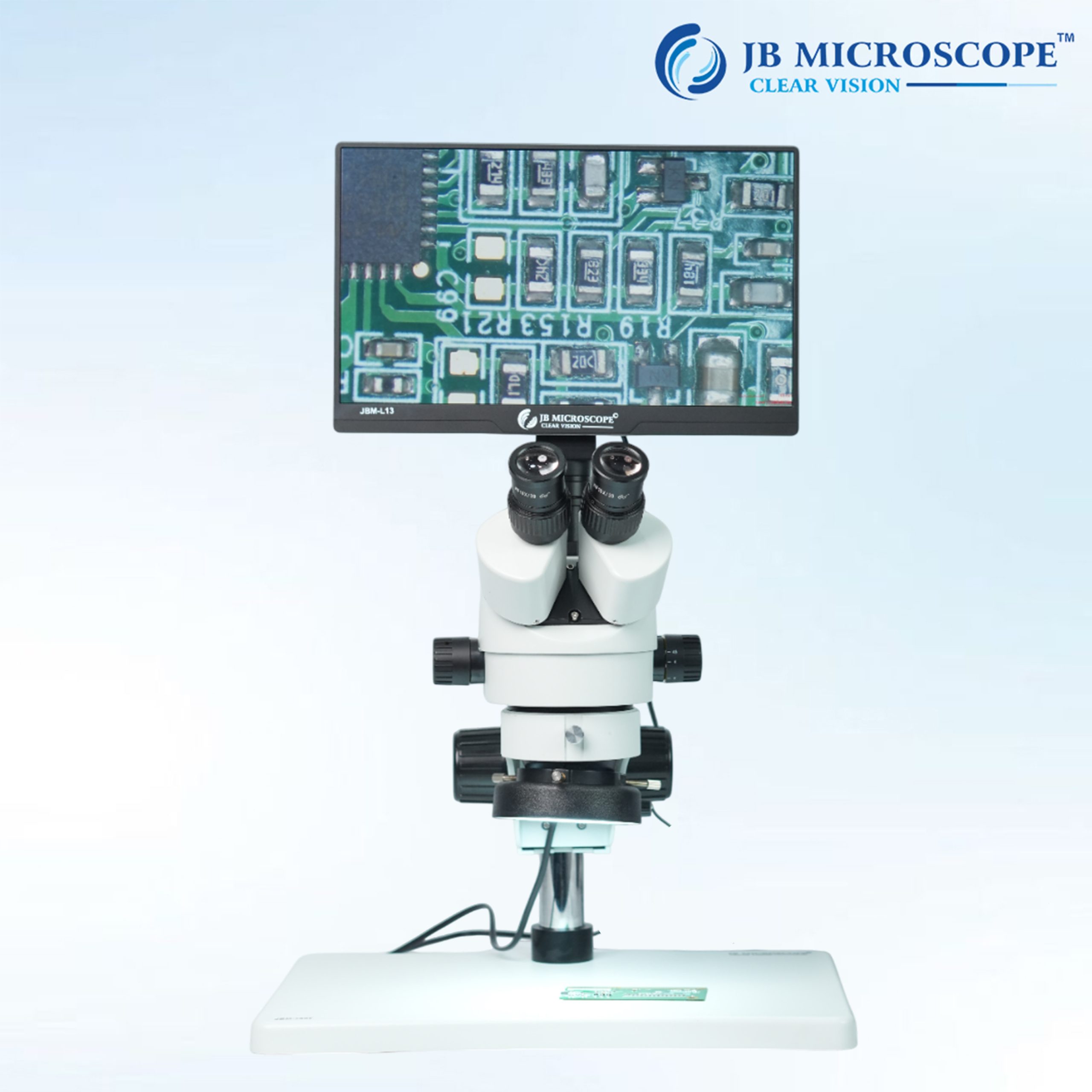

We innovative video integrated design liberates the operator’s eyes, directly detects the workpiece through the LCD screen, and has an automatic white balance function, which is convenient for many people to watch at the same time. Ergonomic structural design, horizontal (axial) bilateral setting of the zoom hand wheel, high precision of zooming. Ergonomic structural design, horizontal (axial) bilateral setting of the zoom hand wheel, high precision of zooming.

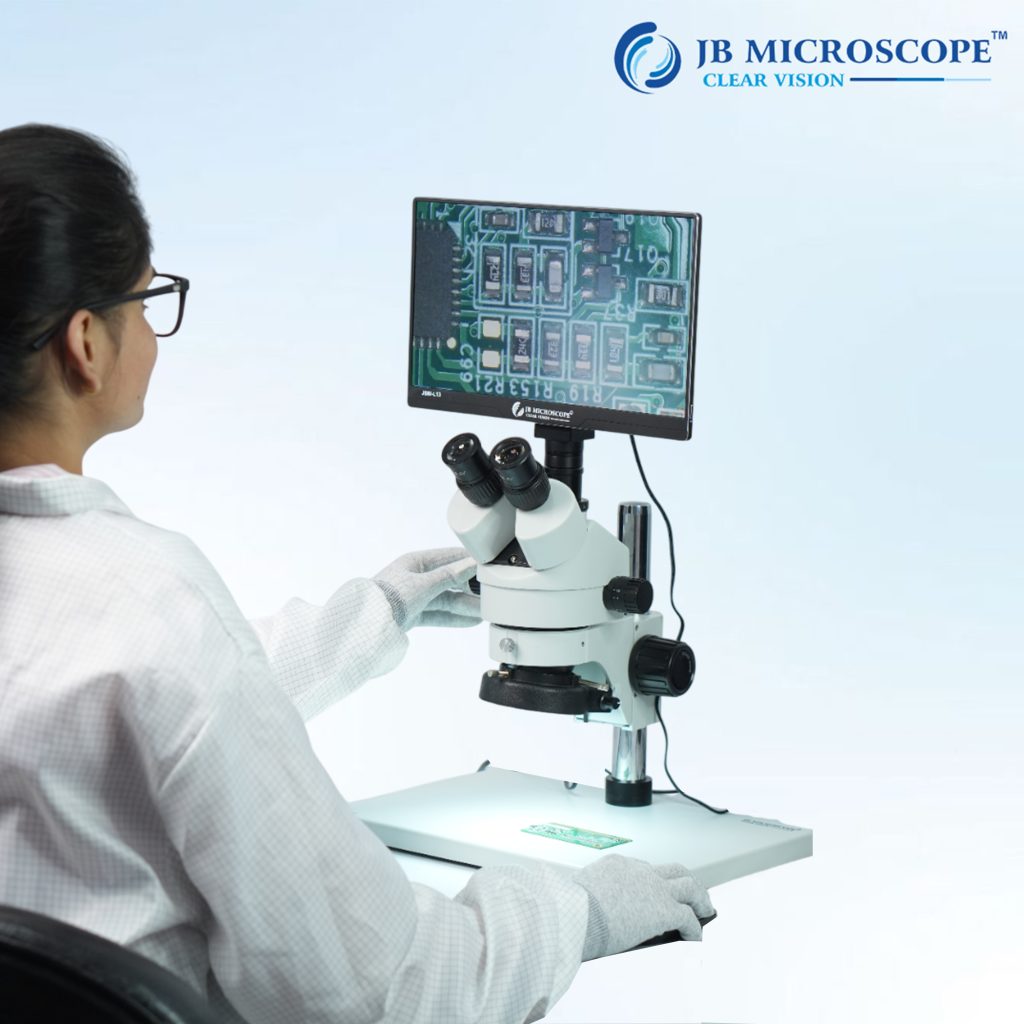

In the intricate landscape of electronics manufacturing, precision and attention to detail are paramount. Printed Circuit Boards (PCBs) serve as the backbone of electronic devices, and ensuring their flawless functionality is crucial. Enter the PCB microscope, a specialized optical instrument that plays a vital role in the inspection and analysis of PCBs at a microscopic level. we delve into the world of PCB microscopes, exploring their features, applications, and significance in the electronics industry.
The Importance of PCB Microscopy:
A PCB microscope is an indispensable tool in the demesne of electronics manufacturing and quality control. As electronic devices continue to evolve, becoming smaller and more complex, the need for thorough inspection at the microscopic level has become increasingly critical. The naked eye often falls short in identifying minute defects or irregularities in solder joints, components, and traces on a circuit board. This is where PCB microscopes come into play, offering high magnification and precision for a detailed examination of the PCB’s surface.Key Features of PCB Microscopes:High Magnification Lenses:PCB microscopes are equipped with high-quality lenses that provide varying levels of magnification. This allows technicians and engineers to zoom in on specific areas of interest, illuminating details that would be otherwise unrevealed.Adjustable Lighting Systems:Illumination is a crucial aspect of microscopic inspection. PCB microscopes feature adjustable lighting systems that ensure optimal visibility of the components under examination. Proper lighting is essential for identifying soldering issues, hairline cracks, and other defects.Digital Imaging and Camera Attachments:Advanced PCB microscopes often come with digital imaging capabilities and camera attachments. This allows users to capture high-resolution images or record videos of the PCB. These images serve as valuable documentation for analysis, quality control reports, and future reference.Measurement Capabilities:Some PCB microscopes offer measurement features, enabling precise measurements of components and distances on the PCB. This functionality is particularly useful in assessing the accuracy of the layout and ensuring compliance with design specifications.Applications of PCB Microscopes:Quality Control in Manufacturing:PCB microscopes are instrumental in the quality control process during PCB manufacturing. Technicians use them to meticulously inspect solder joints, verify component placement, and identify any anomalies that may affect the functionality of the electronic device.Failure Analysis:When electronic devices malfunction, PCB microscopes are employed for failure analysis. Technicians can pinpoint the root cause of issues by examining the PCB at a microscopic level, whether it be a soldering defect, a cracked trace, or a damaged component.Research and Development:In the research and development phase of electronics, PCB microscopes aid engineers in refining designs, ensuring the reliability of prototypes, and troubleshooting potential issues before mass production.In the fast-paced world of electronics, where miniaturization and complexity are ever-increasing, PCB microscopes stand as guardians of quality and reliability. These precision instruments empower manufacturers and engineers to uncover the intricacies of PCBs, ensuring that electronic devices meet the highest standards. As technology continues to advance, the role of PCB microscopes remains integral, contributing to the seamless integration of electronics into our daily lives.
