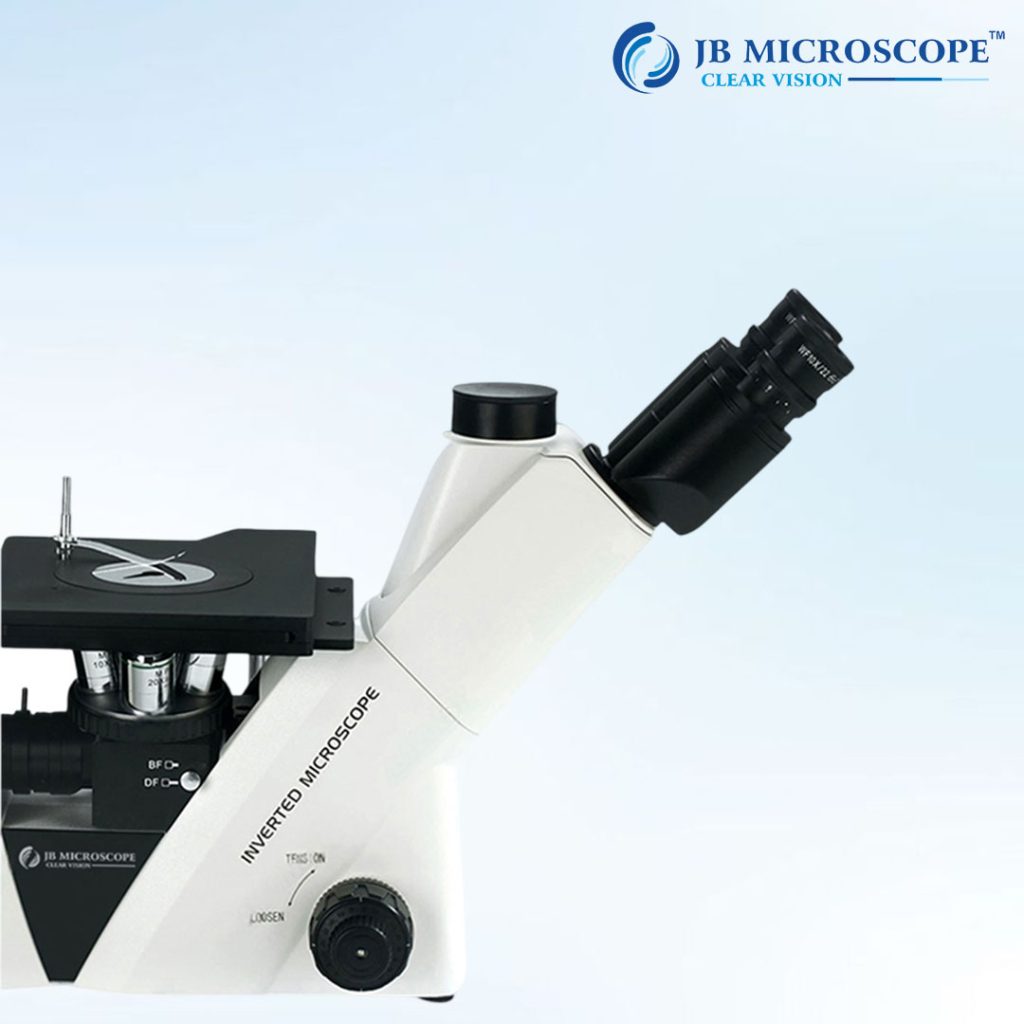

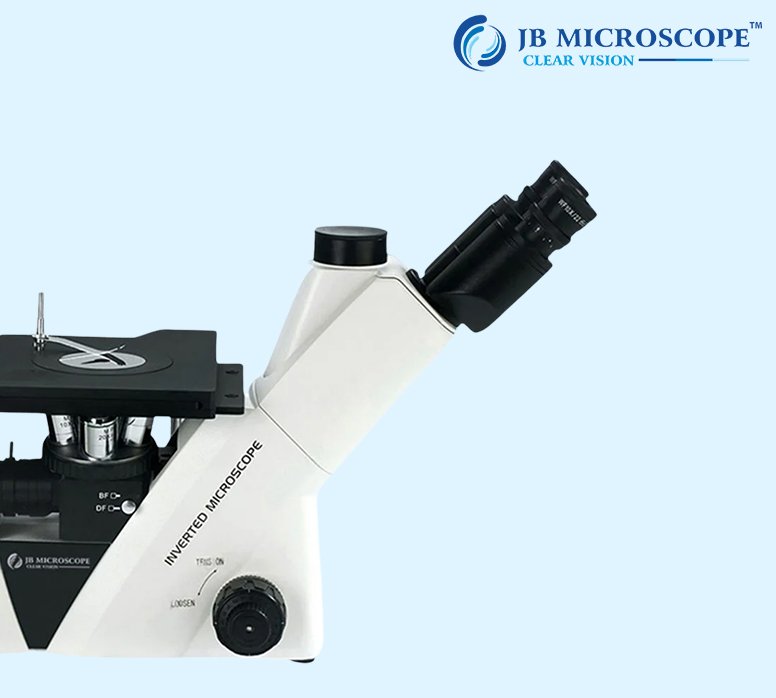

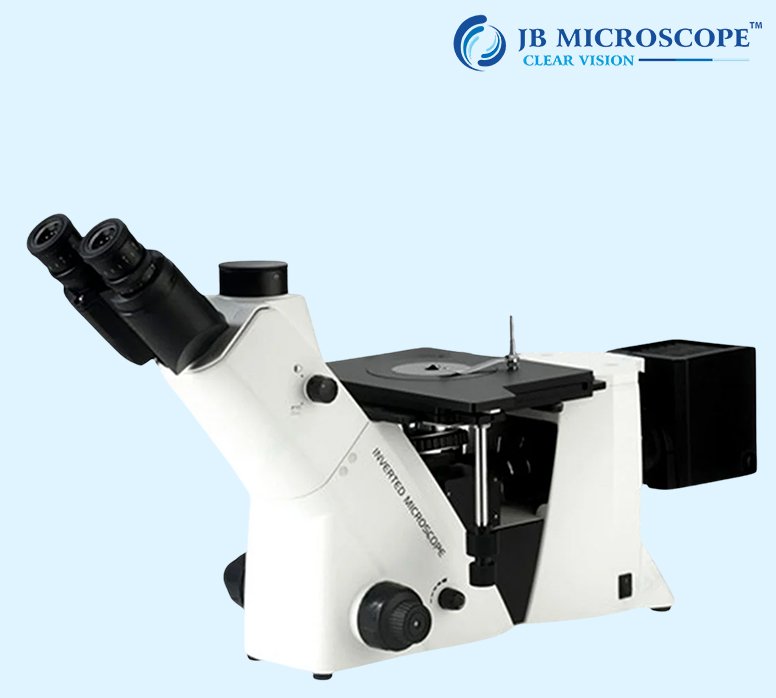

JBM-MM18 Trinocular Inverted Metallurgical Microscope is equipped with professional metallurgical objectives and plan eyepiece which provide clear image & comfortable observation. It is widely used to identify & analyze the structure of various metals and alloys in foundries, Heat Treatment forging and Research Metal Laboratories.
| Head | Seidentopf Trinocular Head Inclined 30°, Interpupilary Distance 48~76mm, Light Split Switch E100:P0 / E20:P80 |
| Eyepiece | WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable |
| Nosepiece | Quintuple |
| Quadruple(Specially For Bright&Dark Field objectives) | |
| Metallurgical LWD Infinity Plan BF | LPL 5x/0.13, W.D.=16.04mm |
| (Bright Field) Objectives | LPL 10x/0.25, W.D.=18.48mm?LPL 20x/0.40, W.D.=8.35mm |
| LPL 50x/0.70, W.D.=1.95mm?LPL 80x/0.80, W.D.=0.85mm | |
| LPL 100x/0.90(Dry), W.D.=1.10mm | |
| Metallurgical LWD Infinity Plan BD | LPL 5x/0.13BD, W.D.=16.04mm |
| (Bright & Dark Field) Objectives | LPL10x/0.25BD, W.D.=18.48mm?LPL 20x/0.40BD, W.D.=8.35mm |
| LPL 50x/0.70BD, W.D.=1.95mm | |
| Working Stage | Stage Size 210×180mm, Moving Range 50×50mm, Scale 0.1mm, Round Plate Size Dia.110mm |
| Round Plate With Oval Hole | |
| Focusing | Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 10mm, Fine Focusing Div. 0.002mm, Fine Stroke Per Rotation 0.2mm |
| Polarizing | Analyzer + Polarizer Set |
| Illumination | Koehler Illumination Halogen 12V/50W, Input Voltage 100V~240V |
| Koehler Illumination 5W LED, Input Voltage 100V~240V | |
| Power | ECO, Auto Power Off System. |
| Power Off Automatically Upon User Leaving 10 Minutes, | |
| Power On Automatically Upon User Approaching Detected, | |
| This Function Can Be Shut Down Manually | |
| Filter | Blue, Dia.34mm?Green, Dia.34mm?Amber, Dia.34mm?Grey, Dia.34mm |
| C-Mount 0.5x, Focus Adjustable?C-Mount 0.75x, Focus Adjustable | |
| Package | Packing Size: 660mmx590mmx325mm |
| Weight | Gross Weight: 17 kgs, Net Weight: 12.5 kgs |
