Indispensable testing tool, widely applied for surface detection of PCB, SMT, semiconductor chip, metal material and precision components.
BASE
Eyepiece Specification
Adjustable Eyepiece, Eyepiece Optical Magnification: 10X. Eyepiece size for Eye Tube: Dia 30mm. Eyepiece field of view Dia 22mm
Microscope Eyepiece
Superior optical coatings on eyepiece with true color images with fine detail. Apochromatic Objective Apochromatic design significantly improves the lens performance of color rendition. Correcting the axial chromatic aberration of red/blue/purple, and converge them on a focal plane, the objective is able to present the real color of the samples
Working Distance: 110mm

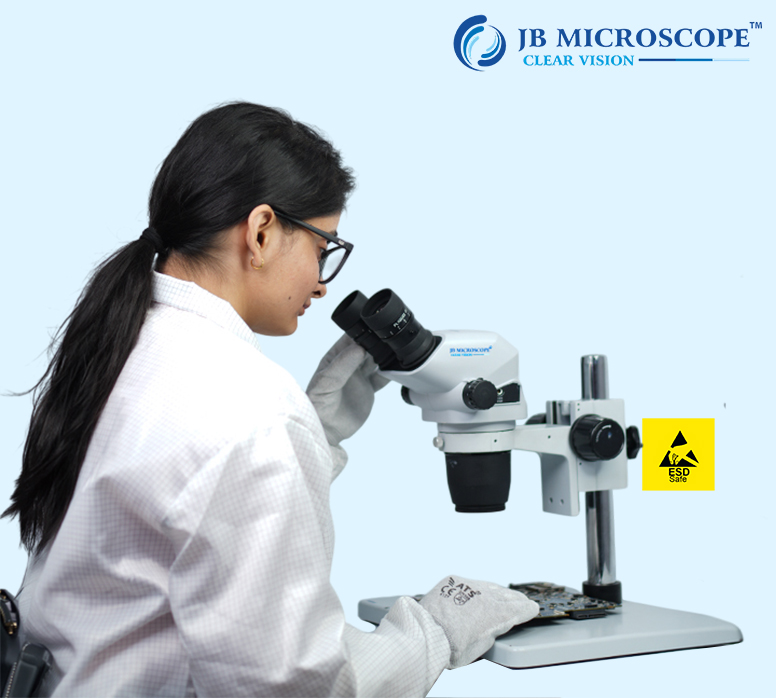

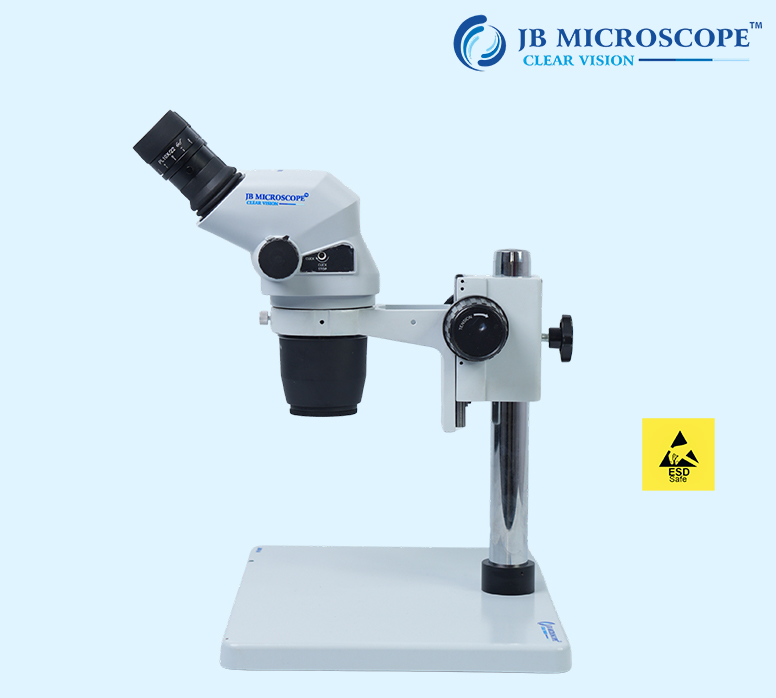

ESD Safe: The JBM-PL40 Series microscopes feature a specialized ESD Safe coating, protecting sensitive components from electrostatic discharges.
Optional Accessories
AUXILIARY LENS
0.5X/177mm, 0.7X/120mm, 1.5X/47mm
Adjustable Microscope Ring Light With Adapter
LED Ring Light with Smoke Lens
JB MICROSCOPE
JBM-PL40
0.67x-4.5x
54-75mm
PL10X/22mm
0.67x-4.5x
1:6.7
110mm
110mm
