The JBM-DM2 Digital PCB Inspection Microscope is an all-in-one industrial inspection system engineered for precision electronics manufacturing, PCB inspection, soldering, repair, and quality control. It combines a Full HD IPS display, HD CMOS camera, and integrated LED illumination into a compact, space-saving design powered by a single power supply.
Designed for professionals, the JBM-DM2 delivers sharp, high-contrast images with excellent color accuracy. The built-in 4MP HD CMOS camera captures high-quality images and videos at up to 30 FPS, ensuring smooth real-time viewing during inspection and repair tasks. Its continuous zoom objective and long working distance make it ideal for inspecting fine electronic components, solder joints, ICs, and PCBs.
With HDMI, USB, and Mini USB connectivity, along with support for wireless mouse and keyboard, the JBM-DM2 provides a versatile and user-friendly inspection platform. Built-in storage and SD card support allow users to save images and videos directly without requiring additional equipment.
JB Microscope
JBM-DM2
IPS 10-inch HD Screen with 5°–15° tilt angle and Geometrical Measurement Function
Continuous Zoom Objective 0.7X – 5X
Built-in 1/3" CMOS 4MP Camera Module
Real-time HDR, Built-in OSD Menu

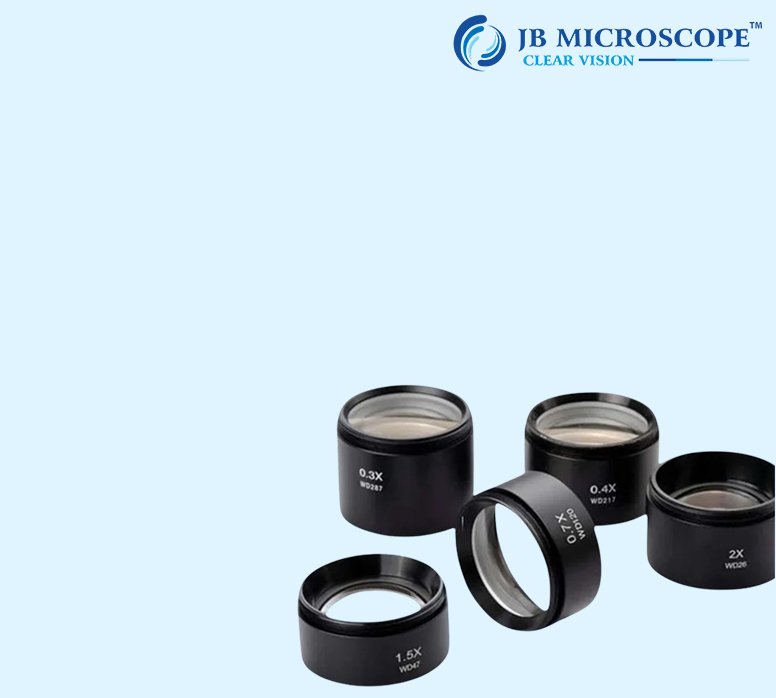

1X, 1.4X, 0.5X
56 LED Ring Light with Dimming Control, Color Temperature 5000K–5500K
Up to 30 FPS
Built-in 16GB Storage, Supports SD Card
HDMI, USB 2.0, Mini USB 2.0
Wireless Mouse & Keyboard Supported

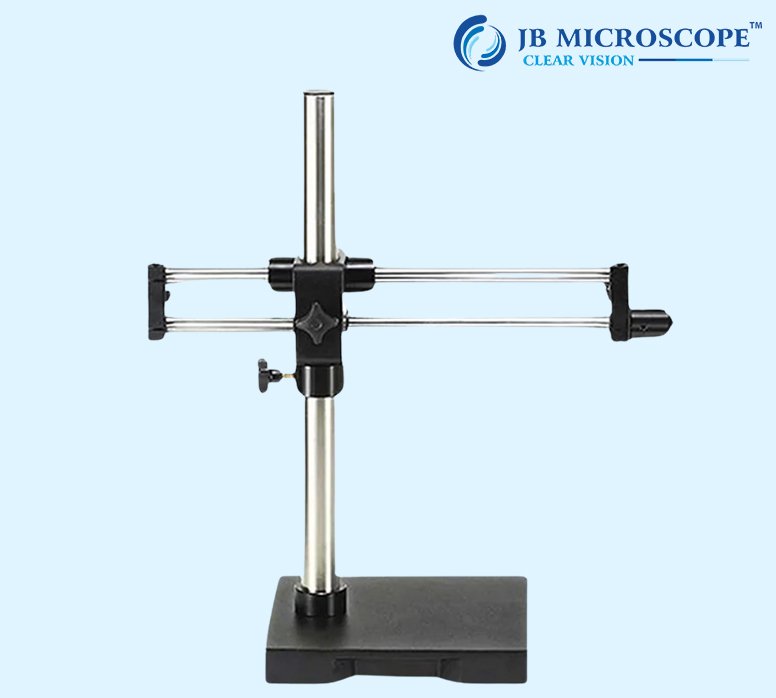

Flat Large Base with Vertical Track Stand (Stroke 225 mm)
12V / 3A Adapter
USB Cable (1.5m), HDMI Cable (5m), FTH 26W LED Ring Lamp, 12V/3A Power Adapter
Discover precision microscopes designed for laboratories, research, education, industrial inspection and advanced imaging.
The JBM-MZ-LF5 Long Focal Coaxial Microscope is a high-performance digital...
The JBM-HZ50i Horizontal Tool Testing Microscope is a high-precision optical...
The JBM-HM1000 Height Measurement Digital Microscope is a high-precision optical...
The JBM-MZ50i Digital Video Inspection Microscope is a high-performance inspection...
The JBM-DM12 Digital Portable Inspection Microscope is a professional-grade video...
The JBM-DM10 Digital Portable Inspection Microscope is a compact and...
The JBM-DM2 Digital PCB Inspection Microscope is an all-in-one industrial...
The JBM-AD10i Digital Microscope is a professional-grade inspection microscope designed...

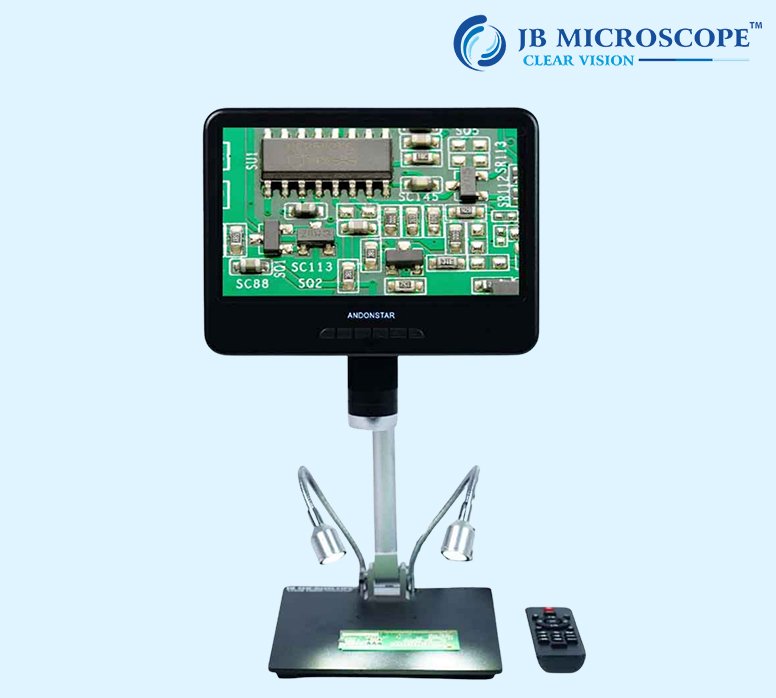

The JBM-AD10 Digital Microscope is a professional inspection system designed...
The JBM-PL8 Digital Measurement Video Microscope combines advanced optical technology...
The JBM-MZ50 Digital Inspection Video Microscope combines advanced digital imaging...
The JBM-MZ2 Digital Inspection Video Microscope is a high-performance inspection...
The JBM-MZ50A Digital 2K Precision Microscope is a professional inspection...
The JBM-PL4 4K Integrated Microscope is a high-performance digital inspection...
The JB Microscope JBM-L2 Industrial Automation Camera is a high-performance...
The JBM-iL10 Android Camera Screen is a high-performance imaging solution...
Explore this microscope product and its advanced features.
The JBM-AF8 4K HDMI Autofocus Microscope Camera is designed for...
Measuring tools for point, lines, polylines, rectangles, custom polygons, parallel...
USB3.0 high speed transmission interface, simple and convenient at the...
Screen Size 14 Inches Resolution 2160 × 1440 (2.2K) Panel...
New generation 10-inch large display with a built-in camera and...
This is a 9" high-resolution (2048 × 1536) Color LCD...
Stereo zoom microscopes allow quick zoom from low to high...

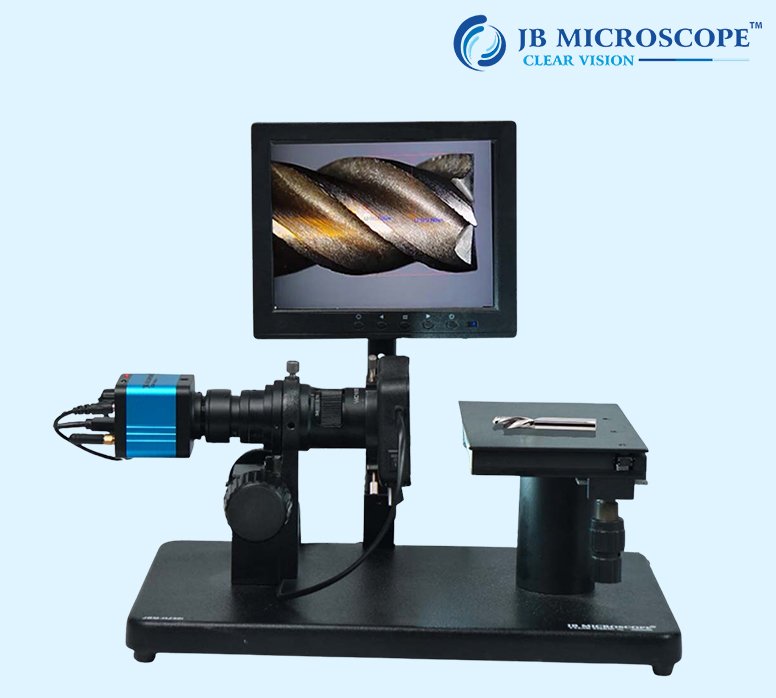

The JBM-HZ45i Horizontal Digital Inspection Microscope is a precision-engineered video...
