XY Microscope Gliding Stage, Medium 380x230mm

Quick Overview

XY Stage Travel Distance: 300x200mm.

XY-Axis Drive Mode: Manual.

Stage Platform Dimensions: 380x230mm.

Stage Height: 36mm.

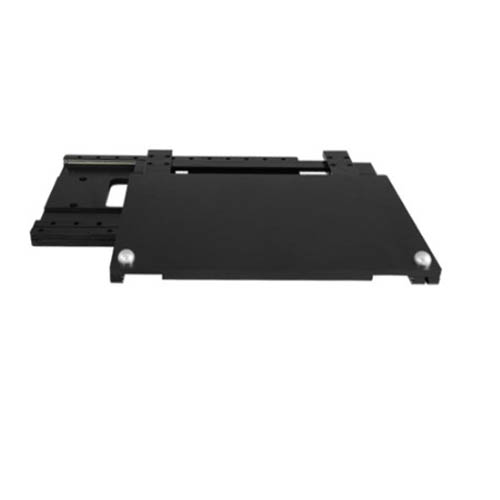

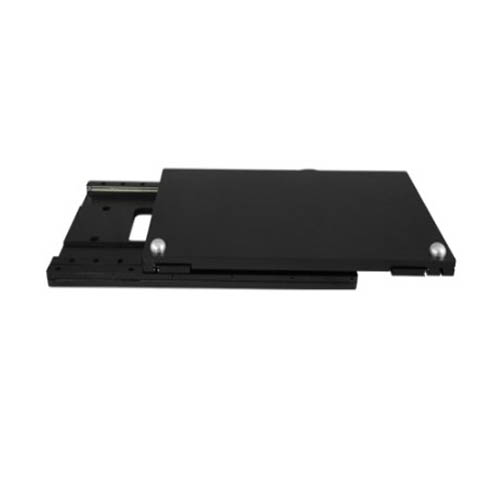

  • Gliding stage for inspection systems such as stereo microscopes or video microscopes.
  • Medium gliding stage measures 380x230mm (14-5/16 x 9-1/16 inch) with 300x200mm (11-13/16 x 7-7/8 inch) XY travel.
  • Manual stage provides smooth and controlled movement when viewing specimens under a microscope, without needing to operate gears.
  • Ideal for moving large parts underneath a microscope like circuit boards.
  • Larger size available.

This heavy duty gliding stage weighs 15 kg (33 lbs). The precision-machined bevel-cut gearing allows fine, controlled movement along the entire 300x200mm travel in both the X and Y axis.

It offers smooth motion for precise specimen positioning and controlled movement of parts underneath a microscope. Increases overall user efficiency.

300x200mm Manual Stage

XY Mechanical Stage

XY Stage Travel Distance 300x200mm
XY-Axis Drive Mode Manual
Stage Platform Dimensions 380x230mm
Stage Height 36mm
Stage Maximum Load 15.00kg (33.06lbs)
Stage Bottom Mounting Size 4 Fixing Screw Pitch: L301mm W78mm
Surface Treatment Spray Paint
Material Metal
Color Black
Net Weight 15.36kg (33.86lbs)

Packing List



Packing
Packaging Type Carton Packaging
Packaging Material Corrugated Carton
Packaging Dimensions(1) 50x40x16.5cm (19.685×15.748×6.496″)
Inner Packing Material Plastic Bag
Ancillary Packaging Materials Styrofoam
Gross Weight 16.50kg (36.38lbs)
Minimum Packaging Quantity 1pc
Transportation Carton Carton Packaging
Transportation Carton Material Corrugated Carton
Transportation Carton Dimensions(1) 50x40x16.5cm (19.685×15.748×6.496″)
Total Gross Weight of Transportation(kilogram) 16.50
Total Gross Weight of Transportation(pound) 36.38
Quantity of One Transportation Carton 1pc

An XY microscope gliding stage with medium dimensions of 380x230mm is a specialized component in microscopy designed for precise and controlled movement of specimens in both the horizontal X and Y axes. Here are the key features and details associated with an XY microscope gliding stage of this size:

  1. XY Movement:
    • Allows controlled movement in both the horizontal X and Y axes, facilitating precise positioning of specimens for microscopic examination.
  2. Gliding Mechanism:
    • Incorporates a gliding or sliding mechanism for smooth and controlled motion.
    • The gliding mechanism reduces friction, enabling fine adjustments during specimen positioning.
  3. Dimensions – 380x230mm:
    • Specifies the size of the platform or stage, where the dimensions are 380mm by 230mm.
    • The medium size (380x230mm) provides a relatively spacious platform for accommodating larger specimens or multiple samples simultaneously.
  4. Manual or Motorized Operation:
    • May be designed for manual operation, allowing users to make adjustments using knobs or handles.
    • Alternatively, it could be motorized, providing automated and programmable movements.
  5. Compatibility with Microscopes:
    • Designed to be compatible with various microscope models.
    • Ensures easy integration with the microscope system for coordinated observations.
  6. Sample Holder/Platform:
    • Features a platform or holder where the microscope slides or specimens are placed.
    • The design may include securing mechanisms to hold the specimens in place during movement.
  7. Applications:
    • Used in various microscopy applications, including biological research, materials science, and other fields where precise specimen positioning is crucial.
    • Particularly suitable for tasks that involve larger specimens or multiple samples.
  8. Versatility:
    • Provides versatility in terms of accommodating different sample sizes and types.
    • Allows for incremental movements to navigate specific regions of interest with precision.
  9. Build Quality:
    • Constructed with high-quality materials and precision components to ensure stability and repeatability of movements.

This XY microscope gliding stage with a medium-sized platform (380x230mm) is suitable for laboratories and research environments where larger specimens or multiple samples need to be precisely positioned and observed under a microscope. The larger platform size offers flexibility for a variety of applications across different scientific disciplines.
