| Eyepiece | Objective 1X | Objective 2X | Objective 3X | Objective 4X | ||||
|---|---|---|---|---|---|---|---|---|
| Working Distance 100mm | ||||||||
| Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | |
| 10X/20mm | 10X | 20.0mm | 20X | 10.0mm | 30X | 7.5mm | 40X | 5.0mm |
| 15X/15mm | 12X | 15.0mm | 30X | 7.5mm | 45X | 5.0mm | 60X | 3.3mm |
| 20X/10mm | 20X | 10.0mm | 40X | 5.0mm | 60X | 3.3mm | 80X | 2.5mm |
| Magnification | 20X-40X, 10X-80X with optional eyepieces and objectives | |||||||
|
Eyepiece |
WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses | |||||||
| Optional
Eyepiece |
WF10X/20mm, WF15X/15mm, WF20X/10mm |
|||||||
|
Main Body |
Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired | |||||||
| Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters | ||||||||
| Objective | 2X/4X, 1X/3X, 1X/2X | |||||||
| Focusing Mount |
A1 focusing mount with vertical working distance 50mm |
|||||||
| Stand | B1 pole stand, for more options, please refer to “ACCESSORIES- MICROSCOPE STAND”
|
|||||||
| Illumination | Fluorescent lamp, LED ring light, for more option. | |||||||

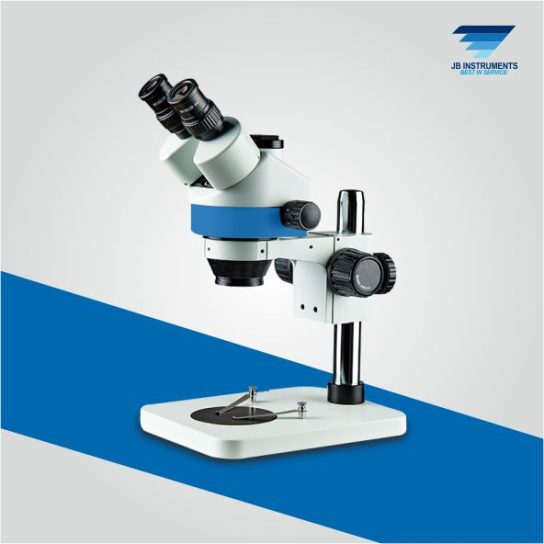

In the area of microscopy, the trinocular stereo microscope stands as a remarkable instrument that opens up a fascinating world of detail and precision. Whether you’re a seasoned scientist, a student delving into the wonders of biology, or an enthusiast exploring the microscopic universe, the trinocular stereo microscope is a versatile tool that offers a three-dimensional insight into the intricate structures of various specimens.
Understanding the Basics:
1. What Sets Trinocular Stereo Microscopes Apart?
Trinocular stereo microscopes, distinguished by their three eyepieces, offer a unique advantage over traditional binocular microscopes. The third eyepiece allows for simultaneous viewing through eyepieces and a connected camera or other imaging devices, facilitating documentation and sharing of observations.
2. Stereo Vision for Enhanced Depth:
Unlike compound microscopes, stereo microscopes provide a three-dimensional view of the specimen, offering enhanced depth perception. This makes them ideal for tasks that require intricate manipulation, such as intricate dissections or assembly of small components.
Applications and Industries:
1. Biological Sciences:
Trinocular stereo microscopes play a pivotal role in biological research, allowing scientists to observe living organisms, study cell structures, and perform delicate dissections with unparalleled clarity.
2. Electronics and Manufacturing:
In the world of electronics and manufacturing, these microscopes are indispensable. Engineers and technicians use them for quality control, precision assembly, and inspection of small components.
3. Education:
In educational settings, trinocular stereo microscopes empower students to explore the microscopic world hands-on. From biology classes to material science labs, these microscopes foster a deeper understanding of the subjects.
In the world of microscopy, the trinocular stereo microscope stands tall as a versatile and indispensable tool. From its applications in scientific research to its role in education and industry, this microscope offers a unique perspective that enriches our understanding of the microscopic world. By exploring its features, applications, and providing valuable insights, this article aims to be a comprehensive guide for those seeking to unravel the wonders hidden within the lens of a trinocular stereo microscope.
