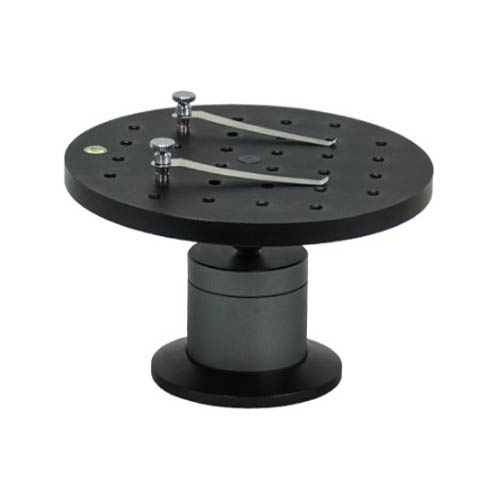

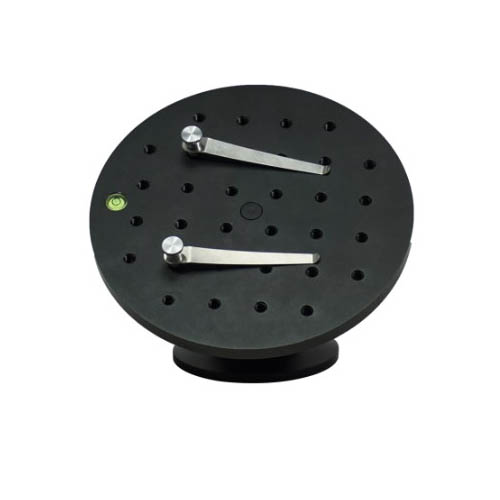

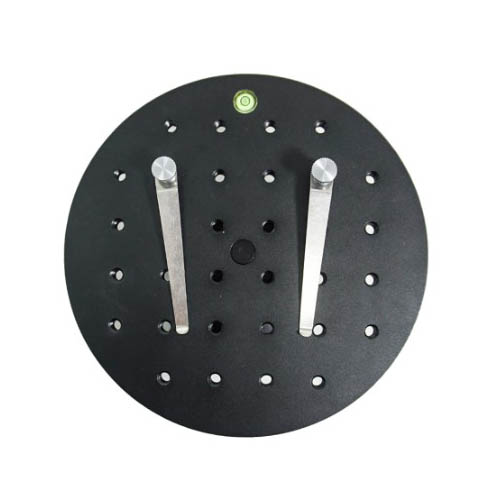

Tilt Stage Diameter 180mm Level Adjustable Stage

Quick Overview
Mounting Holes Position: 25x25mm. M6. Stage Height: 100mm. Tilt Stage Diameter: 180mm. 0-45° Inclined within the Range of 360°.

 Level Adjustable Stage

Tilt Stage

Mounting Holes Position 25x25mm
Mounting Hole Dimensions M6
Stage Height 100mm
Tilt Stage Diameter 180mm
Tilt Stage Bottom Mount Size Dia. 95mm

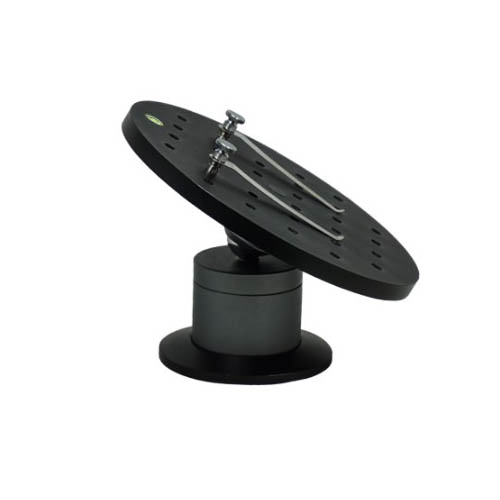

Stage Inclination Range 0-45° Inclined within the Range of 360°
Surface Treatment Electroplating Black
Material Metal
Color Black
Net Weight 1.68kg (3.70lbs)

Packing List

Packaging Type Carton Packaging
Packaging Material Corrugated Carton
Packaging Dimensions(1) 24x23x26cm (9.449×9.055×10.236″)
Inner Packing Material Plastic Bag
Ancillary Packaging Materials Expanded Polystyrene
Gross Weight 2.04kg (4.50lbs)
Minimum Packaging Quantity 1pc
Transportation Carton Carton Packaging
Transportation Carton Material Corrugated Carton
Transportation Carton Dimensions(1) 24x23x26cm (9.449×9.055×10.236″)
Total Gross Weight of Transportation(kilogram) 2.04
Total Gross Weight of Transportation(pound) 4.50
Quantity of One Transportation Carton 1pc

A tilt stage with a diameter of 180mm and level adjustable features is a specialized component used in microscopy or other optical systems. Let’s break down the key features:

  1. Tilt Stage: A tilt stage is designed to allow controlled tilting or angular adjustments of the specimen or sample. This feature is useful for obtaining different viewing perspectives and for applications where oblique illumination or imaging is required.
  2. Diameter 180mm: This specifies the diameter of the stage, indicating the size of the platform where the specimen or sample is placed. In this case, it is 180mm, providing a moderate-sized surface area for accommodating various types of samples.
  3. Level Adjustable: The level adjustable feature means that the stage can be adjusted to ensure that it is perfectly level. This is important for maintaining accuracy and consistency in observations, especially in applications where precise alignment is crucial.

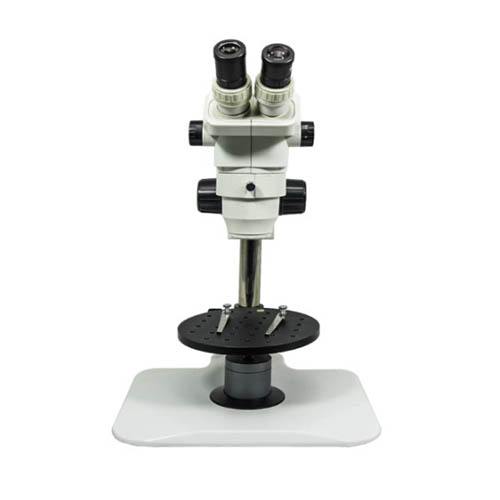

The combination of tilt functionality and level adjustability makes this stage suitable for applications where obtaining specific viewing angles or orientations is essential. It can be particularly valuable in microscopy, allowing researchers to observe specimens from different perspectives or under specific lighting conditions.

The 180mm diameter provides a reasonably sized platform for a variety of samples, making the stage versatile for different types of microscopy applications. The level adjustable feature ensures that the stage can be precisely aligned for accurate observations.
