| 8R | ||
| Eyepieces | Hight eyepoint plan eyepiece PL10X/25mm, Diopter adjustable
Hight eyepoint plan eyepiece PL10X/25mm, Diopter adjustable, with reticle Hight eyepoint plan eyepiece PL10X/26.5mm, Diopter adjustable Hight eyepoint plan eyepiece PL10X/26.5mm, Diopter adjustable, with reticle |
●●
|

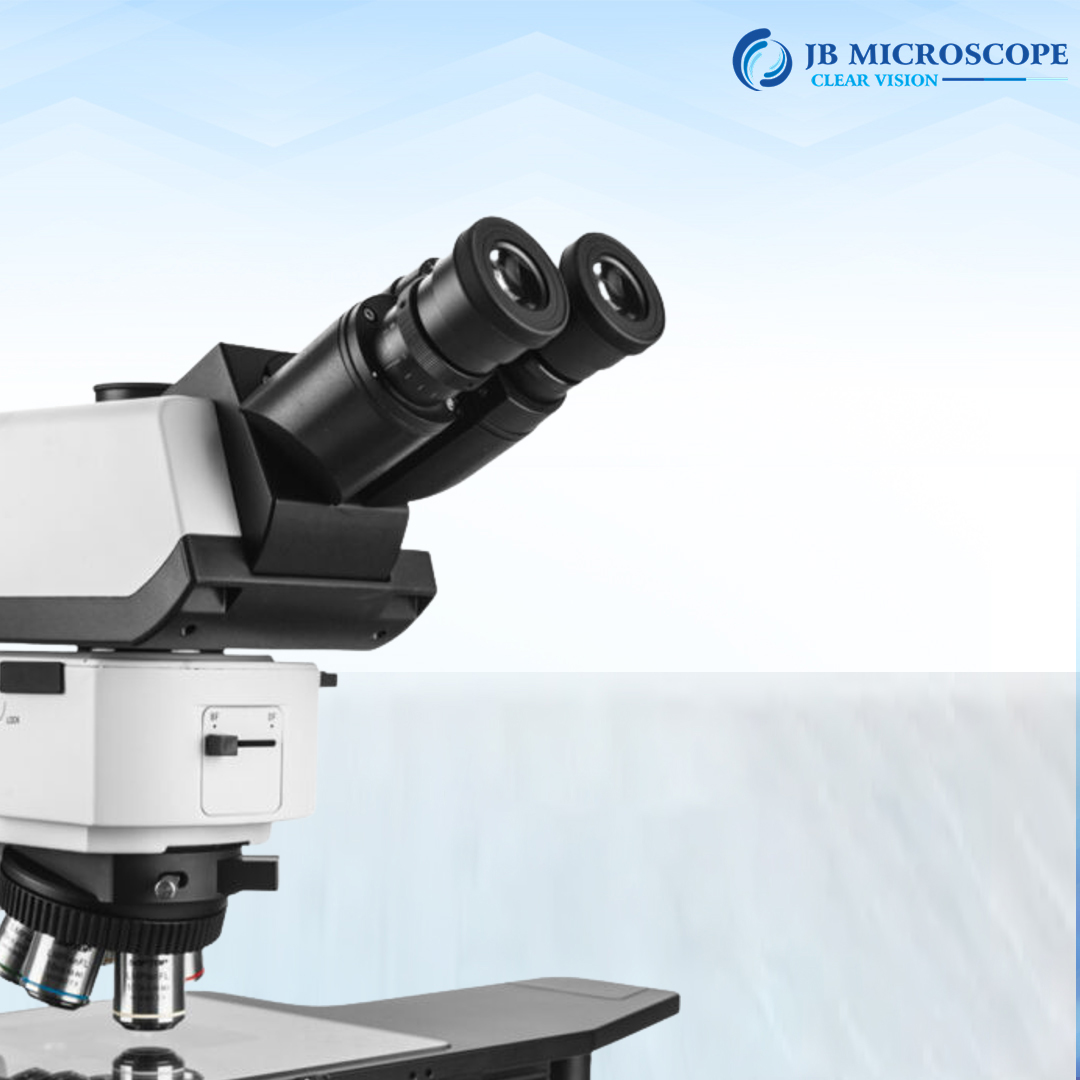

| Head | 30° inclination, upright image, Compensation Free Trinocular, interpupillary distance: 50-76mm, splitting ratio R:T=100 : 0 or 0 : 100
30° inclination, inverted image, Compensation Free Trinocular, interpupillary distance: 50-76mm, splitting ratio R:T=100:0 or 0:100 or 20: 80 5-35° tilt angle adjustable, Erect image, Compensation Free Trinocular, interpupillary distance: 50-76mm, splitting ratio R:T=100 : 0 or 0 : 100 or 50 : 50 |
●
|

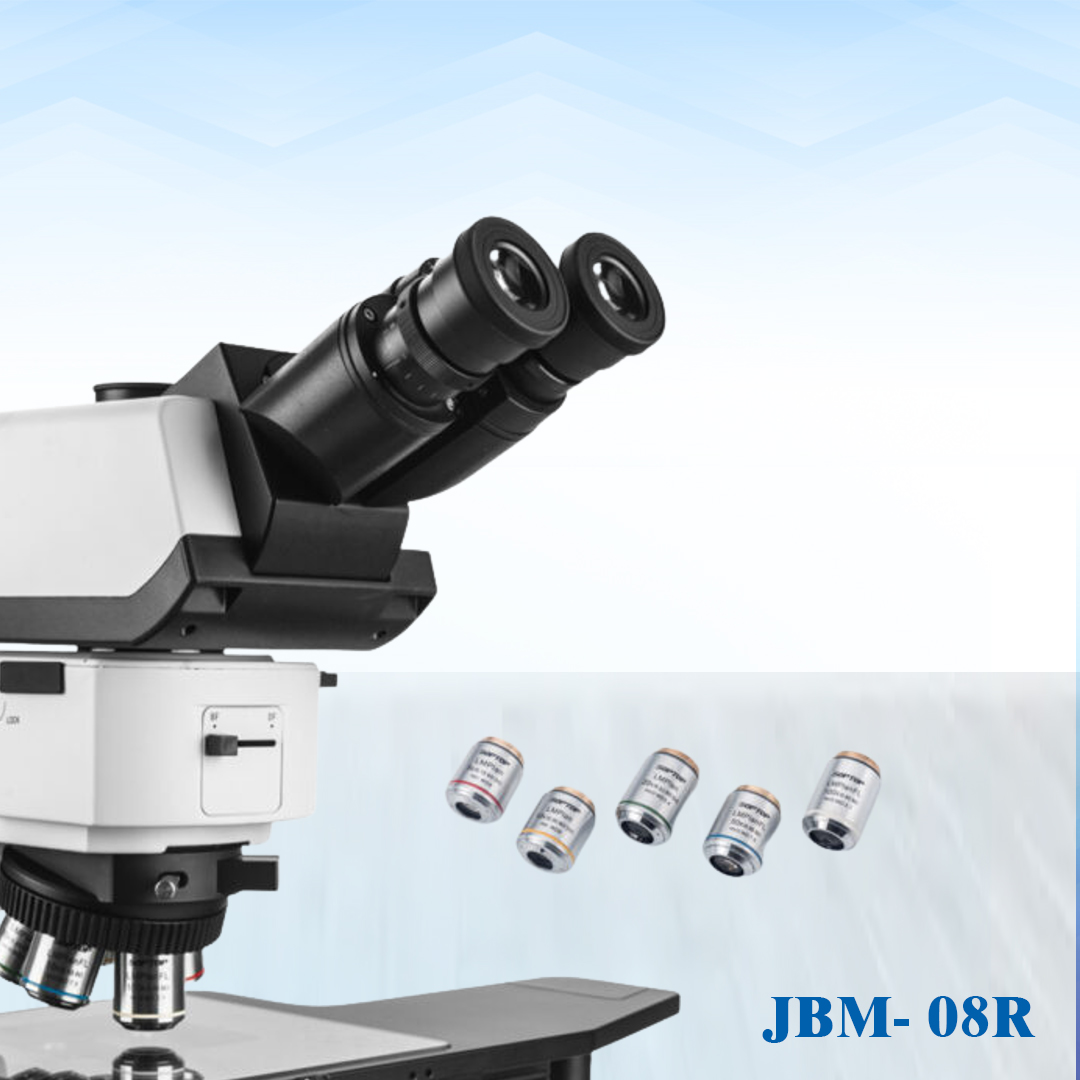

| Objective 1 | B&D semi-aprochromatic metallurgical objective 5X / 0.15, WD=13.5mm
B&D semi-aprochromatic metallurgical objective 10X / 0.3, WD=9.00mm B&D semi-aprochromati metallurgicalc objective 20X / 0.5, WD=2.50mm LWD B&D semi-aprochromatic metallurgical objective 20X / 0.4,WD=8.50mm B&D semi-aprochromati metallurgicalc objective 50X / 0.8, WD=1.00mm B&D semi-aprochromati metallurgicalc objective 100X / 0.9, WD=1.00mm |
●
●
●
|
| Objective 2 | LWD B&D semi-aprochromati metallurgicalc objective 50X / 0.55, WD=7.5mm
LWD B&D semi-aprochromati metallurgicalc objective 100X / 0.8, WD=2.1mm |
●
|
| Objective 3 | Bright field semi-aprochromati metallurgicalc objective 5X / 0.15, WD=19.5mm
Bright field semi-aprochromati metallurgicalc objective 10X / 0.30, WD=10.9mm Bright field semi-aprochromati metallurgicalc objective 20X / 0.50, WD=3.2mm Bright field semi-aprochromati metallurgicalc objective 50X / 0.80, WD=1.20mm Bright field semi-aprochromati metallurgicalc objective 100X / 0.9, WD=1.00mm |
|
| DIC | DIC Slider | |

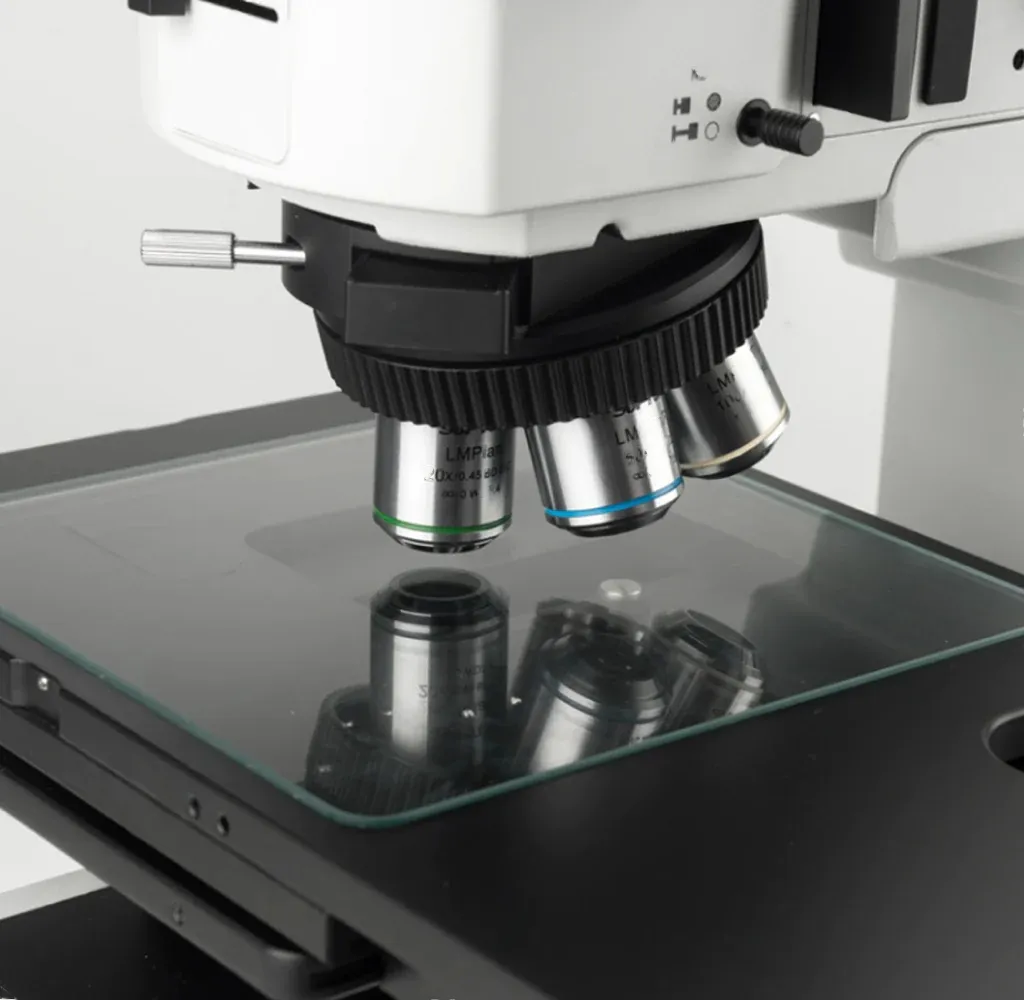

| Nosepiece | Bright & Dark field sextuple nosepiece ( with DIC slot )
Bright & Dark field quintuple nosepiece ( with DIC slot ) Bright field sextuple nosepiece ( with DIC slot ) Bright field Septuple nosepiece ( with DIC slot ) |
●
|
| Focus | Coaxial Coarse and fine focusing adjustment, Coarse adjustment distance: 33mm, precision of fine adjustment: 0.001mm, with loosen and tight limit ring | ● |
| Stage | 8″ three layers mechanical stage 525x330mm, moving range: 210X210mm, X-Ymoving hand wheel, with clutch handle right hand shank, can move quickly, glass work plate
6″ three layers mechanical stage 455x240mm, moving range: 158X158mm, transmitted Light moving range: 158x158mm, reflected light moving range:100x100mm, X-Ymoving hand wheel, with clutch handle right hand shank, can move quickly, glass work plate |
●
|
| Condensor | B&D reflect illumination, with Iris field diaphragm and aperture diaphragm, central adjustable, with filter slot and polarizing slot, with switch device sIth bright and dark field | ● |

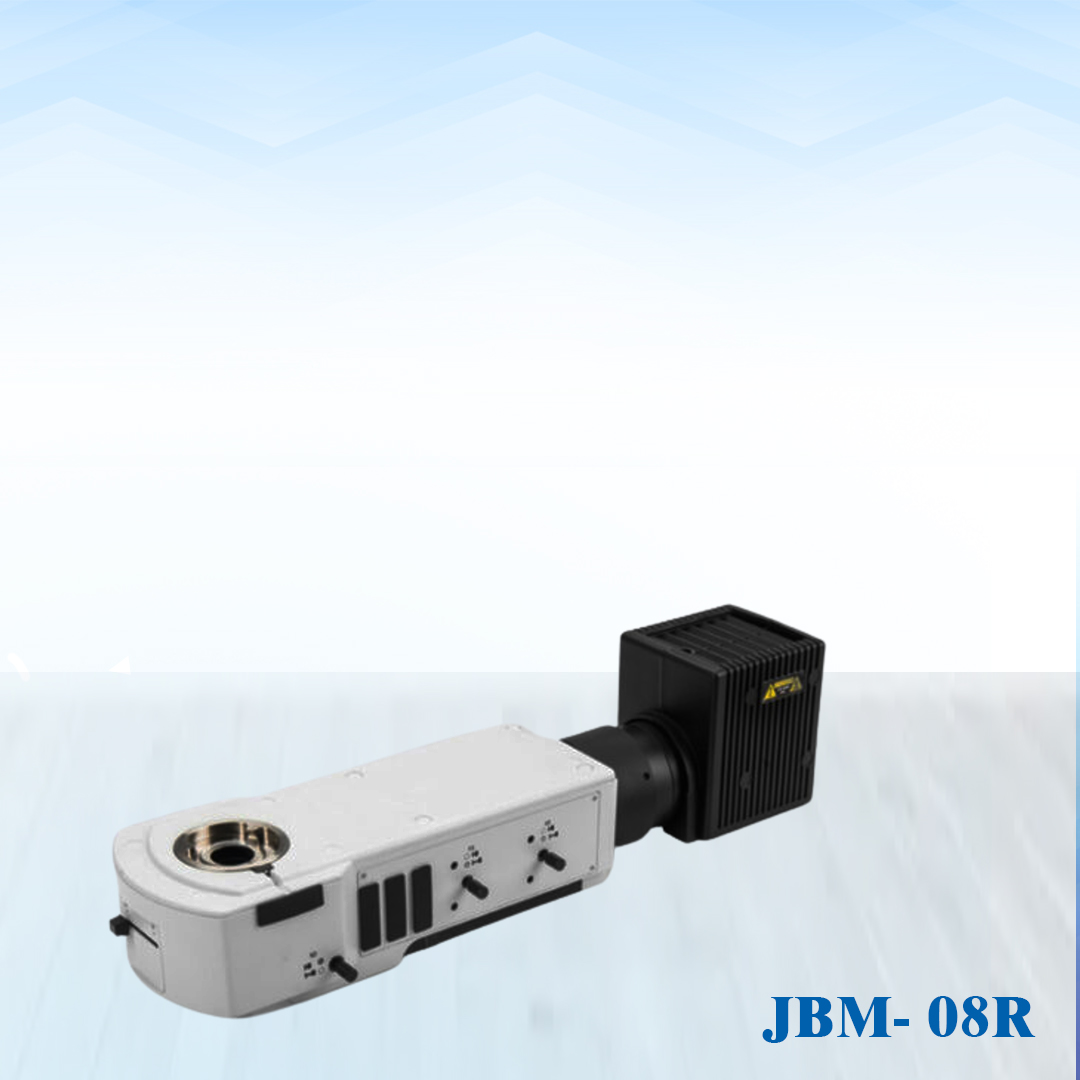

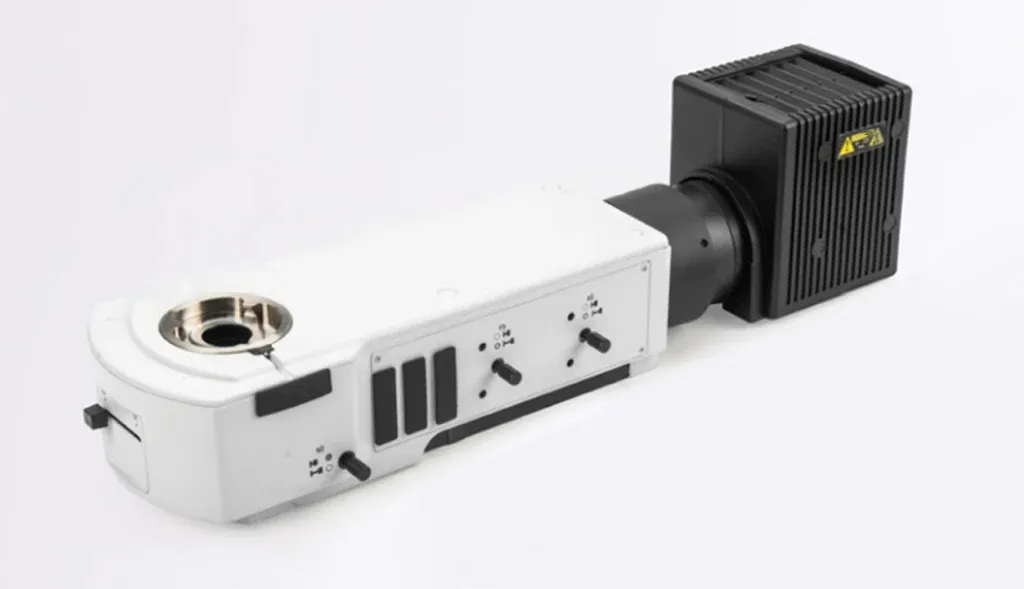

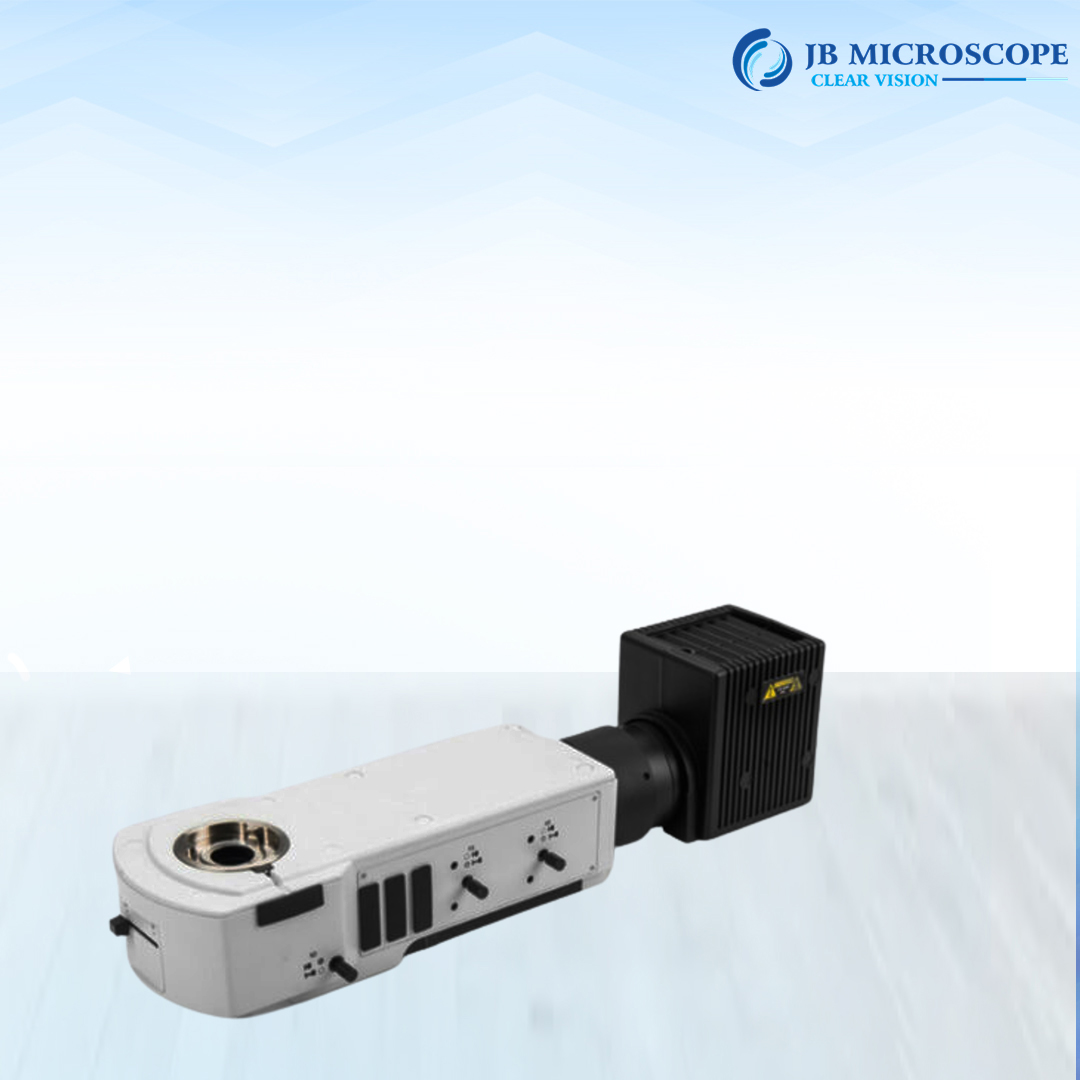

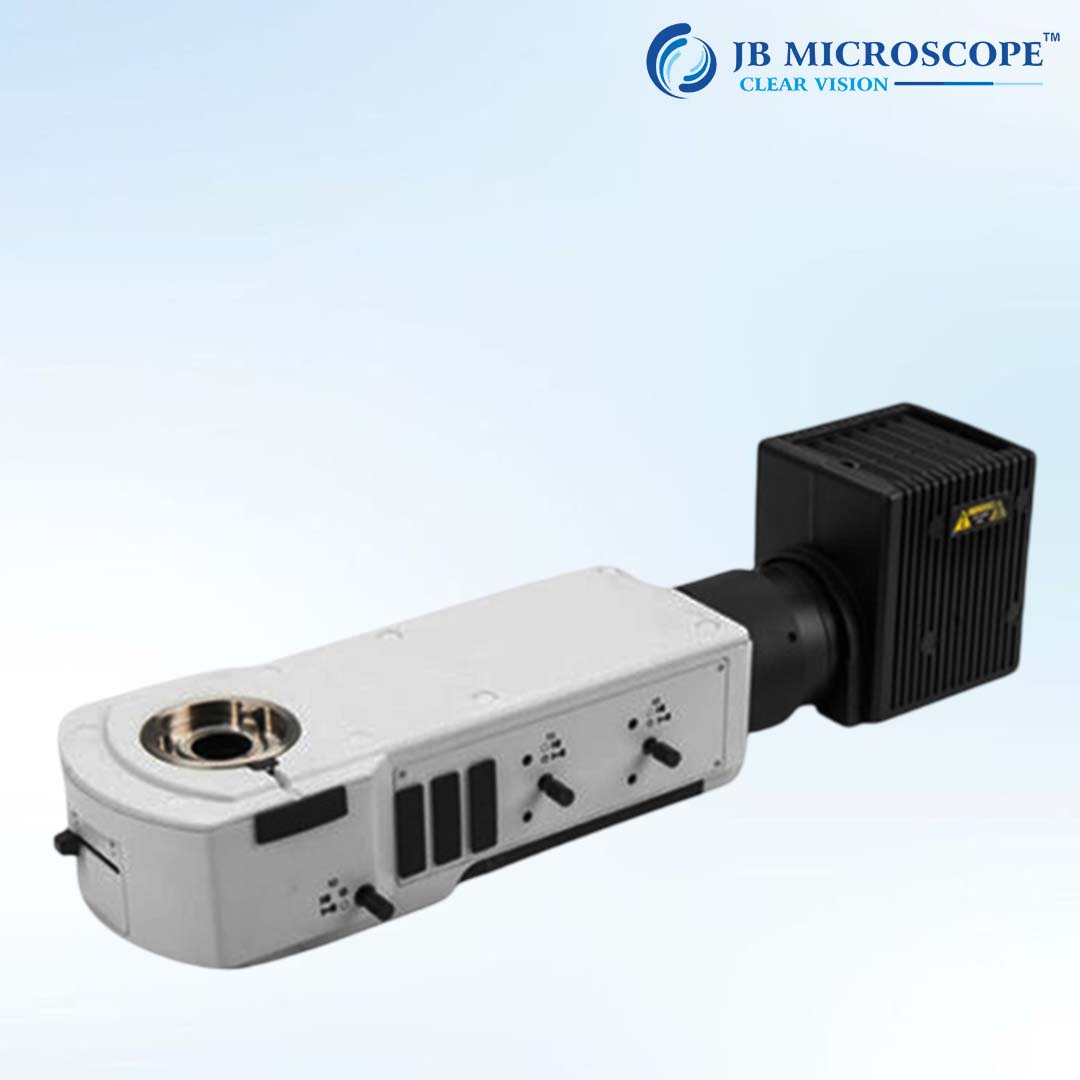

| Refelcted Illumination | 12V100W Halogen house, Pre-Centering, Digital Dimming Can Be With Bright Intensity Settings And Reset Function
12v100W Halogen lamp |
●
● |
| Accessories | 8 inch Rrotatable wok plate, apply to 6, 8 inch Wafer | ● |
| IF Filter | Blue IF Filter, ( for reflection ): ≤ 480nm
Green IF Filter, ( for reflection ): 520-570nm Red IF Filter, ( for reflection ): 630-750nm Natural IF Filter, ( for reflection ) |
● |
| Polarizing kits | Polarizer ( for reflection )
360° Rrotatable analyzer Fixed analyzer ( for reflection ) |
●
●
|
| Camera adapter Accessories |
0.35X camera adapter, C-type interface, adjustable
0.5X camera adapter, C-type interface, adjustable 0.65X camera adapter, C-type interface, adjustable 1X camera adapter, C-type interface, adjustable |
|
| Micrometer Accessories | High-precision micrometer, grid value 0.01mm |

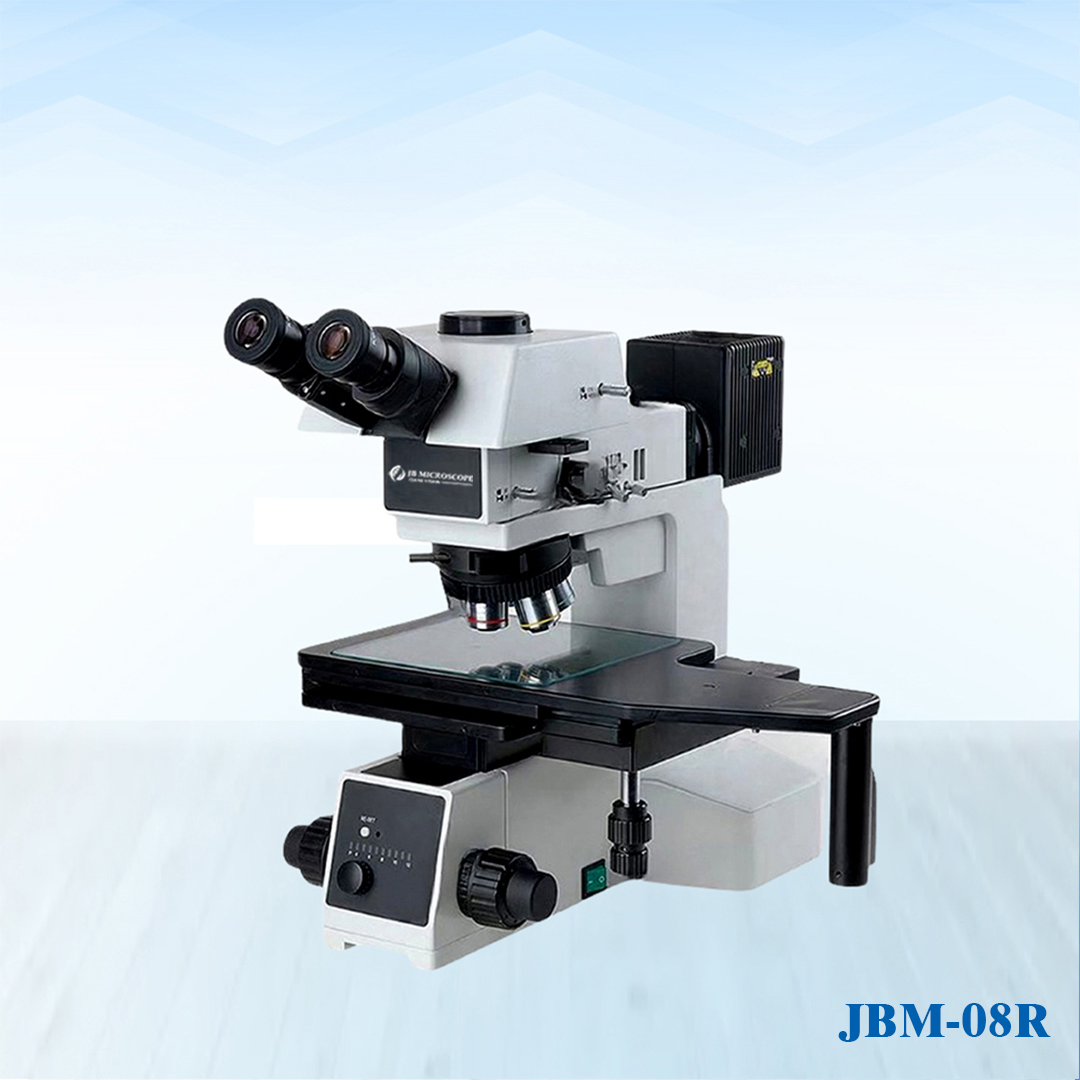

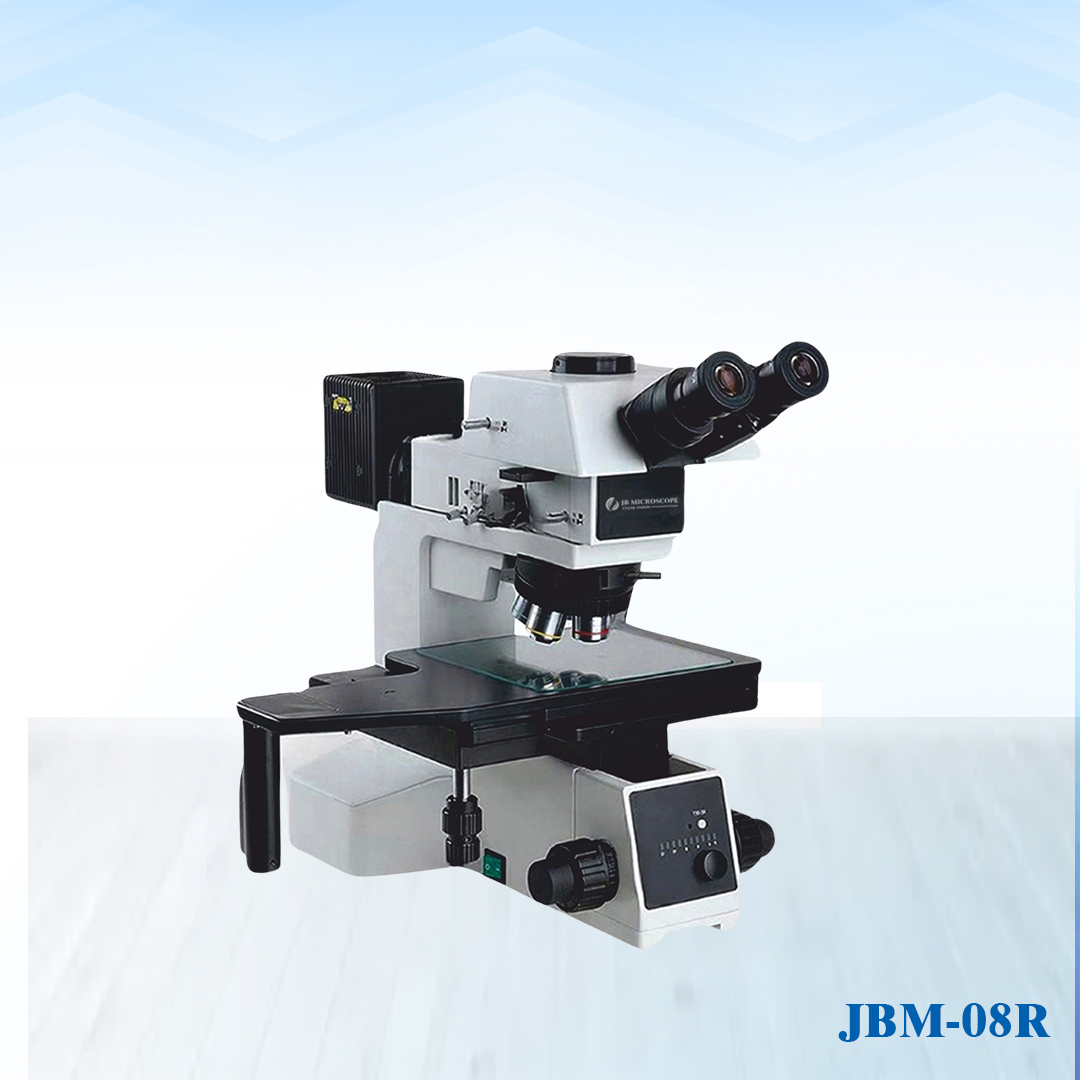

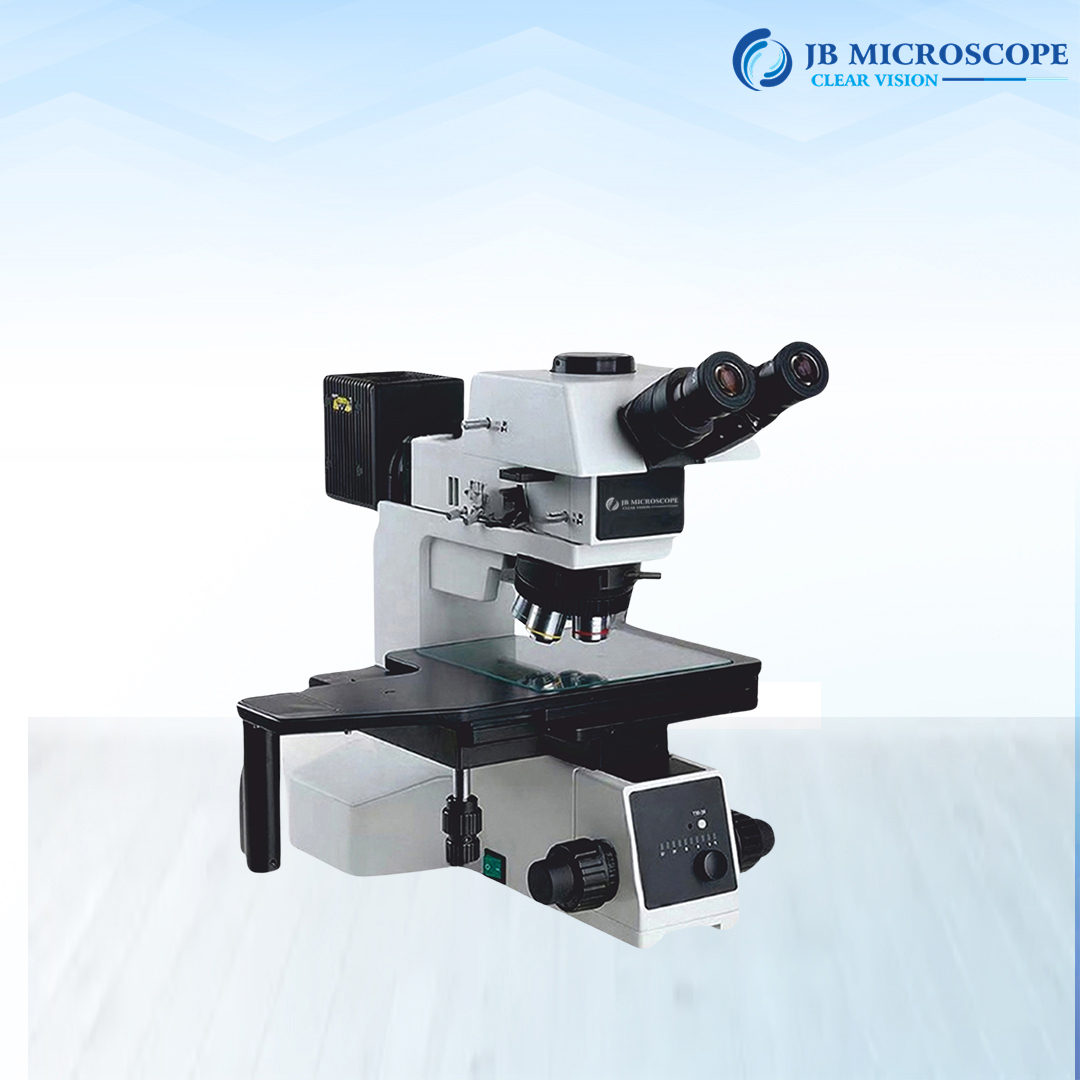

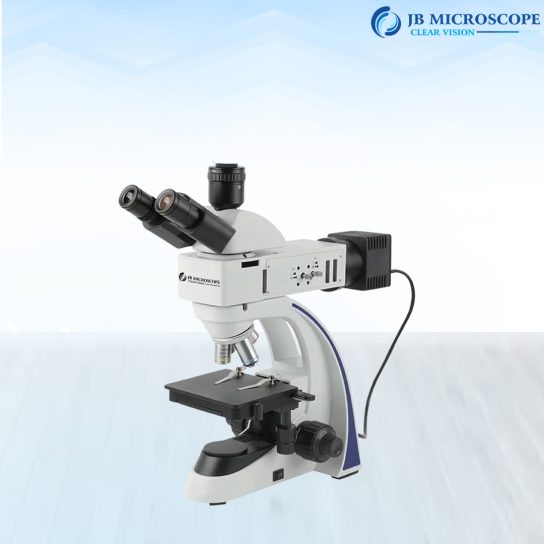

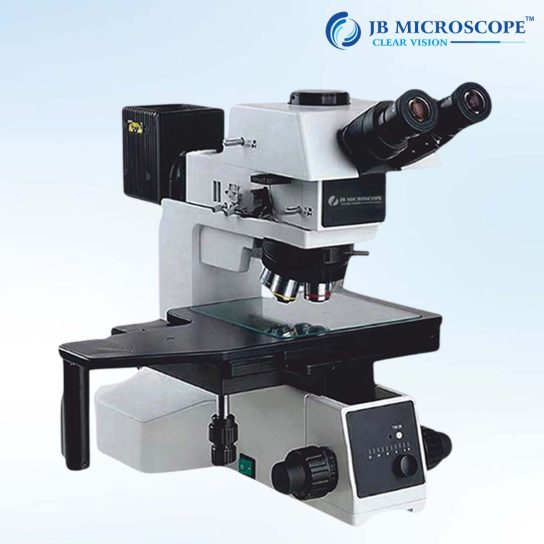

The Upright Metallurgical Microscope stands at the forefront of materials science, offering a window into the intricate world of metal structures. Specifically designed for the detailed analysis of opaque materials, this microscope is an indispensable tool in metallurgical research, quality control, and failure analysis.
Key features of the Upright Metallurgical Microscope include powerful magnification capabilities, sophisticated optics, and an ergonomic design. The upright configuration allows for the examination of polished metal specimens, enabling researchers and metallurgists to observe and analyze the microstructural features, grain boundaries, and phases present in metallic materials.
The microscope’s versatility makes it an essential asset in industries such as metallurgy, manufacturing, and materials science. It plays a crucial role in ensuring the quality and integrity of metal components by providing insights into their composition and structural characteristics. Quality control processes benefit from the precision and accuracy of the Upright Metallurgical Microscope, allowing for thorough inspections of metal samples to meet stringent industry standards.
Researchers in metallurgy leverage this tool for in-depth studies, contributing to advancements in alloy development, material design, and process optimization. The Upright Metallurgical Microscope is particularly effective for analyzing metal samples that are conventionally prepared and mounted for microscopic examination.
With cutting-edge technology and a focus on user-friendly design, the Upright Metallurgical Microscope empowers scientists, engineers, and quality control professionals to explore the microcosm of metals, providing valuable insights that drive innovation and excellence in materials science and industry.
