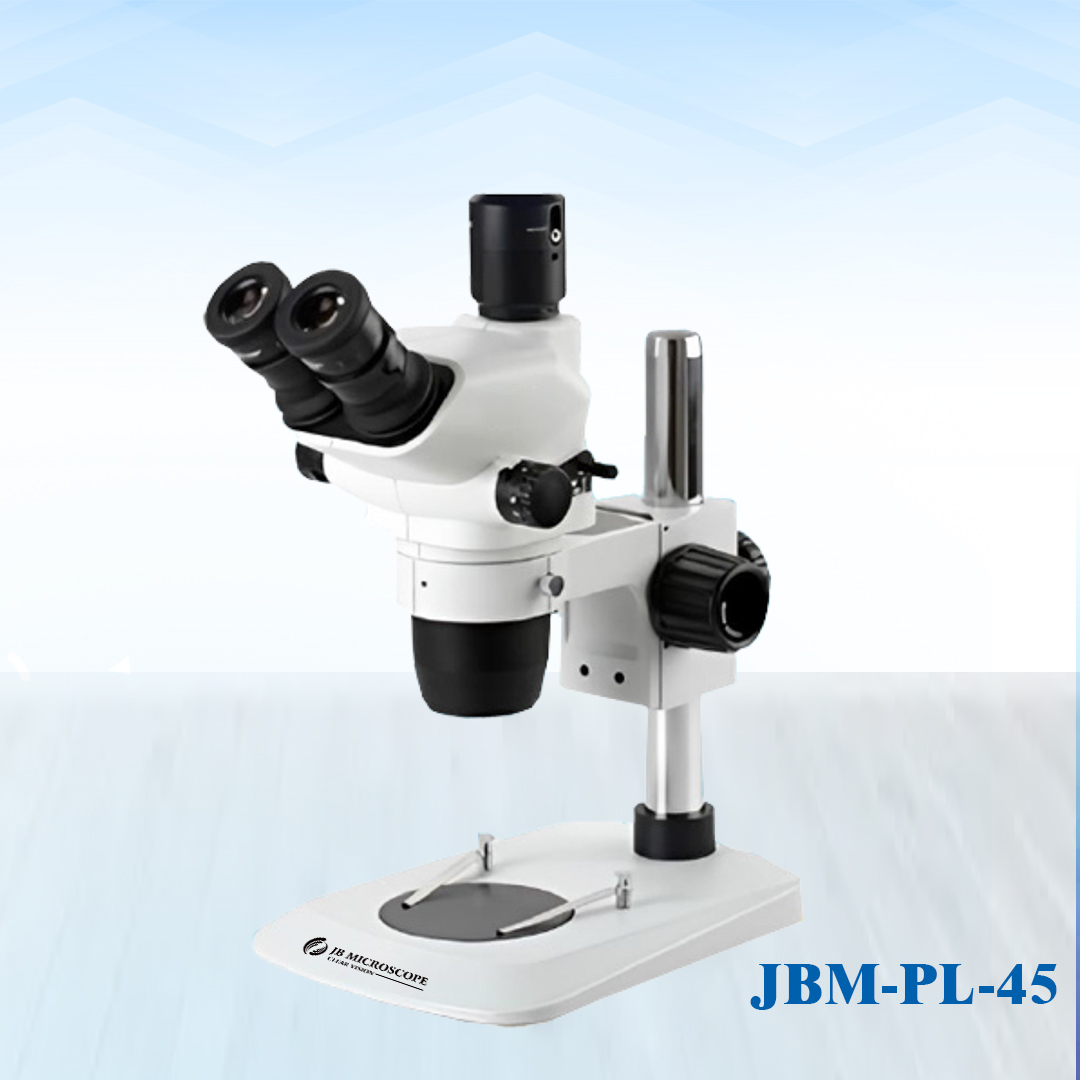

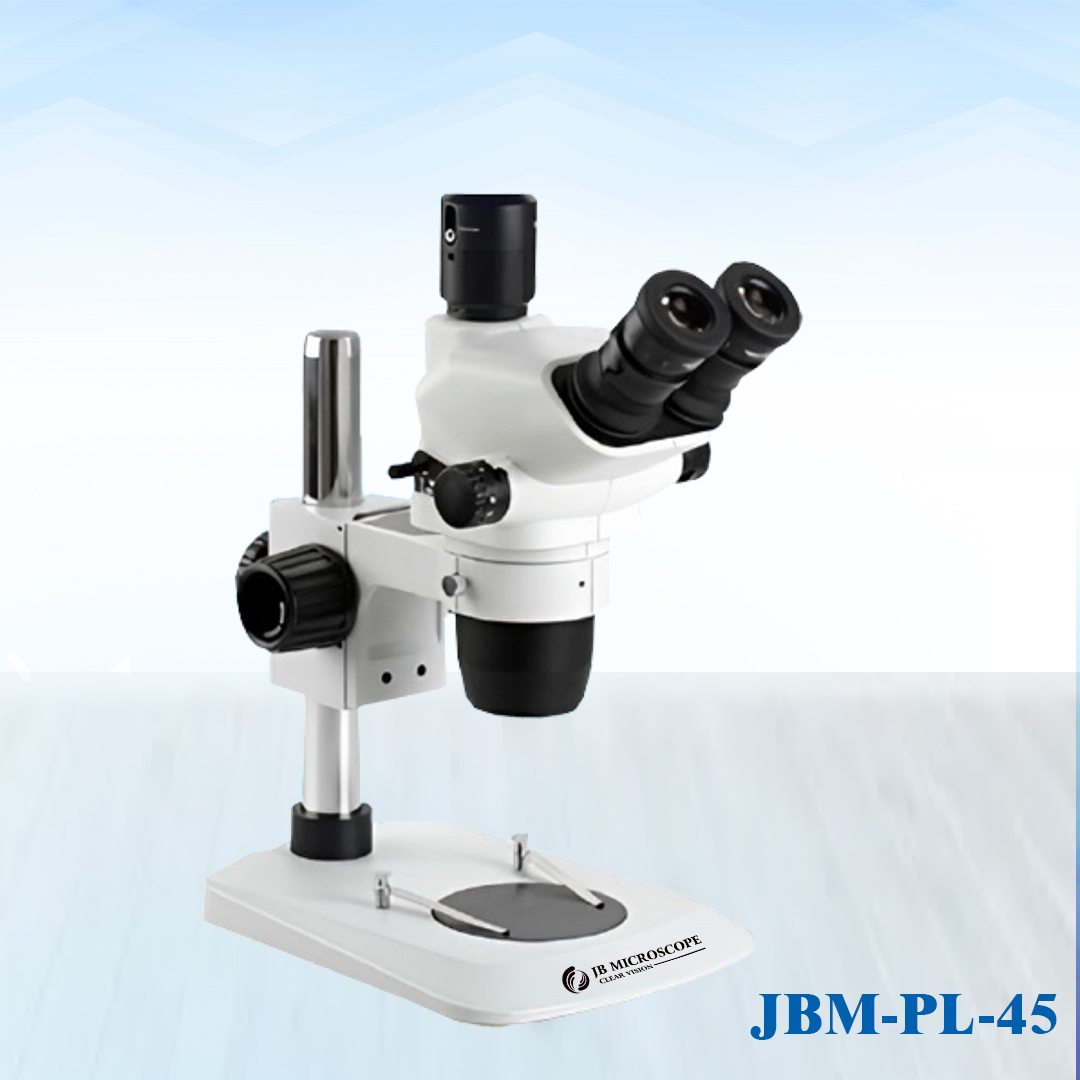

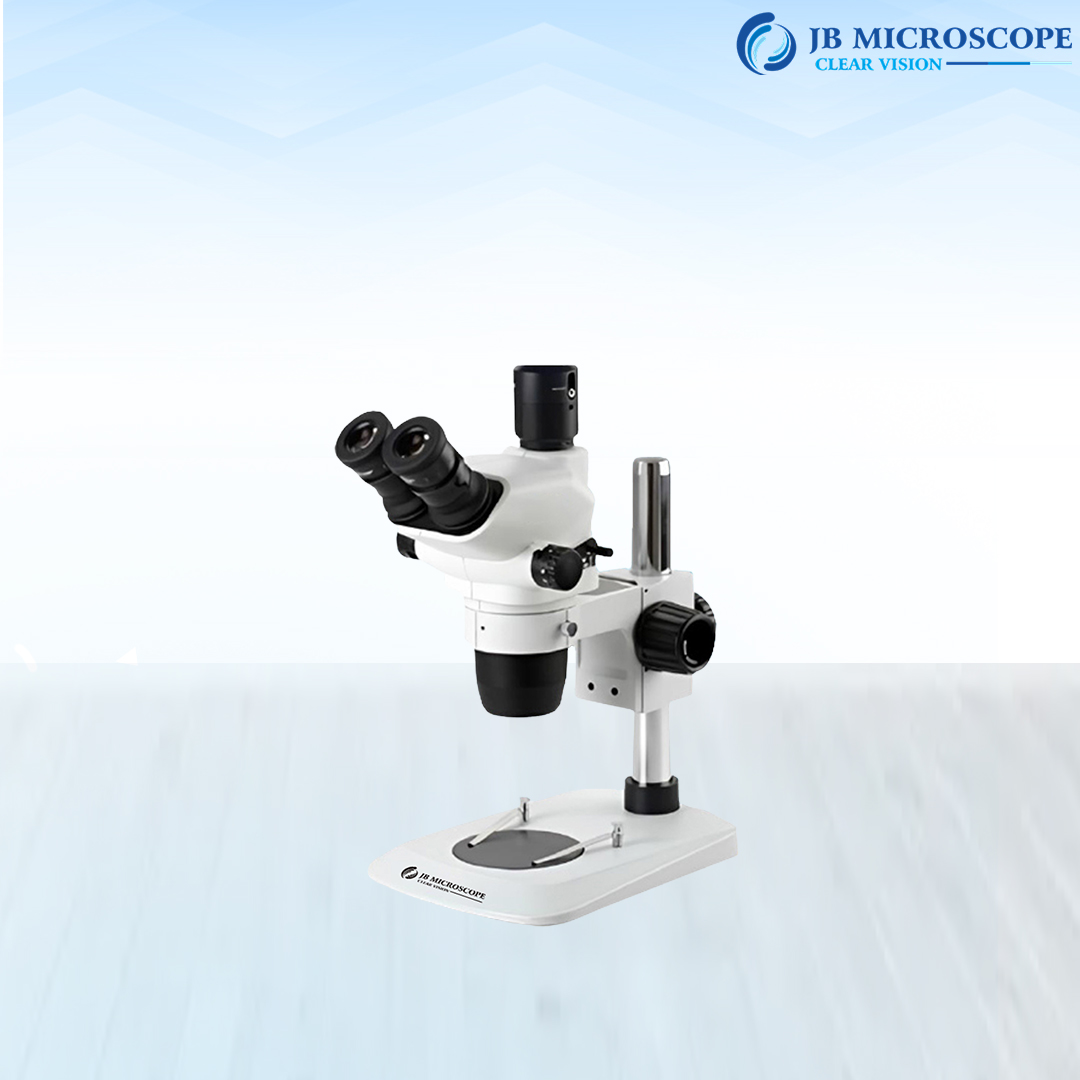

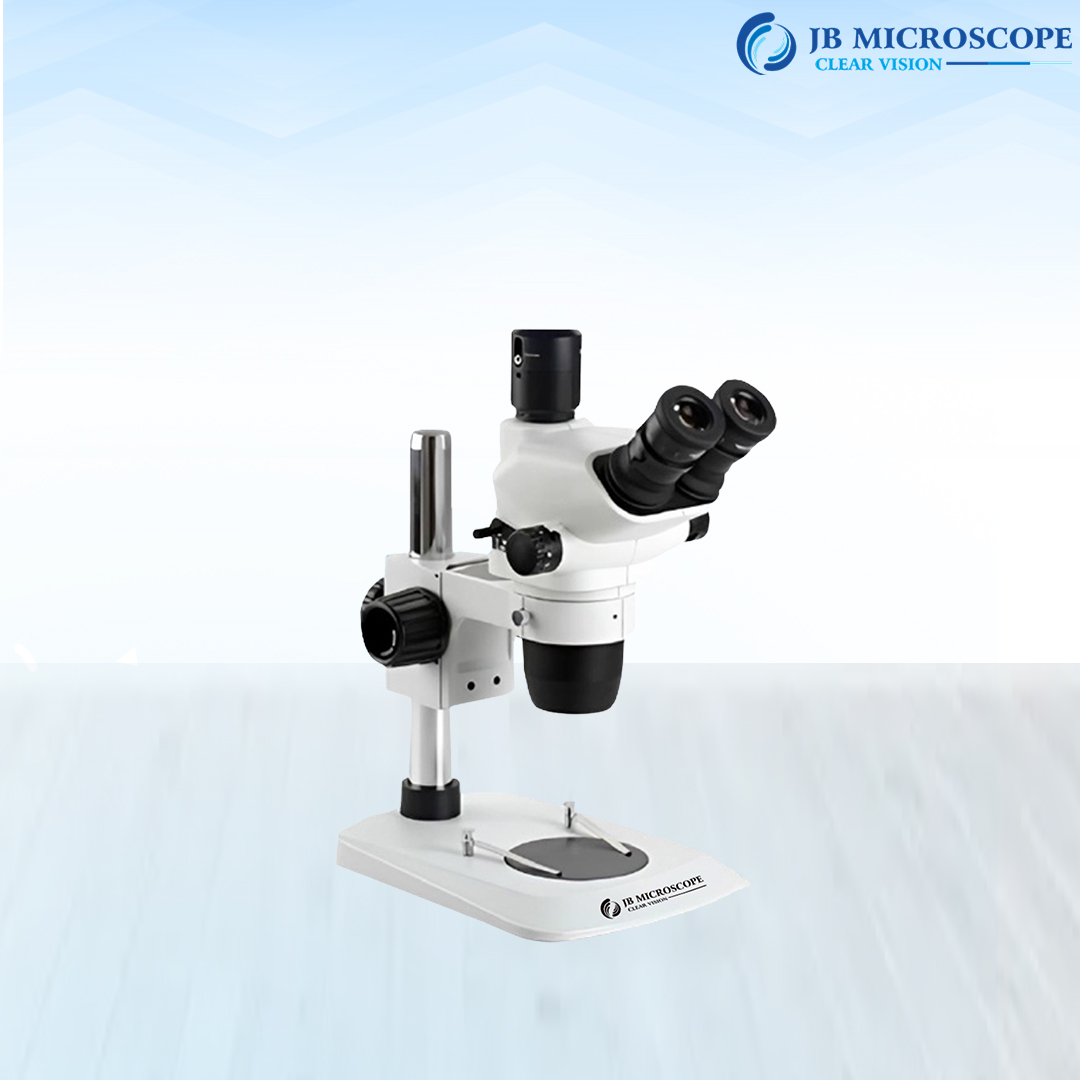

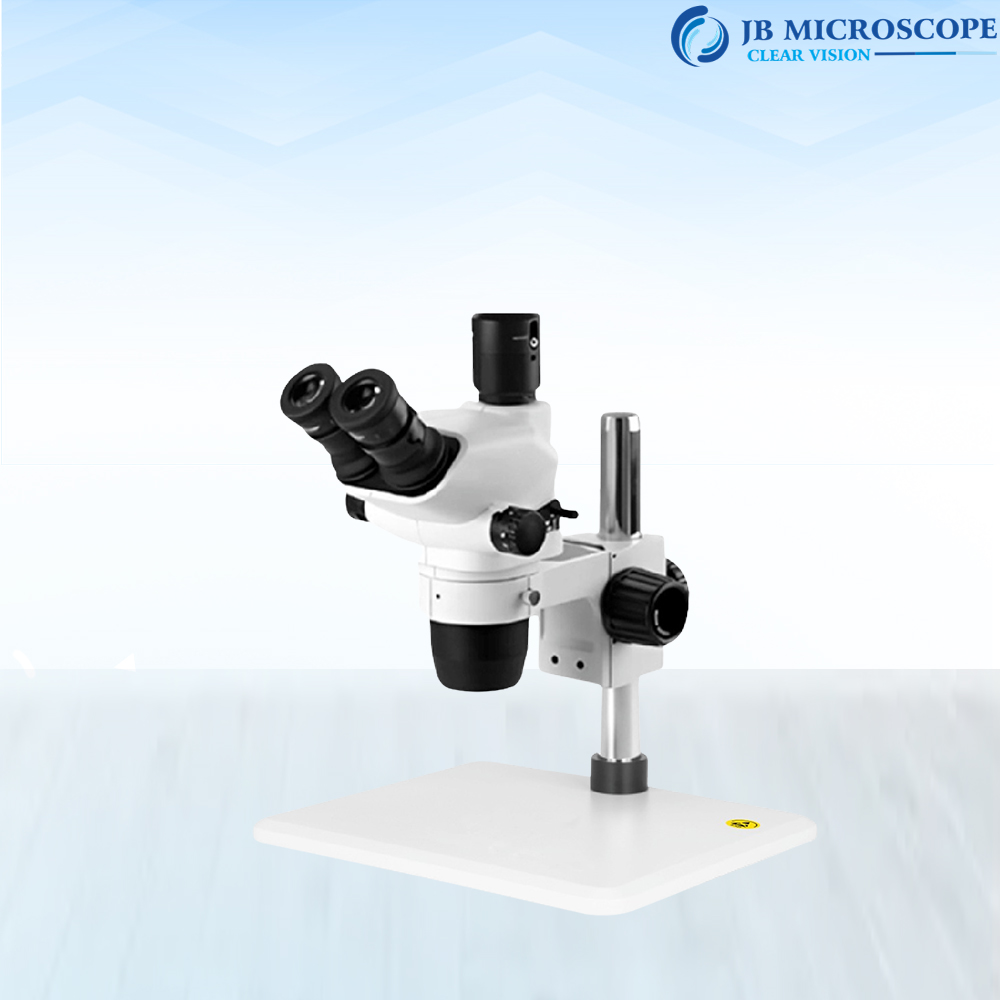

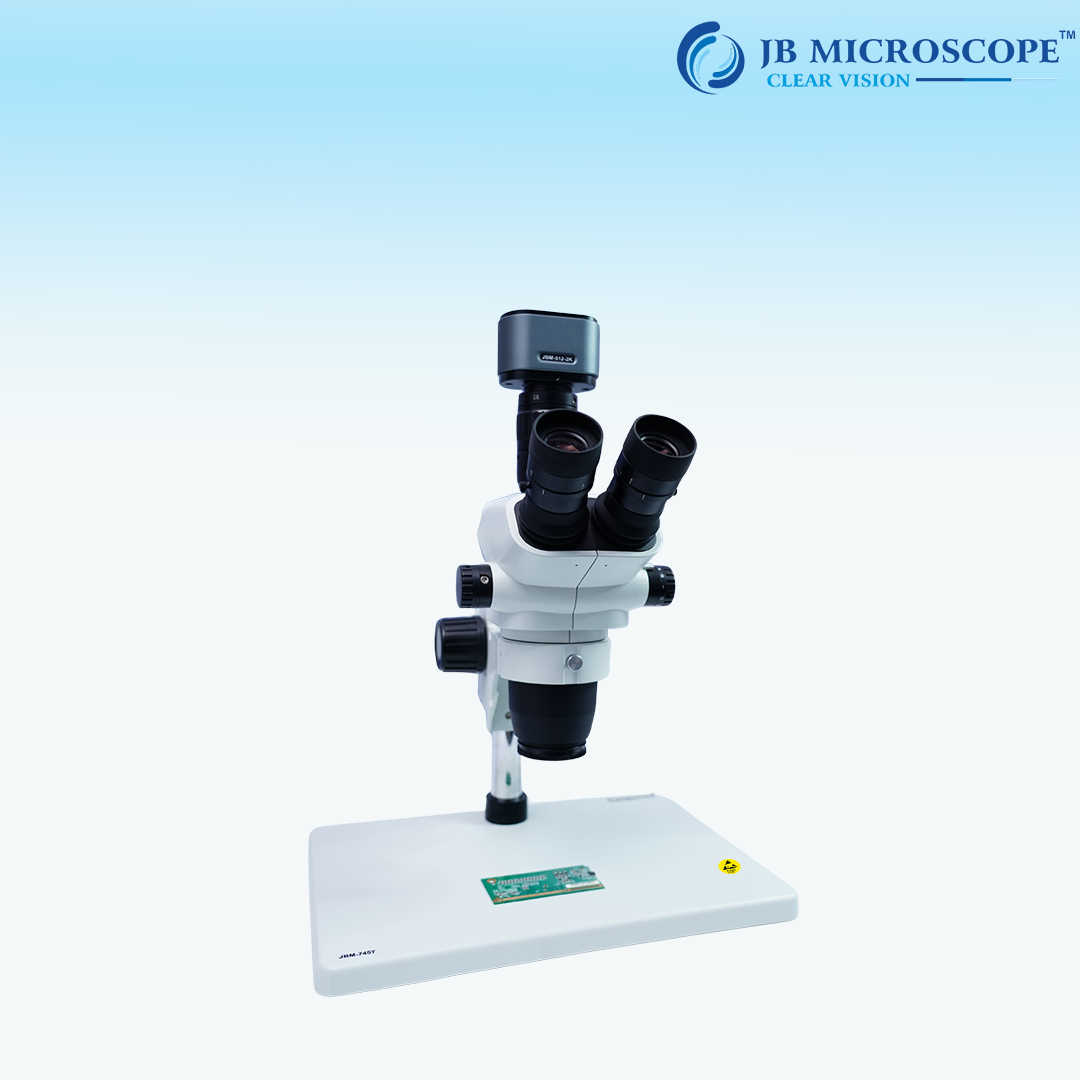

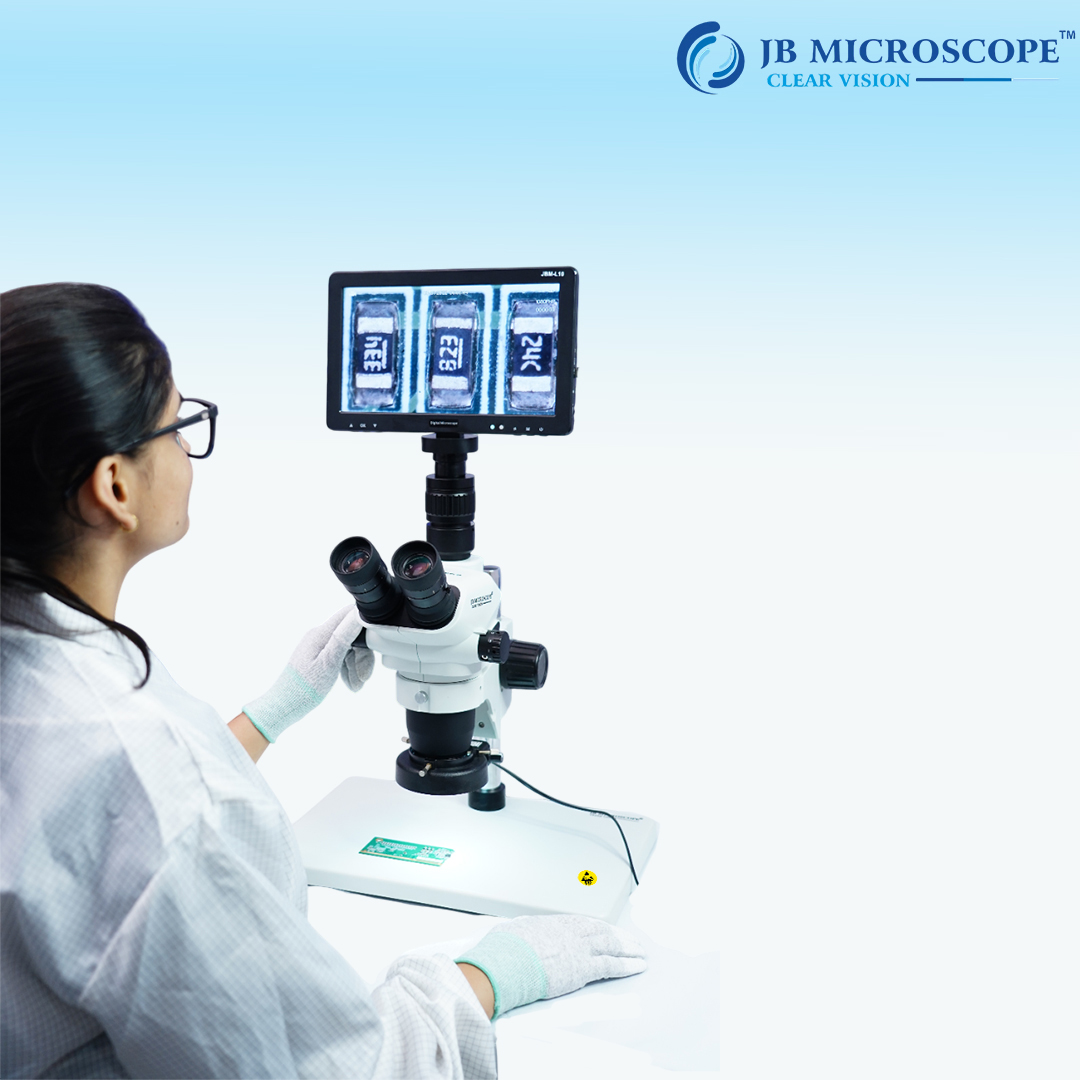

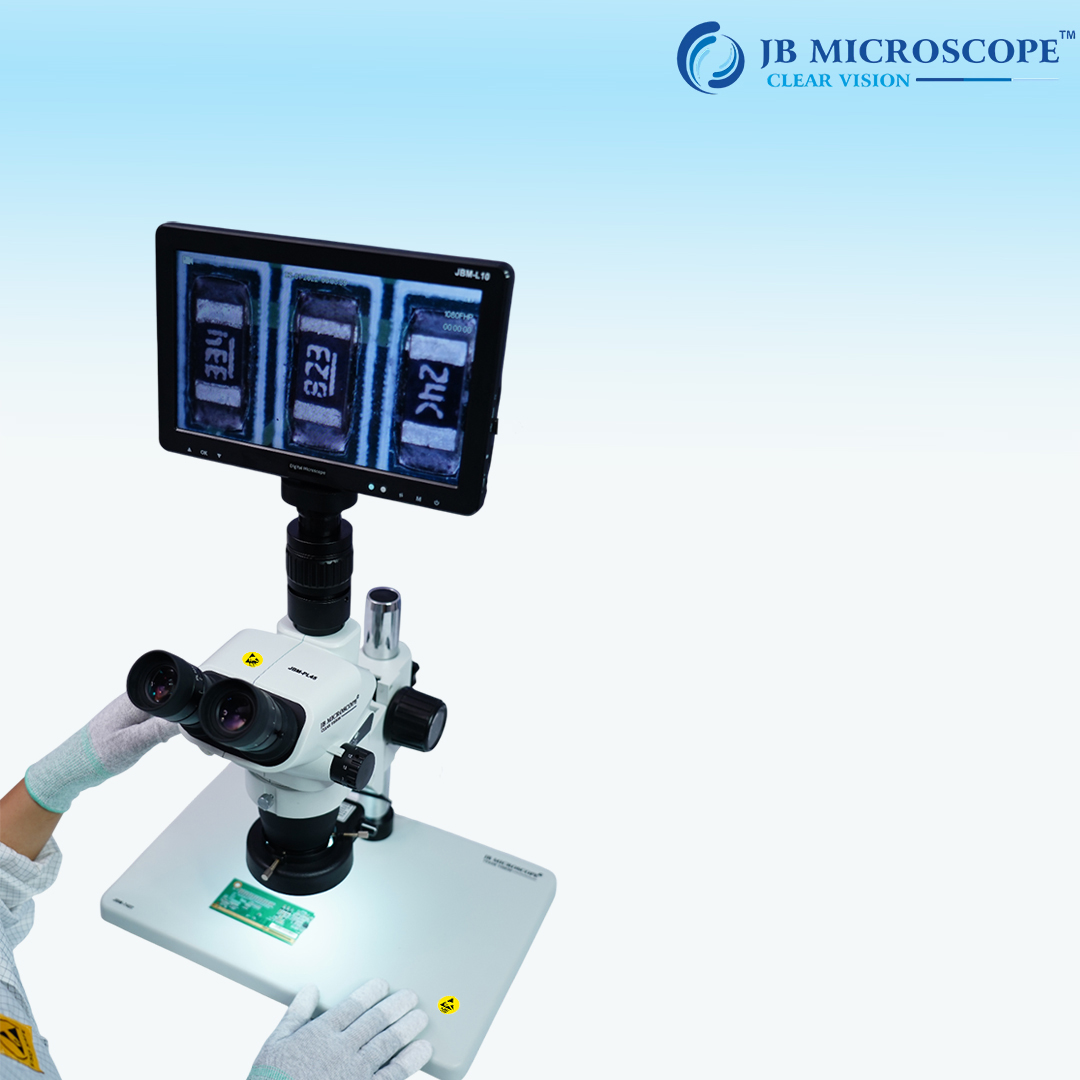

Stereo Zoom Microscope (PL-45)

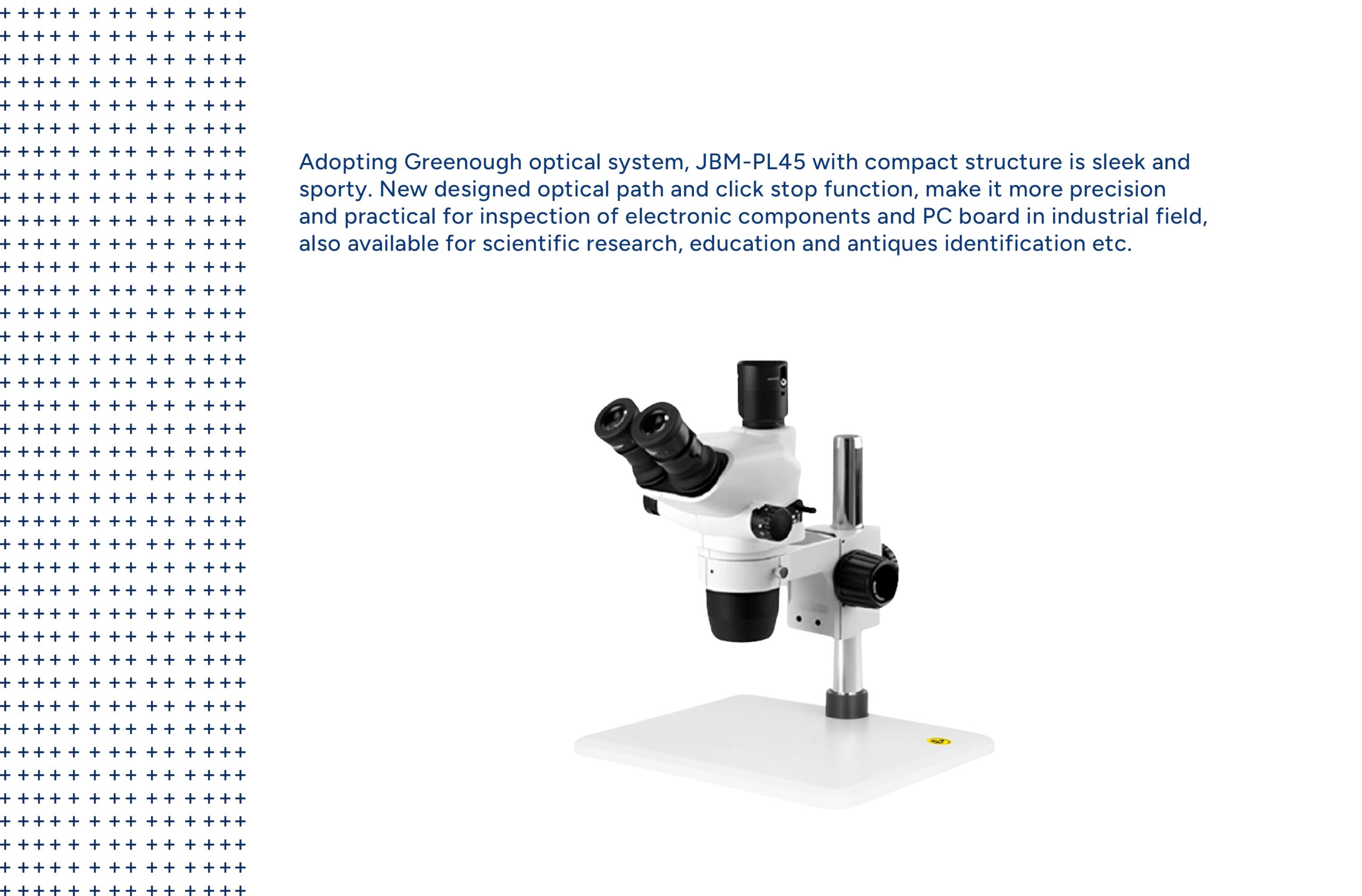

Adopting Greenough optical system, JBM-PL45 with 3D image viewing with high level flatness and depth focusing. Electronic components and PC board with significant depth can be brought into focus from top to bottom for faster and accurate inspection of in industrial field.

Microscope Eyepiece
Superior optical coatings on eyepiece with true color images with fine detail.

Adjustable Eyepiece, Eyepiece Optical Magnification: 10X. Eyepiece size for Eye Tube:

Dia 30mm. Eyepiece field of view Dia 22mm.

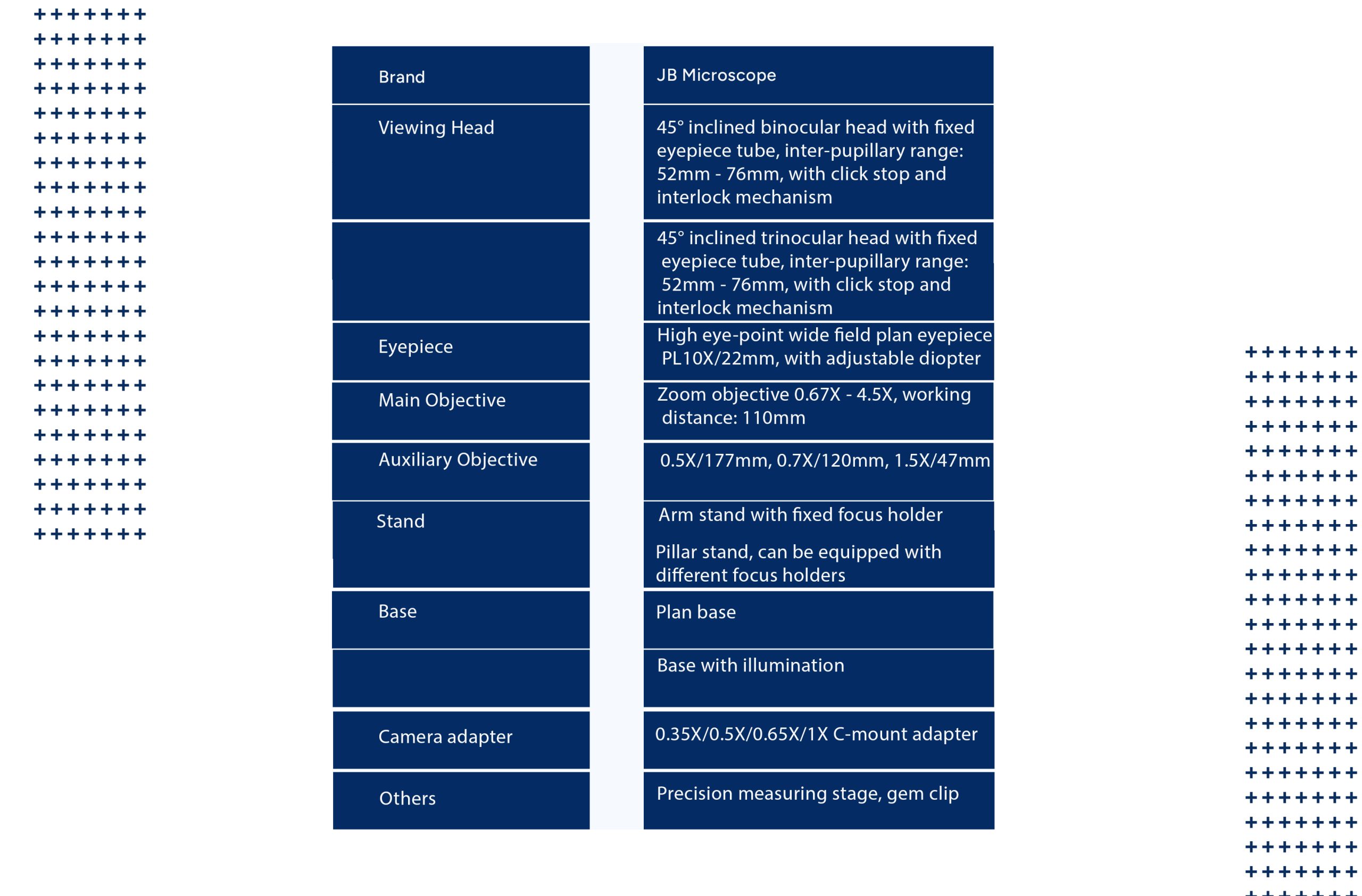

VIEWING HEAD

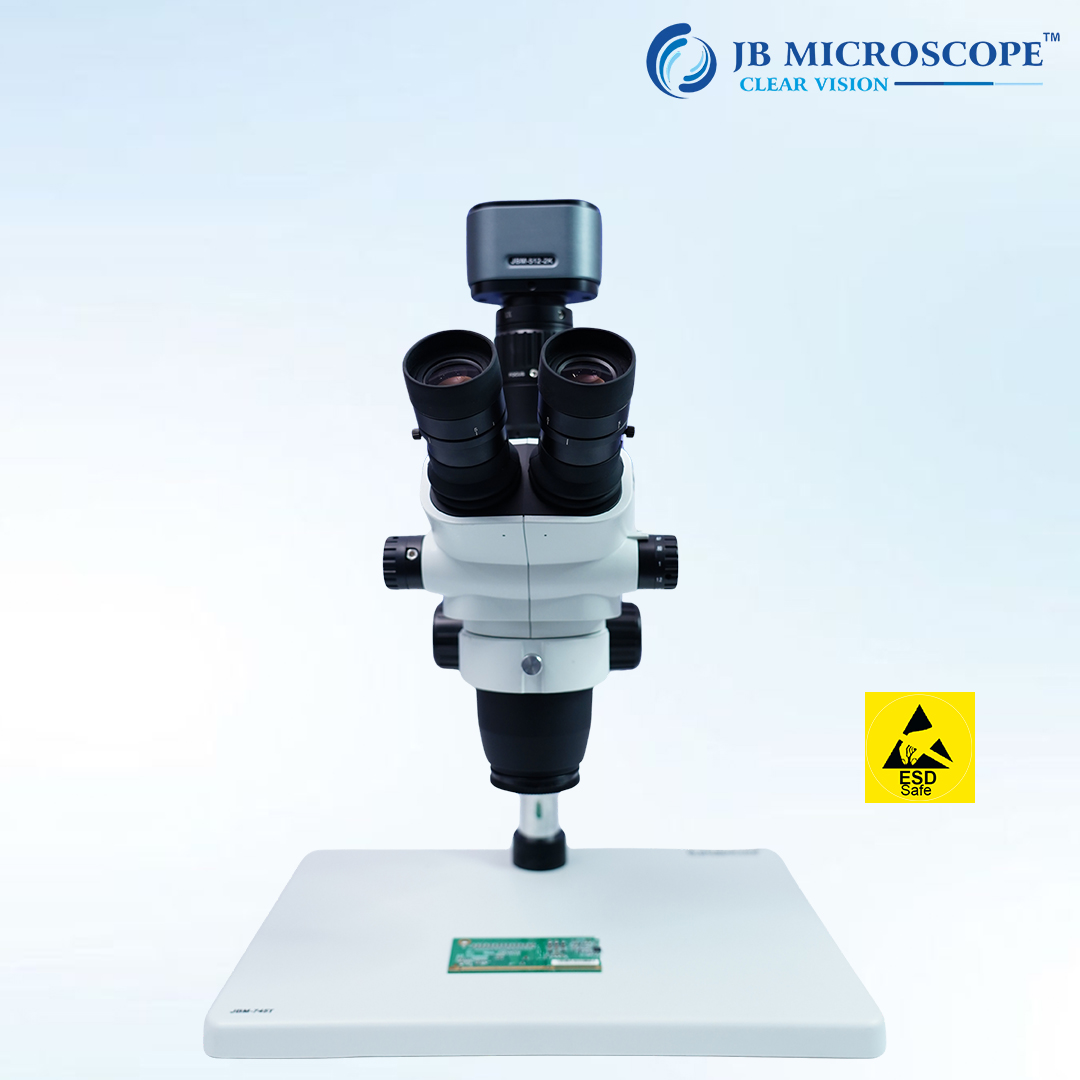

45° inclined trinocular head with fixed eyepiece tube, inter-pupillary range: 52mm – 76mm, with click stop and interlock mechanism.

MAIN OBJECTIVE
Zoom objective 0.67X – 4.5X.

WORKING DISTANCE: 110mm.

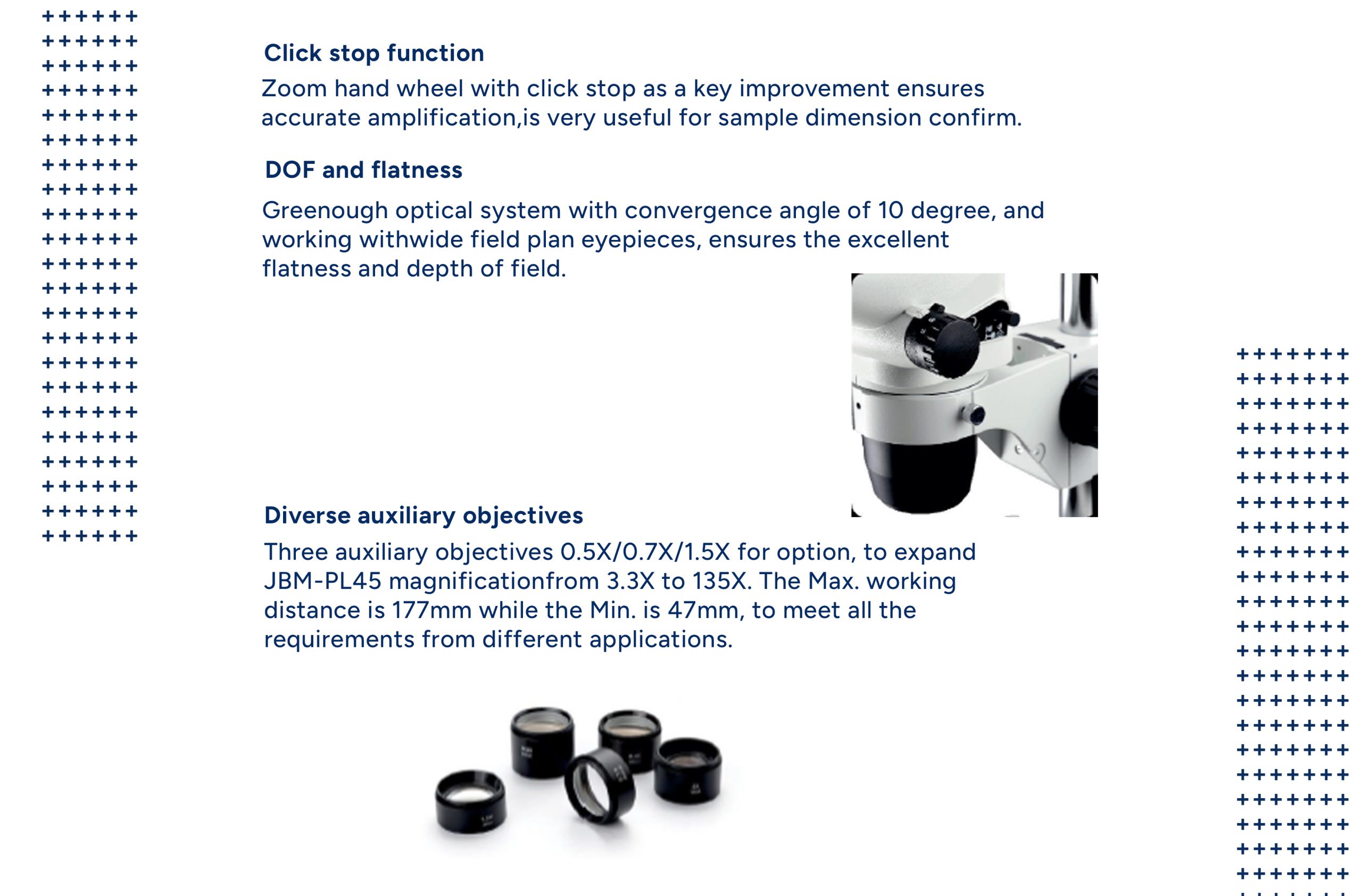

New designed optical path and click stop function, make it more precision.

AUXILIARY OBJECTIVE

0.5X/177mm, 0.7X/120mm, 1.5X/47mm.

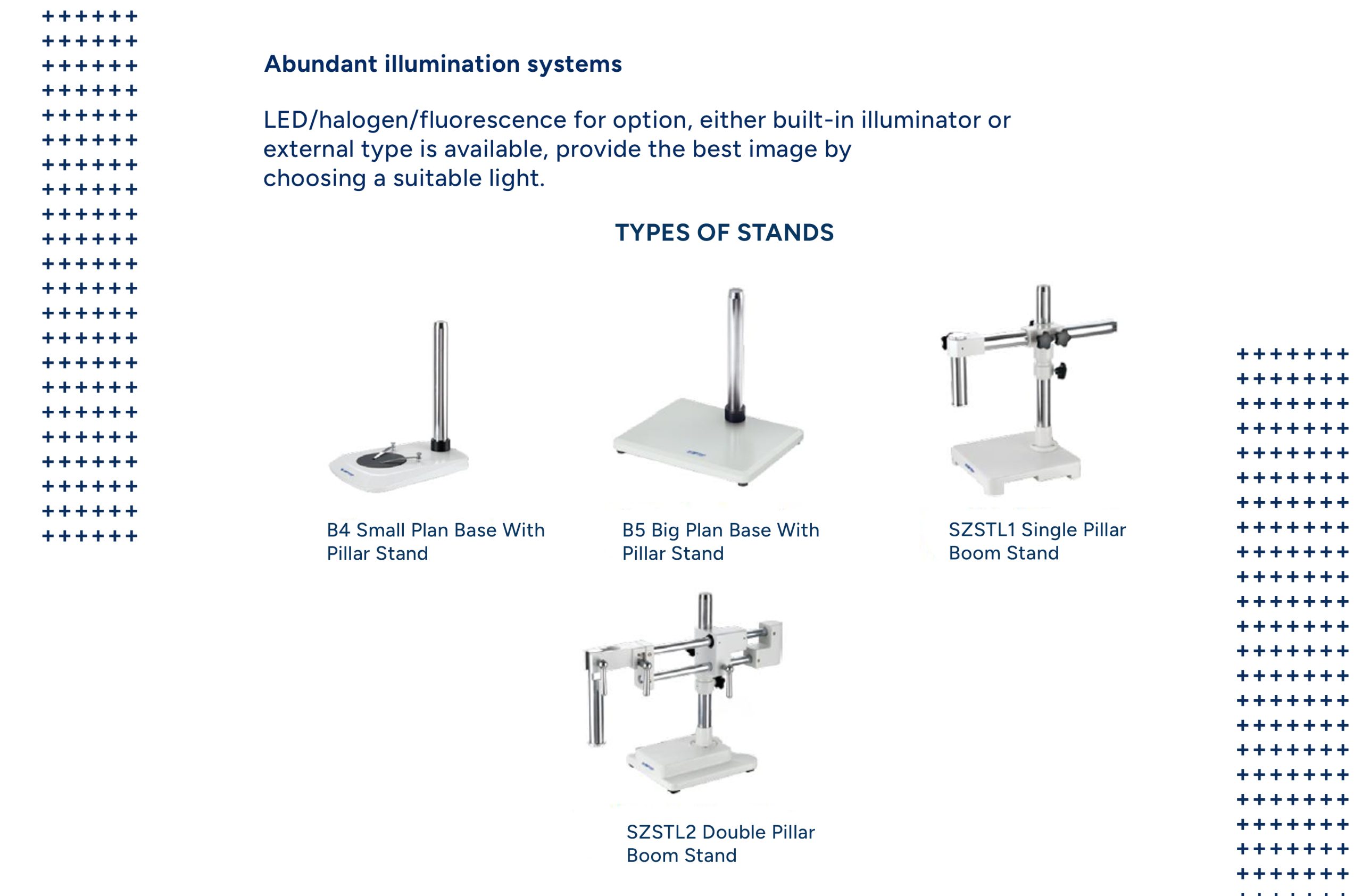

STAND

Arm stand with fixed focus holder Pillar stand, can be equipped with different focus holders base.

OPTIONAL

ESD SAFETY

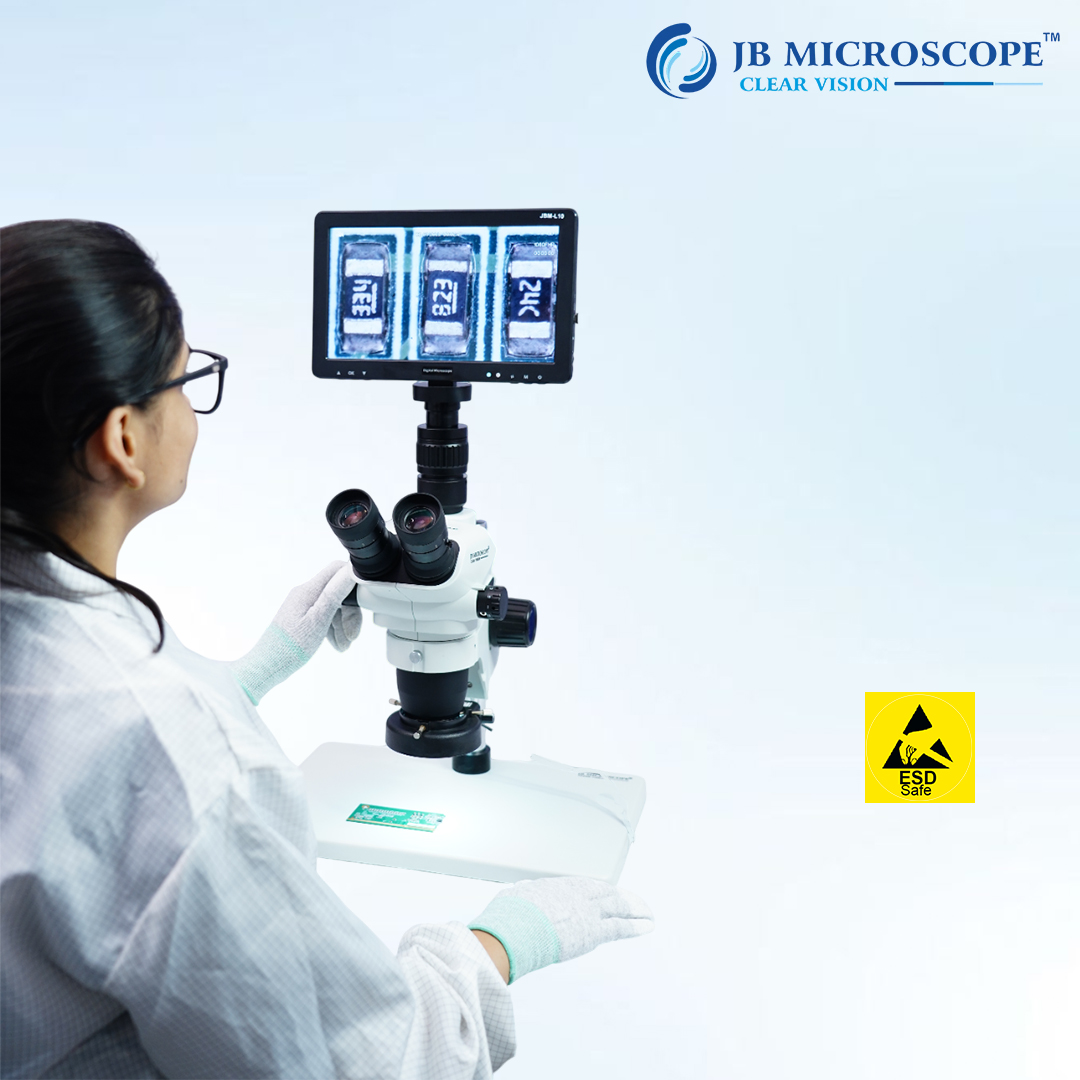

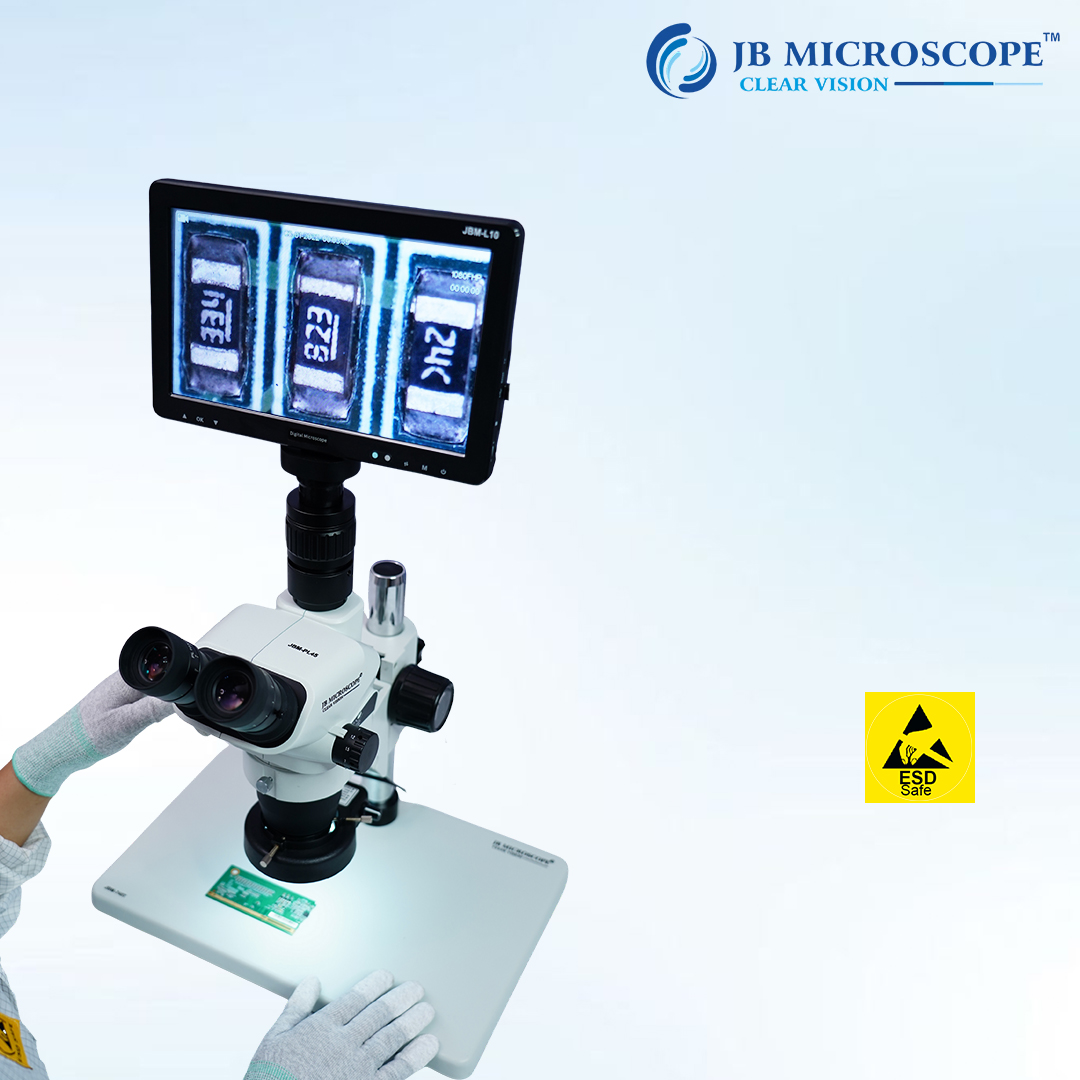

JBM-PL-45 Series microscopes feature a specialized ESD Safe coating, protecting sensitive components from electrostatic discharges
