| Eyepiece | Standard | Auxiliary Lens 0.5X | Auxiliary Lens 2.0X | |||
|---|---|---|---|---|---|---|
| W.D. 100mm | W.D. 165mm | W.D. 30mm | ||||
| Mag. | F.O.V | Mag. | F.O.V | Mag. | F.O.V | |
|
0.35X |
0.245X | 23mm | 0.1225X | 46mm | 0.49X | 11.6mm |
| 1.575X | 3mm | 0.7875X | 7mm | 3.15X | 1.7mm | |
|
0.5X |
0.35X | 17.6mm | 0.175X | 35mm | 0.7X | 8.8mm |
| 2.25X | 2.7mm | 1.125X | 5mm | 4.5X | 1.3mm | |
|
1X |
0.7X | 9mm | 0.35X | 17.6mm | 1.4X | 4mm |
| 4.5X | 1.6mm | 2.25X | 3mm | 9X | 0.71mm | |
| Magnification | 0.35X-2.25X(standard) | |||||
| Eyepiece | 0.5X(standard) | |||||
| Optional Eyepiece |
0.35X, 0.5X, 1X |
|||||
| Objective | 0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1 | |||||
| Aux Lens | 0.5X, 1.0X, 2.0X | |||||
| Focusing Mount | XLB45-A1 focusing mount with vertical working distance 62mm; ID:50mm for lens | |||||
|
Stand |
STL7 pole stand | |||||
|
Illumination |
Fluorescent lamp, LED ring light | |||||
| Accessories | Can be connected to the cameras and displays | |||||

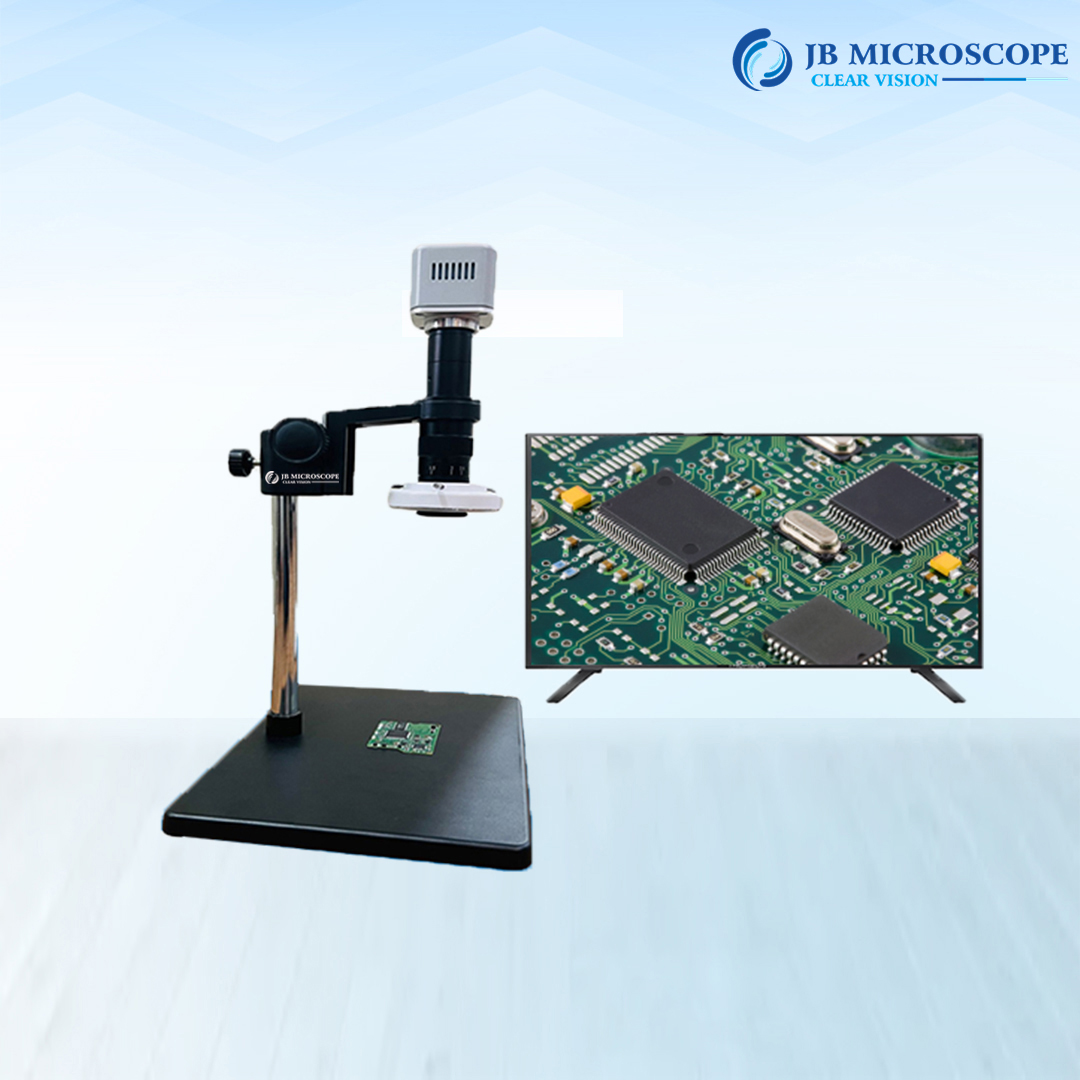

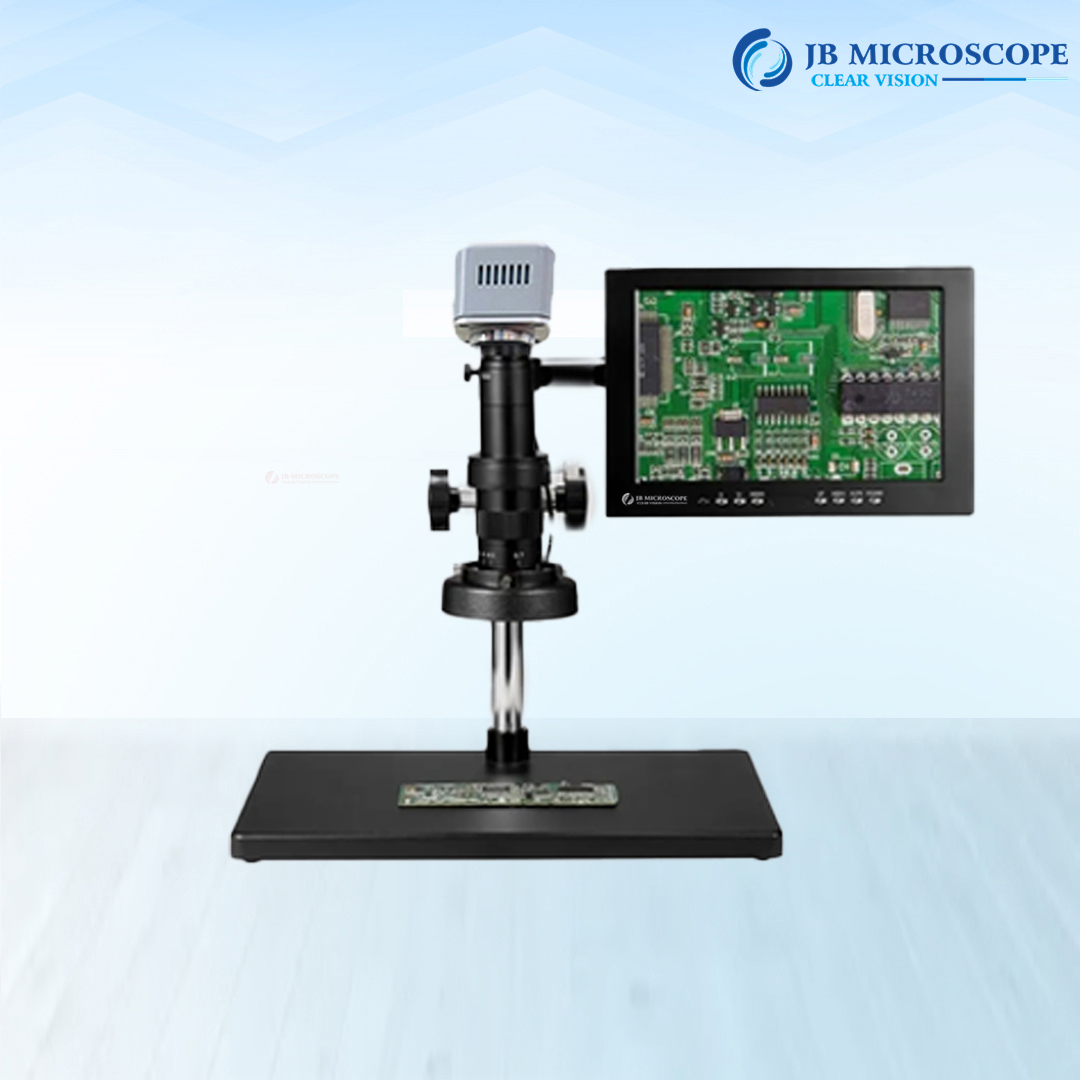

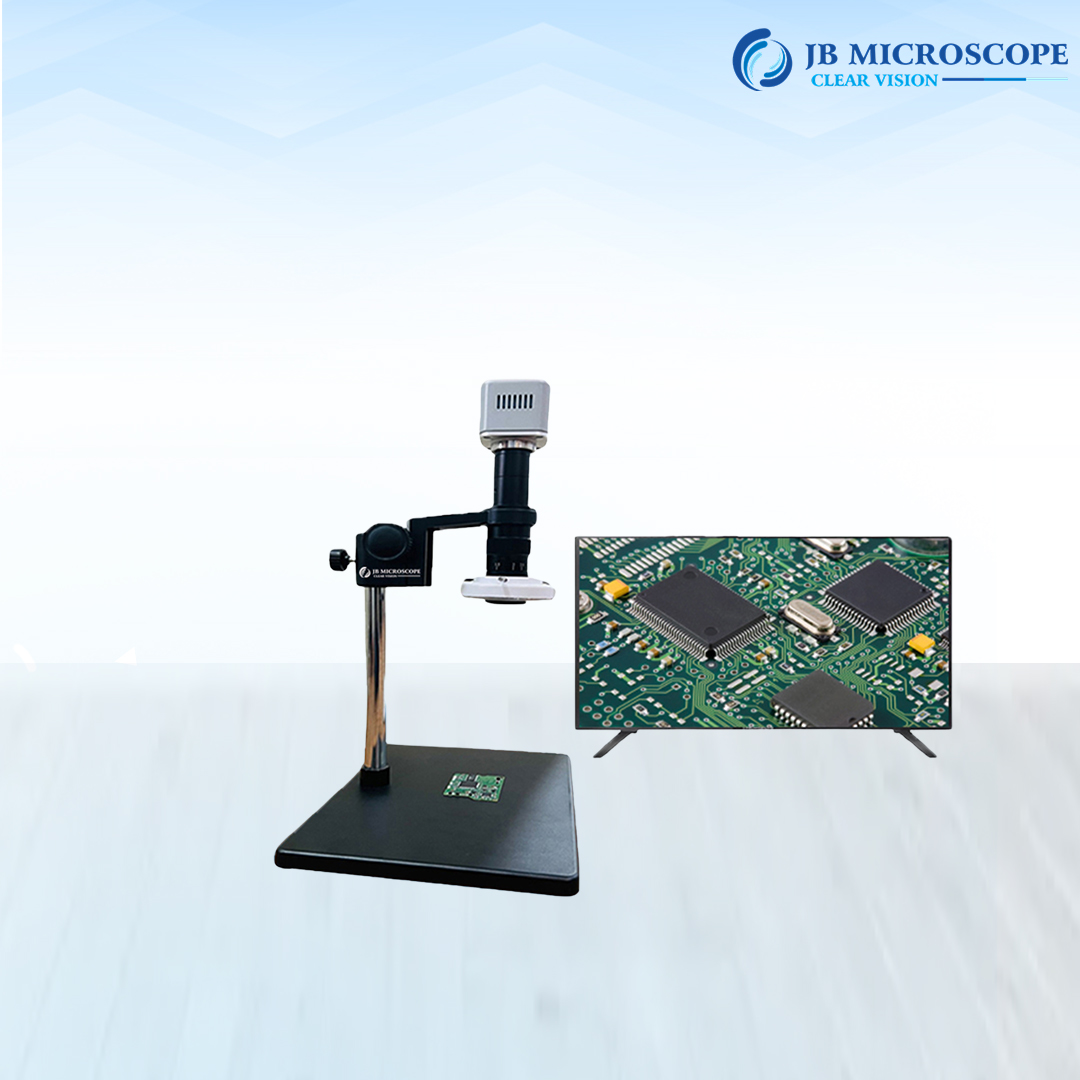

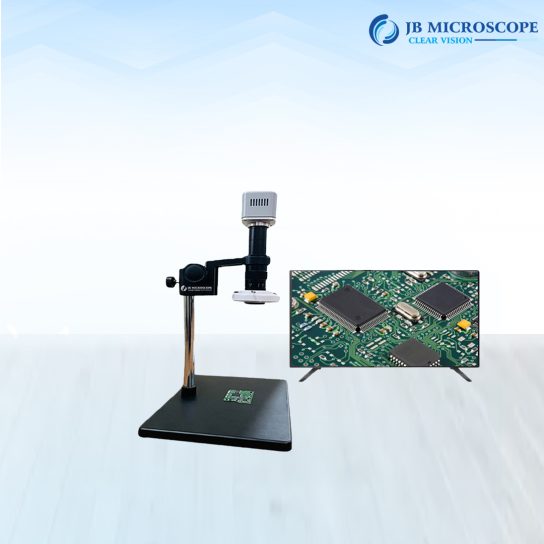

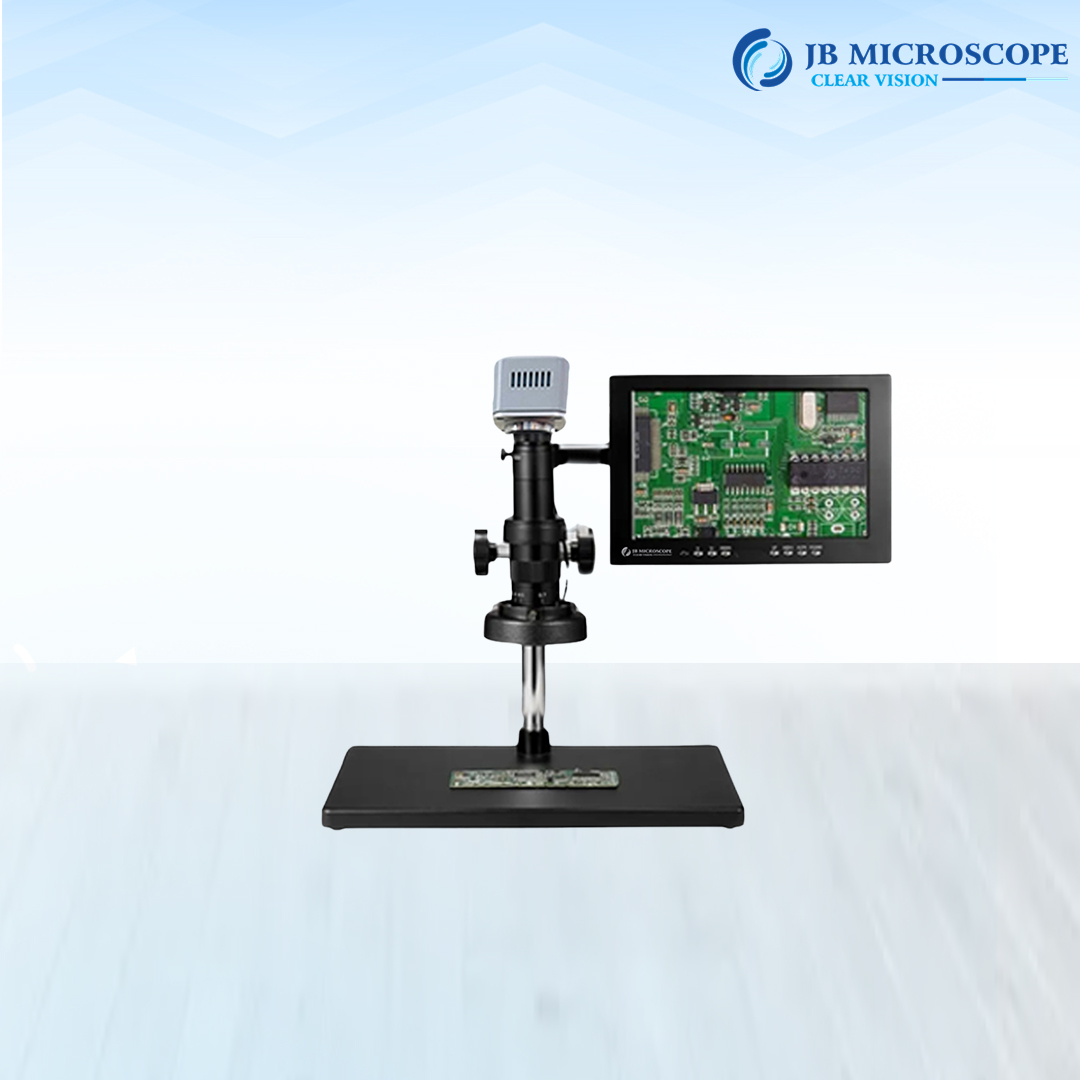

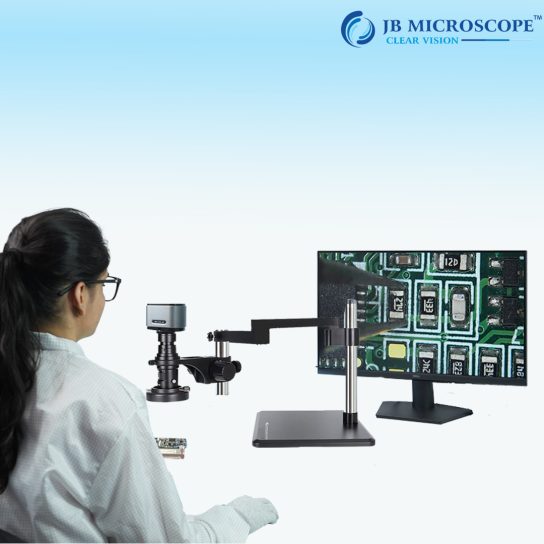

The Monocular Stereo Zoom Video Microscope is a cutting-edge optical instrument that seamlessly integrates advanced microscopy with video capabilities, revolutionizing the way we observe and document specimens. This versatile microscope is designed to meet the demands of various applications, offering a dynamic and immersive experience for researchers, educators, and professionals.
Key Features:
Monocular Design: The single eyepiece design ensures a simplified and comfortable viewing experience, making it ideal for prolonged use. The monocular setup provides users with a straightforward approach to observation and analysis.
Stereo Zoom Capability: Equipped with stereo zoom optics, this microscope enables variable magnification levels, allowing users to zoom in on details with exceptional clarity. The stereo vision enhances depth perception, making it particularly valuable for tasks that require precise spatial awareness.
Video Integration: The standout feature of the Monocular Stereo Zoom Video Microscope is its seamless integration with video technology. Capture high-resolution videos of your observations, facilitating real-time collaboration, documentation, and analysis. This capability is particularly beneficial for educational purposes, presentations, and research documentation.
Versatility in Applications: From industrial inspections and quality control to biological research and electronics manufacturing, the Monocular Stereo Zoom Video Microscope caters to a wide range of applications. Its adaptability makes it an invaluable tool for professionals across diverse fields.
High-Quality Optics: The microscope is equipped with high-quality optics that deliver sharp and clear images. This ensures that users can capture and analyze specimens with precision, making it an indispensable tool for tasks that demand accuracy and attention to detail.
The Monocular Stereo Zoom Video Microscope combines the benefits of a monocular design, stereo zoom capabilities, and video integration, offering a comprehensive solution for visual analysis. Its versatility, coupled with advanced optics and video functionality, makes it an essential tool for professionals seeking to elevate their observational and analytical processes across various disciplines.
