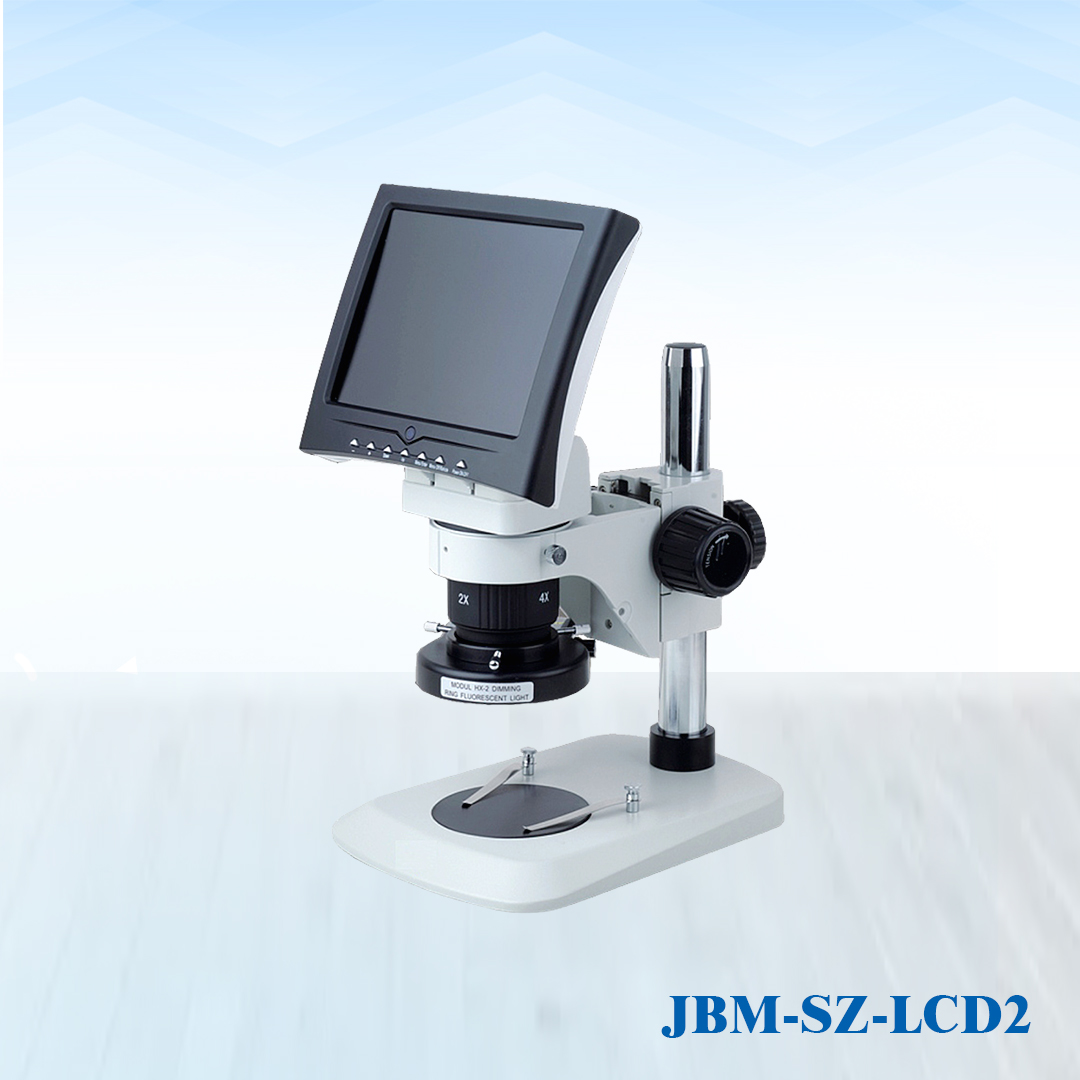

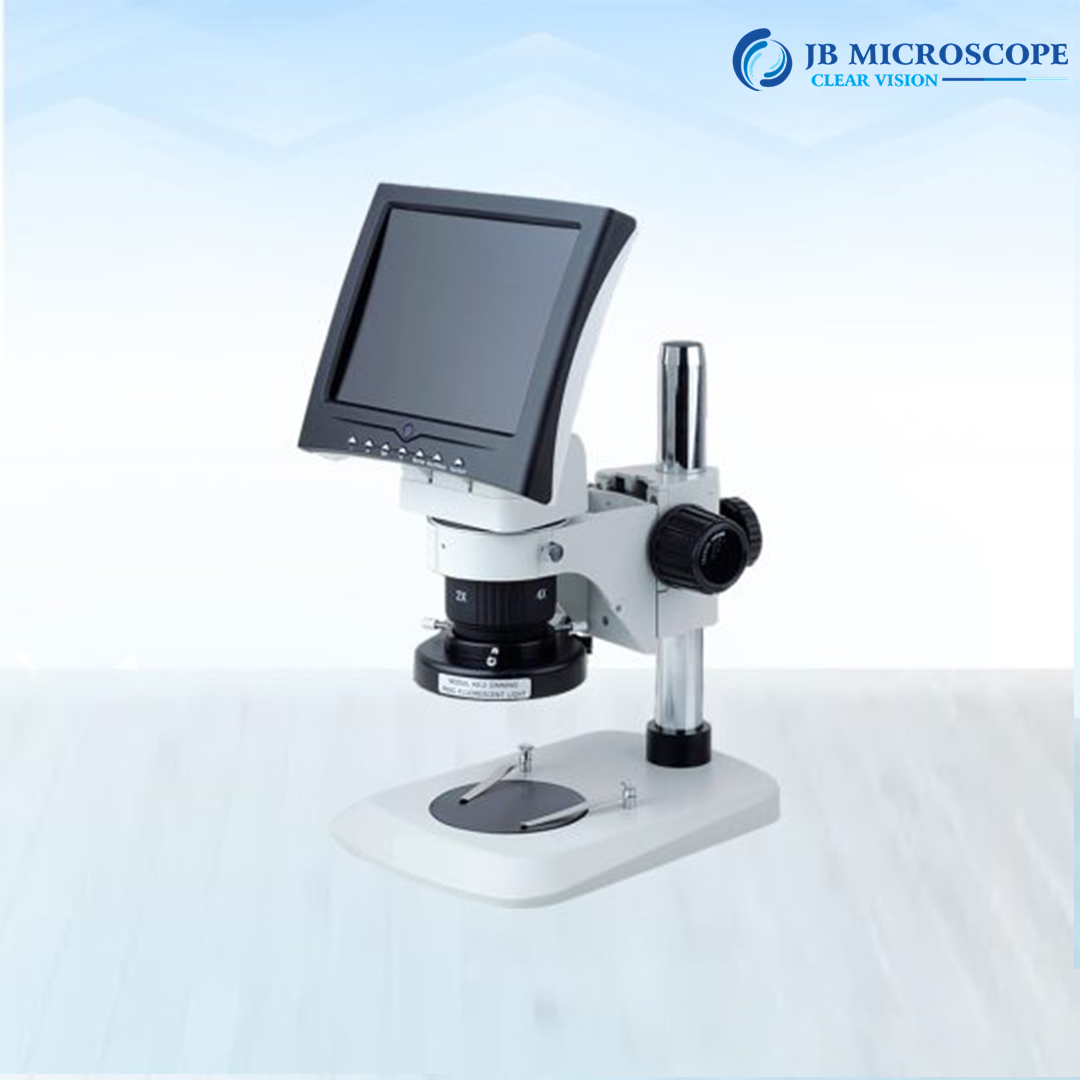

JBM-SZ-LCD2

MODEL RIM-2T-LCD


Eyepiece

Wide field high eyepoint eyepiece WF10X/20mm or WF15X/15mm or WF20X/10mm can mount

micrometer



Viewing Head

Digital head with LCD screen. 45° inclined, 360°rotatable, zoom objective 0.7X-4.5X, working distance

100mm. inter-pupillary range 54~76mm, fixed eyepiece tube ( used for diopter

adjustment eyepiece)

8 inch LCD screen, resolution ratio 800*600,CCD 520 TVLINES

Auxiliary Lens

0.5X/165mm. 0.75X/105mm. 1.5X/45mm. 2X/30mm.

Focus focus arm, two focusing knobs are with tension adjustable, adjust range 50mm.
Stand pillar type sector plain stand
Other light source

Ring light/LED/Fiber

TV device 0.35X/0.5X/1.0X C-mount adapter
Others Precision measurement platform, dark field condenser, jewelry clip
