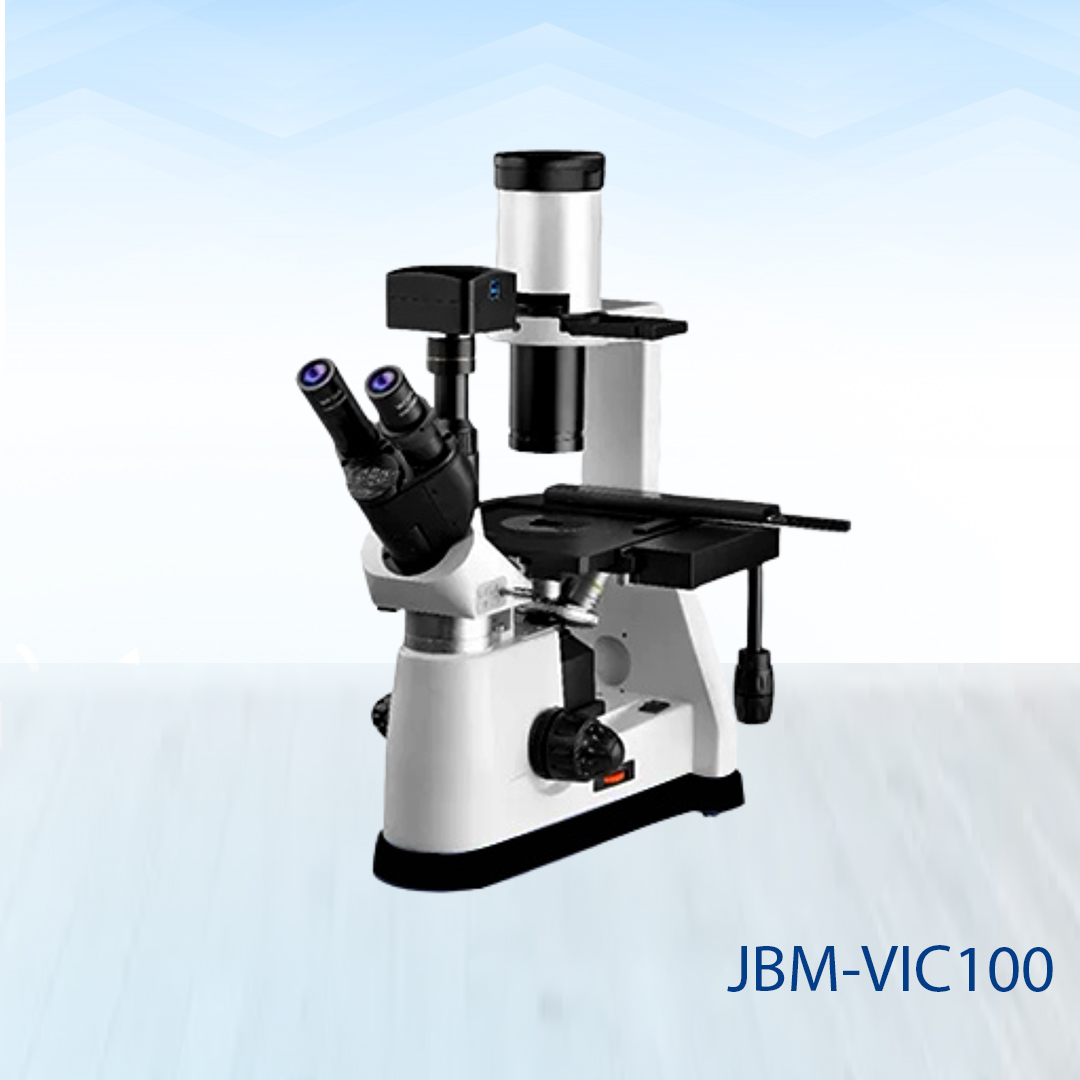

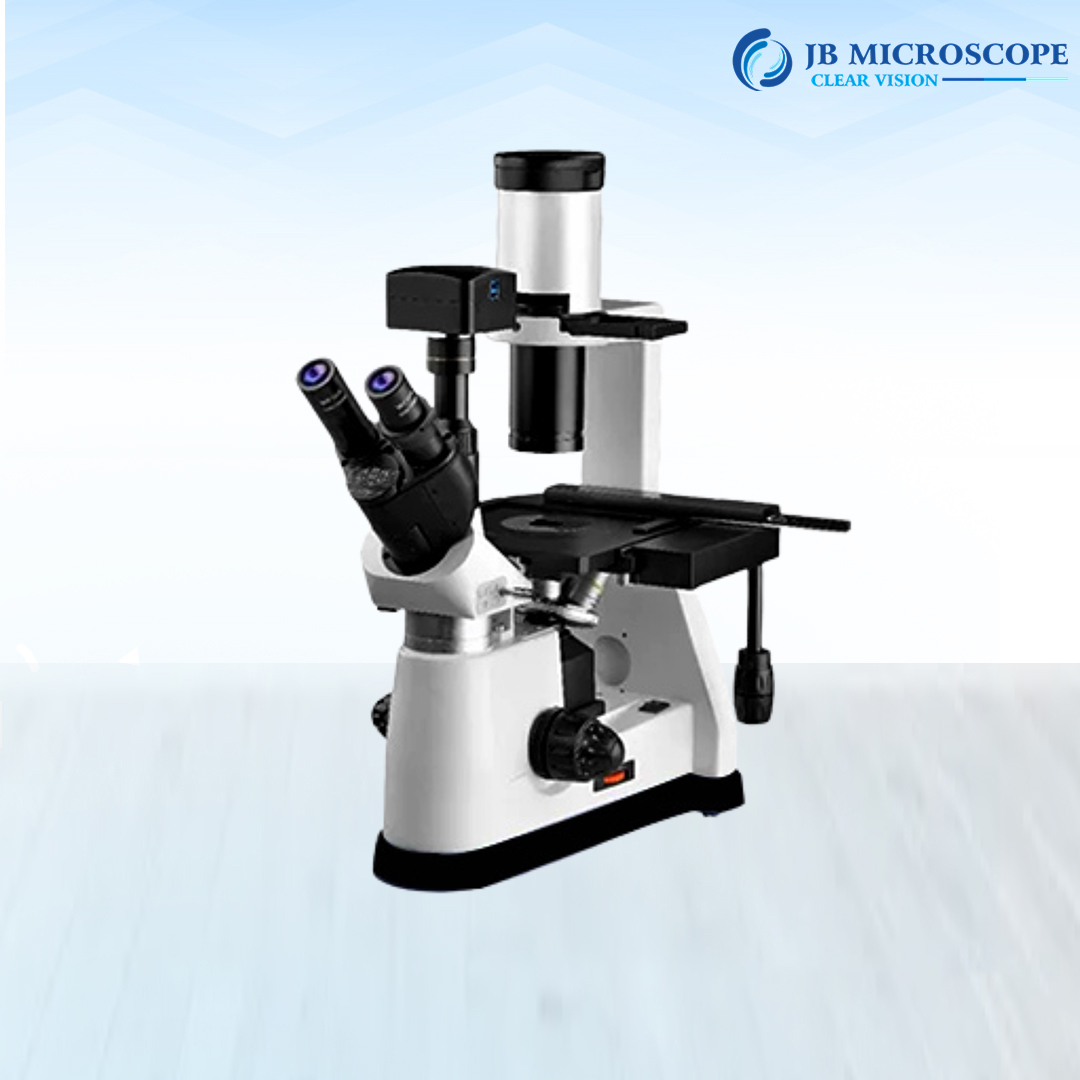

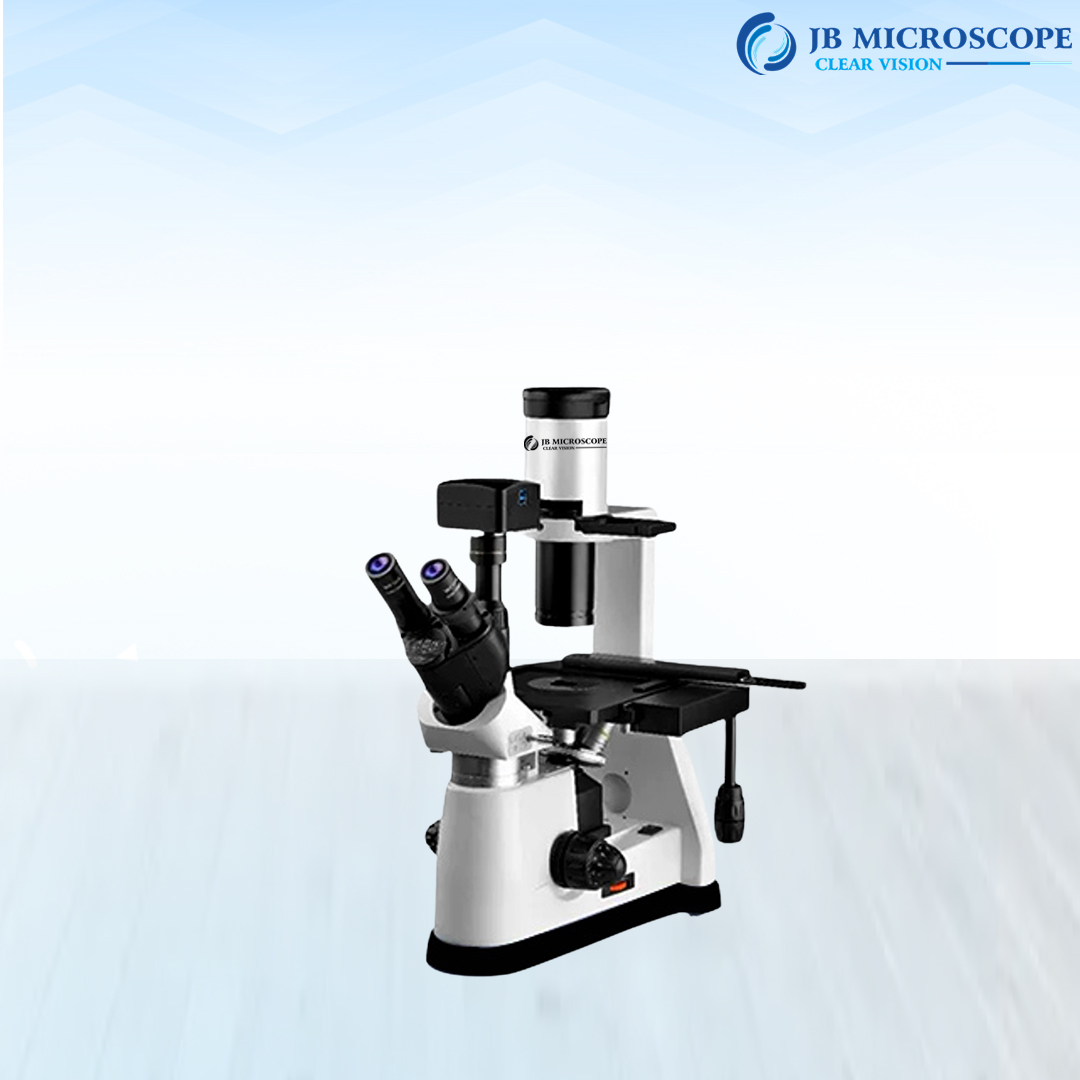

Inverted Biological Microscope JBM-VIC100

Binocular Observation Head

  • Observation head inclined at 20°.
  • Diopter adjustment ring on both ocular tube (±5).
  • Inter-pupillary distance from 55mm to 75mm.
  • Lateral tube for digital camera.


  • Focusable extra wide field .
  • 10X (paired) F.O.V. 22mm.

Zooming Range & Ratio

  • Zoom 0.8X to 8X with magnification ratio of 1:10

Magnification Range

  • 8X-80X

Working Distance

  • 78 mm

Mechanical Body

  • Track stand with co-axial focusing mechanism and large fan type base.
  • Lateral zoom control movement.
  • Clip for holding specimen.
  • Base size is 270X250mm.

Illumination System

  • Incident and transmitted light systems with LED lamps. Both lights are regulated with power supply and has separate brightness controls.

Standard Accessories

  • Operating manual, dust cover, guarantee card and Styrofoam molded pack.
