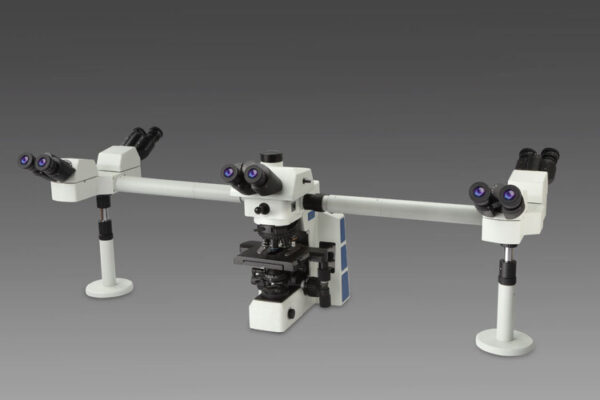

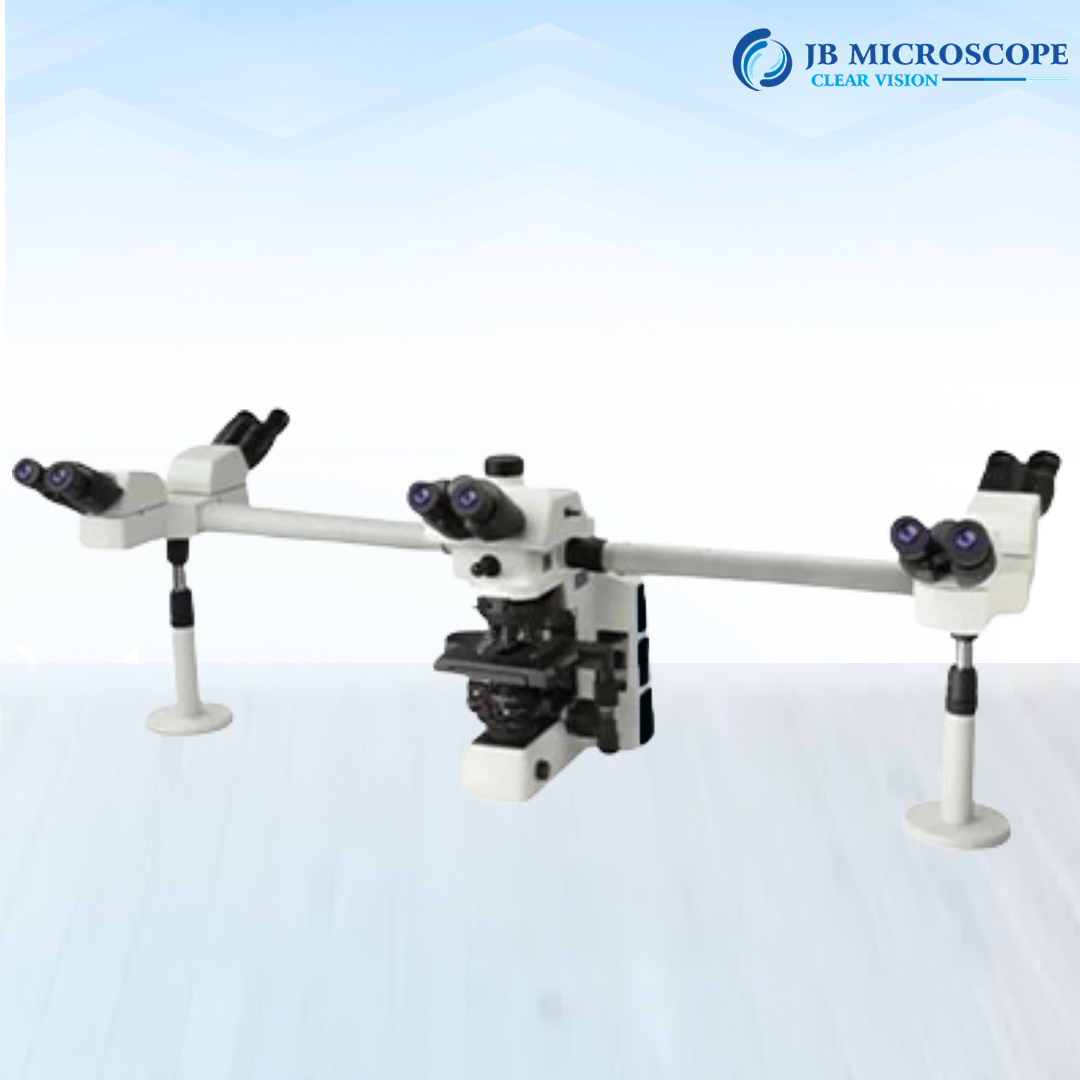

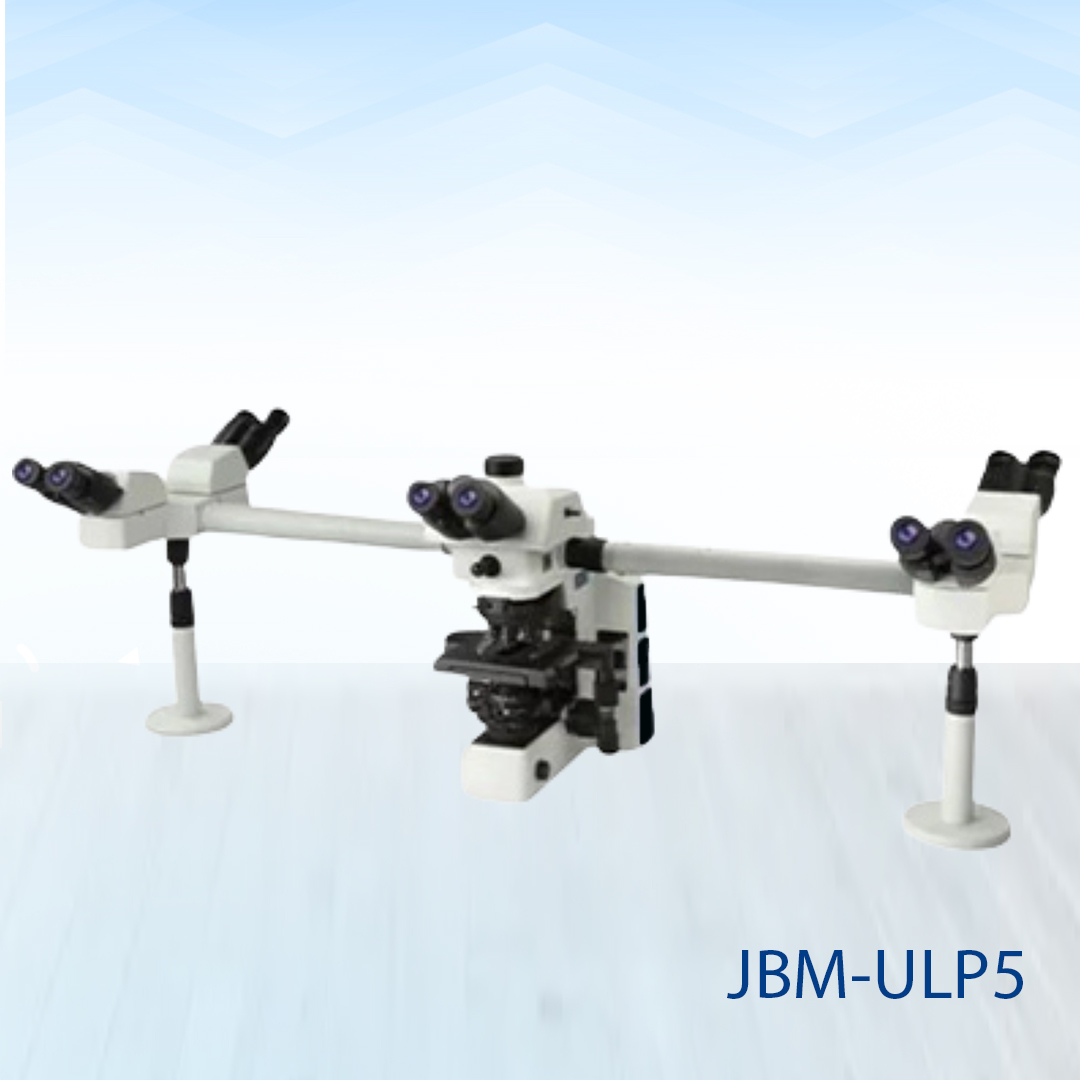

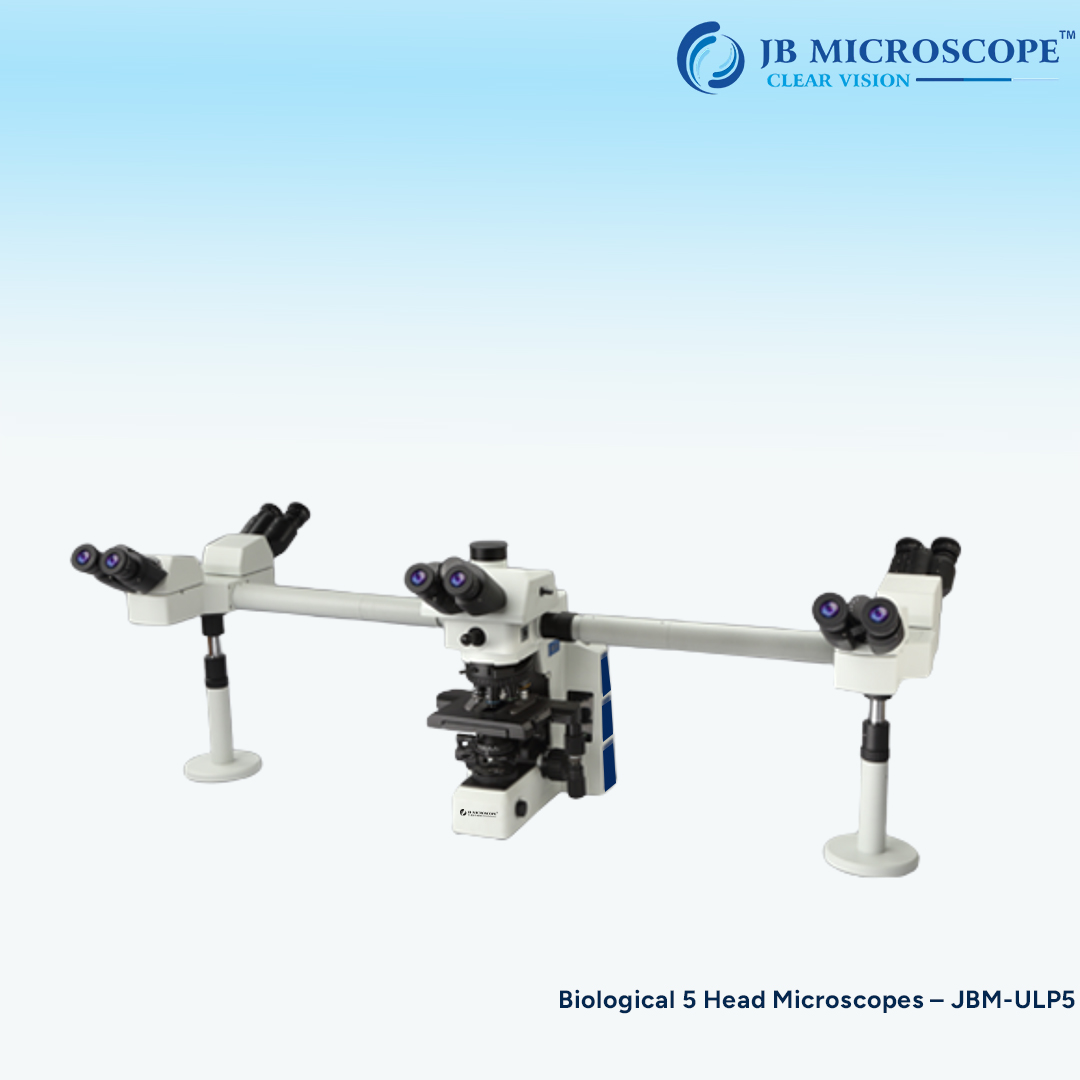

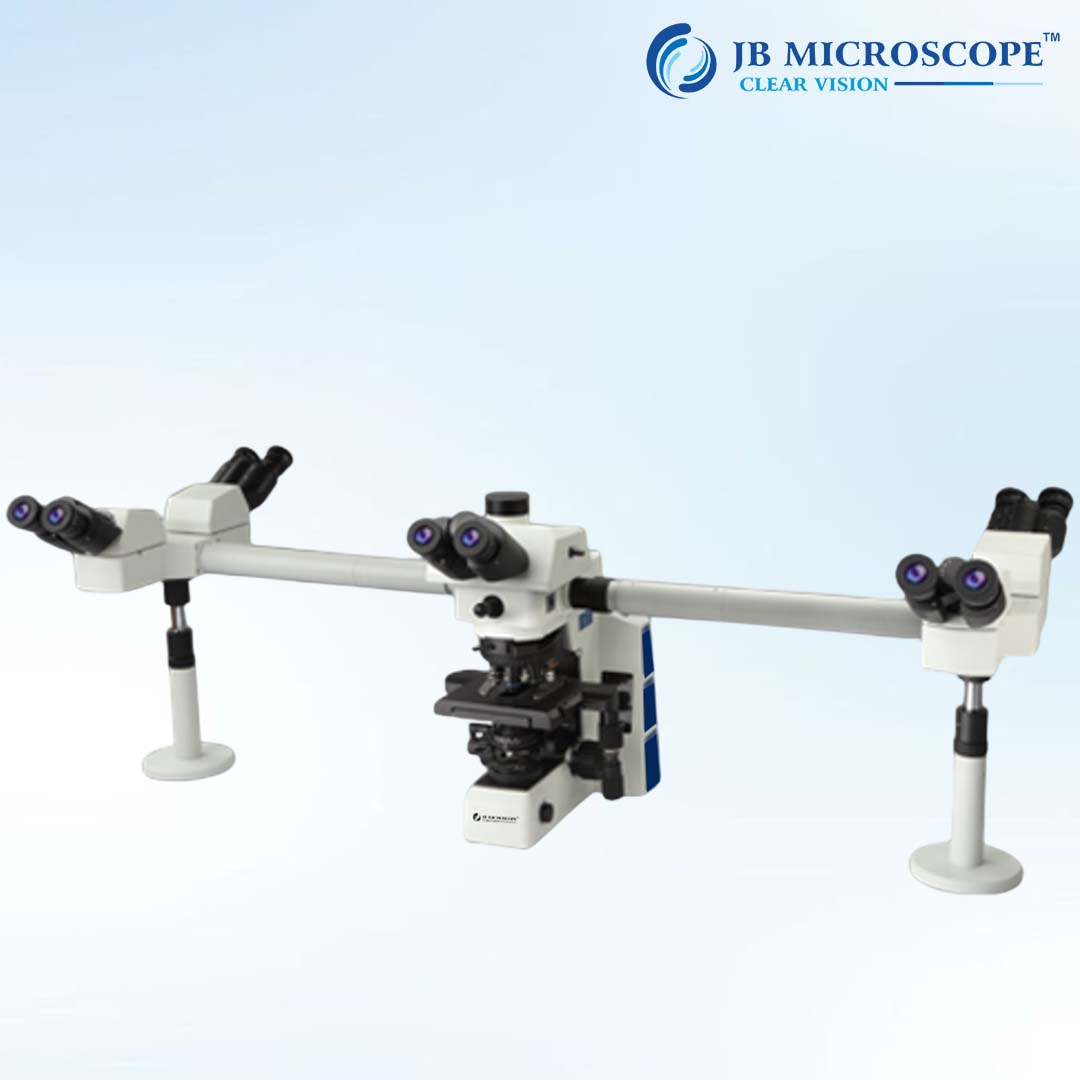

Biological 5 Head Microscopes – JBM-ULP5

Trinocular Observation Head

  • Siedentopf observation head inclined at 30 rotatable at 360.
  • Vertical phototube for micro photography.
  • Diopter adjustment ring on ocular tube.
  • Inter-pupillary distance from 48mm to 75mm.
  • Binocular observation heads, inclined at 30º Fixed on adjustable stand (Five sets).

Eyepiece (Anti fungus coated)

  • Extra wide field 10X (paired).
  • F.O.V. 25mm.Ocular dia 30mm.

Objectives (Infinite Corrected) Anti Mold & Anti fungus coated

  • Plan Achromatic 2X
  • Plan Achromatic 4X
  • Plan Achromatic 10X
  • Plan Achromatic 20X
  • Plan Achromatic 40X
  • Plan Achromatic 100X

Color LED Pointer

  • Dual Color LED Pointer Brightness adjustable.

Sub Stage Condenser

  • Swing out front lens, abbe condenser N.A. 0.9/1.25, filter holder and iris diaphragm.

Illumination System

  • 12V/100W halogen lamp house for transmitted light, centre pre-set, intensity adjustable.

Standard Accessories

  • 12V/100W halogen tungsten bulb.
  • Power cord and cedar oil.

Mechanical Body

  • Co-axial focusing system with large knobs, PRE-FOCUSING LEVER & TENSION ADJUSTMENT RING.
  • Reverse angle septuple nosepiece on ball bearing. Slot for Polarizer & DIC.
  • Double plate Reckless layer Mechanical stage is 187mmX167mm.
  • The mechanical stage has low positioned co-axial controls on ball bearing guide ways.
  • Fine division 0.001mm corse, per rotation, fine stroke 0.1mm per rotation, moving range : 80mm X 55mm.
  • Built in transmitted filter LBD/ND6/ND25.
