Specification

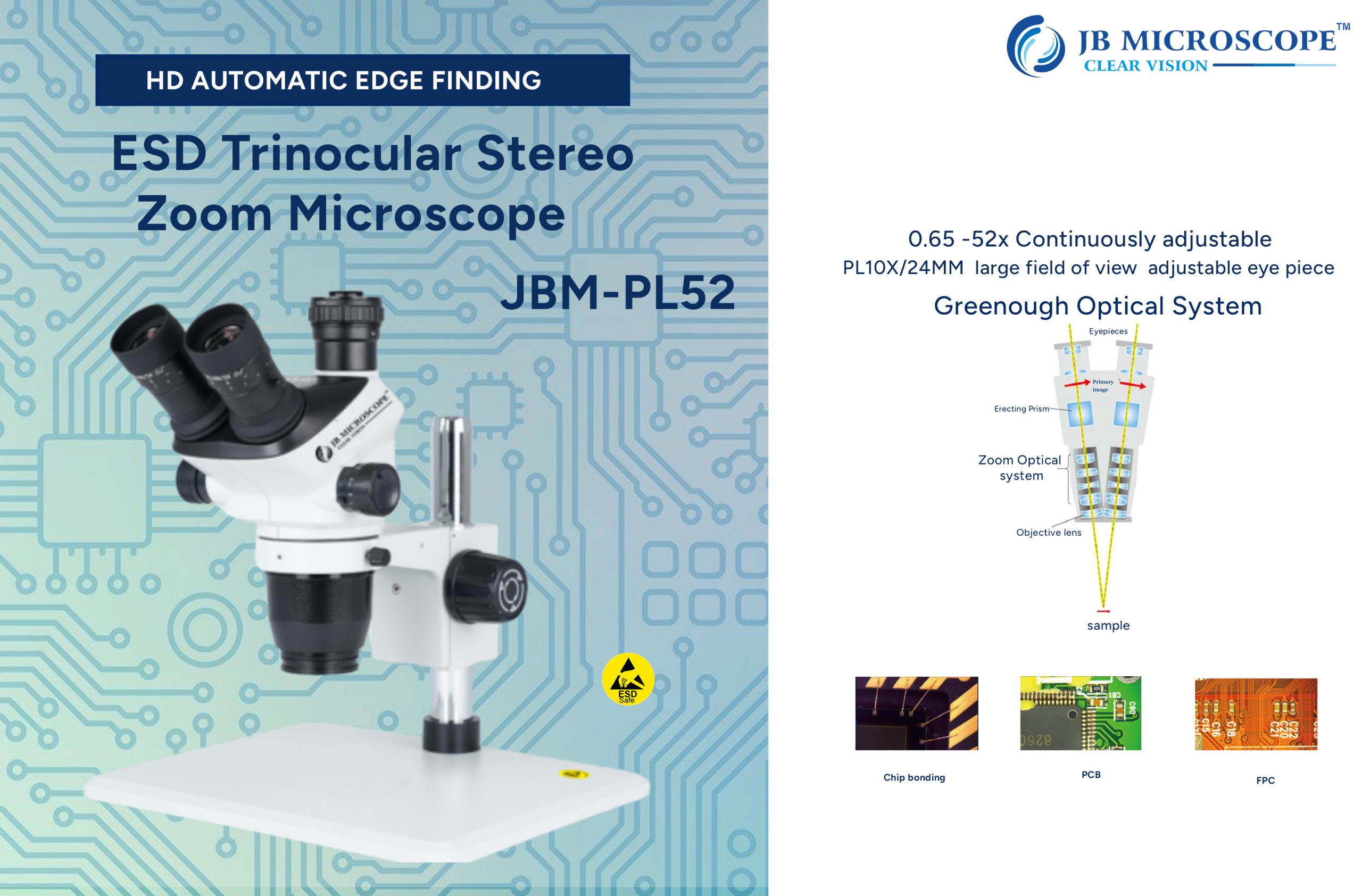

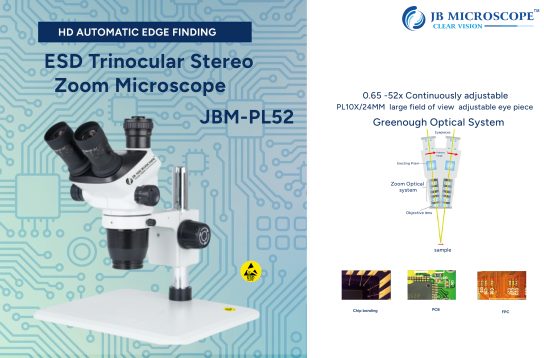

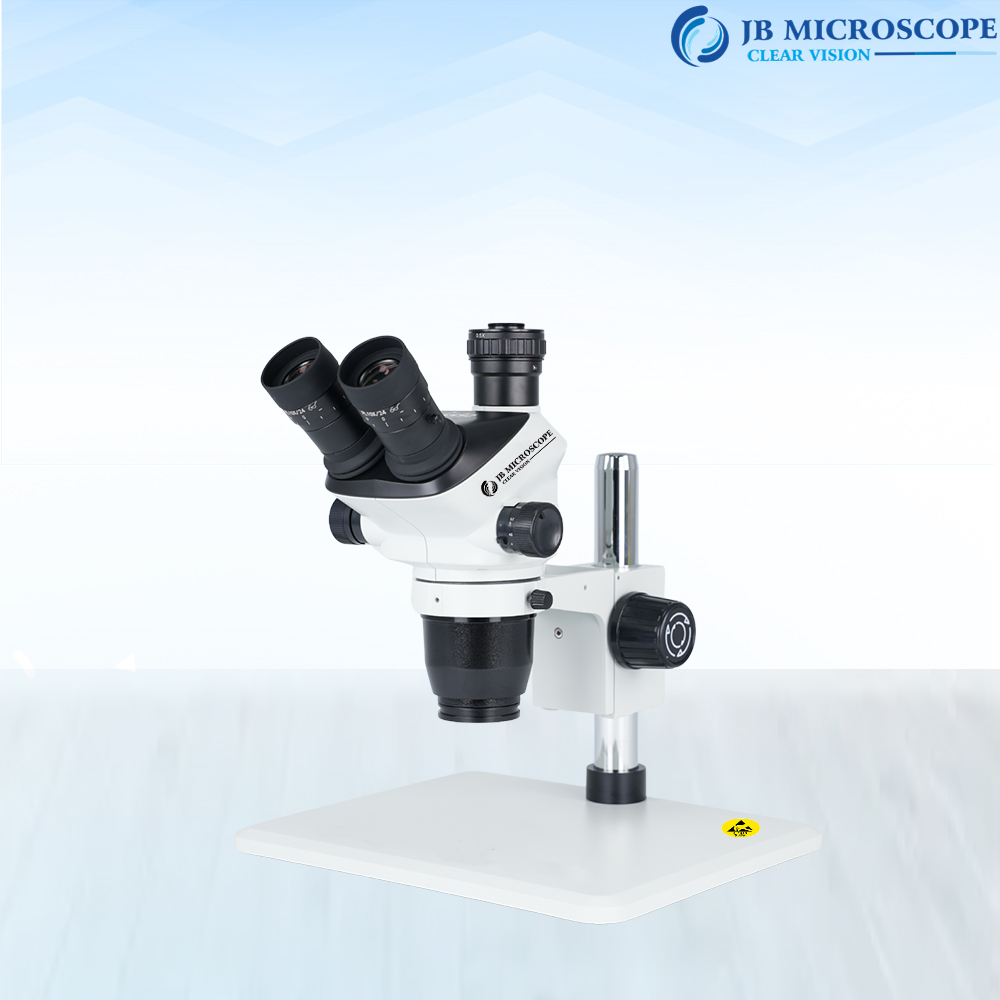

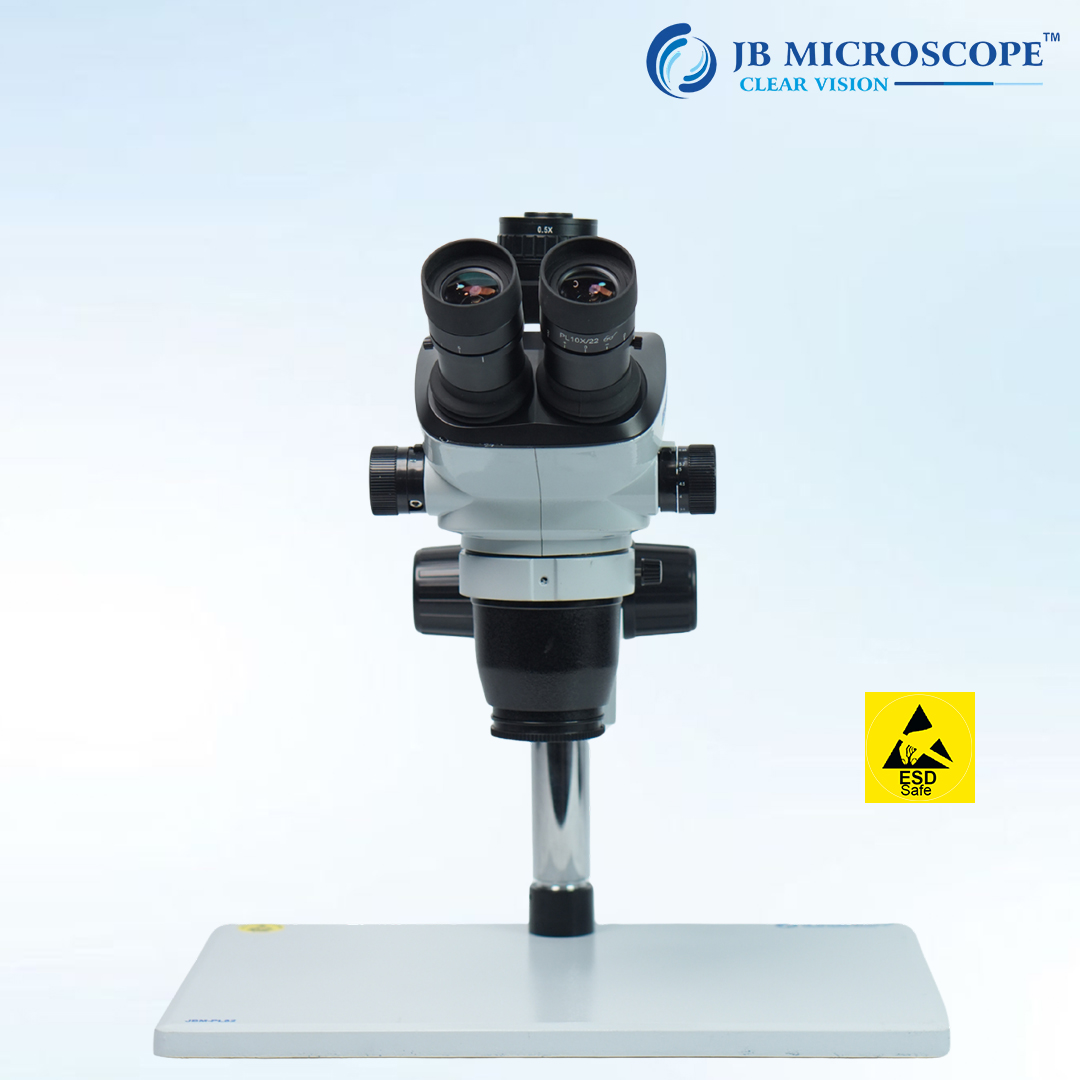

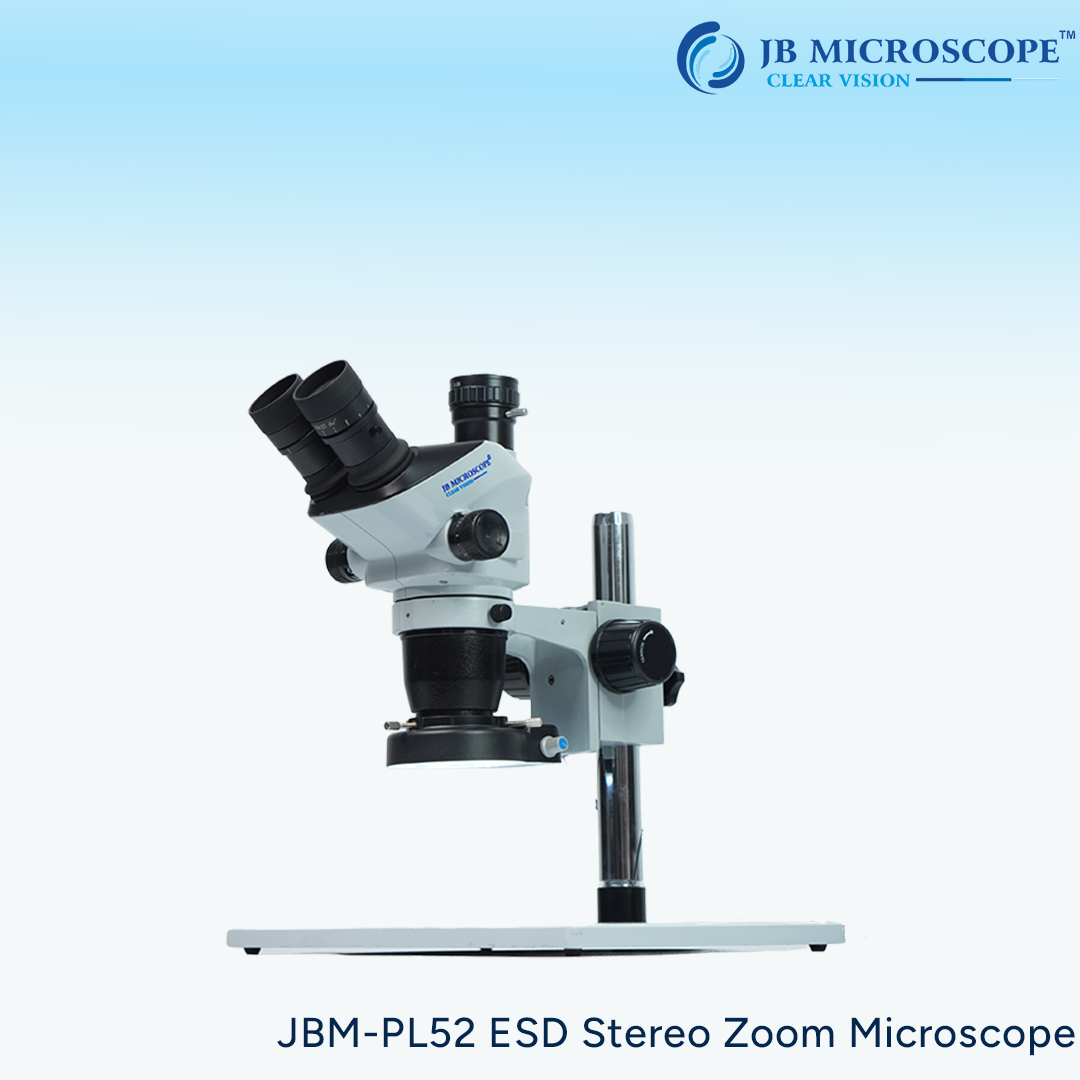

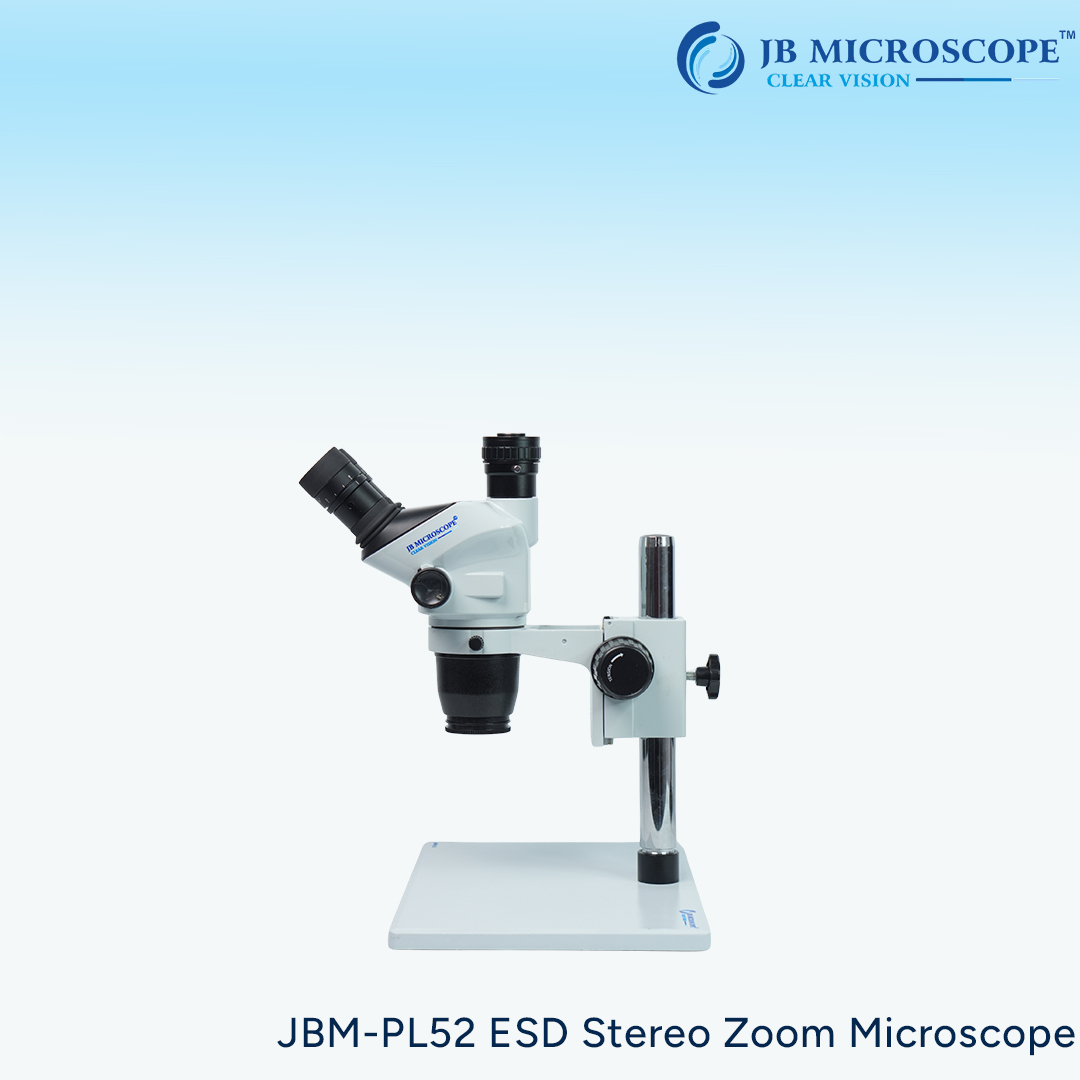

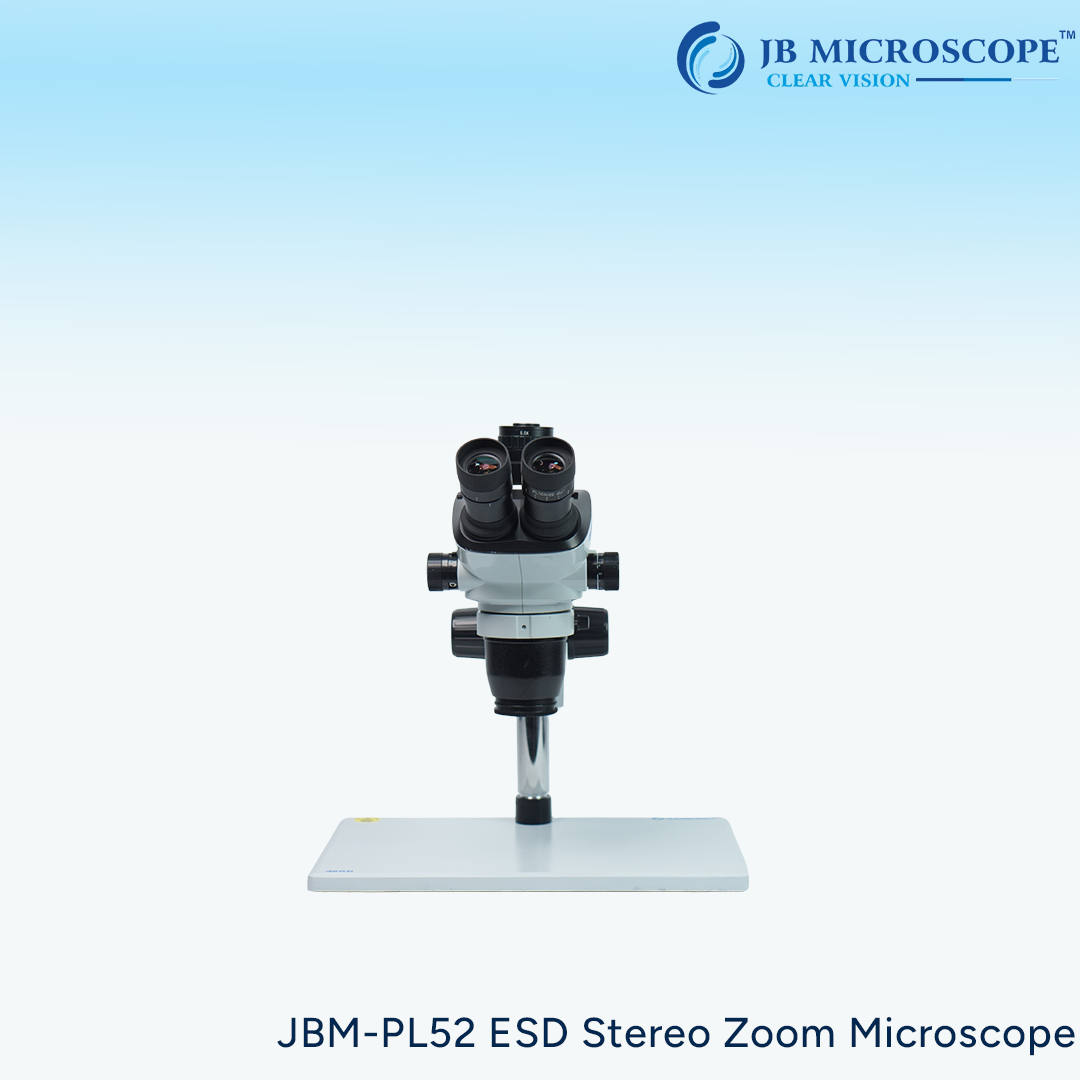

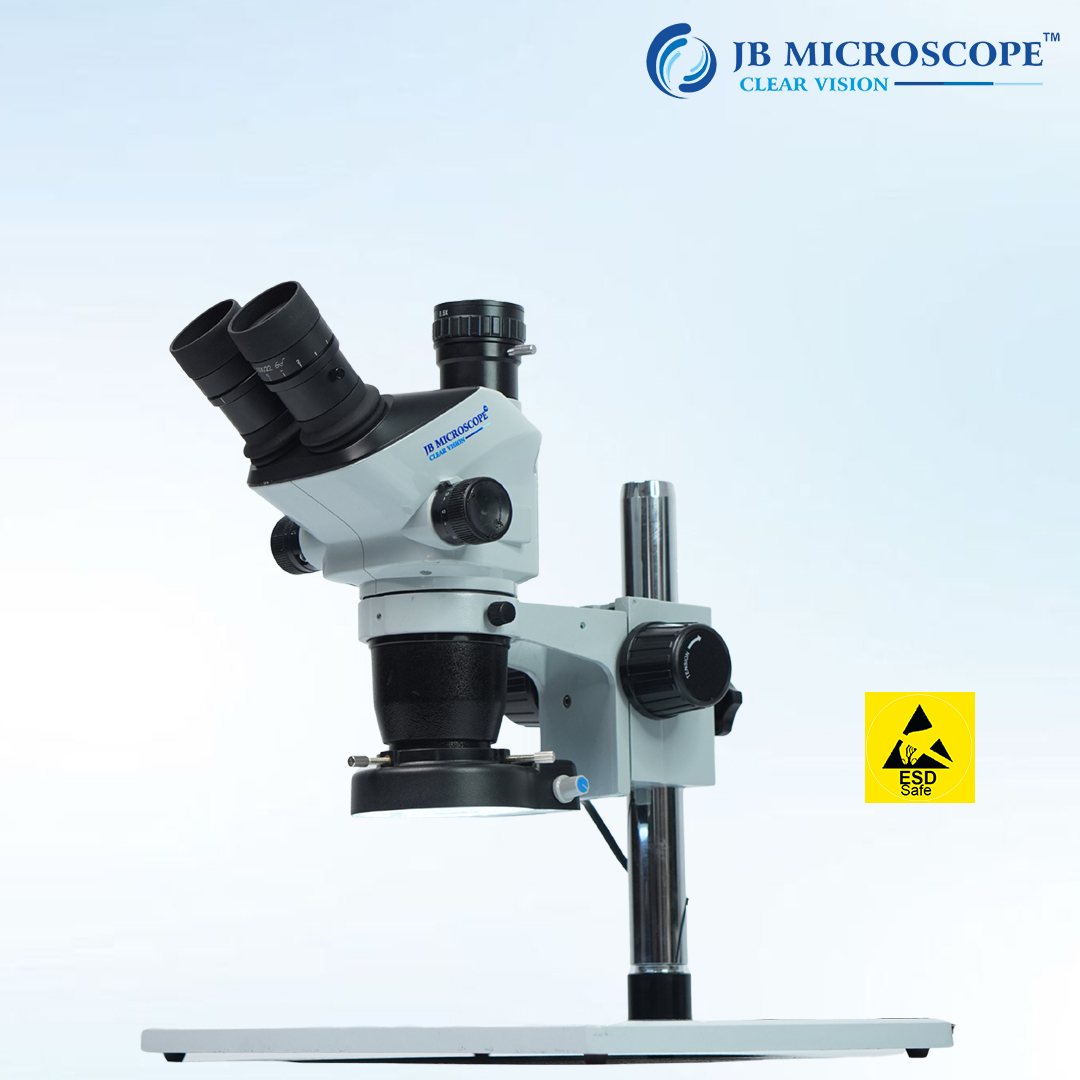

- MODEL-JBM-PL52

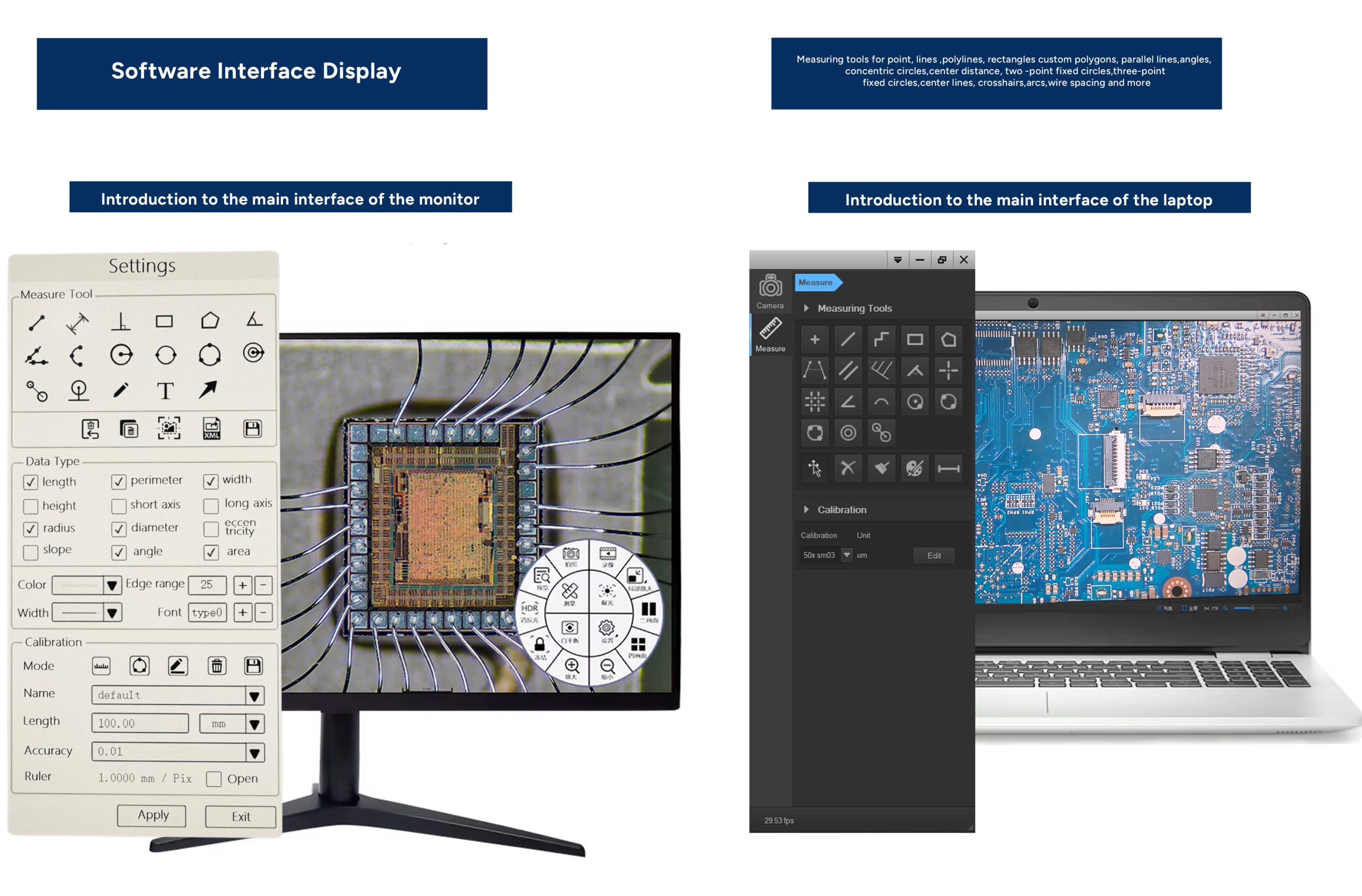

- Camera Feature: Automatic edge finding built-in measuring system. Local magnification electronic zoom/zoom image mirroring, u disk storage

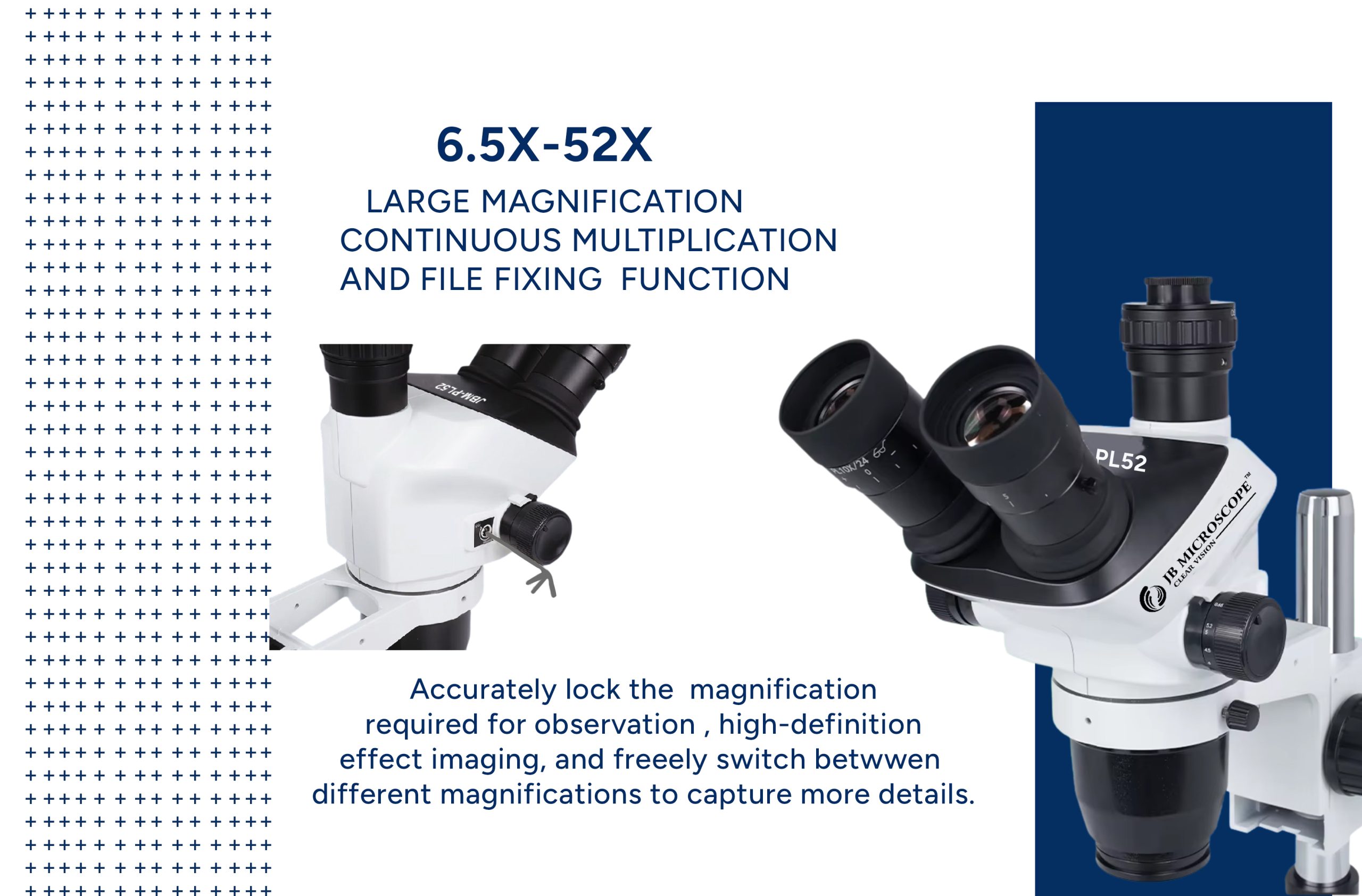

- Primary tube Magnification:0.65-5.2X, zoom ratio8:1 to ensure the focal point of the image plane
- Optical multiple:6.5-2X (optional auxiliary objective)
- Working distance:155MM (upper & lower range adjustable)

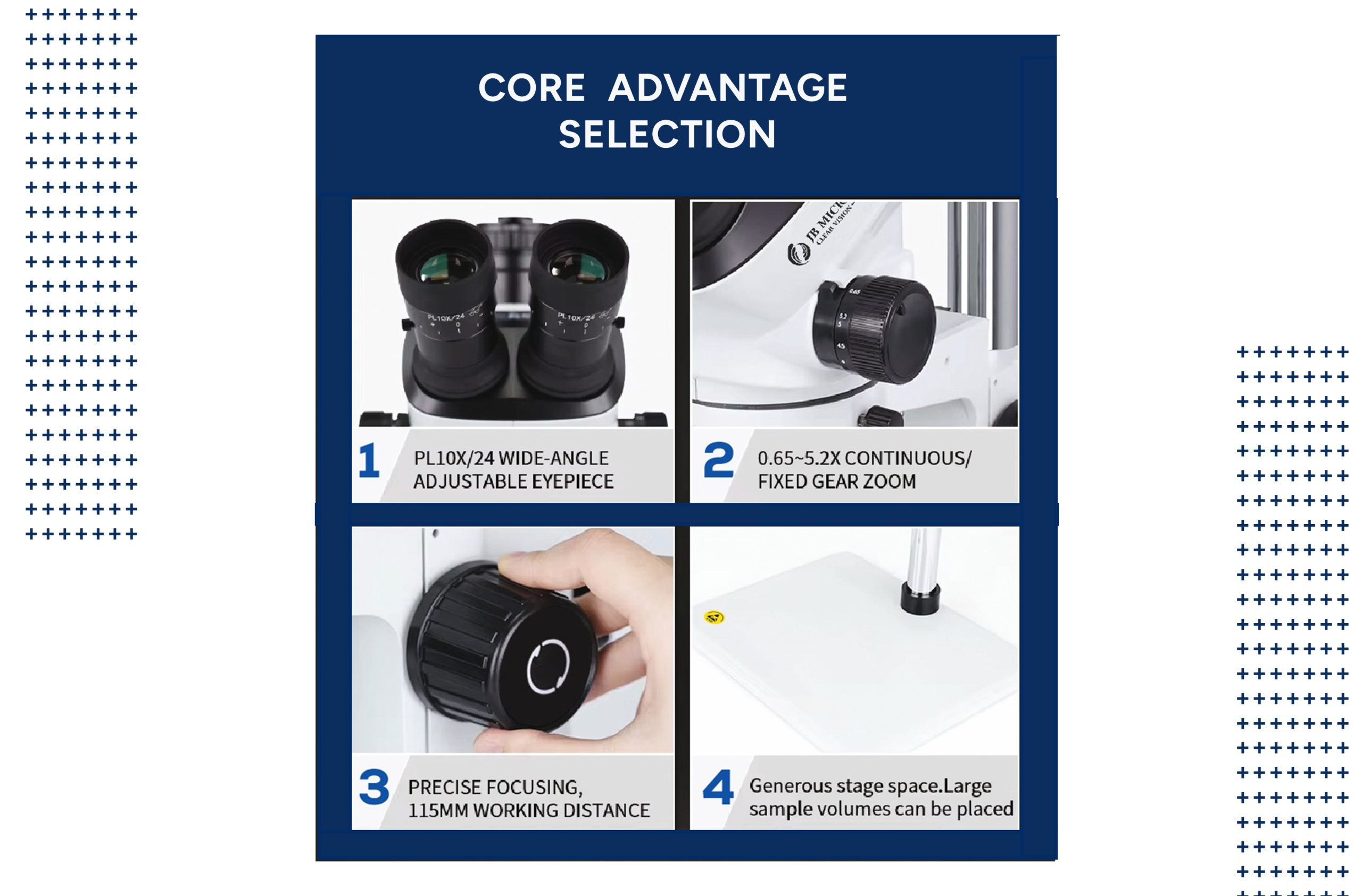

- eyepiece 10X/24mm (field of view)
- Power Supply:DC-12V/1A
- Bracket Size:260X320mm Column height240mm&32mm

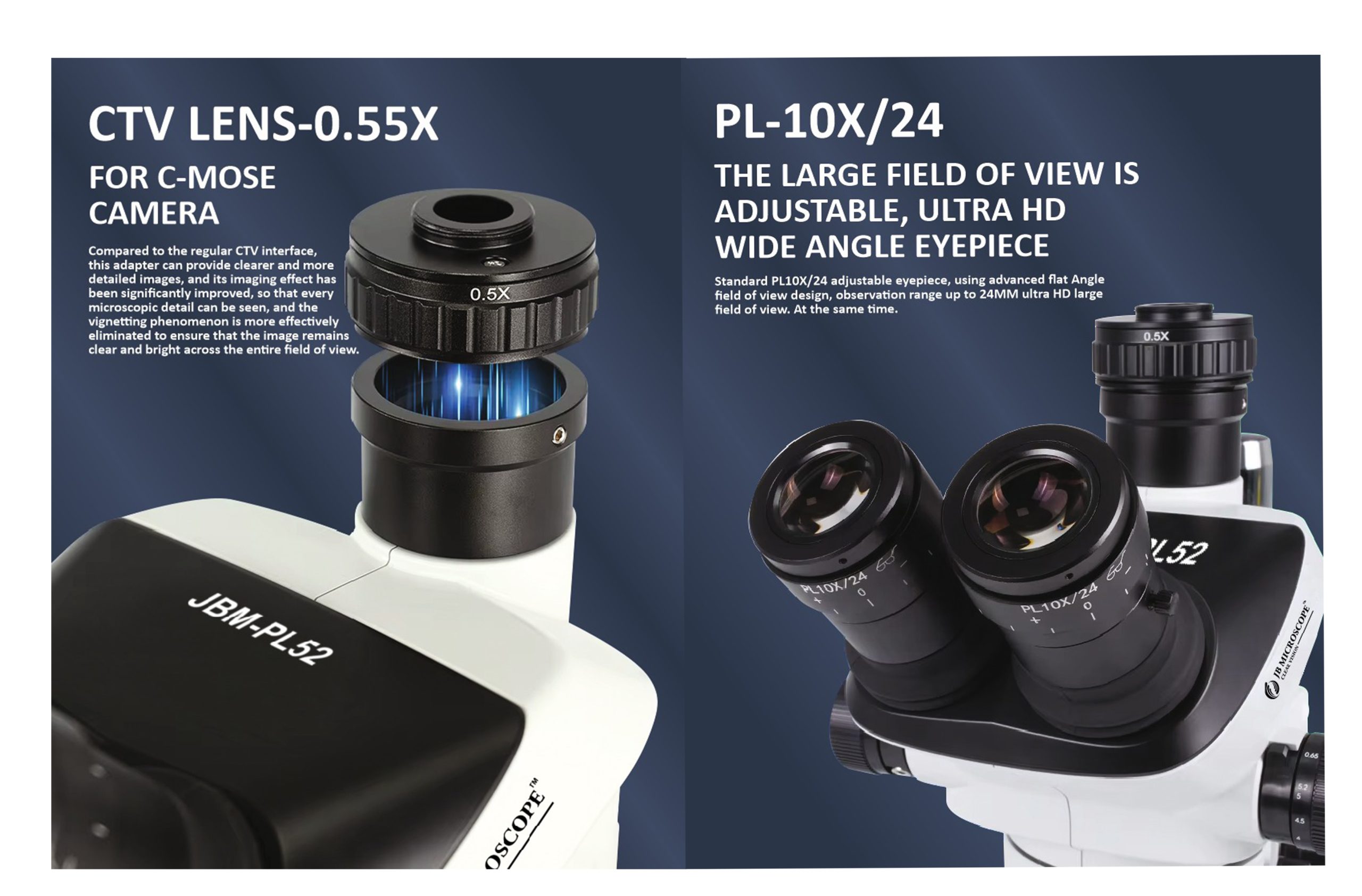

- Photographic Interface:0.5x,C-mount, adjustable focus
- Output interfaced: HDMI + USB High- speed dual output

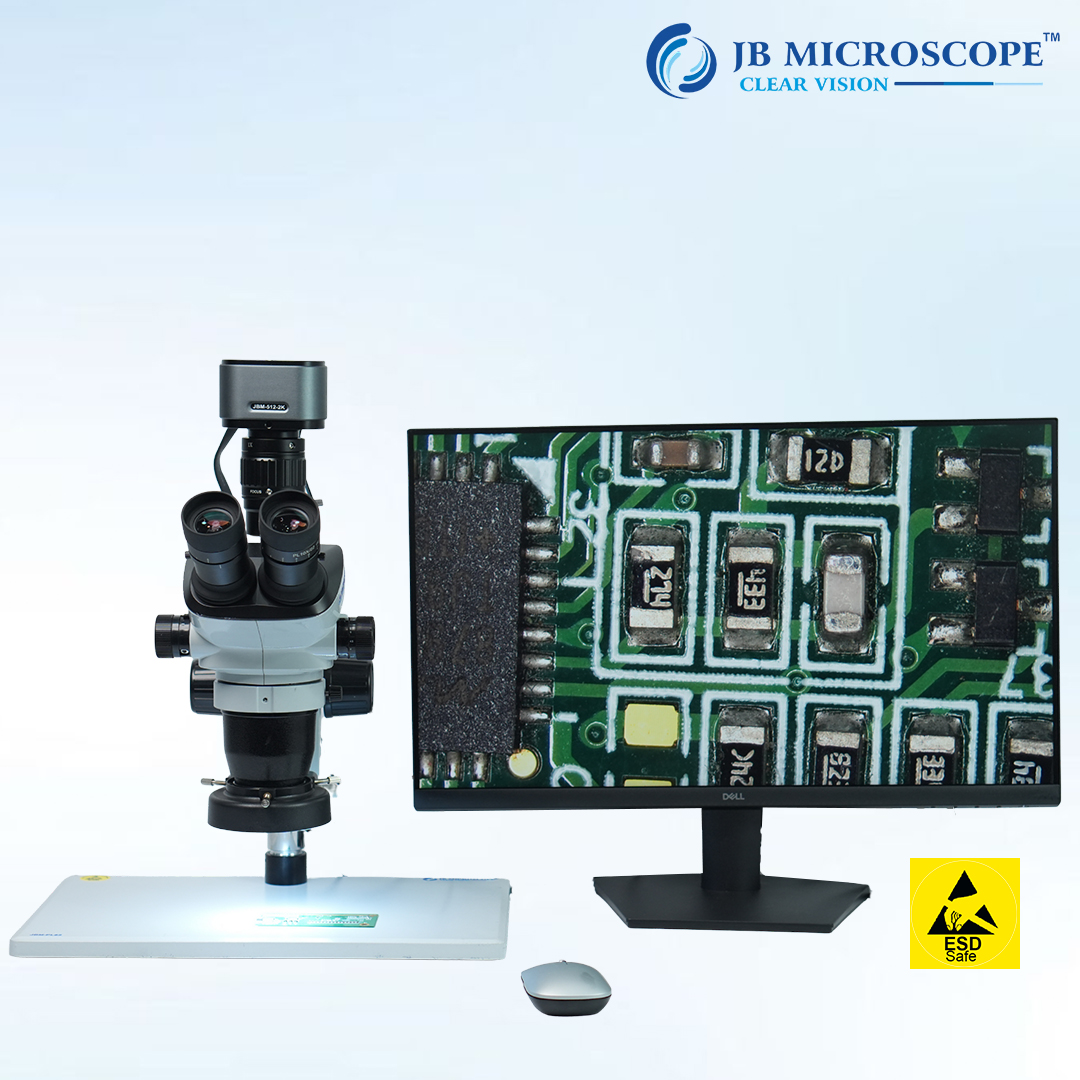

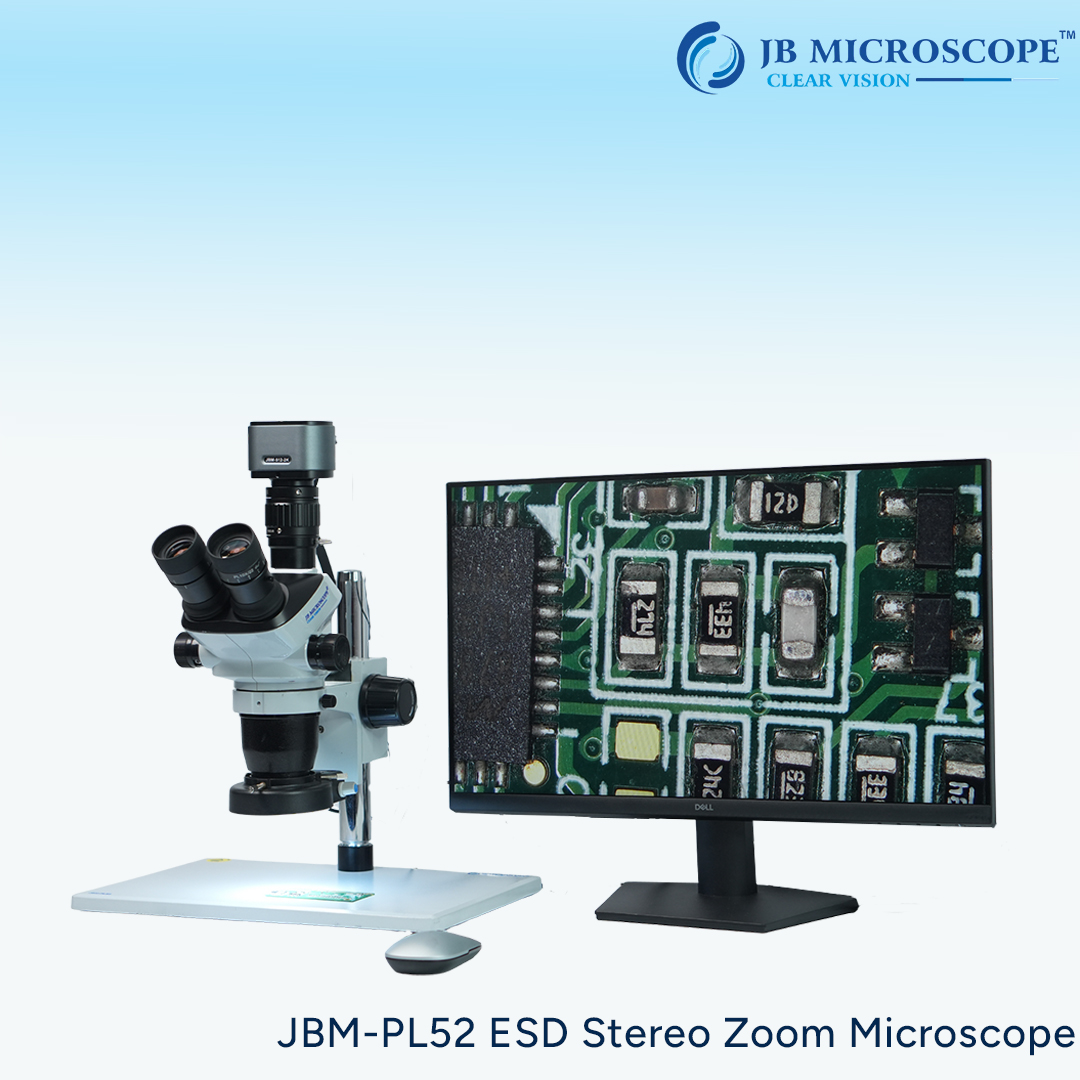

- External devices’ HDMI Monitor Computer
