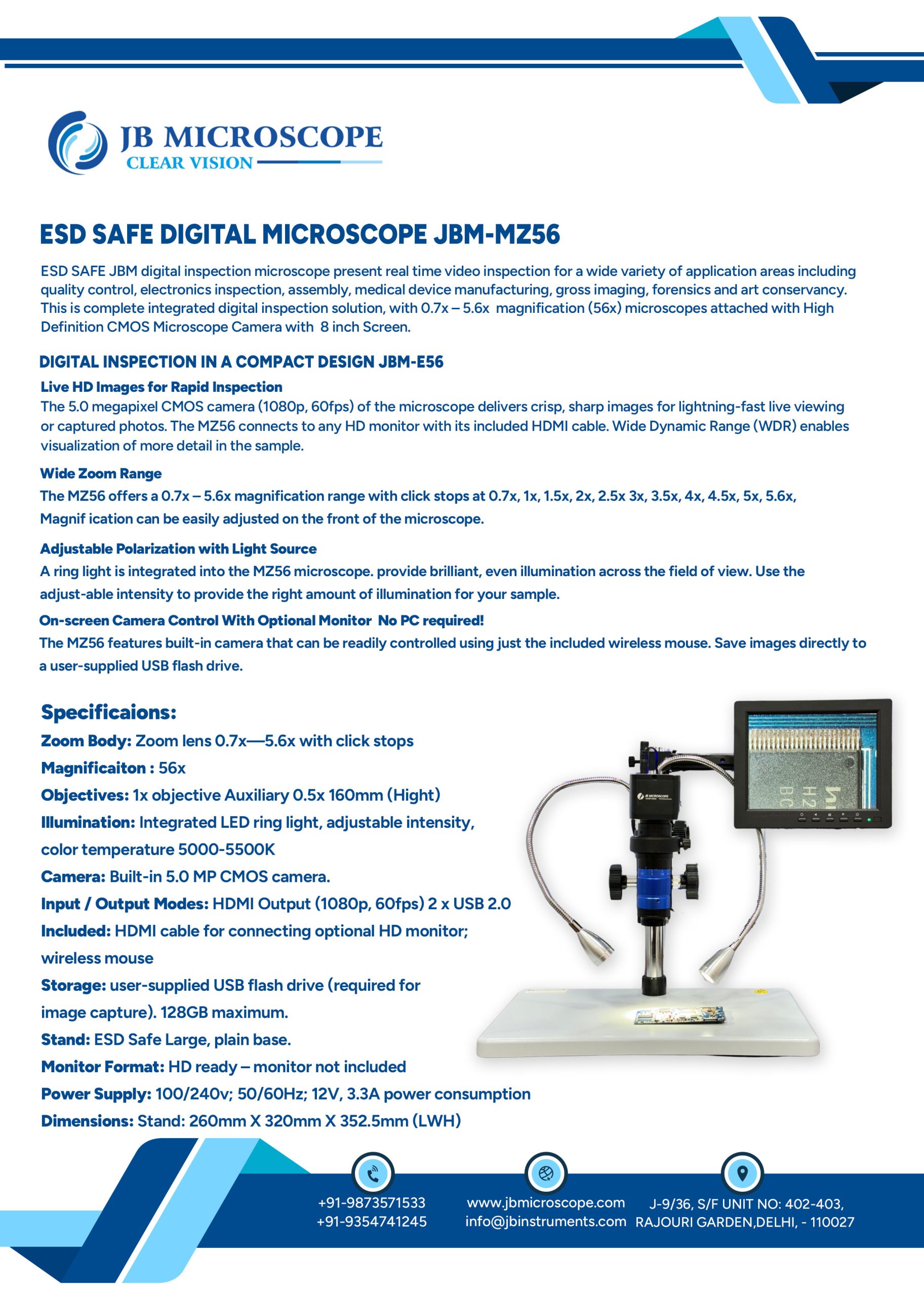

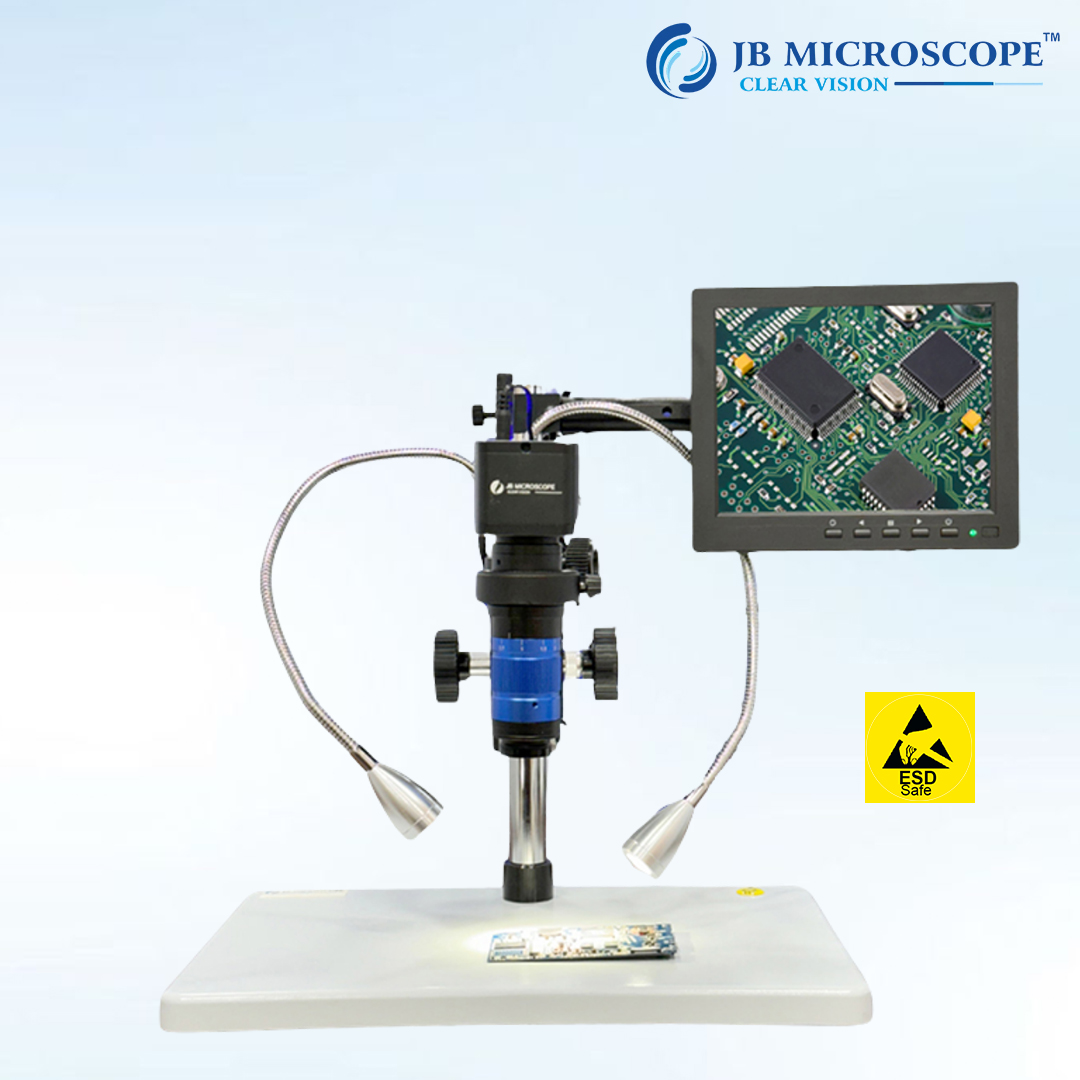

ESD Safe Digital Microscope JBM-MZ56

Category:

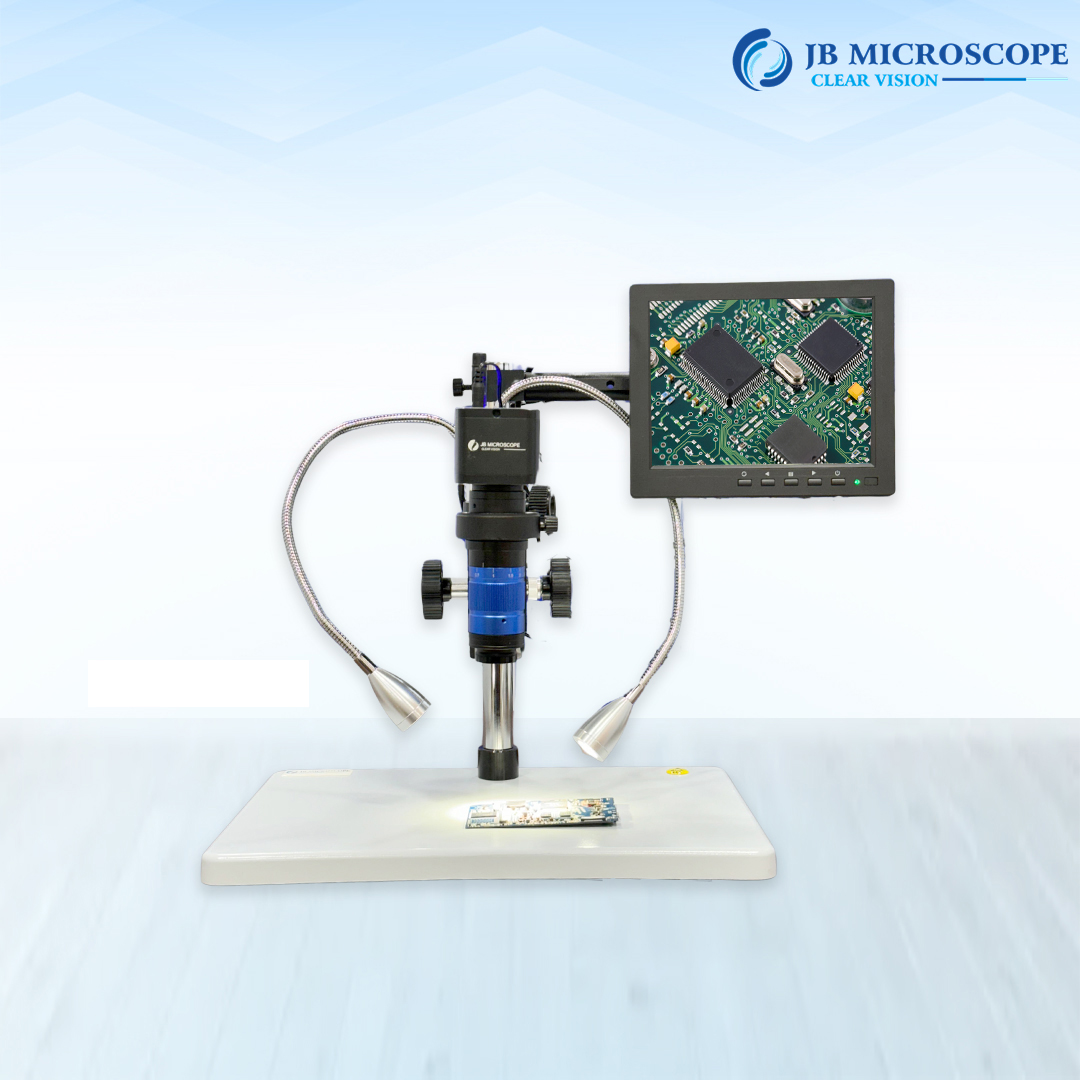

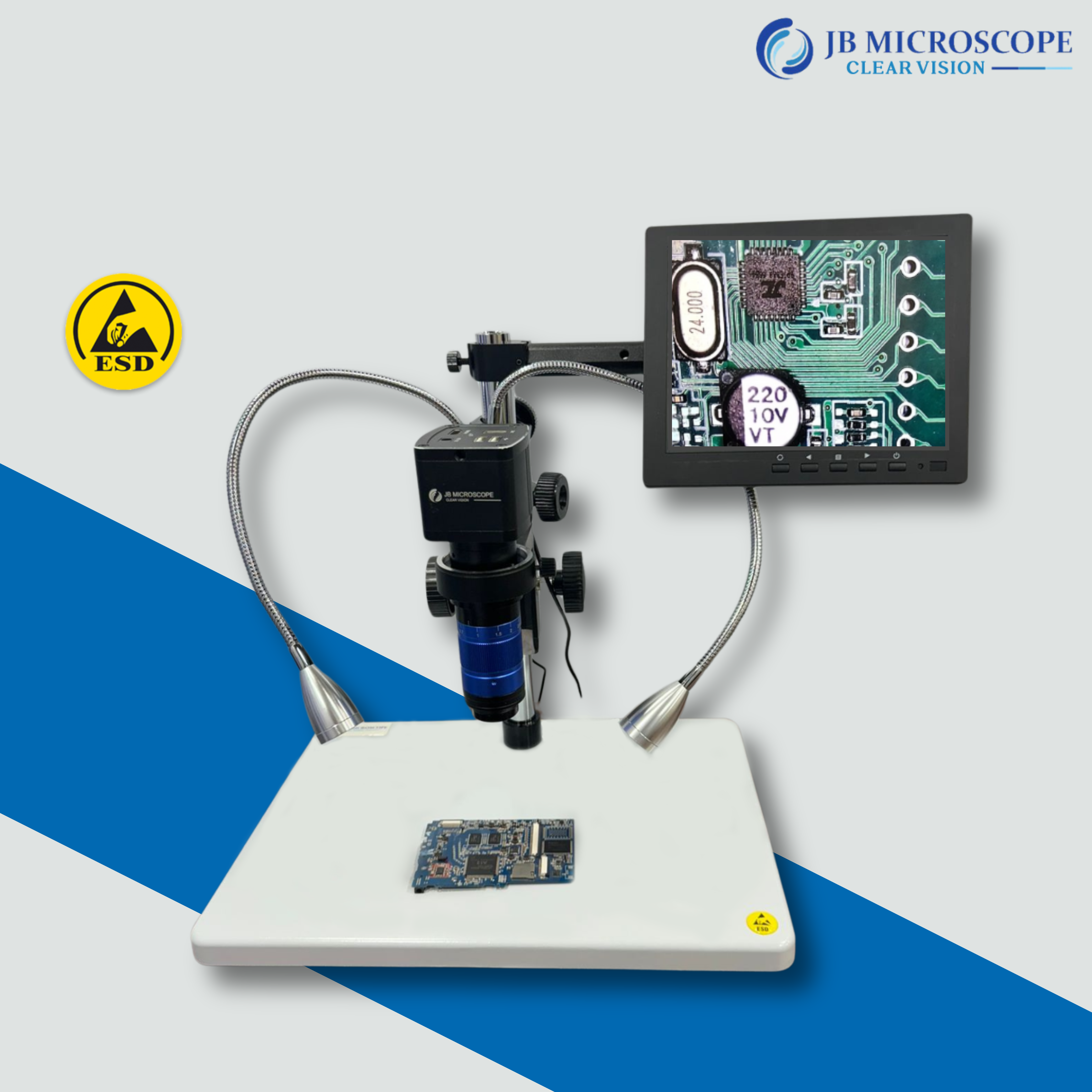

ESD SAFE JBM digital inspection microscope present real time video inspection for a wide variety of application areas including quality control, electronics inspection, assembly, medical device manufacturing, gross imaging, forensics and art conservancy. This is complete integrated digital inspection solution, with 0.7x – 5.6x  magnification microscopes attached with High Definition CMOS Microscope Camera with  8 inch Screen.



DIGITAL INSPECTION IN A COMPACT DESIGN JBM-E56

Live HD Images for Rapid Inspection

The 5.0 megapixel CMOS camera (1080p, 60fps) of the microscope delivers crisp, sharp images for lightning-fast live viewing or captured photos. The MZ56 connects to any HD monitor with its included HDMI cable. Wide Dynamic Range (WDR) enables visualization of more detail in the sample.



Wide Zoom Range

The MZ56 offers a 0.7x – 5.6x magnification range with click stops at 0.7x, 1x, 1.5x, 2x, 2.5x 3x, 3.5x, 4x, 4.5x, 5x, 5.6x, Magnification can be easily adjusted on the front of the microscope.



Integrated LED Ring Light

A ring light is integrated into the MZ56 microscope.

provide brilliant, even illumination across the field of view. Use the adjust-able intensity to provide the right amount of illumination for your sample.



On-screen Camera Control With Optional Monitor — No PC required!

The MZ56 features built-in camera that can be readily controlled using just the included wireless mouse. Save images directly to a user-supplied USB flash drive.

No need for a PC.



Specifications

Zoom Body: Zoom lens 0.7x—5.6x with click stops

Objectives: 1x objective Auxiliary 0.5x 160mm (Hight)

Illumination: Integrated LED ring light, adjustable intensity, color temperature 5000-5500K

Camera: Built-in 5.0 MP CMOS camera.

Input / Output Modes: HDMI Output (1080p, 60fps) ● 2 x USB 2.0

Included: HDMI cable for connecting optional HD monitor; wireless mouse

Storage: user-supplied USB flash drive (required for image capture). 128GB maximum.

Stand: ESD Safe Large, plain base.

Monitor Format: HD ready – monitor not included

Power Supply: 100/240v; 50/60Hz; 12V, 3.3A power consumption

Dimensions: Stand: 260mm X 320mm X 352.5mm (LWH)
