| Brand | JB Microscope |
| Trinocular Head | 45° inclined 360°rotate |
| Interpupillary Distance Adjustment | 54-76mm |
| Diopter Adjustment | ±5dp |
| Eyepiece | WF10X/22mm |
| Objective | 0.65X-6.5X |
| Magnification Ratio | 1:10 |
| Magnification | 6.5X-65X |
| Working Distance | 110mm |
| C-mount Adapter | 1x |
| Vertical Post Height | 240mm |
| Vertical Post Diameter | φ32mm |
| Microscope Body Holder | φ76mm |
| Focus Travel | 50mm |
| Stage Plate | φ95mm black white contrast plate |
| Base | 274x207x23mm |
| Material | Metal |

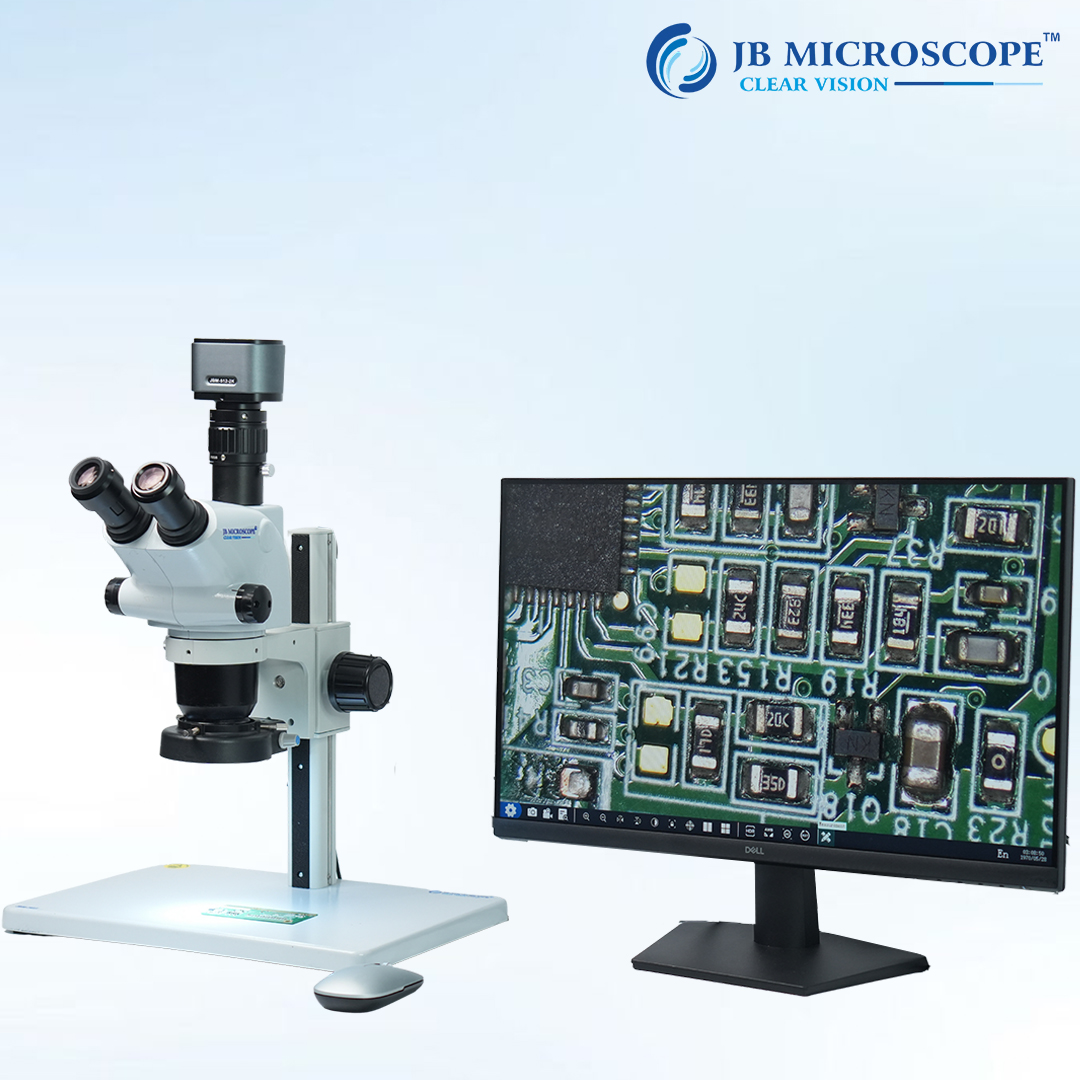

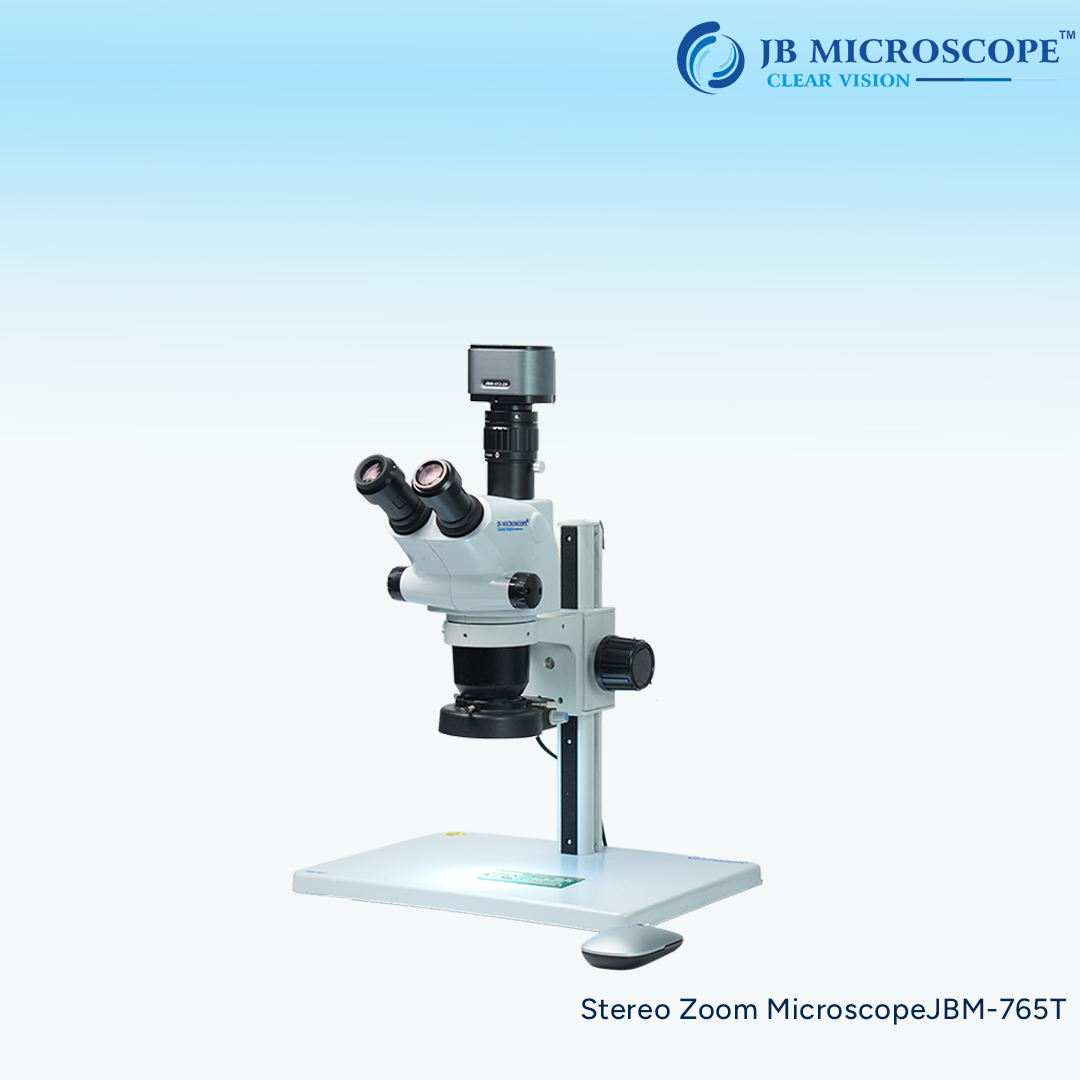

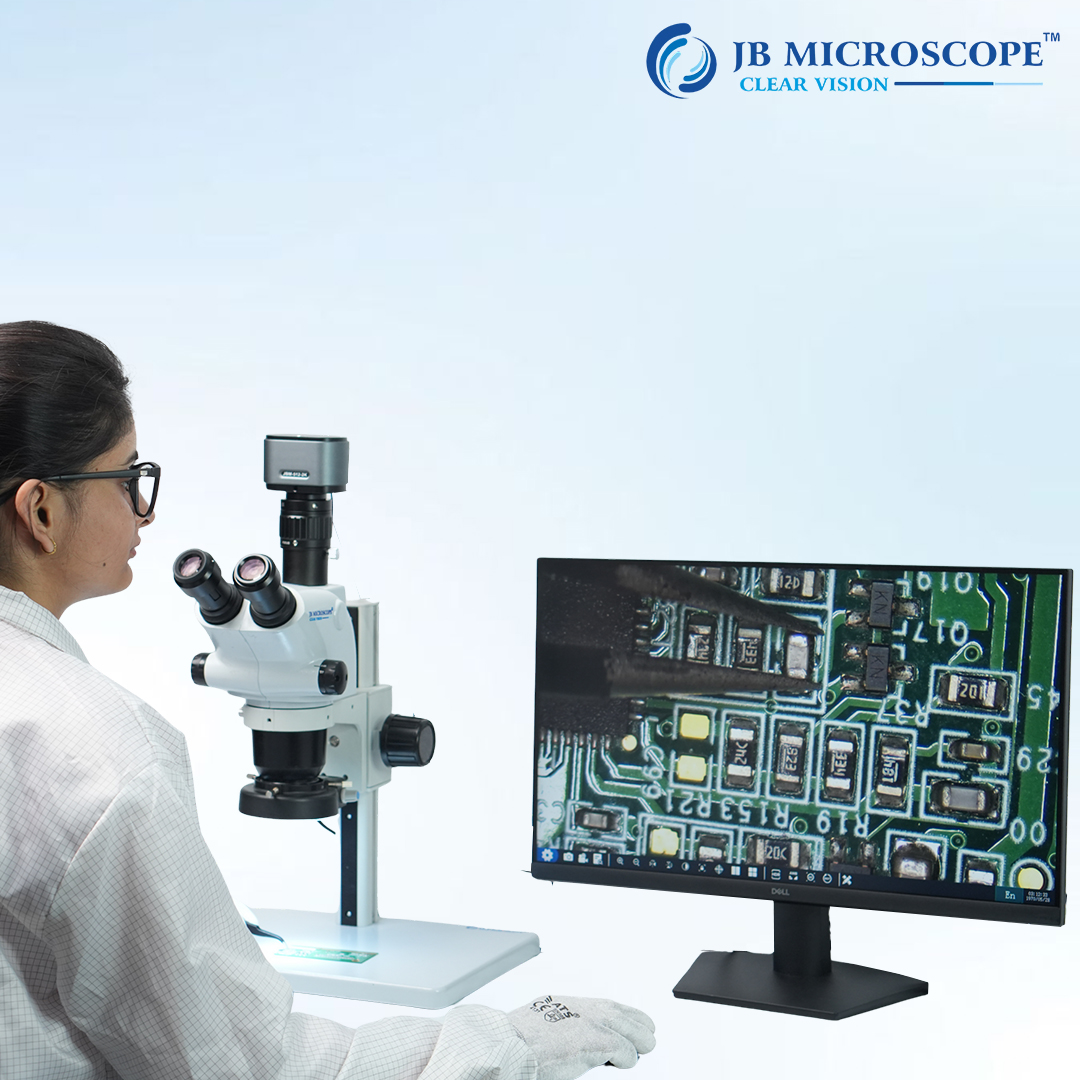

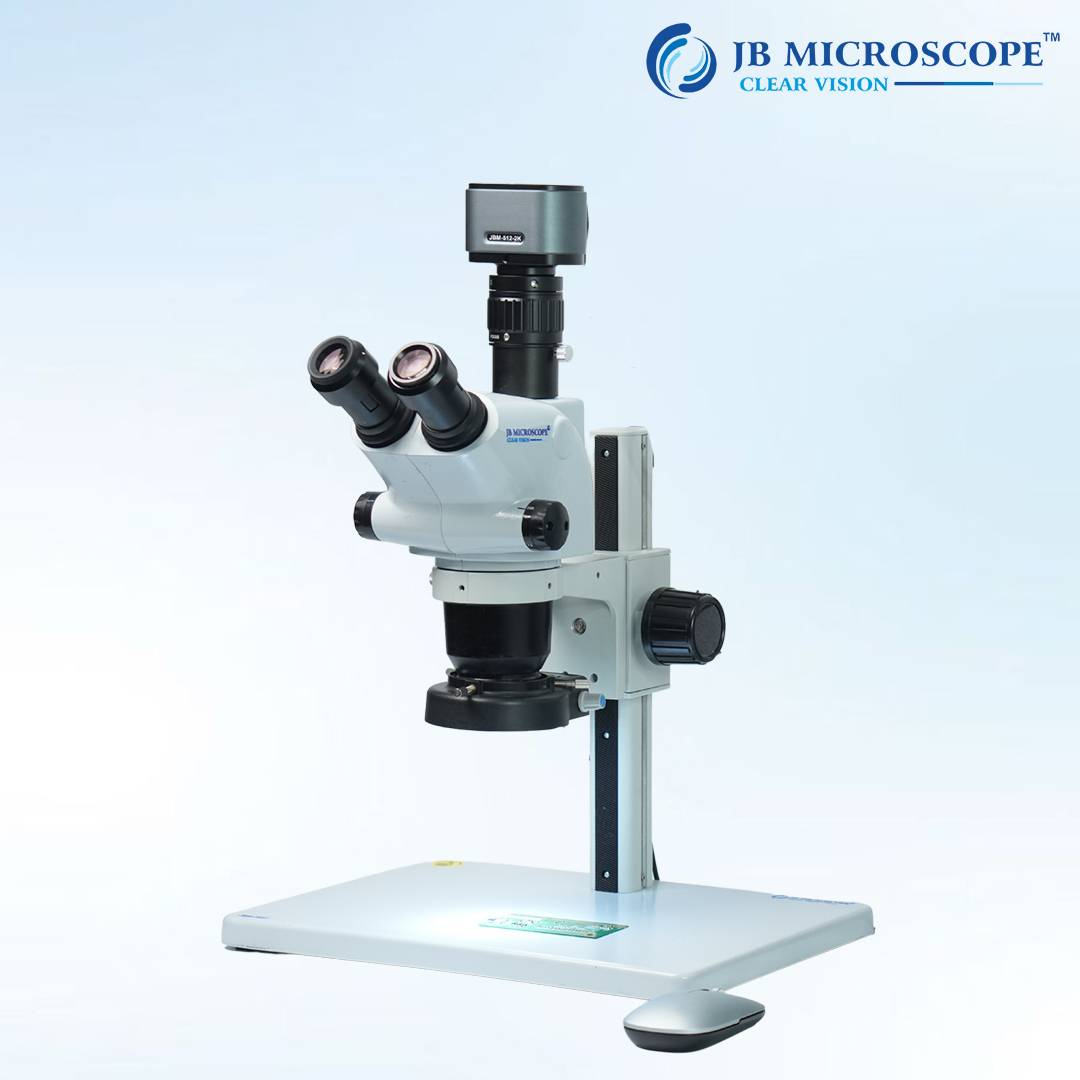

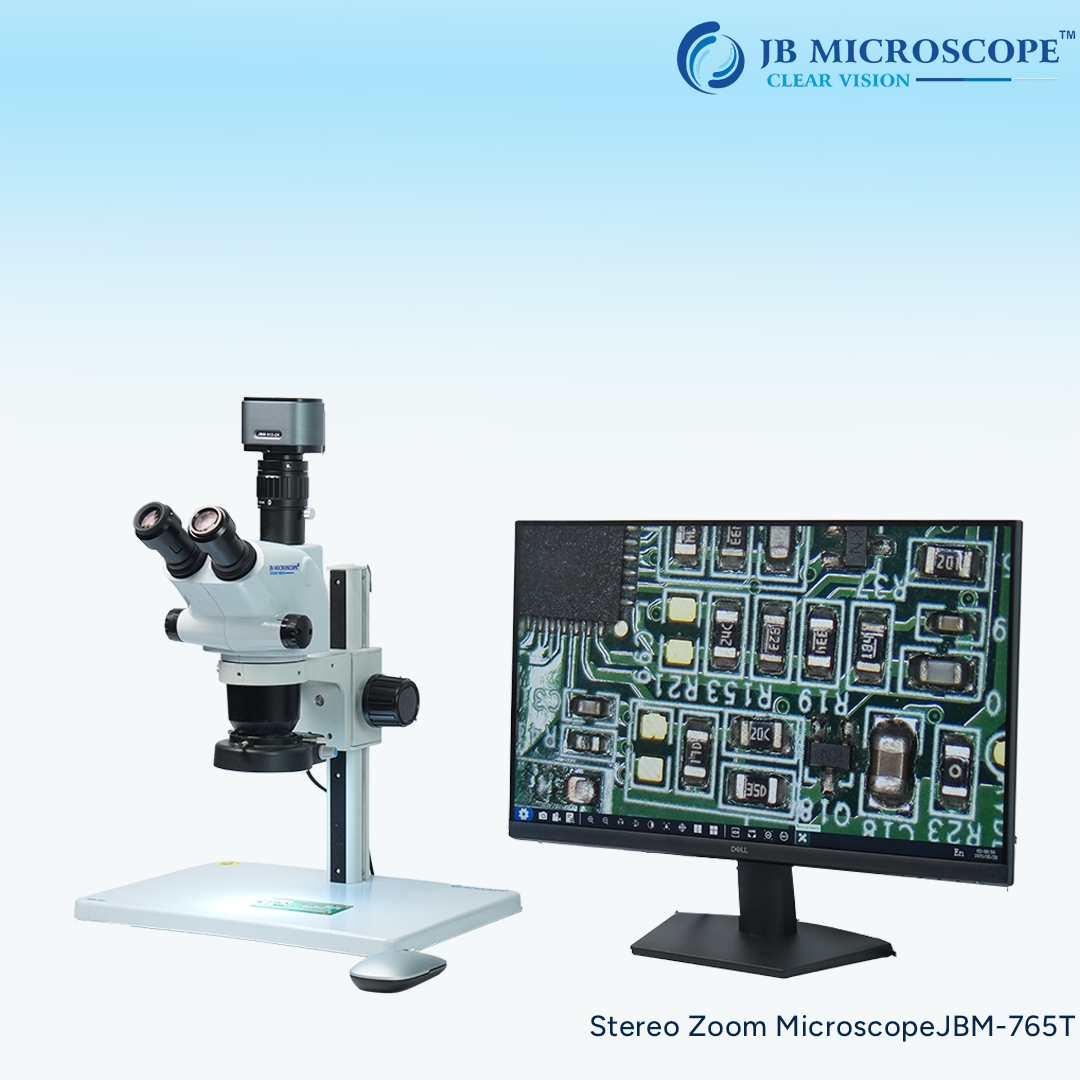

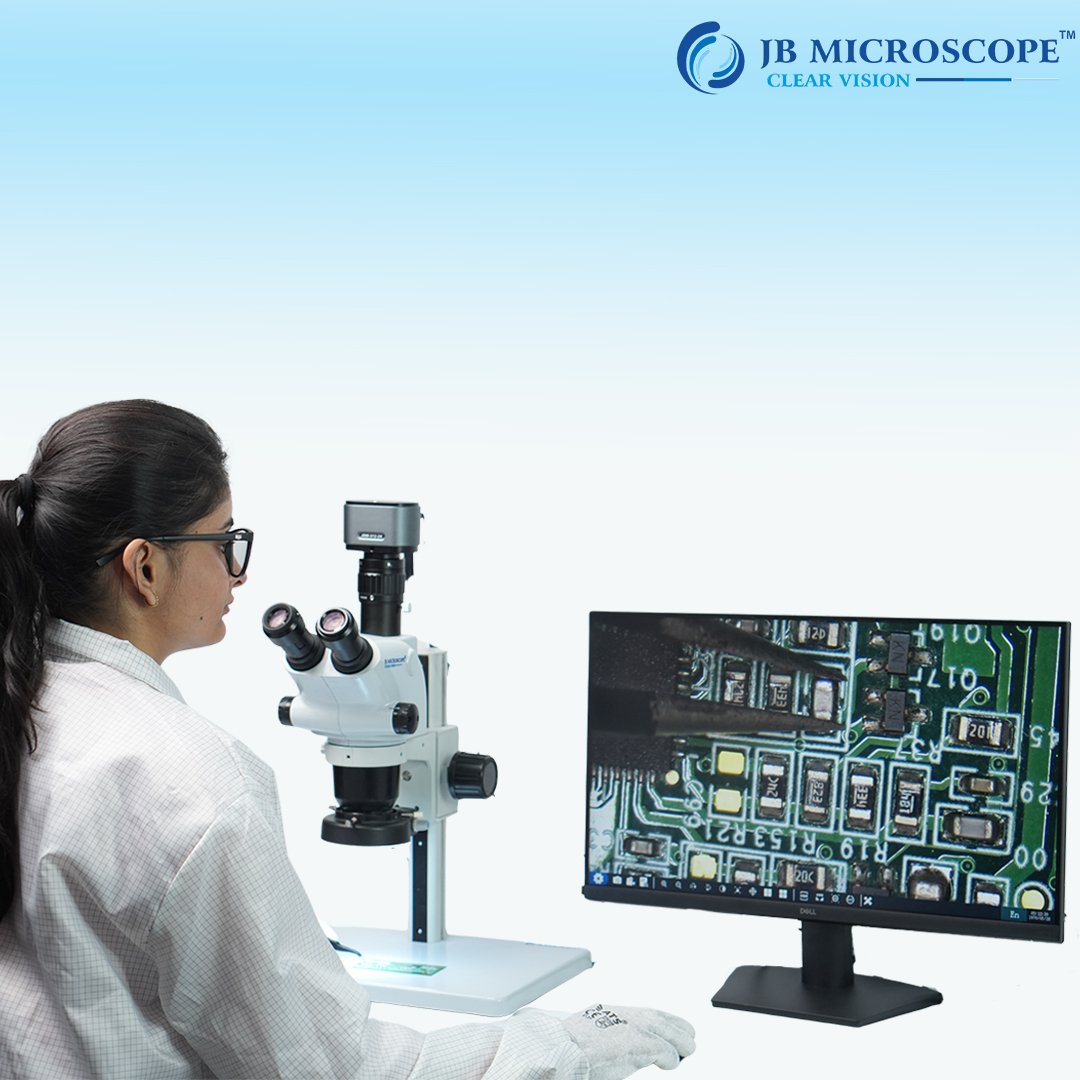

Stereo Zoom Microscope JBM-765T
Stereo zoom microscopes allow quick zoom from low to high magnification. Using a stereo zoom microscope makes it simple to view a sample in the entire field of view, then focus and zoom in on a particular part of interest.
