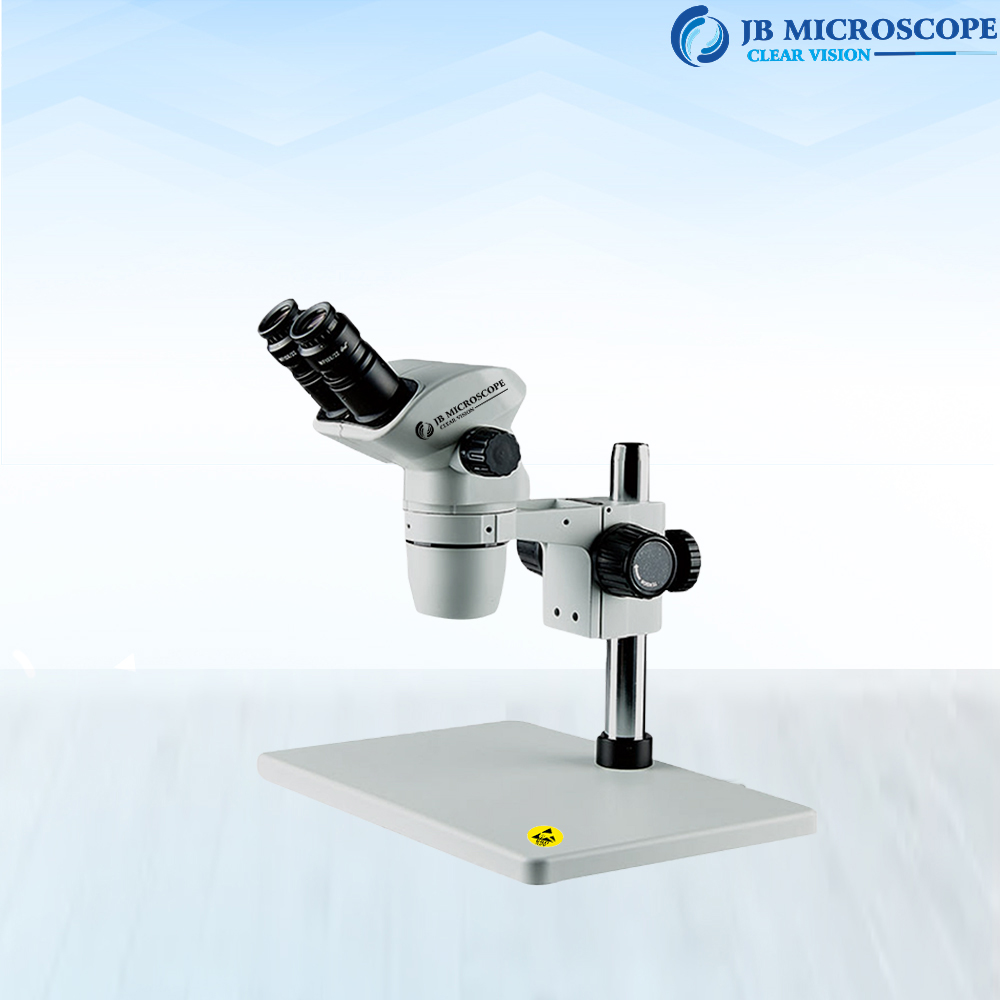

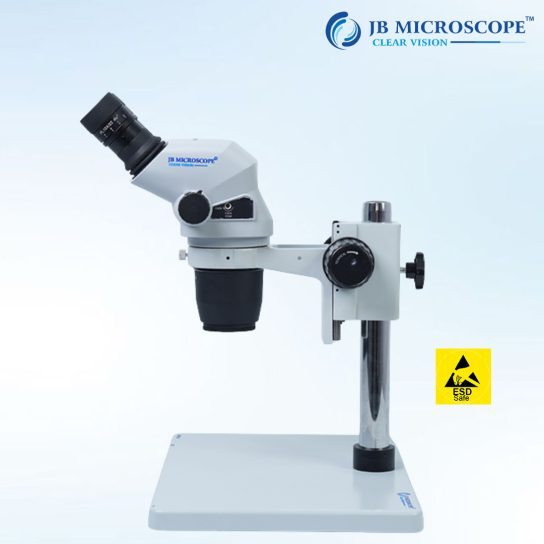

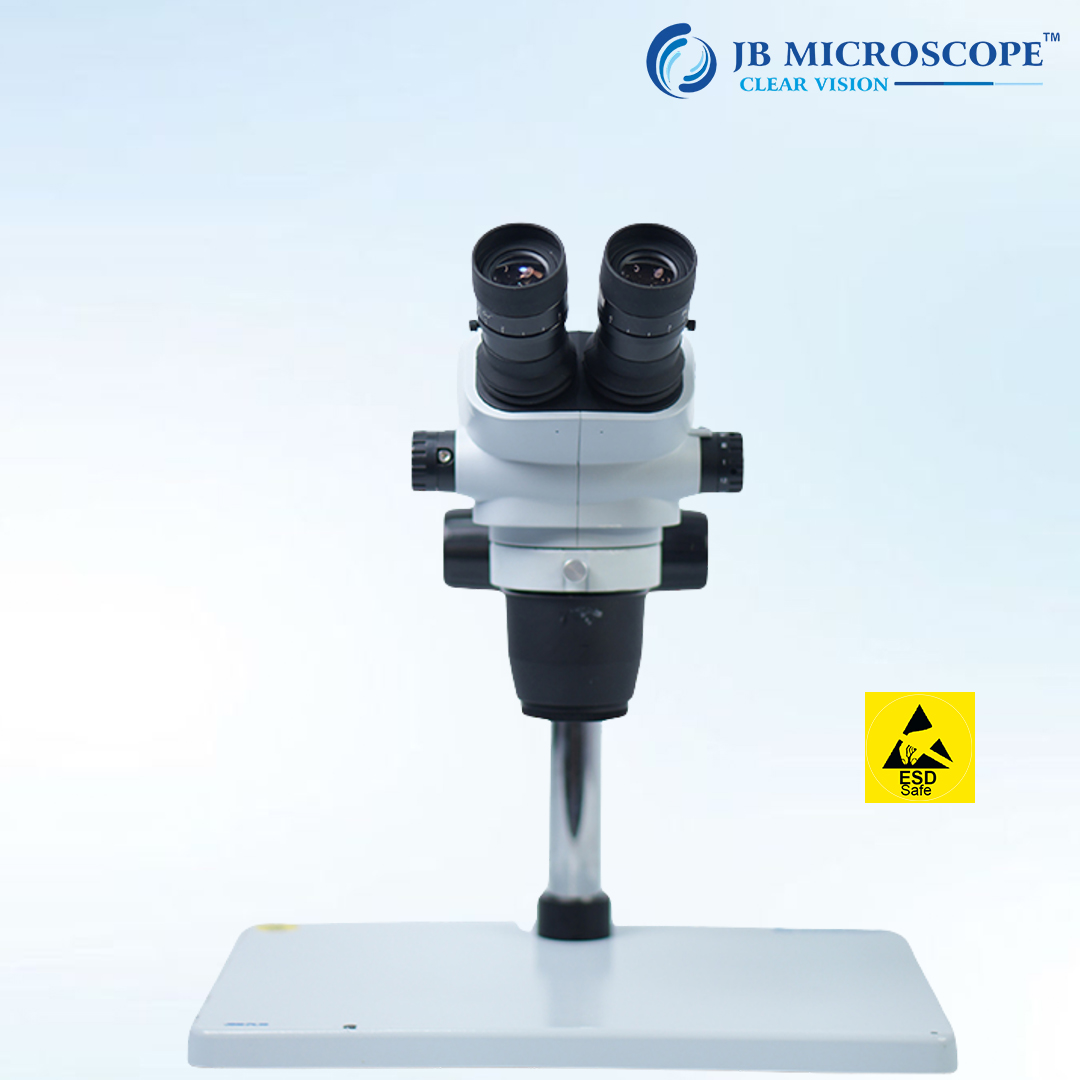

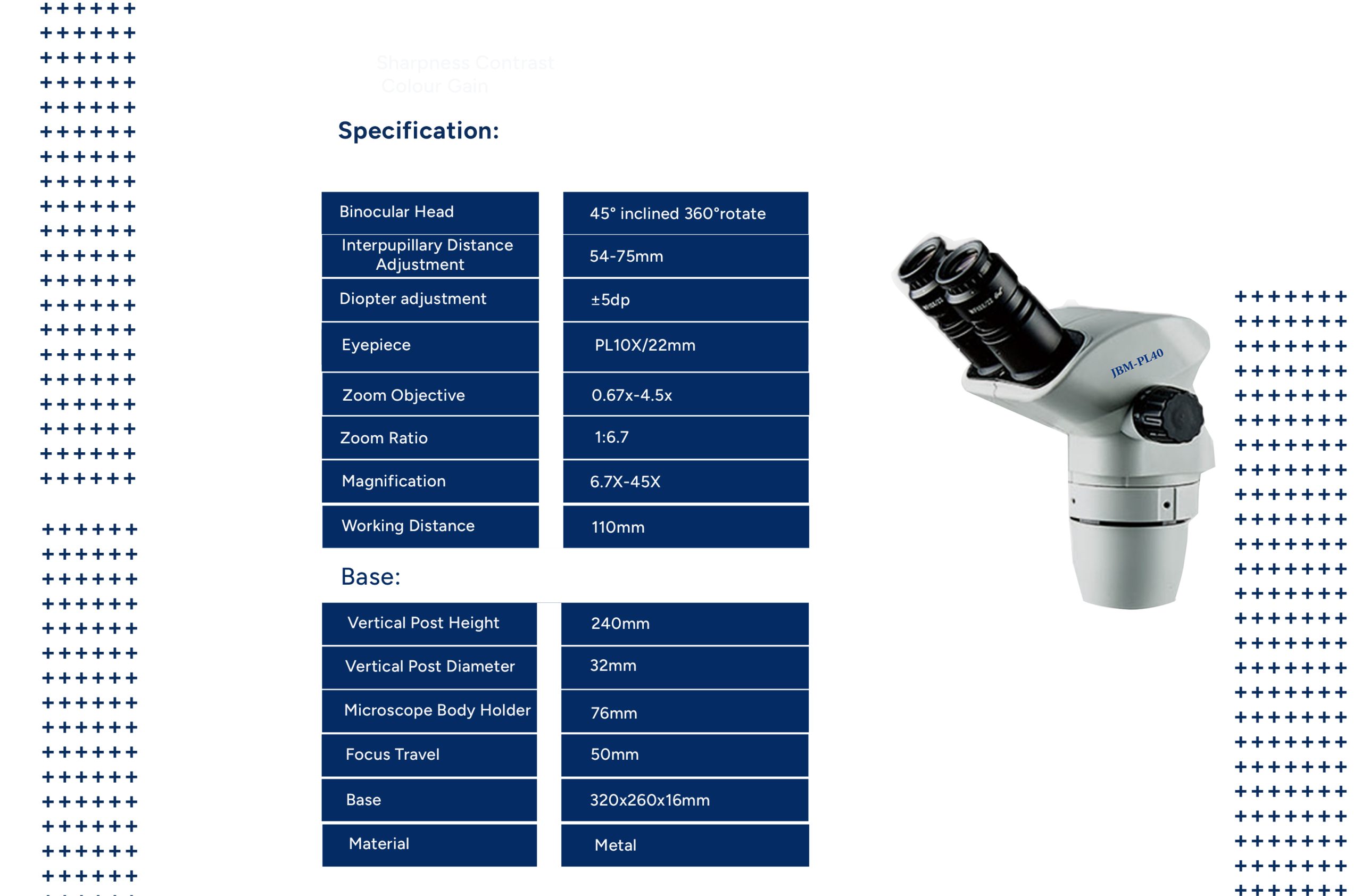

Specification:
- Binocular Head: 45° inclined 360°rotate
- Interpupillary Distance Adjustment: 54-75mm
- Diopter adjustment: ±5dp
- Eyepiece: PL10X/22mm
- Zoom Objective: 0.67x-4.5x
- Zoom Ratio: 1:6.7
- Magnification: 6.7X-45X Working Distance: 110mm
BASE
-
- Vertical Post Height: 240mm
- Vertical Post Diameter: 432mm
- Microscope Body Holder: 476mm
- Focus Travel: 50mm
- Base: 320x260x16mm
- Material: Metal

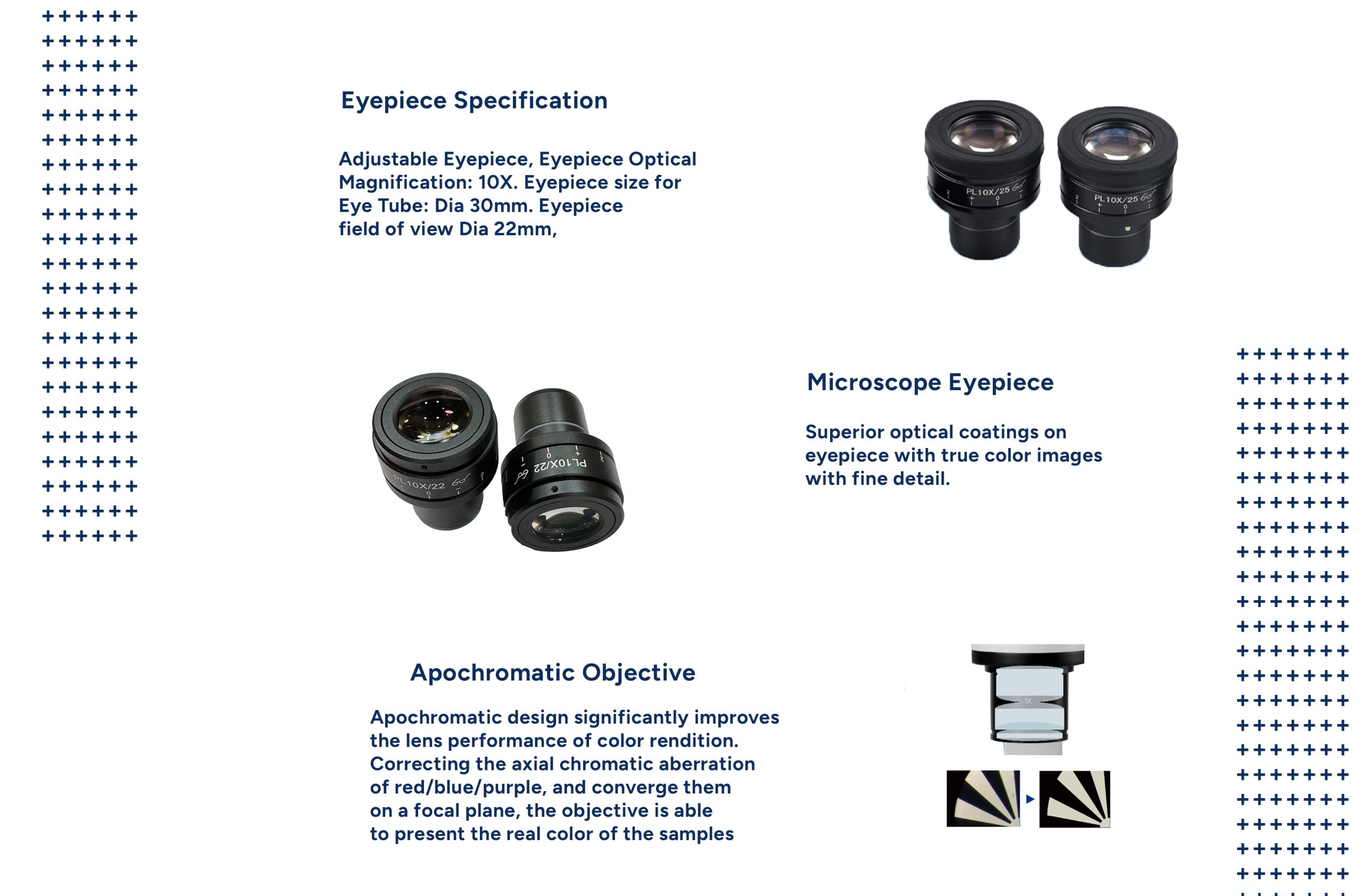

Eyepiece Specification
Adjustable Eyepiece, Eyepiece Optical Magnification: 10X. Eyepiece size for Eye Tube: Dia 30mm. Eyepiece field of view Dia 22mm
Microscope Eyepiece
Superior optical coatings on eyepiece with true color images with fine detail. Apochromatic Objective Apochromatic design significantly improves the lens performance of color rendition. Correcting the axial chromatic aberration of red/blue/purple, and converge them on a focal plane, the objective is able to present the real color of the samples

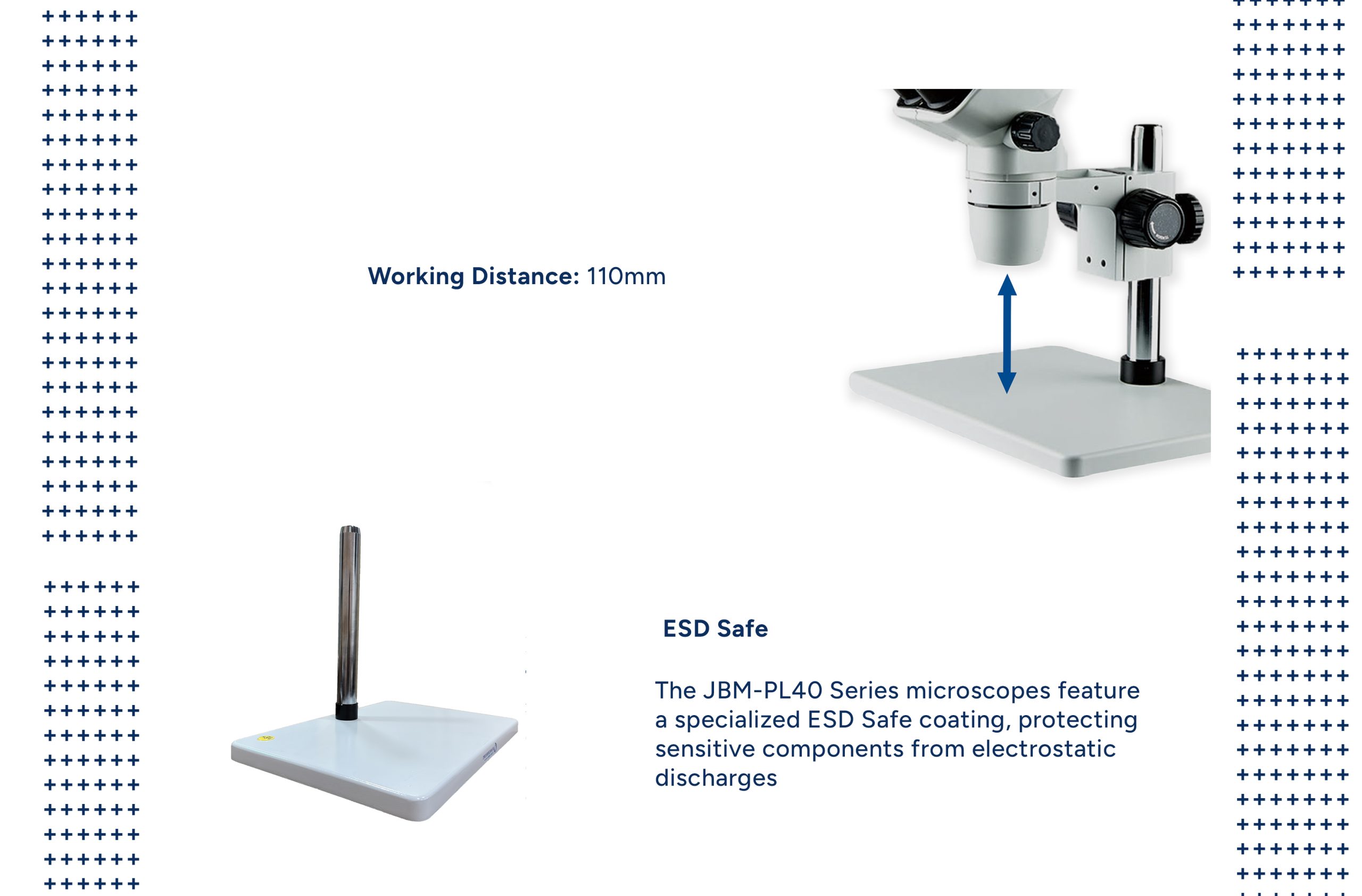

Working Distance: 110mm

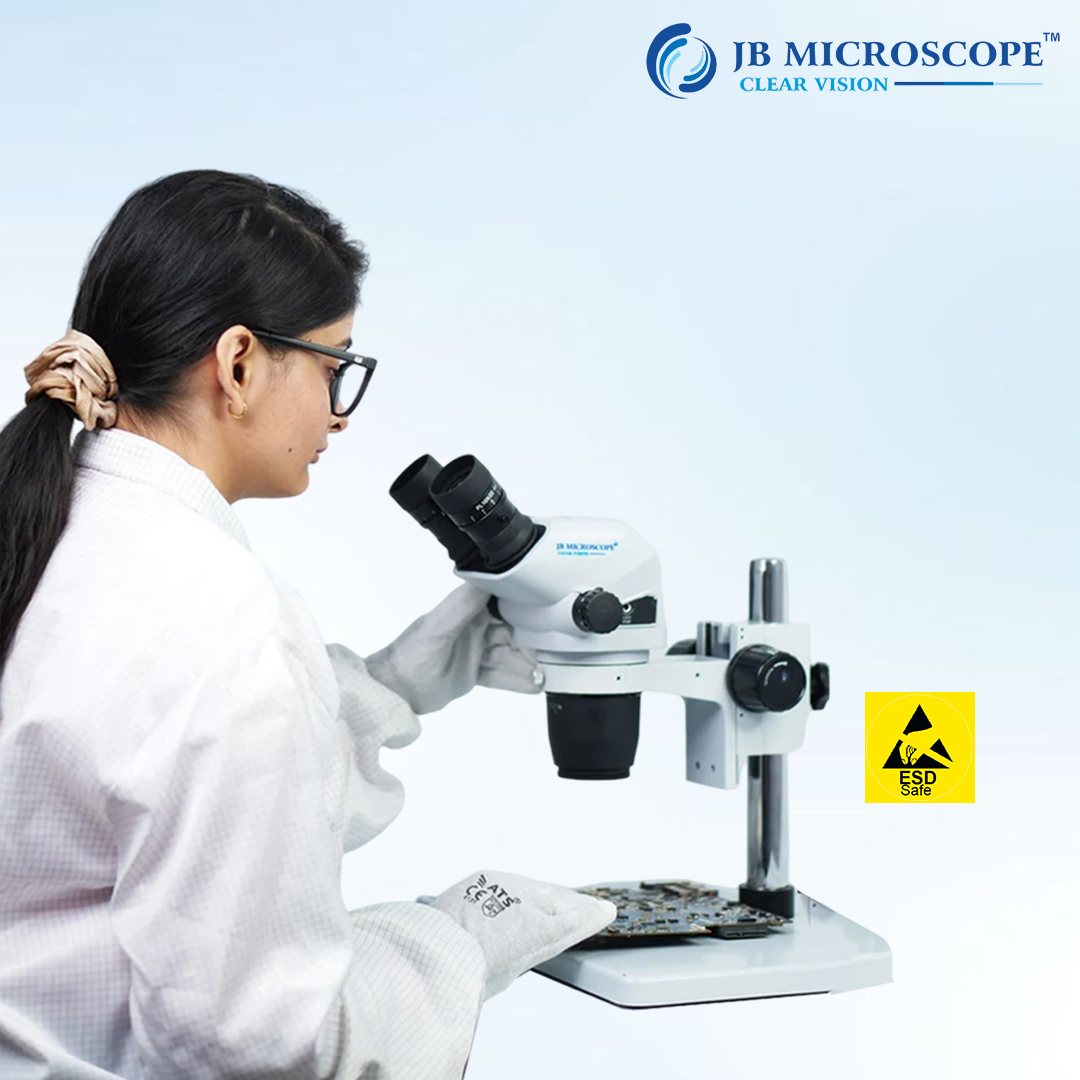

ESD Safe: The JBM-PL40 Series microscopes feature a specialized ESD Safe coating, protecting sensitive components from electrostatic discharges.

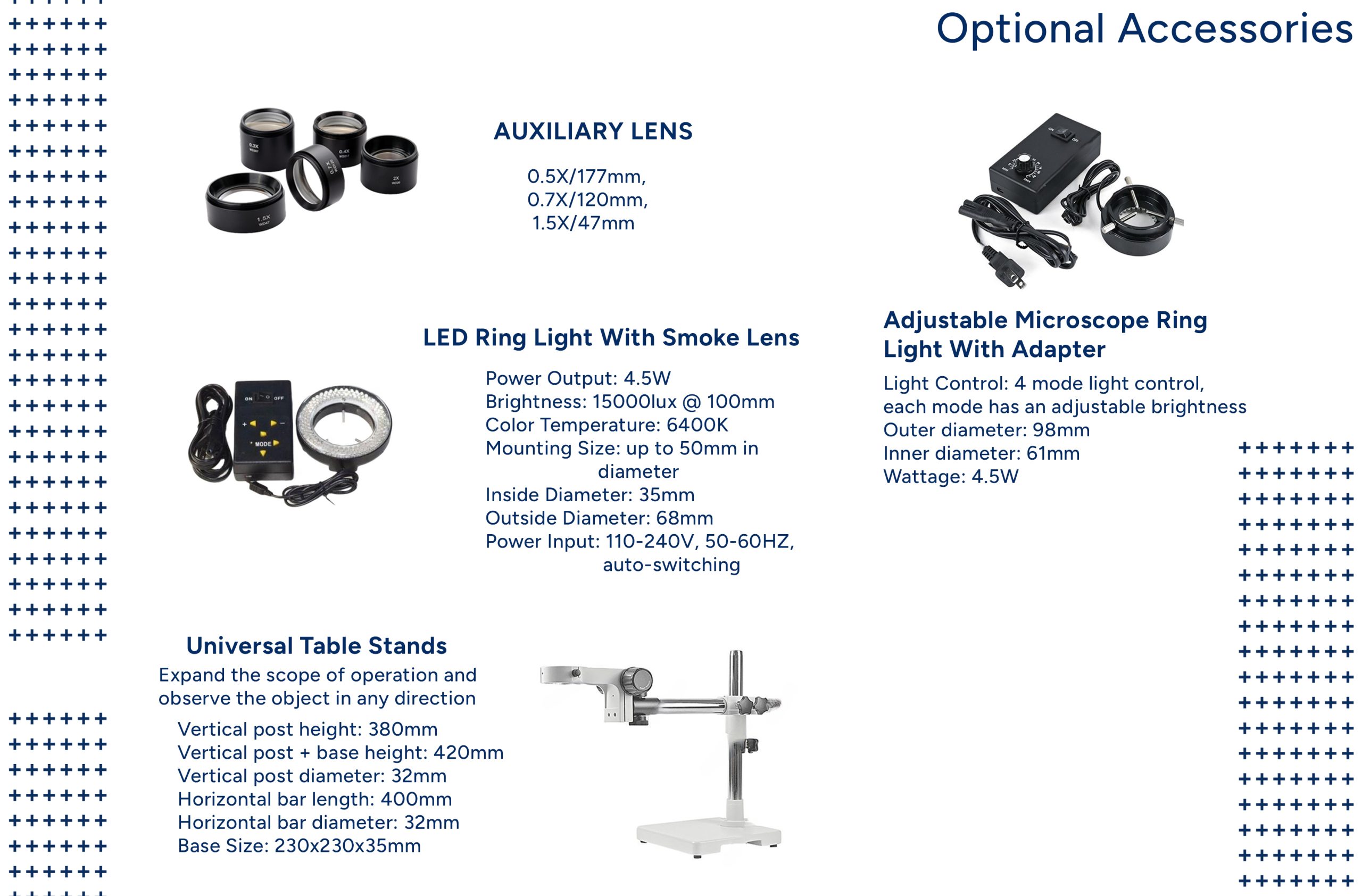

Optional Accessories
AUXILIARY LENS
0.5X/177mm, 0.7X/120mm, 1.5X/47mm
- Universal Table Stands
Expand the scope of operation and observe the object in any direction. - Vertical post height: 380mm
- Vertical post + base height: 420mm
- Vertical post diameter: 32mm
- Horizontal bar length: 400mm
- Horizontal bar diameter: 32mm
- Base Size: 230x230x35mm
Adjustable Microscope Ring Light With Adapter
- Light Control: 4 mode light control, each mode has an adjustable brightness
- Outer diameter: 98mm
- Inner diameter: 61mm
- Wattage: 4.5W
LED Ring Light with Smoke Lens
- Power Output: 4.5W
- Brightness: 15000lux @ 100mm
- Color Temperature: 6400K
- Mounting Size: up to 50mm in diameter
- Inside Diameter: 35mm
- Outside Diameter: 68mm
- Power Input: 110-240V, 50-60HZ, auto-switching

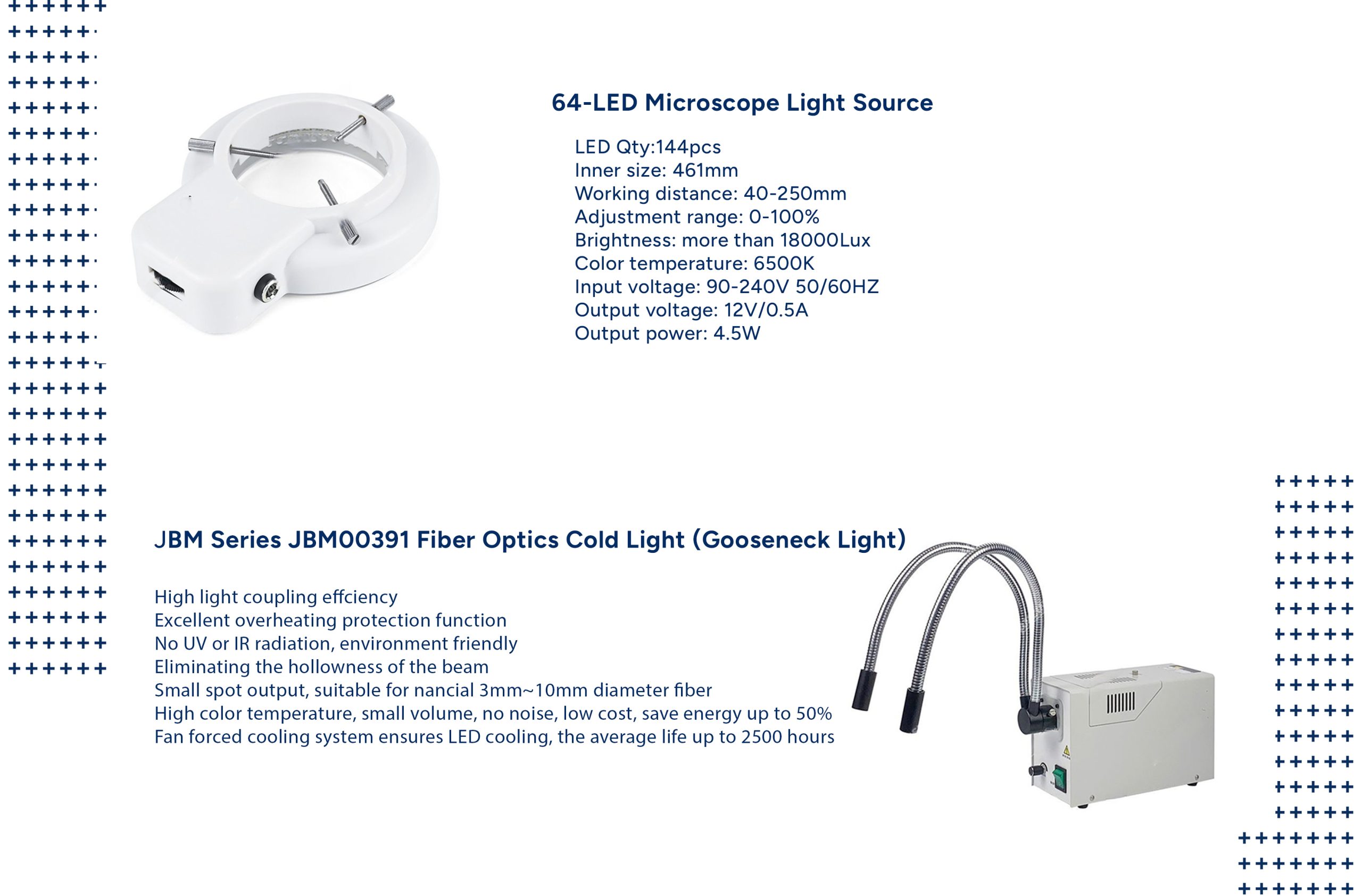

64-LED Microscope Light Source - LED Qty:144pcs
- Inner size: 461mm
- Working distance: 40-250mm
- Adjustment range: 0-100%
- Brightness: more than 18000Lux
- Color temperature: 6500K
- Input voltage: 90-240V 50/60HZ
- Output voltage: 12V/0.5A
- Output power: 4.5W
