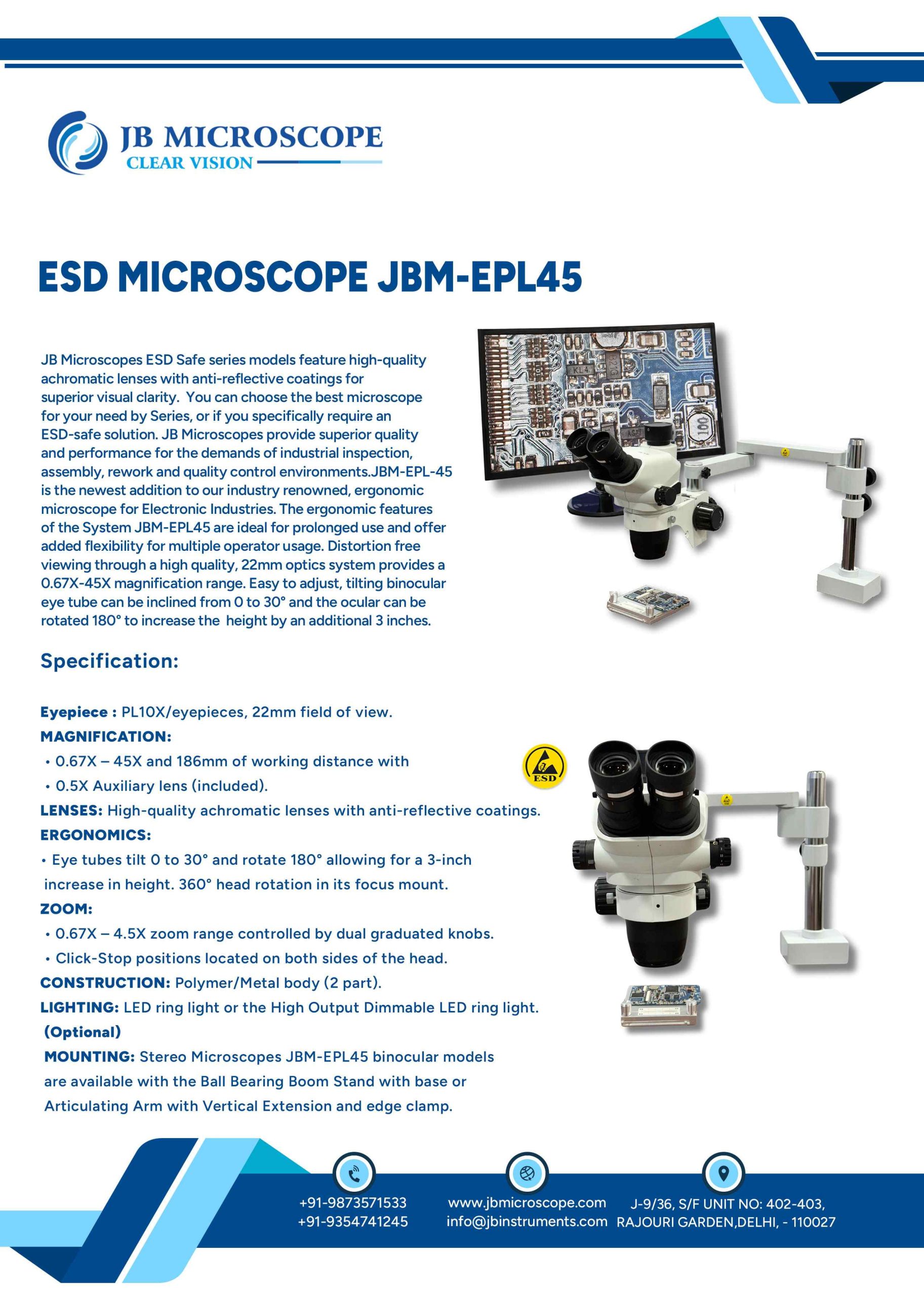

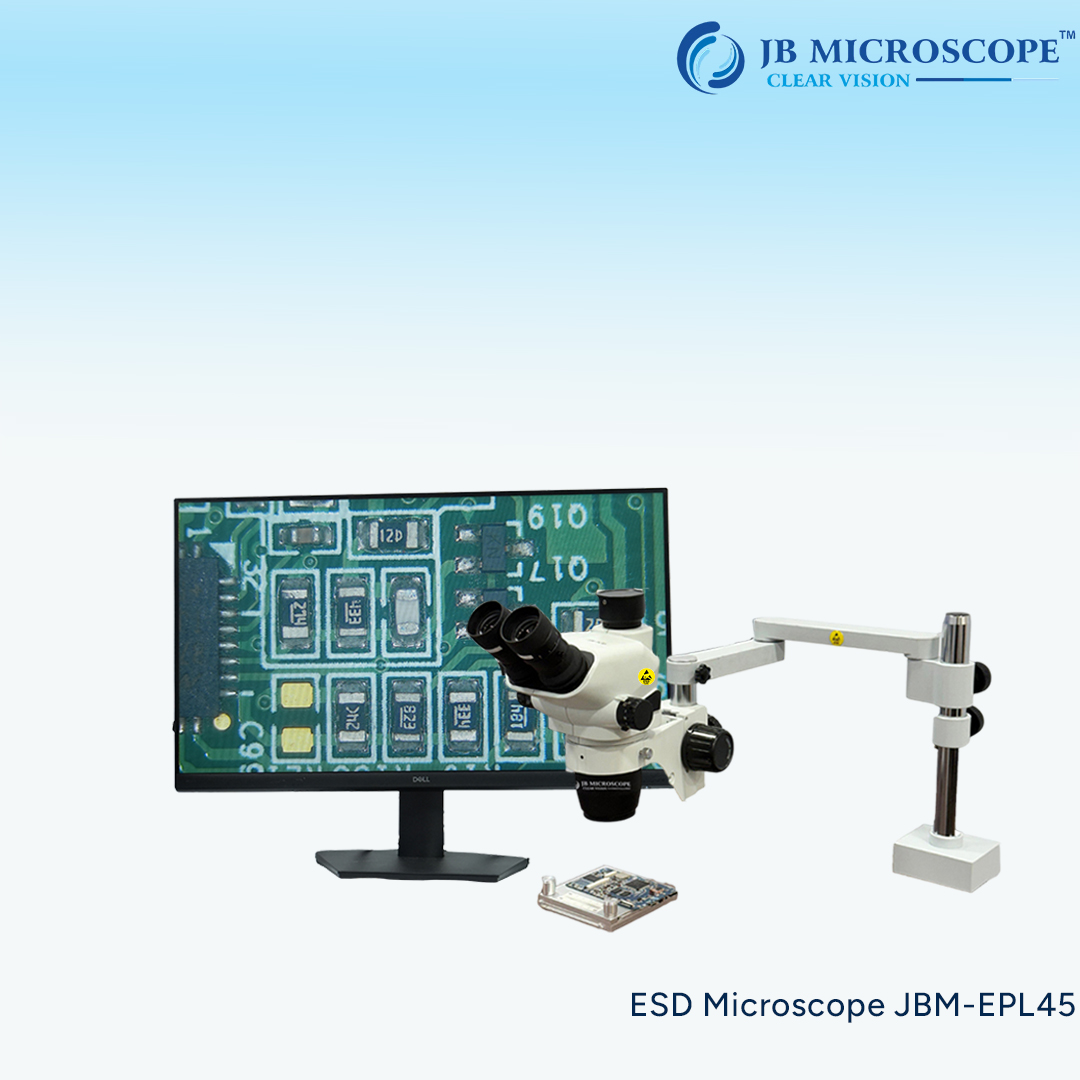

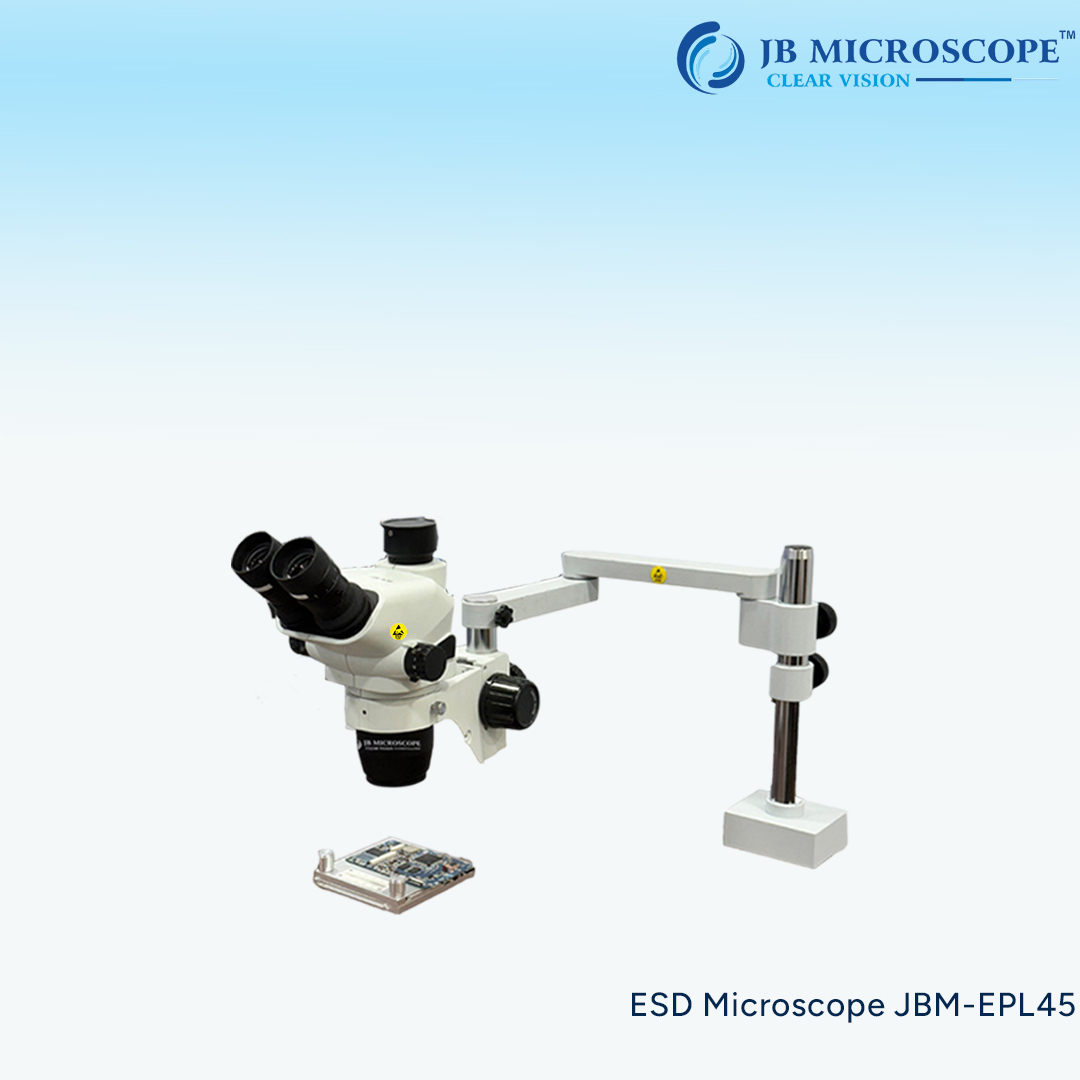

ESD Microscope JBM-EPL45

Category:

JB Microscopes ESD Safe series models feature high-quality achromatic lenses with anti-reflective coatings for superior visual clarity.  You can choose the best microscope for your need by Series, or if you specifically require an ESD-safe solution.



JB Microscopes provide superior quality and performance for the demands of industrial inspection, assembly, rework and quality control environments.

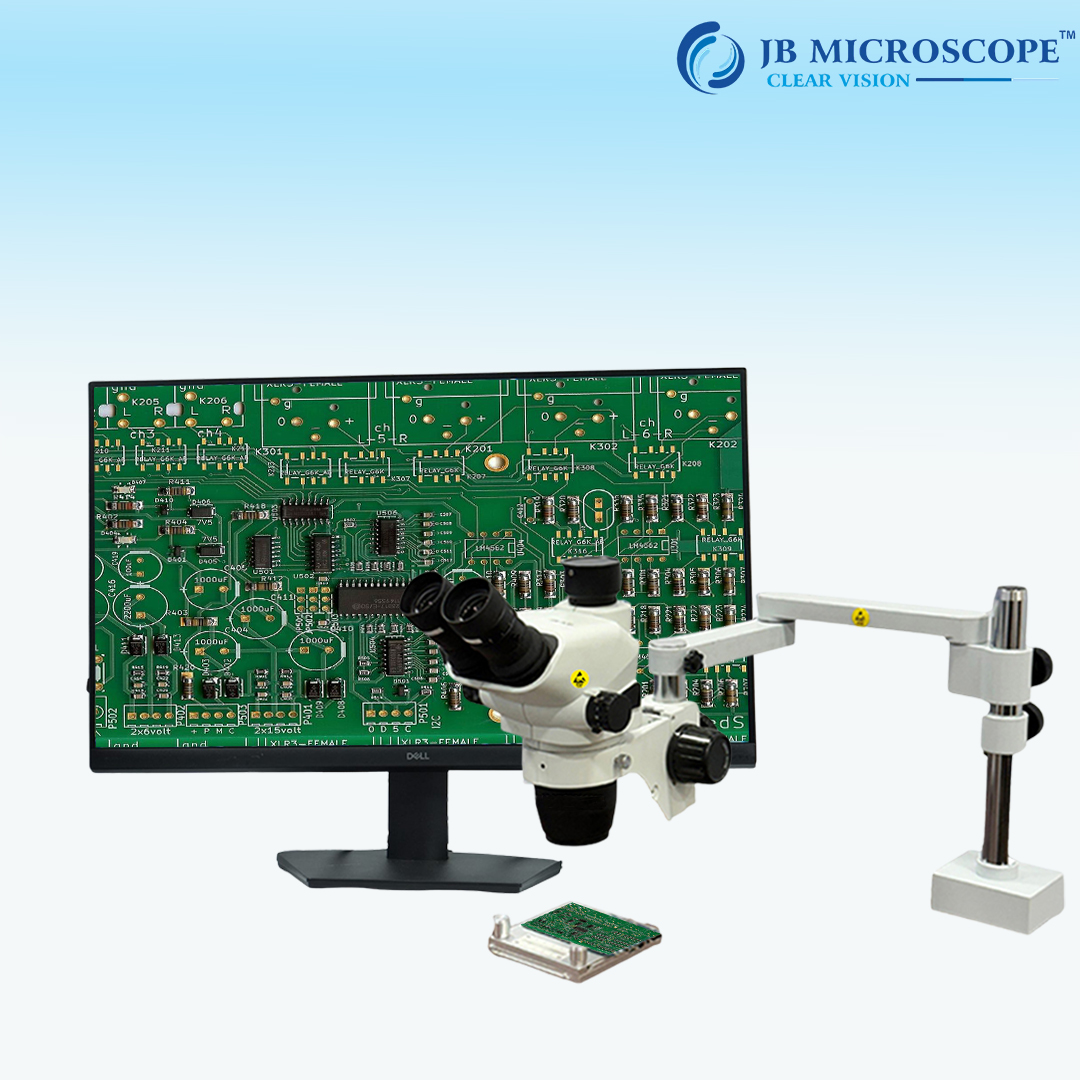

JBM-EPL-45 is the newest addition to our industry renowned, ergonomic microscope for Electronic Industries. The ergonomic features of the System JBM-EPL45 are ideal for prolonged use and offer added flexibility for multiple operator usage. Distortion free viewing through a high quality, 22mm optics system provides a 0.67X-45X magnification range. Easy to adjust, tilting binocular eye tube can be inclined from 0 to 30° and the ocular can be rotated 180° to increase the height by an additional 3 inches.



OPTICS:

WF10X/eyepieces, 22mm field of view.

MAGNIFICATION:

0.67X – 45X and 186mm of working distance with

0.5X Auxiliary lens (included).

LENSES:

High-quality achromatic lenses with anti-reflective coatings.

ERGONOMICS:

Eye tubes tilt 0 to 30° and rotate 180° allowing for a 3-inch

increase in height. 360° head rotation in its focus mount.

ZOOM:

0.67X – 4.5X zoom range controlled by dual graduated knobs.

Click-Stop positions located on both sides of the head.

CONSTRUCTION:

Polymer/Metal body (2 part).

MOUNTING:

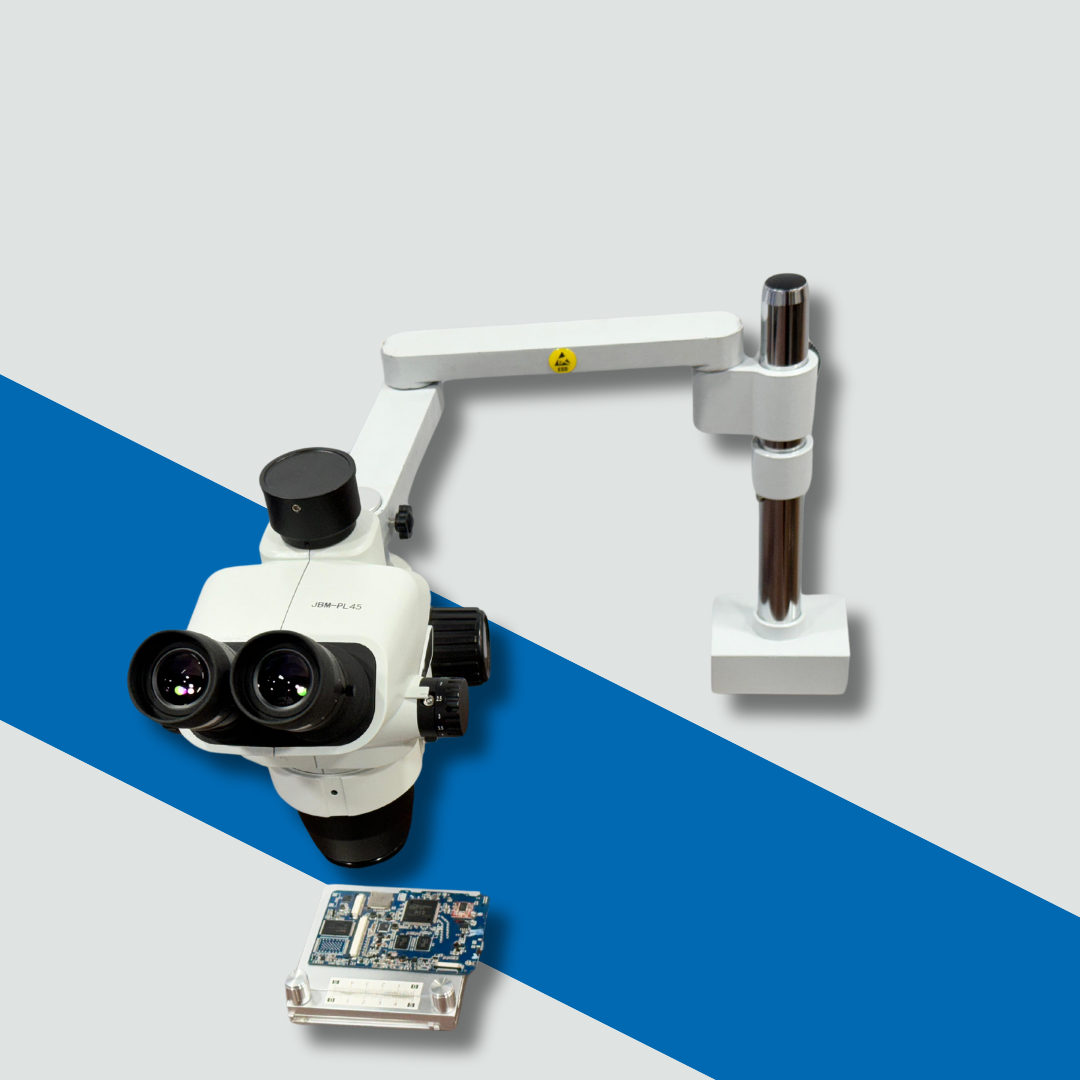

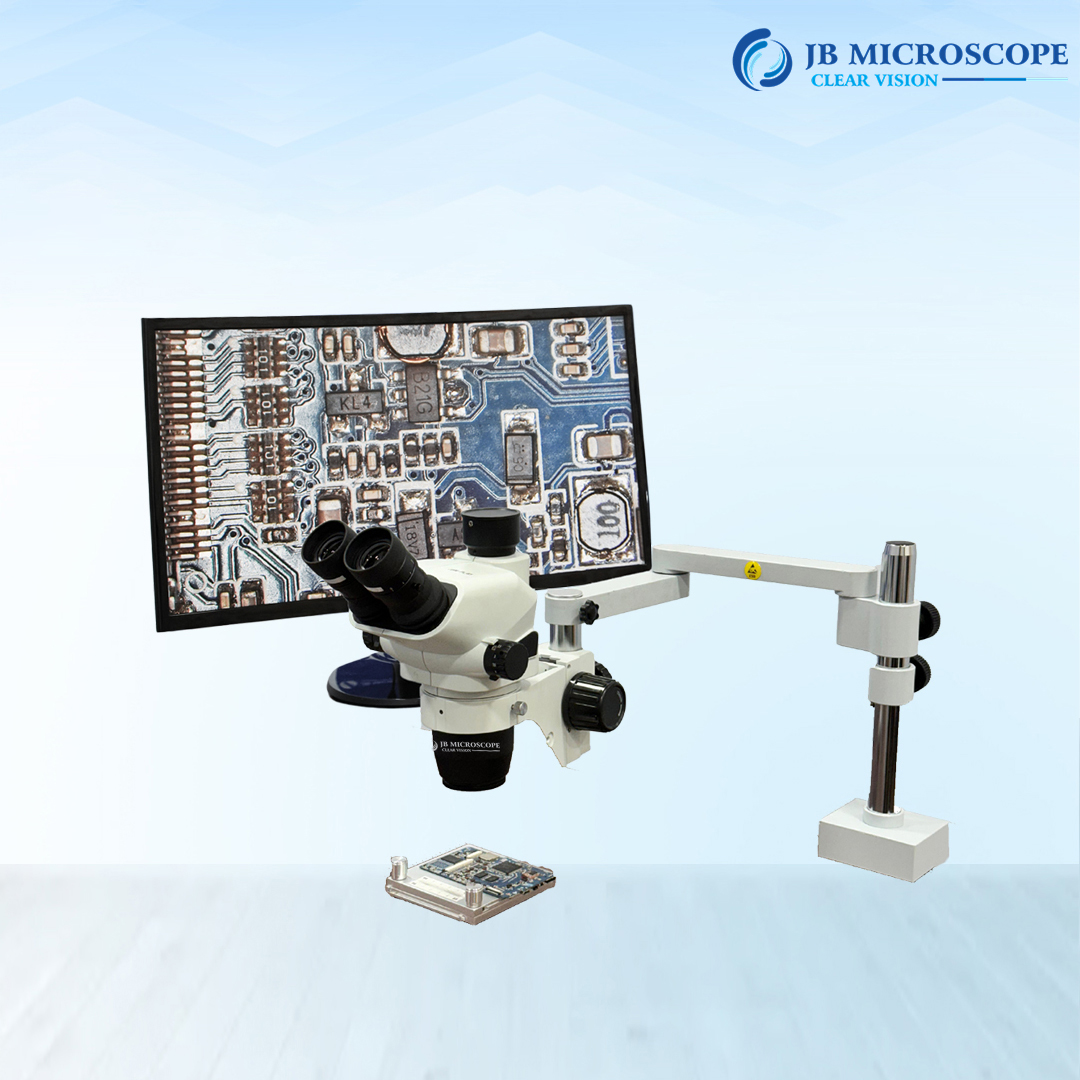

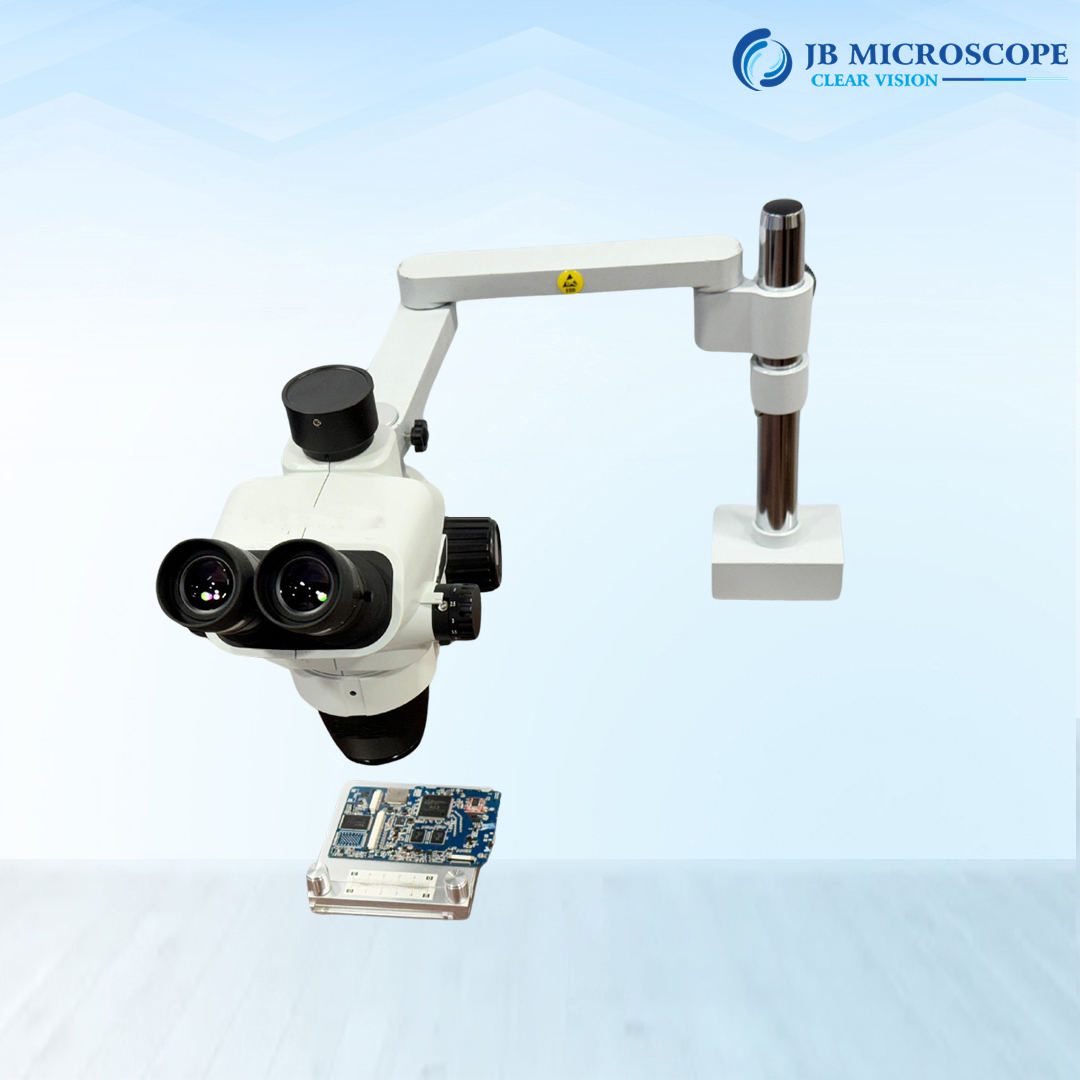

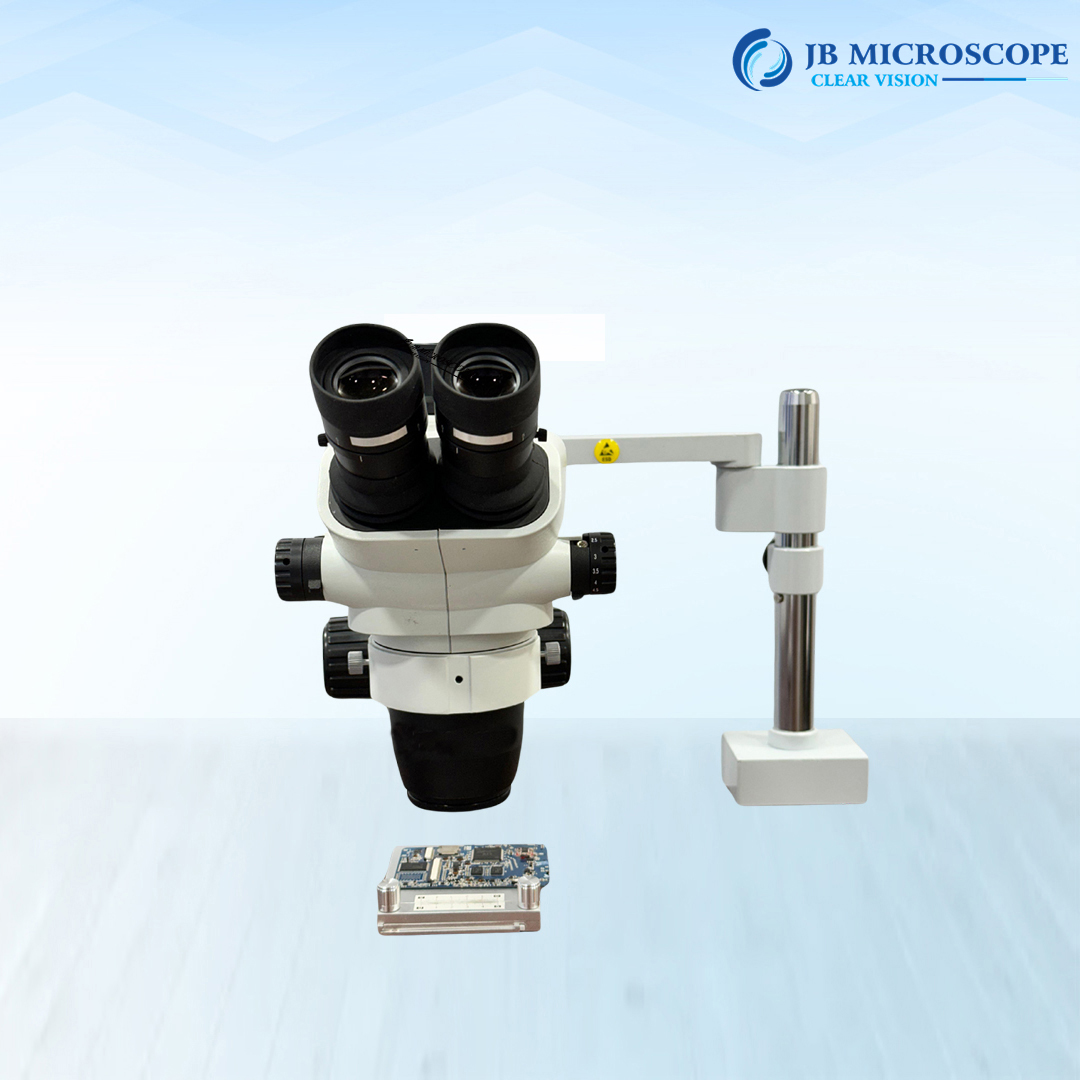

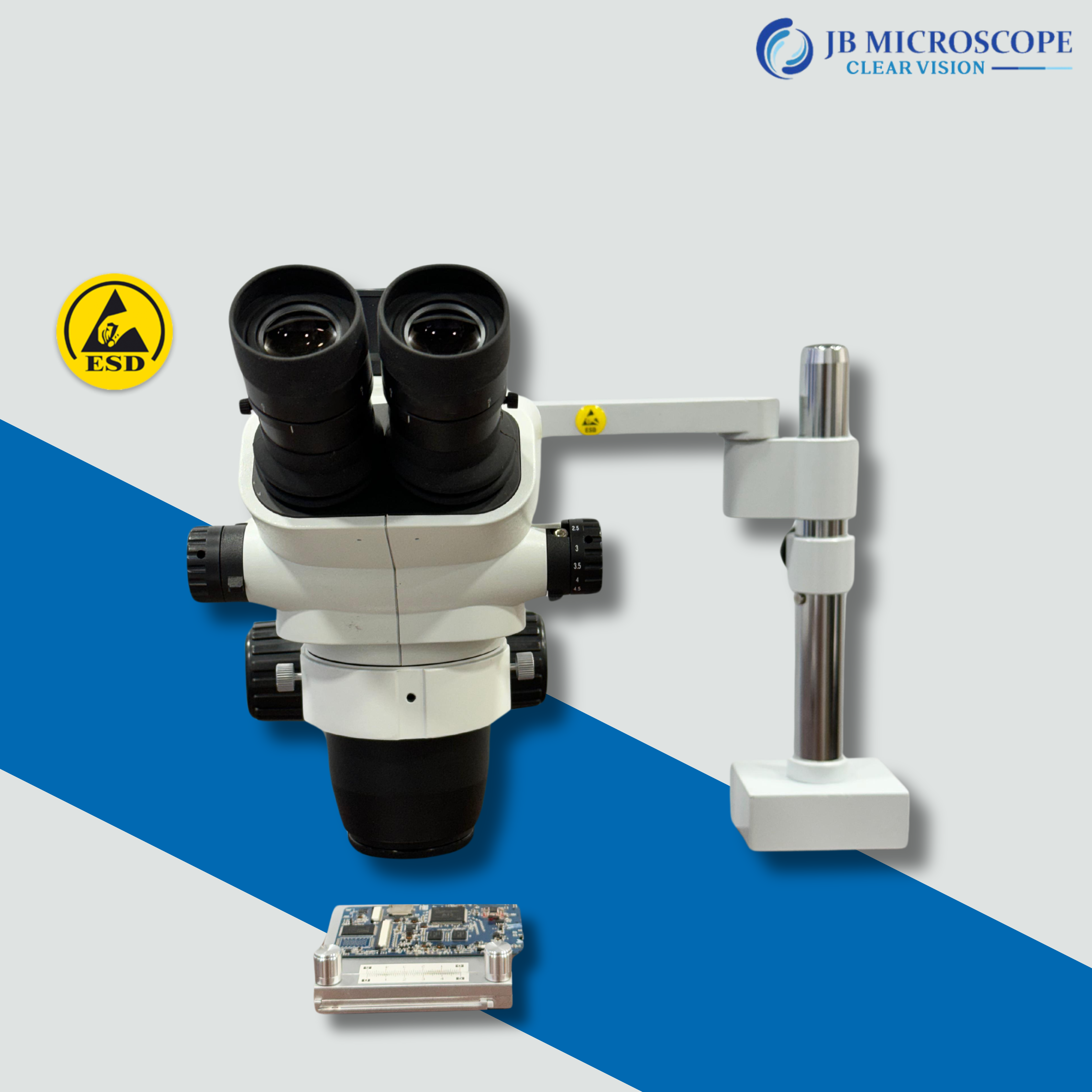

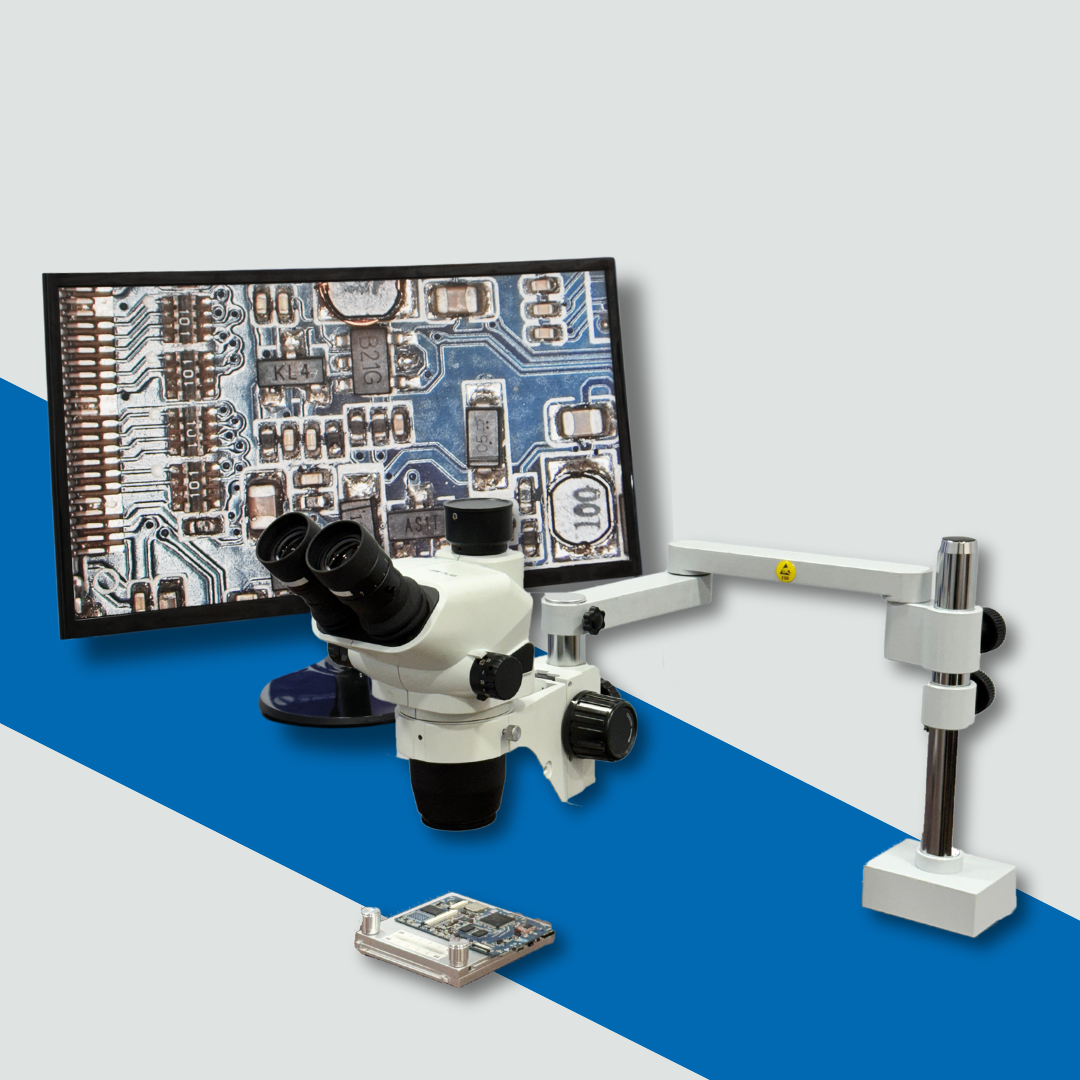

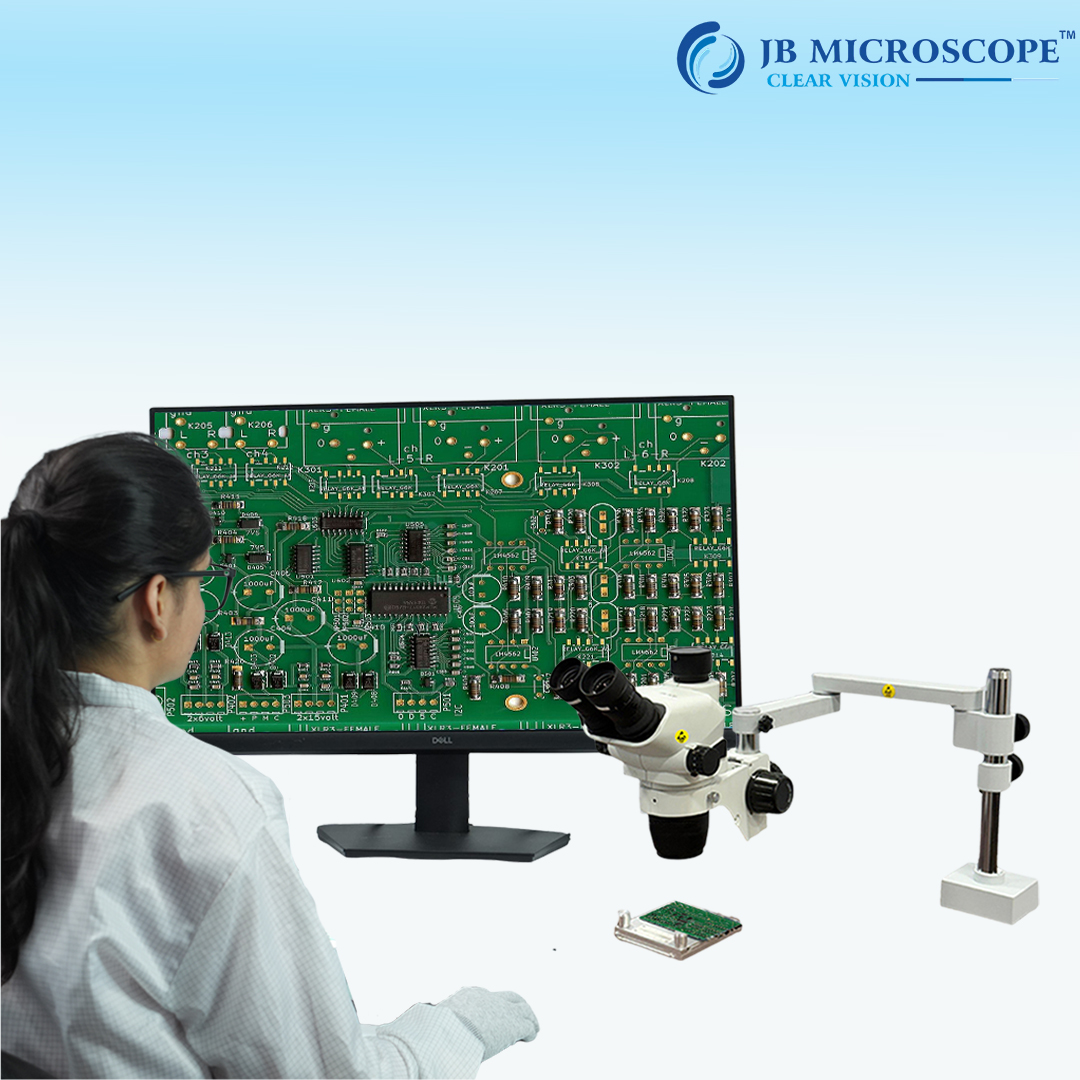

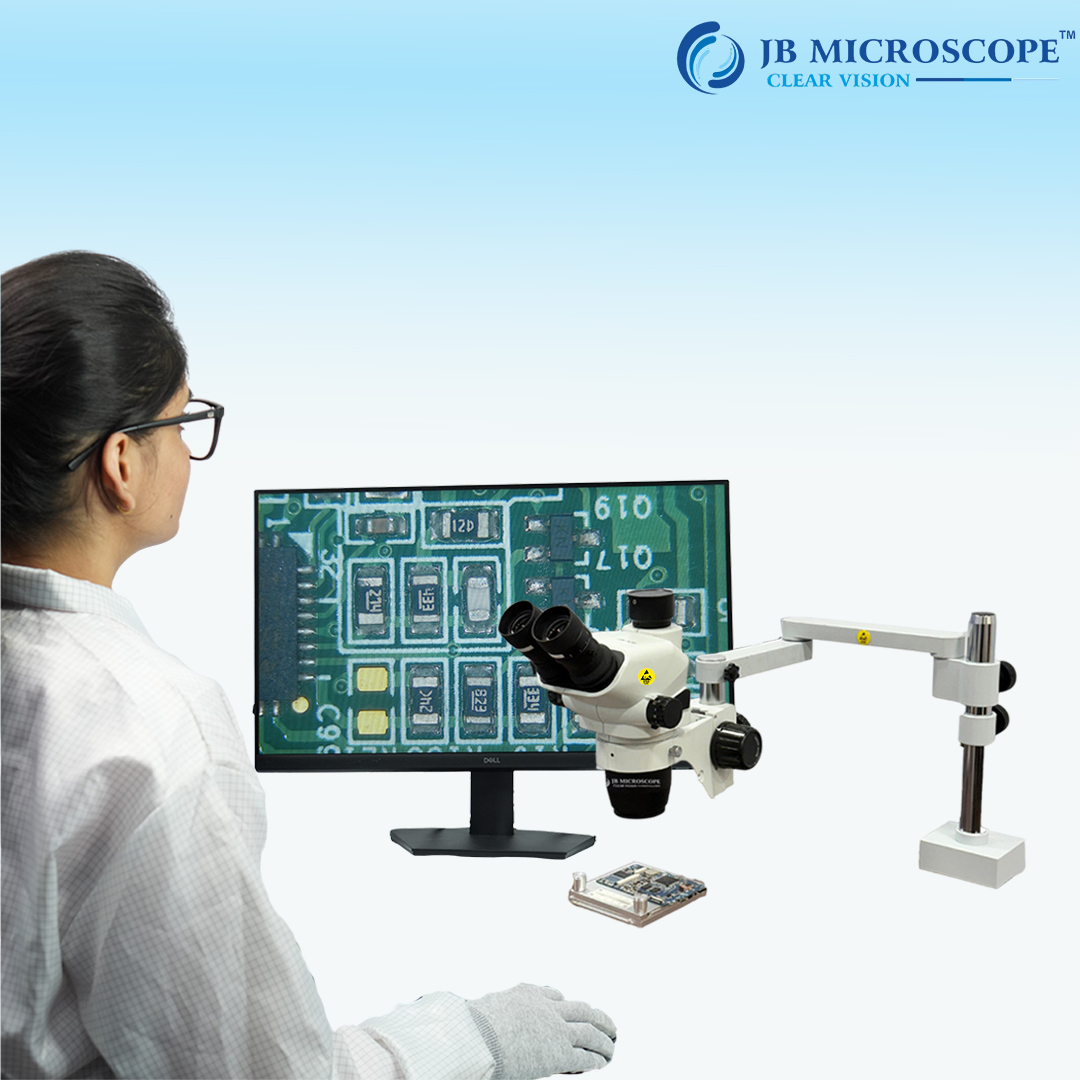

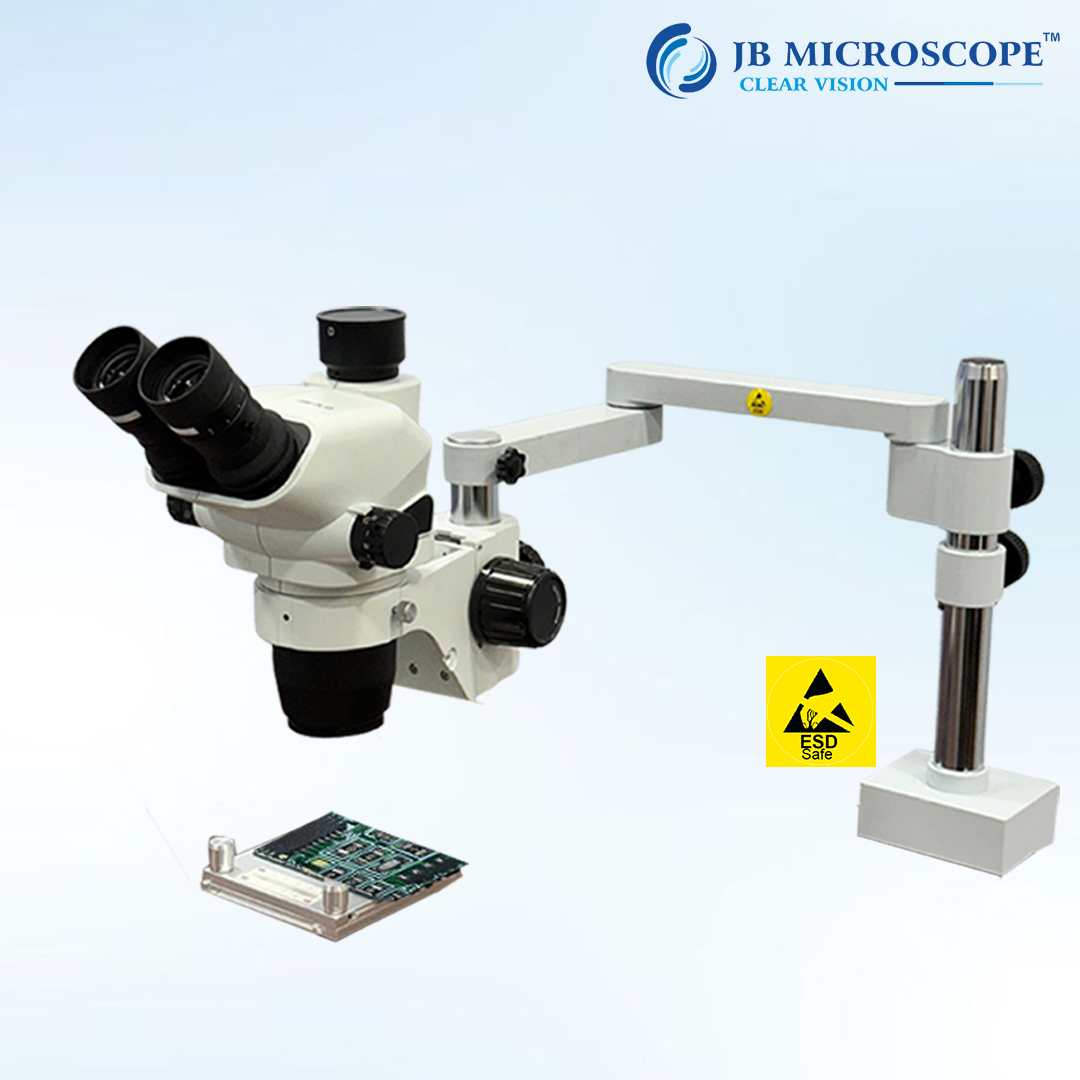

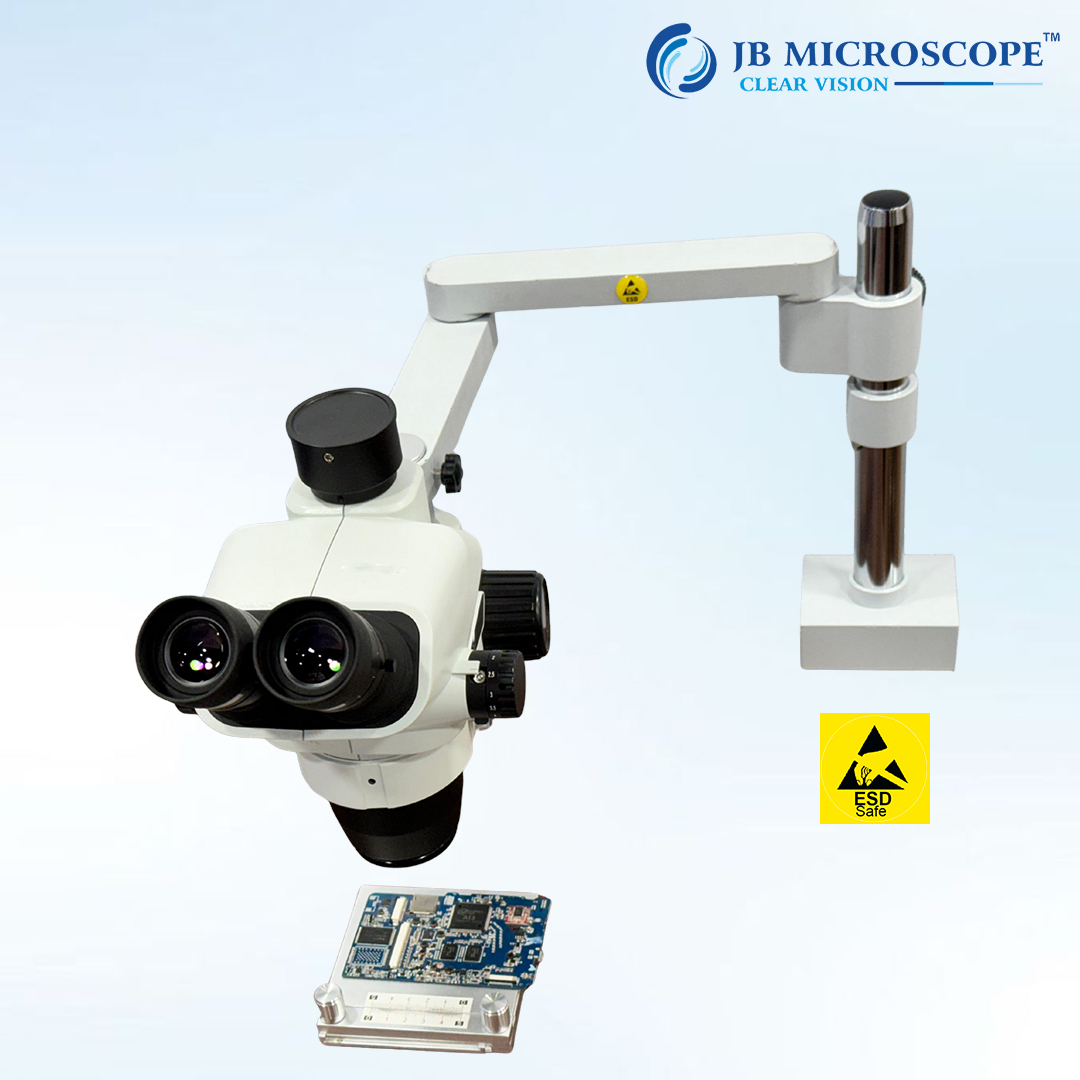

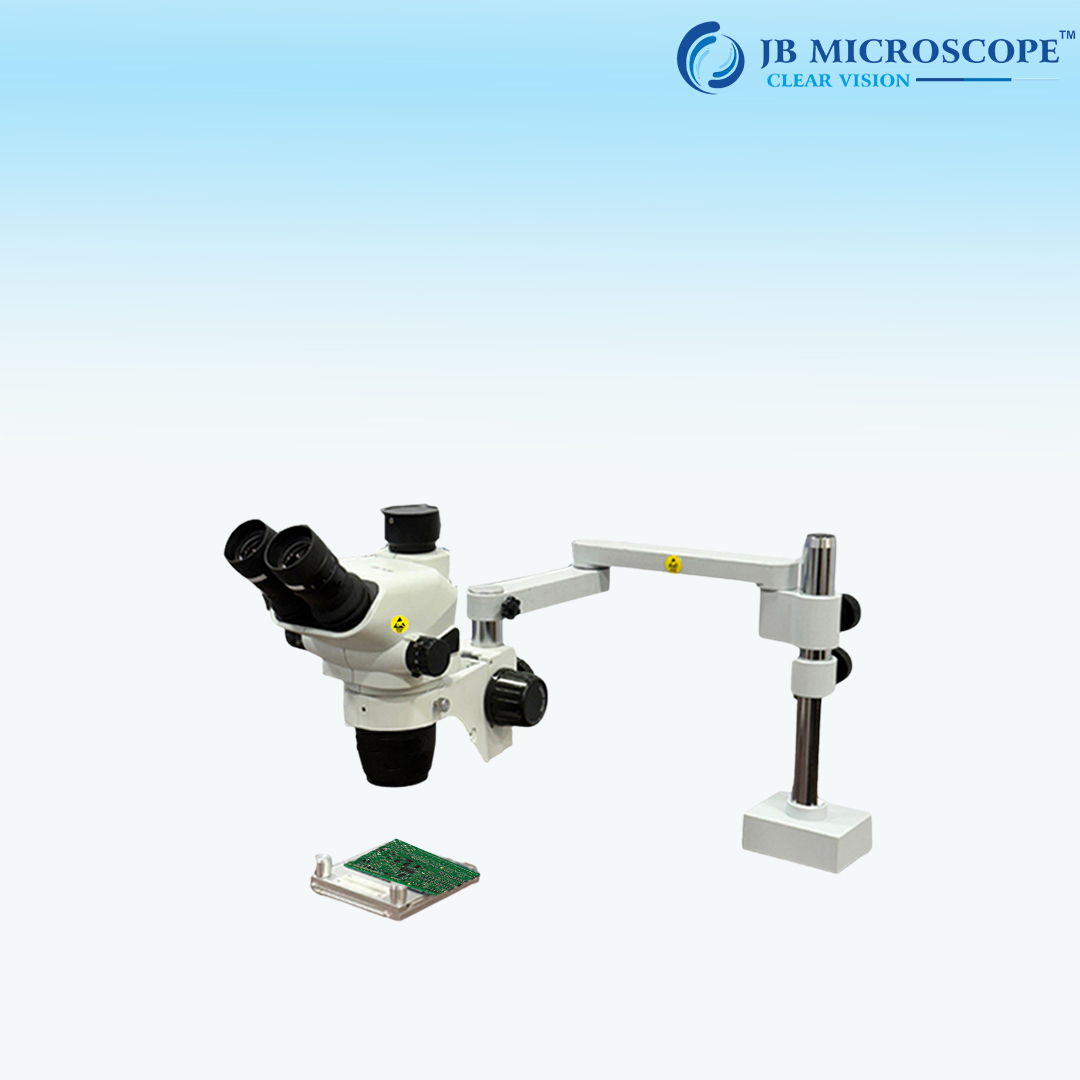

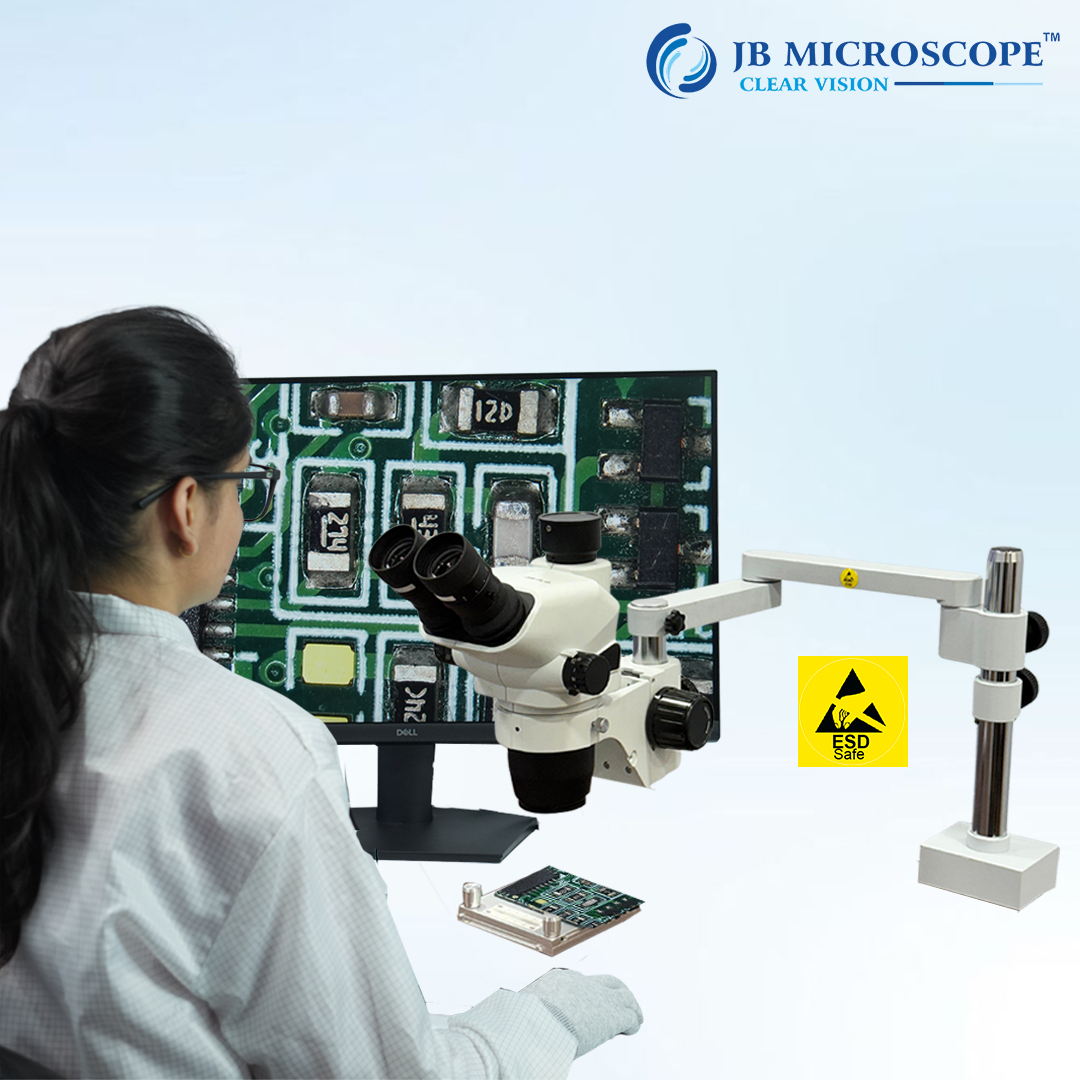

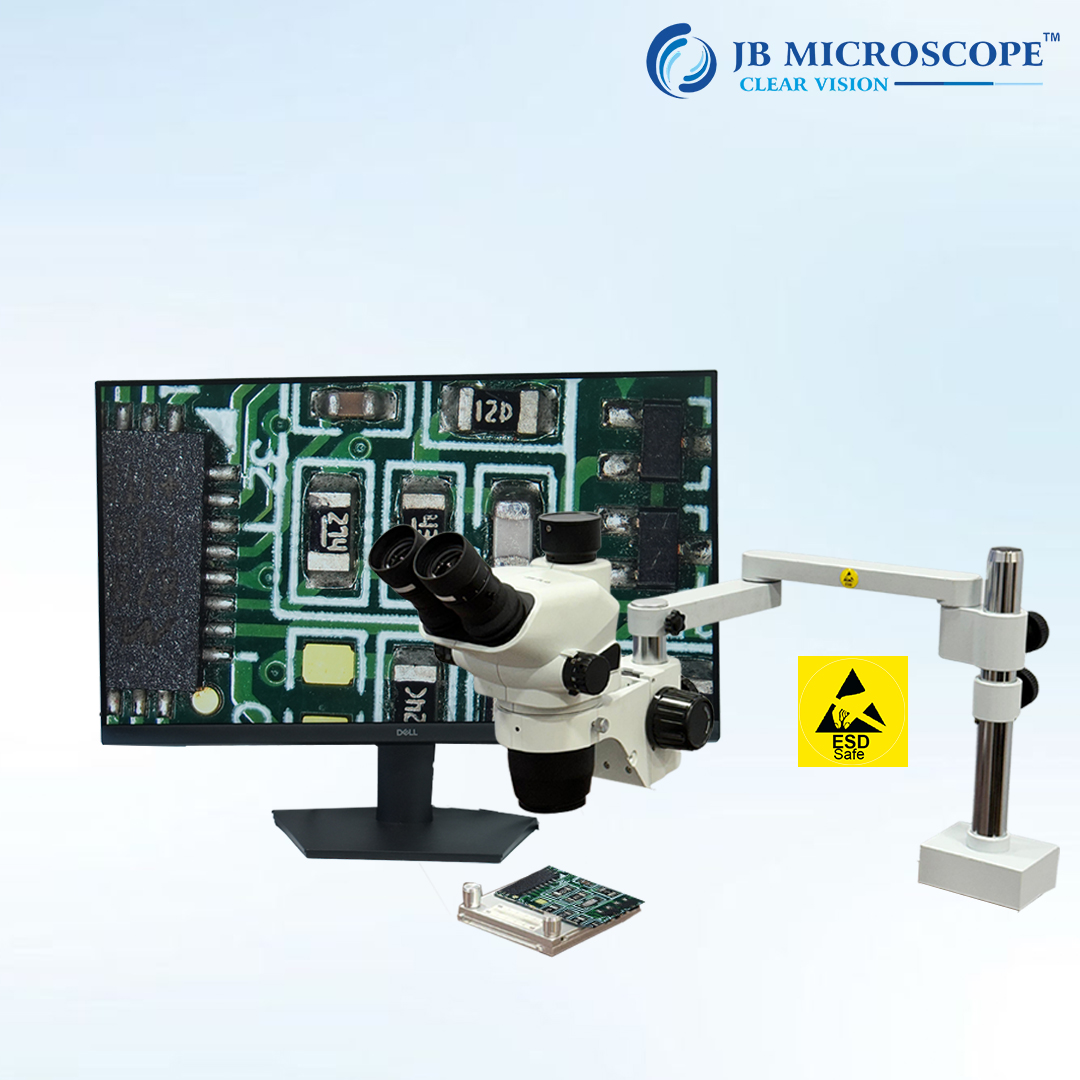

Stereo Microscopes JBM-EPL45 binocular models

are available with the Ball Bearing Boom Stand with base or

Articulating Arm with Vertical Extension and edge clamp.

LIGHTING:

LED ring light or the

High Output Dimmable LED ring light
