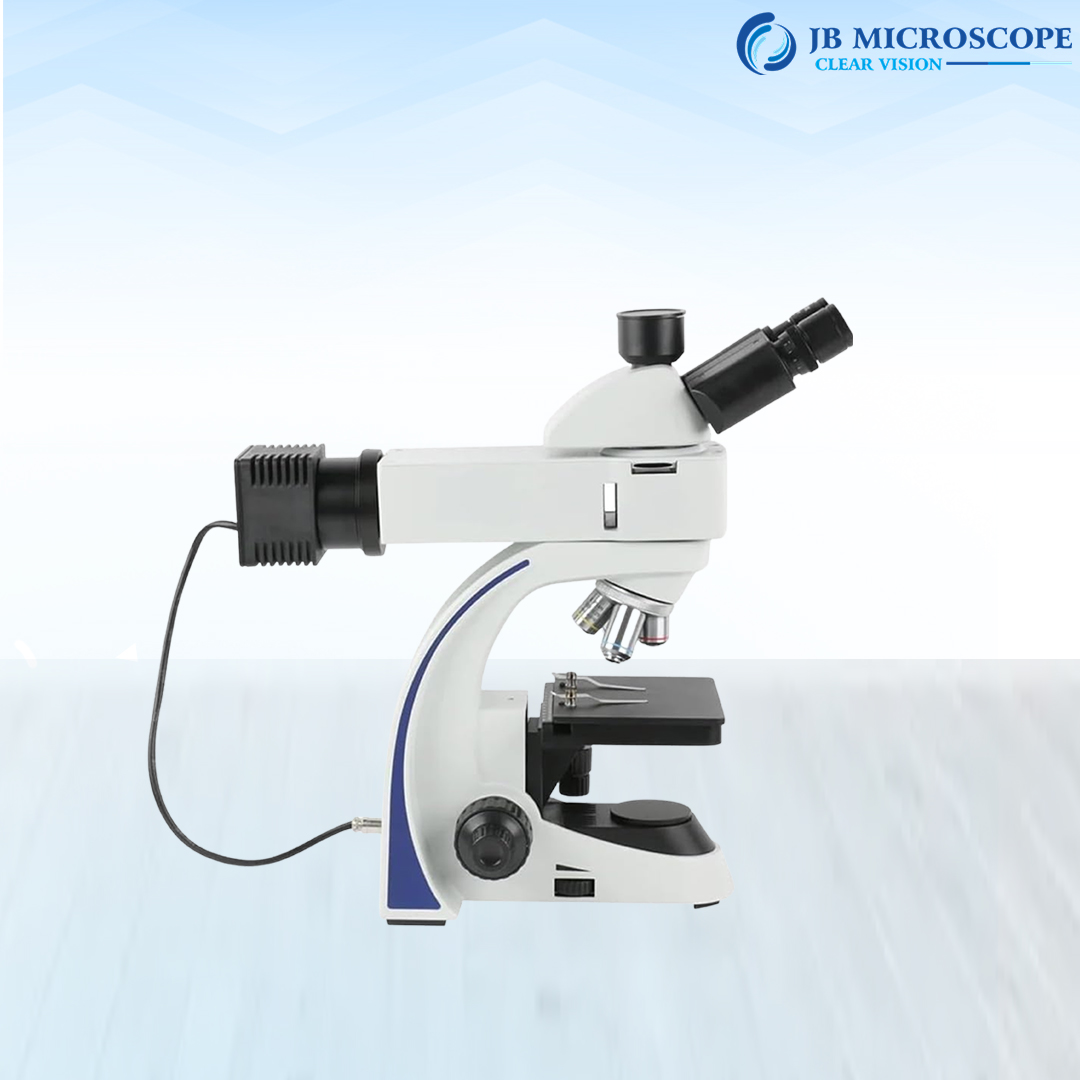

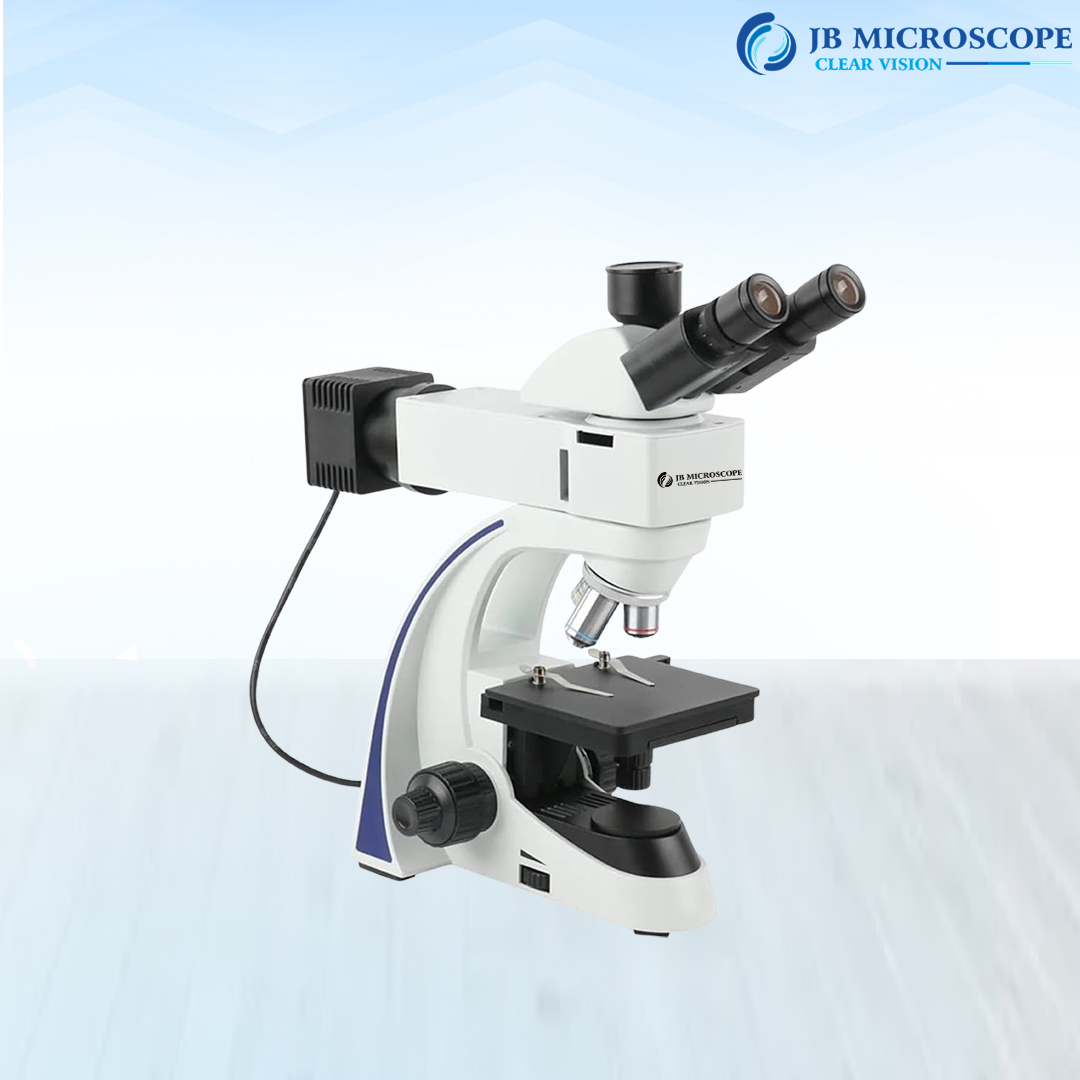

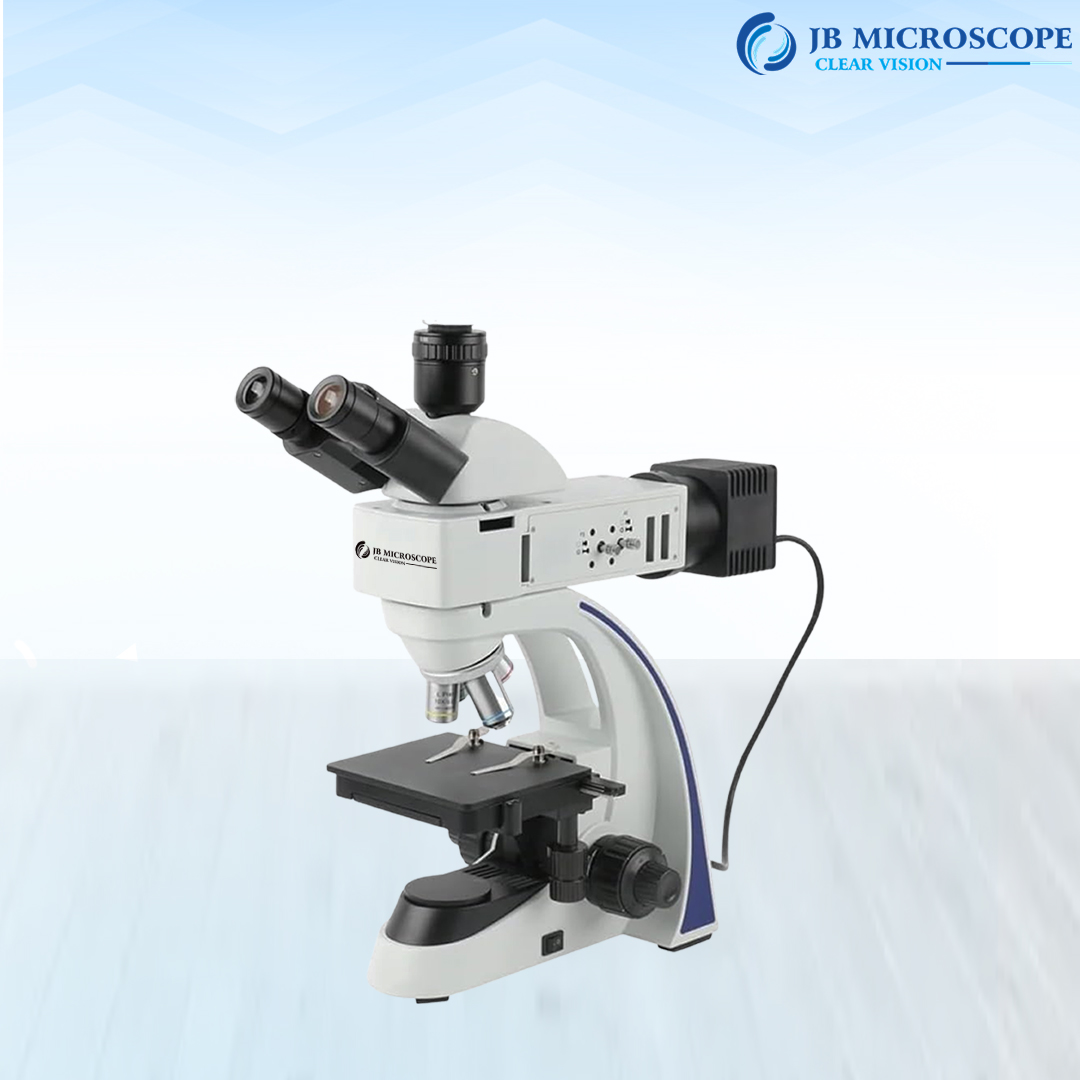

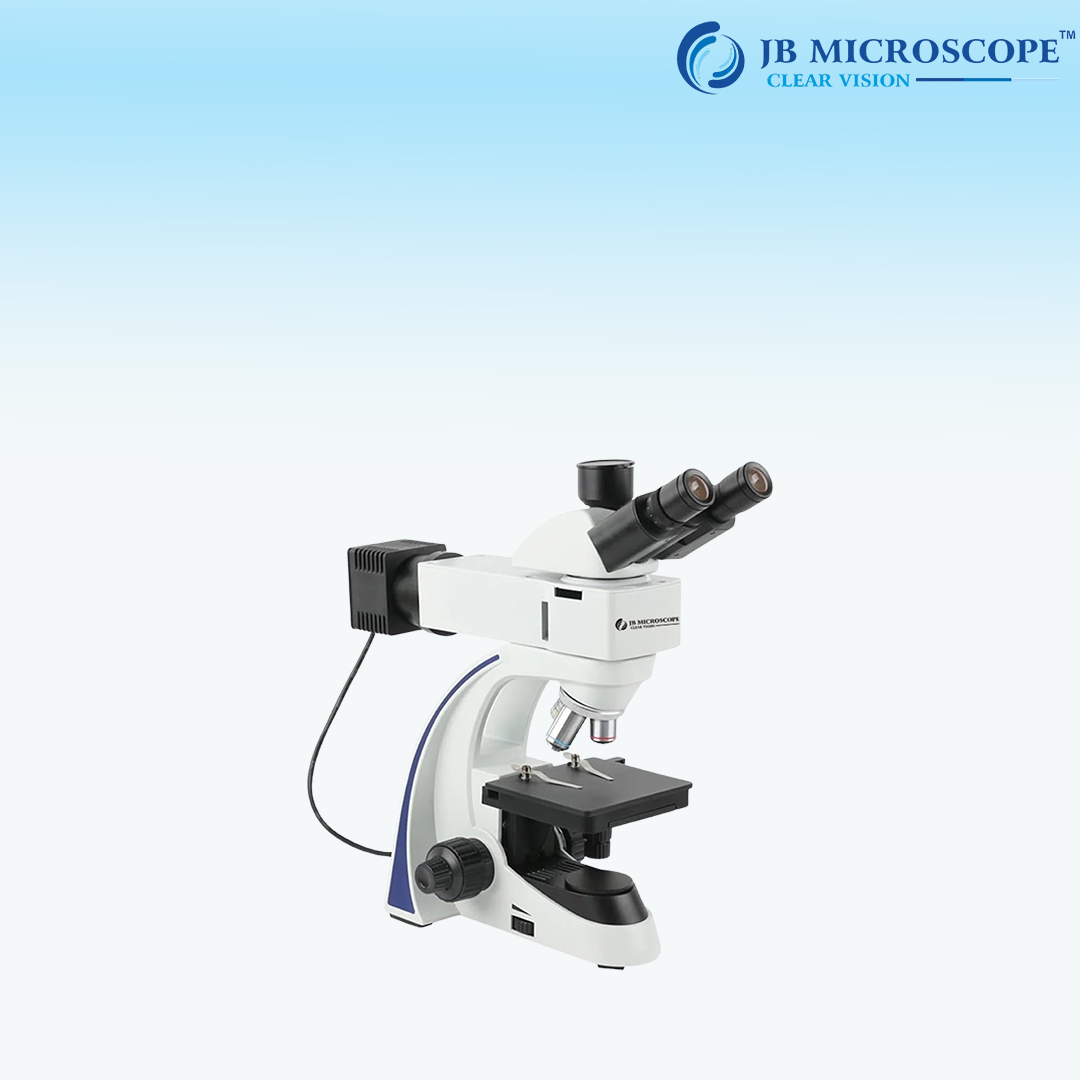

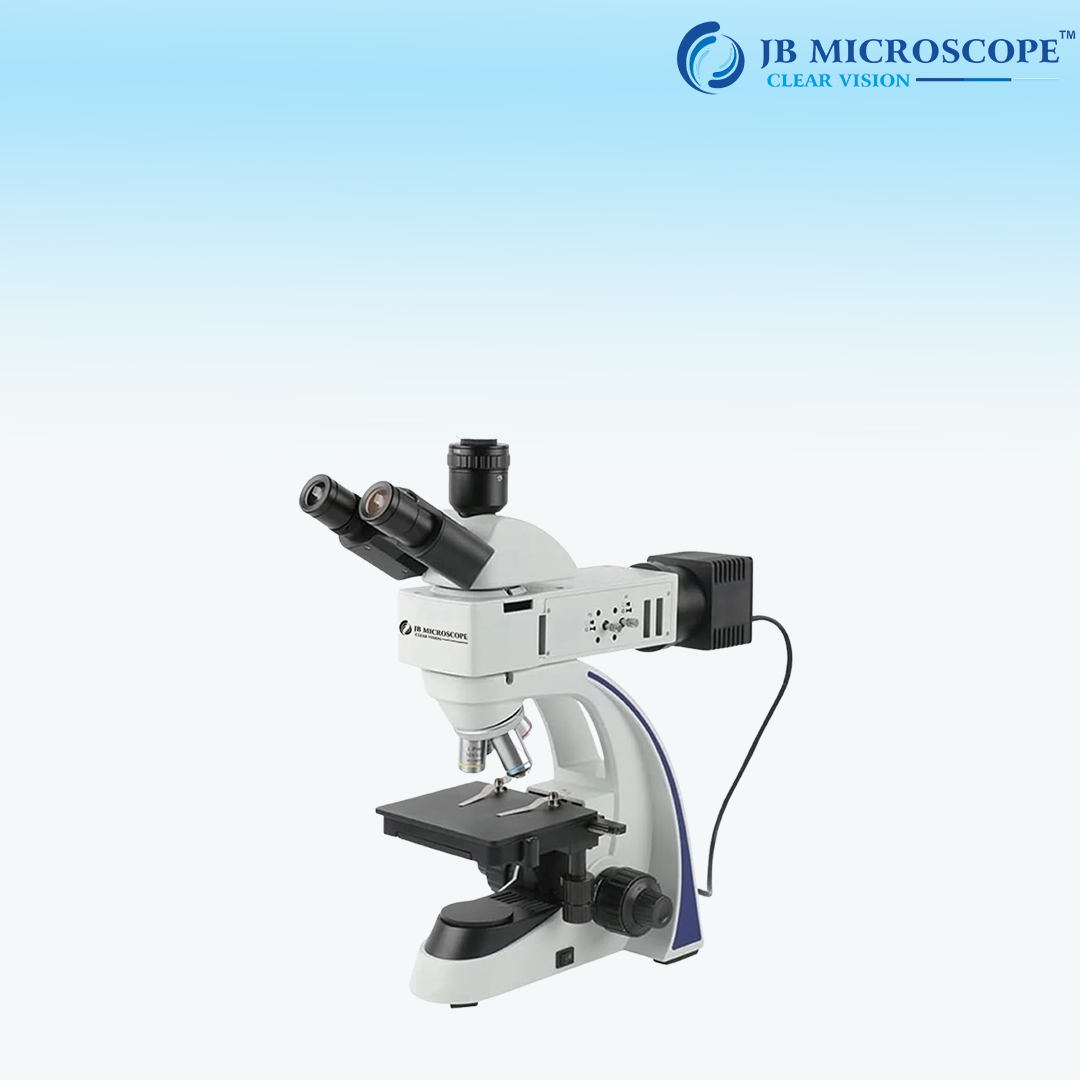

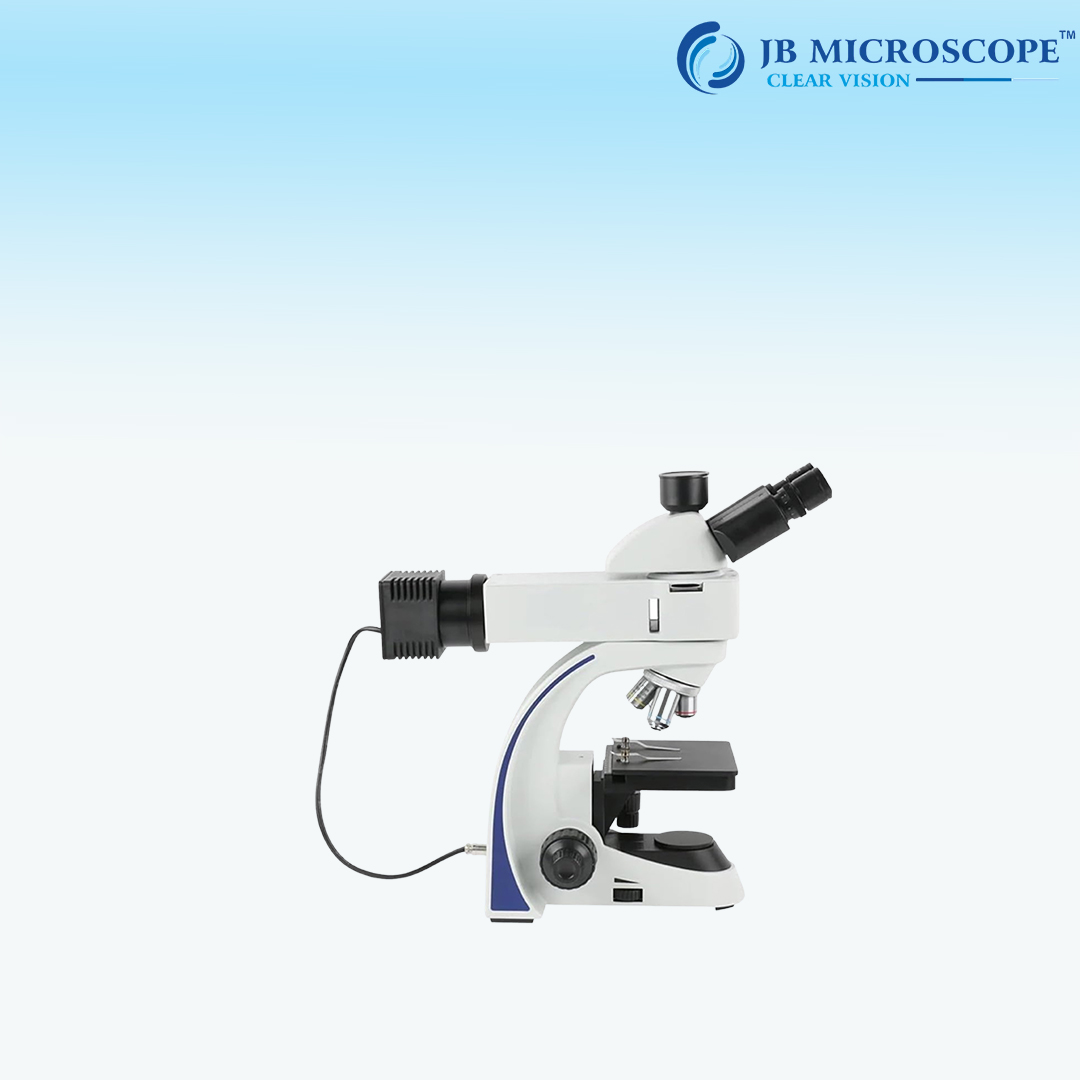

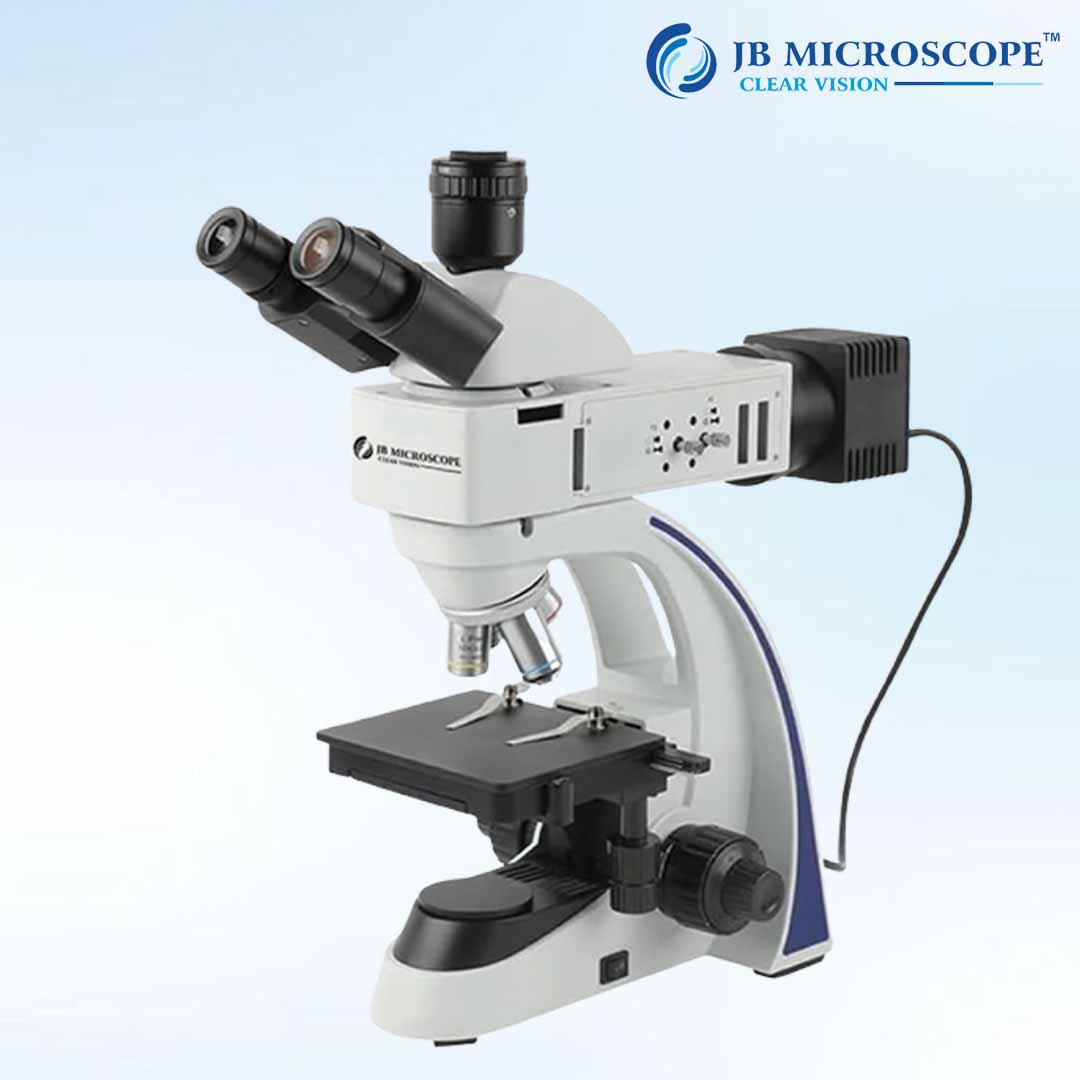

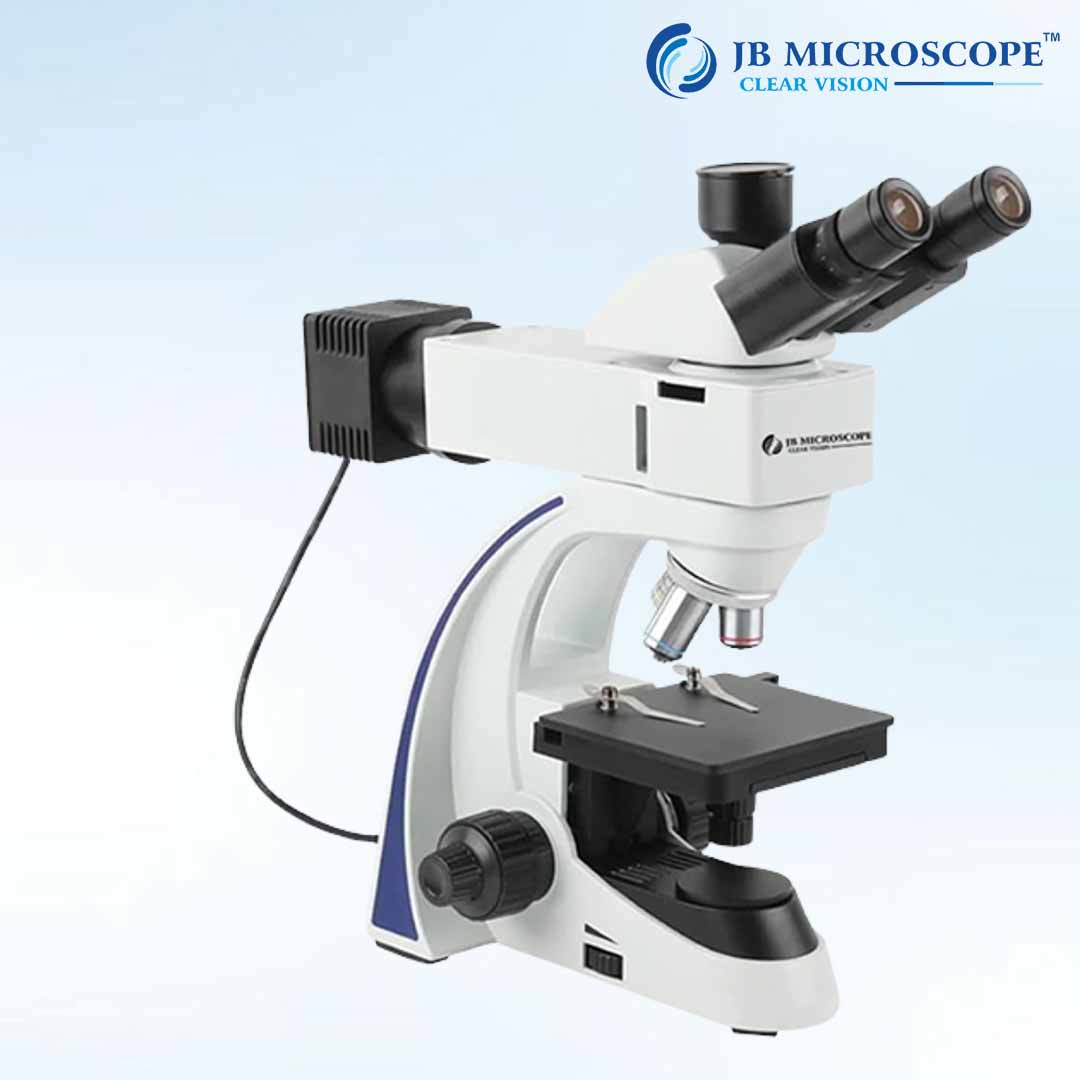

JBM-011R Upright Metallographic Microscope

With excellent imaging performance and comfortable operating experience, we provide customers with
cost-effective solutions for metallographic analysis and industrial testing. The comfortable 30-degree Angle
observation tube can obtain the best observation state, reduce the tension and fatigue of the user in the
long-term working state, and the scale on the observation tube can facilitate the user to adjust the best pupil
distance: The fall illuminator uses a single 5W LED warm white light Cora lighting system, which can minimize
the visual fatigue of the observer; With aperture stop and field stop, preset polarizing mirror, polarizing mirror and
filter slot; Polarizer and polarizer can realize simple polarizing observation and can also choose different color filters

according to the needs to obtain the ideal observation effect. The center of the field of view diaphragm and
the aperture diaphragm is adjustable, and the size of the diaphragm is adjusted by the pull rod mode,

Optical Technical Specificationswhich can flexibly adjust the size of the illuminated light and effectively avoid the stray light affecting the stray light affecting the observation effect.

Category:

Optical Technical Specifications

  • Model Name: JBM-011R
  • Optical system: infinite Color Corrected Optical System
  • Nosepiece: Quadruple Nosepiece
  • Focus adjustment: Reflector frame with metal carrier plate, coarsely adjustable coaxial focusing mechanism. coarse rang: 23mm; fine precision: 0.002mm; With elastic adjustment device
  • Stage: Double layer Stage, low hand Position X, Y direction Coaxial adjustment; Stage size :145mmx132mm, moving range : 145mmx132mm
  • illumination:  Single high- Power 5WLED, Reflective lamp room, warm white light, Cora lighting, with field of view bar and aperture diaphragm, diaphragm center size is adjustable, external wide voltage adapter, input 100 v-240v ac50/60hz, output DC12V2A
  •  Others:
  •   Abbe Condenser For transmission, N.A1.25 and iris Diaphragm, Center presetting
  •   The deviation mirror and the deviation detector are randomly equipped, and the deviation detector can be adjusted by 360° rotation
  •    photo tube: 0.35X 0.5X 1XC-mount For Camera
  •    Transmission Filter: blue, green, white
  • Viewing Head: 30°inclined, infinite gemel binocular head, interpupillary distance: 50-75mm, Diopter±5adjustable
  •                               30°inclined, infinite gemel trinocular head, interpupillary distance: 50-75mm, Diopter±5adjustable
  • Eyepiece:  WF10X/20mm
  • objective: infinite flat field achromatic metallographic objective 5X NA0.15 WD12
  •                        infinite flat field achromatic metallographic objective10X NA0.3, WD16
