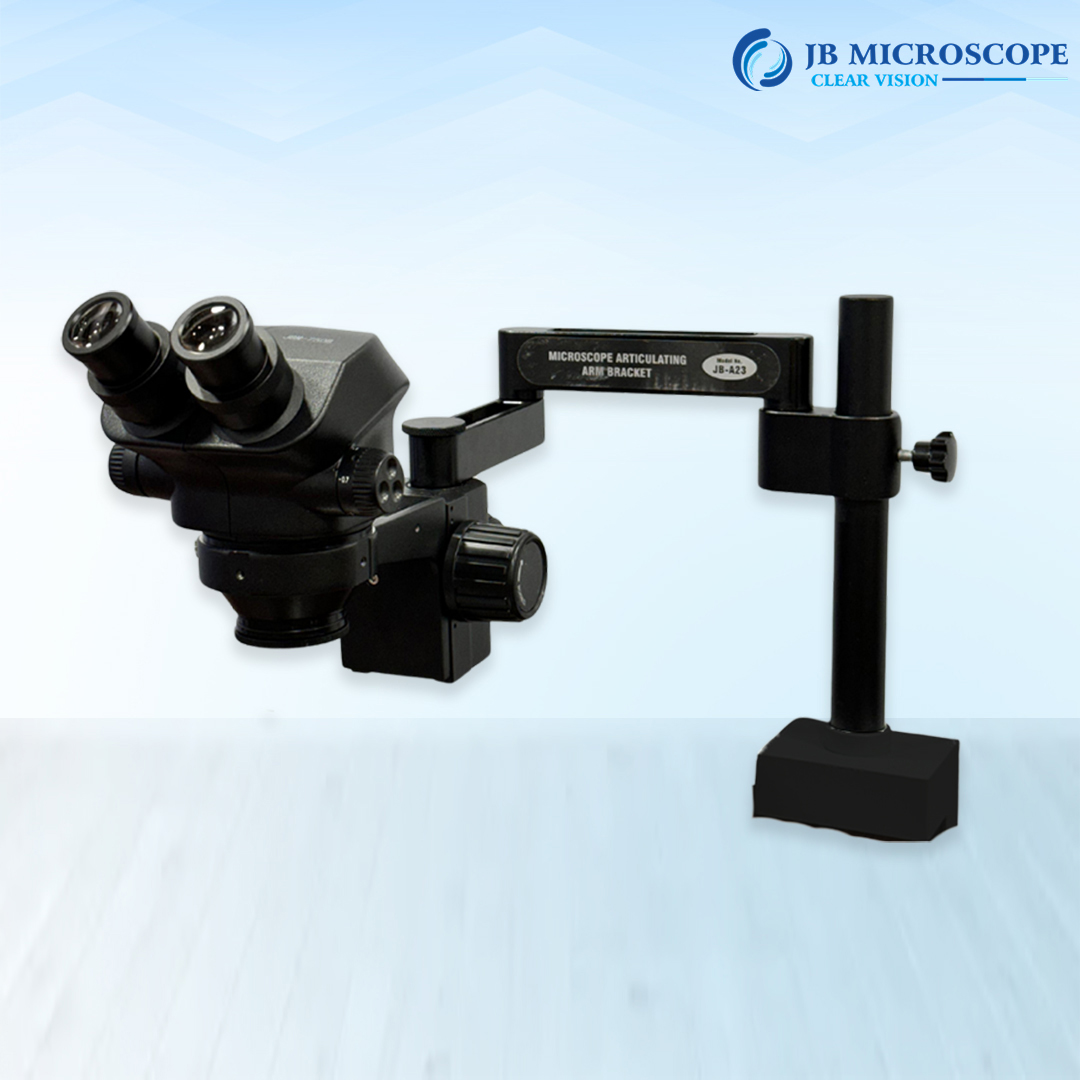

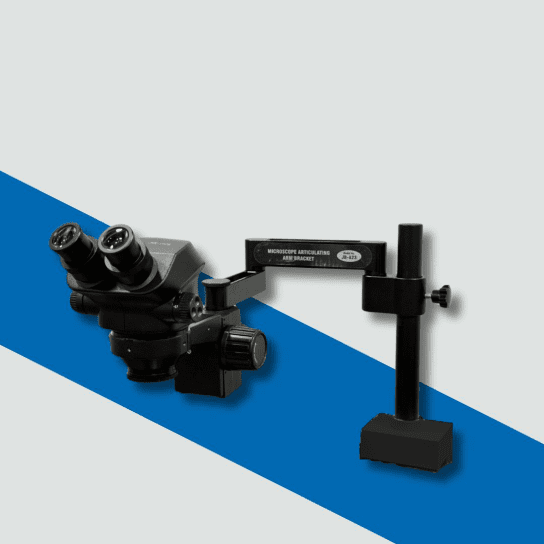

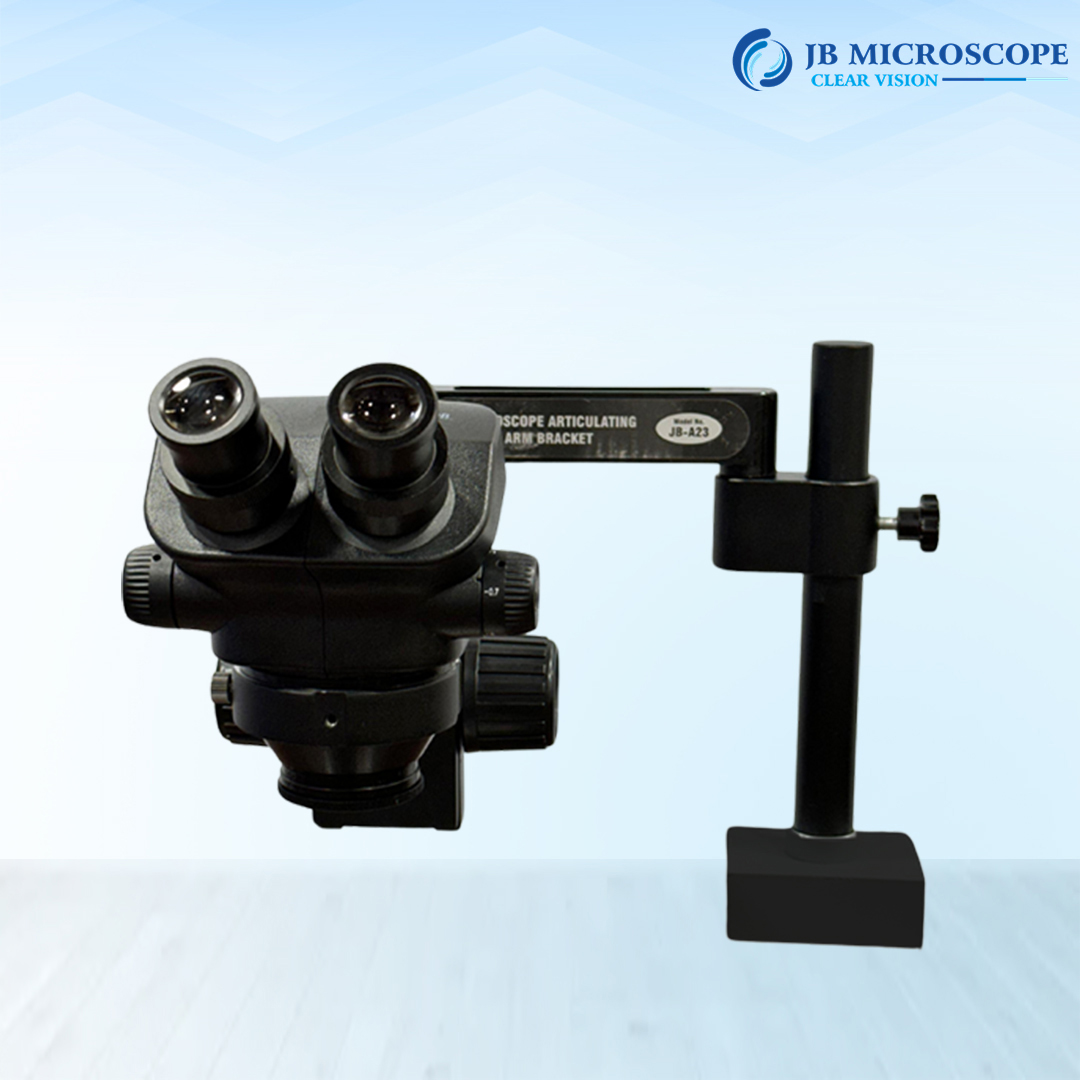

JBM-745 Series Stereo Zoom Microscope can provide crystal clear sharp images with high resolution and good depth
within a broad field of view. Once brought in focus, images remains clear and sharp throughout the whole zoom range.
It is widely used in electronic industry, educational demonstration and agricultural research for micro-object observation,
inspection and measurement.
Magnification: 6.7X-45X, 3.4X-270X with optional eyepieces and objectives
Eyepiece : WF10X/22mm high-eyepoint, wide-field; Convenient for observers wearing
glasses
Optional Eyepiece: WF10X/22mm, WF15X/16mm, WF20X/12mm, WF25X/9mm,
WF30X/8mm
Main Body : Binocular head, 45° or 60° inclined, 360° rotatable, can be locked in any position desired
Interpupillary Distance adjustment:54-75mm; Diopter adjustment:±5 diopters
Objective: 0.67X-4.5X stereo zoom; Zoom Ratio:6.7:1
Illumination: Fluorescent lamp, LED ring light, for more option.
