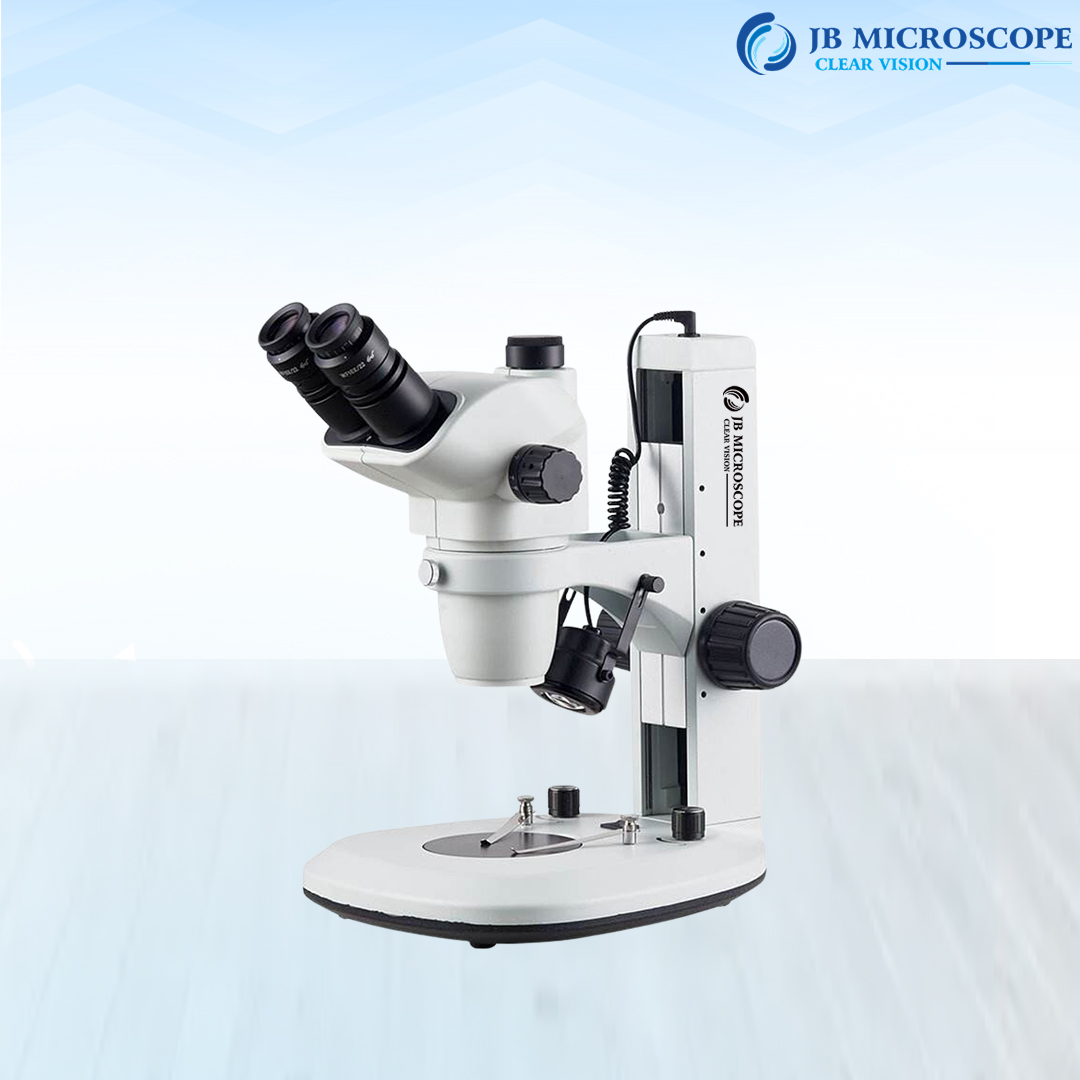

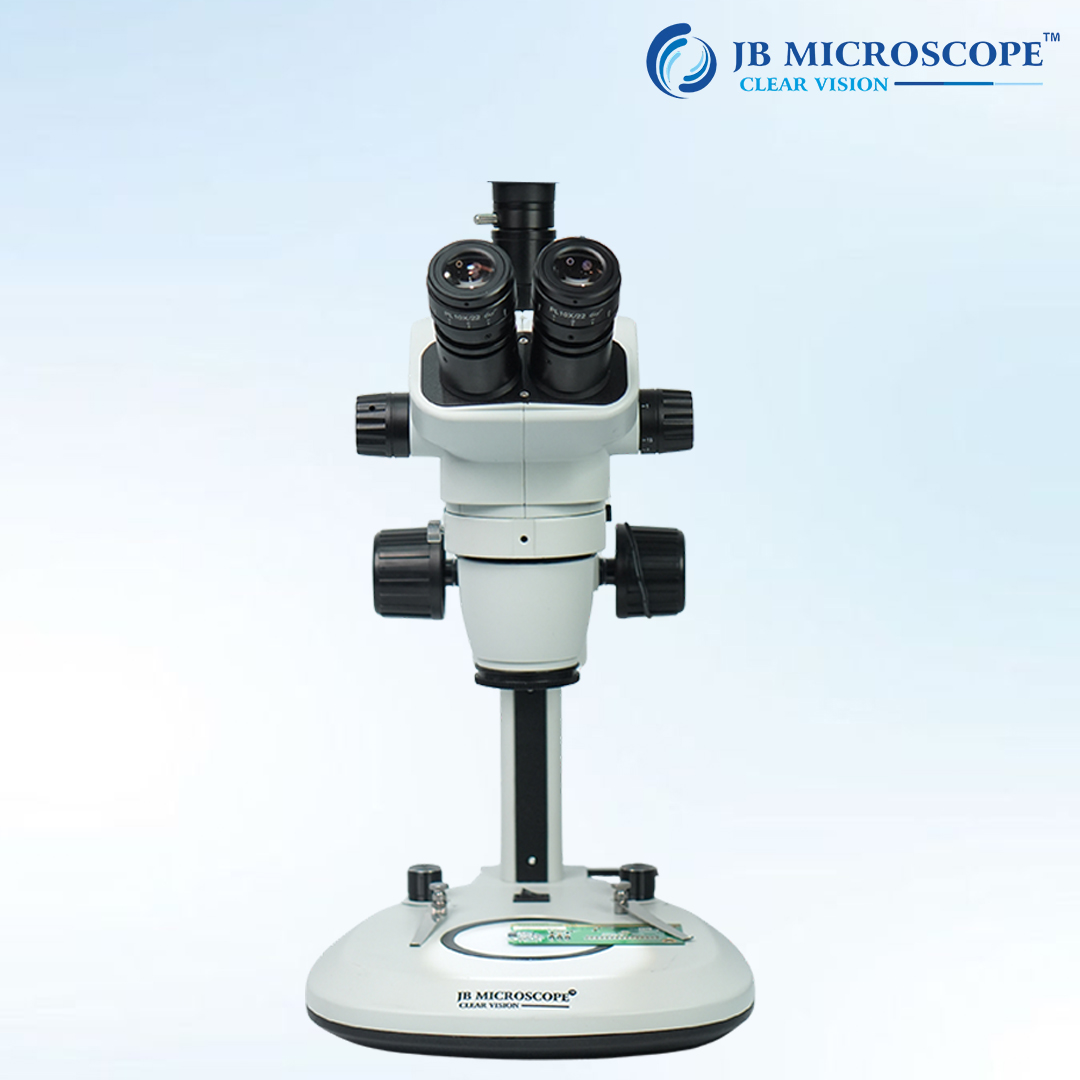

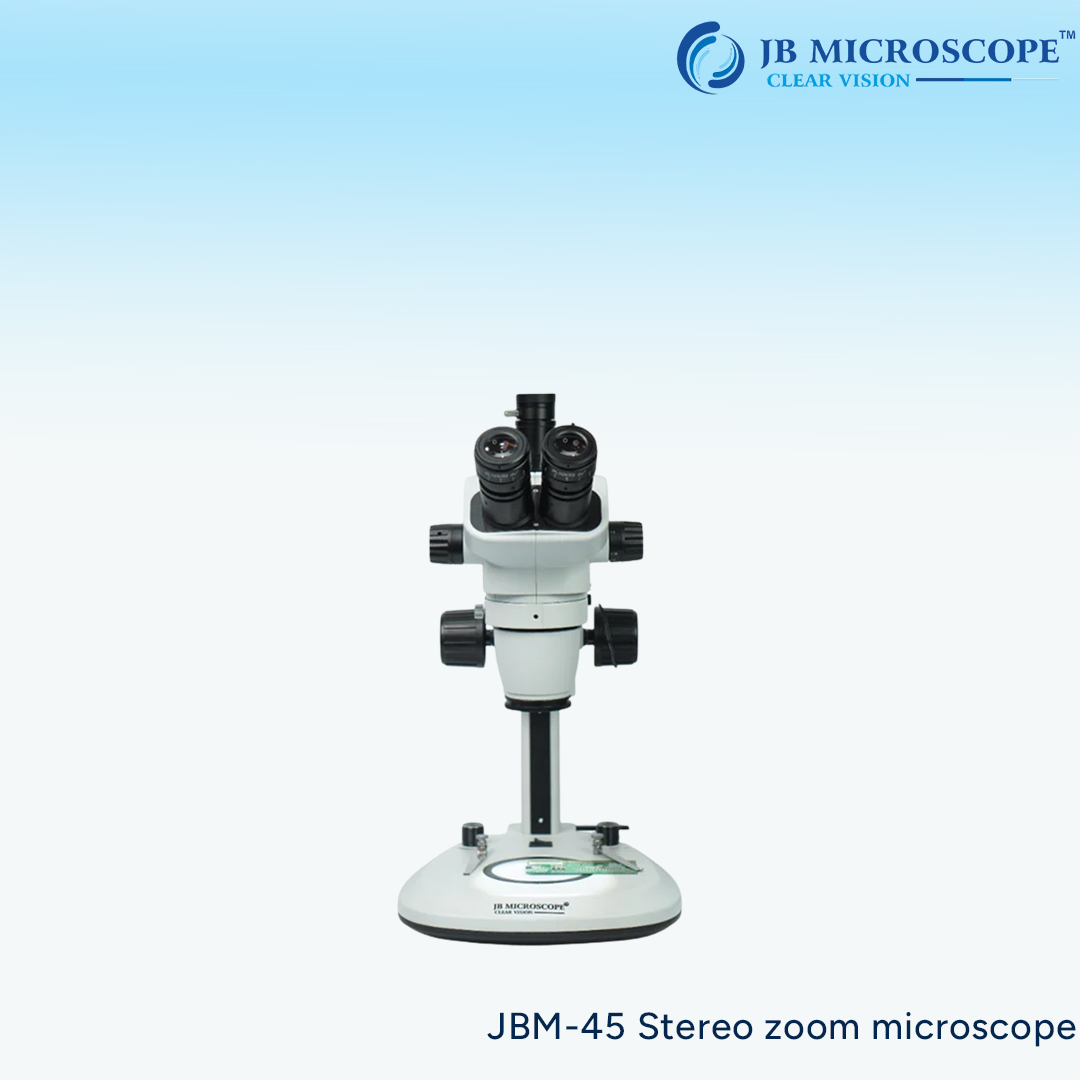

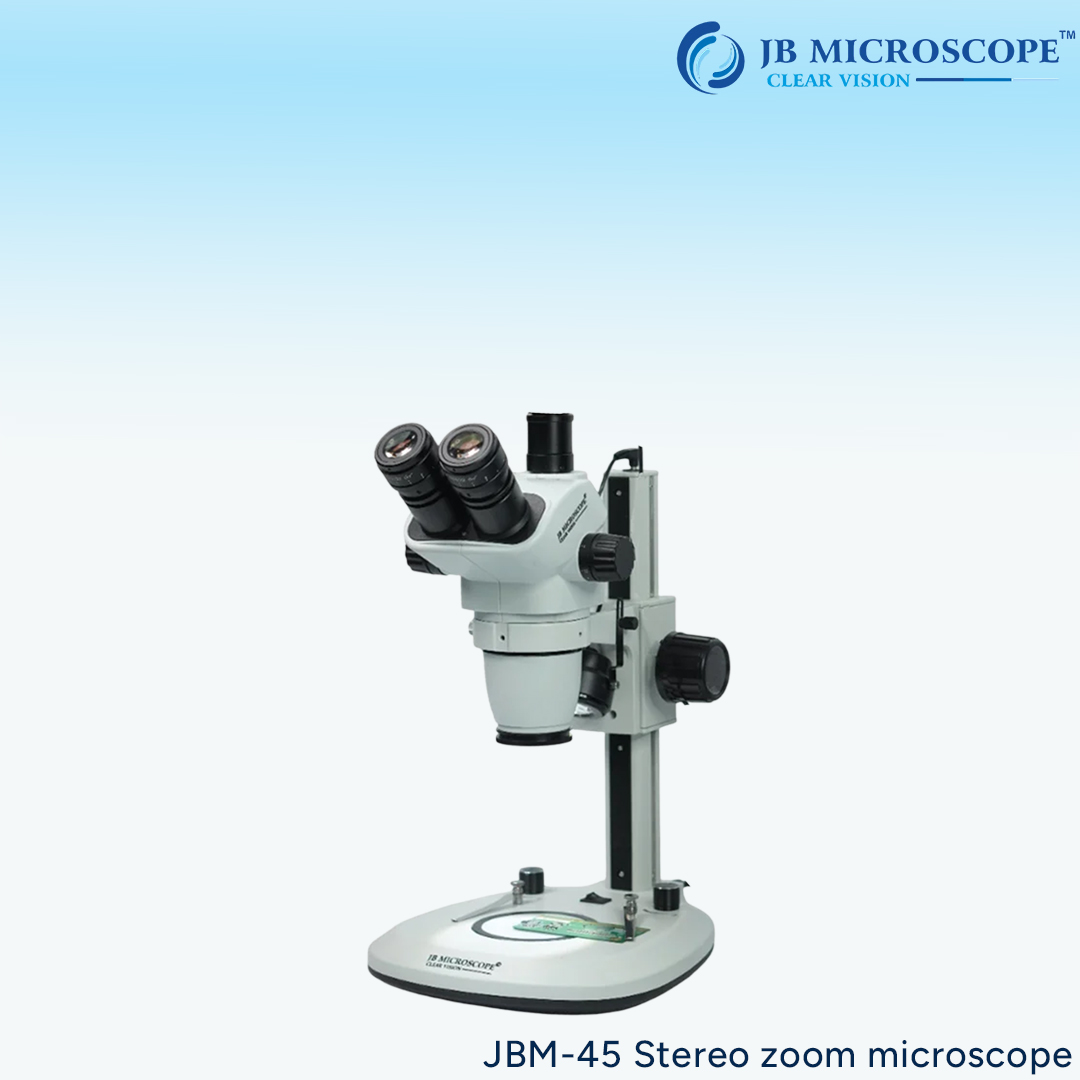

Stereo zoom microscope JBM-45

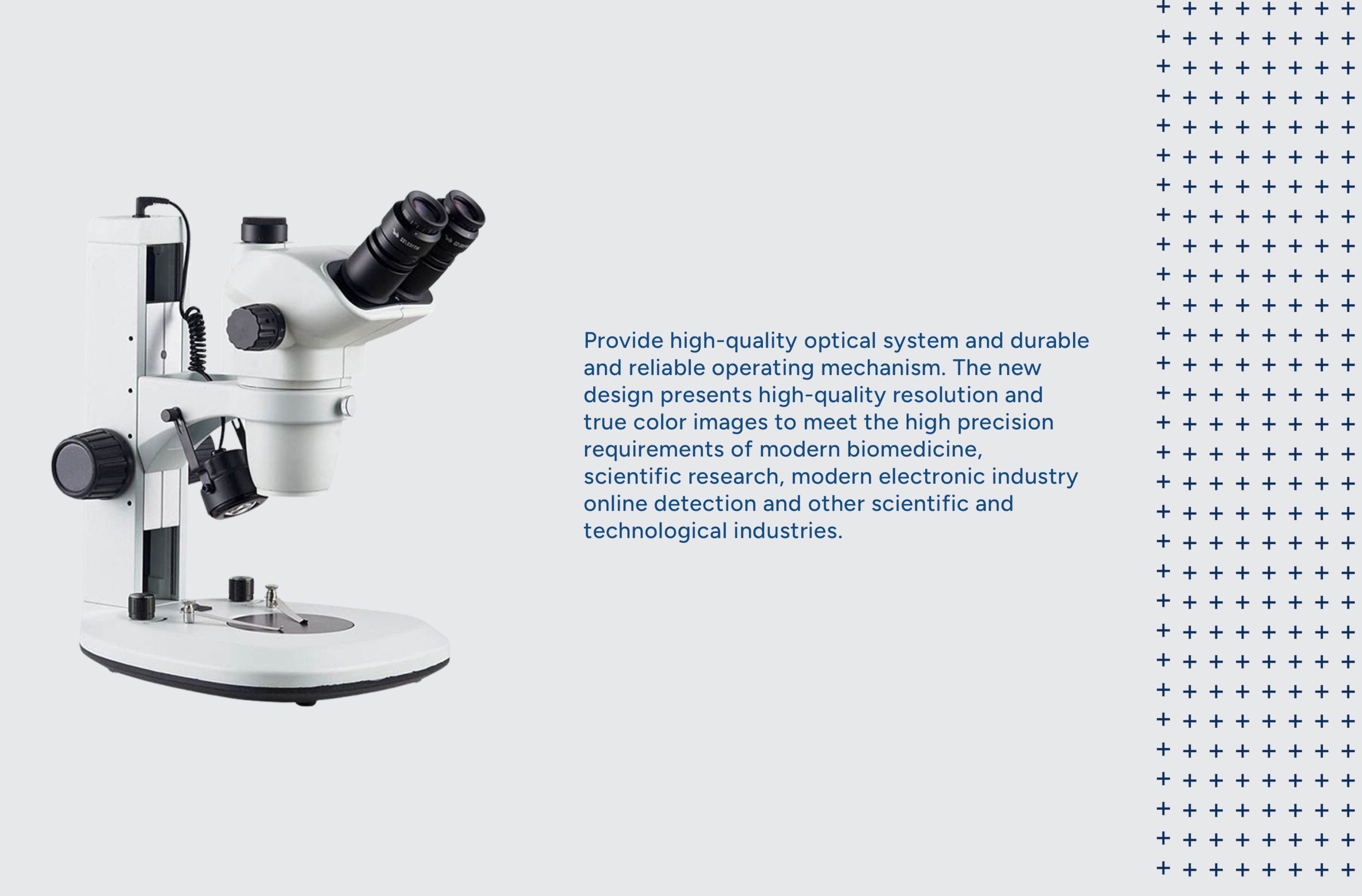

Provide high-quality optical system and durable and reliable operating mechanism. The new design presents high-quality resolution and true color images to meet the high precision requirements of modern biomedicine, scientific research, modern electronic industry online detection and other scientific and technological industries.

Category:

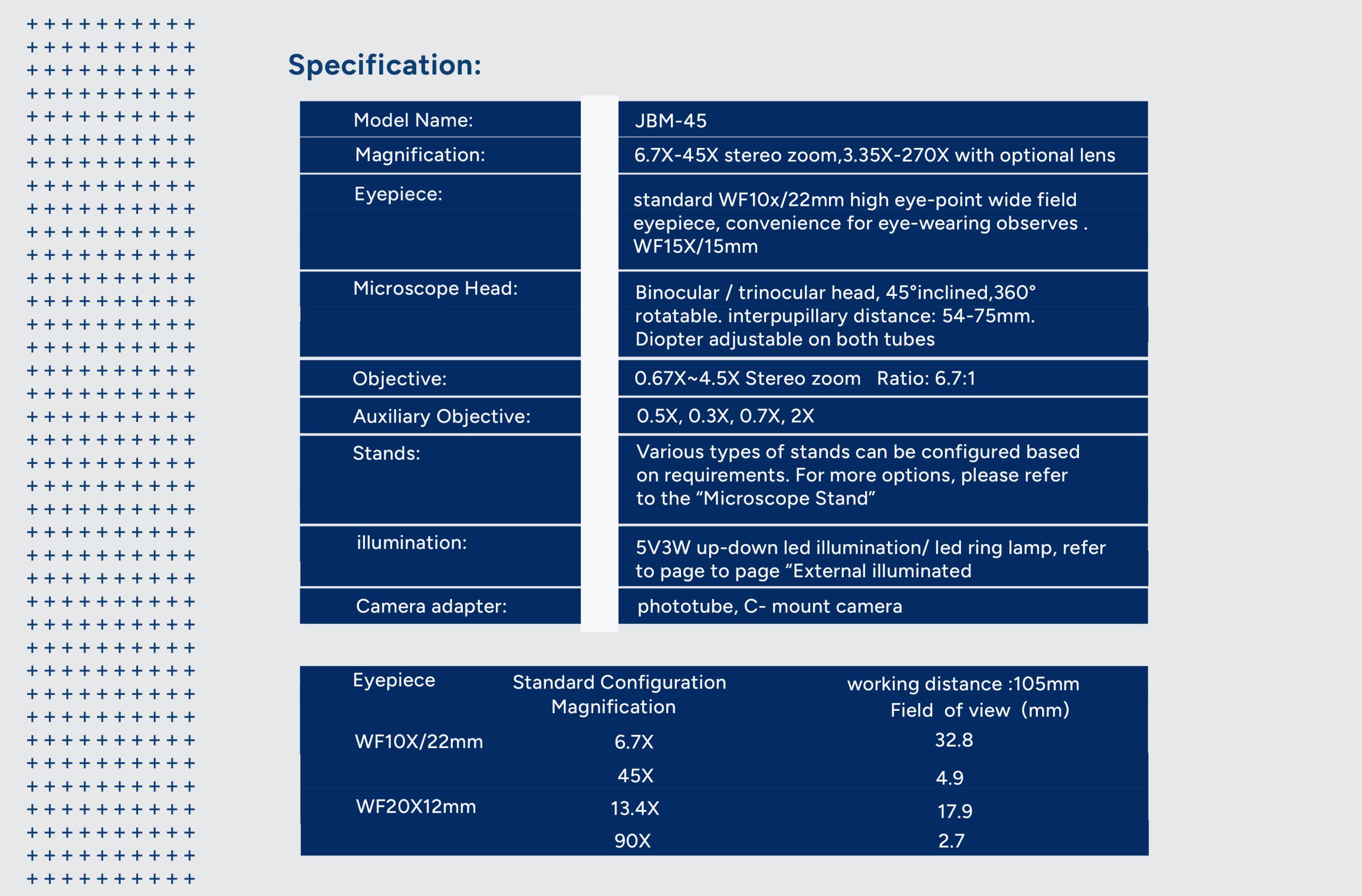

  • Model Name:          JBM-45
  • Magnification:        6.7X-45X stereo zoom,3.35X-270X with optional lens
  • Eyepiece:  standard WF10x/22mm high eye-point wide field eyepiece, convenience for eye-wearing observes . WF15X/15mm.
  • Microscope Head:   Binocular / trinocular head, 45°inclined,360° rotatable. interpupillary distance: 54-75mm.Diopter adjustable on both tubes
  • Objective:              0.67X~4.5X Stereo zoom   Ratio: 6.7:1
  • Auxiliary Objective: 0.5X, 0.3X, 0.7X, 2X
  • illuminated:    5V3W up-down led illumination/ led ring lamp, refer to page to page “External illuminated”

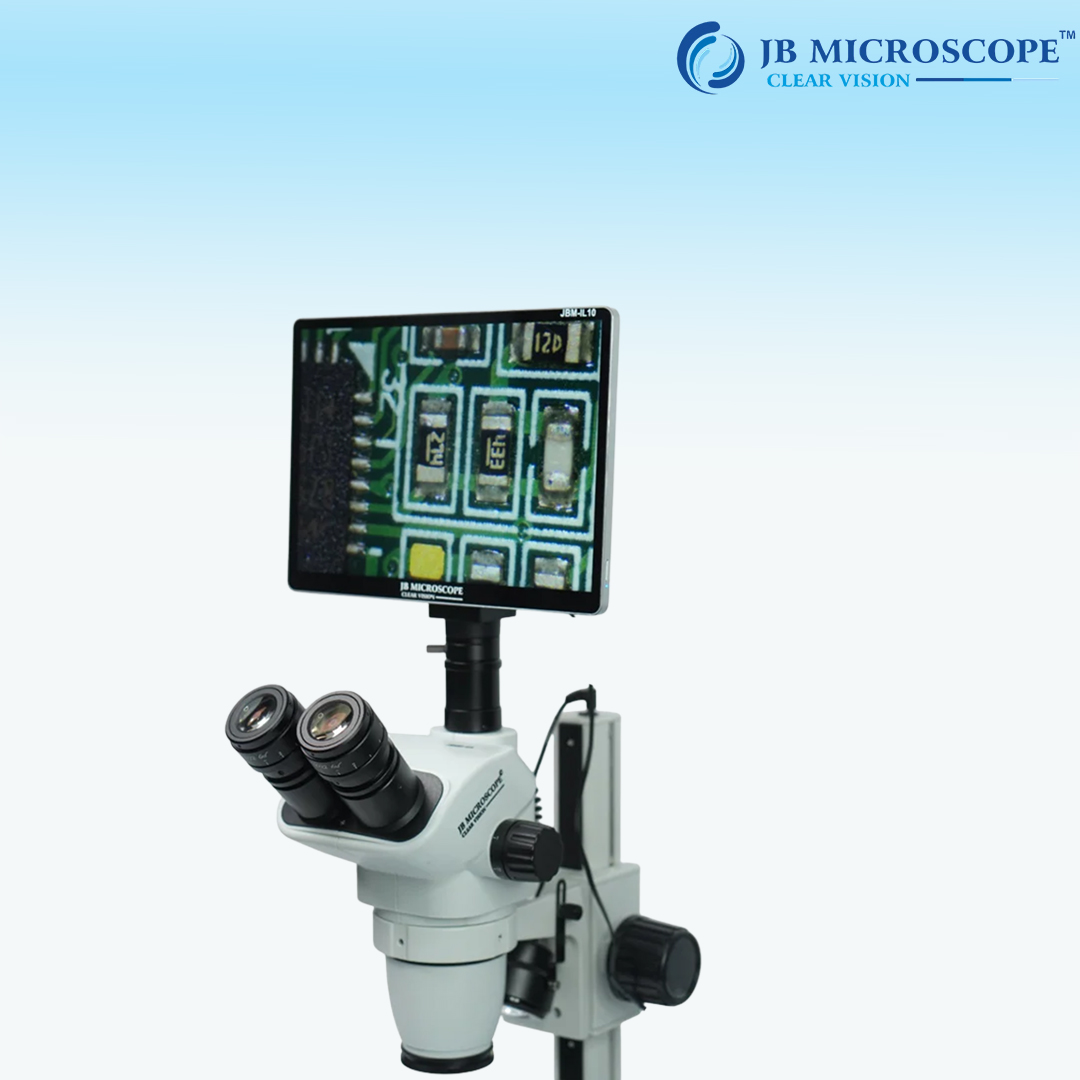

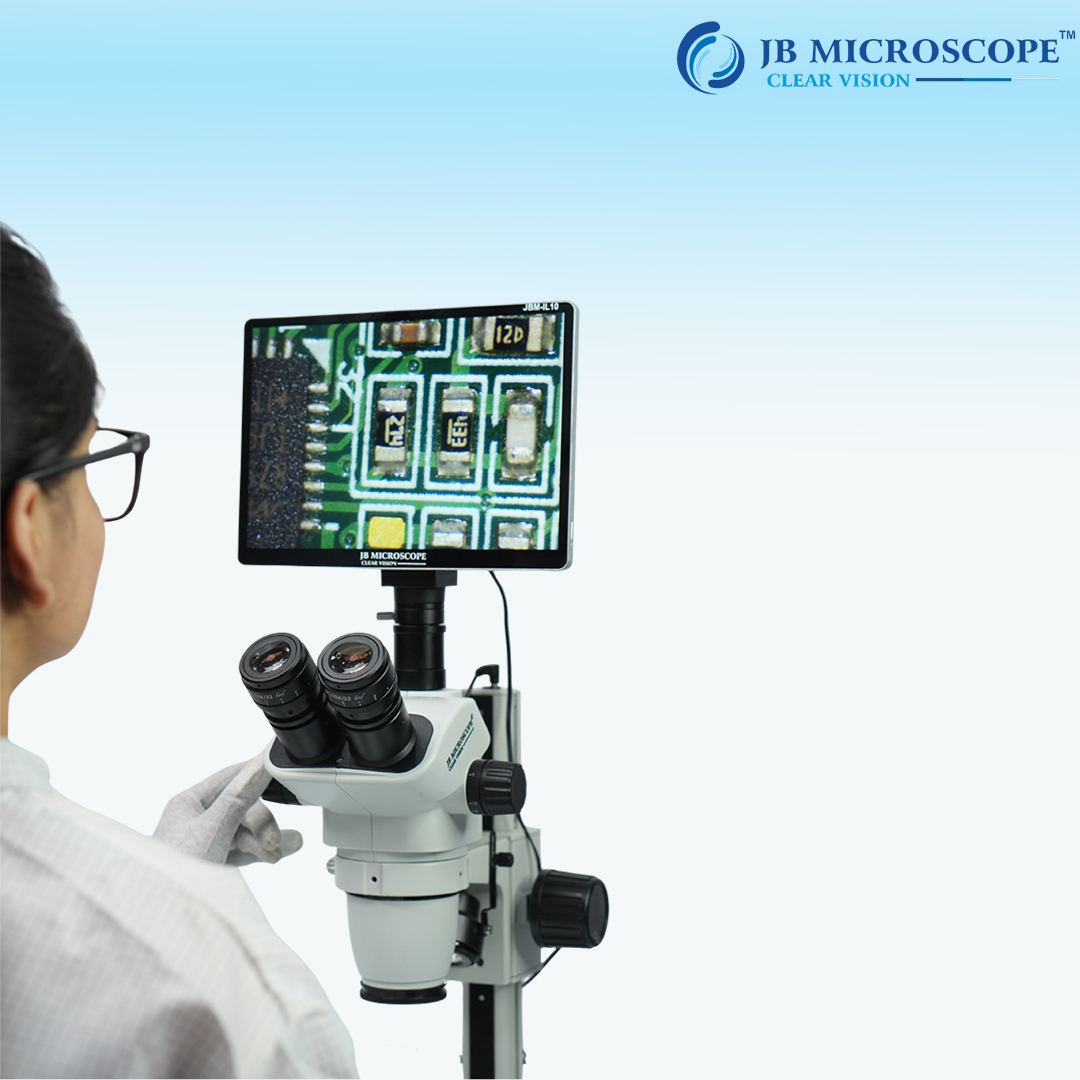

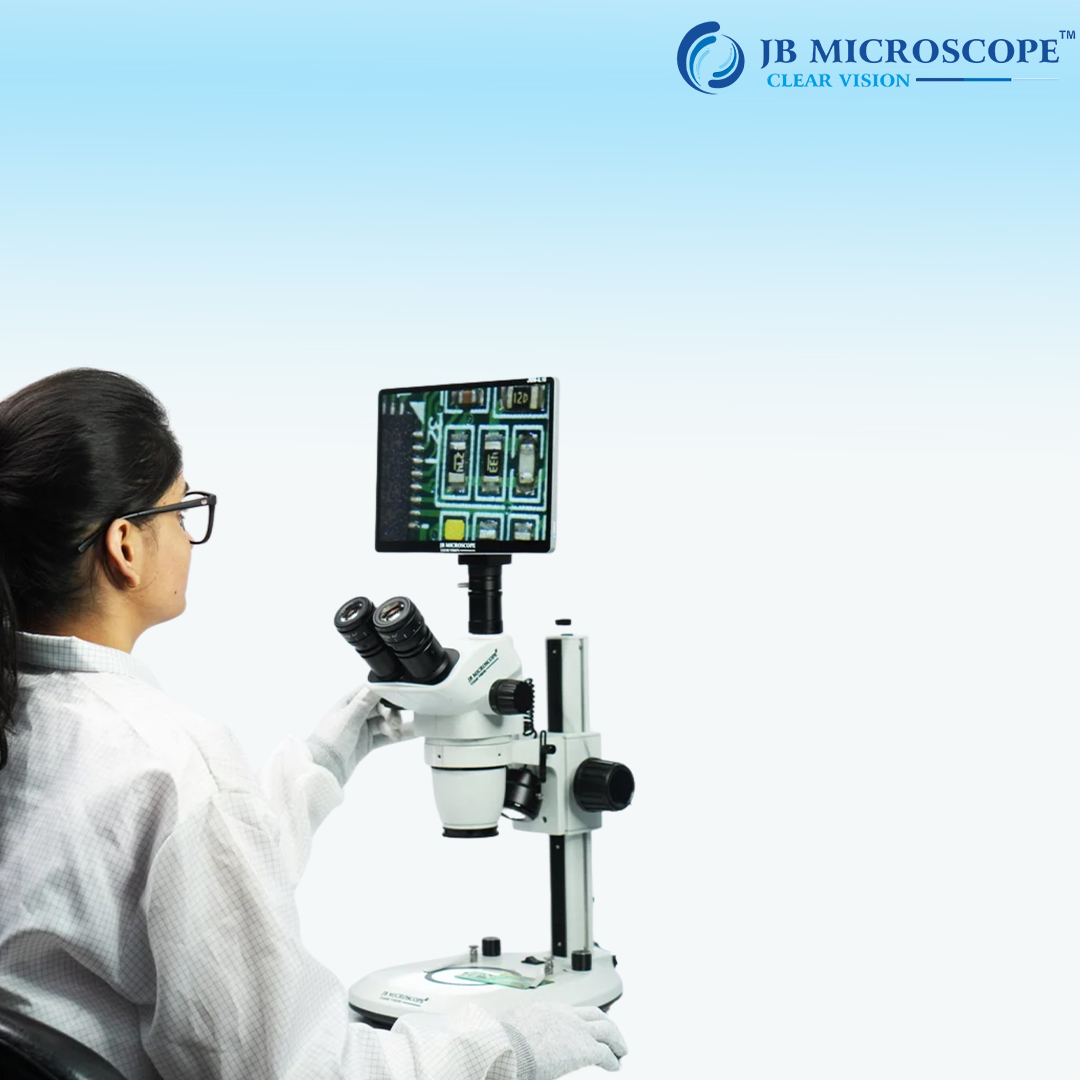

  • Camera Adapter: phototube, C- mount camera
  • Stands:          Various types of stands can be configured based on requirements. For more options, please refer to the “Microscope Stand”
  • Eyepiece  :                                 Standard Configuration                                             working distance :105mm
  •                                                                   Magnification                                                      Field  of view  (mm)
  • WF10x/22mm                                             6.7X                                                                       32.8

    .                                                                     45X                                                                        4.9

  •  WF20X/12mm                                          13.4X                                                                      17.9

    .                                                                      90X                                                                       2.7
