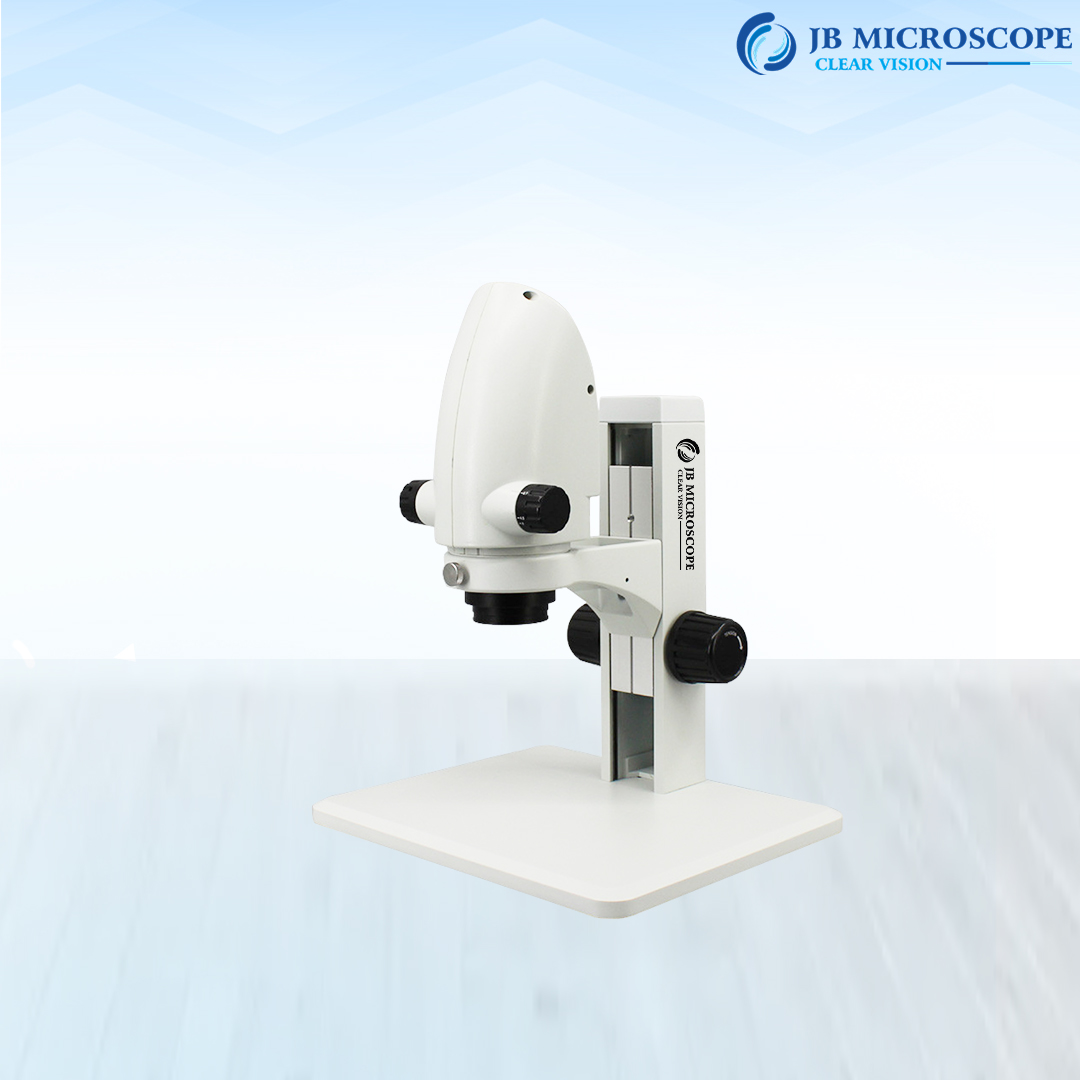

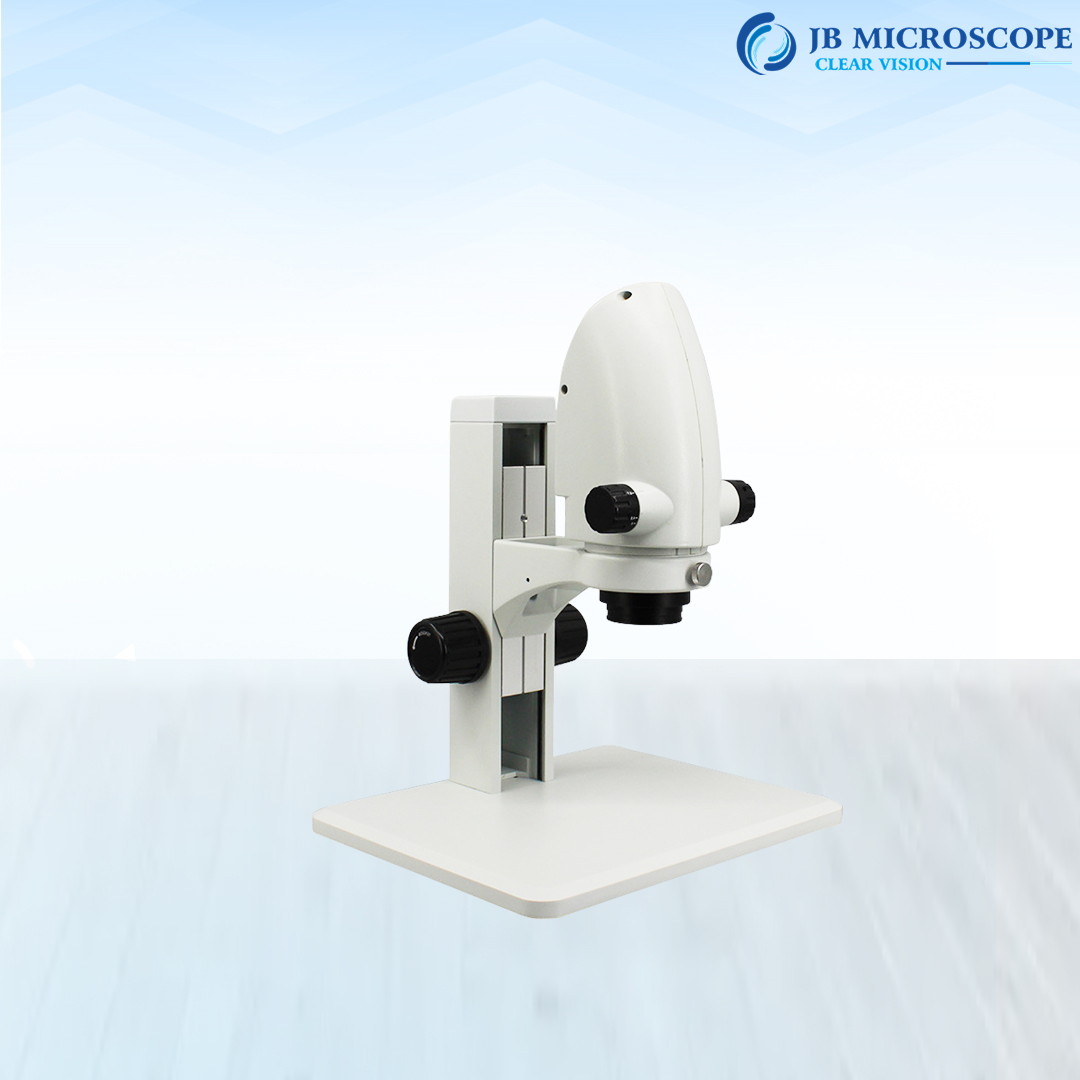

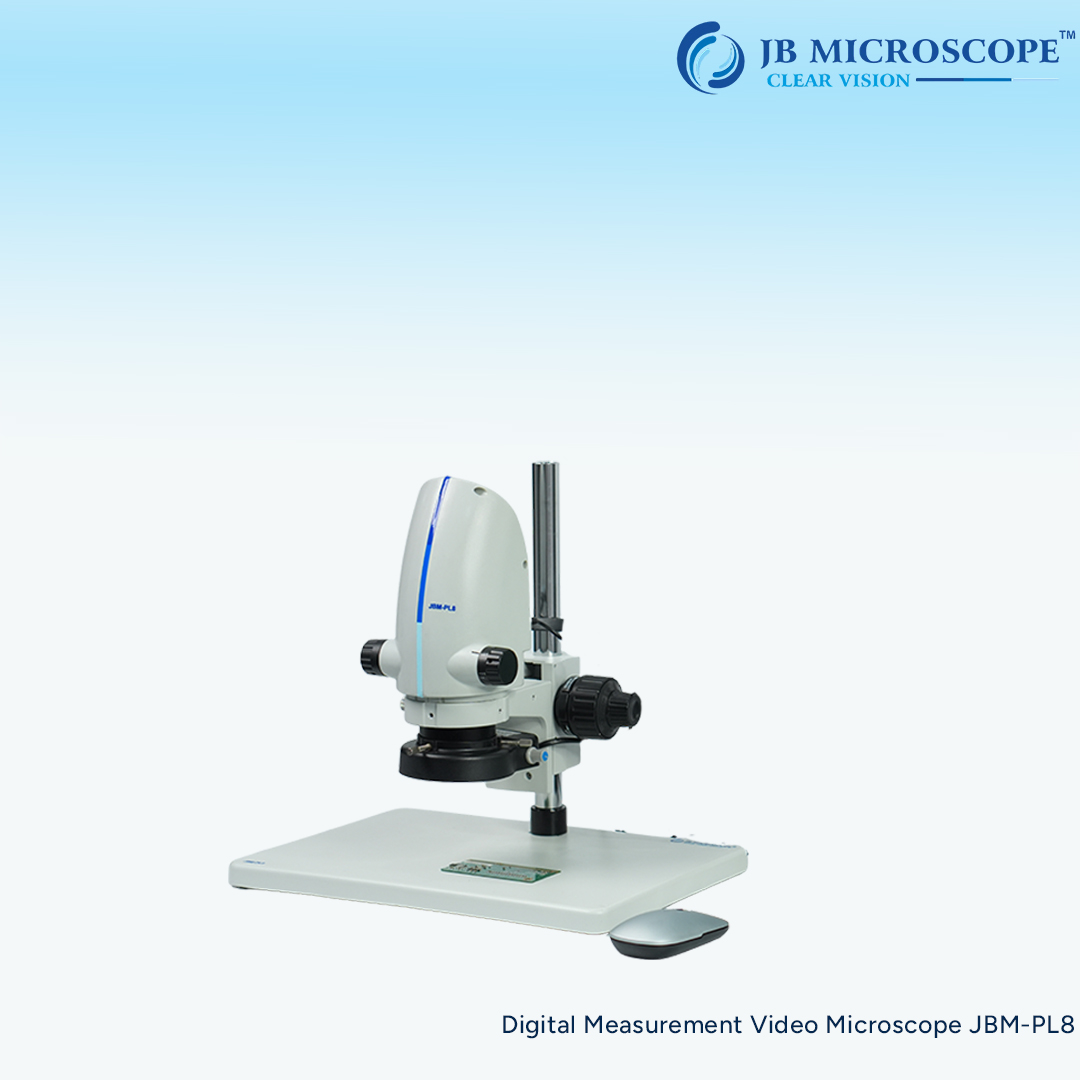

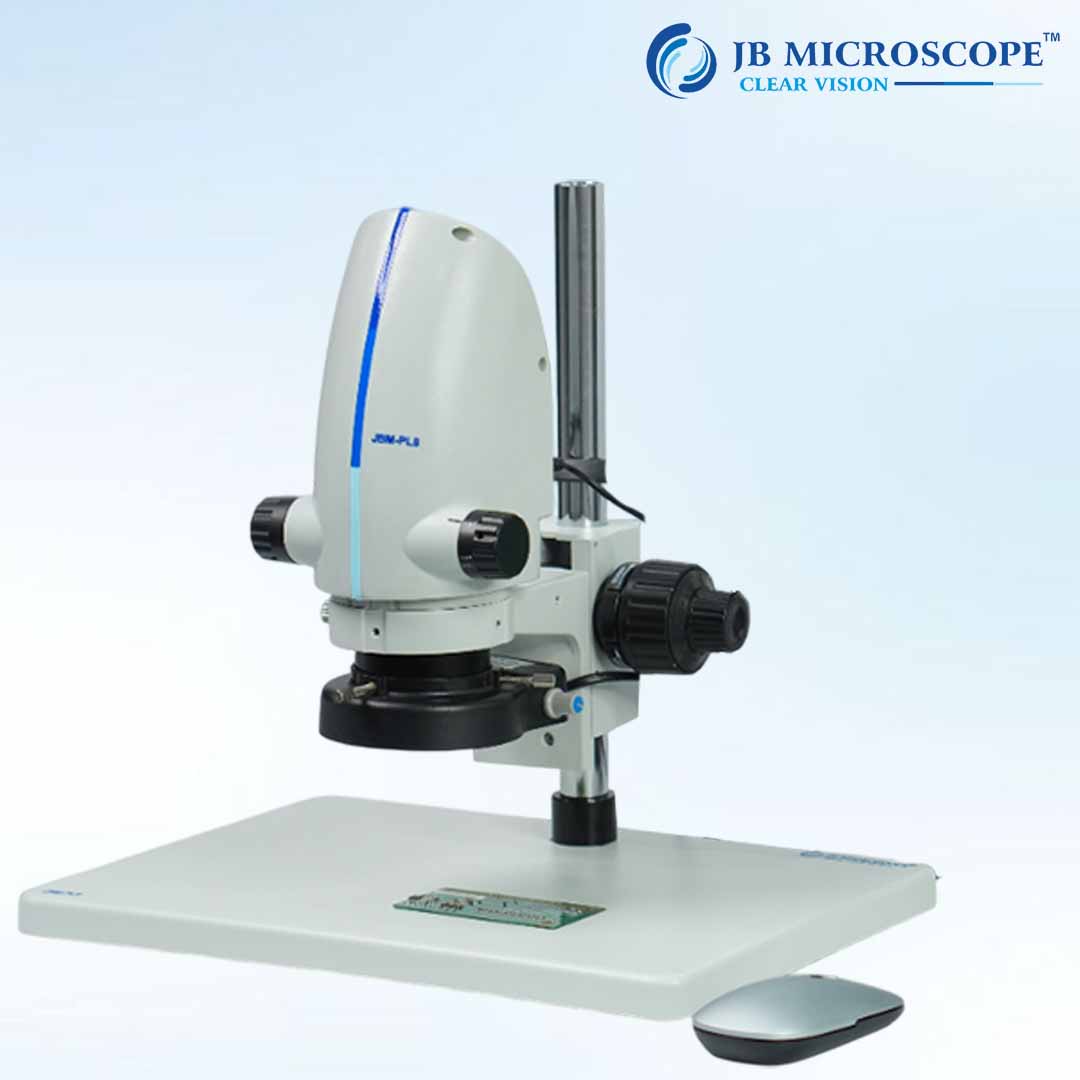

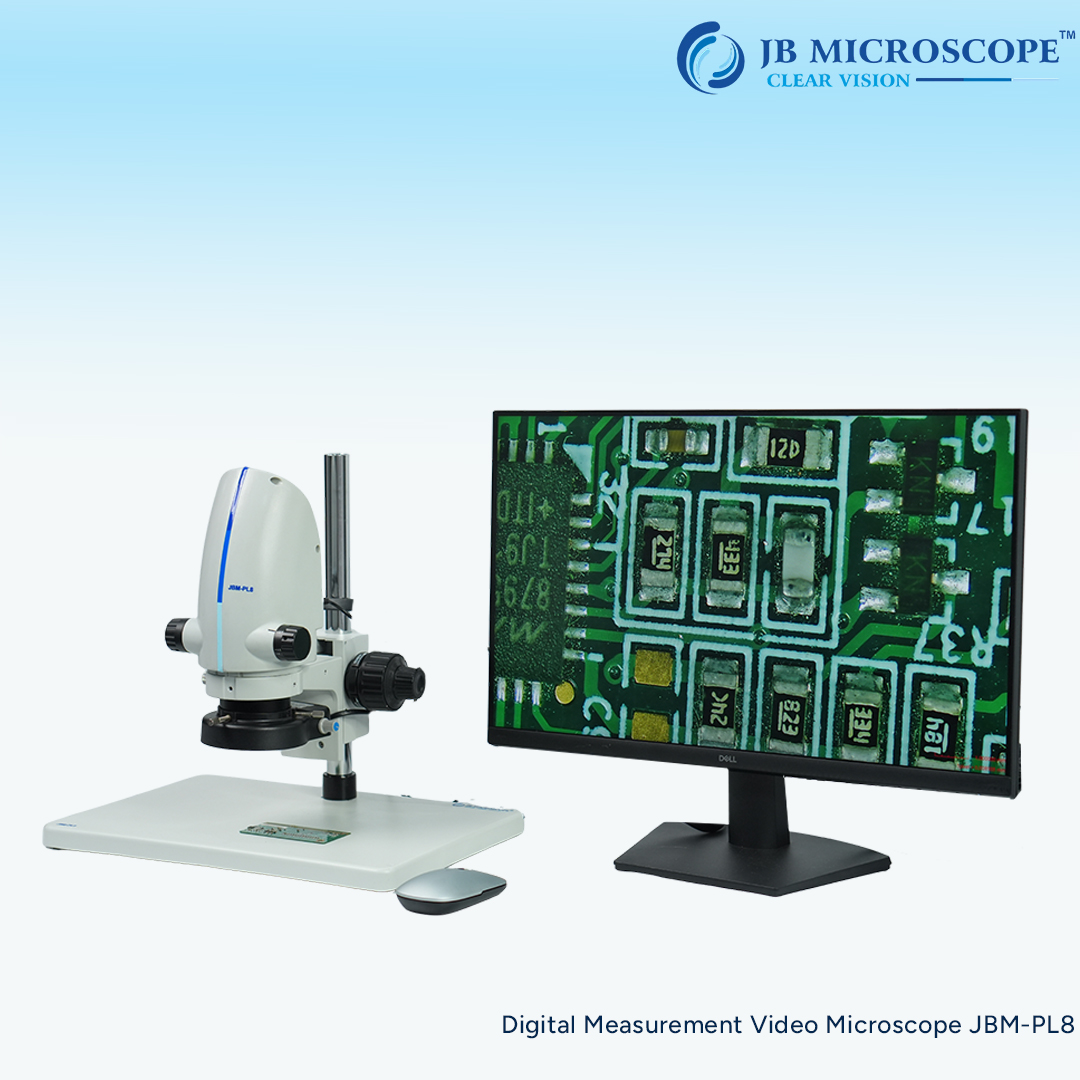

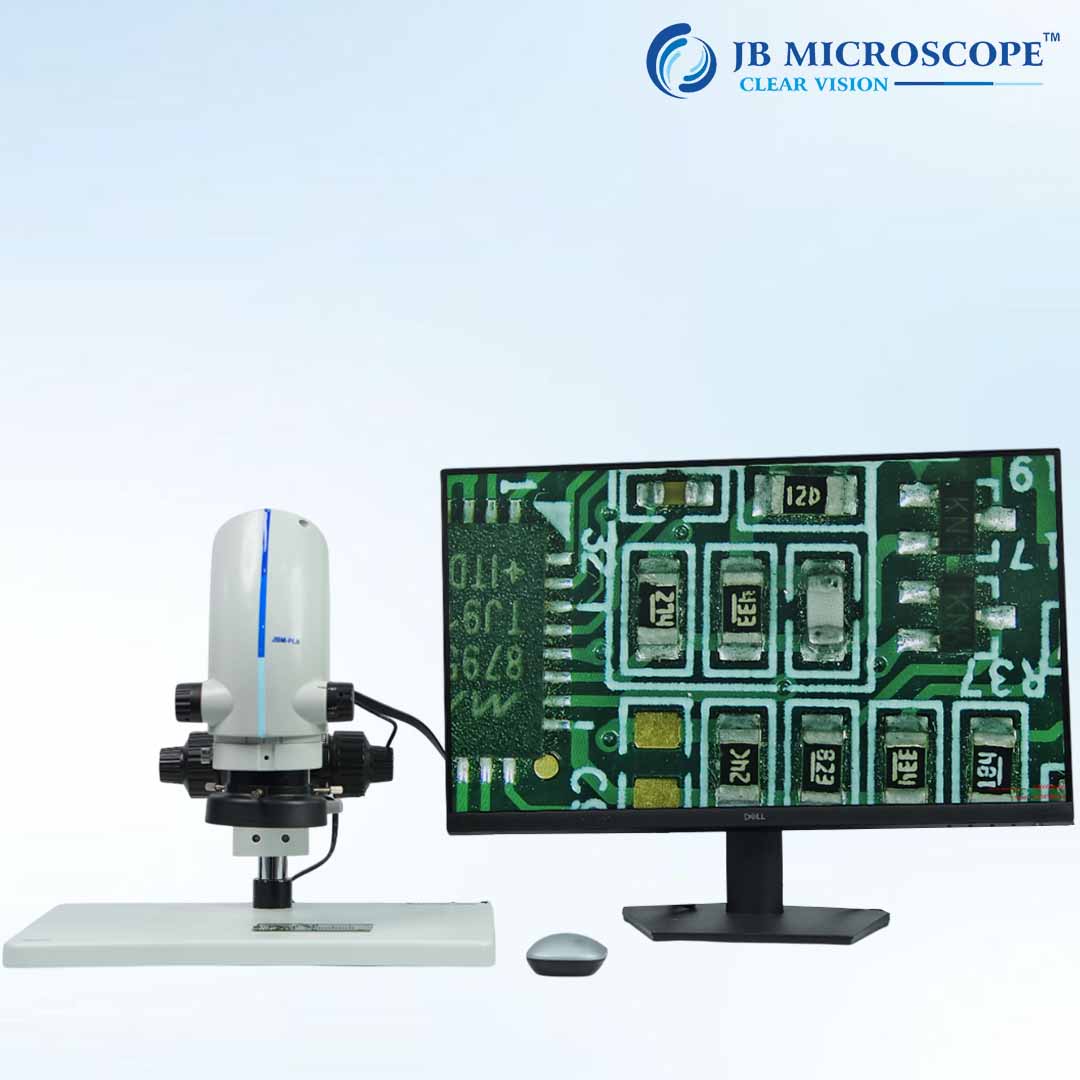

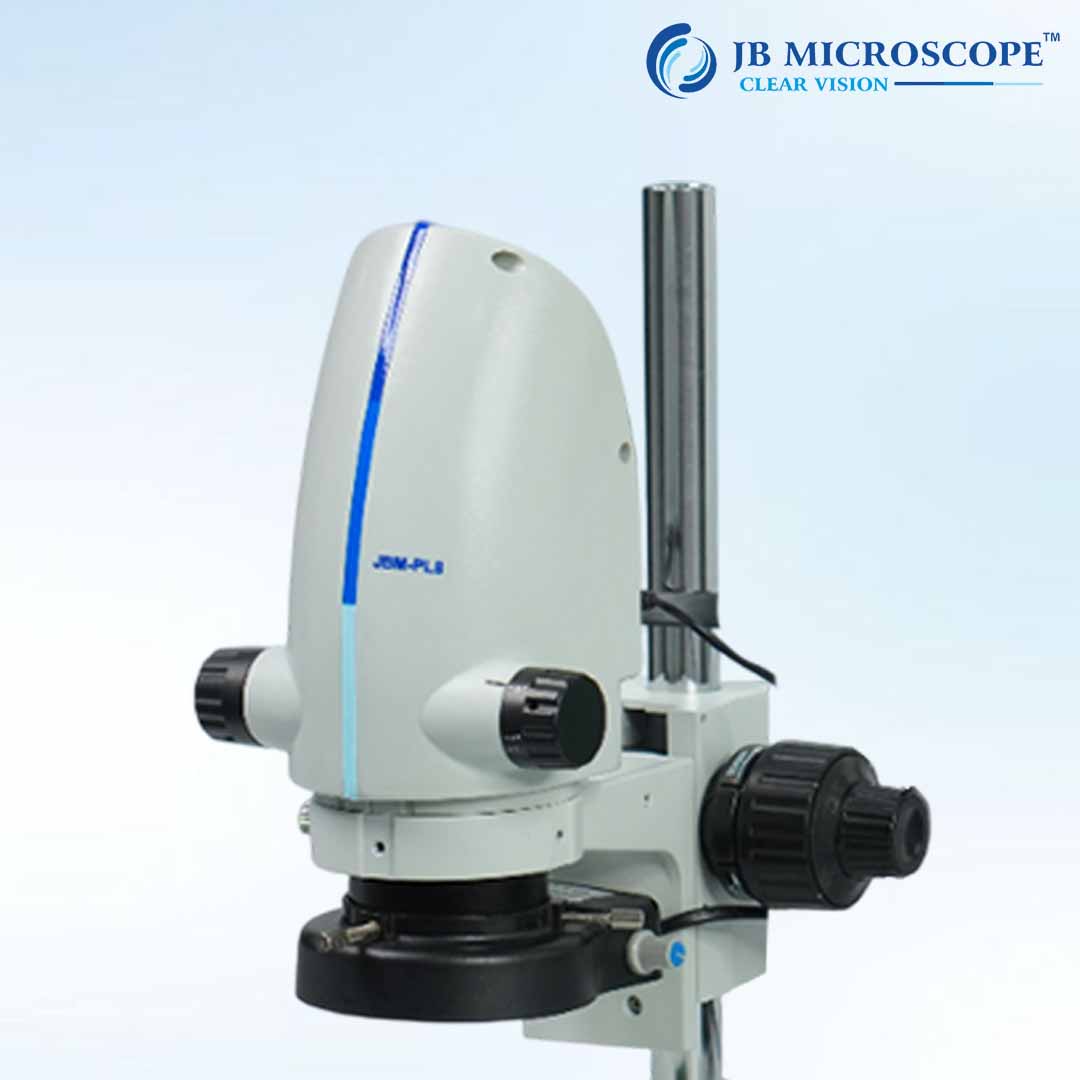

Digital Measurement Video Microscope JBM-PL8

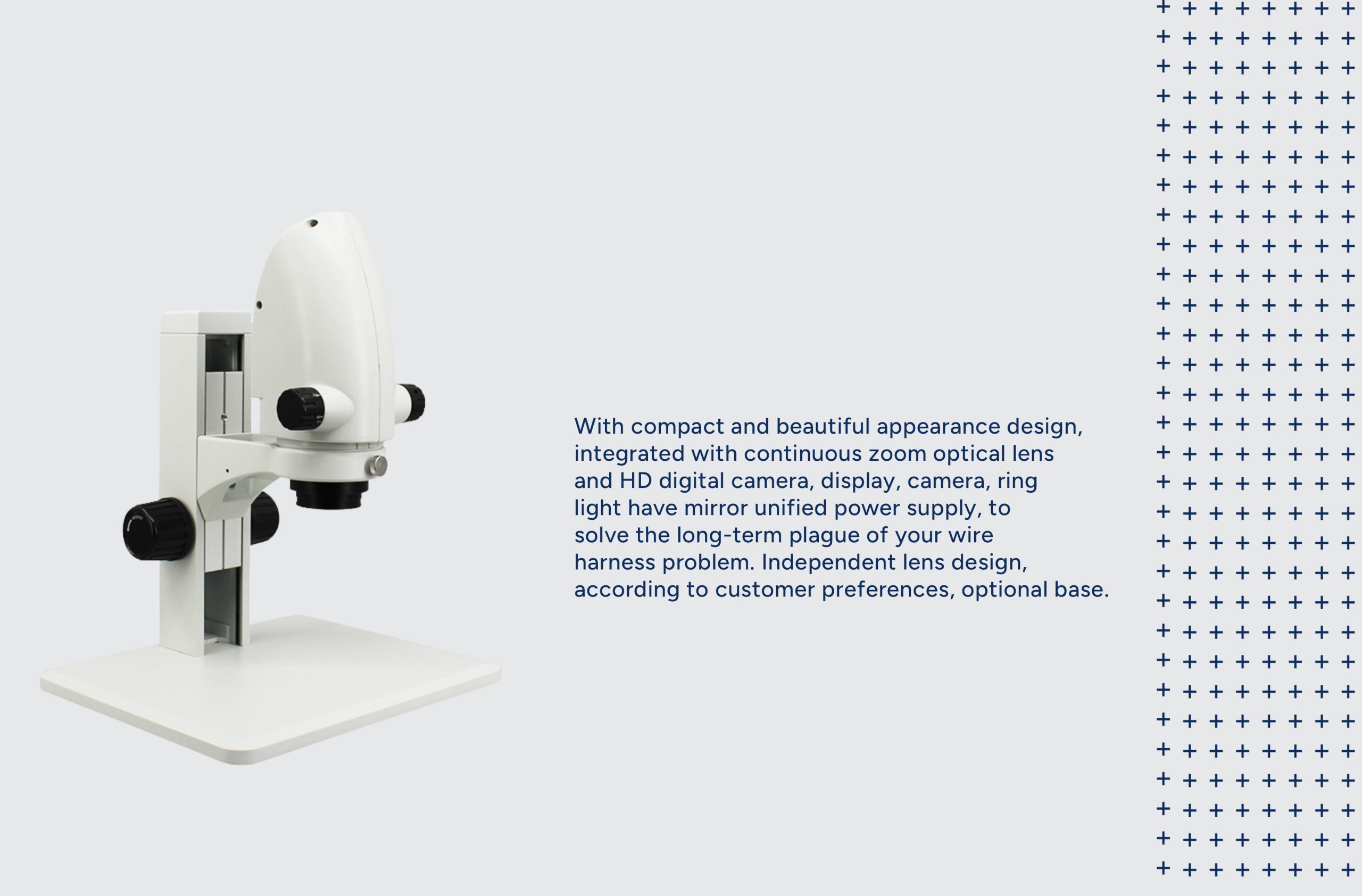

With compact and beautiful appearance design, integrated with continuous zoom optical lens and HD digital camera, display, camera, ring light have mirror unified power supply, to solve the long-term plague of your wire harness problem. Independent lens design, according to customer preferences, optional base.

Category:

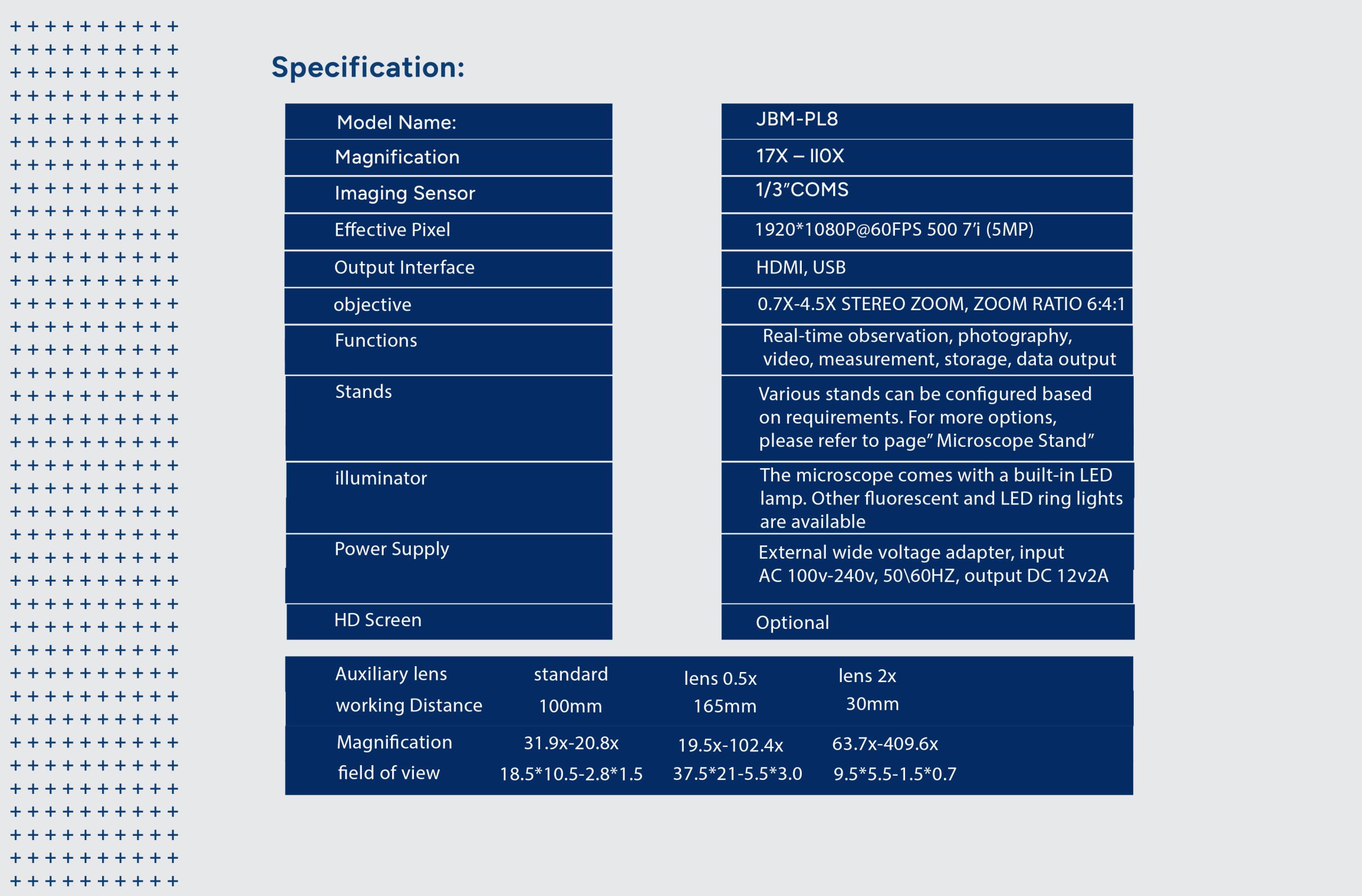

             Specification:

  • Model Name                                  JBM-PL8
  • Magnification                               17X – ll0X
  • Imaging Sensor                                 1/3″ COMS
  • Effective Pixel                         1920*1080P@60FPS 500 7’i (5MP)
  •  Output Interface                                HDMI, USB
  • objective                            0.7X-4.5X STEREO ZOOM, ZOOM RATIO 6:4:1

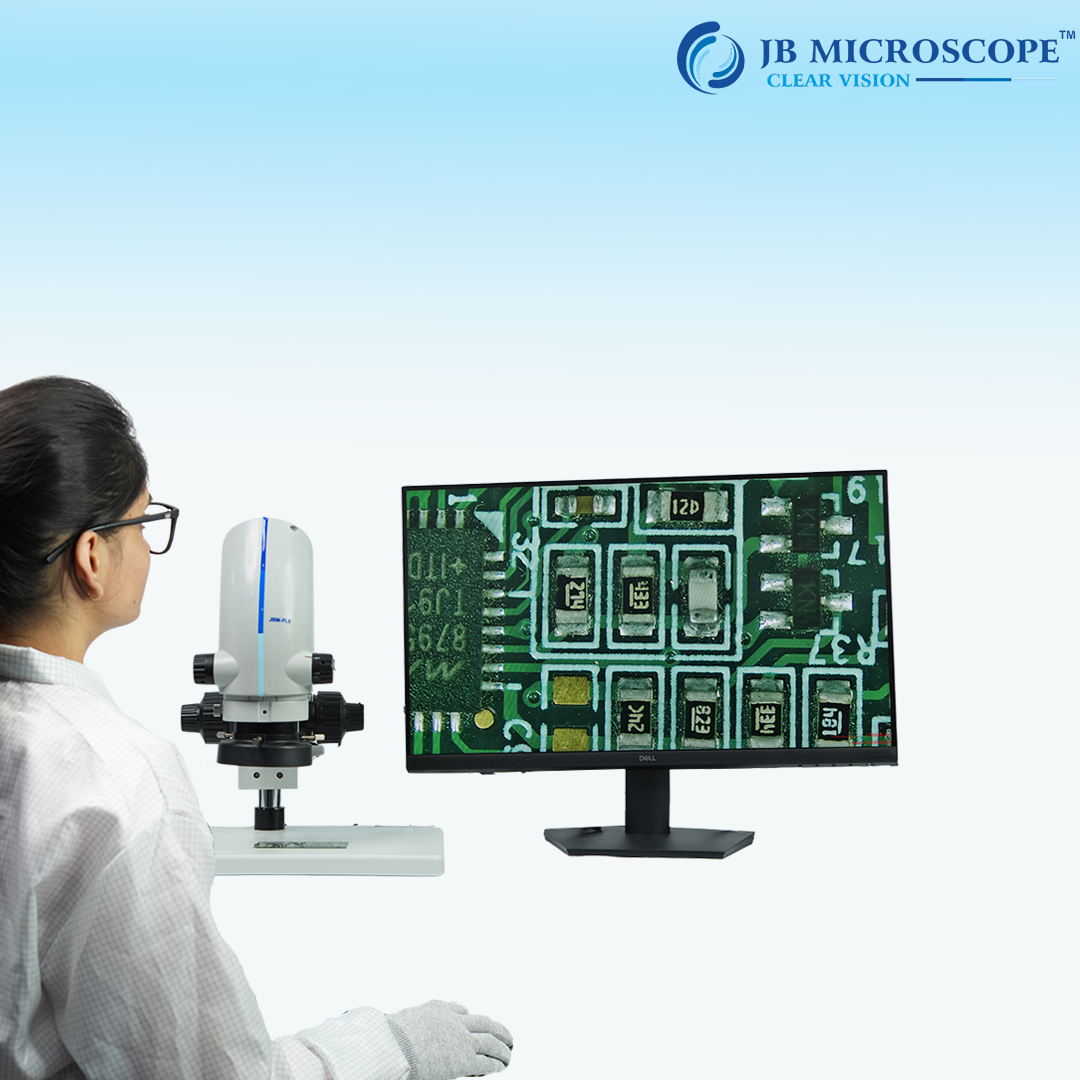

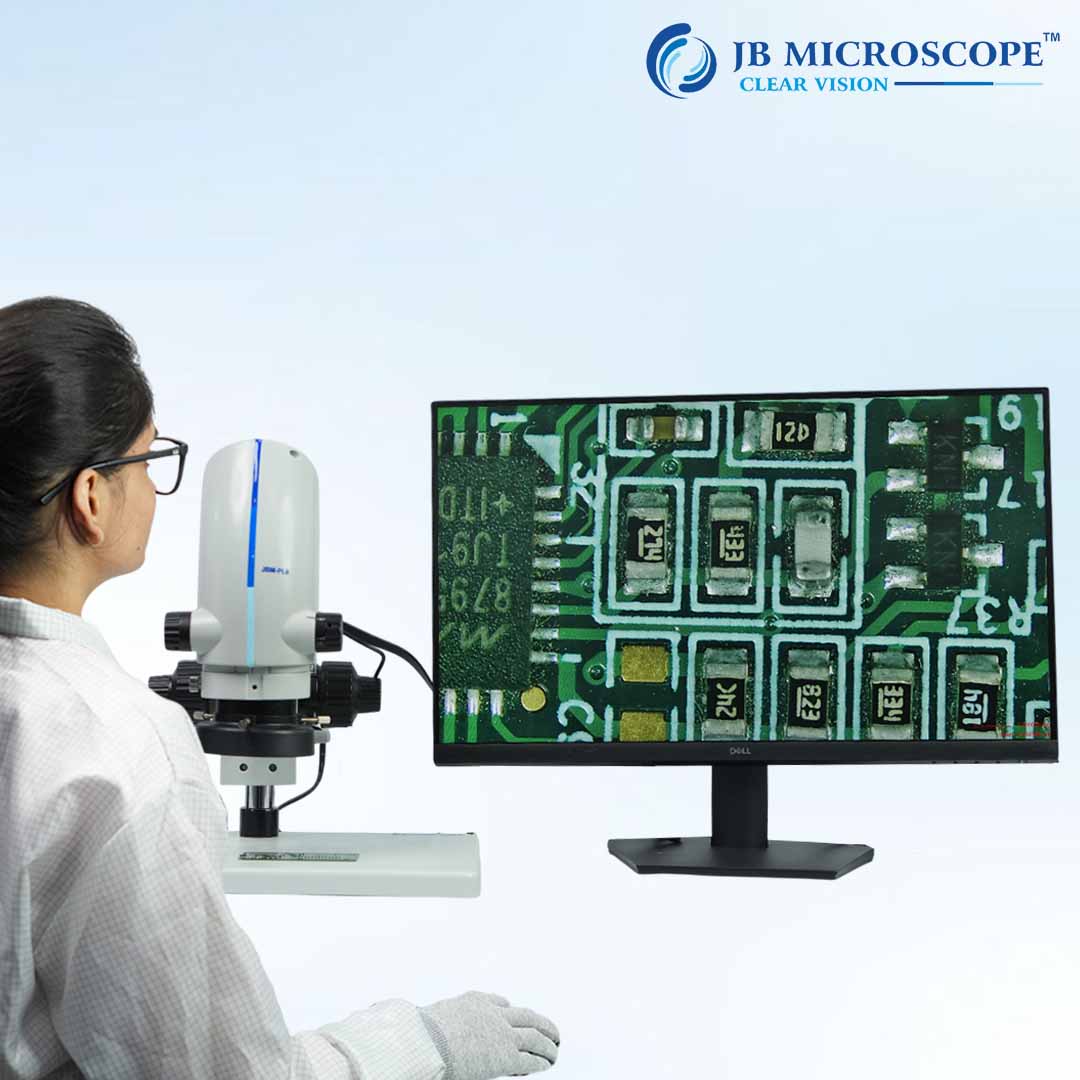

  • Functions                        Real-time observation, photography, video, measurement, storage, data output
  • Stands                                 Various stands can be configured based on requirements. For more options, please refer to page” Microscope Stand”
  • illuminator                           the microscope comes with a built-in LED lamp. Other fluorescent and LED ring lights are available
  • Power Supply                     External wide voltage adapter, input AC 100v-240v, 50\60HZ, output DC 12v2A
  • HD Screen                                 Optional
  • Auxiliary lens                          standard                           lens 0.5x                                              lens 2x
  • working Distance                  100mm                             165mm                                                 30mm
  • Magnification                       31.9x-20.8x                     19.5x-102.4x                                        63.7x-409.6x
  • field of view                           18.5*10.5-2.8*1.5           37.5*21-5.5*3.0                                  9.5*5.5-1.5*0.7
