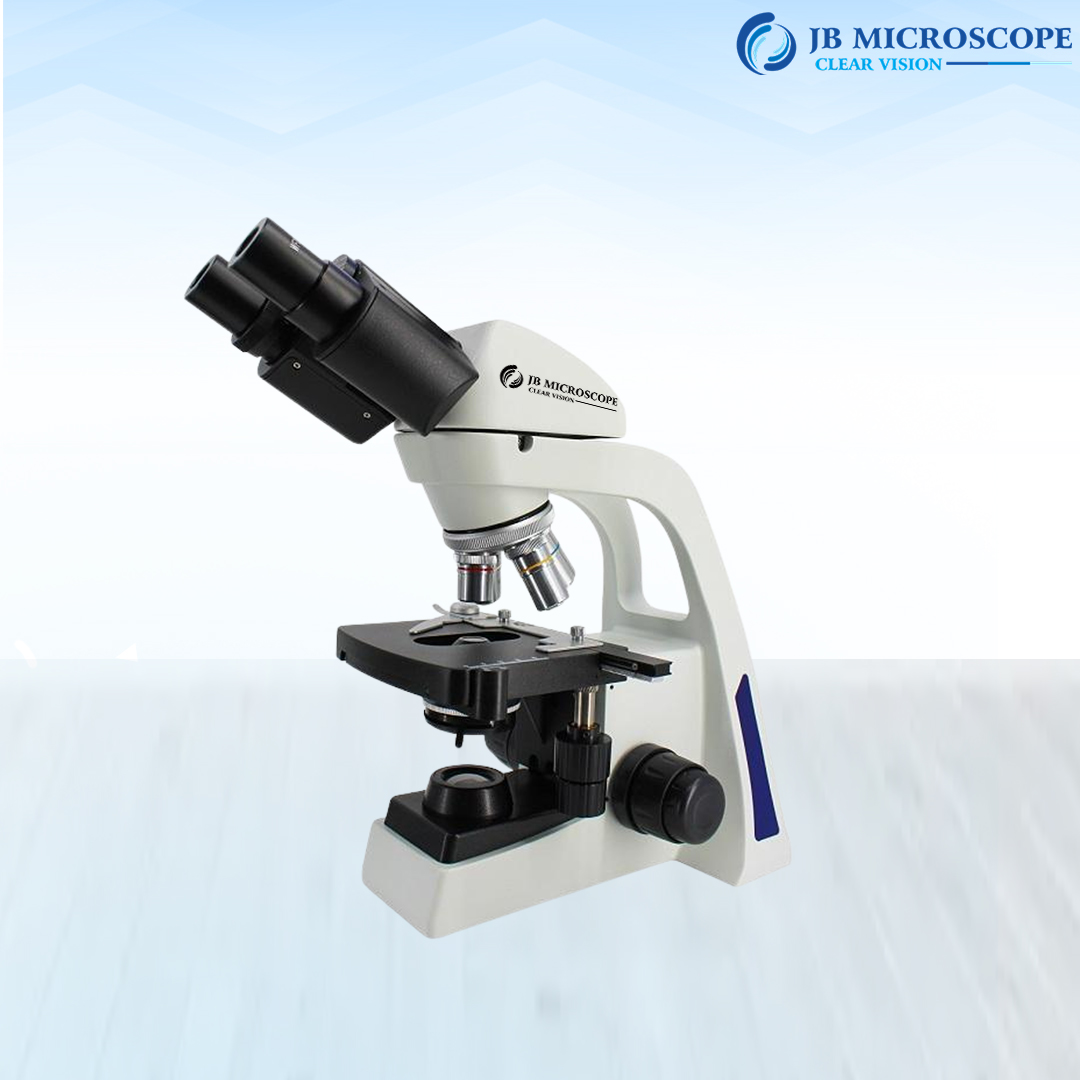

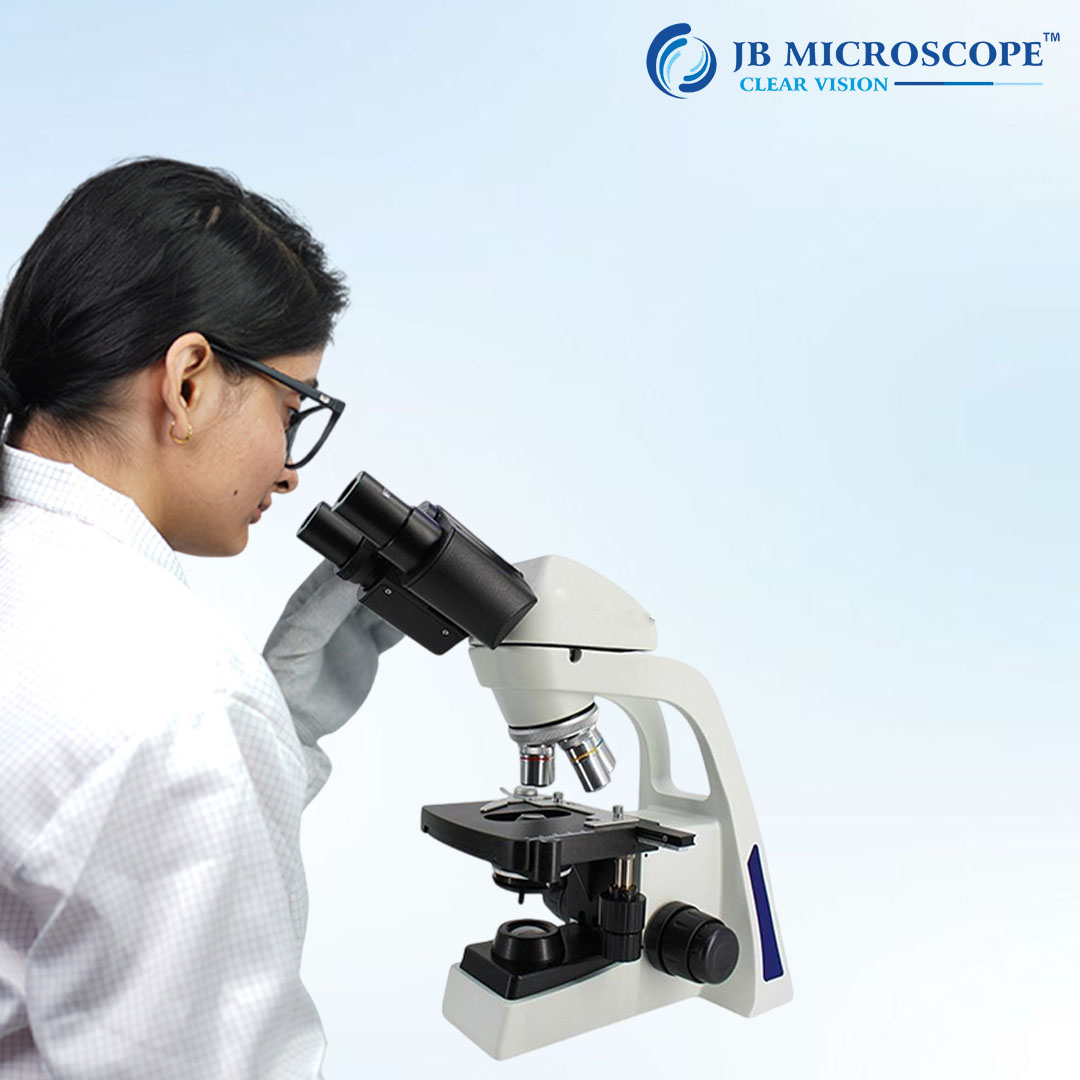

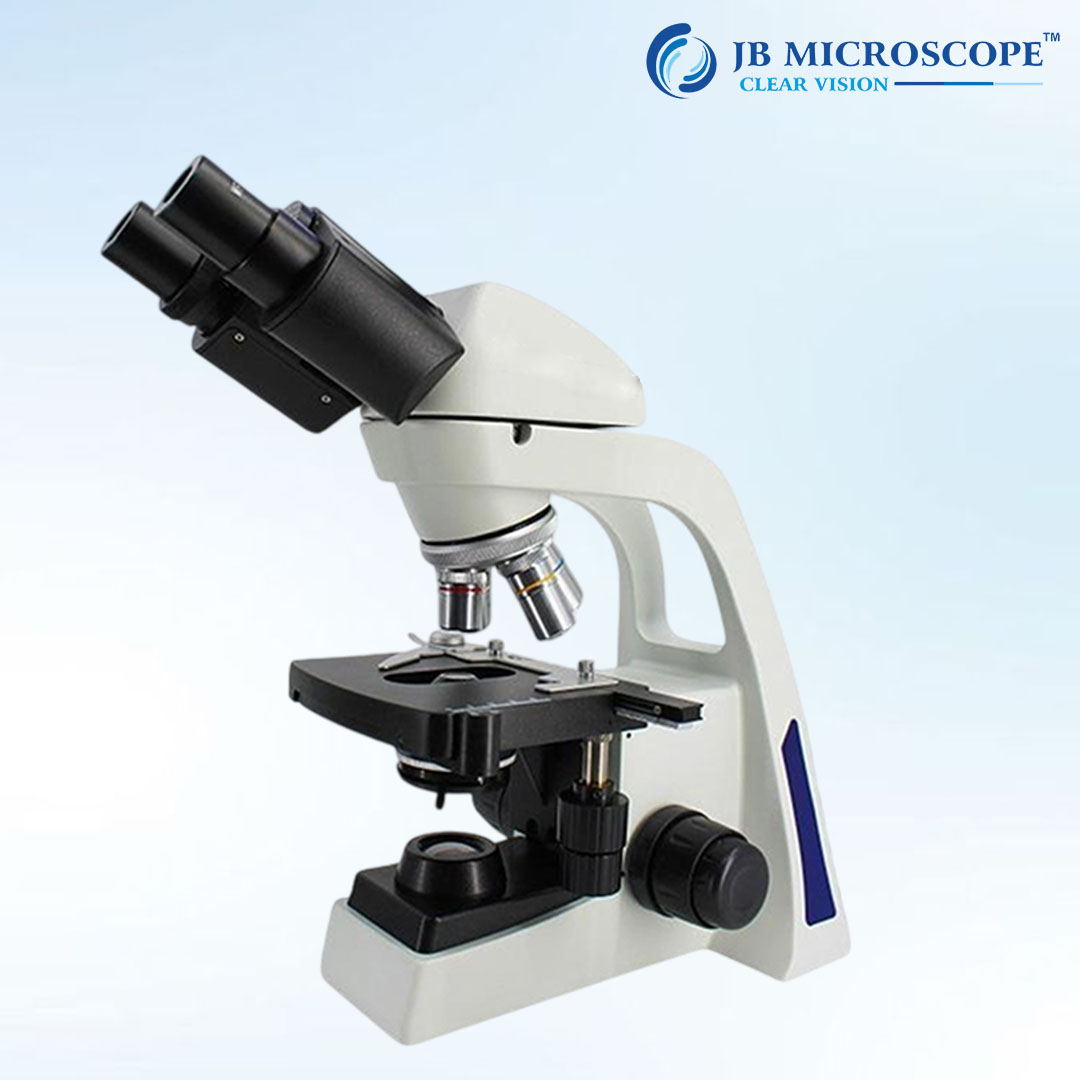

Biological Microscope JBM-202B

The overall structural design is small and rigid, and the penetrating flanks on both sides of the frame not only play an embellishment role, but also make the whole machine look smart. The curved arc mirror arm adopts hollow design, which reduces weight and is ergonomic and can be moved with one hand. It is committed to meet the needs of modern biology teaching, basic medical treatment and scientific research in different fields.

Category:
                      Optical Technical Specifications

Model Name

JBM-202B

Optical System

Finite Color, infinite Color Corrected Optical System

Nosepiece

Quadruple nosepiece

Focus adjustment

Coarsely adjustable coaxial focusing mechanism, coarse rang: 8mm; fine precision: 0.004mm; With elastic adjustment device

Stage

Double layers stage 115•125mm

Condenser

NA1.25 ABBE Condenser and iris Diaphragm

illumination

3W LED intensity adjustable, Built-in charging module; bulb center preset, wide voltage 100V-240V, output bulb center preset, wide voltage 100V-240V, 50/60HZ, output DC12V2A

Others

Transmission filter: blue, yellow, green; Photo tube: 0.35X, 0. SX, 1X C-mount for camera

Viewing Head

30°inclined, gemel binocular head, interpupillary distance: 50-75m m, Diopter±5adjustabl

30°inclined, gemel Trinocular head, interpupillary distance: 50-75m m, Diopter±5adjustable

Eyepiece:

 WF10X/18mm, WF10X/20mm, PL10X/18mm optional

objective

Achromatic objective (4x,10x,40x 100X)

Plan Achromatic Objective (4X,10X,40X ,100X)
