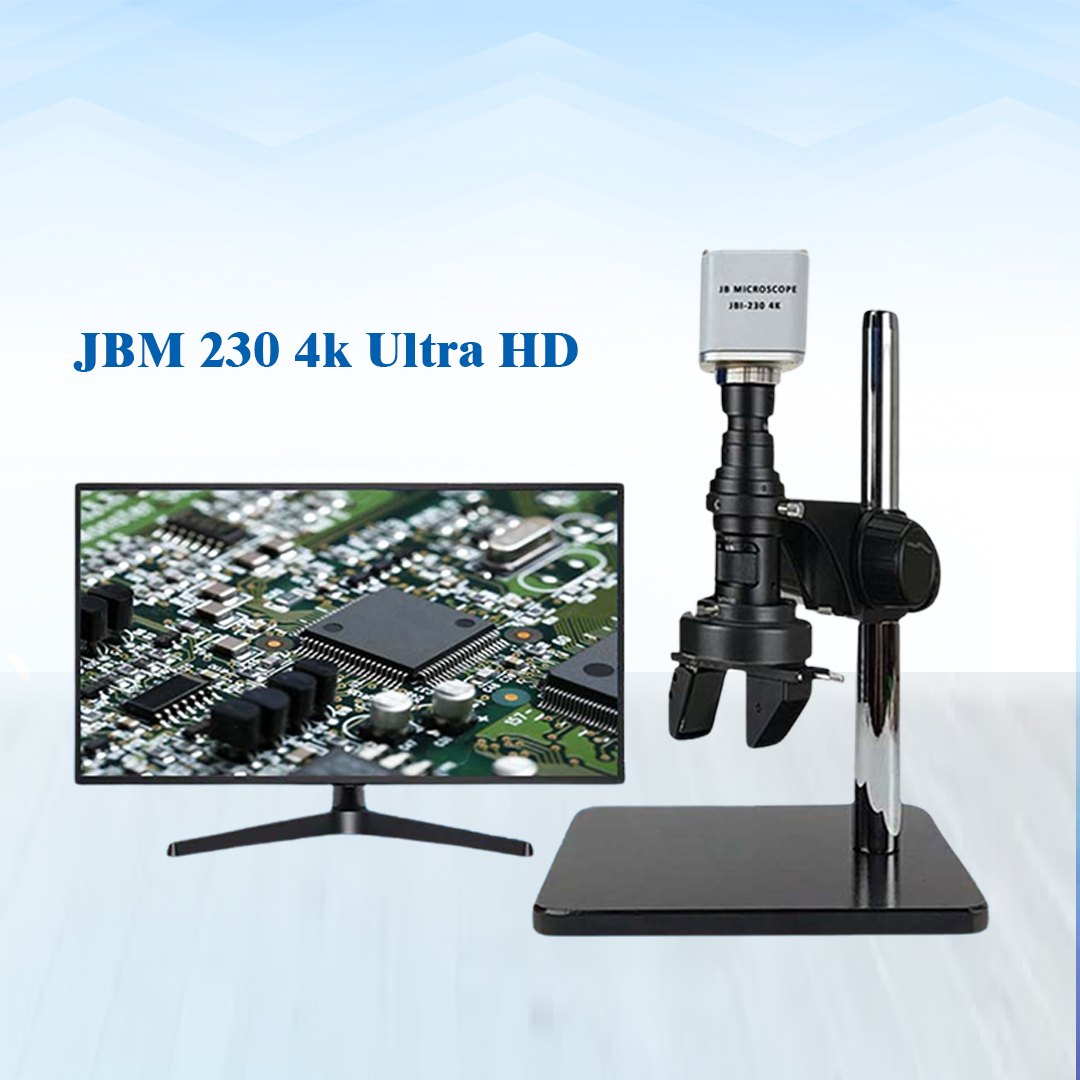

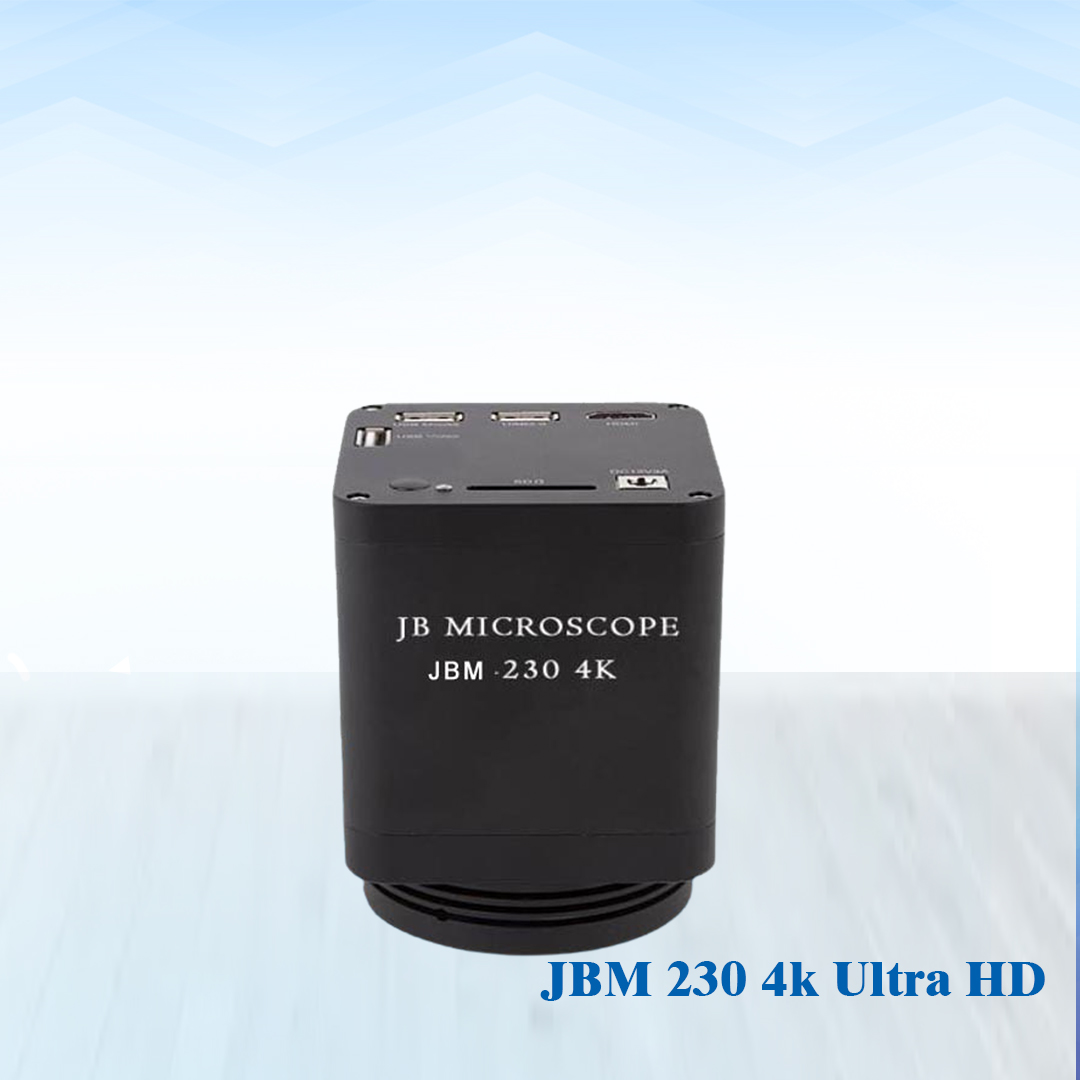

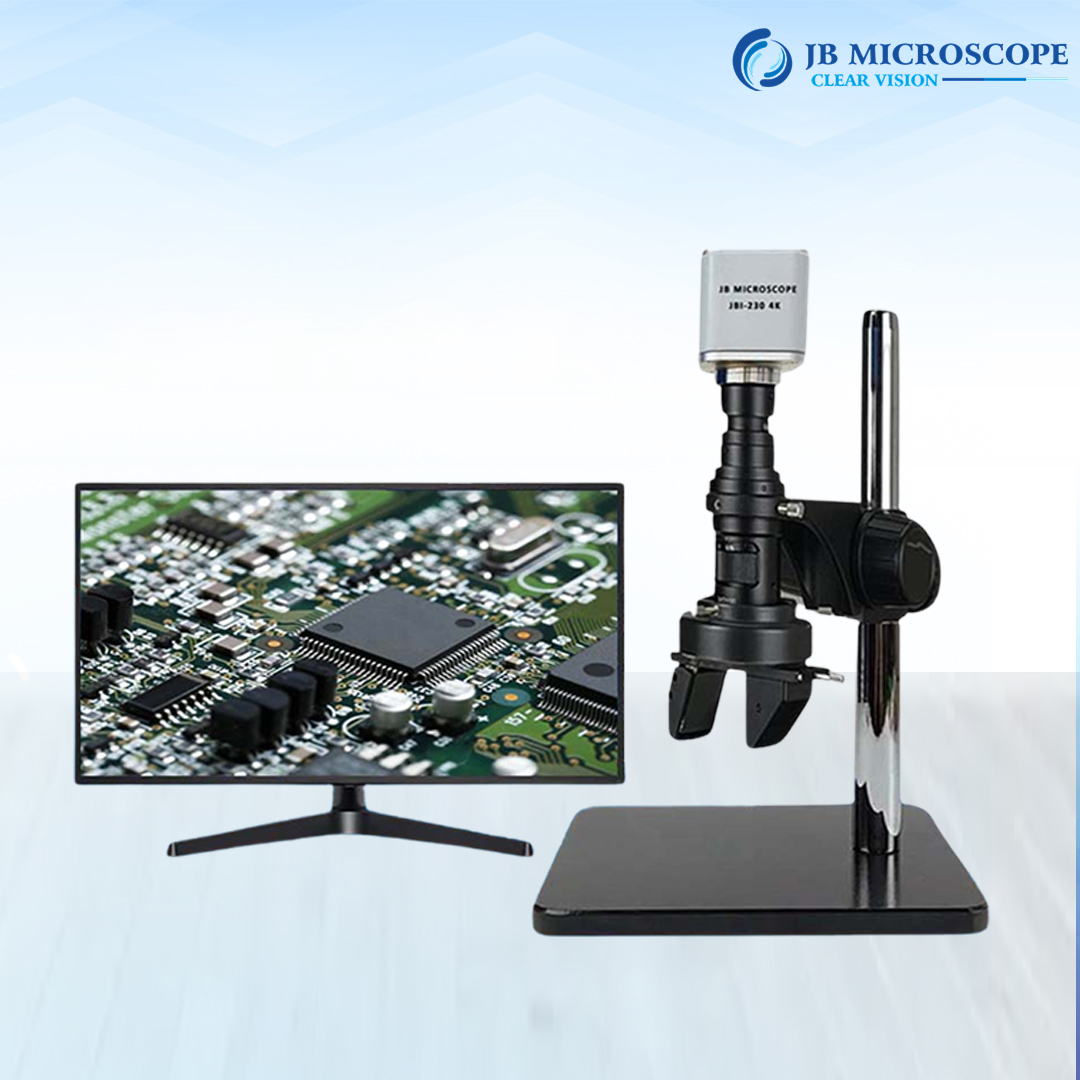

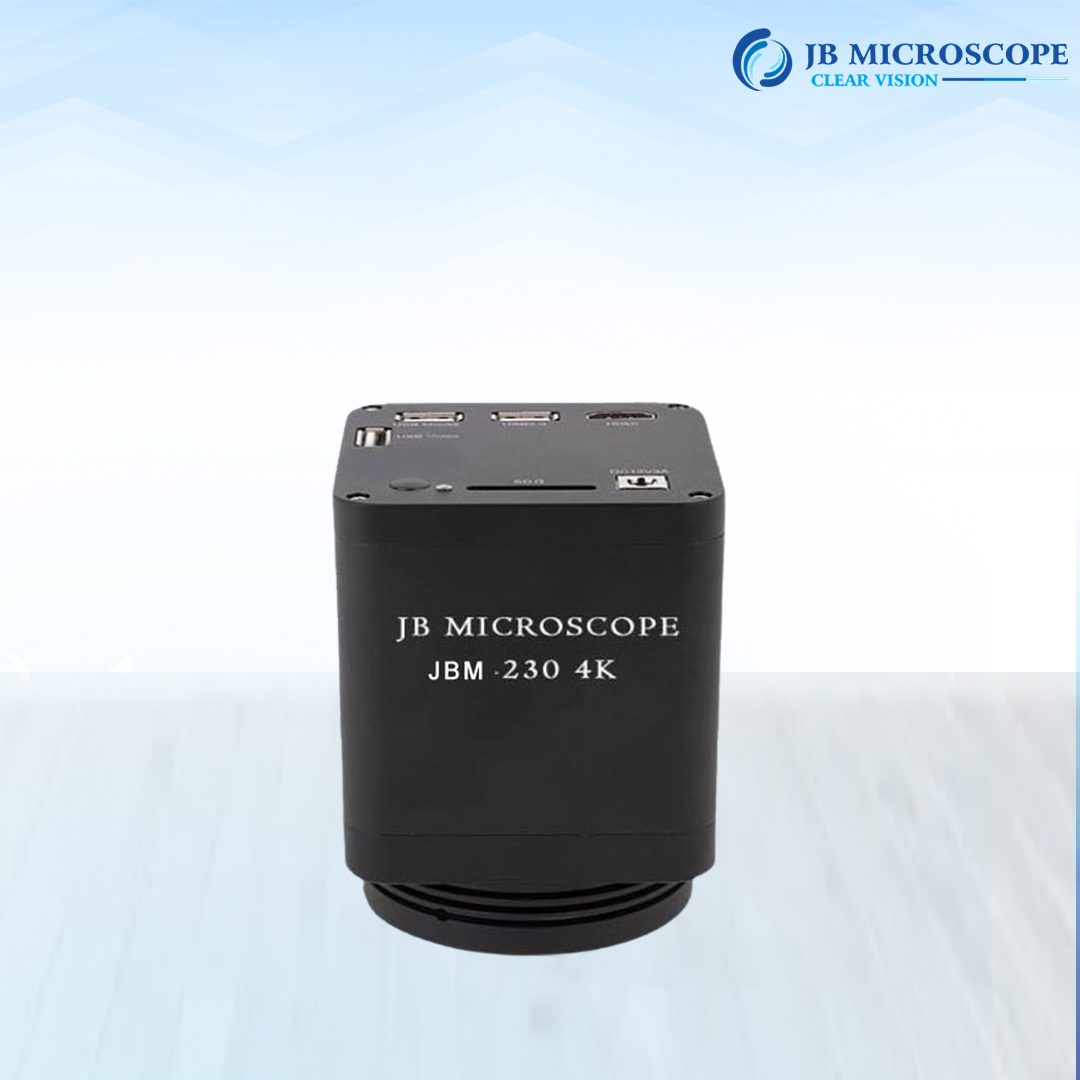

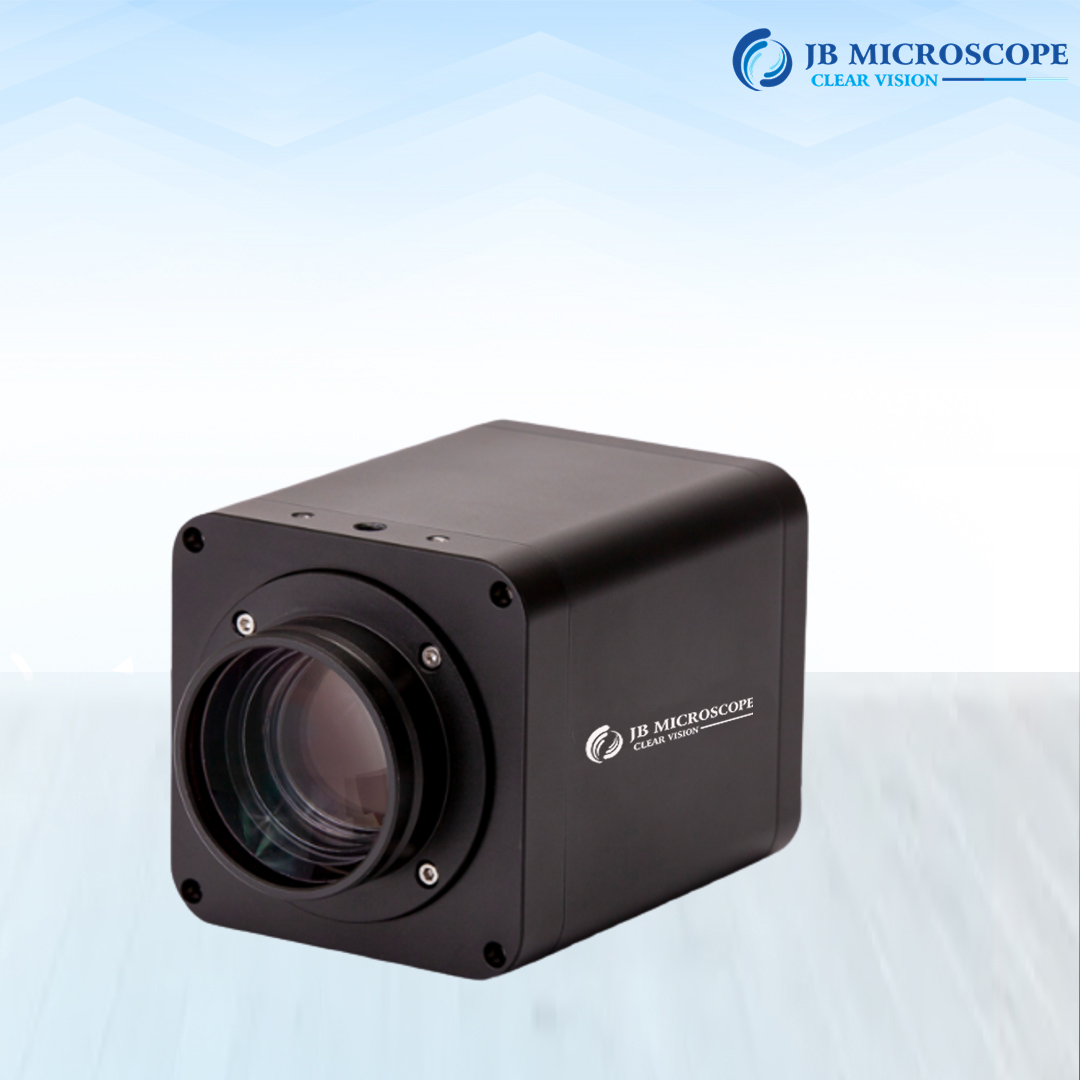

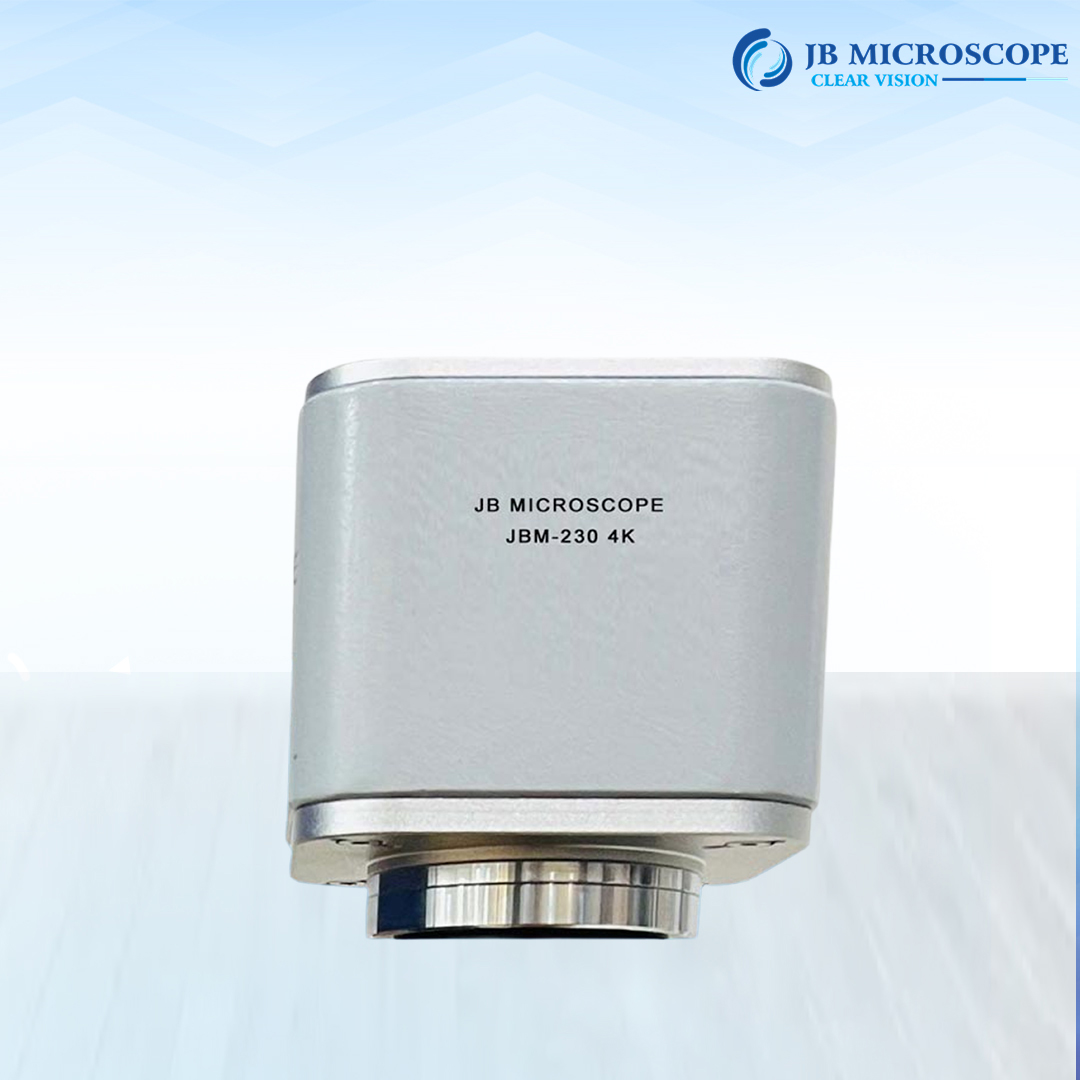

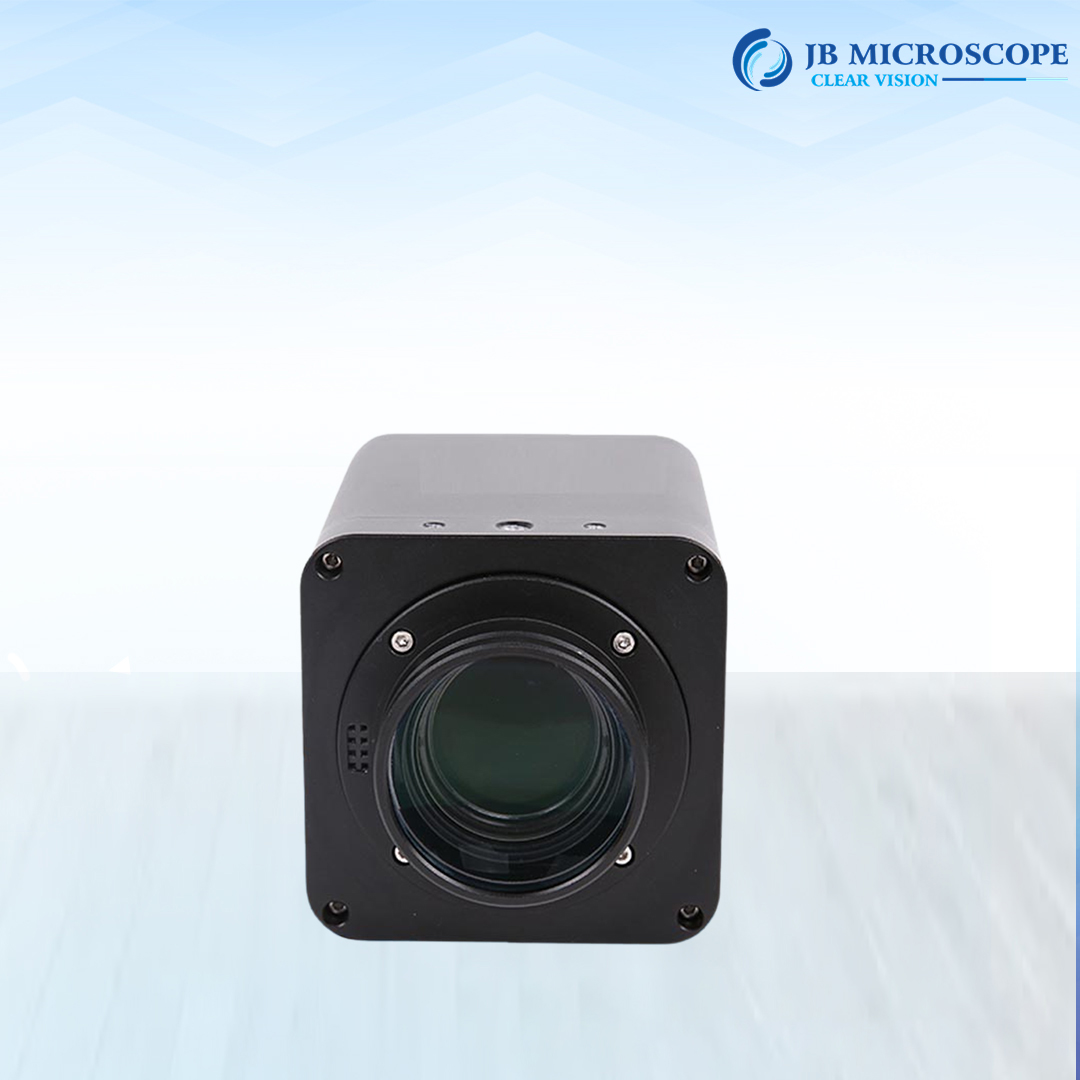

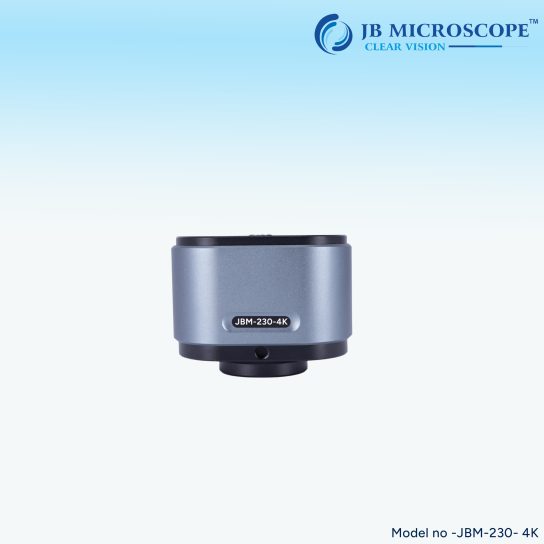

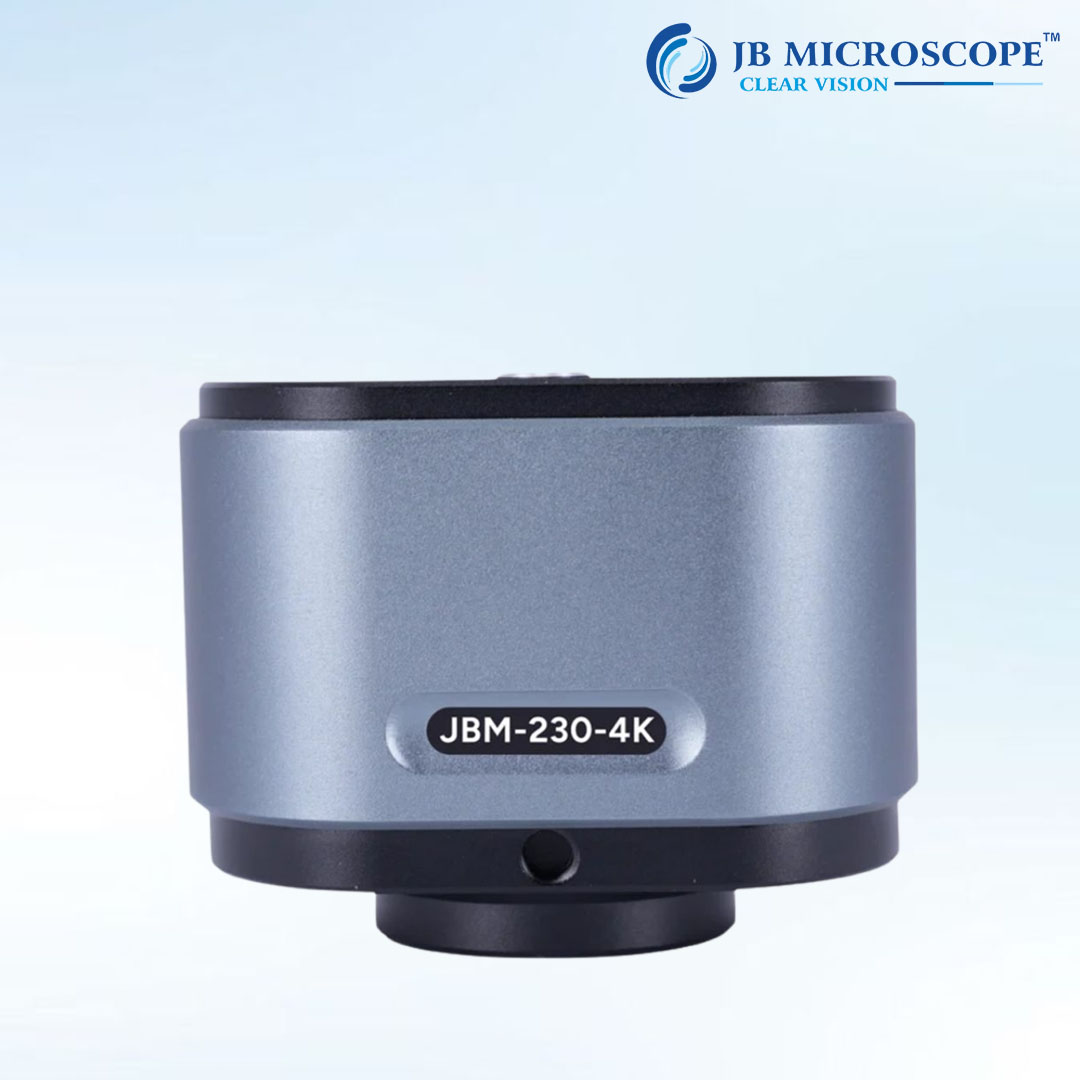

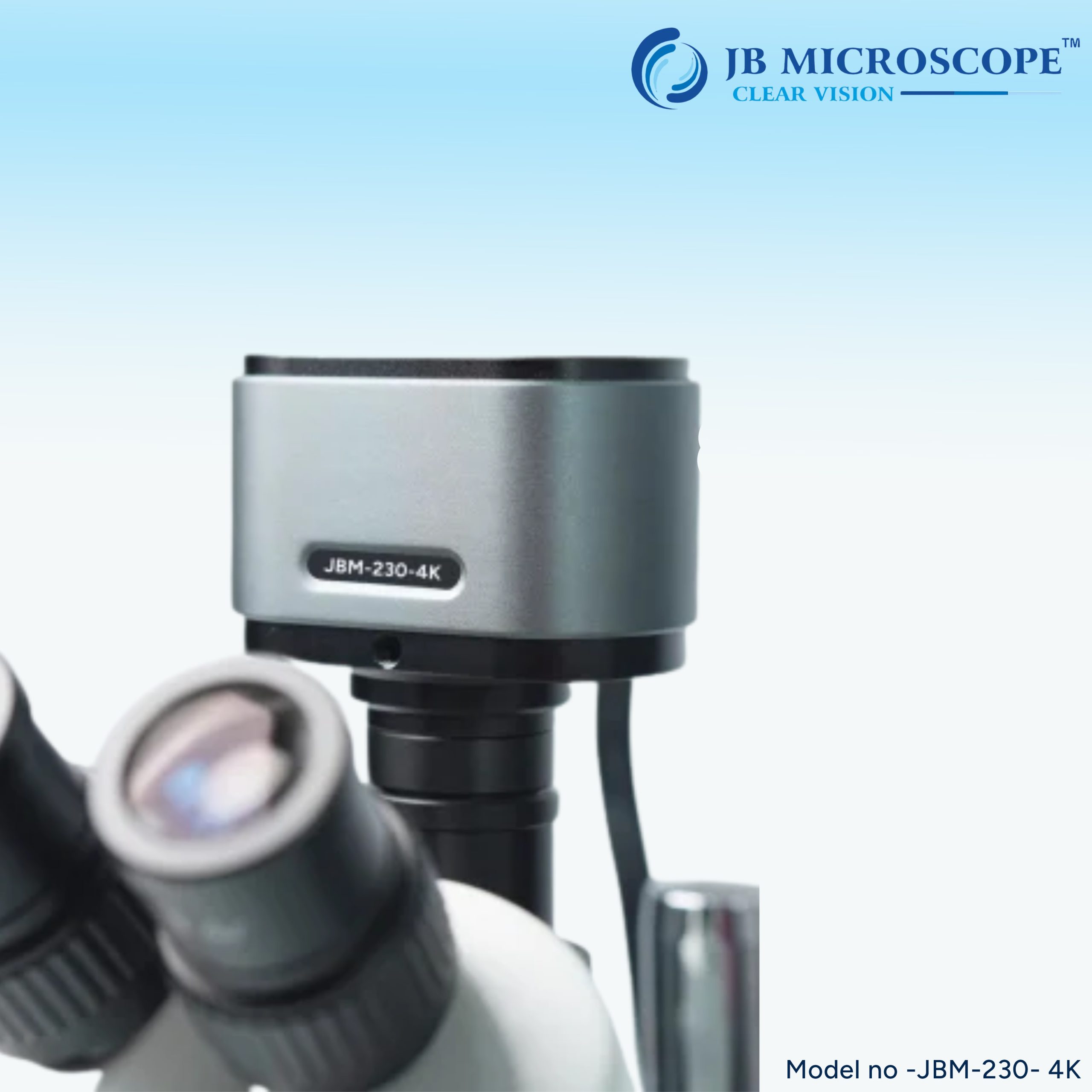

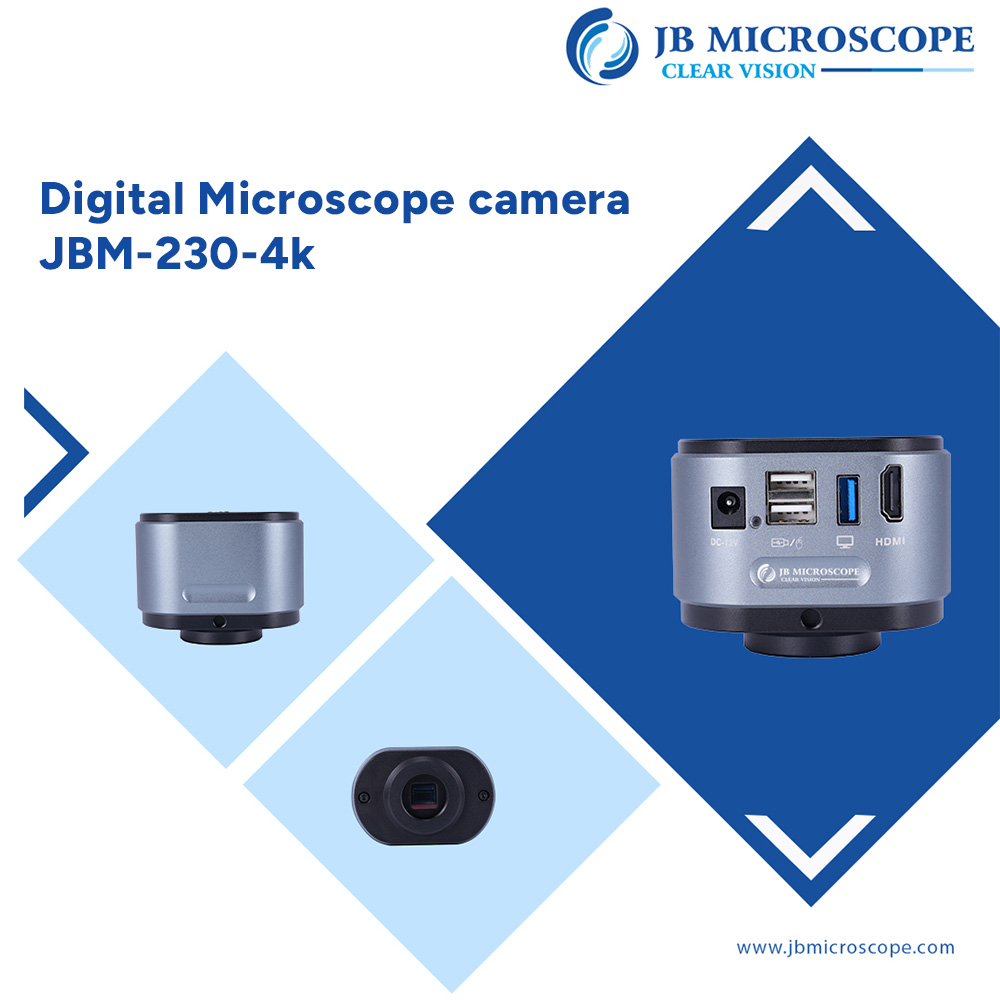

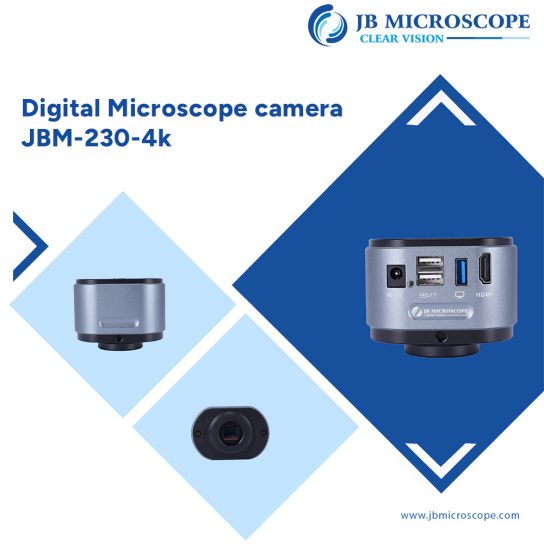

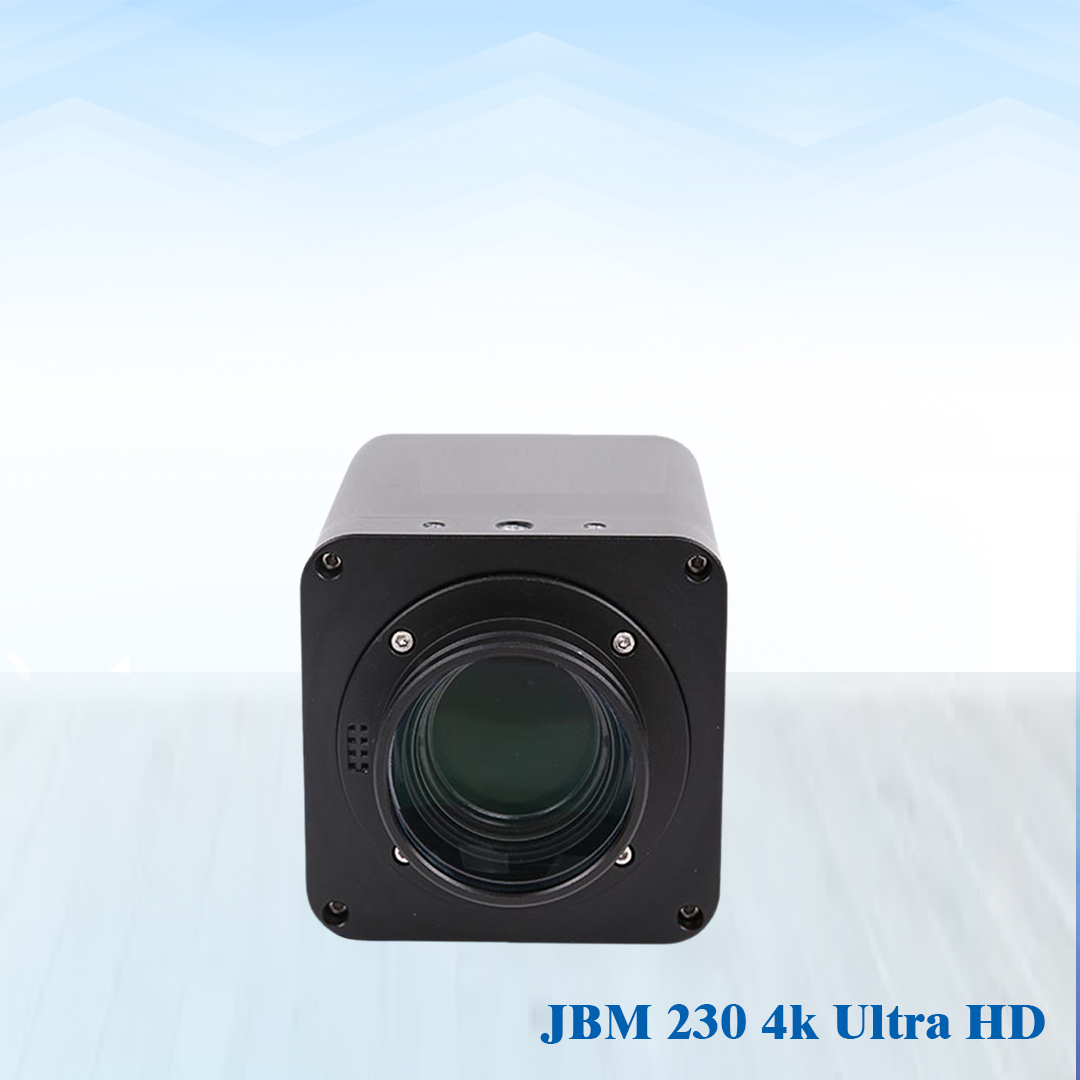

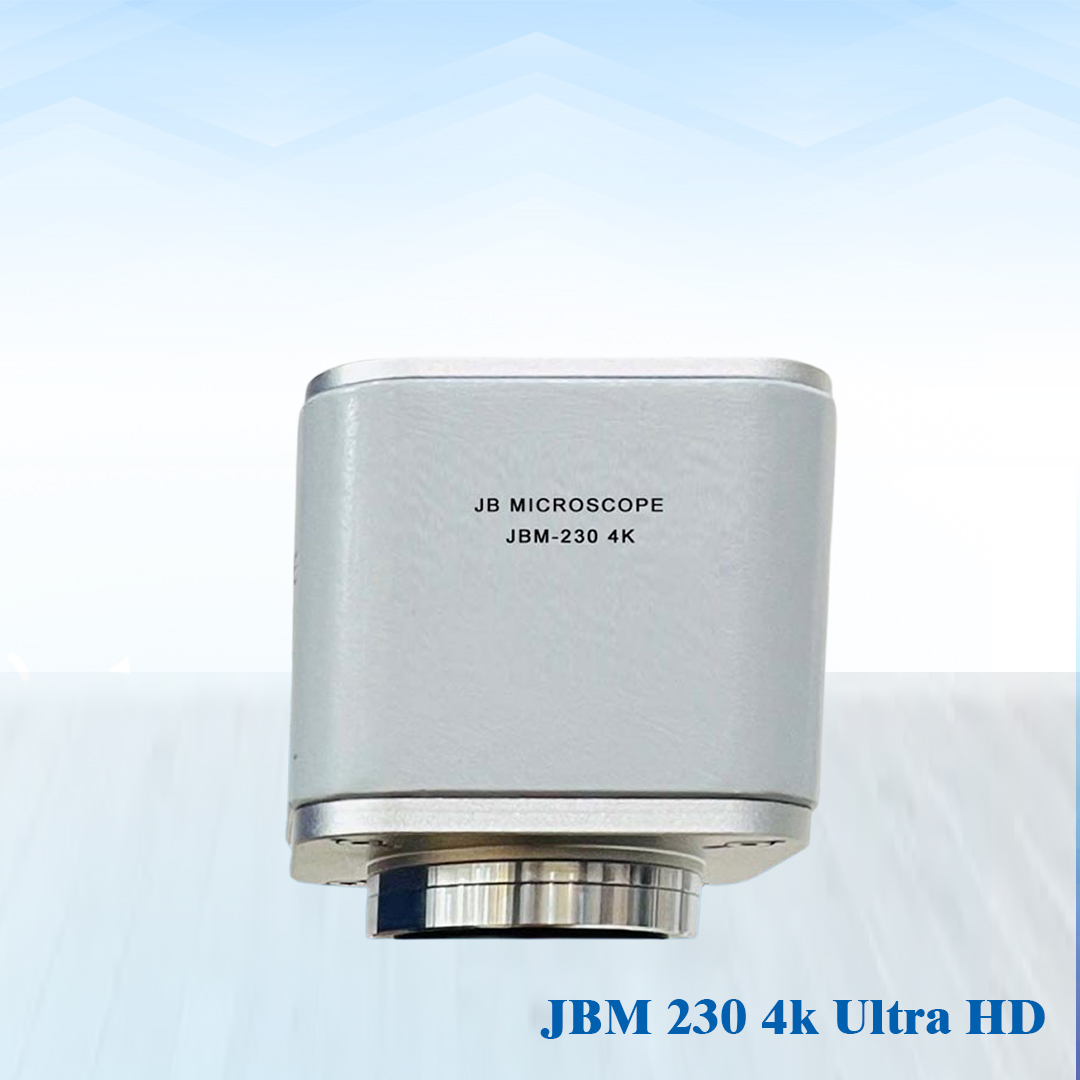

DIGITAL MICROSCOPE CAMERA JBM-230-4K

High Precision Industrial Smart Camera JBM Series SDK 60FPS Industrial Fully Integrated Flexibility OCR

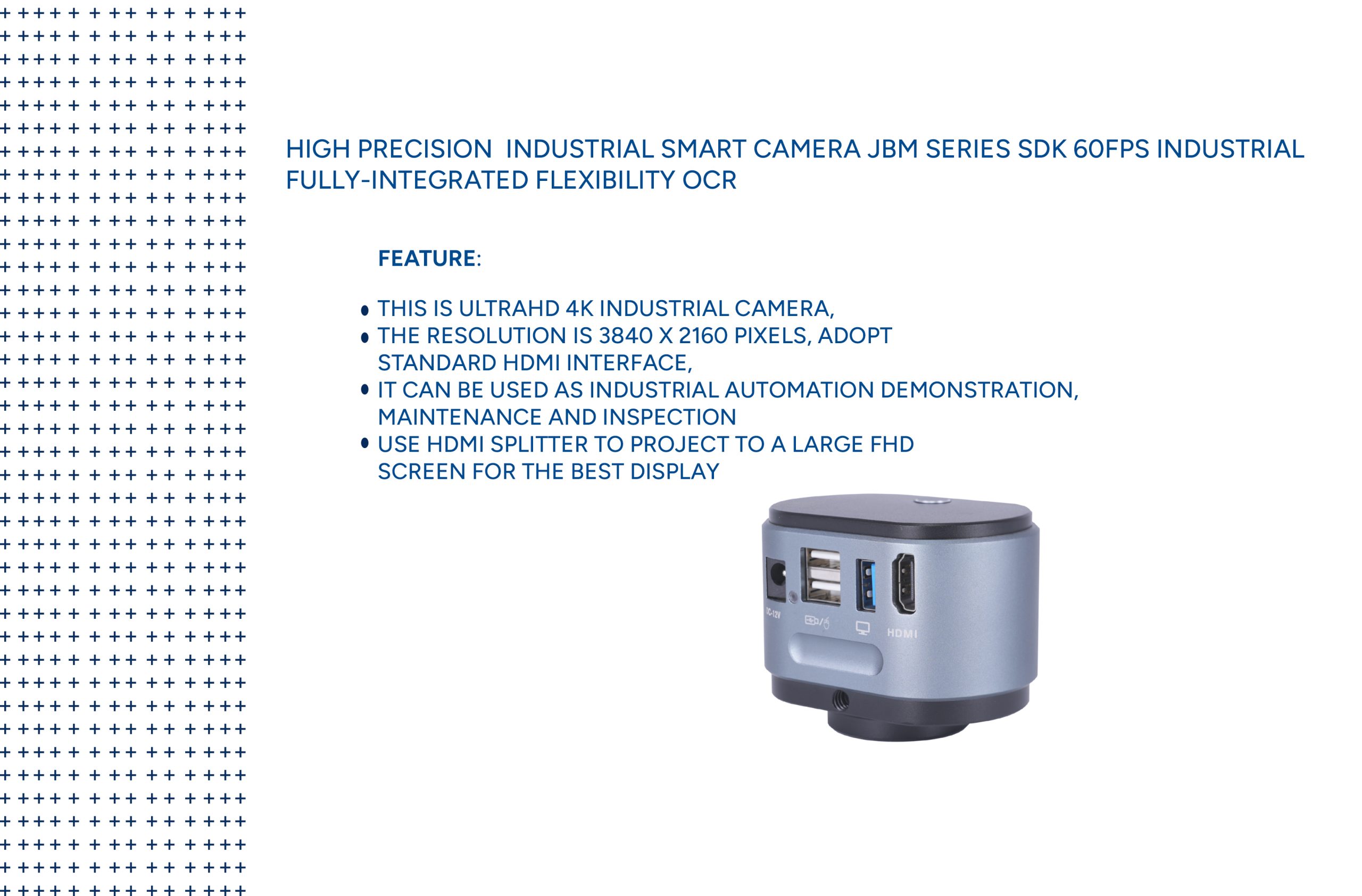

FEATURE:

  • This is ultra-HD 4K industrial camera,
  • The resolution is 3840X2160 pixel, adopt standard HDMI interface.

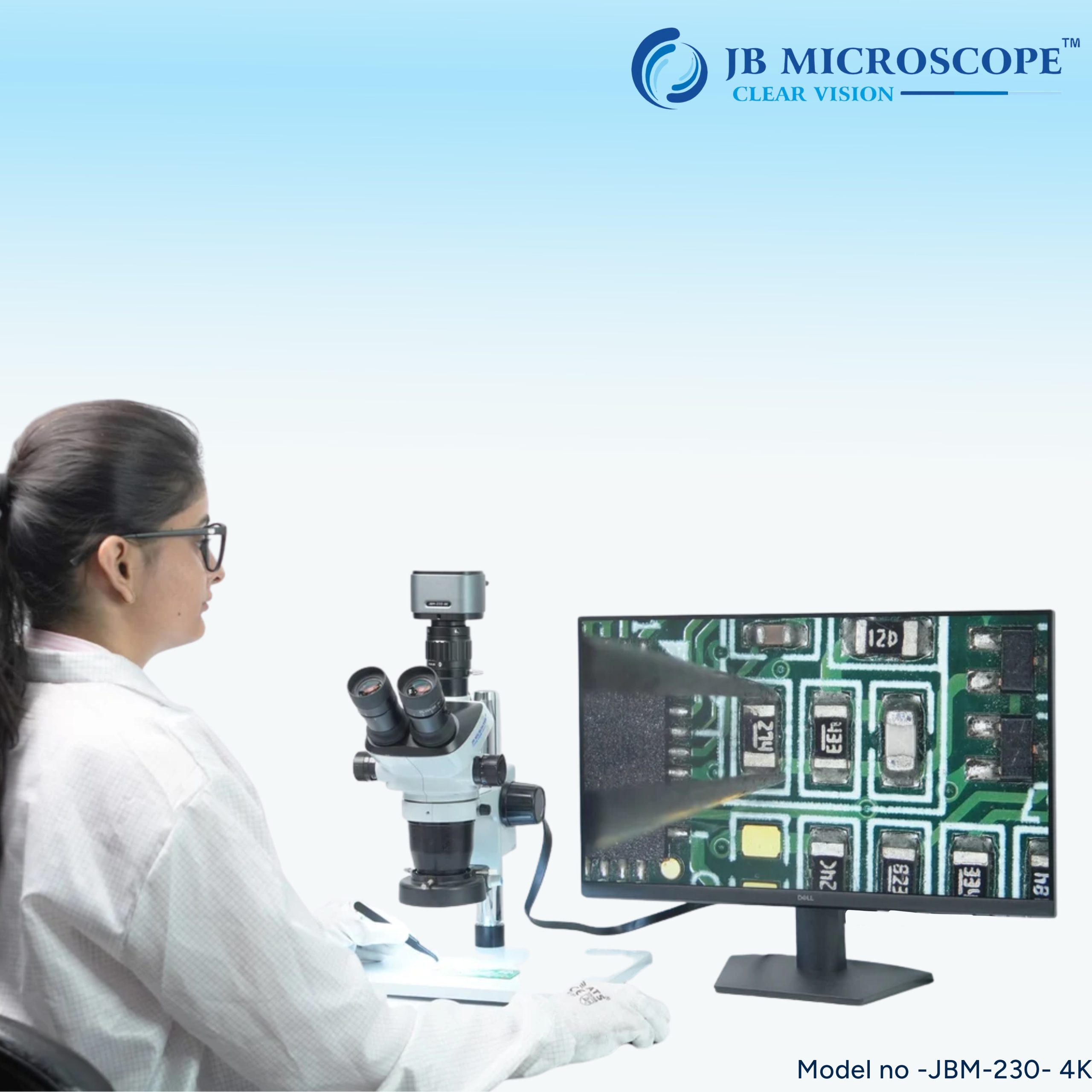

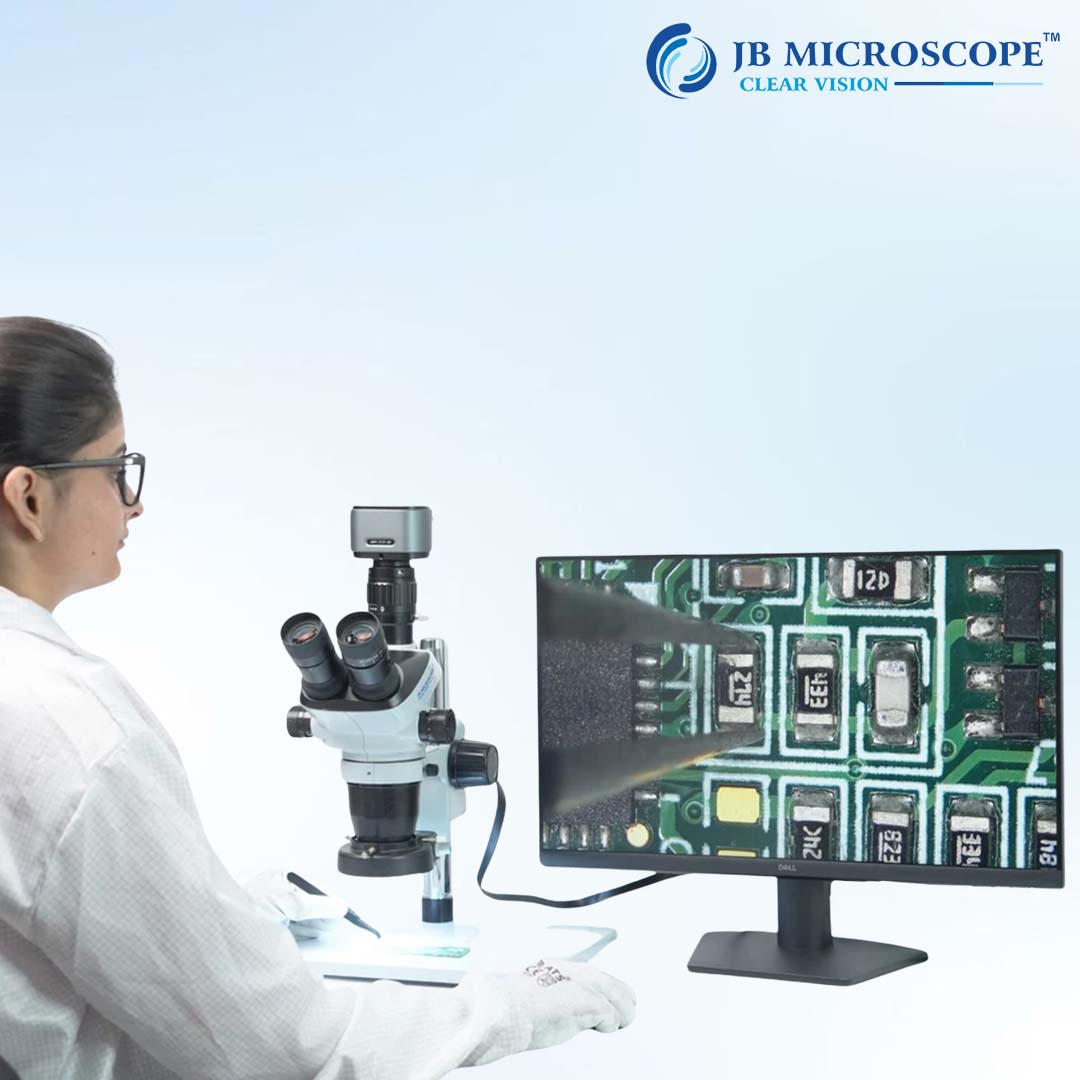

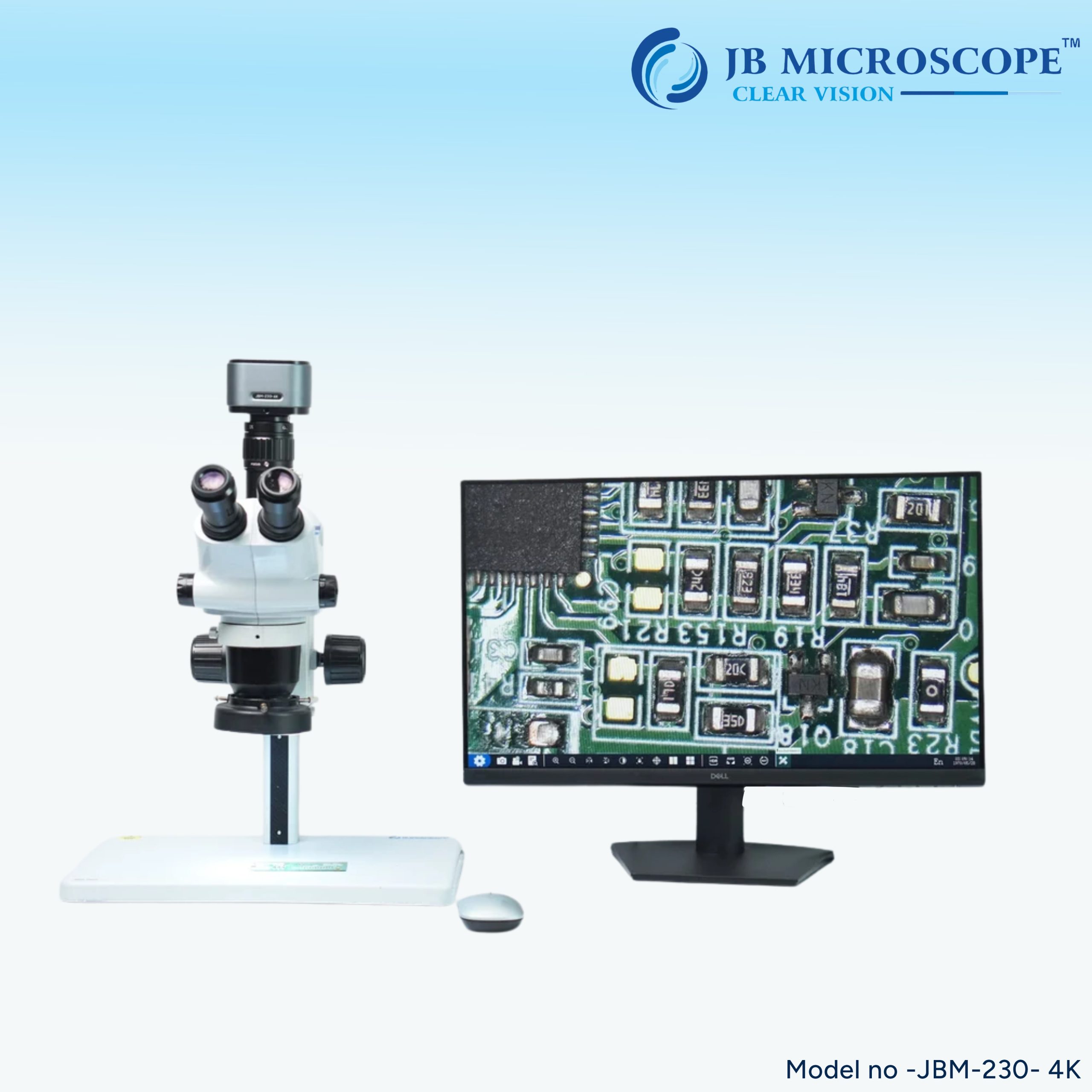

  • It can be used as industrial automation demonstration, maintenance and inspection
  • Use HDMI splitter to project to a large FHD Screen For the best display.
Category:

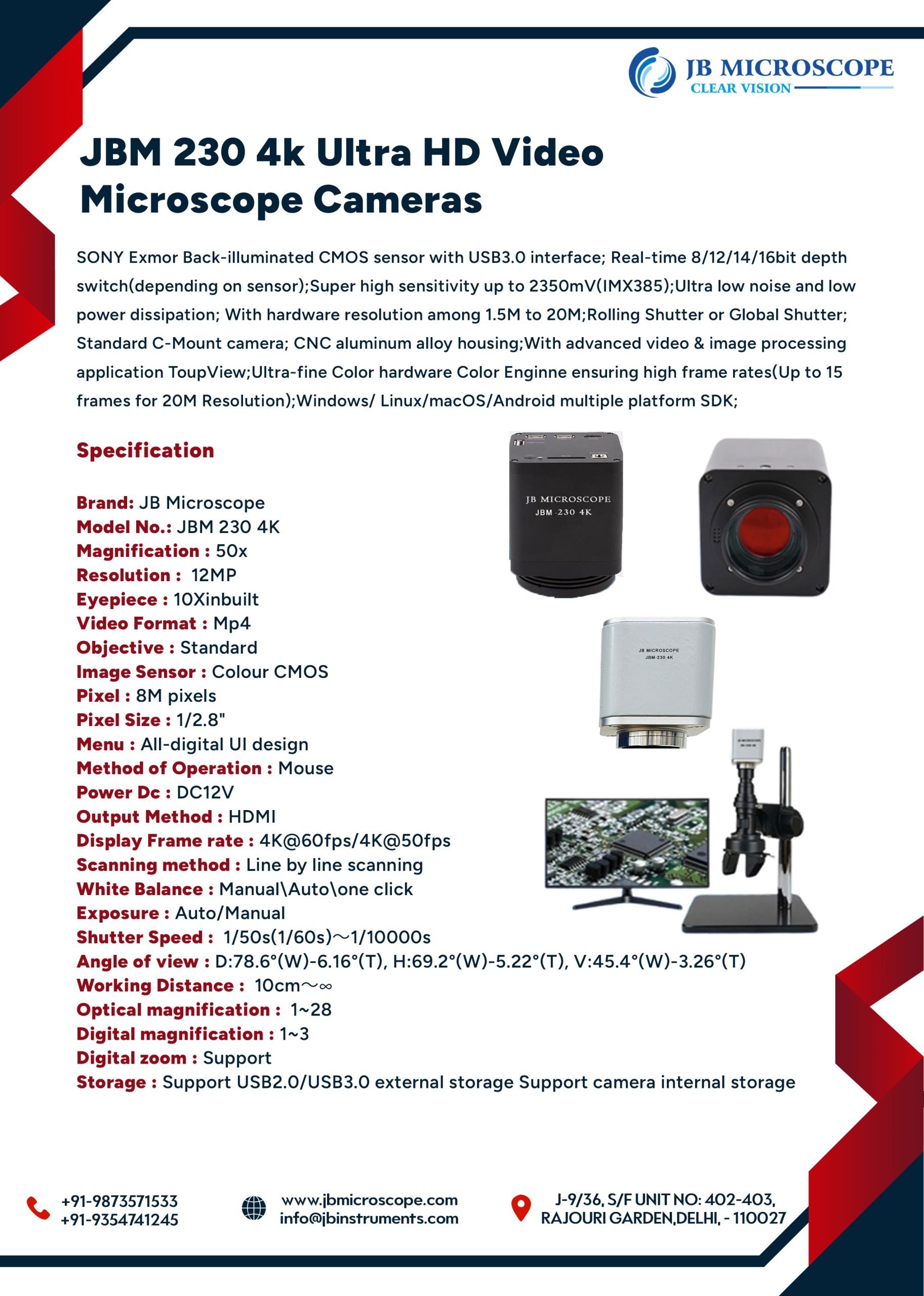

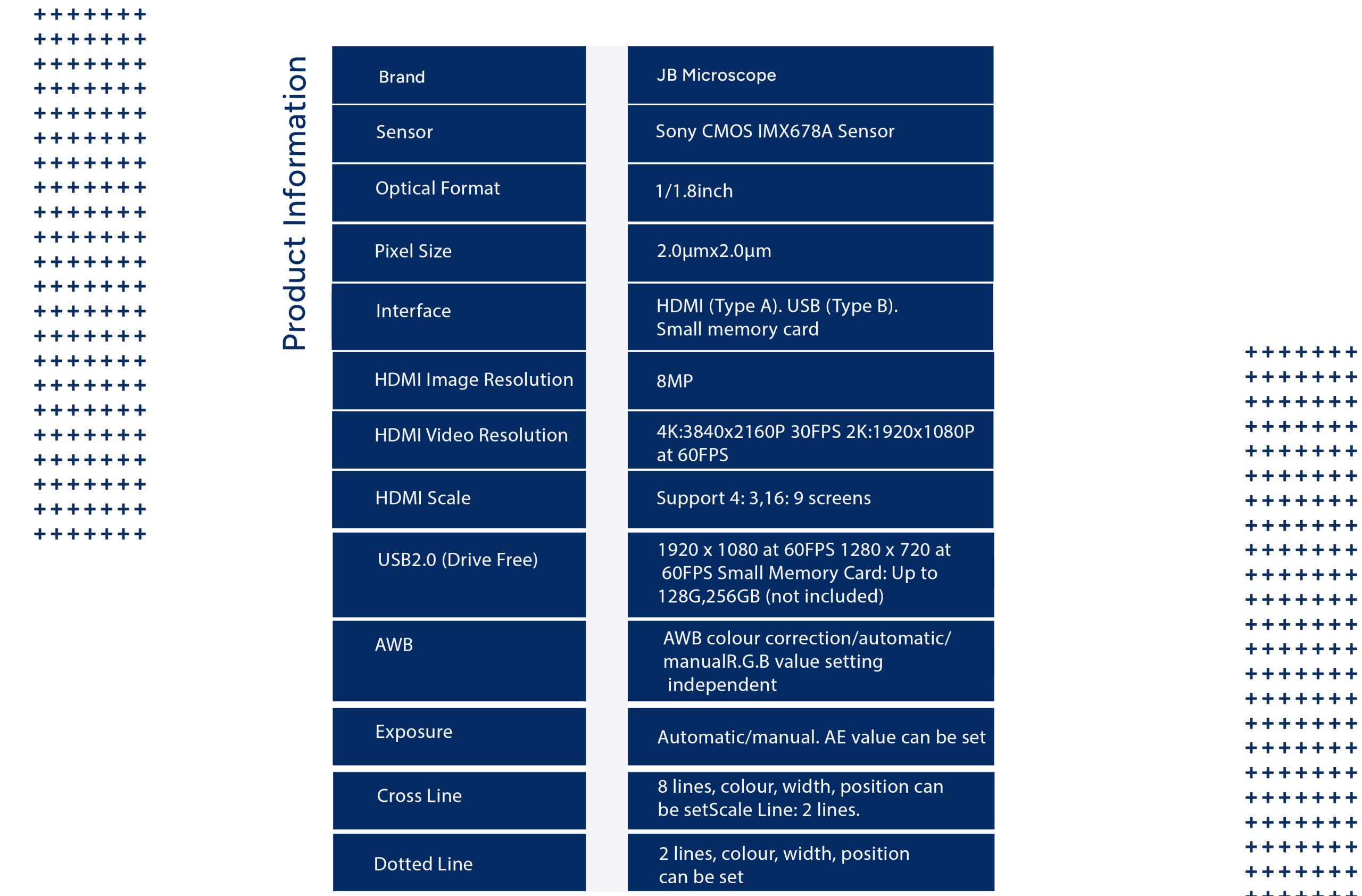

            Technical Specification

  • Brand: JB MICROSCOPE
  • Model : JBM-230-4K
  • Sensor: Sony CMOS IMX678A Sensor 1/1.8 Inch

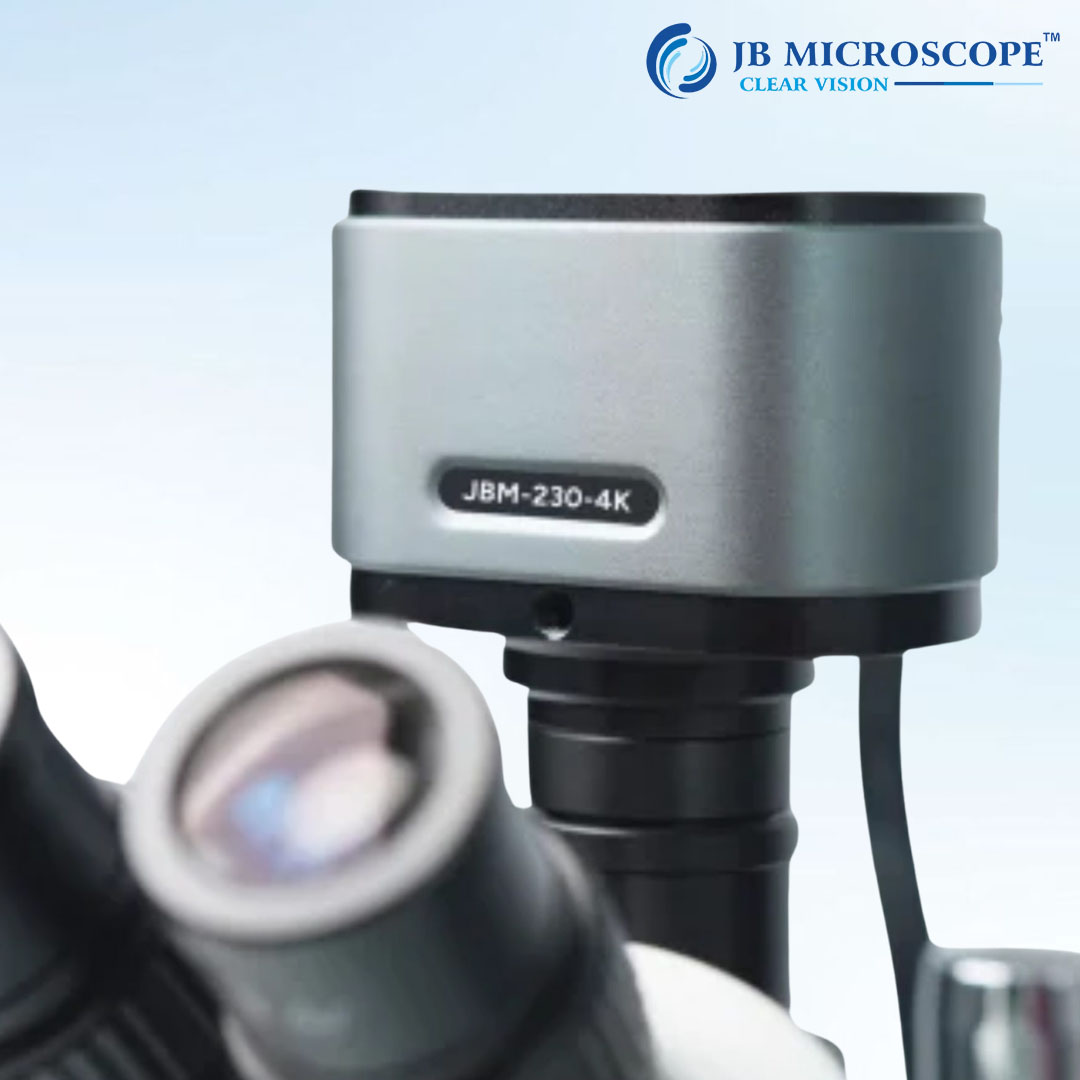

  • Application: Microscope HD Industrial Camera
  • Pixel Size: 2.0µmx2.0µm

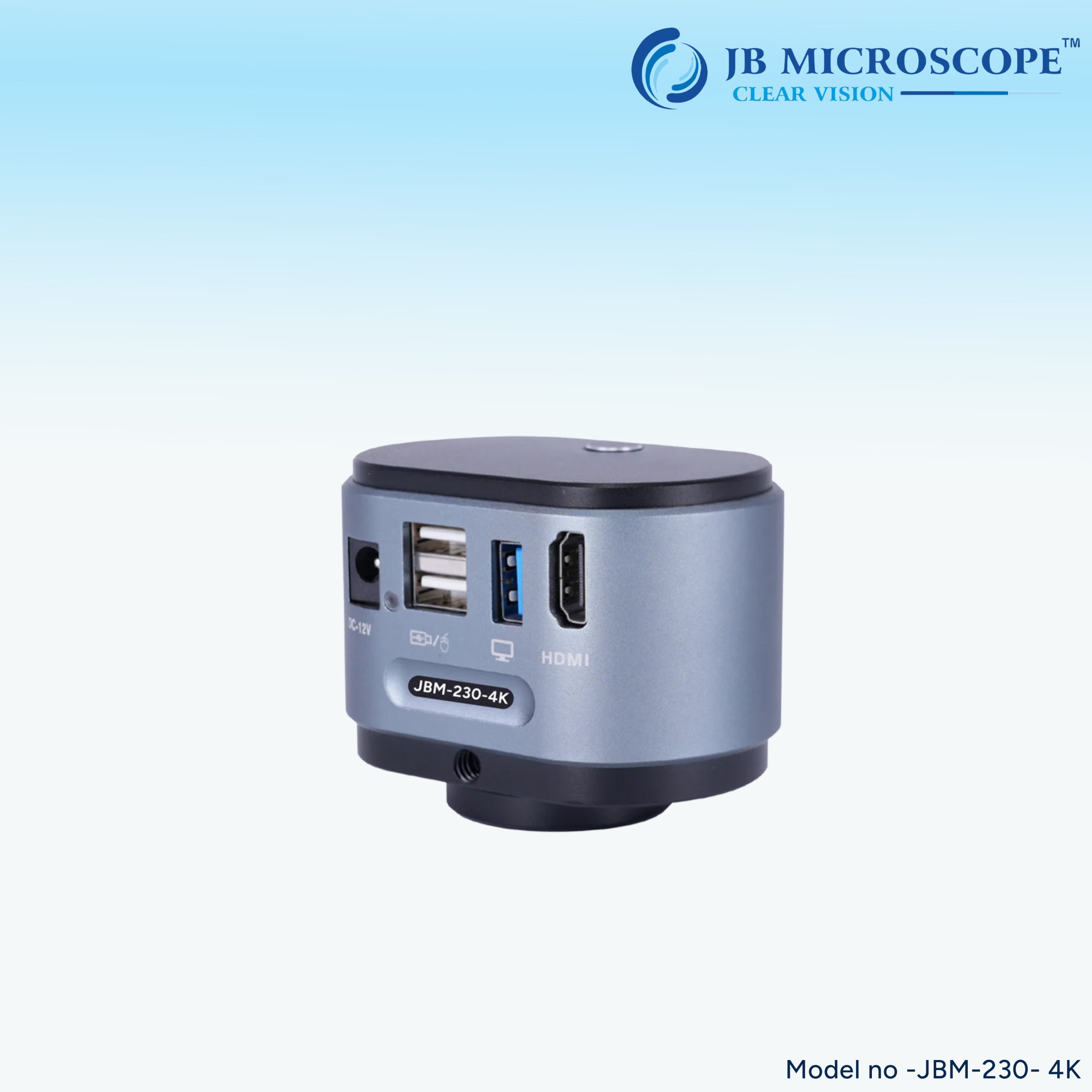

  • Interface: HDMI (Type A). USB Pen Drive
  • HDMI Image Resolution: 8MP
  • HDMI Video Resolution:4K:3840x2160P 30FPS 2K:1920xl 080Pat 60FPS
  • HDMI Scale: Support 4: 3, 16: 9 screens
  • USB2.0 (Drive Free) Small :1920 x 1080 at 60FPS 1280 x 720 at60FPS

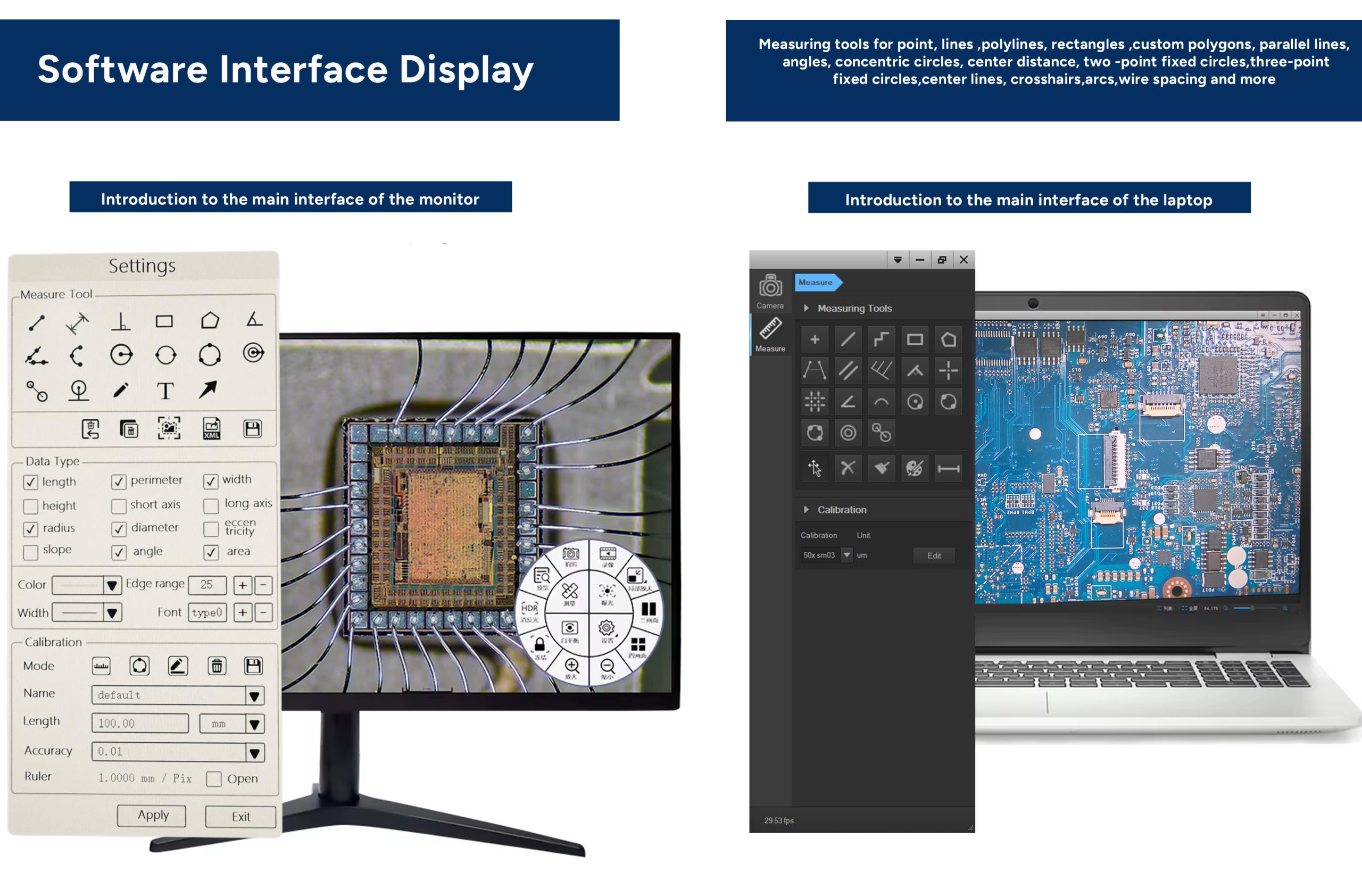

  • Measurement Tool: Inbuilt Measurements software
  • AWB: AWB color correction/automatic/manual R.G.B value setting independent
  • Exposure: Automatic/manual. AE value can be set
  • Cross Line:8 lines, color, width, position can be set Scale Line: 2 lines.
  • Dotted Line: 2 lines, color, width, position can be set

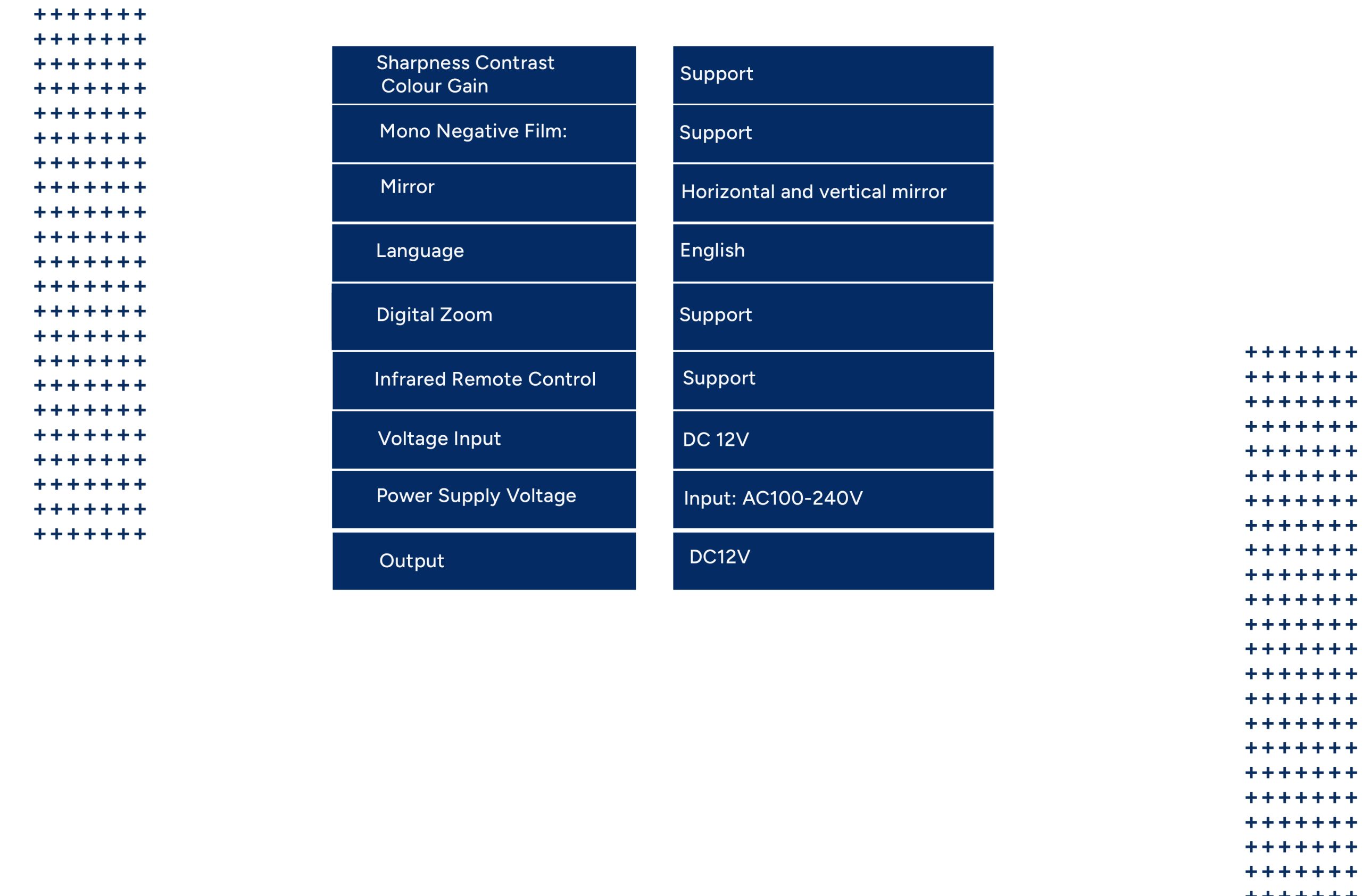

  • Sharpness Contrast Color Gain: Support
  • Mono Negative Film: Support
  • Mirror: Horizontal and vertical mirror

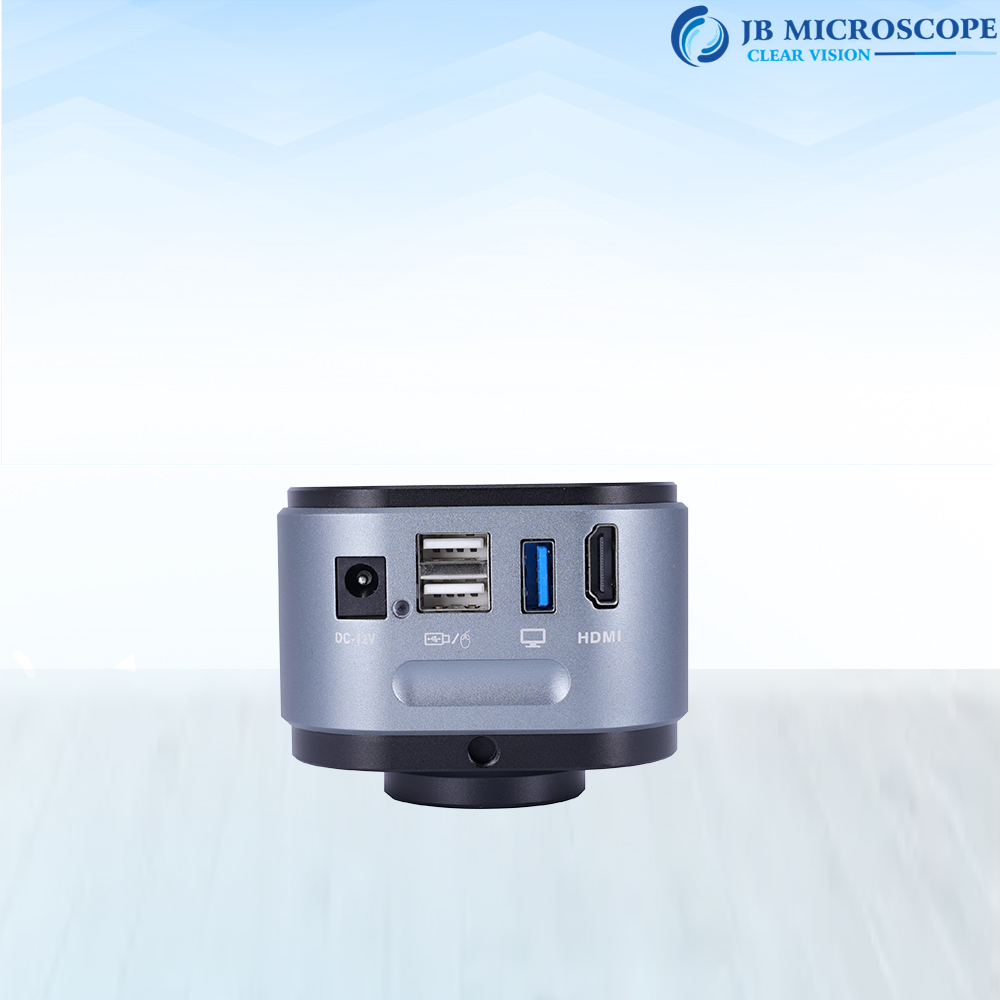

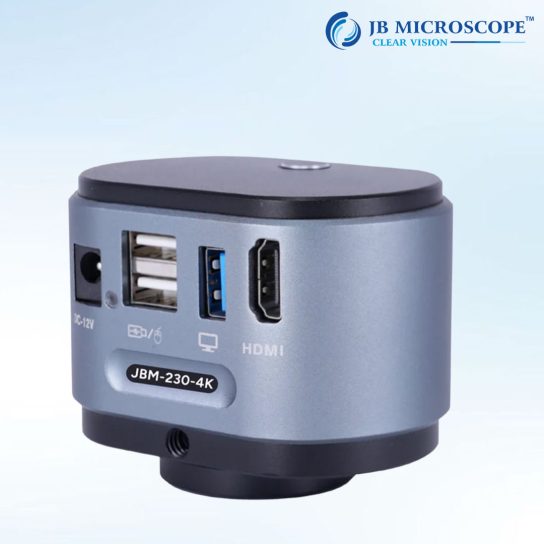

  • Output Interface: HDMI+USB Dual output
  • External Equipment: HDMI Monitor / Computer / Laptop
  • Image Quality Adjustment: Exposure, White Balance, Color, Brightness, Contrast, Saturation, Sharpness
  • Basic function: Photography, measurement, USB storage, video recording
  • Camera functions: Partial magnification, two/four screen comparison, magnification display electronic magnification/reduction, built-in measurement system, USB storage
  • Language: English
  • Digital Zoom: Support
  • Infrared Mouse: Mouse wireless
  • Voltage Input: DC 12V
  • 3D View: NA
  • Autofocus: NA
