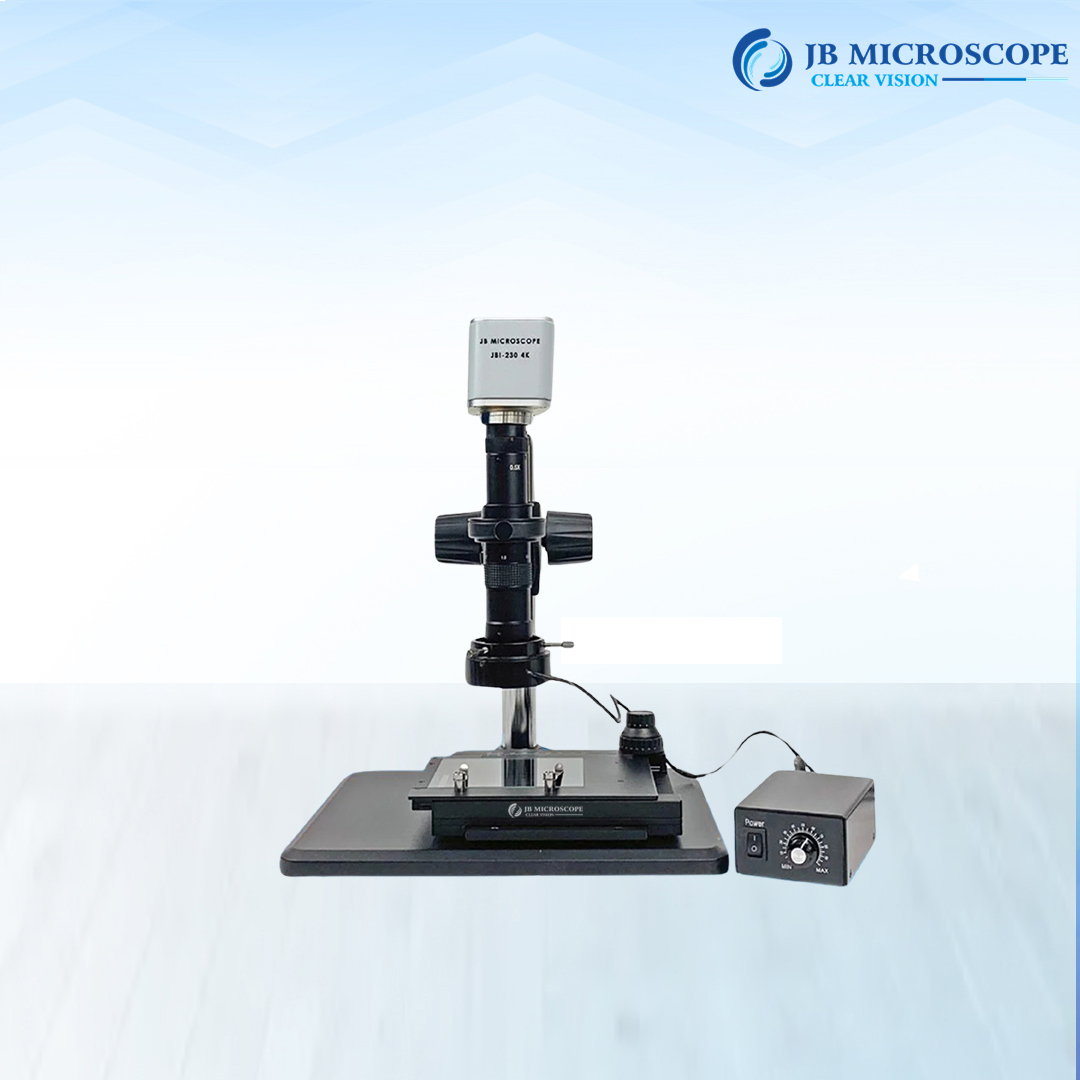

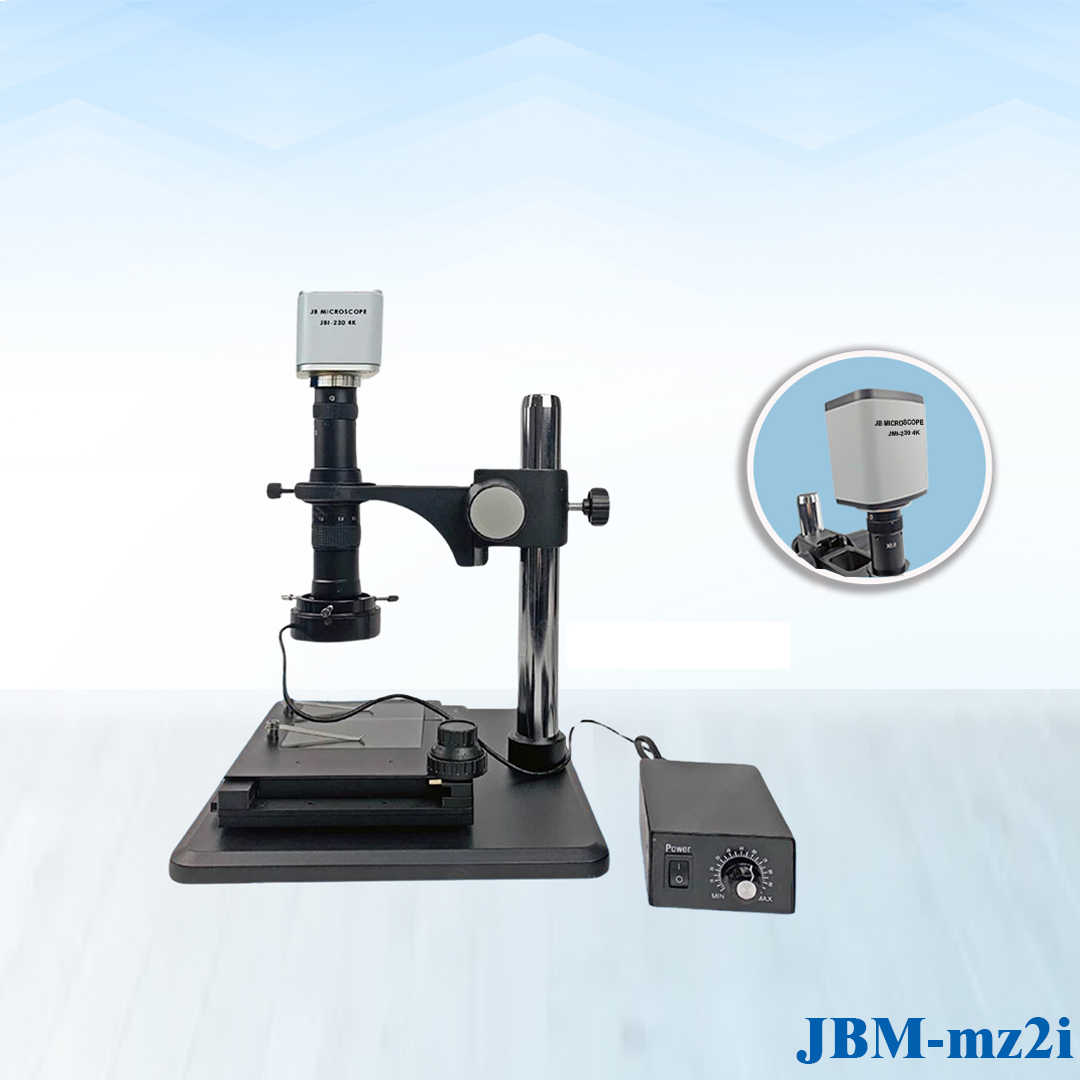

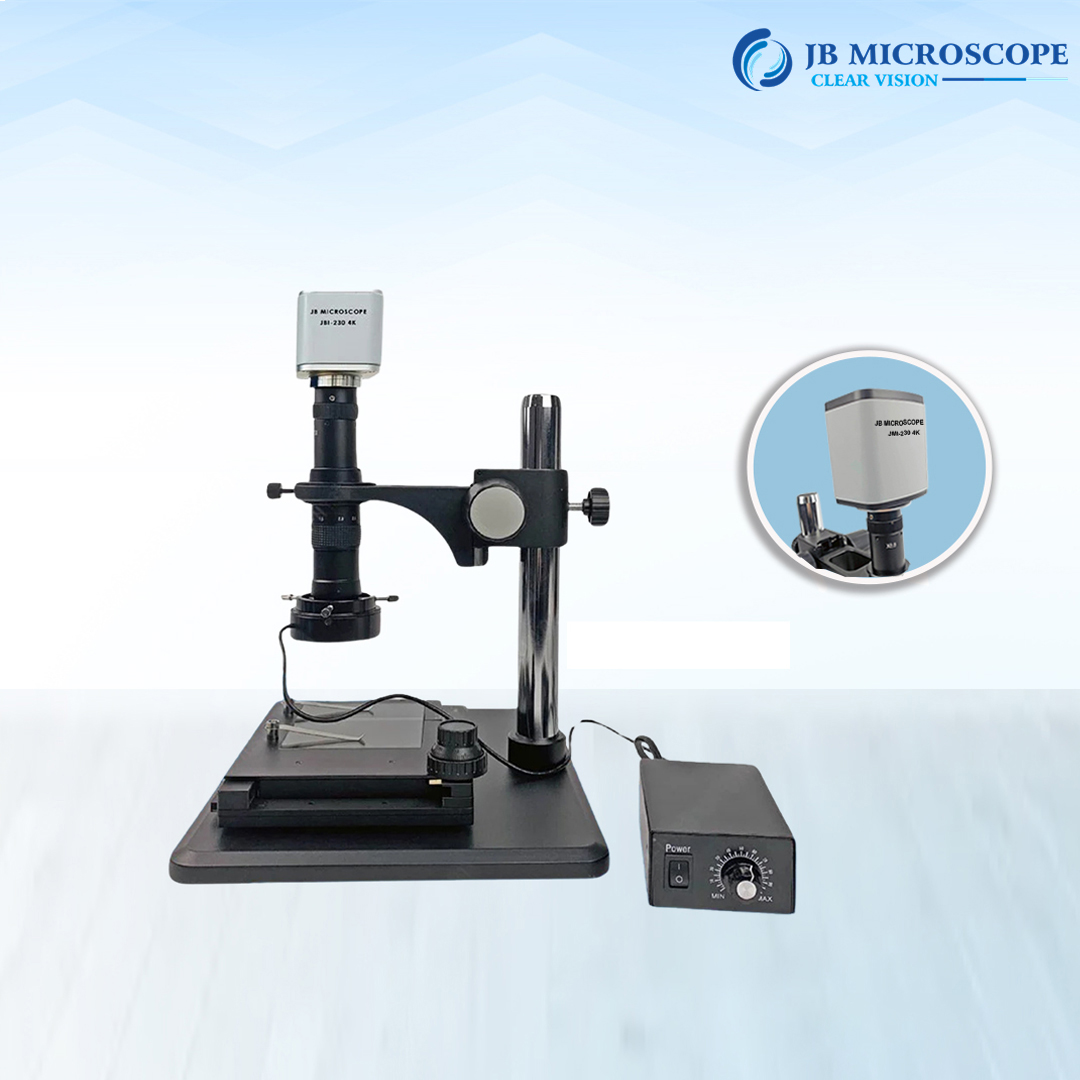

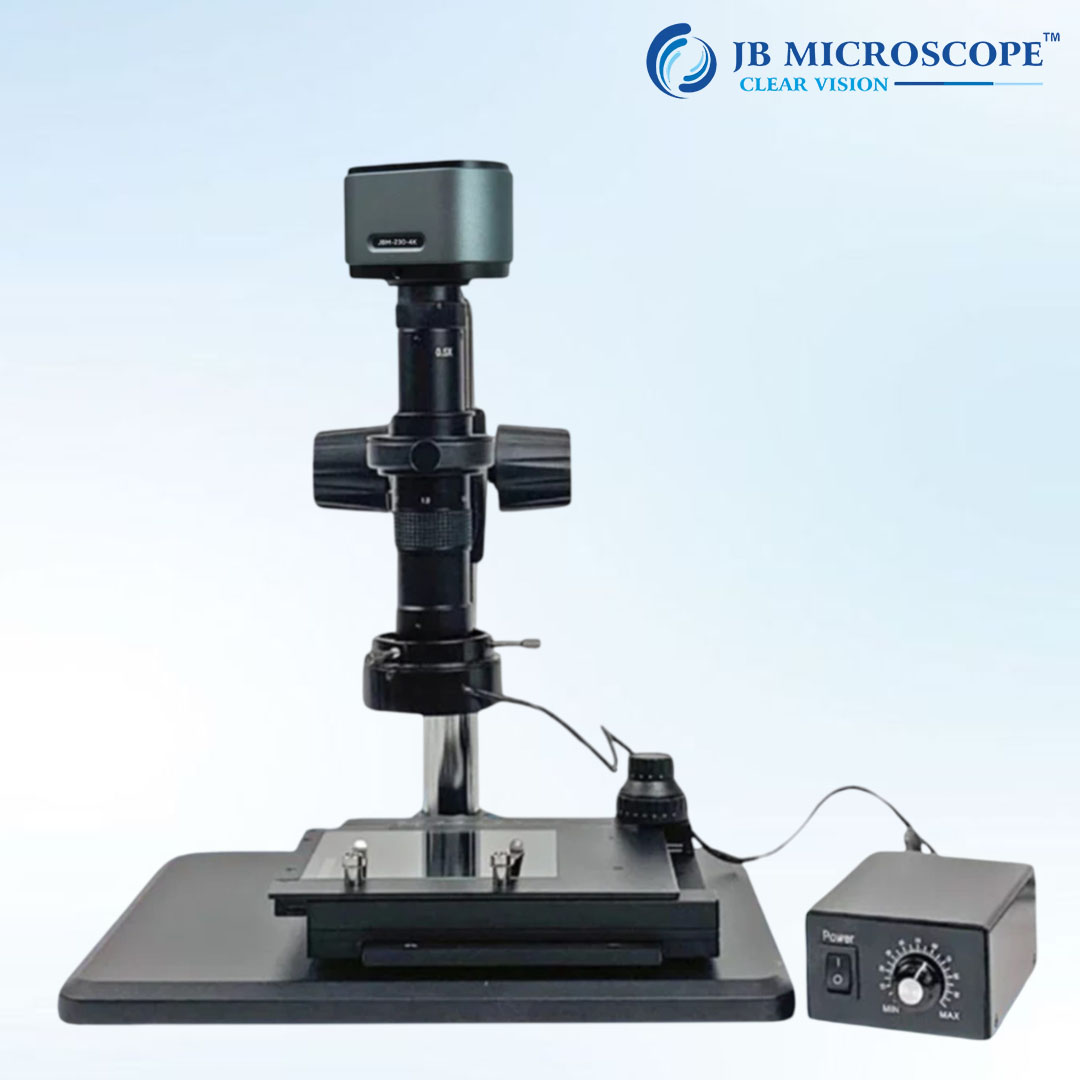

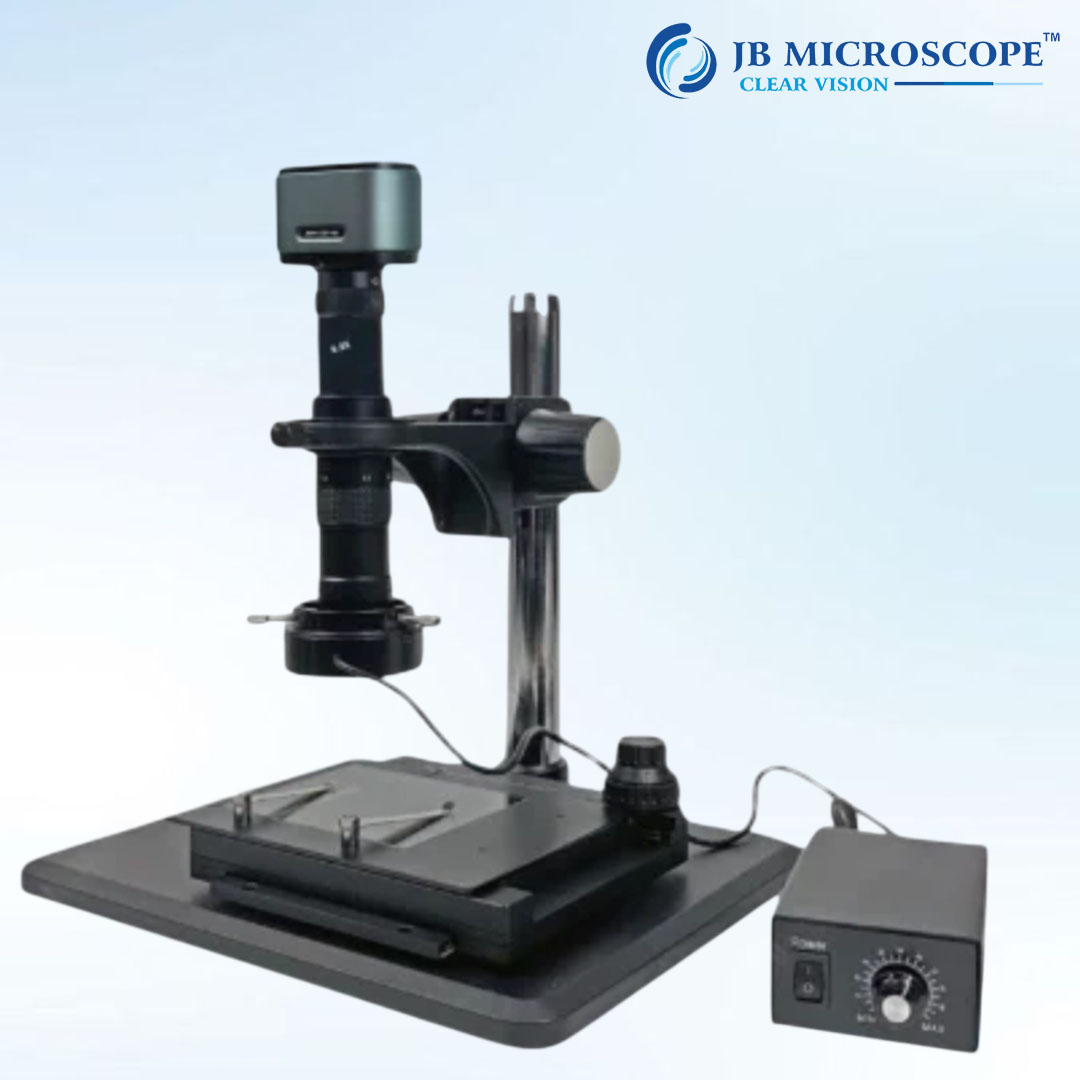

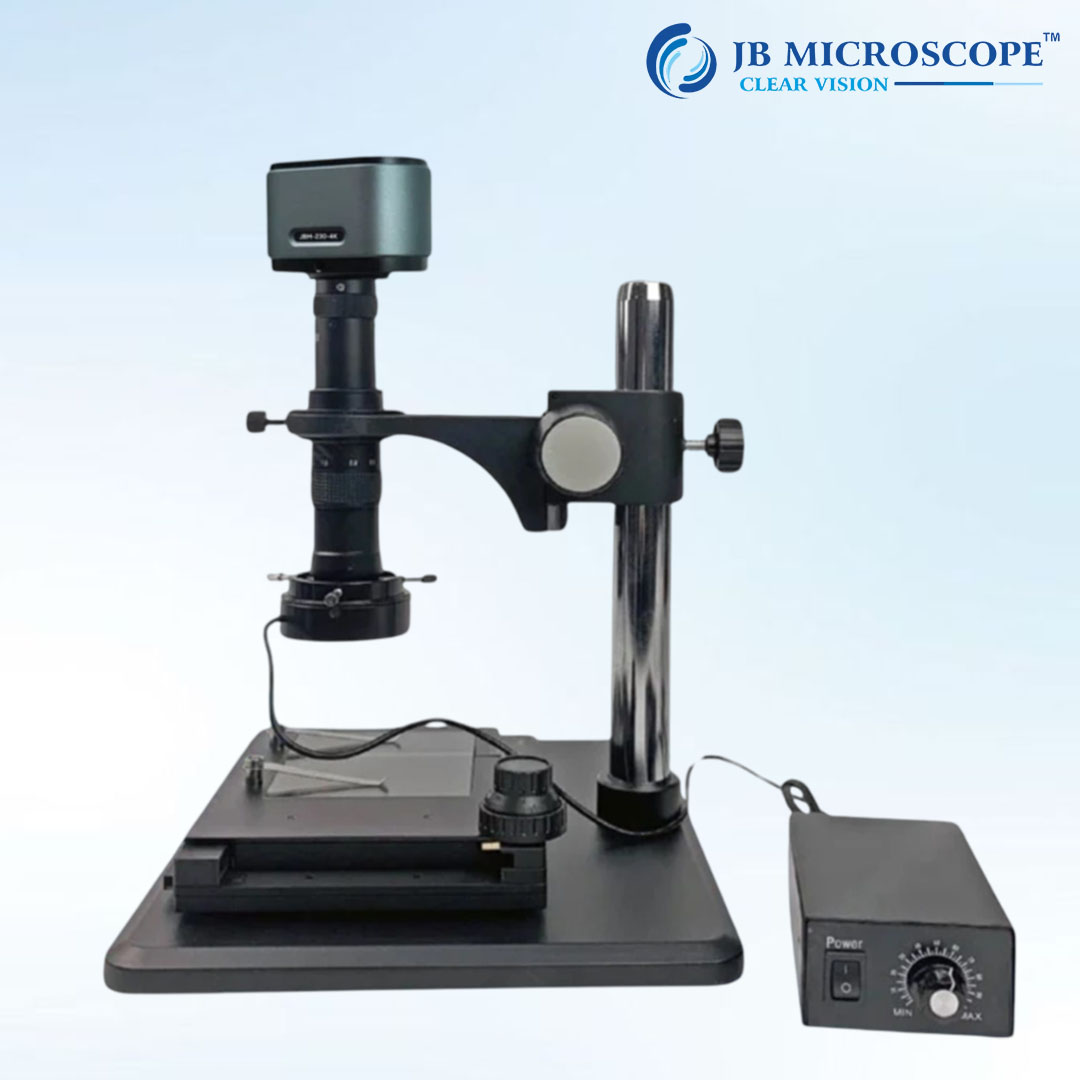

Digital Inspection Video Microscope JBM-MZ2i

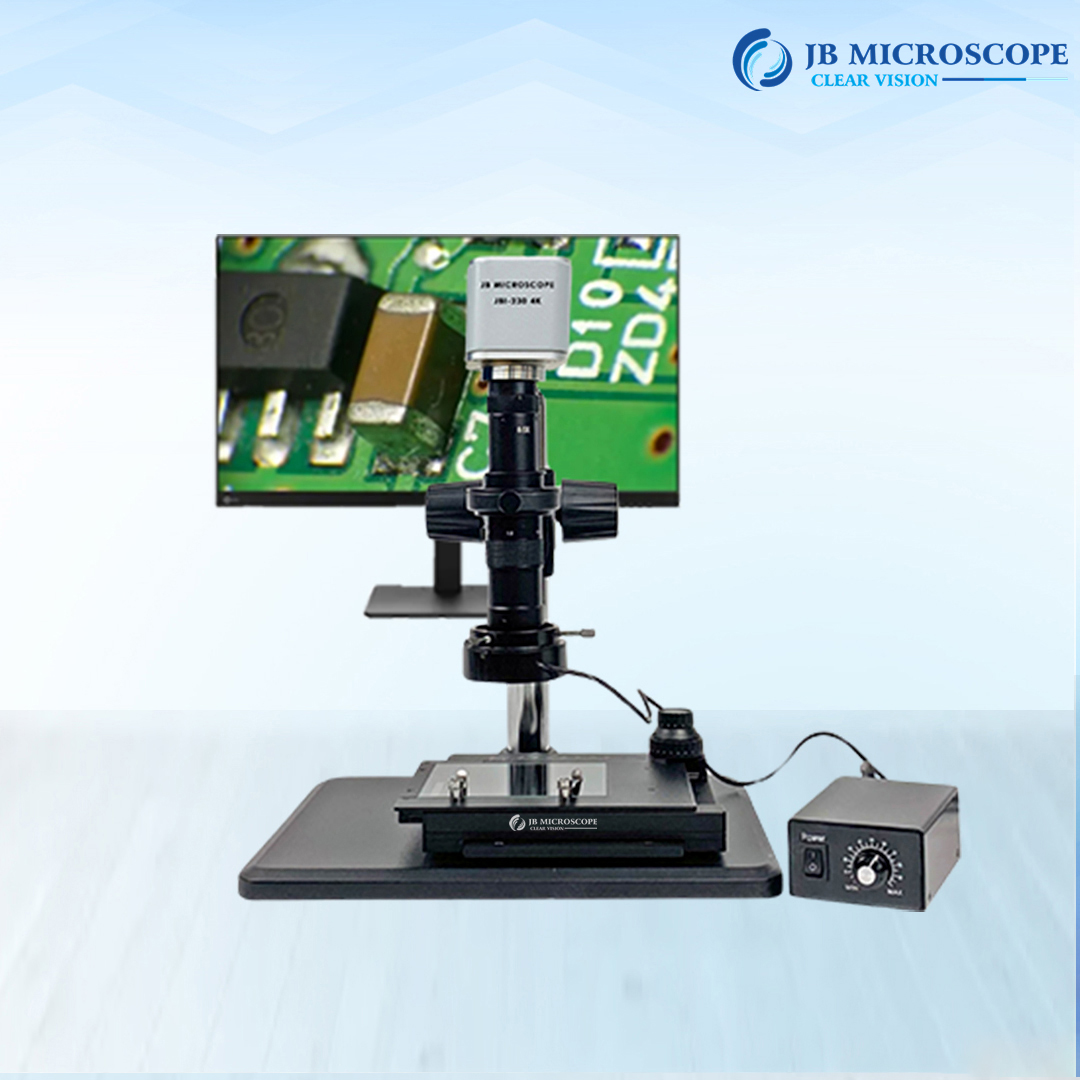

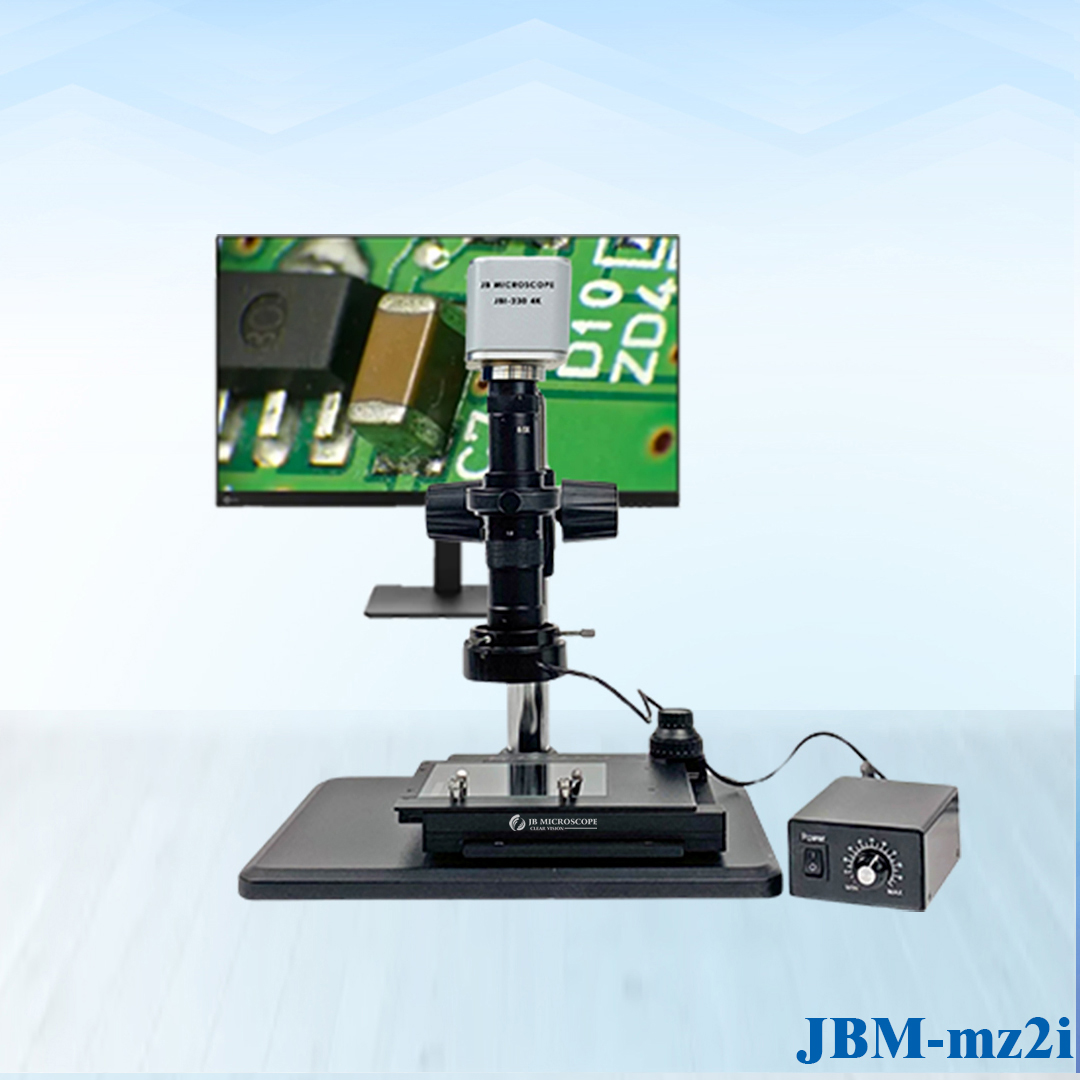

It connects to a monitor (LCD, TFT, TV with HDMI input) to display real-time video of the object. Video and still images can be clicked on the SD card without requiring a computer. Color, brightness, contrast adjustments, measurements, angle, lengths etc can be done on the HDMI screen itself (and a computer is not needed). It comes with an ring LED light source.

Category:
Brand JB Microscope
Continuous zoom lens 0.7-4.5X, zoom ratio: 6.4:1
Standard working distance 100mm
Eyepiece 0.5X (optional 0.35X/1X/2X)

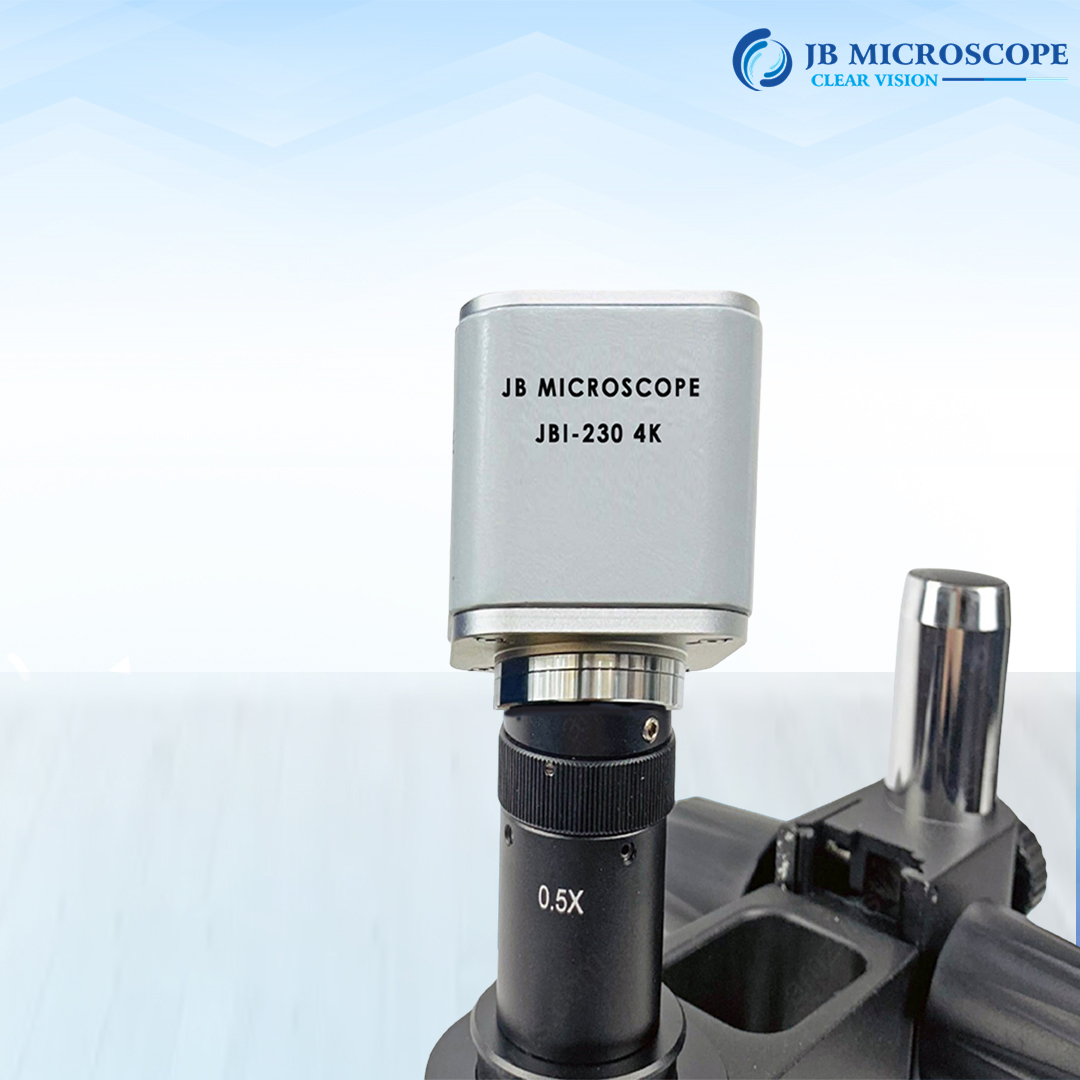

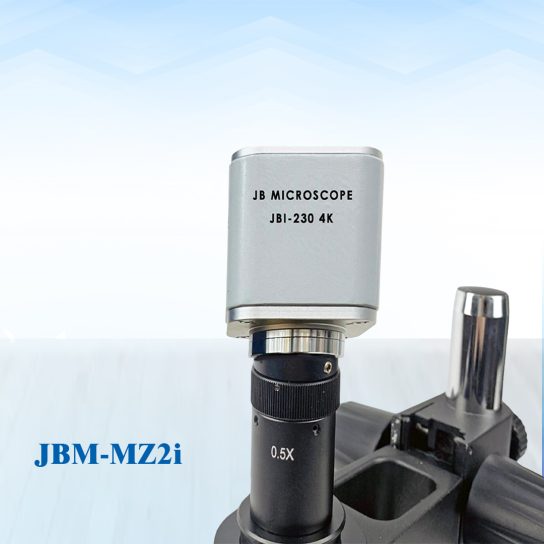

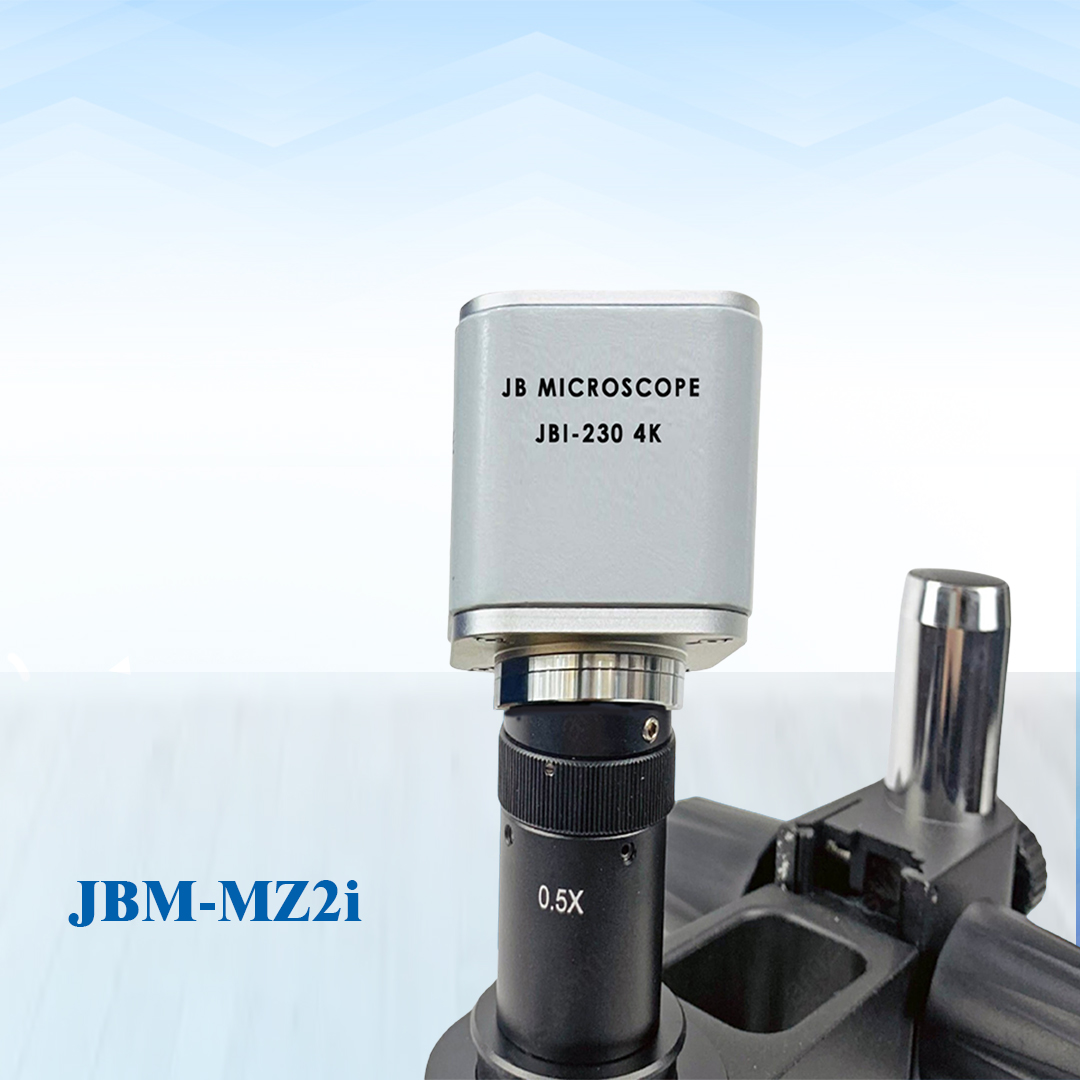

Camera Sensor CMOS Aptina MT9P031
Live Resolution 1920 x 1080
Frame Rate HDMI (30fps); USB 2.0 (15fps)
Data Interface USB2.0, SD, HDMI
Optical Interface Windows 7/8/10(32/64bit)
Optical Port Standard C-Mount
Camera Size 90.7×74.5×67.2(mm)
