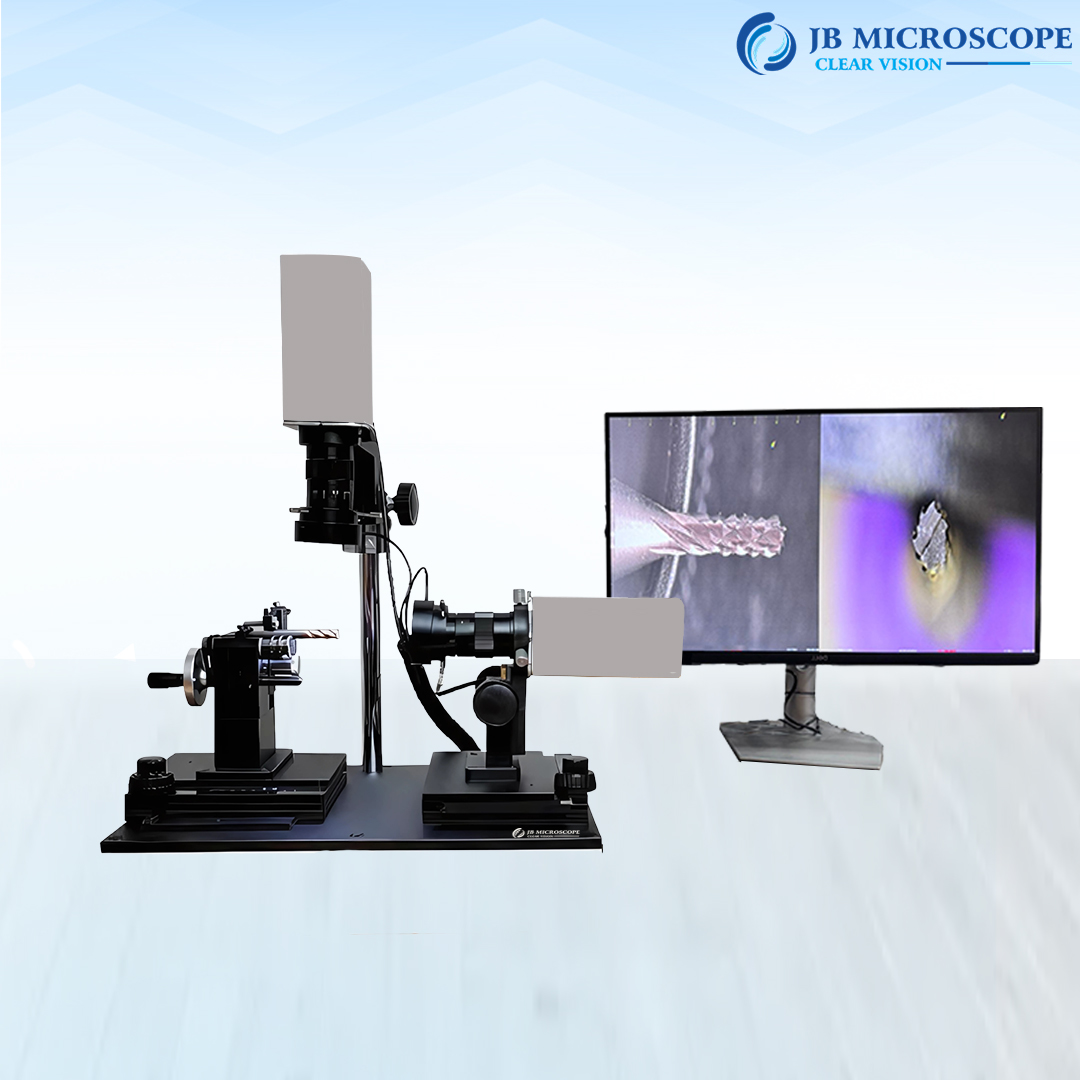

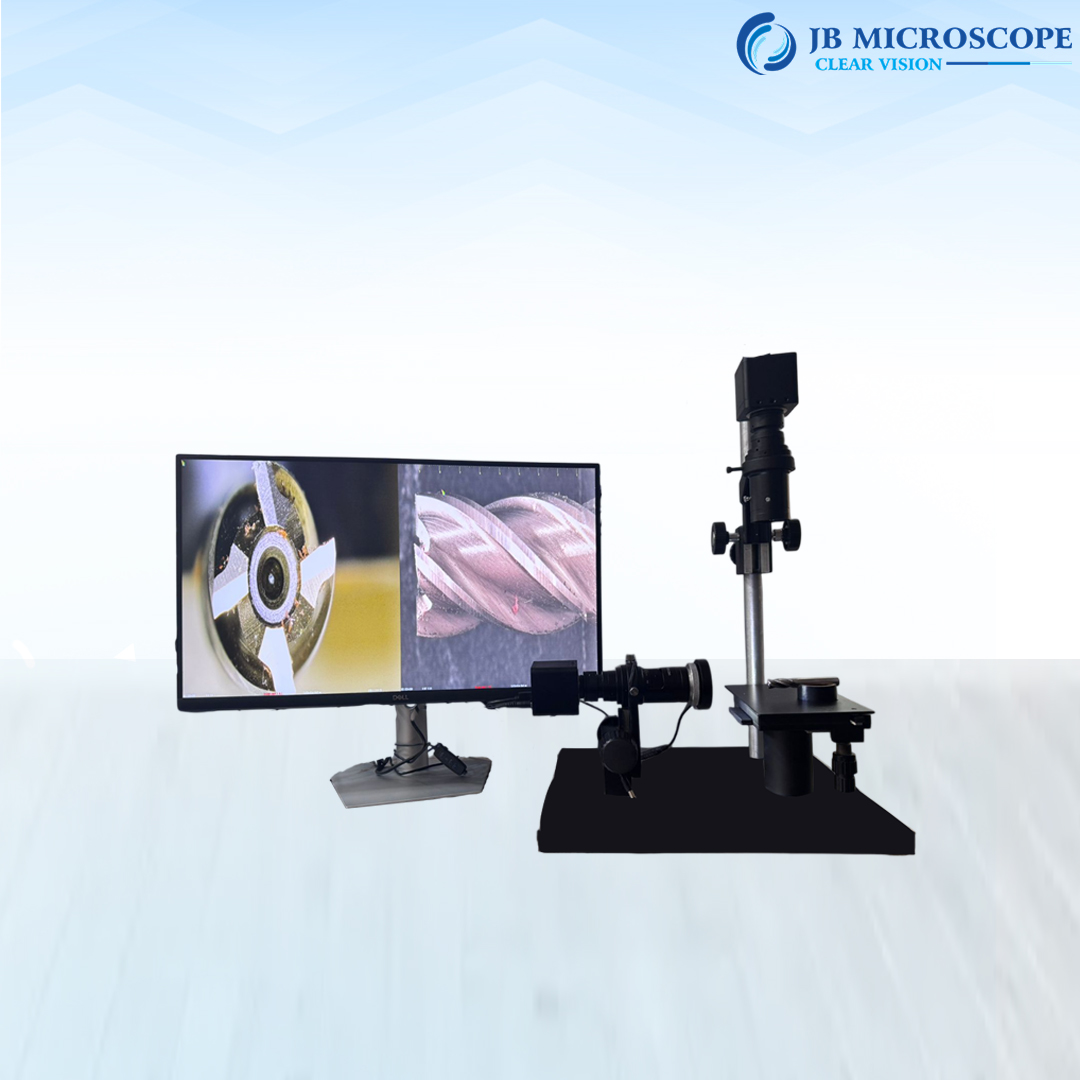

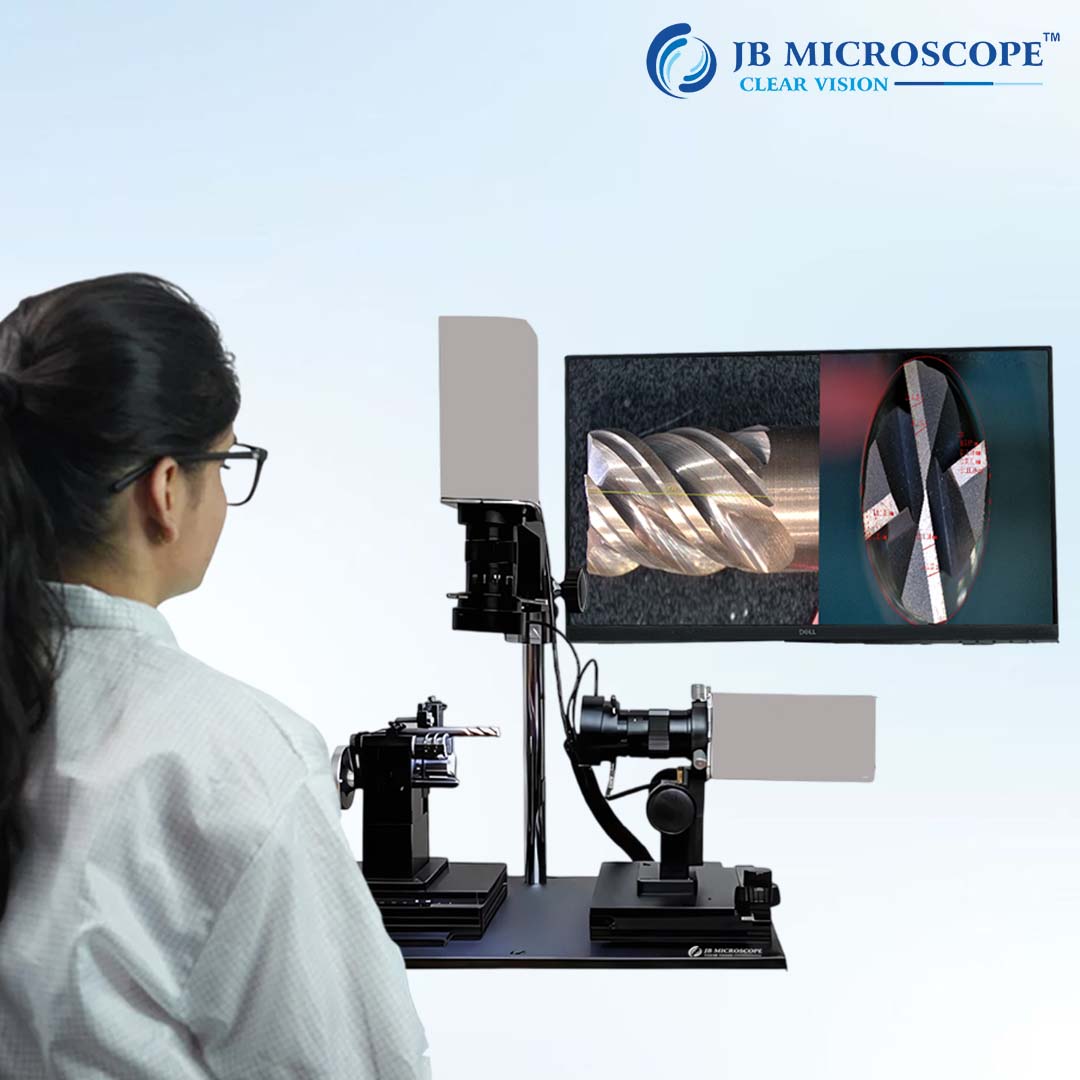

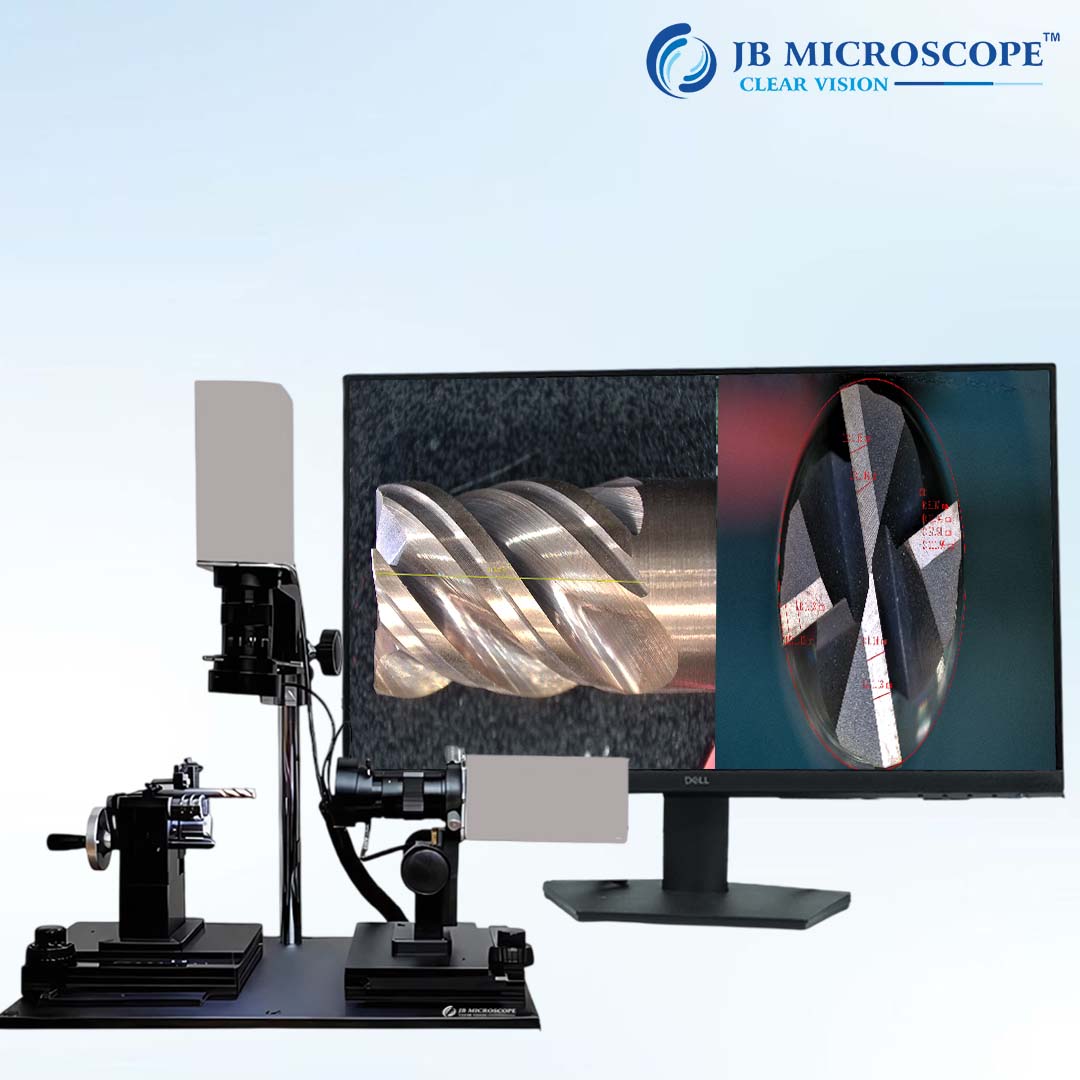

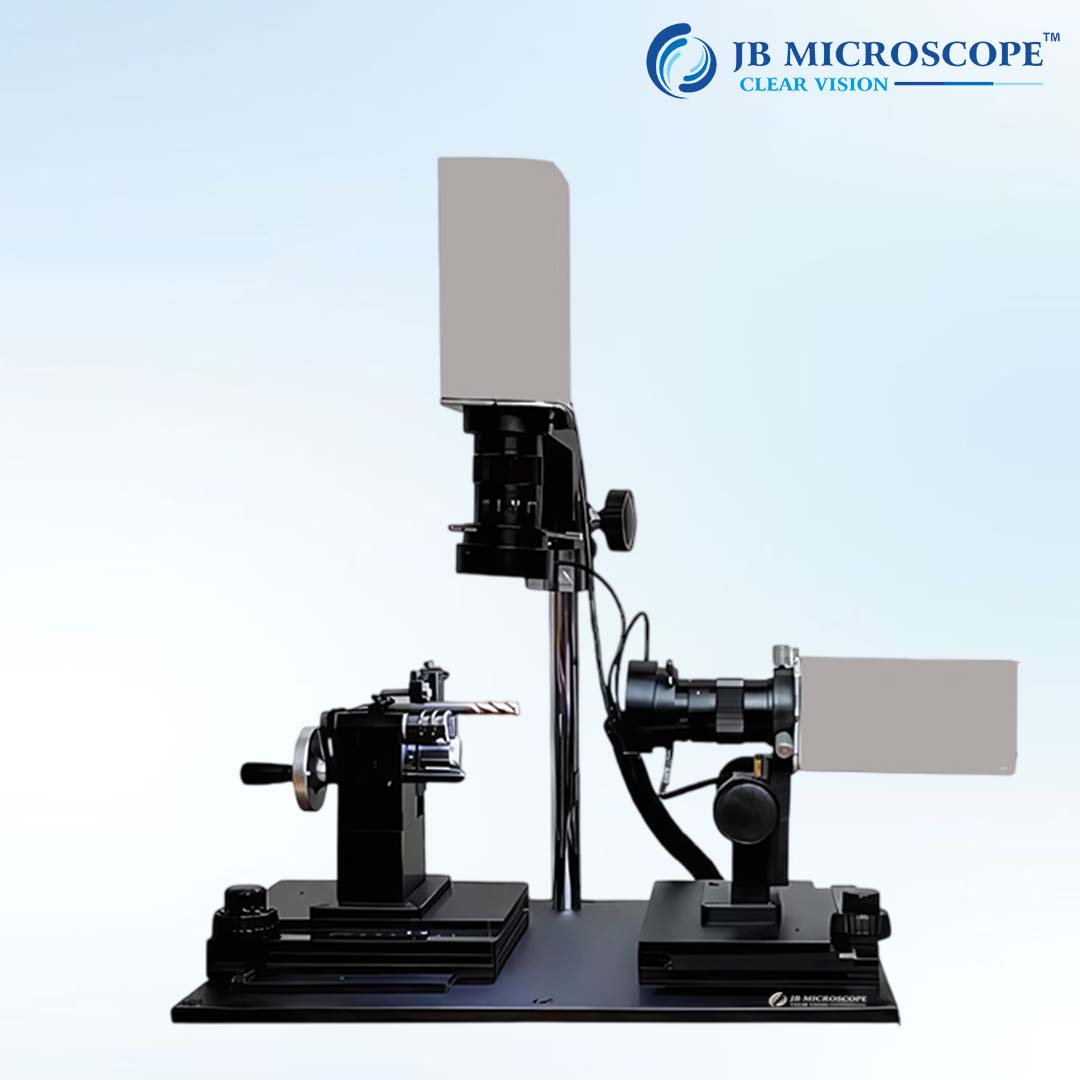

HORIZONTAL TOOL TESTING MICROSCOPE JBM MZ2T

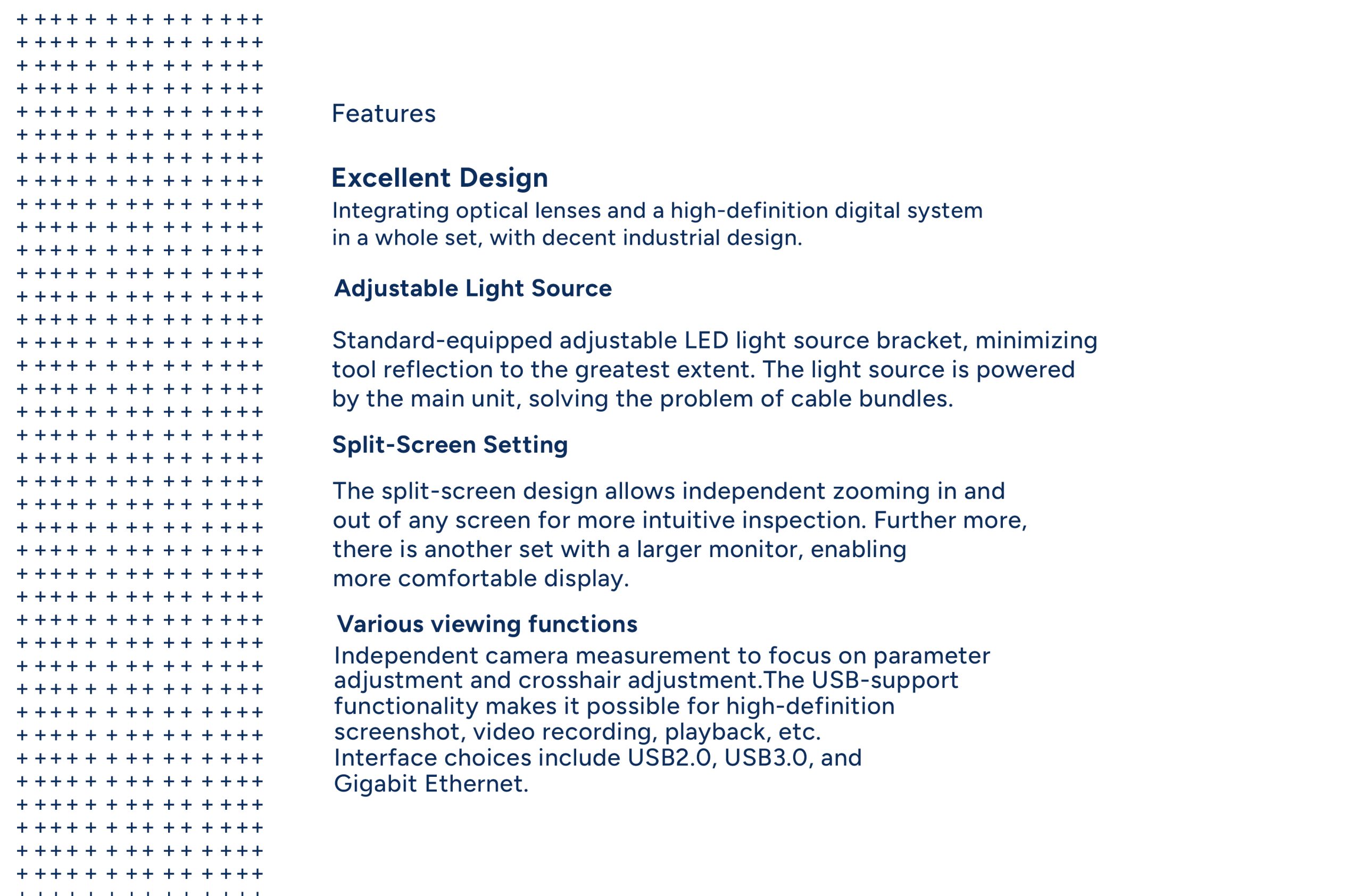

Features
Excellent Design
Integrating optical lenses and a high-definition digital system in a whole set, with decent industrial design.
Adjustable Light Source
Standard-equipped adjustable LED light source bracket, minimizing tool reflection to the greatest extent. The light source is powered by the main unit, solving the problem of cable bundles.
Split-Screen Setting

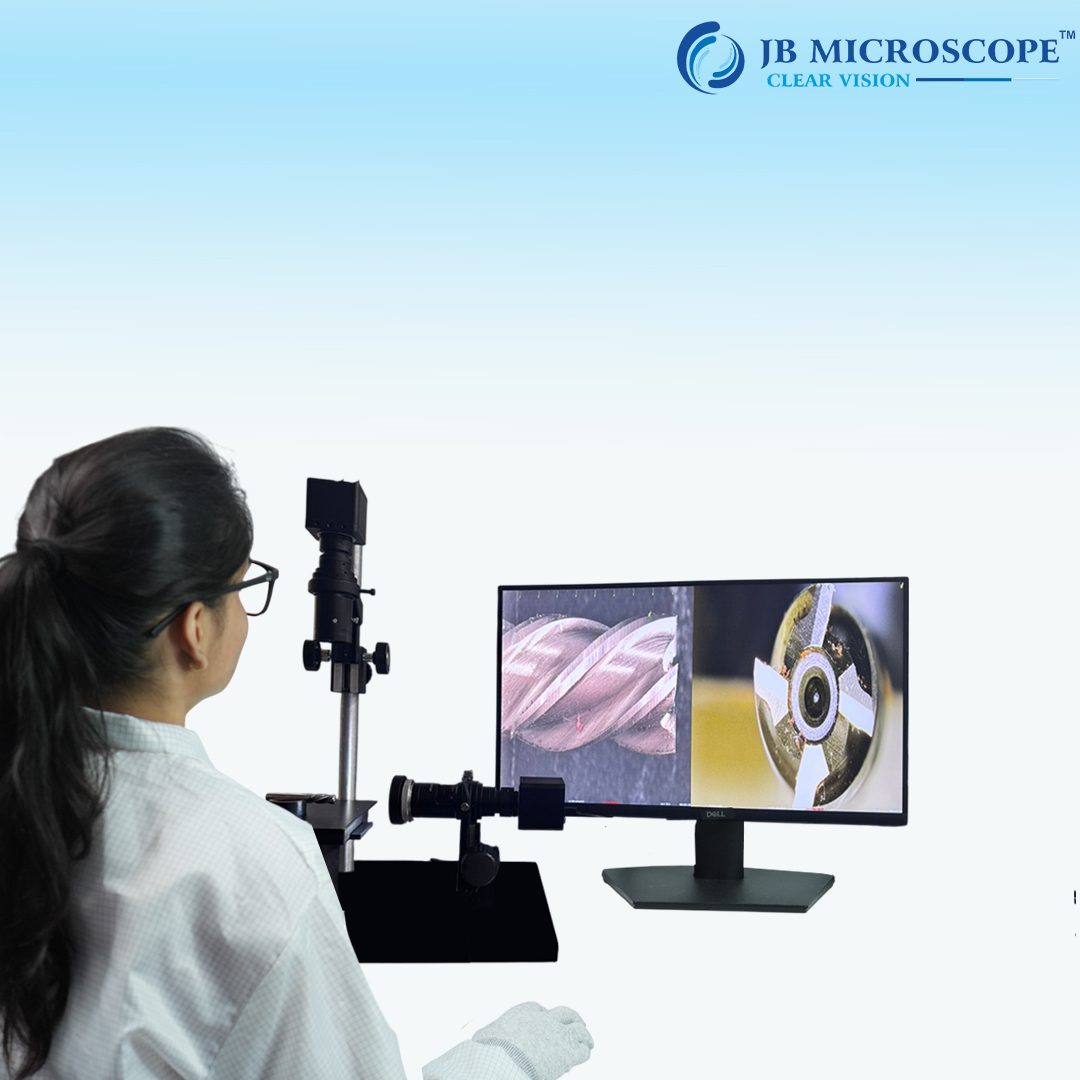

The split-screen design allows independent zooming in and out of any screen for more intuitive inspection. Furthermore, there is another set with a larger monitor, enabling more comfortable display.

Categories: ,

Various viewing functions

Independent camera measurement to focus on parameter adjustment and crosshair adjustment.

The USB-support functionality makes it possible for high-definition screenshot, video recording, playback, etc.

Interface choices include USB2.0, USB3.0, and Gigabit Ethernet.

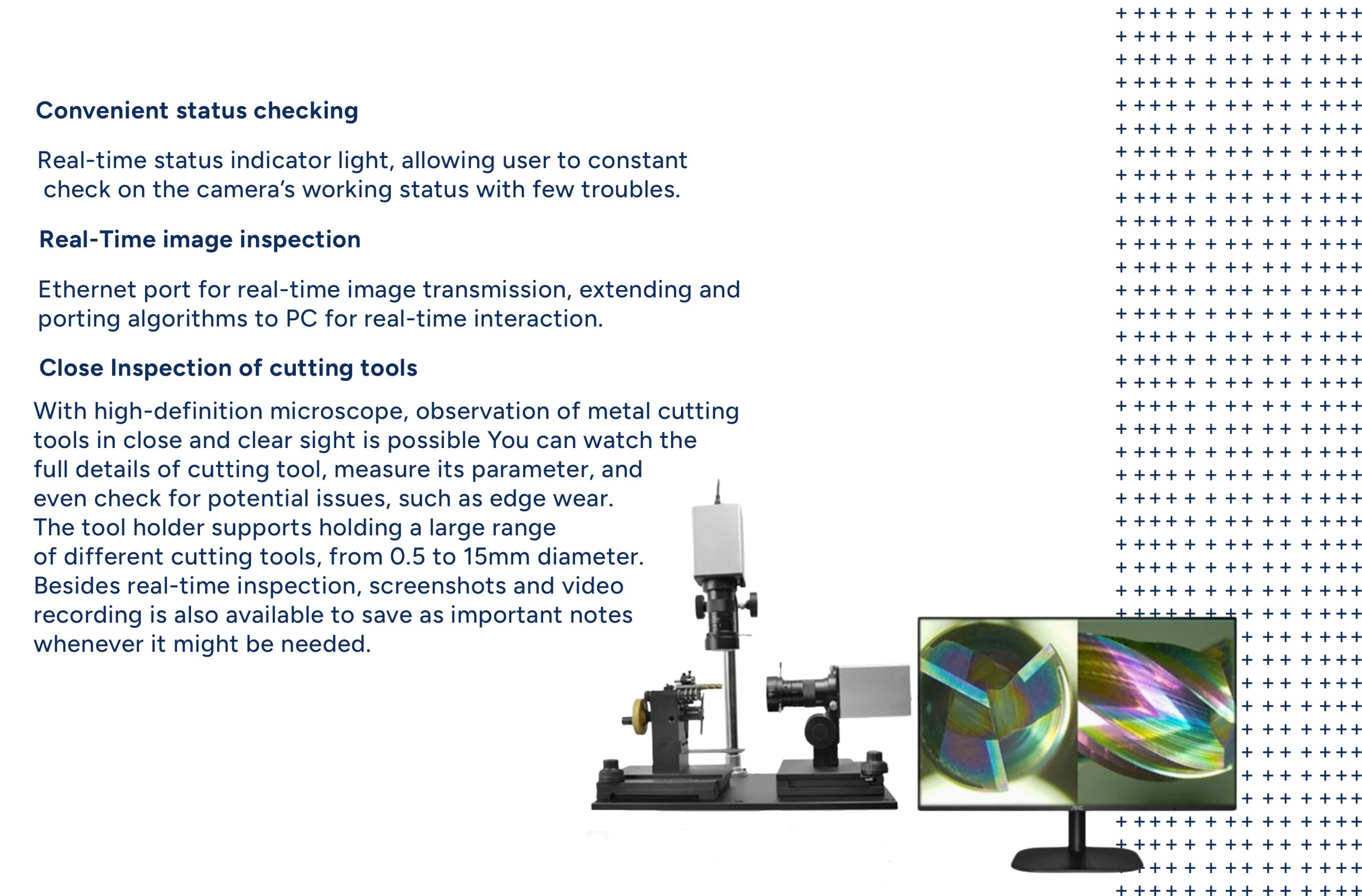

Convenient status checking

Real-time status indicator light, allowing user to constant check on the camera’s working status with few troubles.

 Real-Time image inspection

Ethernet port for real-time image transmission, extending and porting algorithms to PC for real-time interaction.

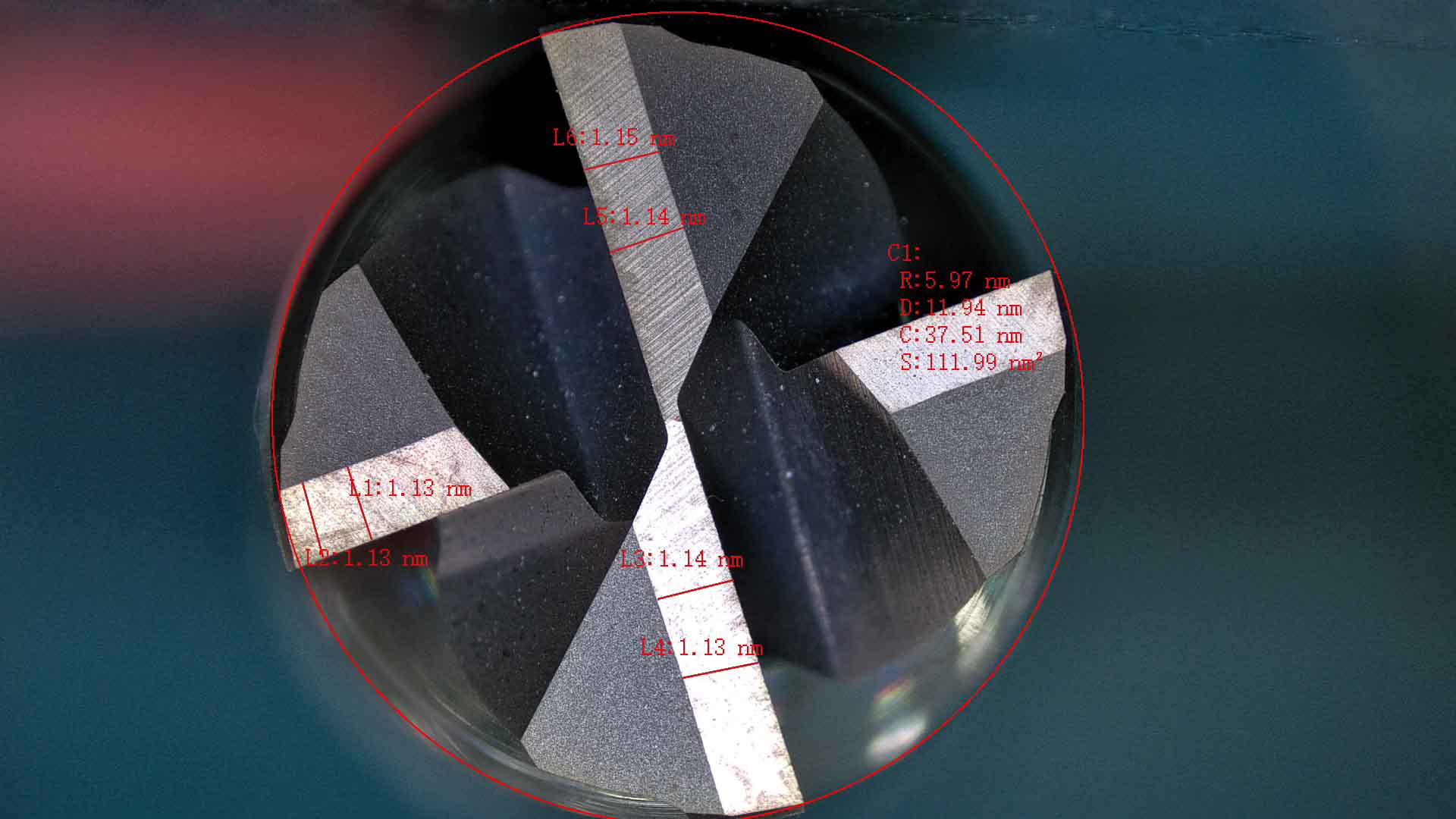

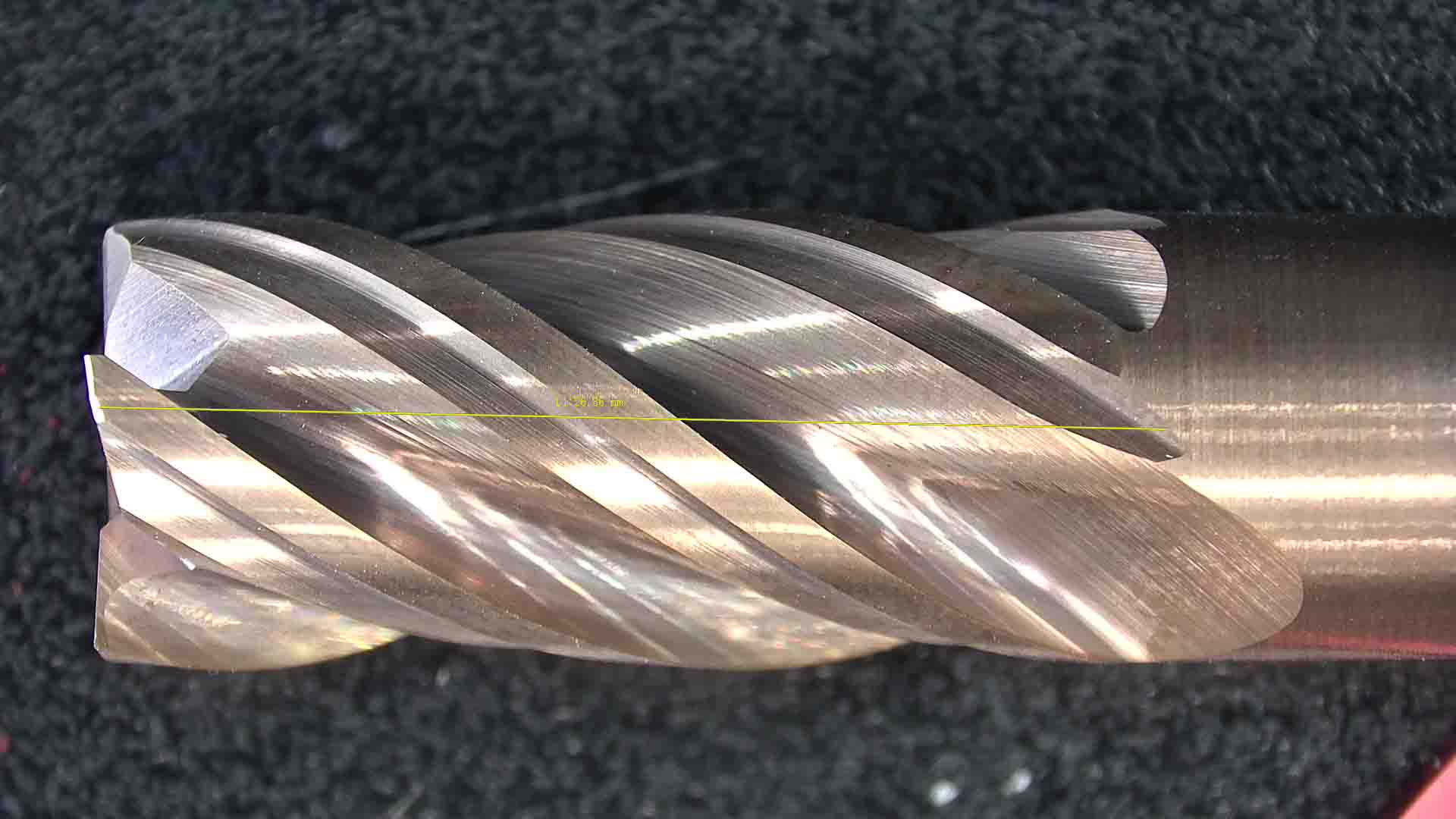

 Close Inspection of cutting tools

With high-definition microscope, observation of metal cutting tools in close and clear sight is possible
 You can watch the full details of cutting tool, measure its parameter, and even check for potential issues, such as edge wear.
 The tool holder supports holding a large range of different cutting tools, from 0.5 to 15mm diameter.
 Besides real-time inspection, screenshots and video recording is also available to save as important notes whenever it might be needed.

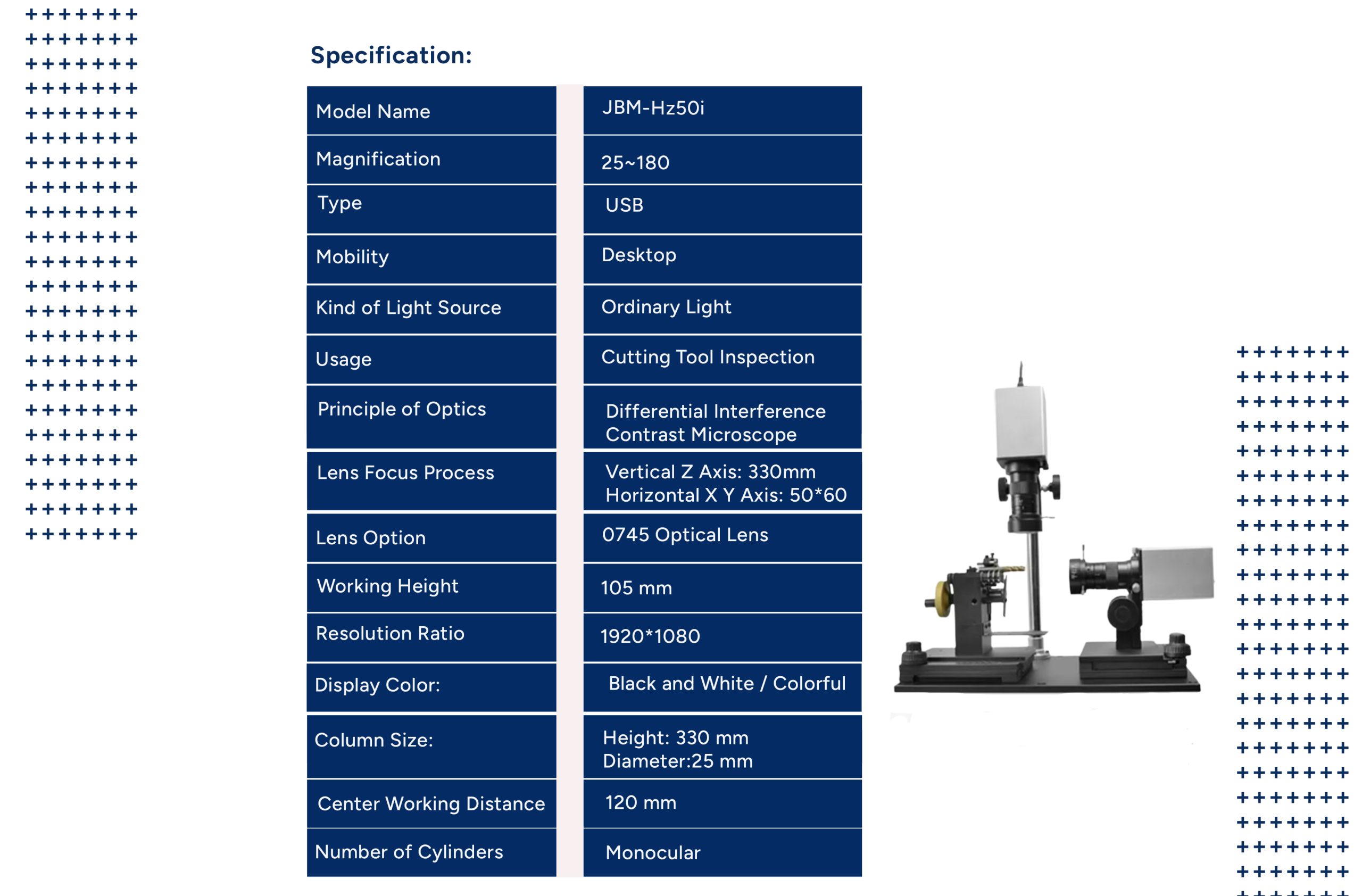

  • Model NO                                         JBM MZ2T
  • Magnification:                                 25~180
  • Type:                                                     USB

  • Mobility:                                             Desktop

  • Kind of Light Source:                    Ordinary Light
  • Usage:                                                  Cutting Tool Inspection
  • Principle of Optics:                         Differential Interference Contrast Microscope
  • Lens Focus Process:                        Vertical Z Axis: 330mm Horizontal X Y Axis: 50*60
  • Lens Option:                                           0745 Optical Lens
  • Working Height:                                     105 mm
  • Resolution Ratio:                                    1920*1080
  • Display Color:                                    Black and White / Colorful
  • Column Size:                                       Height: 330 mm Diameter:25 mm
  • Center Working Distance:                  120 mm
  • Number of Cylinders:                         Monocular

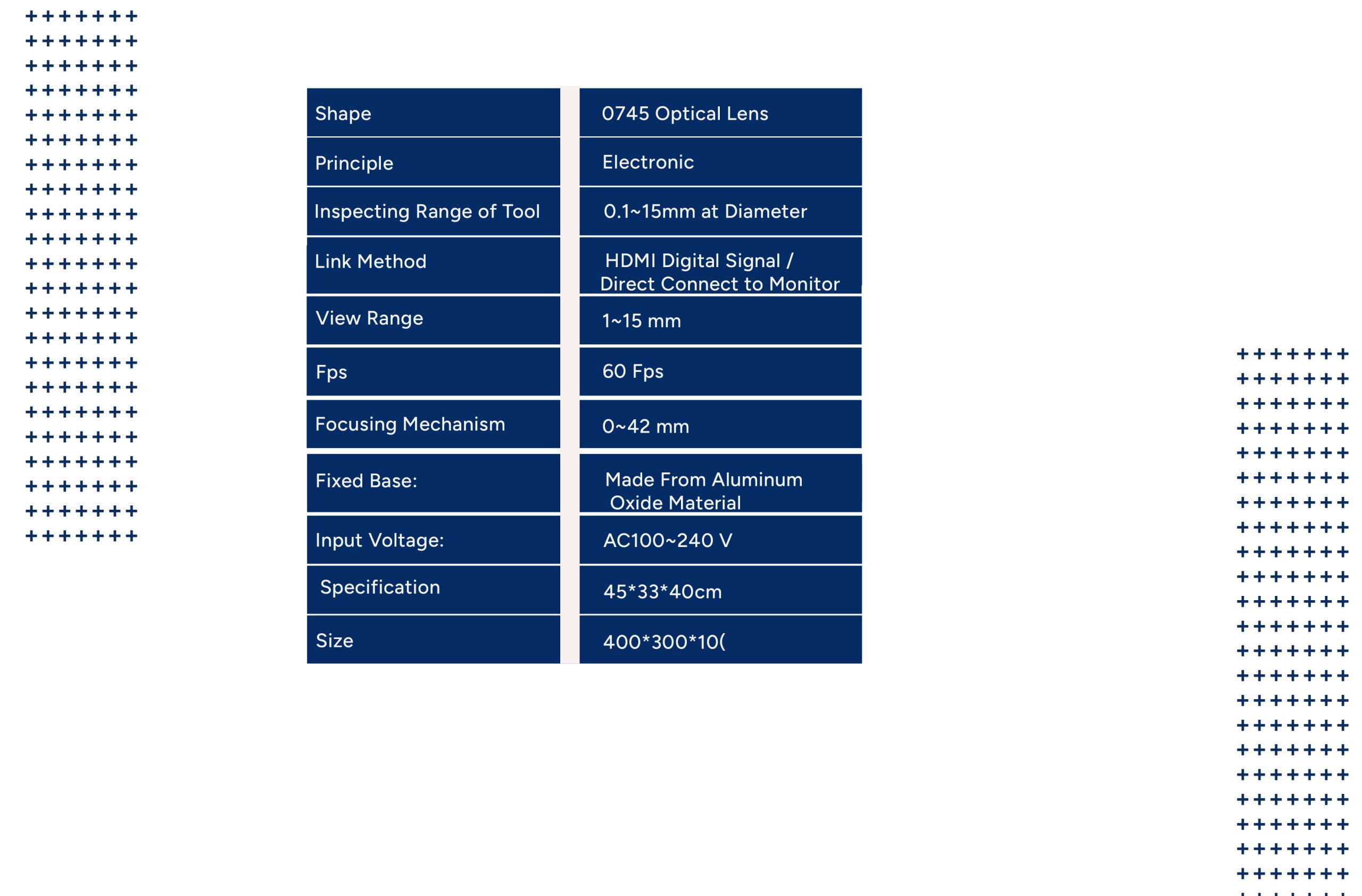

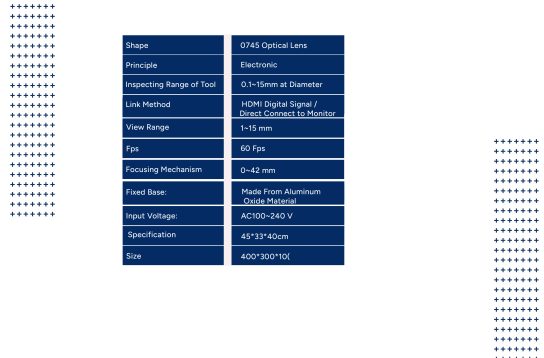

  • Shape:                                                      0745 Optical Lens
  • Principle:                                                    Electronic
  • Type No:                                                Machining Tool Inspector Lm-HD2K-II
  • Inspecting Range of Tool:                0.1~15mm at Diameter
  • Link Method:                                       HDMI Digital Signal / Direct Connect to Monitor
  • View Range:                                          1~15 mm
  • Fps:                                                         60 Fps
  • Focusing Mechanism:                      0~42 mm
  • Fixed Base:                                           Made From Aluminum Oxide Material
  • Input Voltage:                                       AC100~240 V
  • Specification:                                        45*33*40cm
  • Size:                                                           400*300*10(
