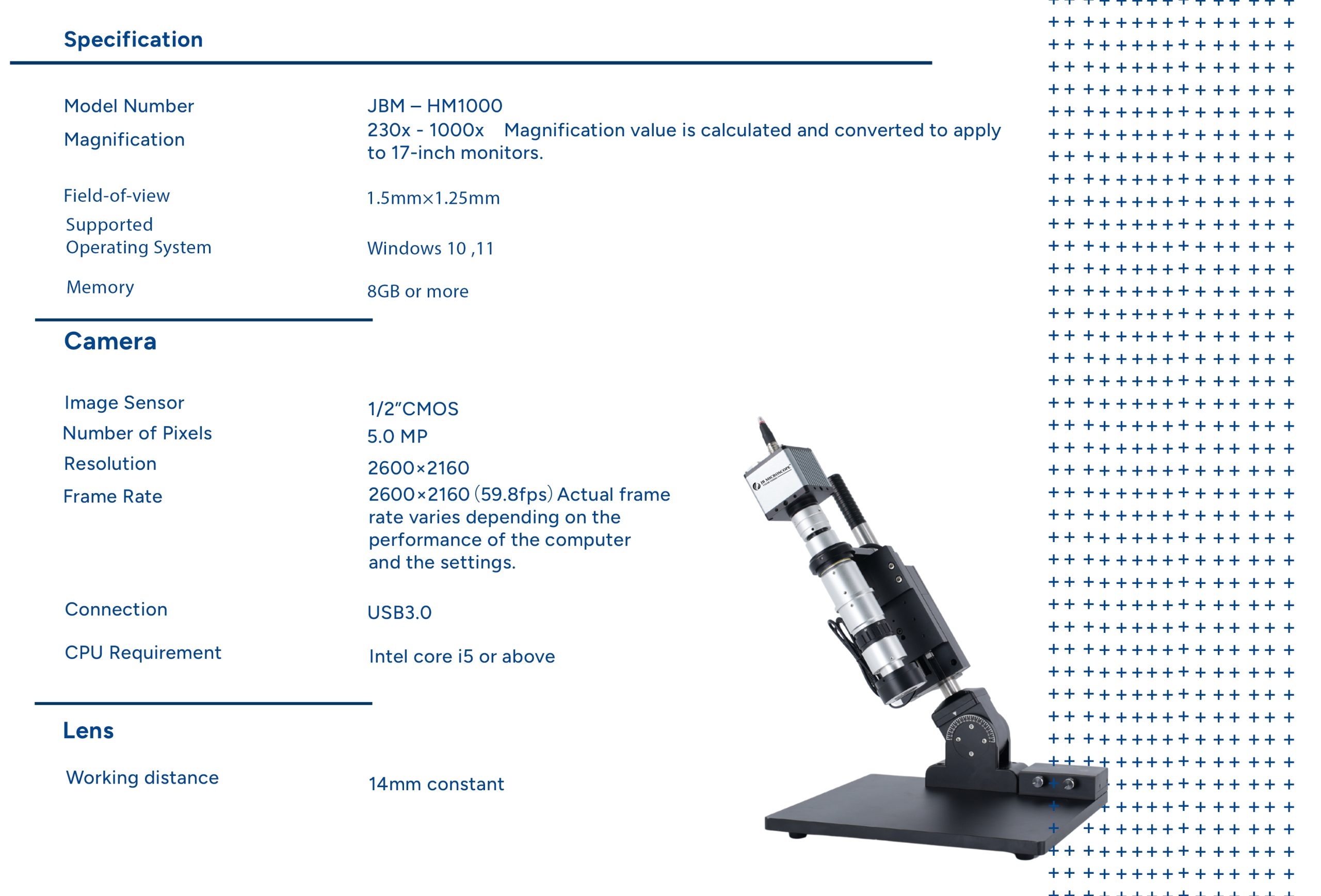

SPECIFICATION

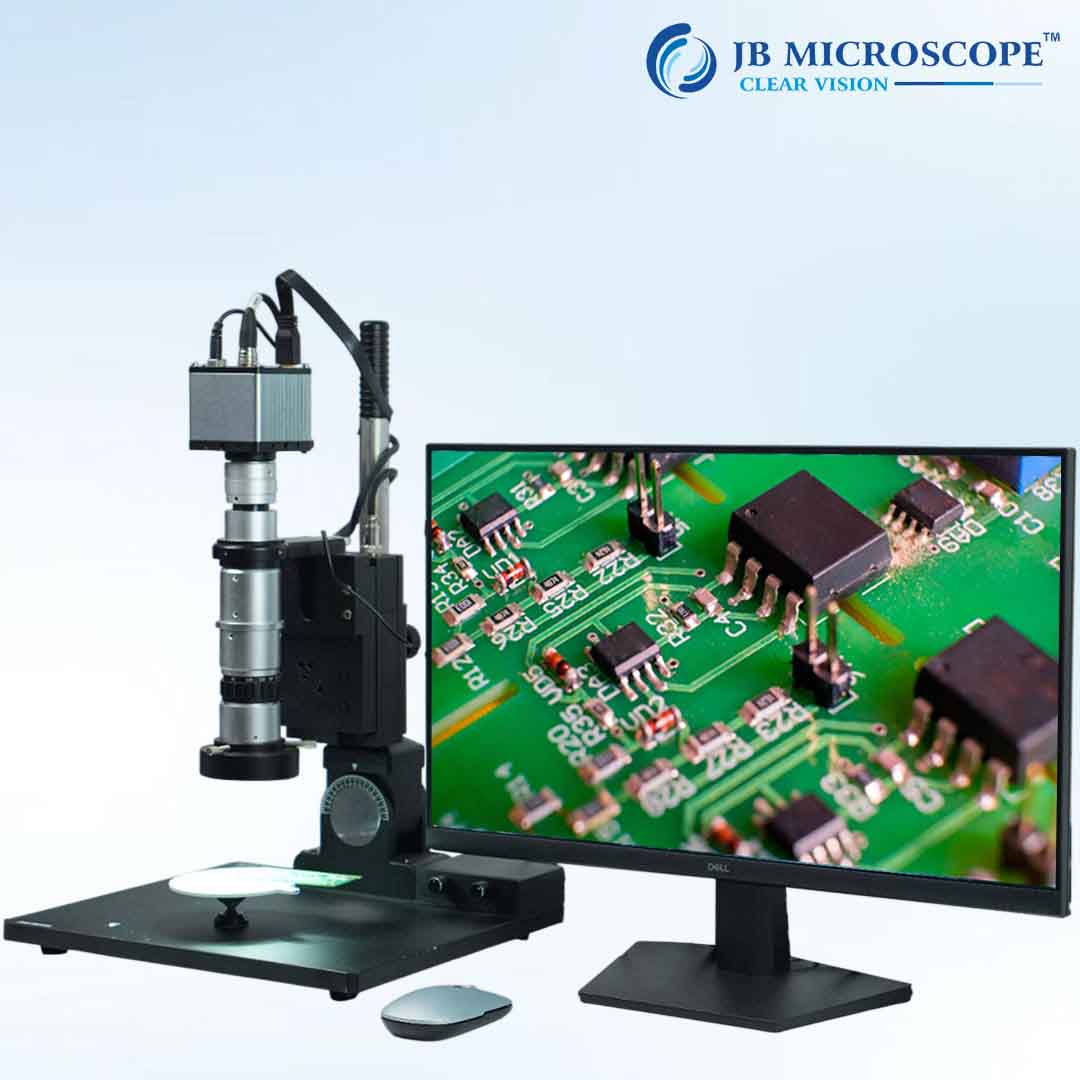

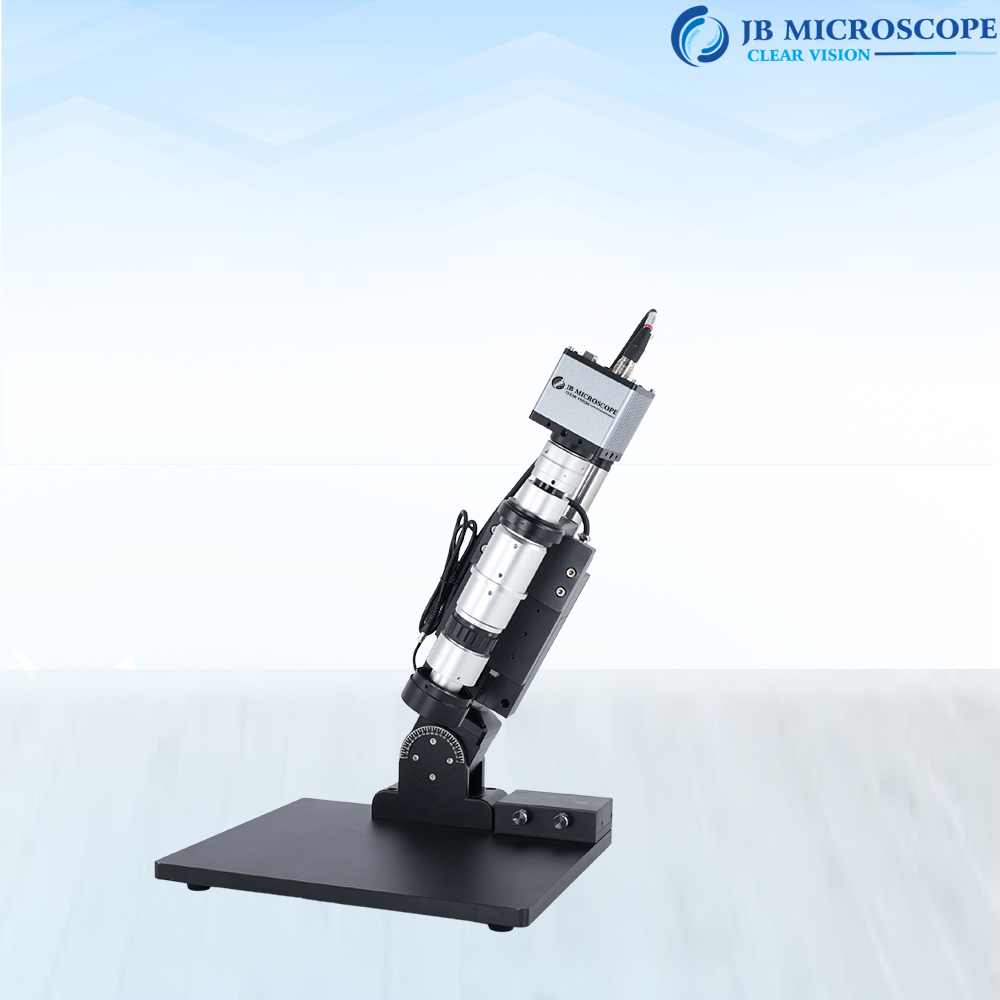

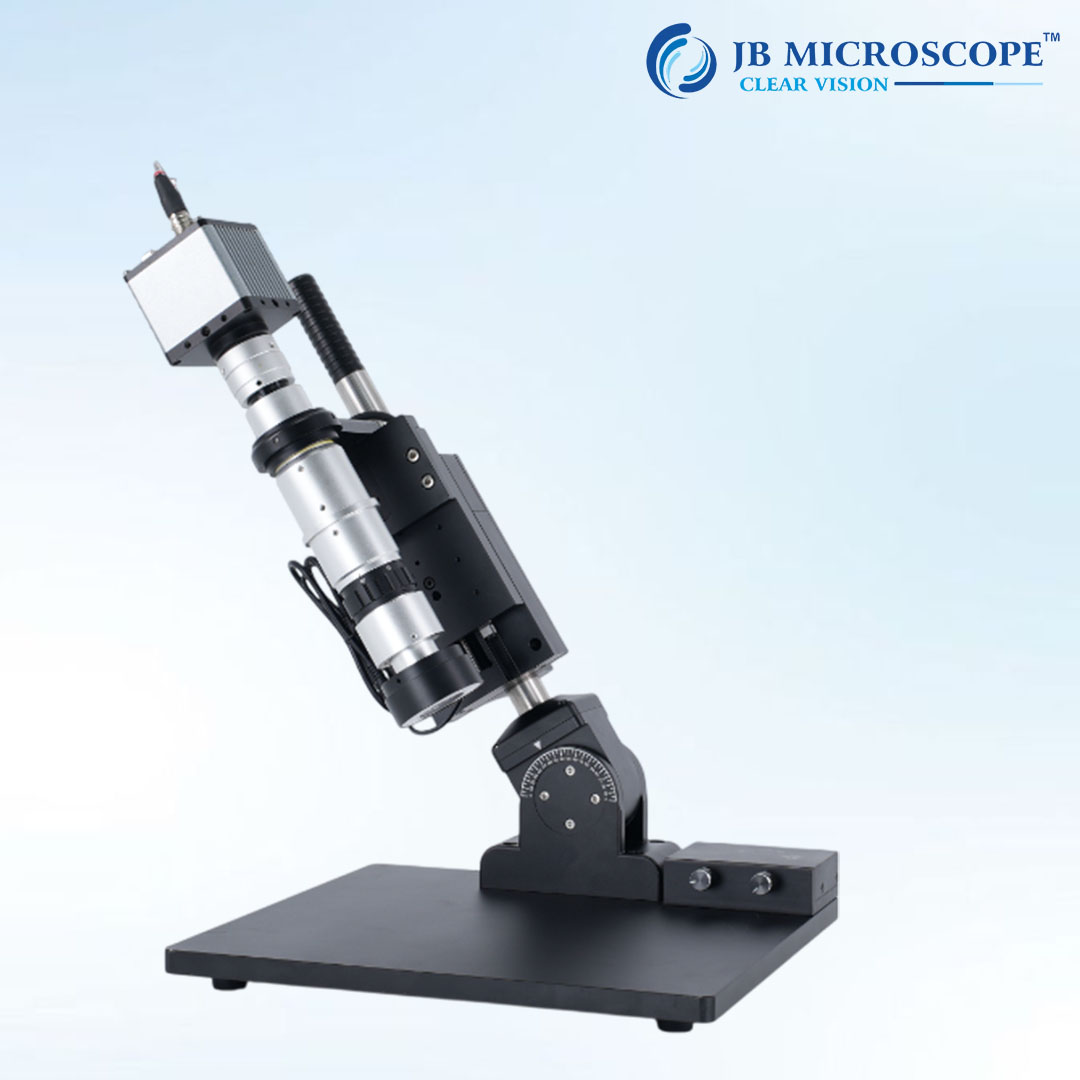

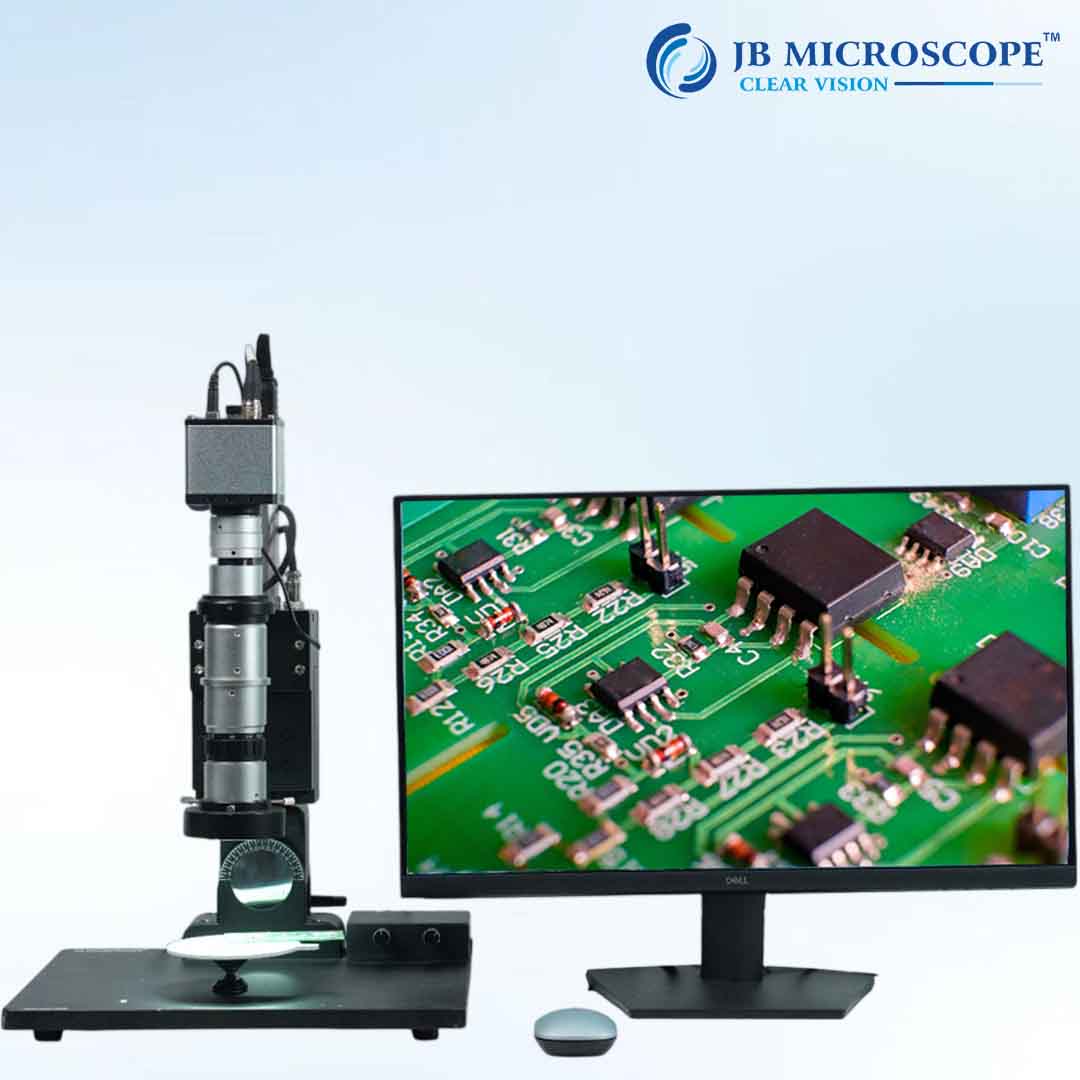

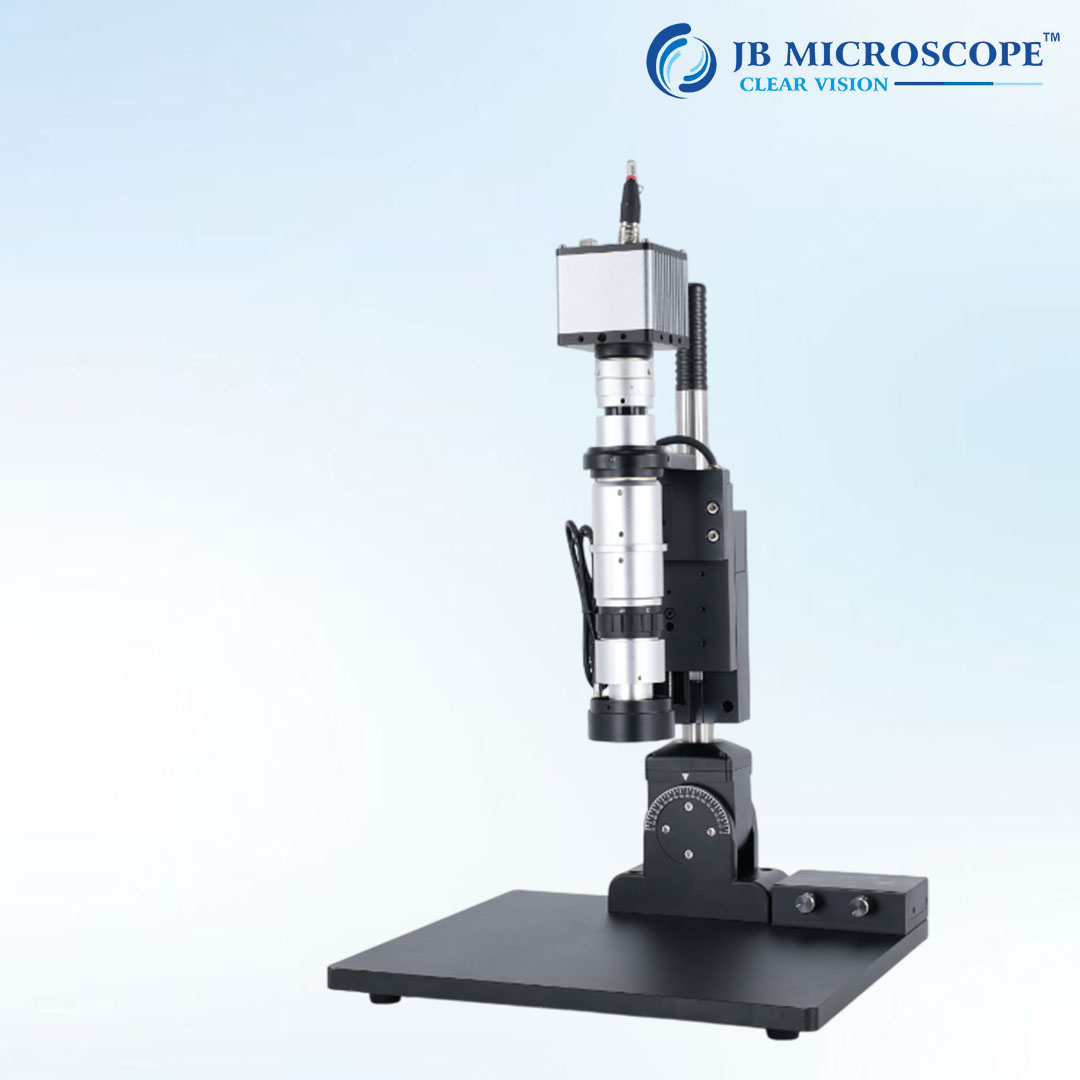

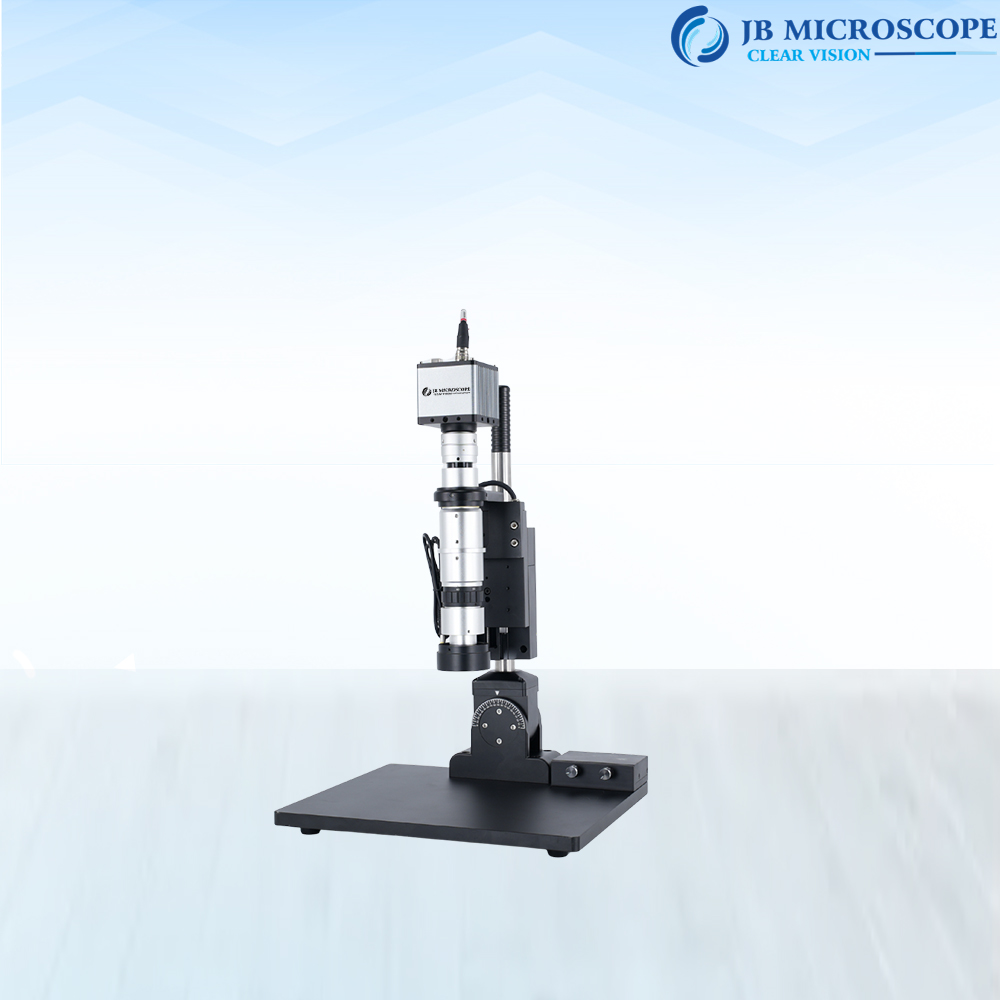

- Model Number JBM – HM1000
- Magnification 230x – 1000x Magnification value is calculated and converted to apply to 17-inch monitors.
- Field-of-view 1.5 mm x 1.25mm
- Supported Operating System Windows 1 O, 11
- Memory 8GB or more
Camera
- Image Sensor 1/2″CMOS
- Number of Pixels 5.0 MP
- Resolution 2600×2160
- Frame Rate 2600×2160 (59.8fps) Actual frame rate varies depending on the performance of the computer and the settings.
- Connection USB3.0
- CPU Requirement intel core i5 or above
LENS
- Working distance 14mm constant

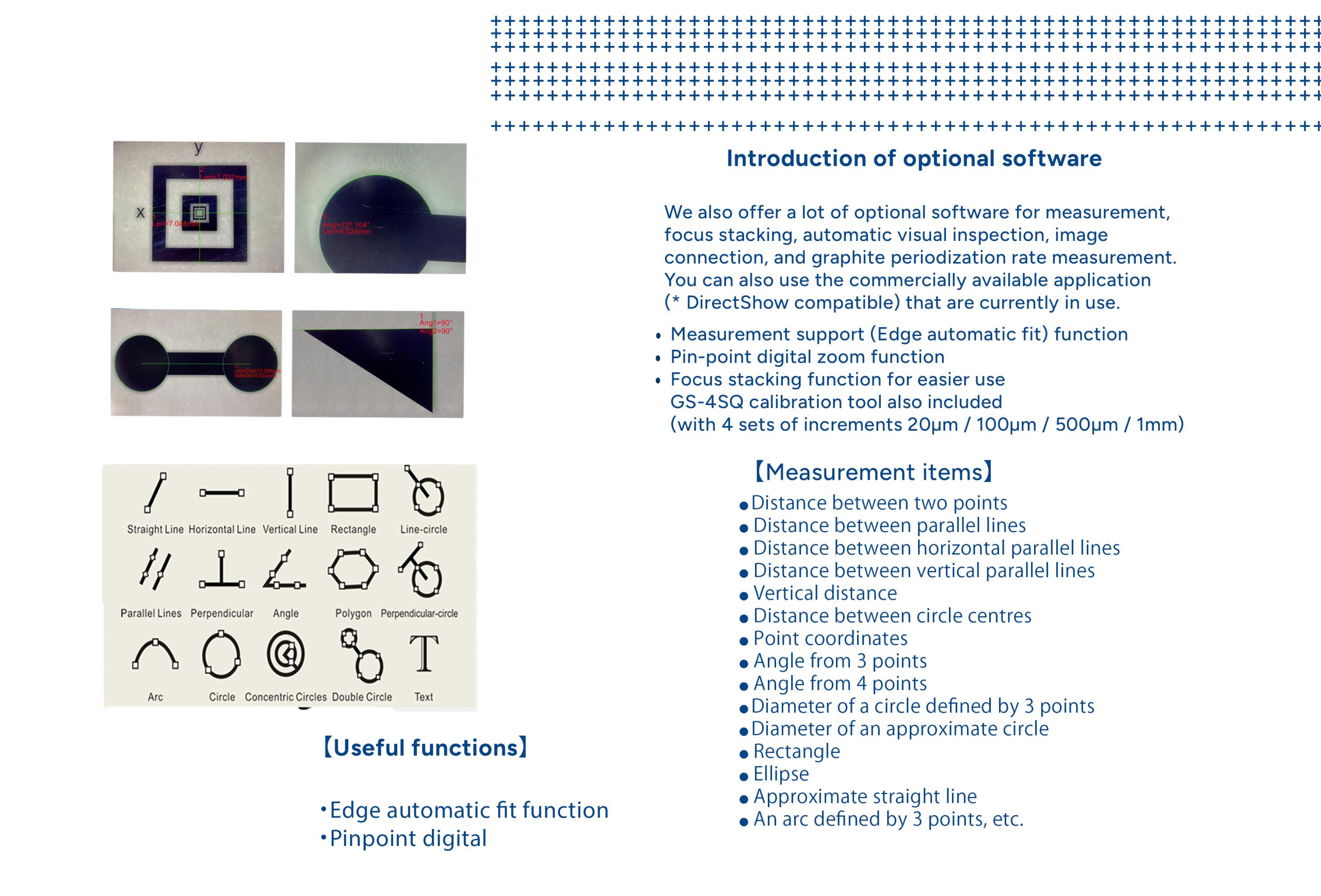

Introduction of optional software
We also offer a lot of optional software for measurement, focus stacking, automatic visual inspection, image connection, and graphite periodization rate measurement. You can also use the commercially available application (* DirectShow compatible) that are currently in use.
- • Measurement support (Edge automatic fit) function
• Pin-point digital zoom function

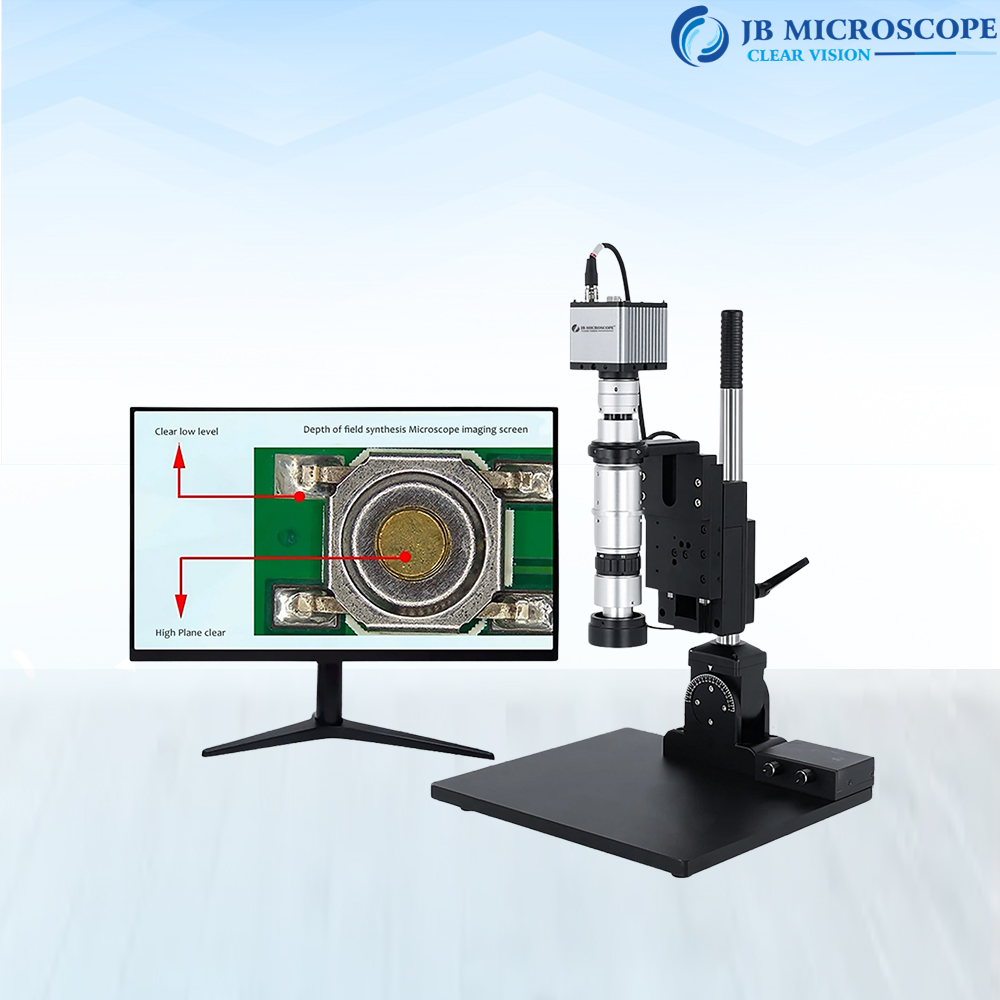

• Focus stacking function for easier use
GS-4S0 calibration tool also included
(with 4 sets of increments 20µm / 100µm / 500µm / 1mm) -
[Measurement items]
- Distance between two points
- Distance between parallel lines
- Distance between horizontal parallel lines
- Distance between vertical parallel lines
- Vertical distance
- Distance between circle centers
- Point coordinates
- Angle from 3 points
- Angle from 4 points
- Diameter of a circle defined by 3 points. Diameter of an approximate circle
- Rectangle
- Ellipse
- Approximate straight line
- An arc defined by 3 points, etc.
