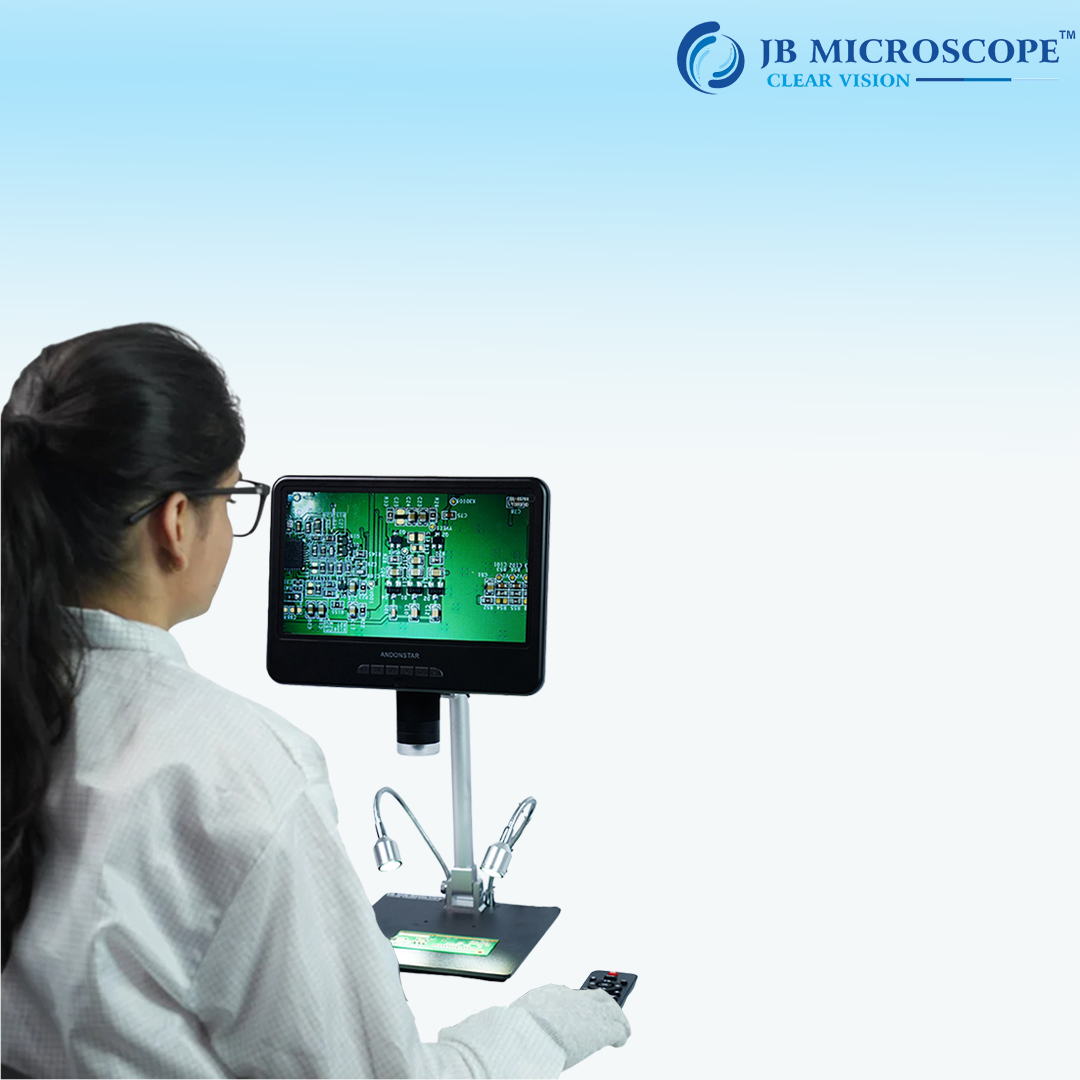

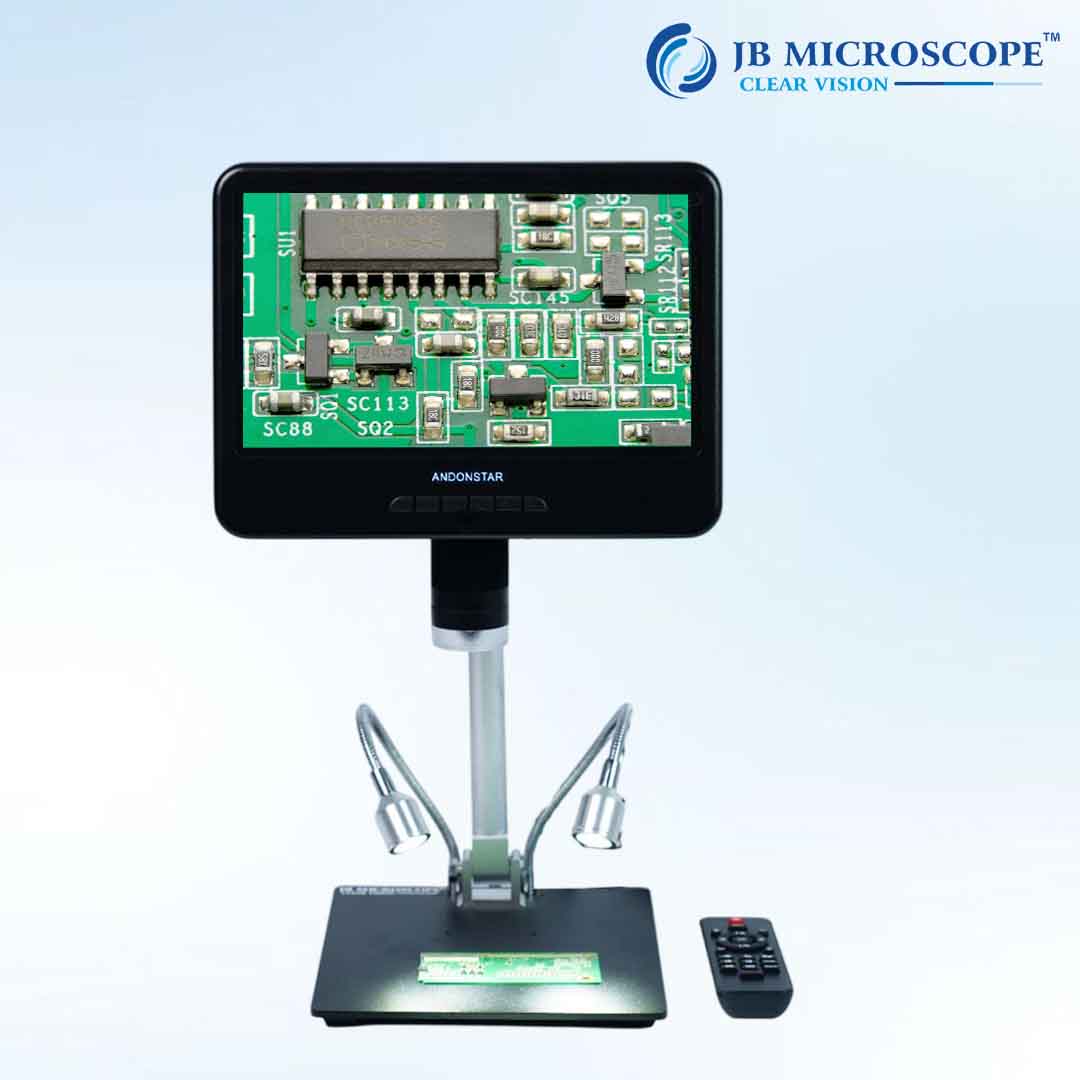

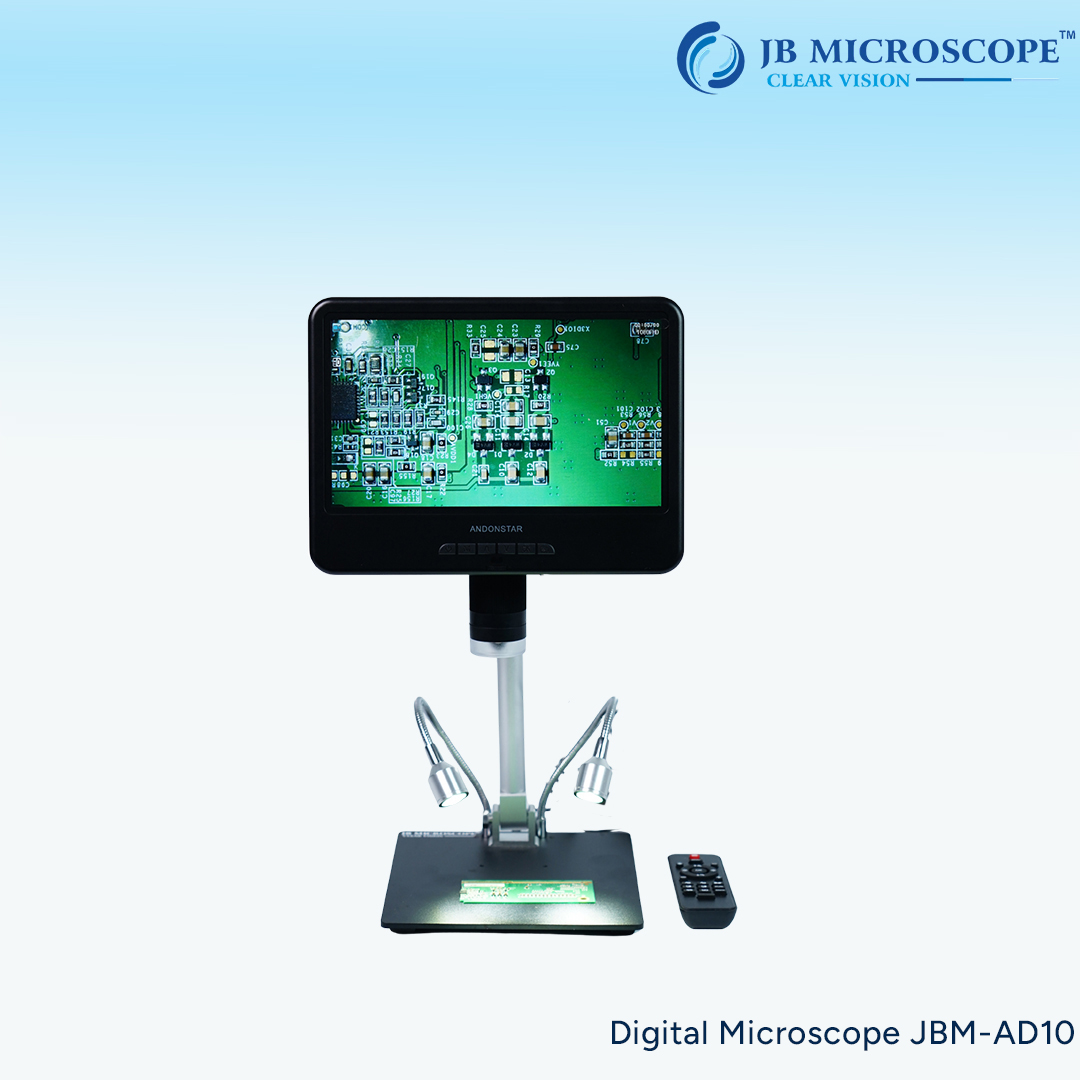

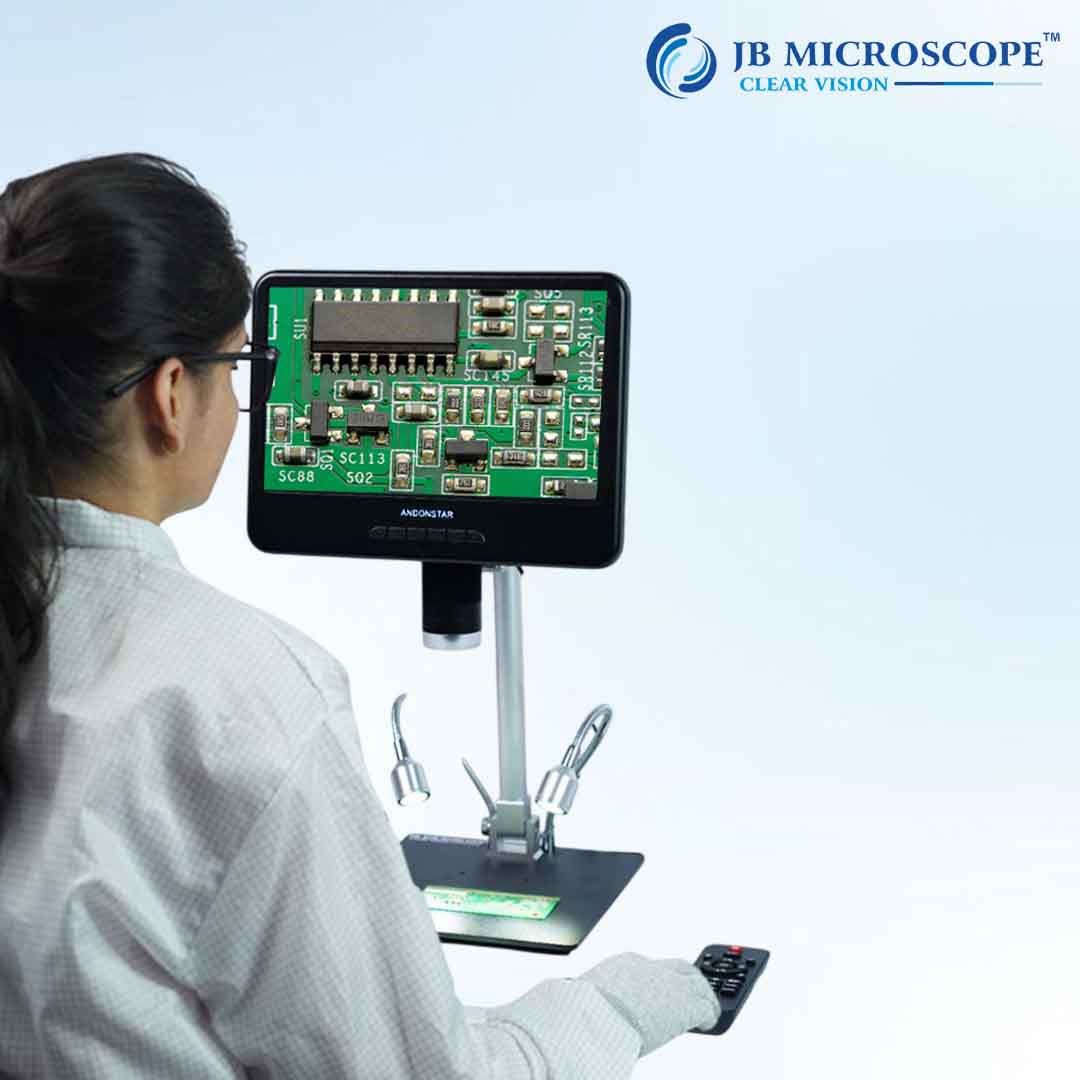

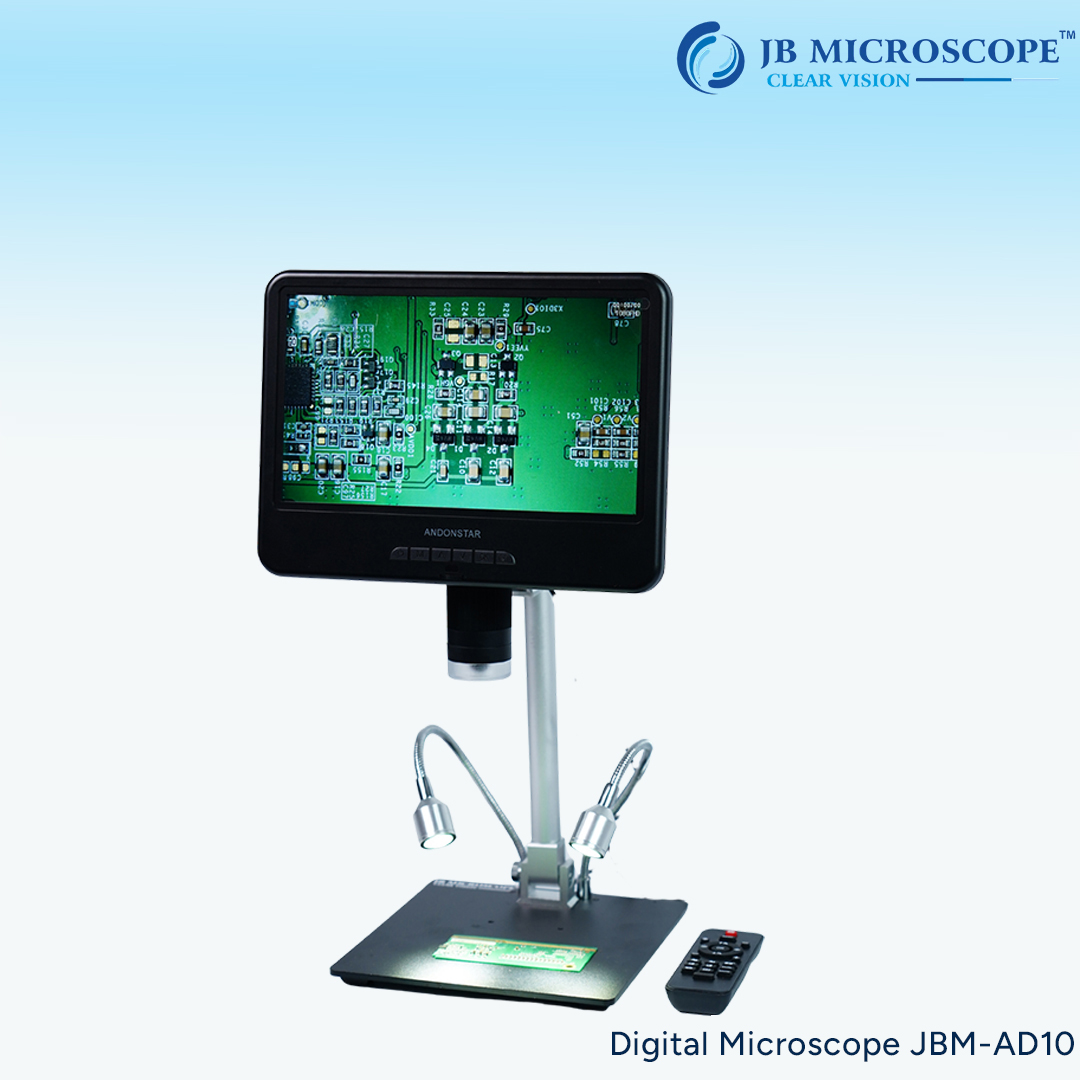

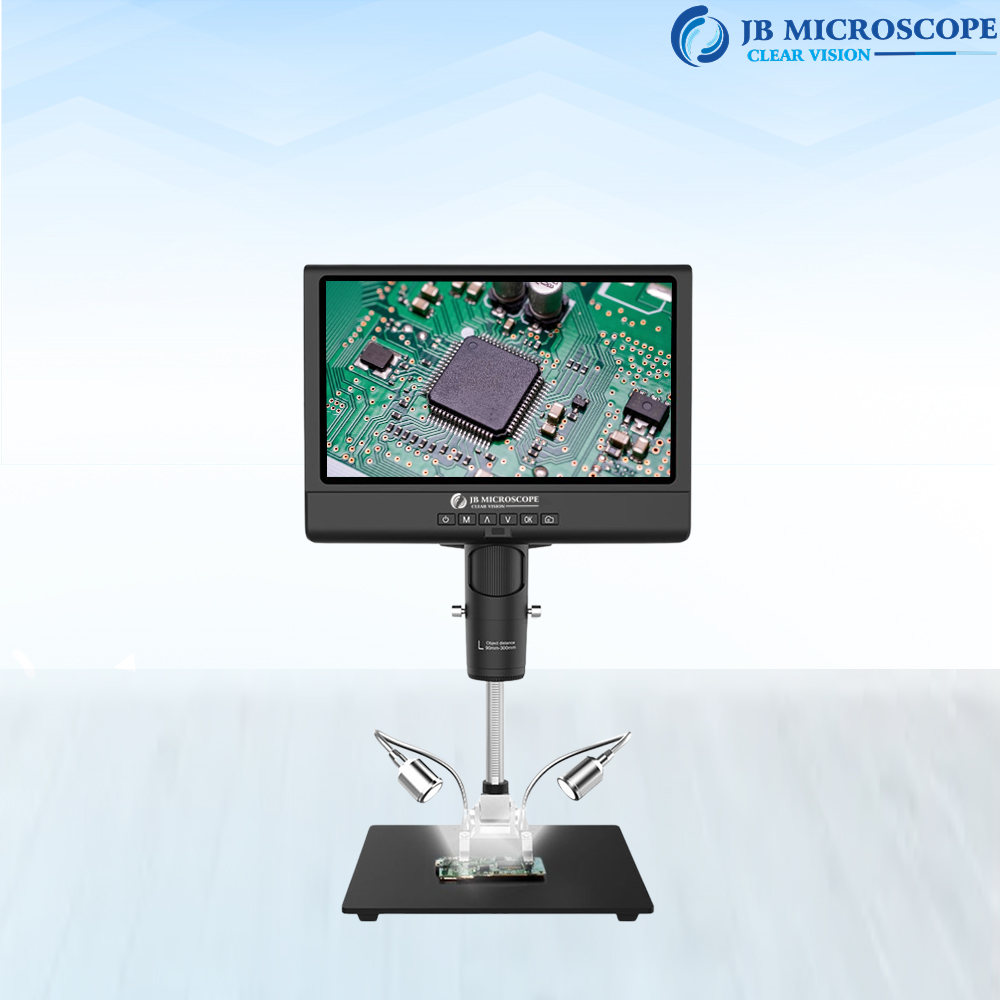

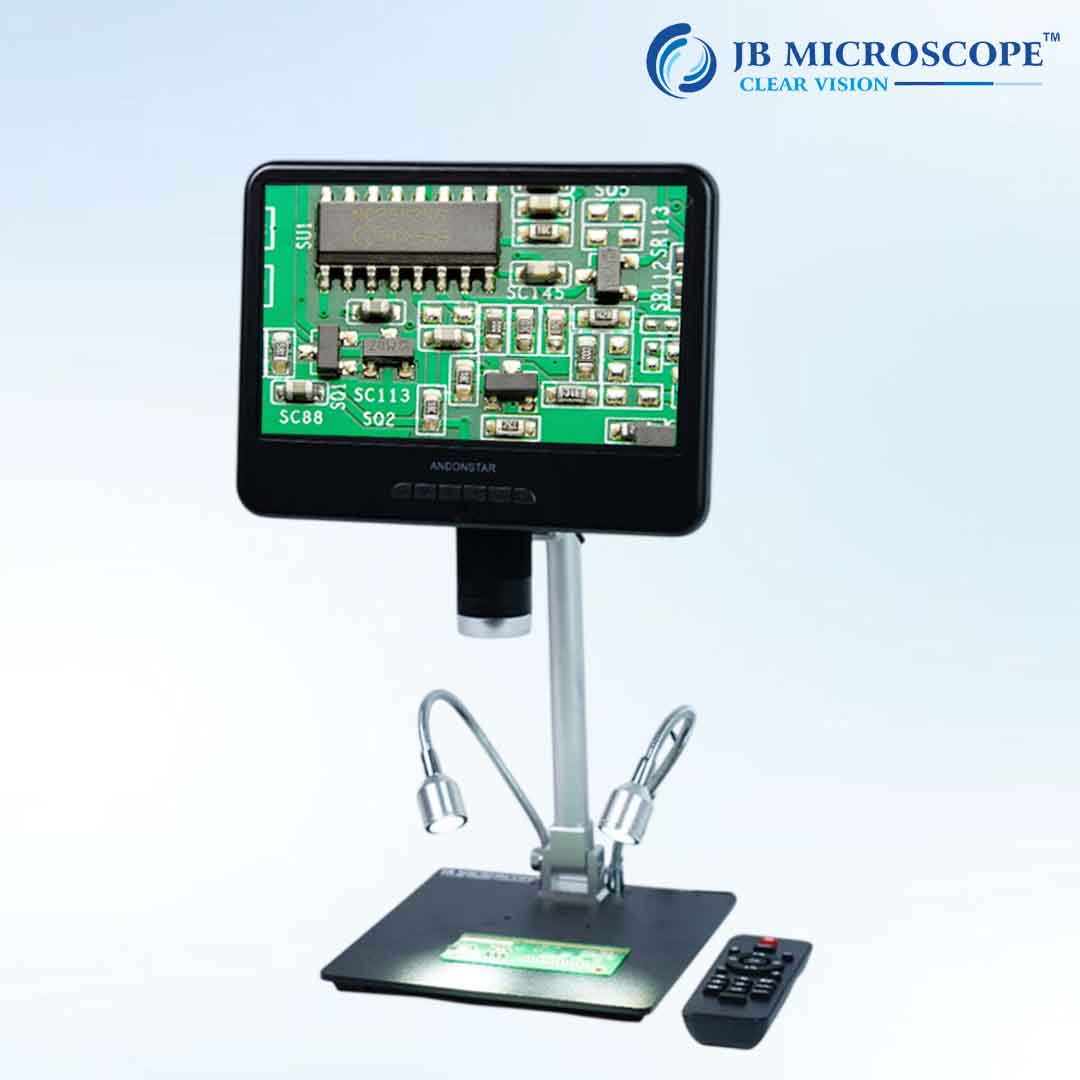

Digital Microscope JBM-AD10

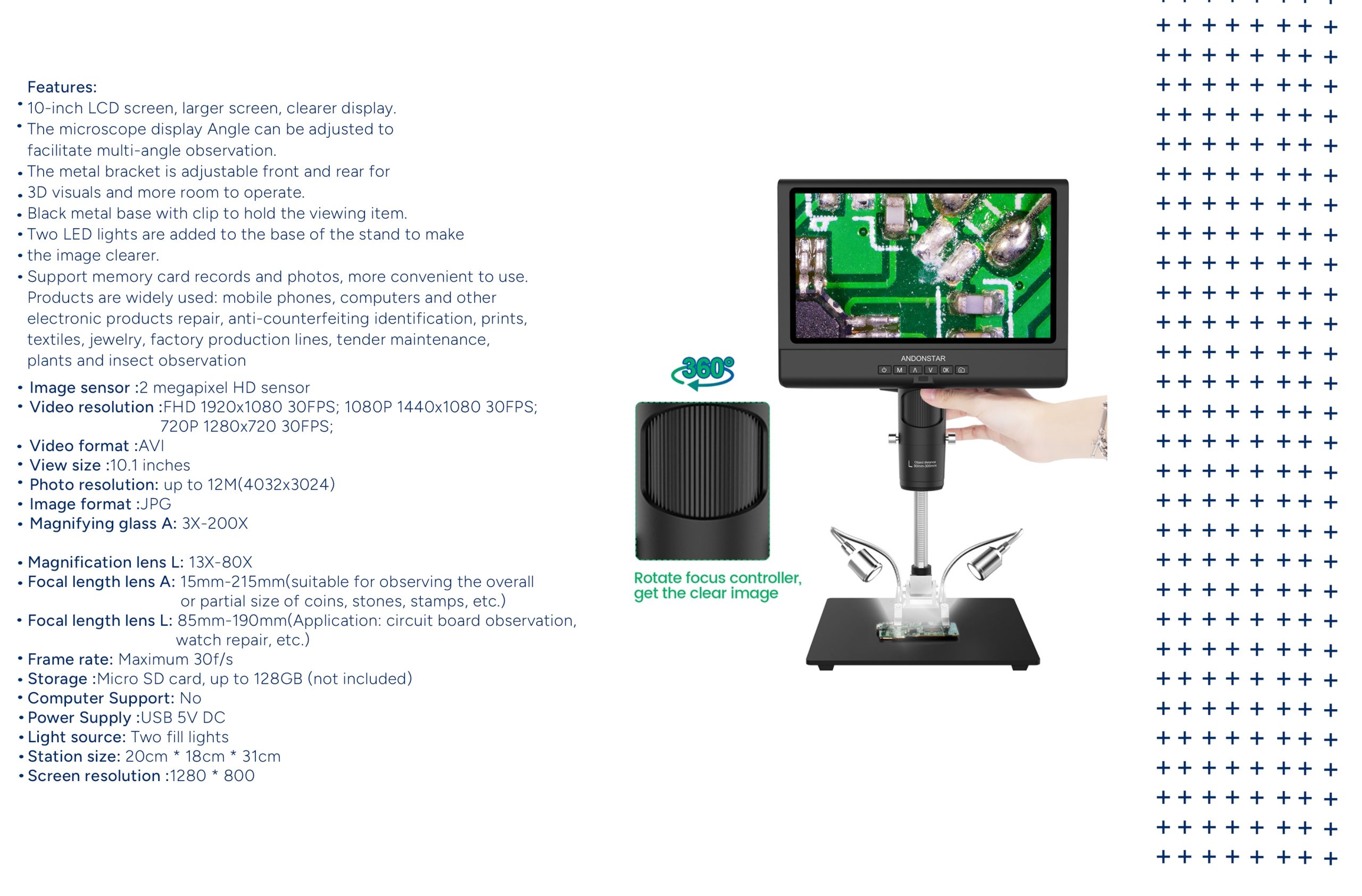

     Features

• 10-inch LCD screen, larger screen, clearer display.

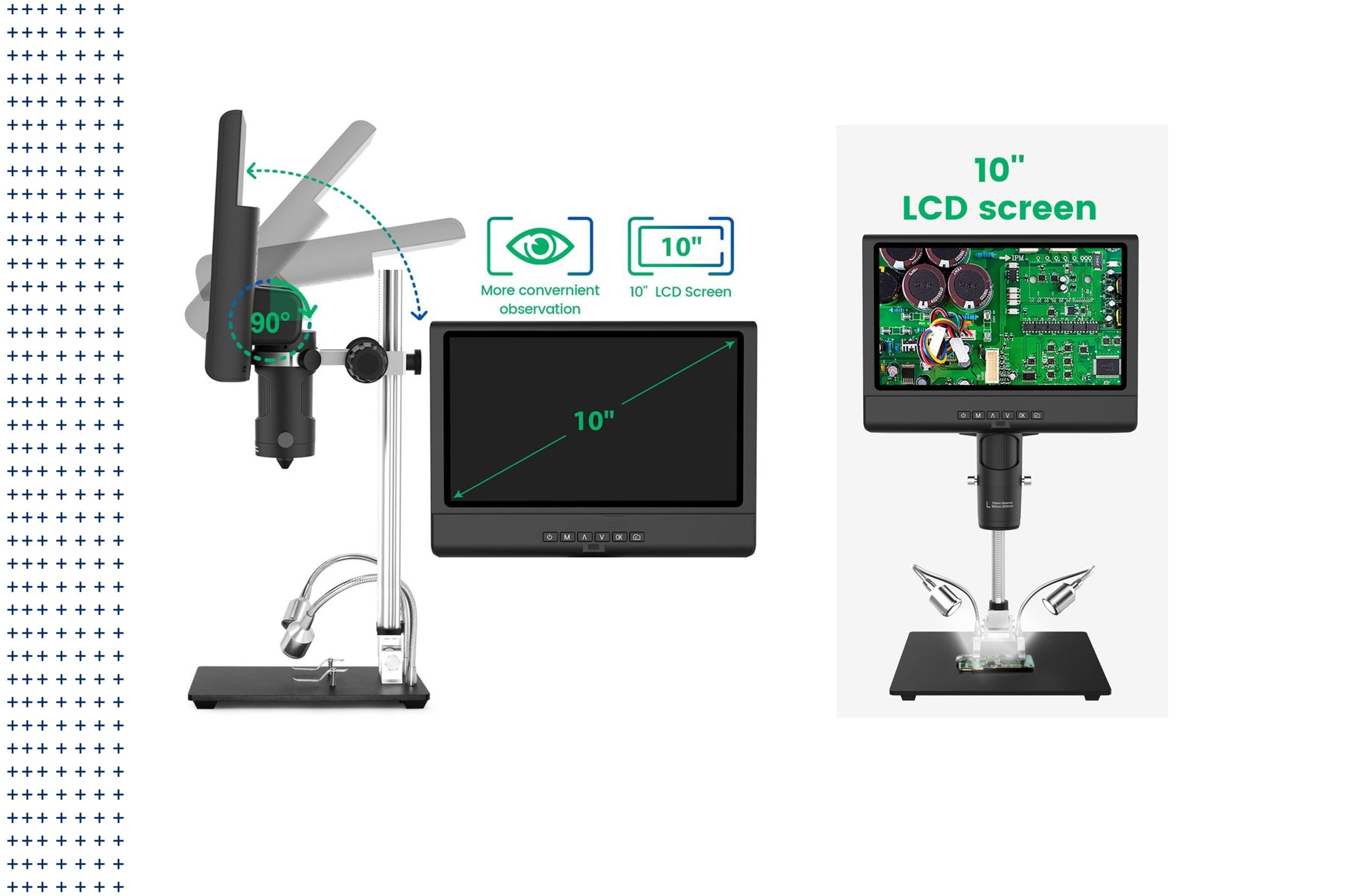

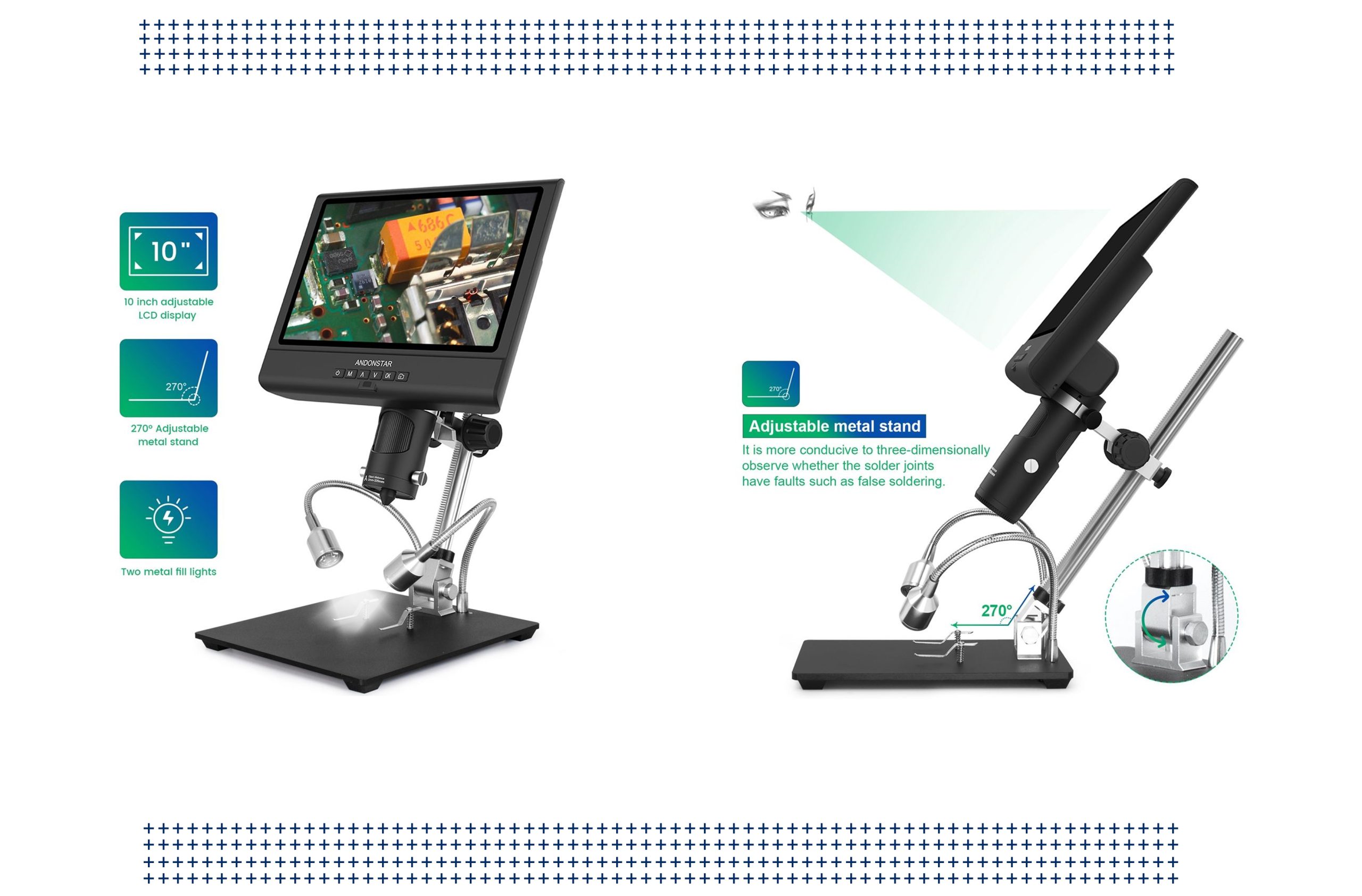

• The microscope display Angle can be adjusted to
facilitate multi-angle observation .
• The metal bracket is adjustable front and rear for
• 3D visuals and more room to operate.
• Black metal base with clip to hold the viewing item.
• Two LED lights are added to the base of the stand to make
• the image clearer.
• Support memory card records and photos, more convenient to use. Products are widely used: mobile phones, computers and other electronic products repair, anti-counterfeiting identification, prints, textiles, jewelry, factory production lines, tender maintenance, plants and insect observation

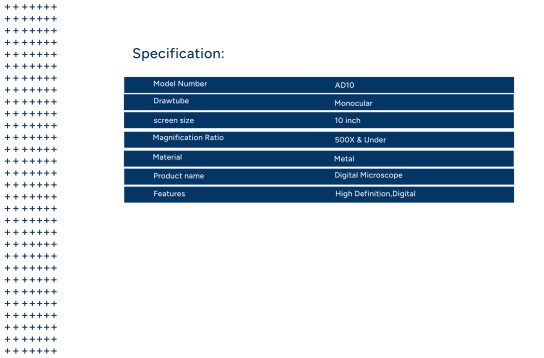

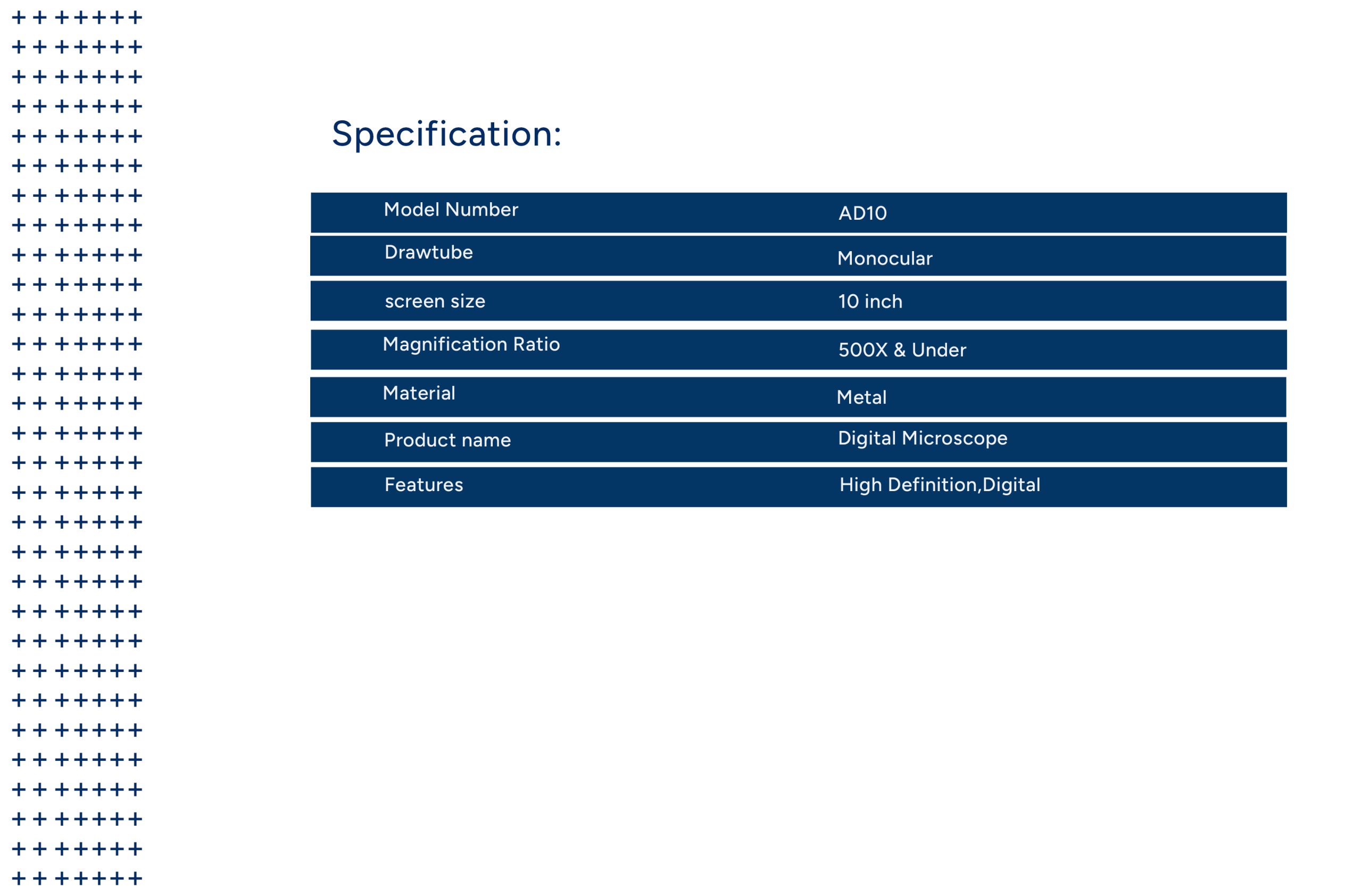

                 Specification:
  • Model Number: AD10
  • Drawtube: Monocular
  • Screen Size : 10 Inch
  • Magnification Ratio:500x& under
  • Material: metal
  • Product name: Digital Microscope
  • Features: High Definition, Digital
  •  Image sensor :2-megapixel HD sensor
  • Video resolution: FHD 1920×1080 30FPS; 1080P 1440×1080 30FPS720P 1280×720 30FPS.
  •  Video format: AVI
  • View size :10.1 inches
  •  Photo resolution: up to 12M(4032×3024)
  •  Image format: JPG
  •  Magnifying glass, A: 3X-200X
  •  Magnification lens L: 13X-80X
  • Focal length lens A: 15mm-215mm (suitable for observing the overall or partial size of coins, stones, stamps, etc.)
  • Focal length lens L: 85mm-190mm (Application: circuit board observation, watch repair, etc.
  •  Frame rate: Maximum 30f/s
  •  Computer Support: No
  •  Power Supply: USB 5V DC
  • Light source: Two fill lights
  •  Station size: 20cm * 18cm * 31cm
  • Screen resolution :1280 * 800
