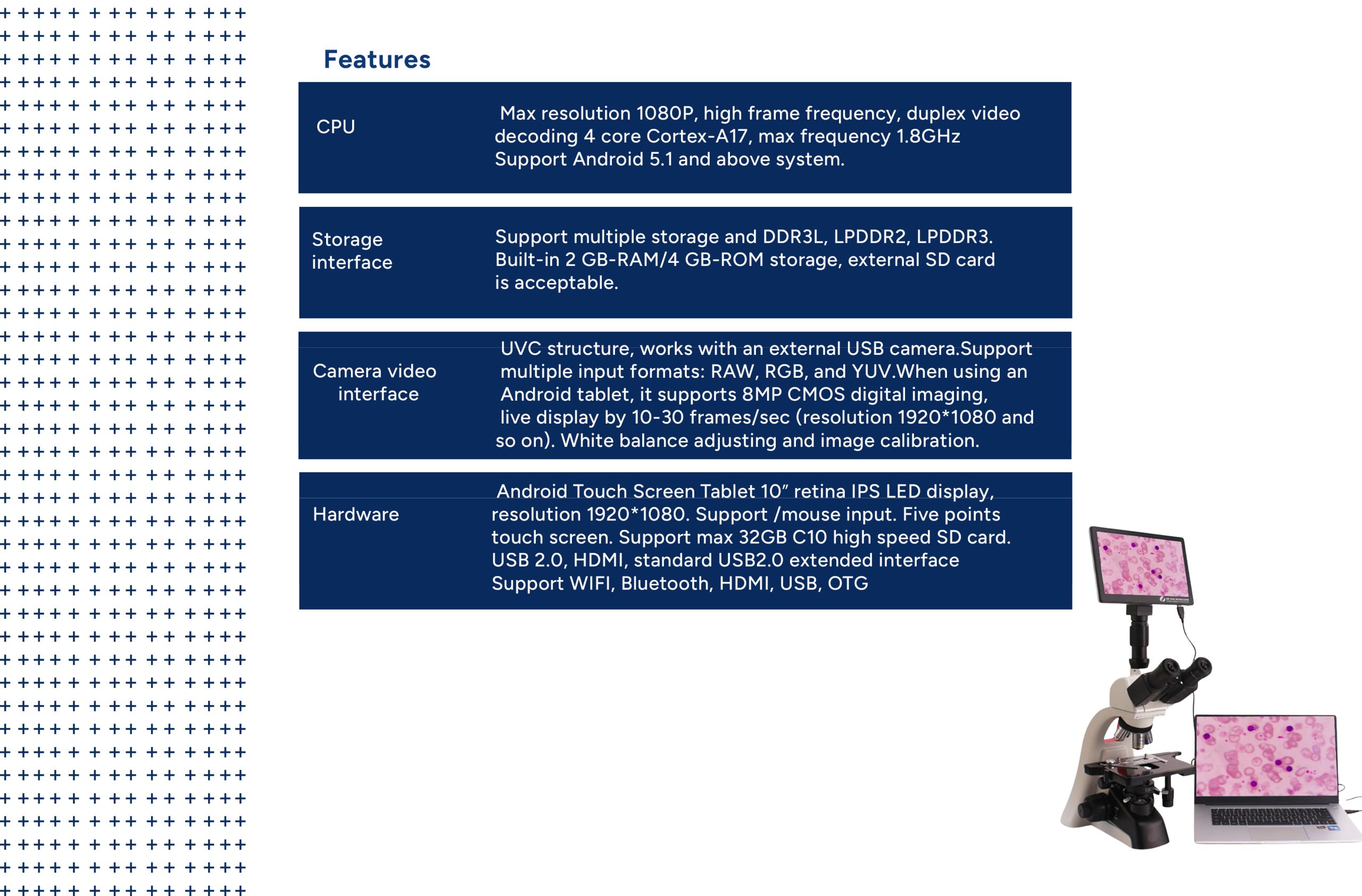

Features:
|
CPU |
Max resolution 1080P, high frame frequency, duplex video decoding 4 core Cortex-A17, max frequency 1.8GHz Support Android 5.1 and above system. Storage interface: Support multiple storage and DDR3L, LPDDR2, LPDDR3. Built-in 2 GB-RAM/4 GB-ROM storage, external SD card is acceptable. |
|
Camera video interface |

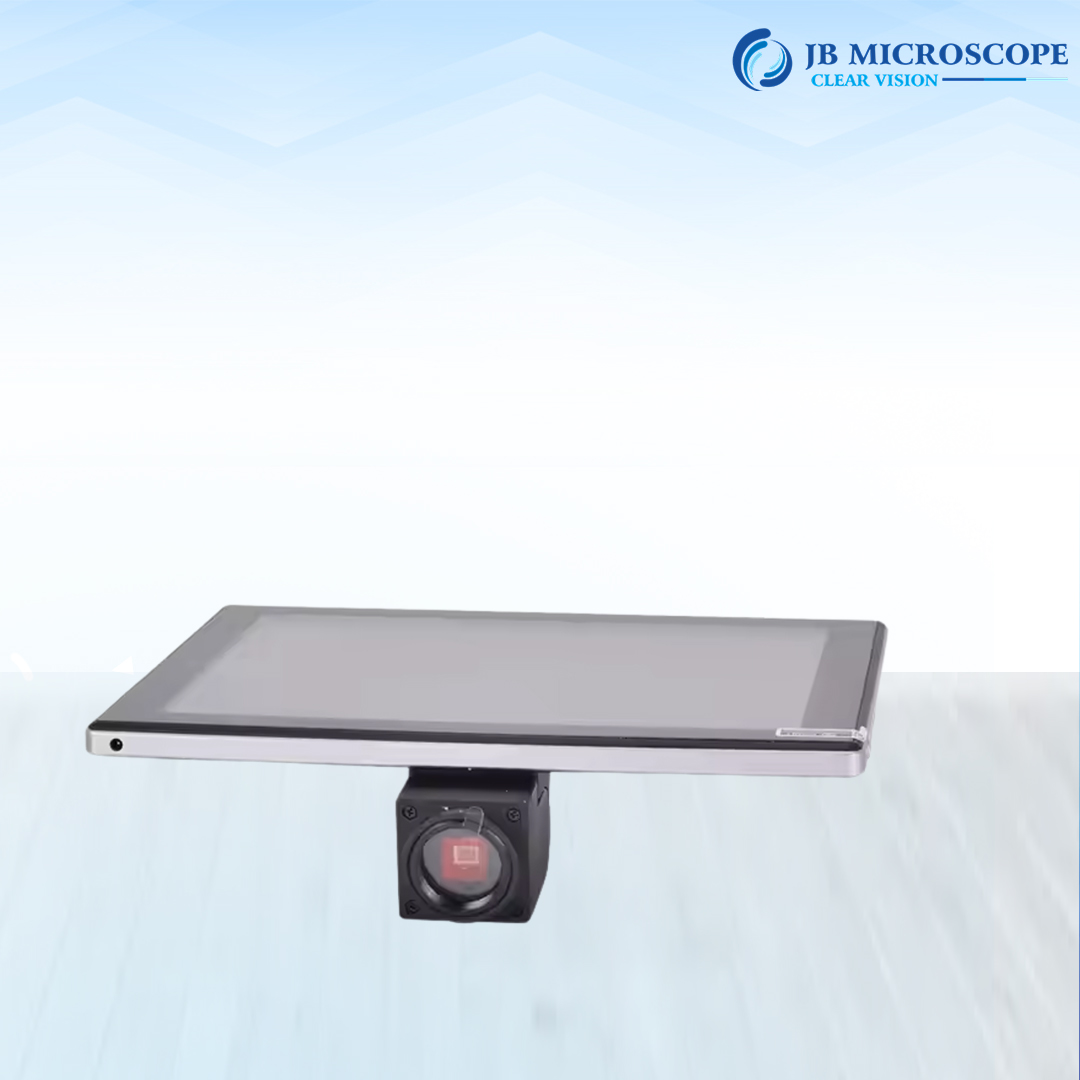

UVC structure, works with an external USB camera. Support multiple input formats: RAW, RGB, and YUV. When using an Android tablet, it supports 8MP CMOS digital imaging, live display by 10-30 frames/sec (resolution 1920*1080 and so on). White balance adjusting and image calibration. |
|
Hardware |
Android Touch Screen Tablet 10″ retina IPS LED display, resolution 1920*1080. Support /mouse input. Five points touch screen. Support max 32GB C10 high speed SD card. USB 2.0, HDMI, standard USB2.0 extended interface Support WIFI, Bluetooth, HDMI, USB, OTG |

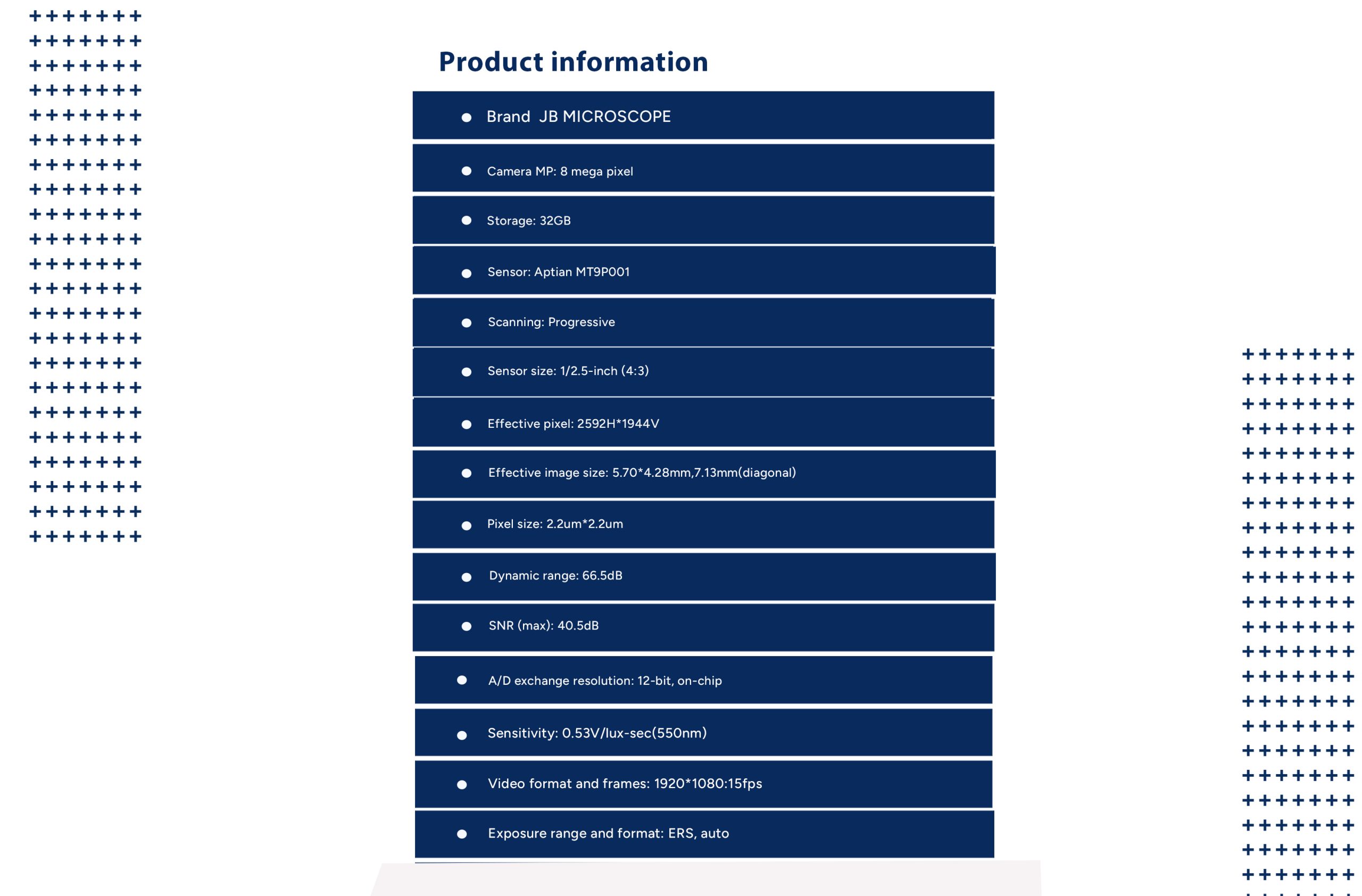

Specifications:
|
Camera |
8 MP mega pixel |
|
Storage |
32GB |
|
Sensor |
Aptian MT9P001 |
|
Scanning |
Progressive |
|
Sensor size |
1/2.5-inch (4:3) |
|
Effective pixel |
2592H*1944V |
|
Effective image size |
5.70*4.28mm,7.13mm(diagonal) |
|
Pixel size |
2.2um*2.2um |
|
Dynamic range |
66.5dB |
|
SNR (max) |
40.5dB |
|
A/D exchange resolution |
12-bit, on-chip |
|
Sensitivity |
0.53V/lux-sec(550nm) |
|
Video format and frames |
1920*1080:15fps |
|
Exposure range and format |
ERS, auto |
- Package including:

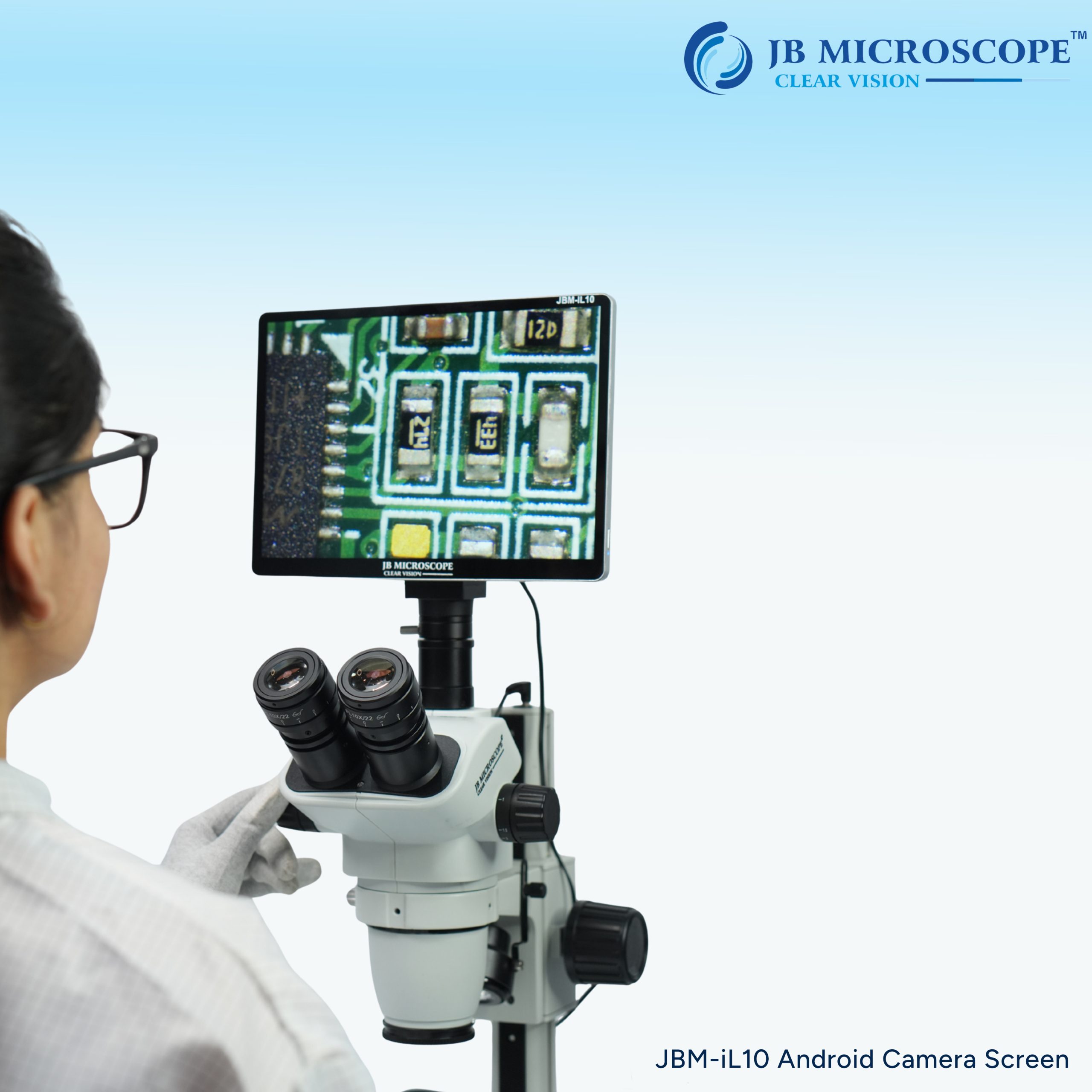

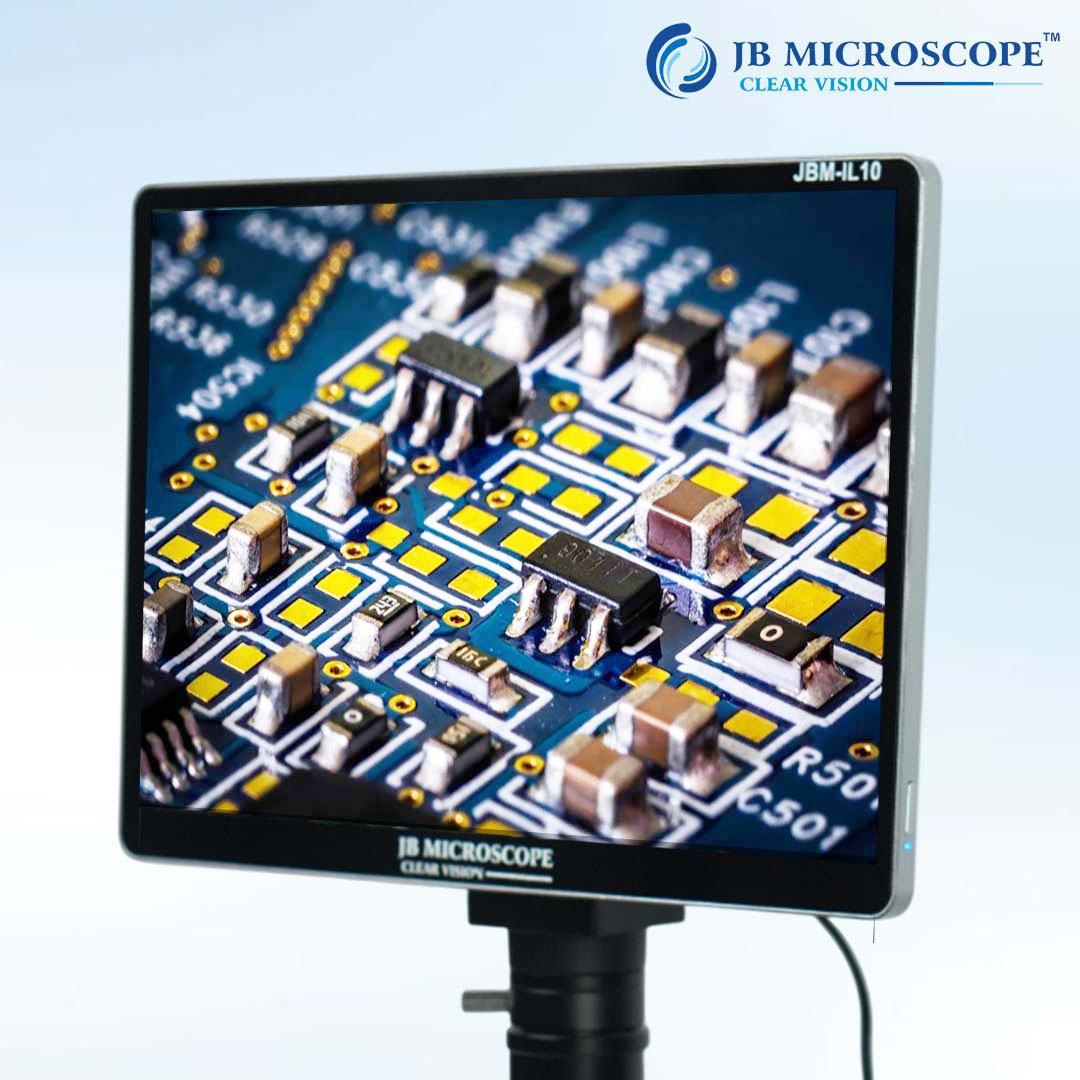

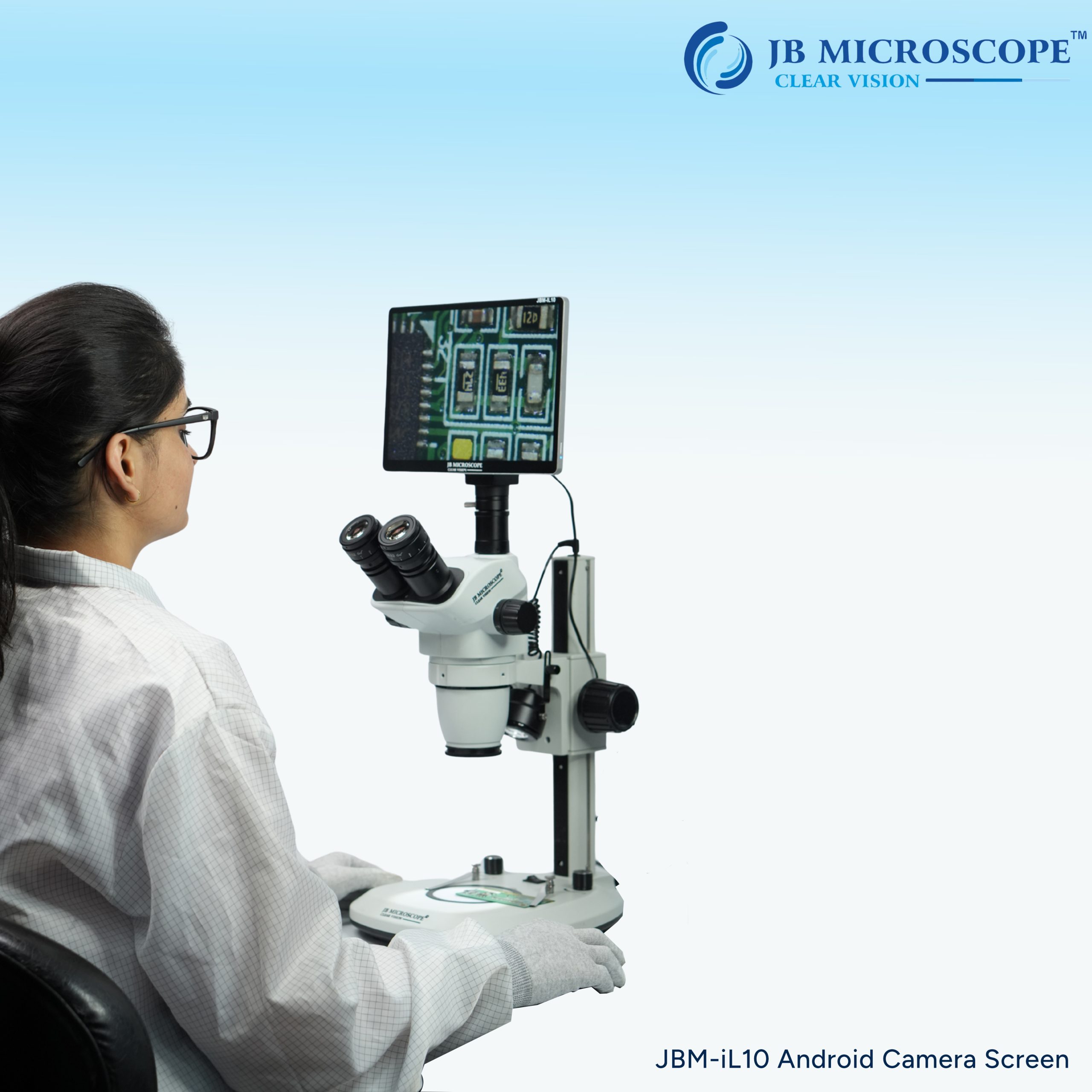

1 x Microscope Camera screen.
1 x Power supply (EU/US/UK/AU).
Wireless mouse use in screen
HDMI Cable
