AUTOFOCUS CAMERA MICROSCOPE JBM-AF8 4K ULTRA HD

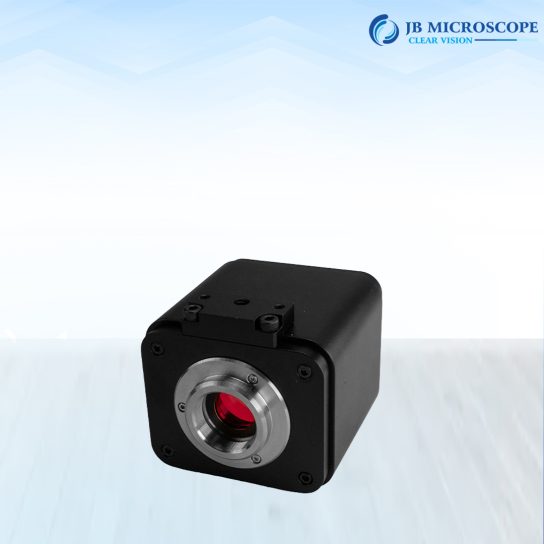

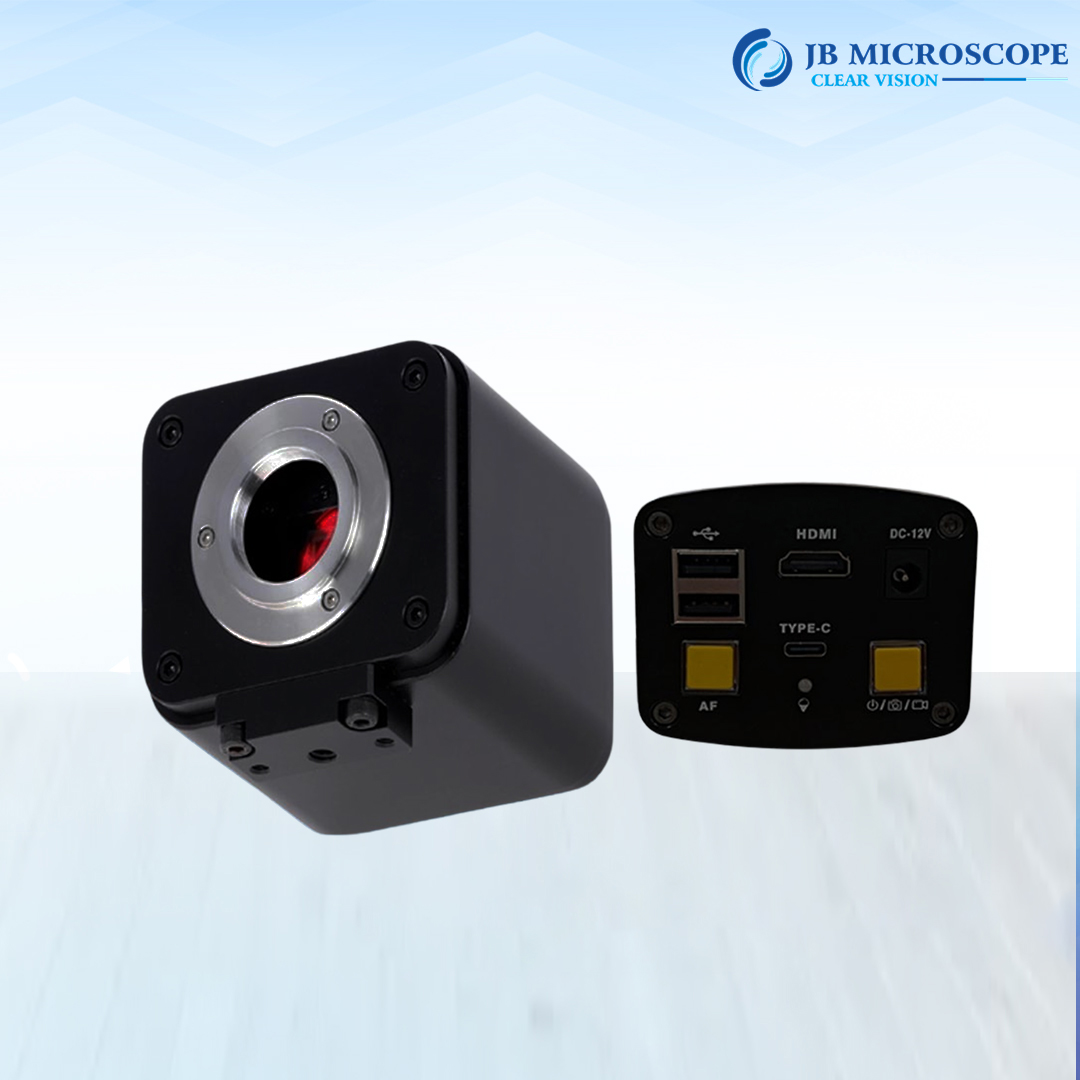

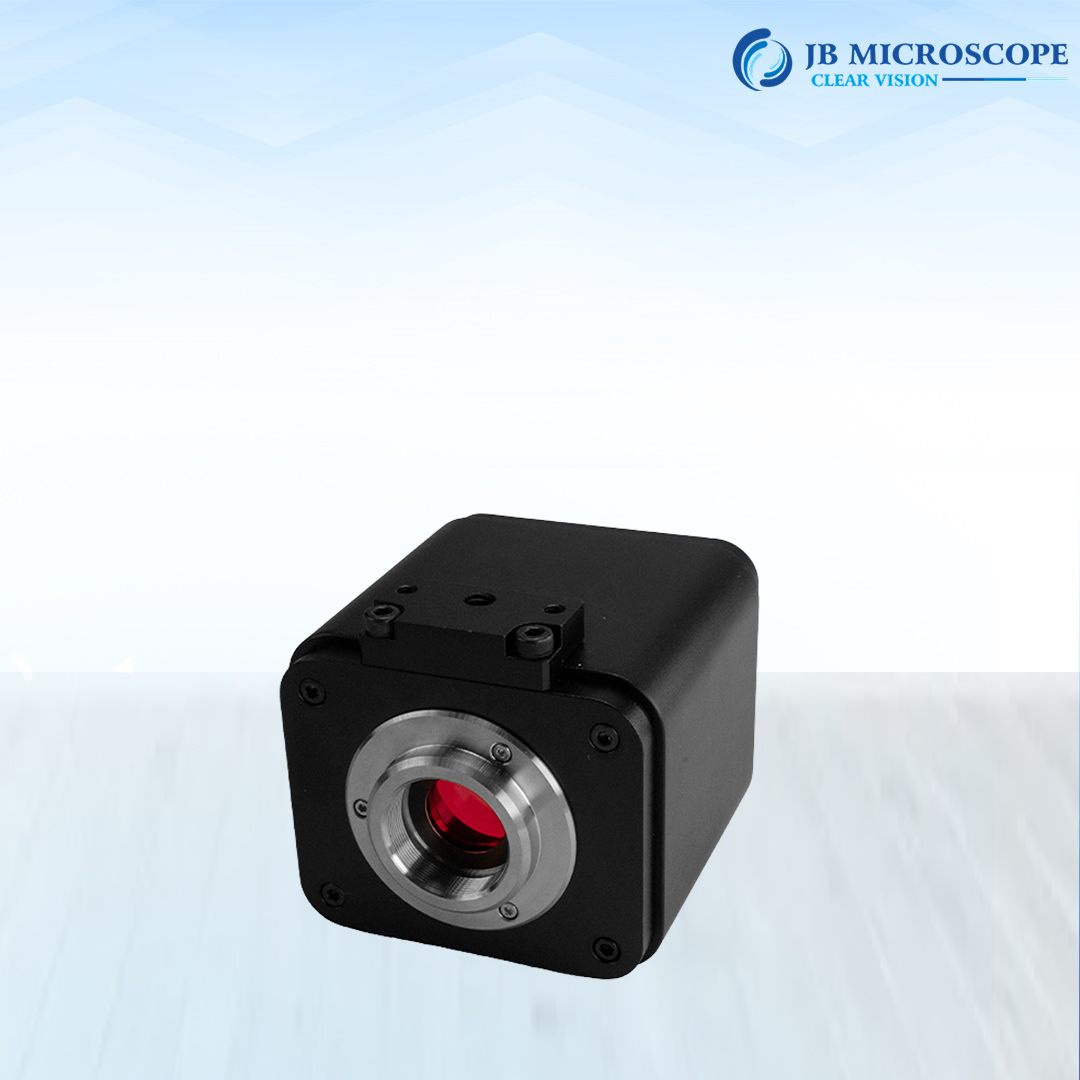

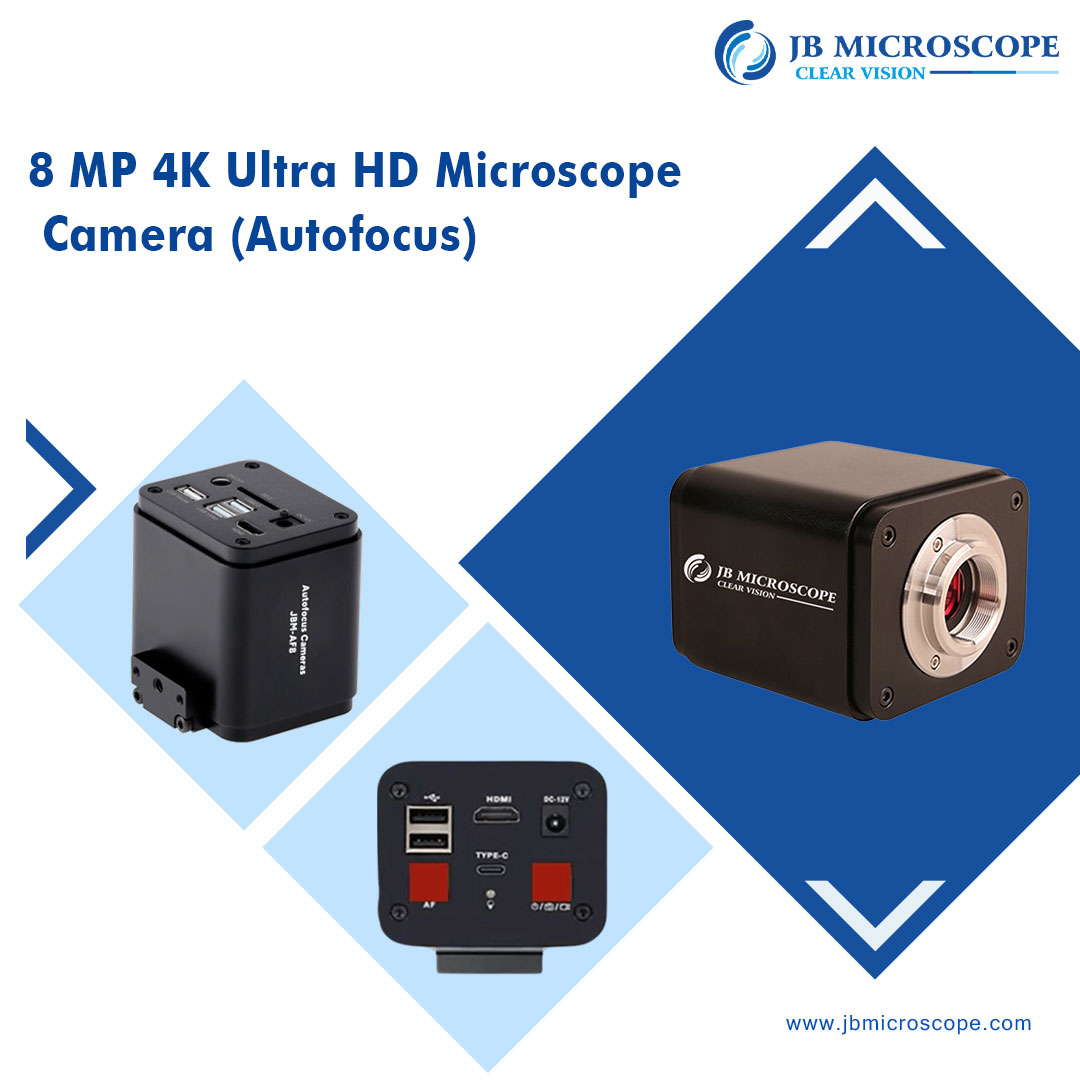

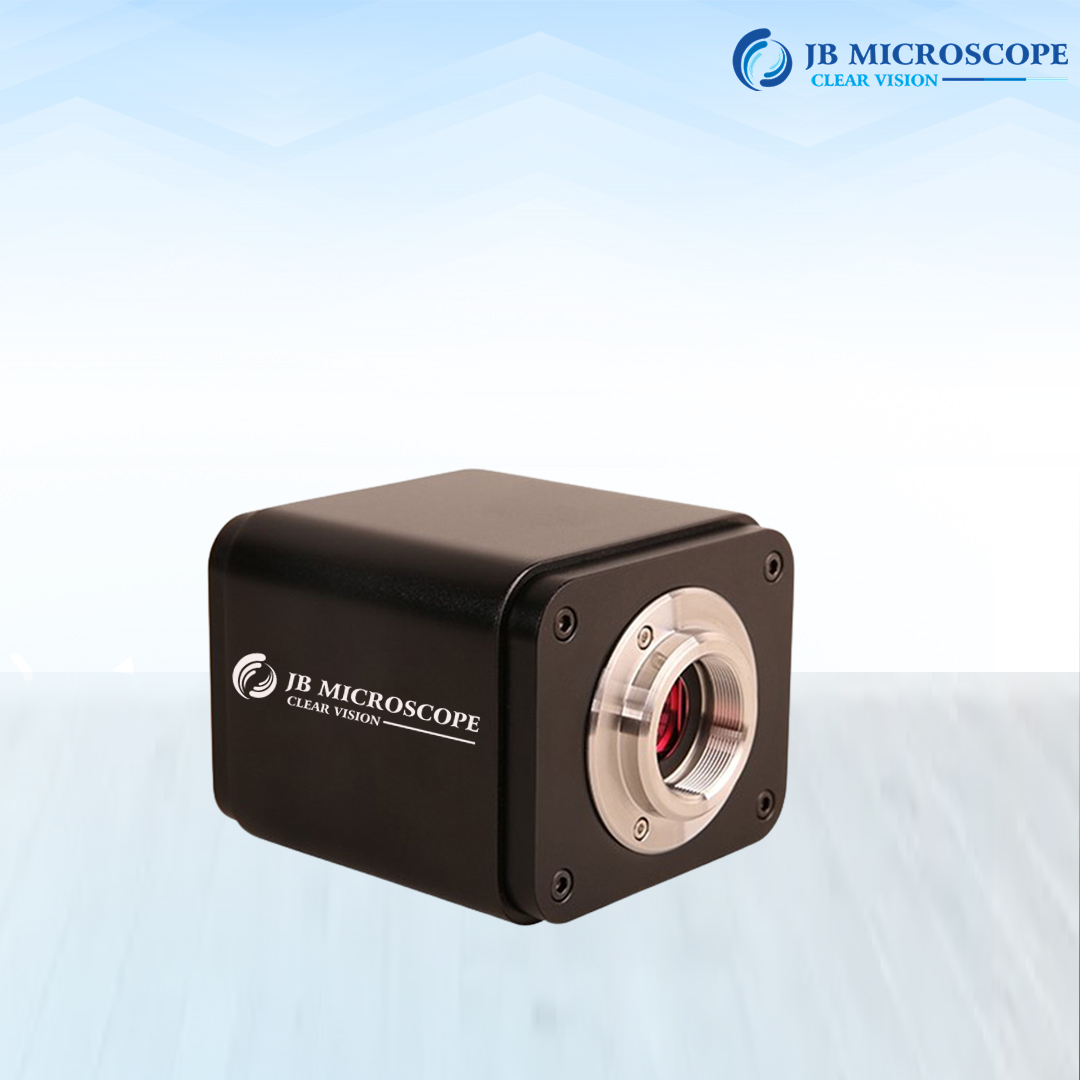

JBM – AF8 4K Ultra HD Image Autofocus Video Microscope Camera

Looking for a high-quality industrial camera to upgrade your microscopy experience? Look no further than the JBM-AF8 4K Ultra HD Image Auto Focus Video Microscope Industrial Camera! With its full automatic focus, integrated MEC technology, and built-in auto focus system, this camera is designed to deliver stunningly clear images every time.

Measurement Function Introduction

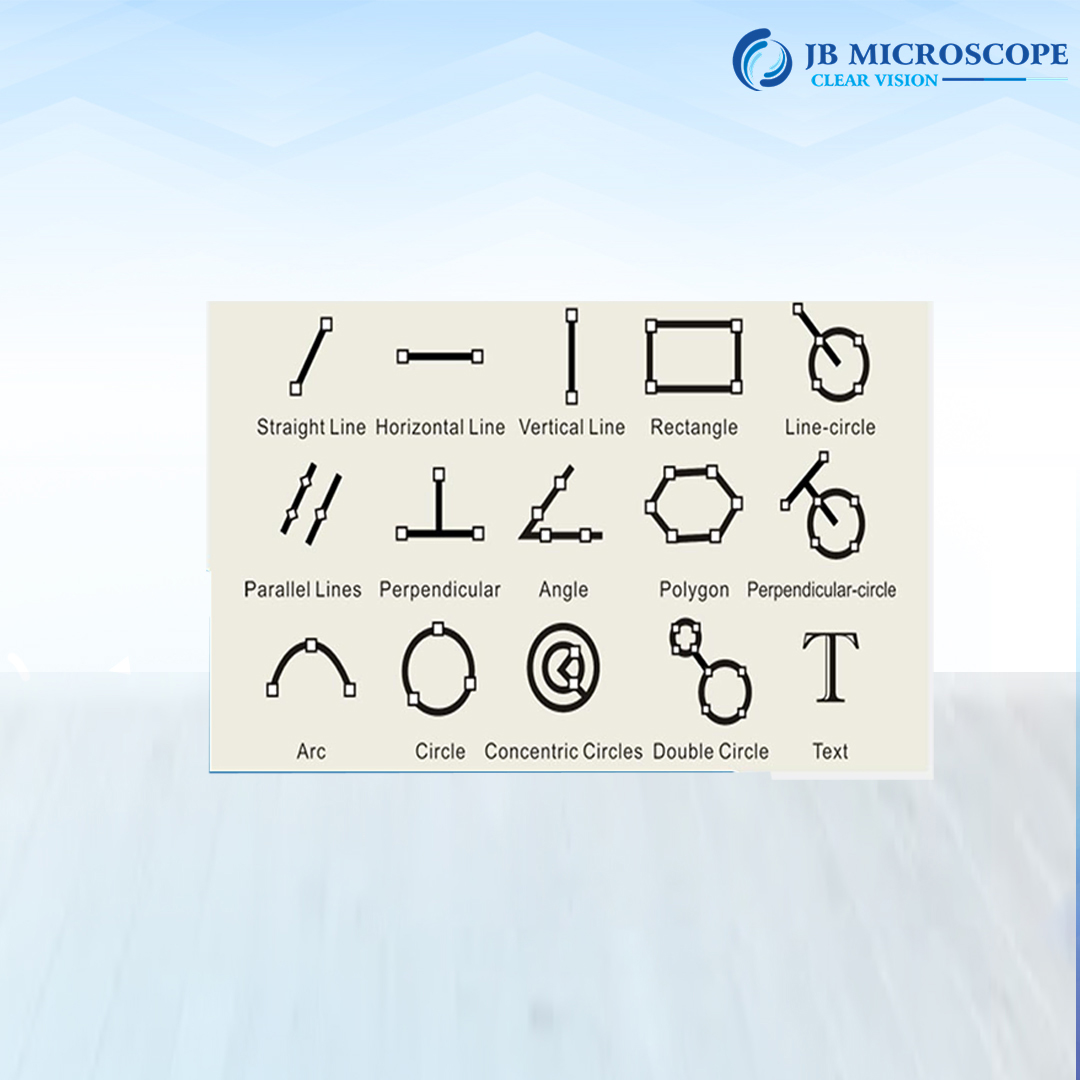

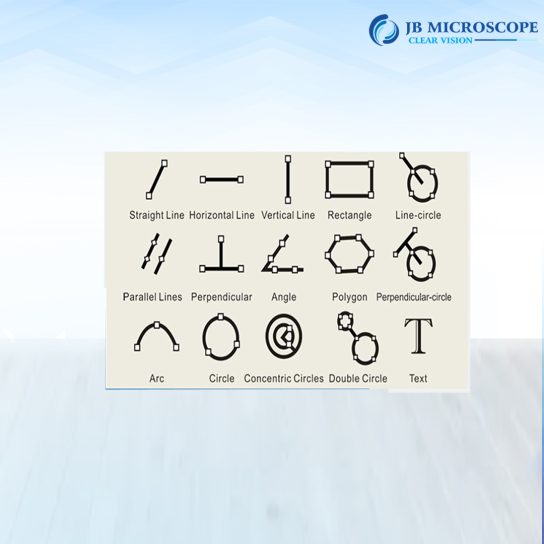

JBM-AF8  4K  Plus can measure straight lines, angles, concentric circles, parallel lines, point-to-line distance, point to-line to concentric circles, diameter, circumference and area, length and width of rectangle. It can measure the polygon and calculate its area. All the corresponding measurement report can be output to U disk

Category:

Field of view

·         0.7x Magnification

·         1x Magnification

·         2x Magnification

Brand JB Microscope
Image Sensor Color CMOS
Pixel 8 M pixels
Pixel size 1/2.8〞
Menu All-digital UI design
Method of Operation Mouse
Power DC DC12V

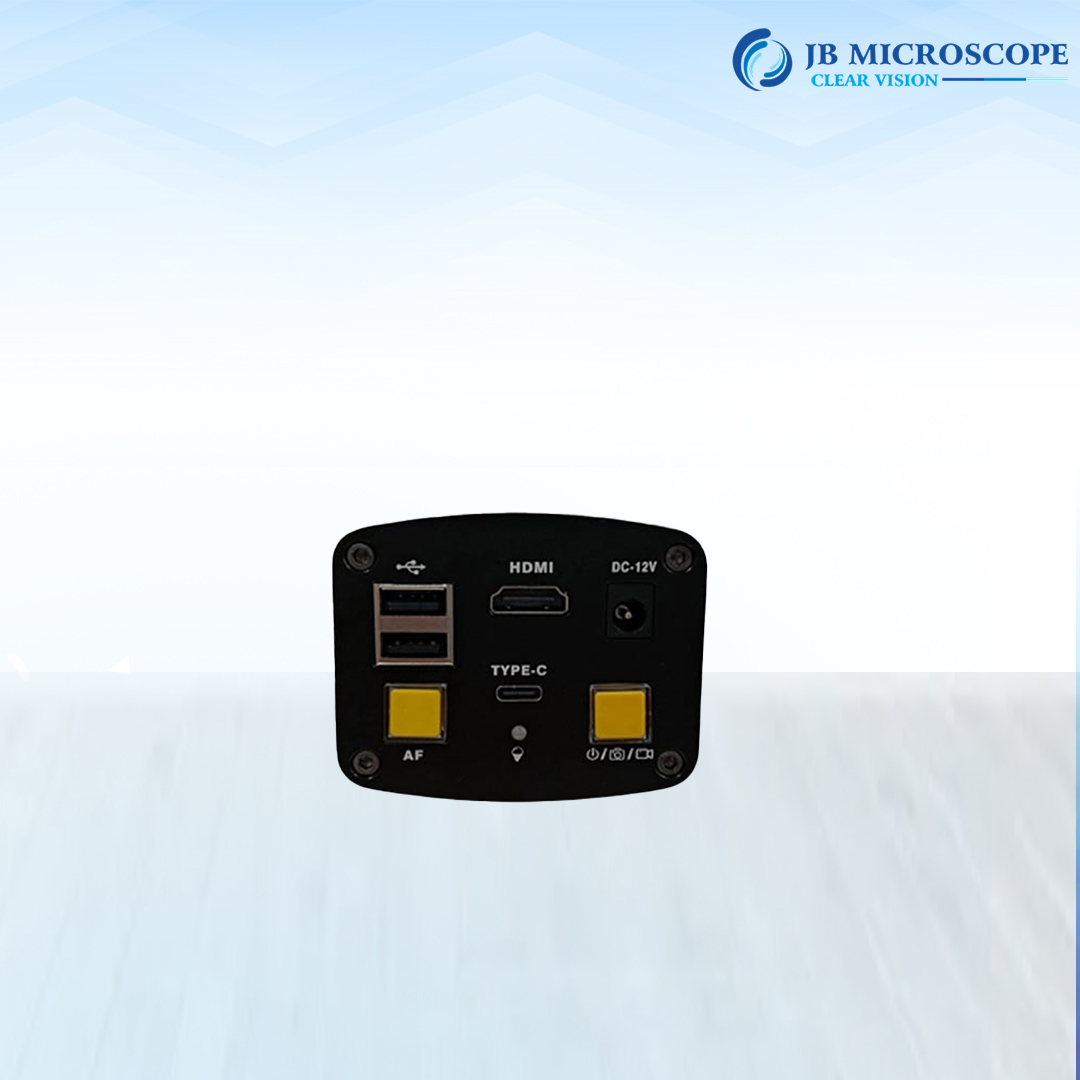

output method HDMI
Display Frame rate 4K@60fps/4K@50fps
Scanning method Line by line scanning
White Balance Manual / Auto/ One click
Exposure Auto/Manual
Shutter Speed 1/50s(1/60s)~1/10000s
Angle of view D:78.6°(W)-6.16°(T)
H:69.2°(W)-5.22°(T)
V:45.4°(W)-3.26°(T)
Working distance 10cm~∞
Optical magnification 1~28
Digital magnification 1~3
Digital zoom Support
Storage Support USB2.0/USB3.0 external storage Support camera internal storage
