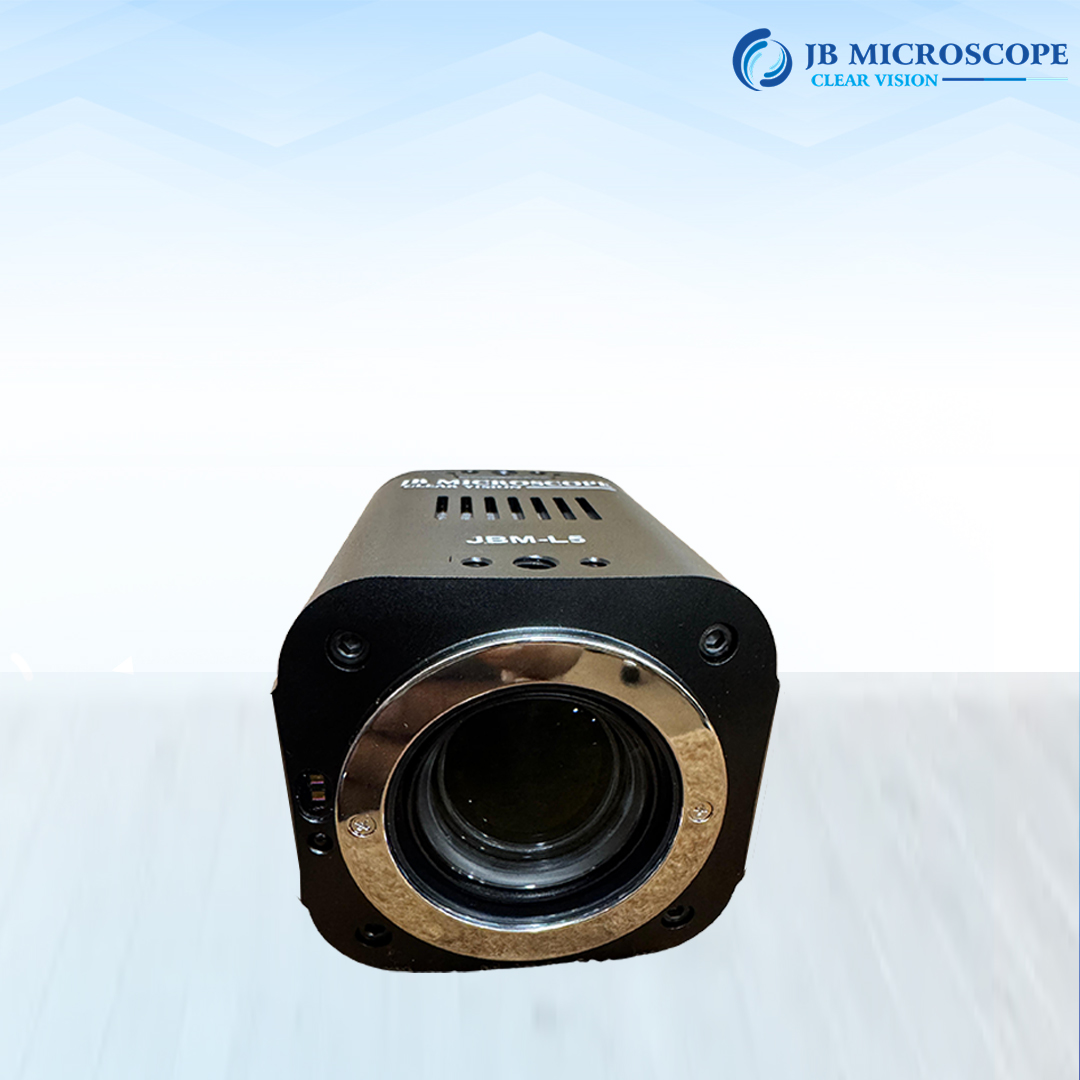

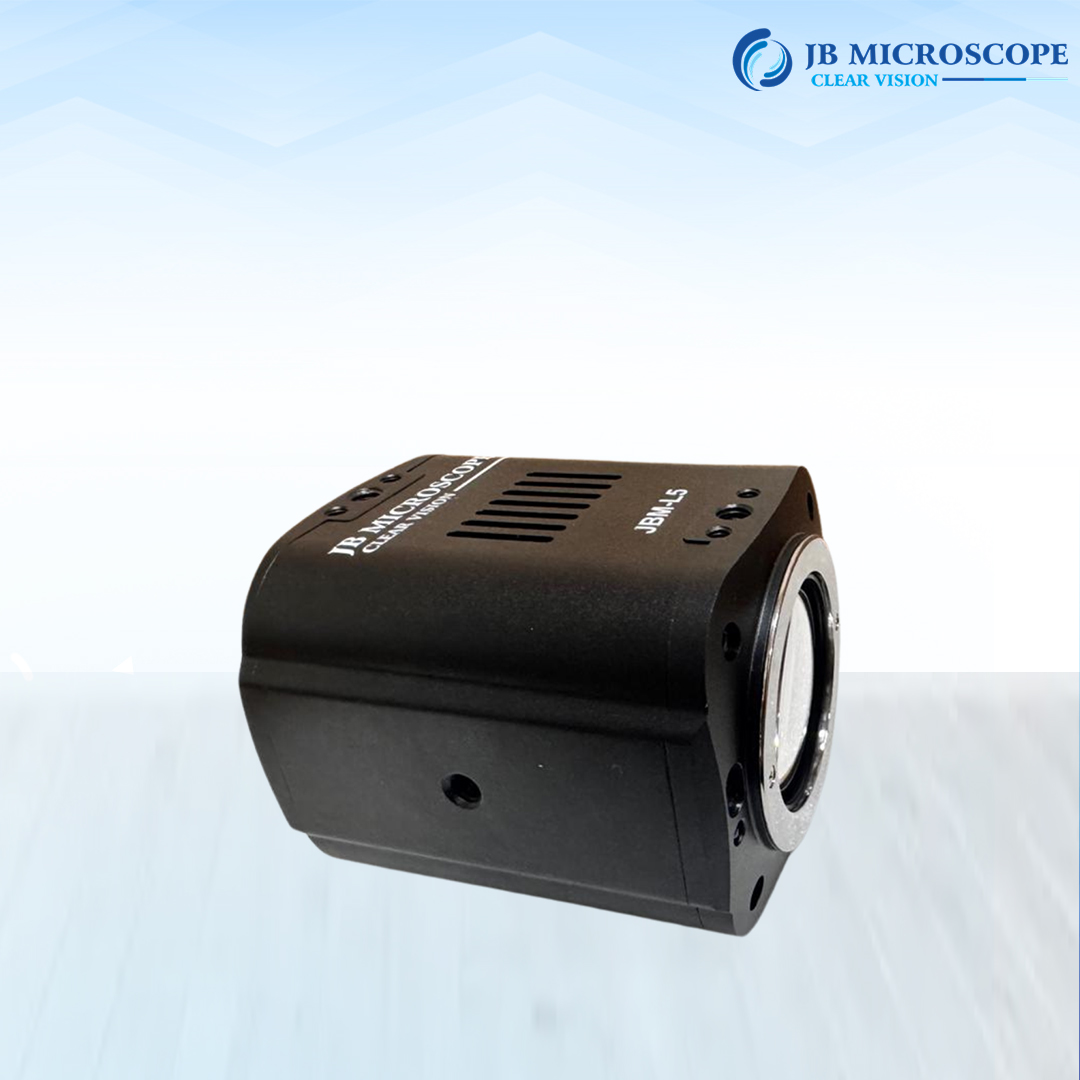

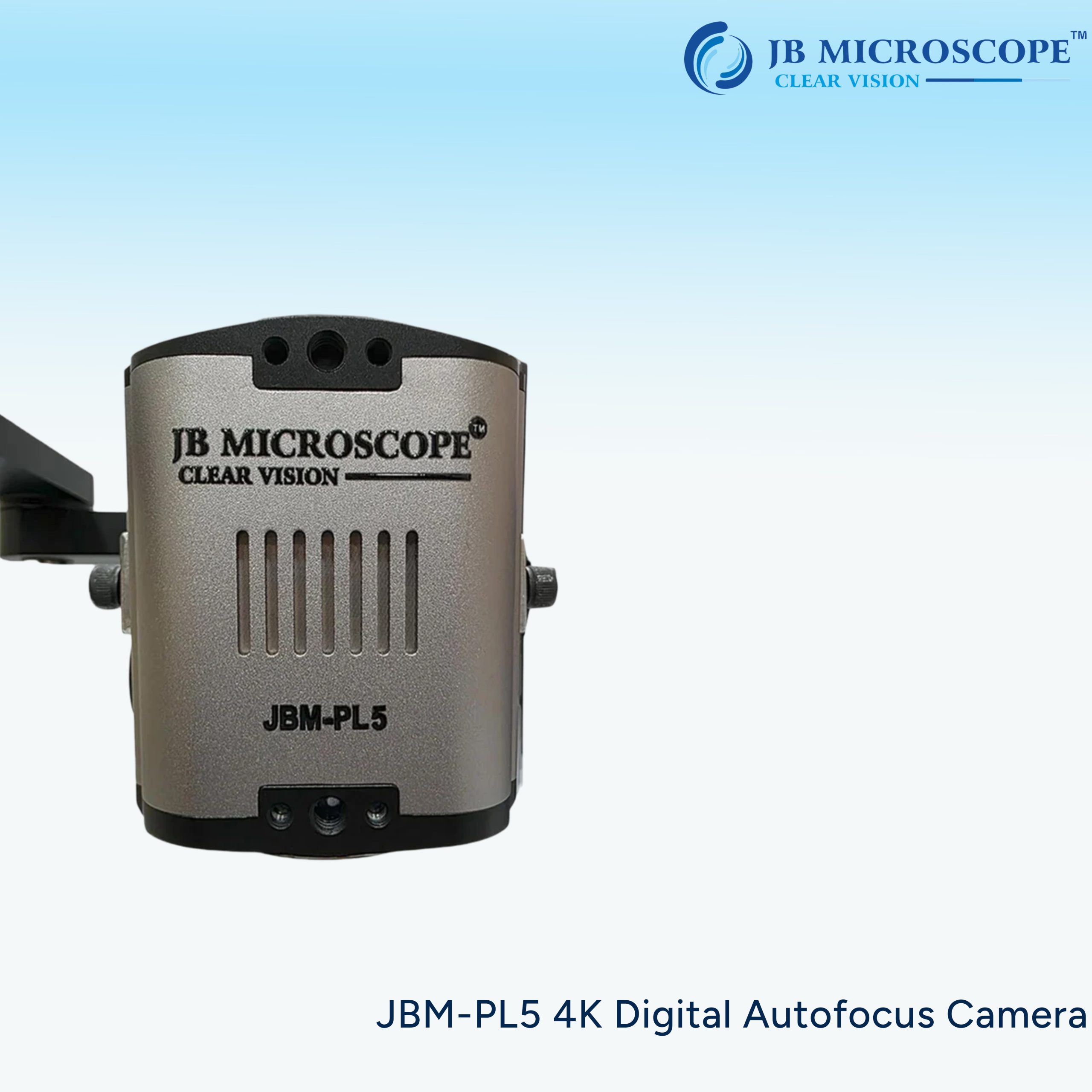

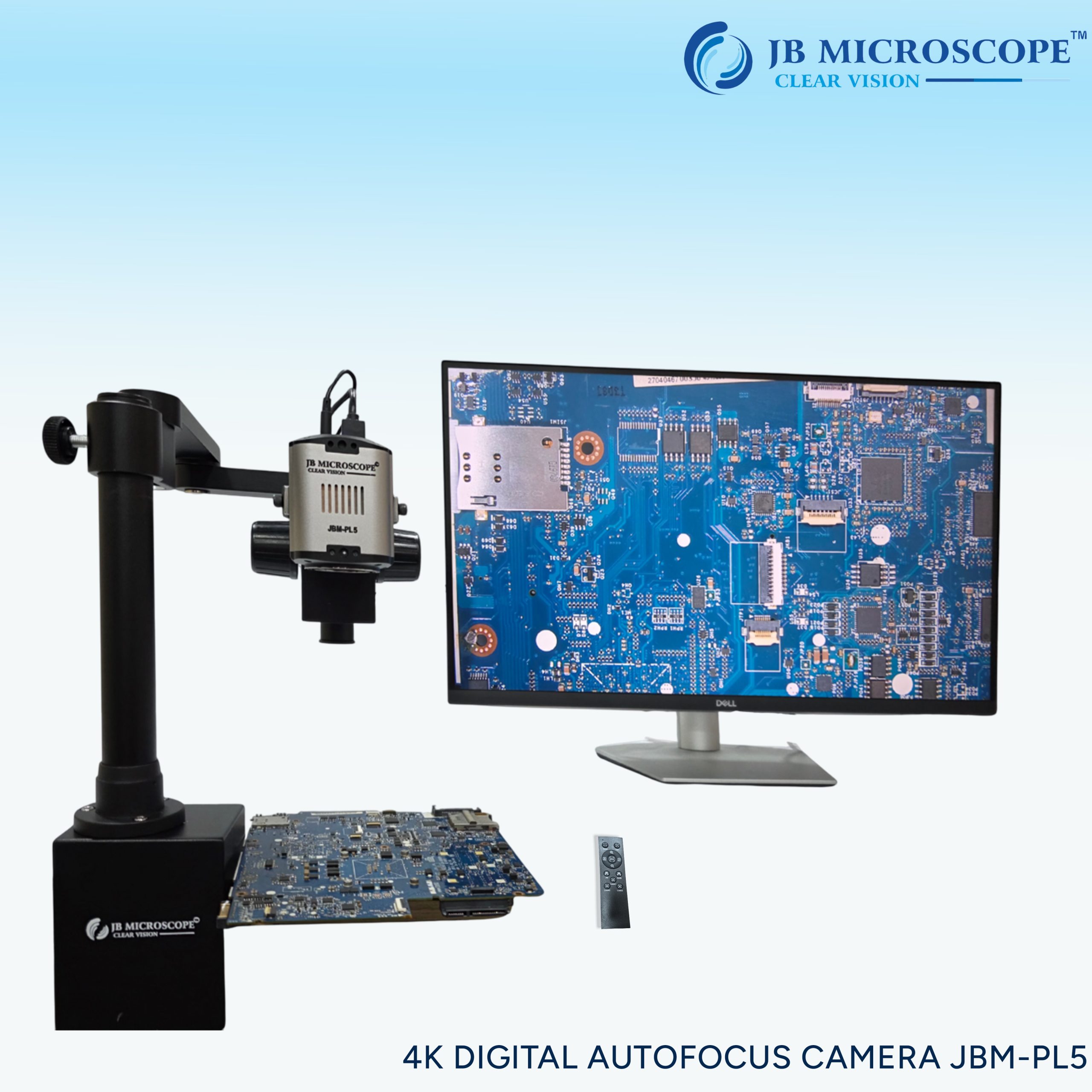

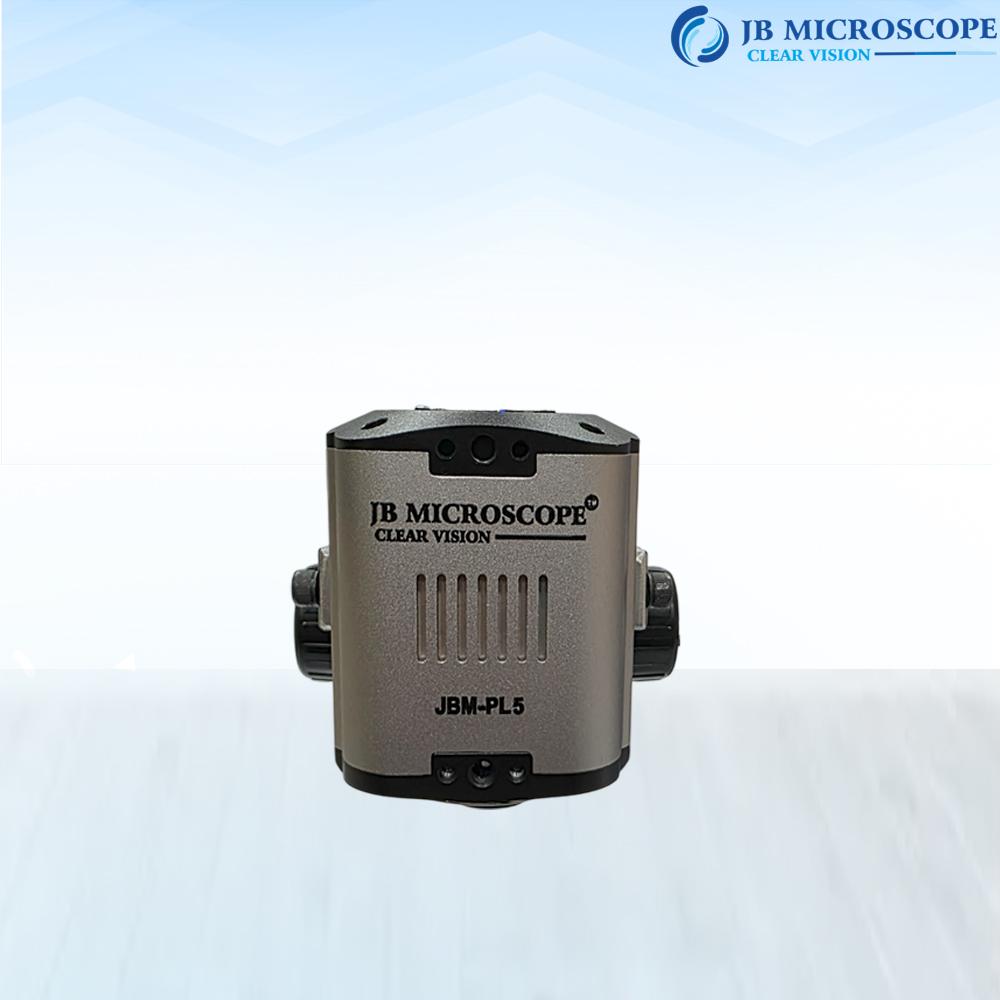

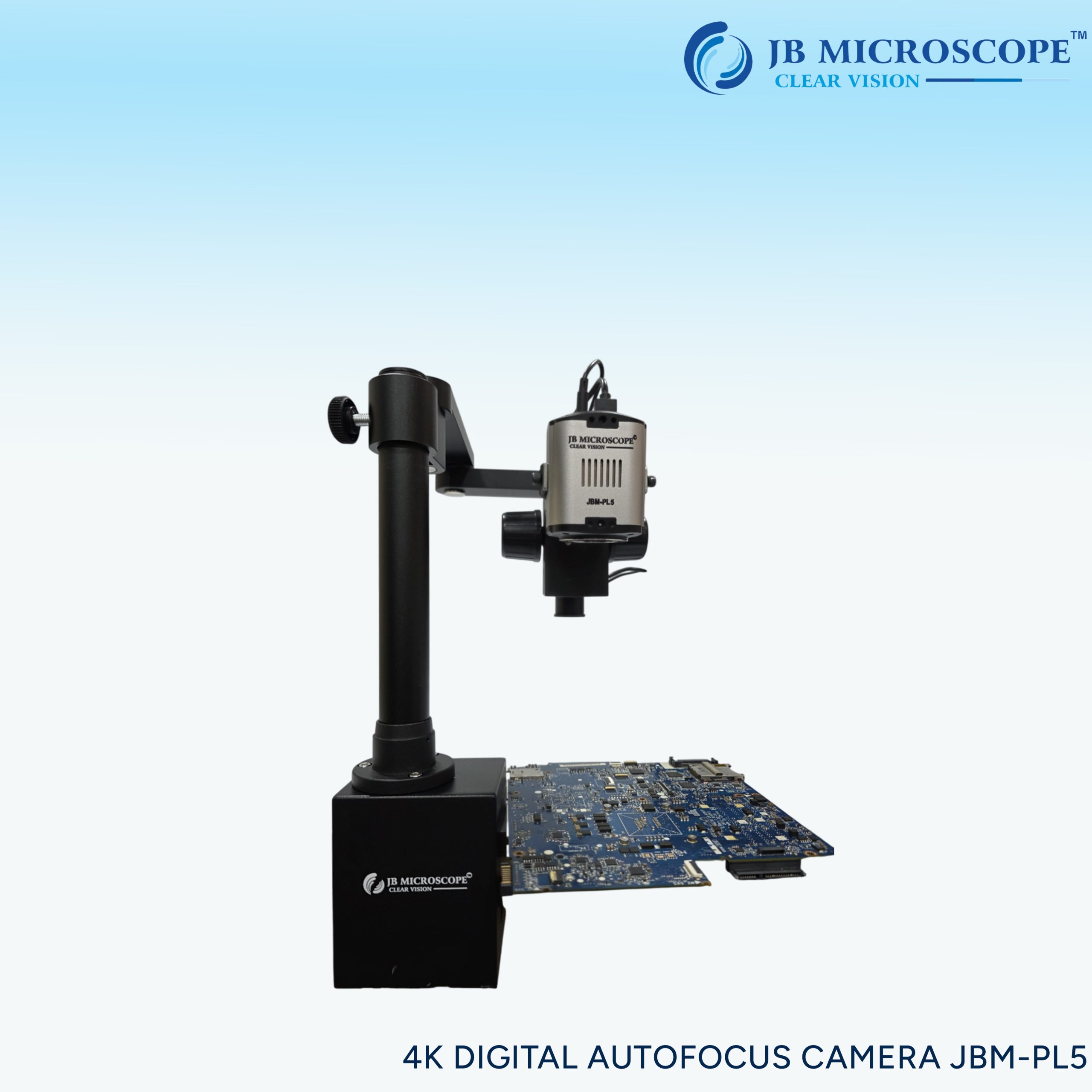

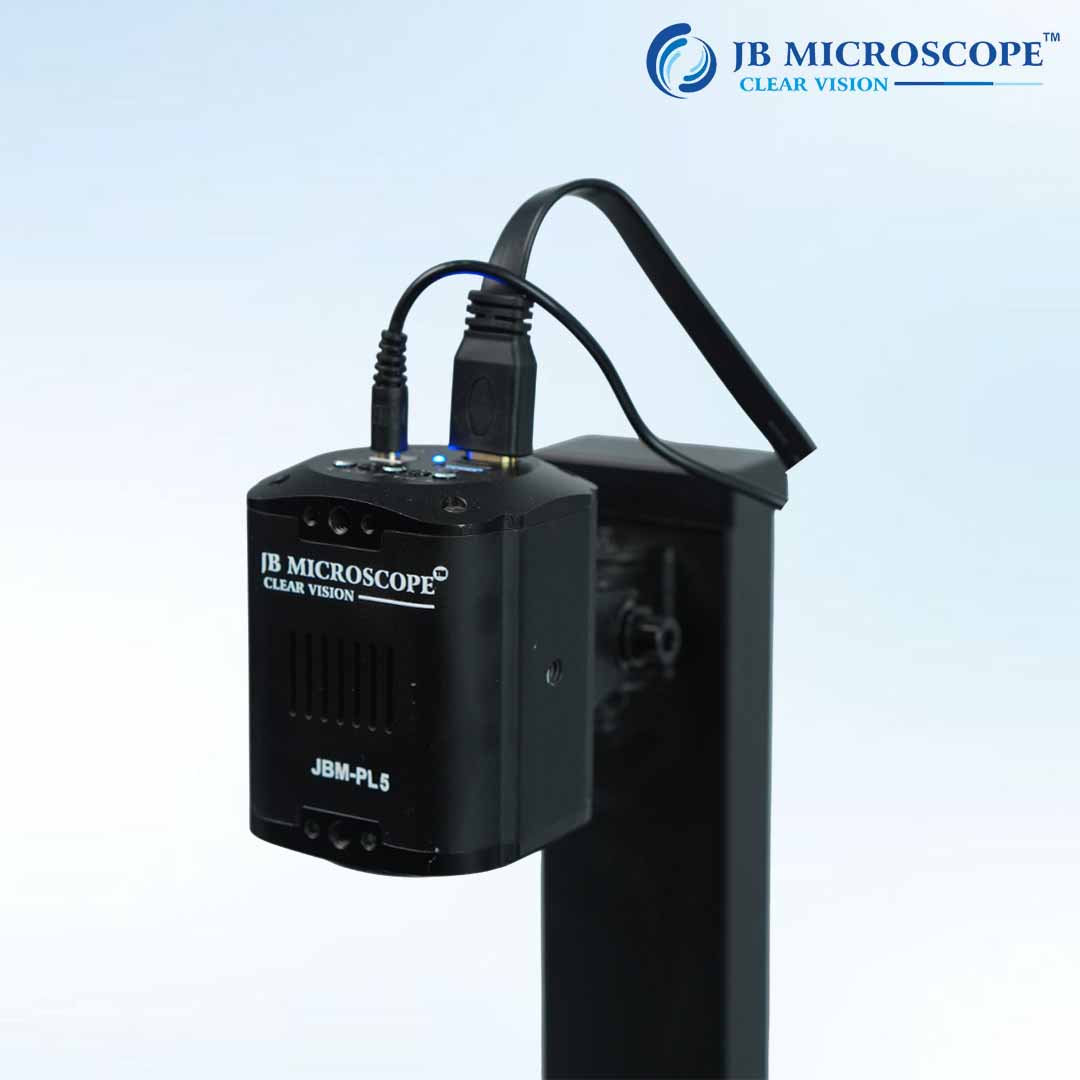

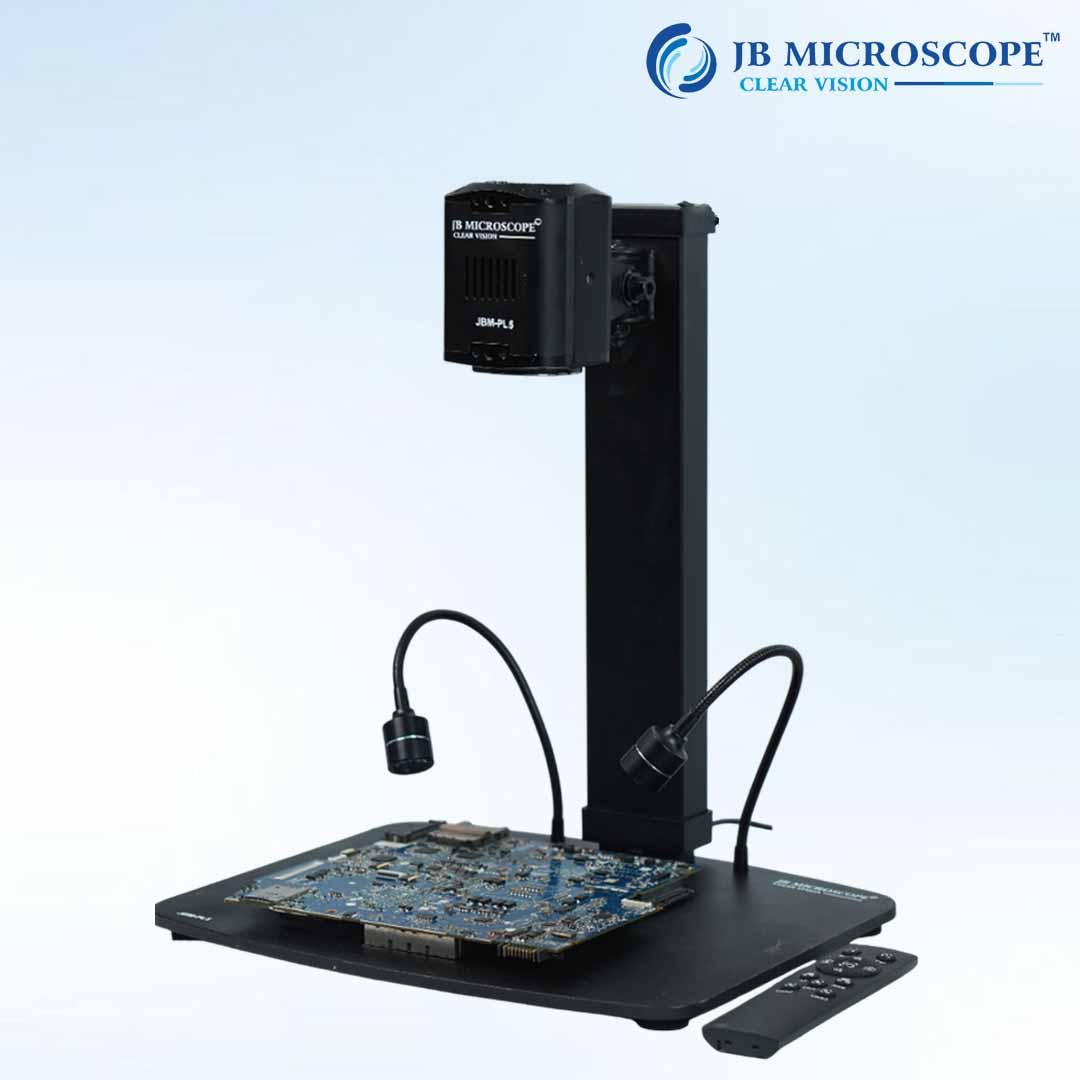

- Model: JBM-PL5
- Sensor: 1/2.8inch
- Pixel size: 2.0umx2.0um
- Scanning system: 4:3/16:9 progressives can
- Output connection two: HDMI+USB dual output

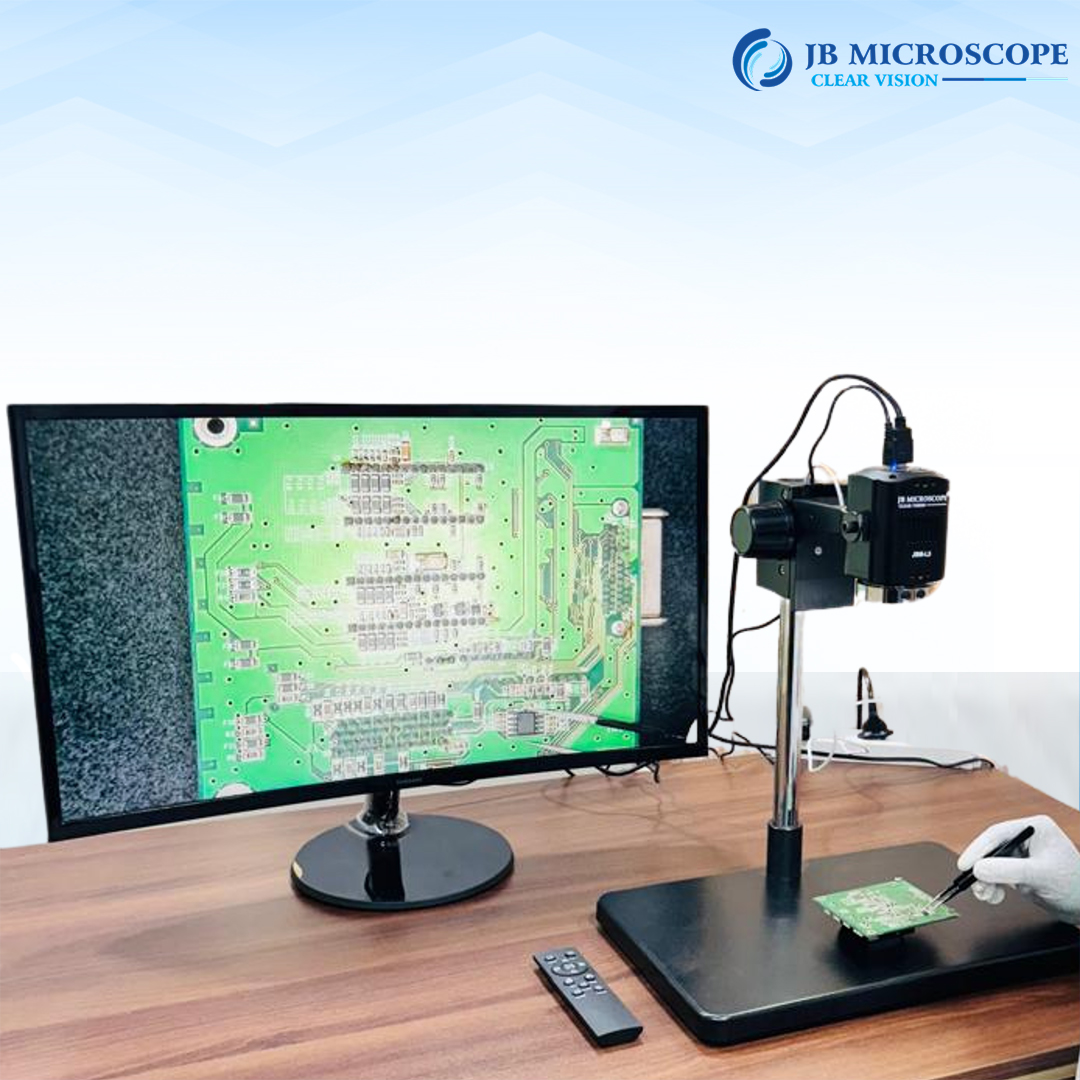

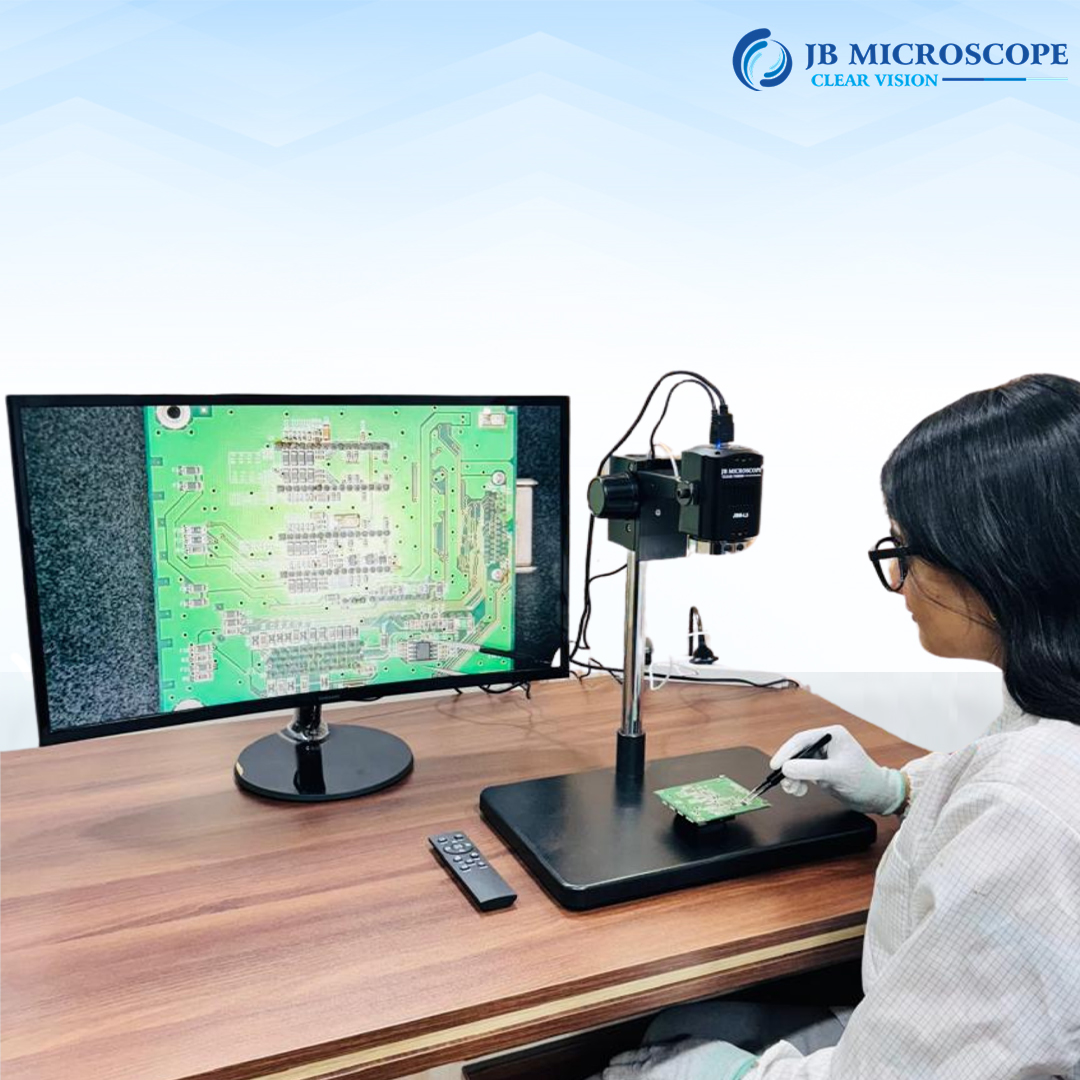

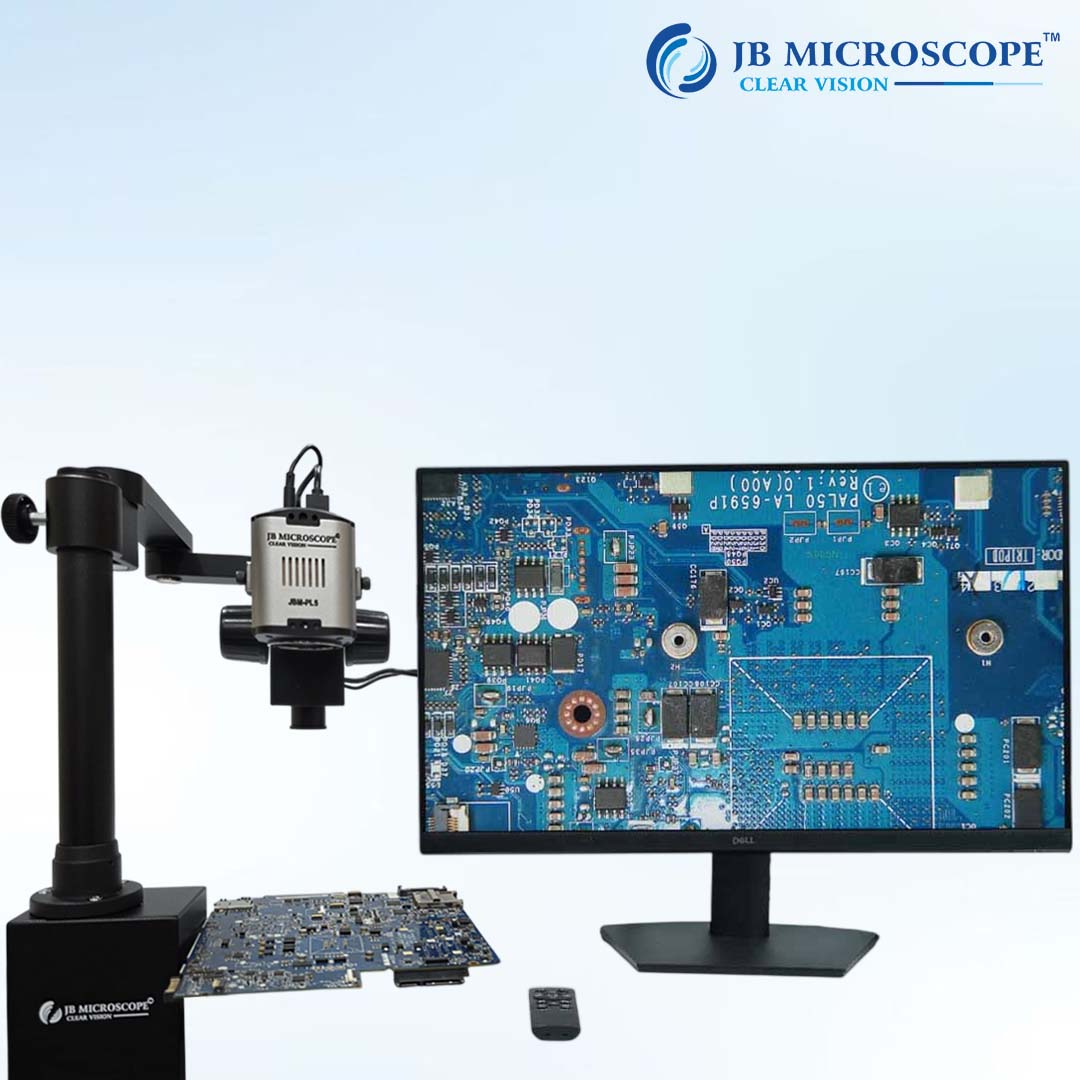

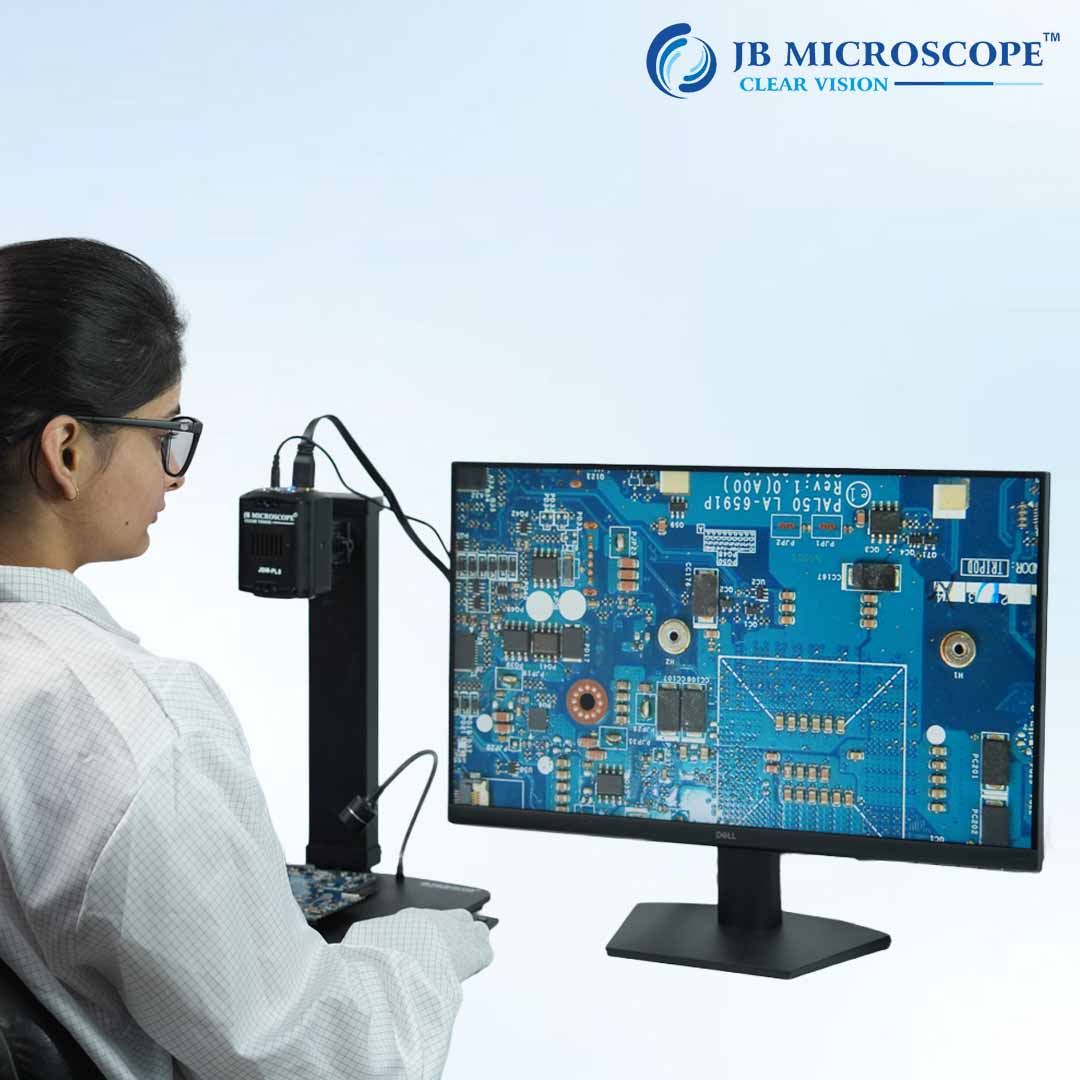

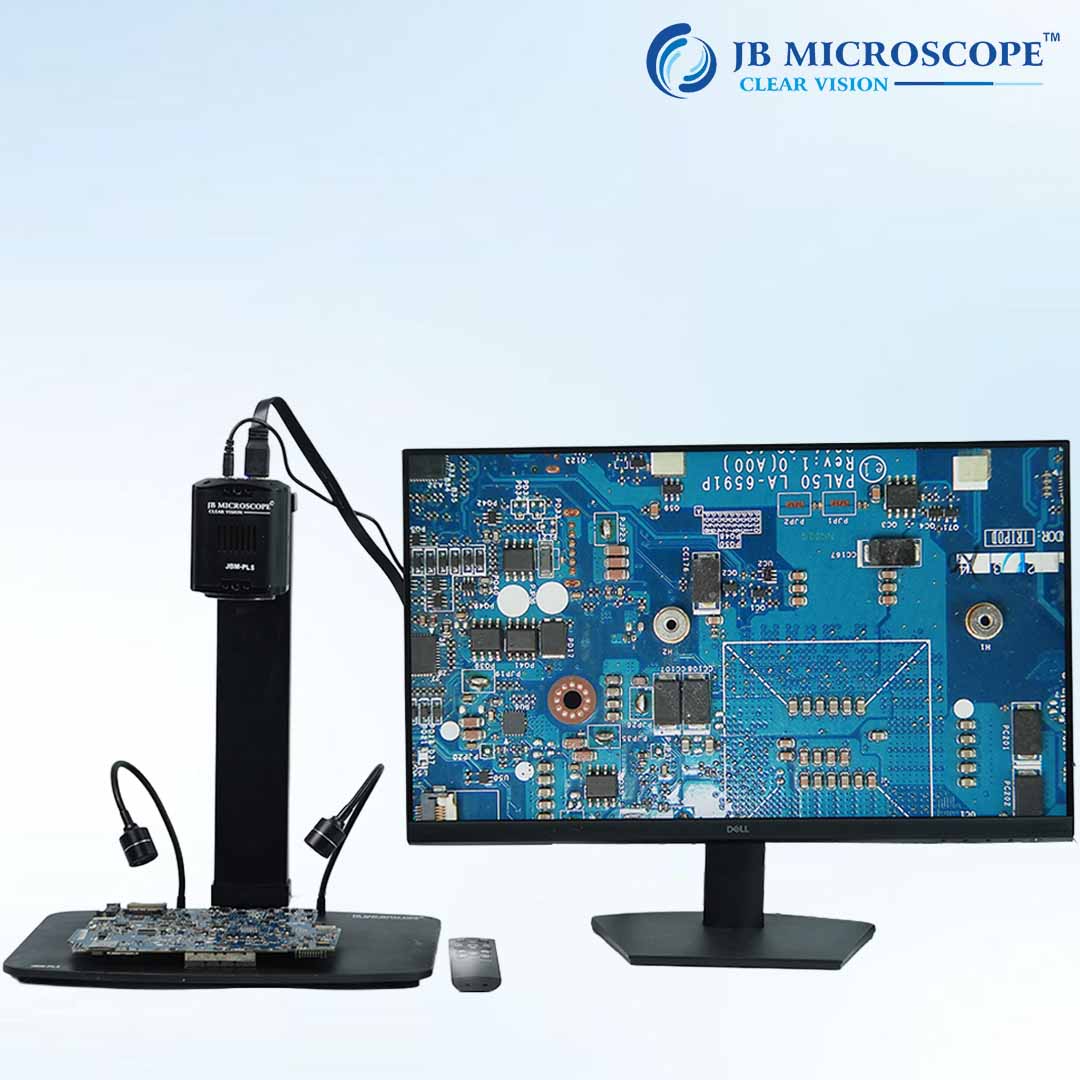

- External device: monitor + computer
- Operation mode: button, remote control
- Lens: 10x optical magnification, F=4.32-40.9mmFi.76-F3.0

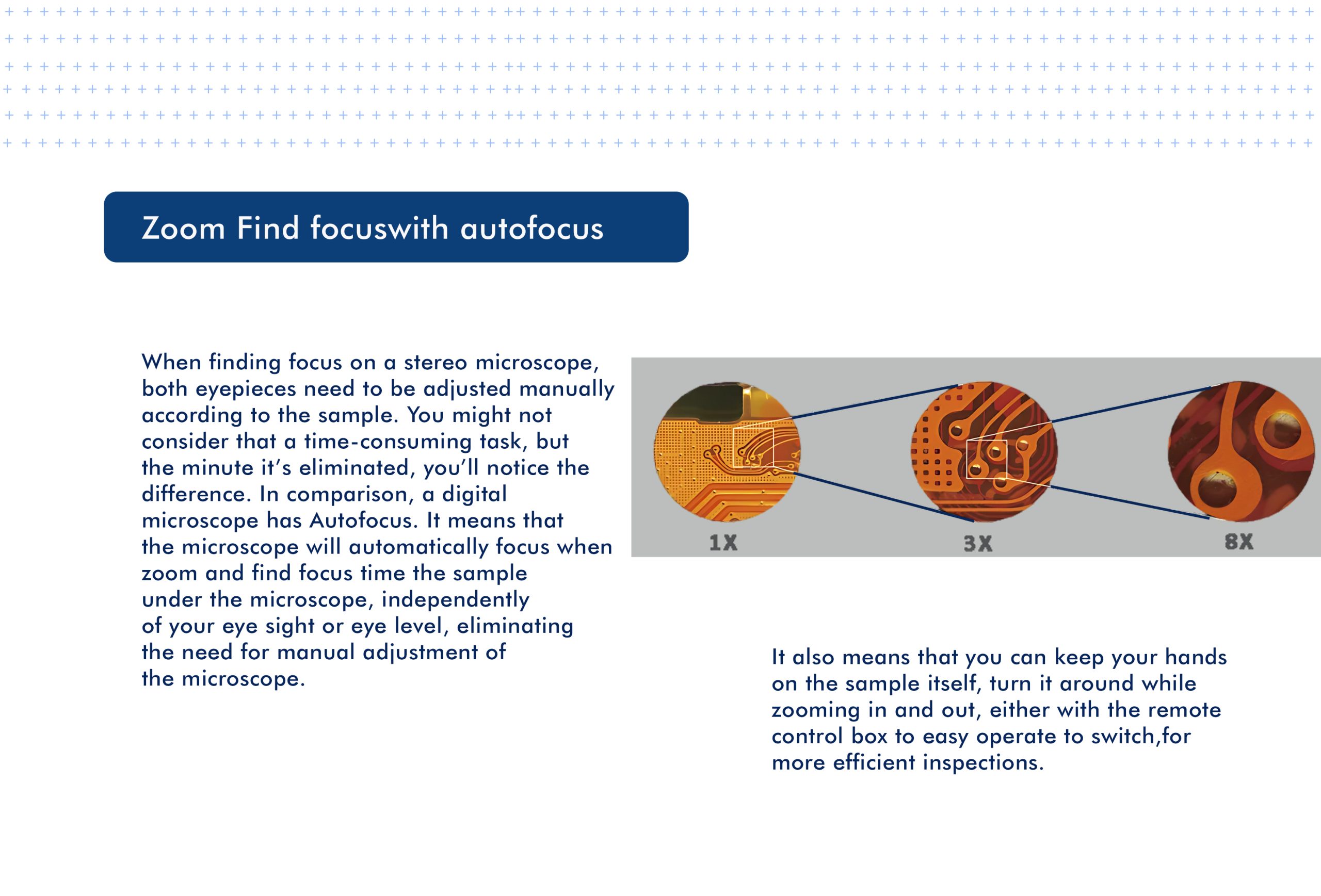

- Focus: near/far, automatic /manual/ semi-automatic (one-touch)
- Features: ultra-low distortion lens, the image is true without distortion auto-focus, Accurate and fast
- Function: gamma mirror, flip electronic amplification, anti-flicker wide dynamic
PARAMETER SENSOR
- imaging sensor: SONY 5M 1/2.8” Progressive CMOS (IMX335LQN-C)
- Pixel size: 2.0um x2.0um
- Scanning system: 4:3 / 16:9 Line by line scan
- Synchronous system: inter-sync
- Effective pixel: 2592(H) x 1944(V)
- Minimal illumination: 1Lux
- Horizontal resolution: 1100TVL
OPTICS
- camera lens: At 10 x optical magnification, F=4.32~40.9mm, F 1.76 to F 3.0
- Zoom range: And 10x optical magnification
- Zoom speed: Wide Tel :3.0S Tel Wide :2.6S
- Focus: Near / far, automatic / manual / semi-automatic (one-click)
- Focus range:30cm (wide angle), 1.5m (near angle)
- Angle of field: Level: 67.5 degrees (wide angle), 7.6 degrees (near angle)
FUNCTION
- Automatic diaphragm: Automatic / manual
- Exposure: Automatic / shutter priority / aperture priority / brightness / manual
- Electronic shutter: NTSC: 1/30~1/10000, PAL: 1/25~1/10000
- White balance: Automatic (1,800K ~ 10,000K) / single press / indoor / outdoor / manual

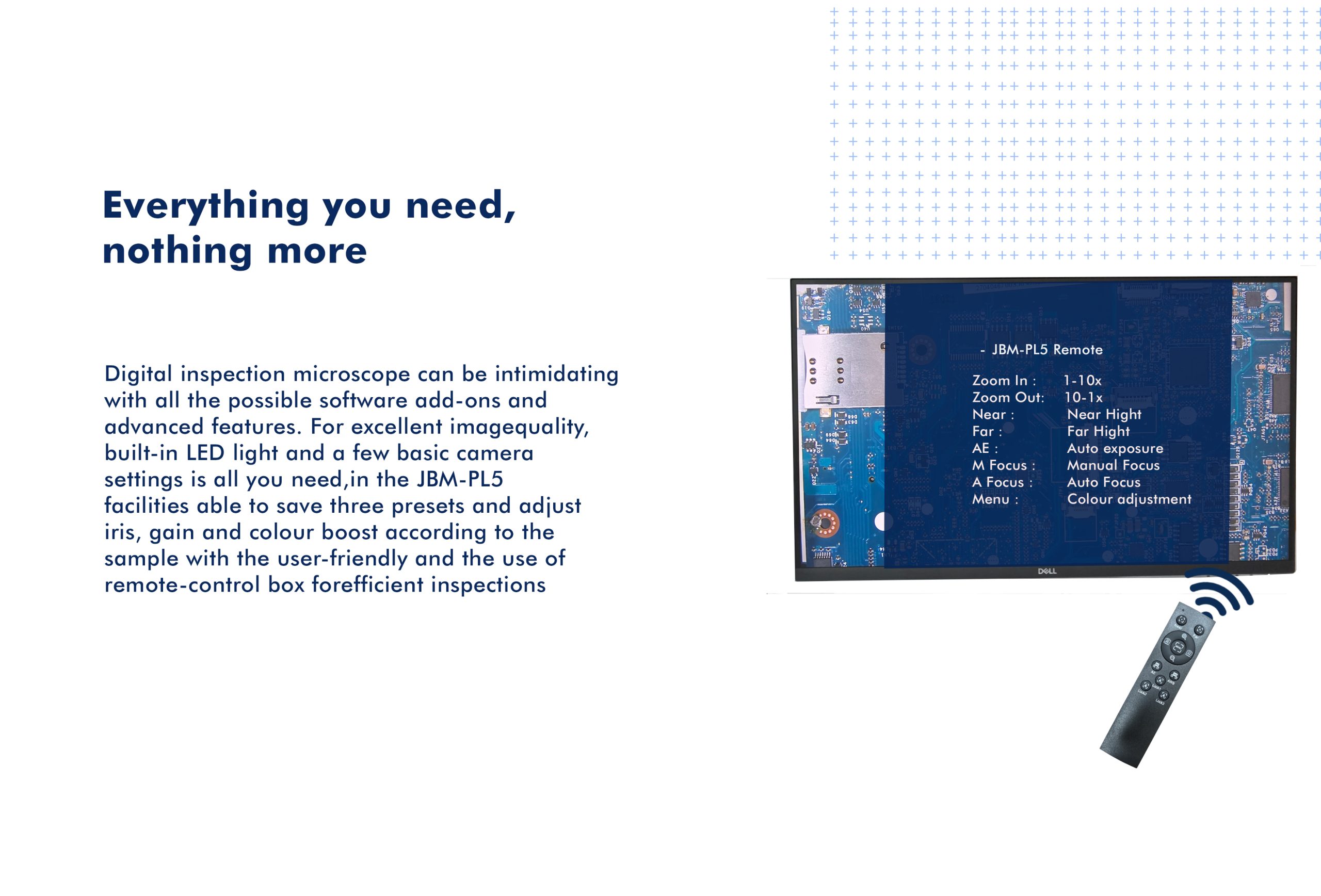

- Remote control: infrared remote control
- Menu: English menu
- Denoise: 2D & 3D for noise reduction
- Other functions: – Gamma, mirror, flip, electron amplification, anti-flicker, wide dynamic
- IMAGE OUTPUT: Support 4:3 / 16:9
COMMUNICATION MODE
- UVC protocol 1.0 standard protocol and a custom extension protocol Mechanical parameters
- Working temperature: -10°c ~ 50°c
- Source:12VDC, Max 5W
- Size:71.8(D) x 45(W) X 48(H) mm
