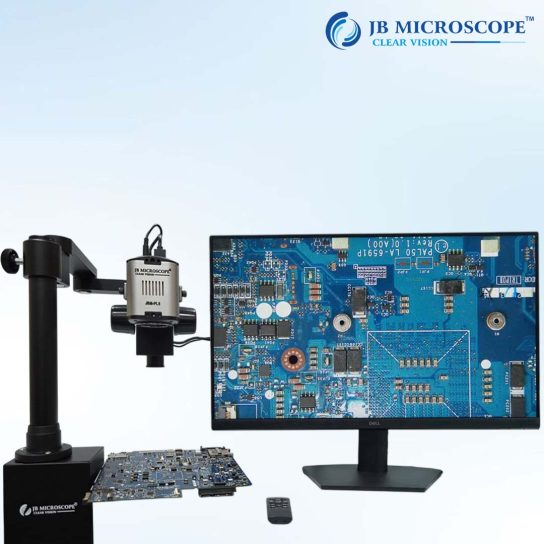

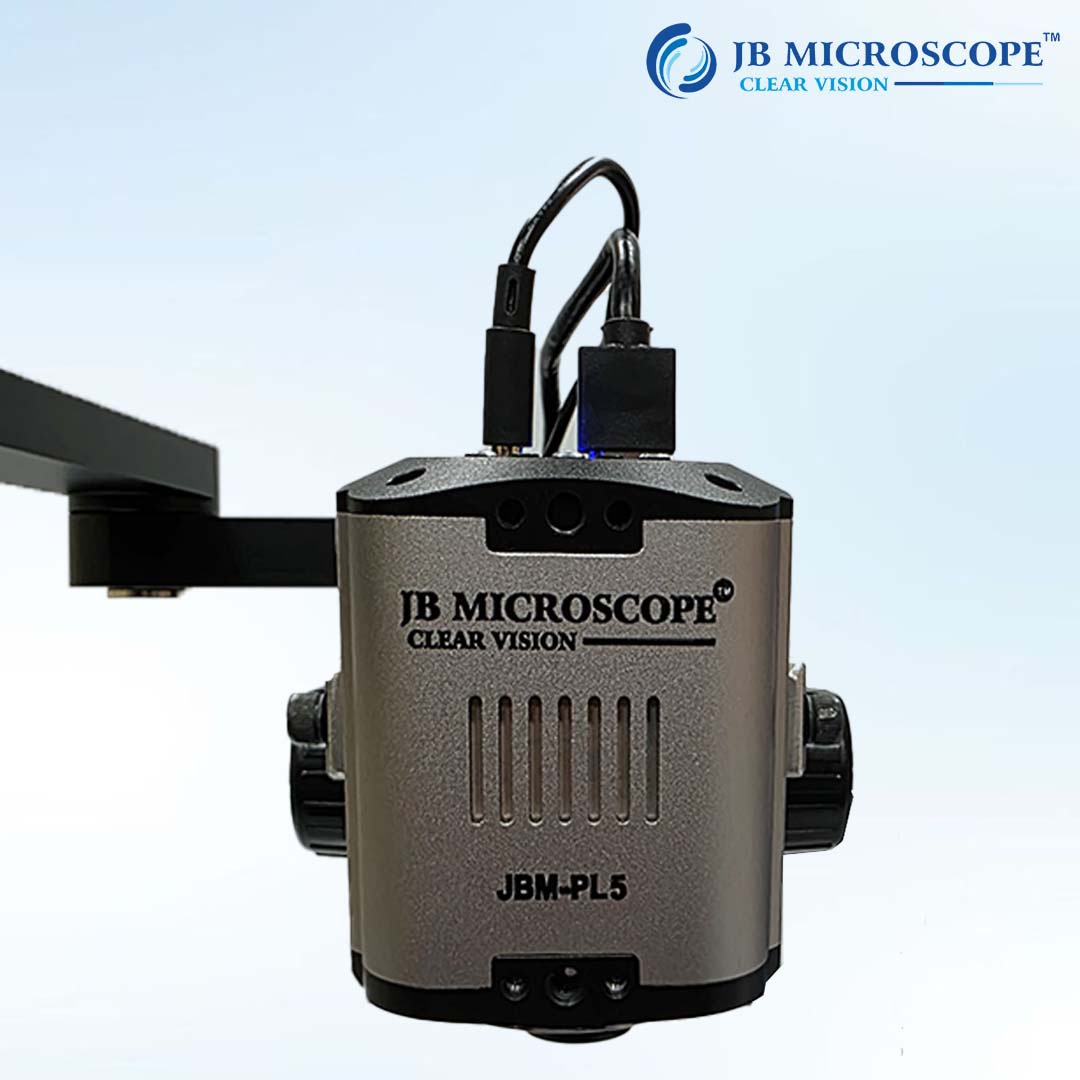

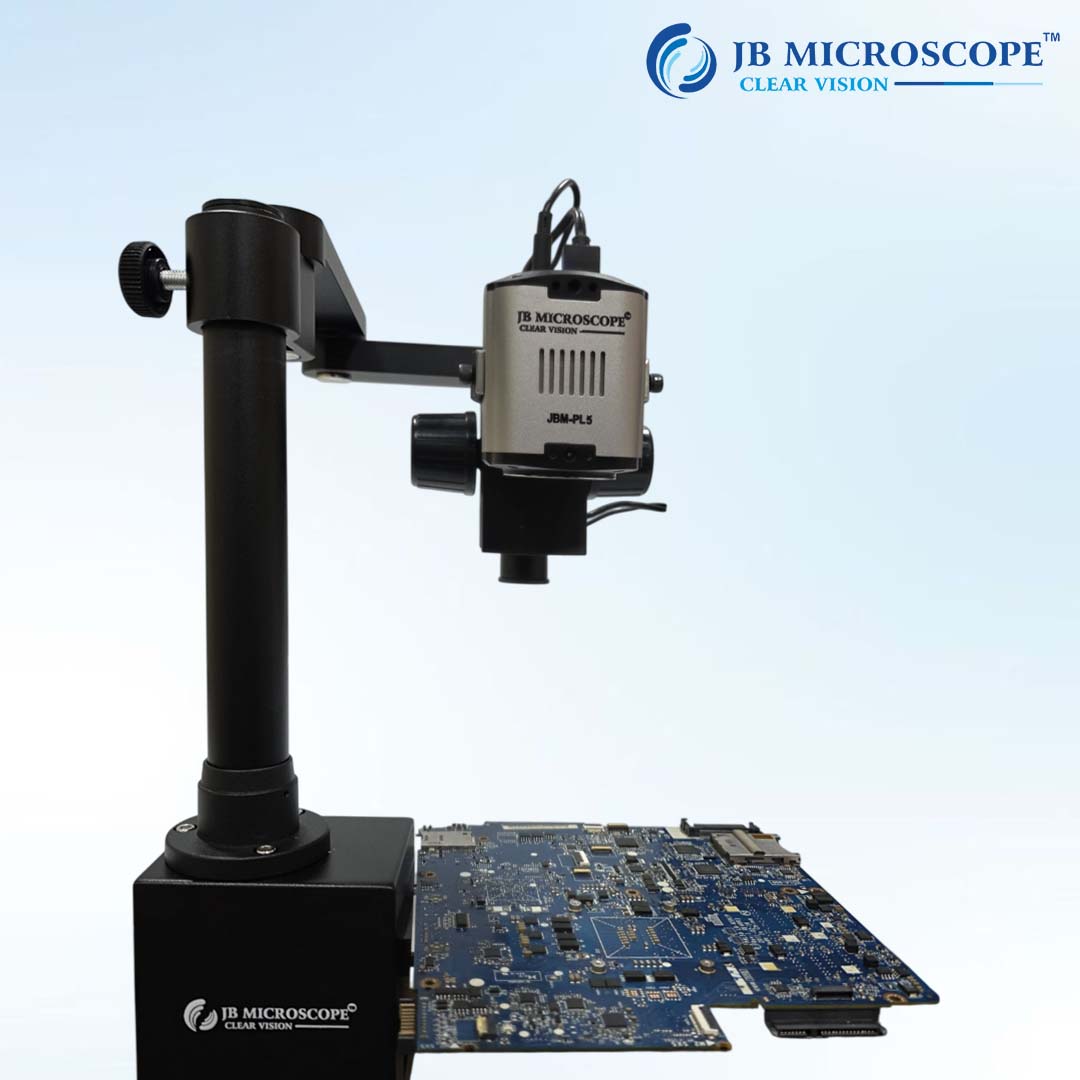

Model: JBM-L5
Sensor: 1/2.8inch
Pixel size: 2.0umx2.0um
Scanning system: 4:3/16:9 progressives can
Output connection two: HDMI+USB dual output

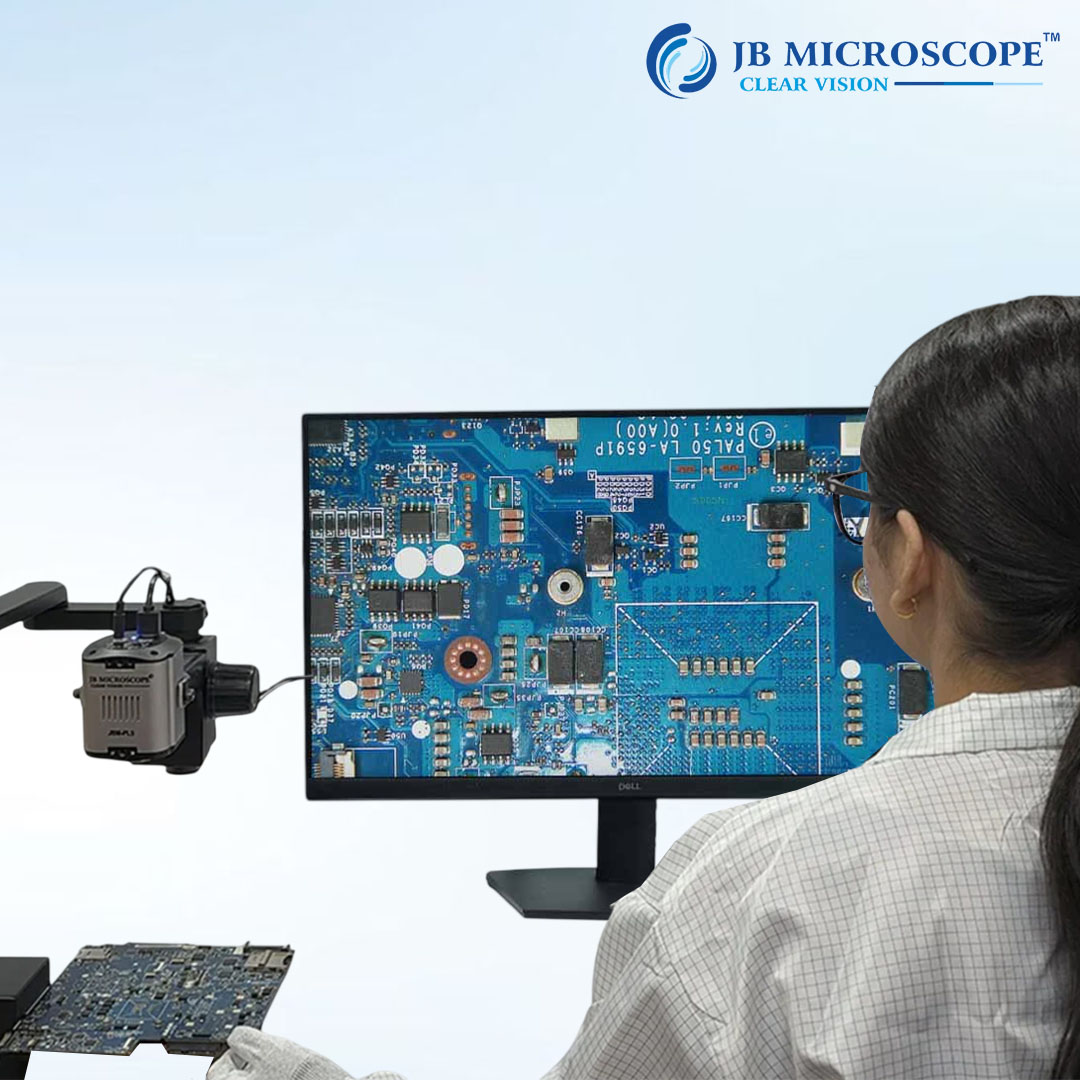

External device: monitor + computer
Operation mode: button, remote control
Lens: 10x optical magnification, F=4.32-40.9mmFi.76-F3.0
Focus: near/far, automatic /manual/ semi-automatic (one-touch)
Features: ultra-low distortion lens, the image is true without
distortion auto-focus, Accurate and fast
Function: gamma mirror, flip electronic amplification, anti-flicker wide dynamic
PARAMETER
SENSOR
imaging sensor: SONY 5M 1/2.8” Progressive CMOS (IMX335LQN-C)
Pixel size: 2.0um x2.0um
Scanning system: 4:3 / 16:9 Line by line scan
Synchronous system: inter-sync
Effective pixel: 2592(H) x 1944(V)
Minimal illumination: 1Lux
Horizontal resolution: 1100TVL
OPTICS
camera lens: At 10 x optical magnification, F=4.32~40.9mm, F 1.76 to F 3.0
Zoom range: And 10x optical magnification
Zoom speed: Wide Tel :3.0S Tel Wide :2.6S
Focus: Near / far, automatic / manual / semi-automatic (one-click)
Focus range:30cm (wide angle), 1.5m (near angle)
Angle of field: Level: 67.5 degrees (wide angle), 7.6 degrees (near angle)
FUNCTION
Automatic diaphragm: Automatic / manual
Exposure: Automatic / shutter priority / aperture priority / brightness / manual
Electronic shutter: NTSC: 1/30~1/10000, PAL: 1/25~1/10000
White balance: Automatic (1,800K ~ 10,000K) / single press / indoor / outdoor / manual
Remote control: infrared remote control
Menu: English menu
Denoise: 2D & 3D for noise reduction
Other functions: – Gamma, mirror, flip, electron amplification, anti-flicker, wide dynamic
IMAGE OUTPUT
Digital output (HDMI): 1920x 1080p @50,60 ;1920x 1080p@25,30 ;
1280x 720p@50,60 ;1280x 720p@25,30
USB2.0MJPG, YUY 2 format: MJPG：1920×1080@30；1280×960@30；1280×720@30；
1024×768@30；800×600@30；640×480@30；320×240@30；
Vertical screen: 1080×1920@30; 720×1280@30
YUY2：1920×1080@5；1280×960@10；1280×720@12；1024×768@15；800×600@20；
640×480@30；320×240@30
COMMUNICATION MODE
UVC protocol 1.0 standard protocol and a custom extension protocol
Mechanical parameters
Working temperature: -10°c ~ 50°c
Source:12VDC, Max 5W
Size:71.8(D) x 45(W) X 48(H) mm
