| Item | Specification | JBIMM300U | JBIMM500U |
|---|---|---|---|
| Eyepiece | WF10X/22MM (adjustable) |
• |
• |
| WF10X/22MM (adjustable, ewduxykq 0.1mm) |
• |
• |
|
| 5X/0.10 W.D=24.23mm |
• |
• |
|
| 10X/0.25 W.D=18.48mm |
• |
• |
|
| Metallurgical LWD infinity Plan Objective | 20X/0.40 W.D=8.35mm |
• |
• |
| 40X/0.65 W.D=3.90mm | o | o | |
| 50X/0.70(S) W.D=1.95mm |
• |
• |
|
| 80X/0.80(S) W.D=0.85mm | o | o | |
| 100X/0.60(S) WD=1.00mm | o | o | |
|
Seidentopf Trinocular Head |
Inclined 30° ,Rotatable 360°, Interpupilary Distance: 48 -76mm
Light Distribution(both):100:0 (100% for eyepiece) 80:20 (80% for Trinocular head and 20% for eyepiece) |
• |
• |
| Nosepiece | Quintupel |
• |
• |
|
Mechanical Stage |
Stage Size: 200
x 150mm, Travel: 77mm x 52mmStage fast lowerin unit:Up-Down moving range can be increased 50mm. |
• |
|
| Stage Size: 182
x 140mm, Travel: 77mm x 52mmTwo solid holder, Metal plate size:200mm X 150mm |
• |
||
| Polarizing Unit | Polarizer/Analyzer |
• |
• |
| Condenser | Abbe N.A.1.25, with Iris Diaphragm. |
• |
|
|
Coaxial Coarse and Fine Focusing Unit |
Coarse stroke:25mm,
Fine stroke per rotation: 0.2mm, fine division 2 µm, Tightness adjustment, upper distance limiter. |
• |
• |
| Reflecting Illumination | 12V/50W Halogen Lamp (Input Voltage:100V- 240V),Field diaphragm |
• |
• |
| Transmitting Illumitation | 6V/20W Halogen Lamp (Input Voltage:100V- 240V),Field diaphragm , Center adjustable. |
• |
|
| Blue |
• |
• |
|
|
Filter |
Green | o | o |
| Amber | o | o | |
| Grey | o | o | |
|
C-Mount |
0.57X(Focus Adjustable) | o | o |
| 1X | o | o | |
| Note: In the table “•” is Standard outfits, “0” Is Optional Accessories.
Packing Size: 750X360X450mm Gross Weight: 16 kgs Net Weight: !2 kgs |
|||

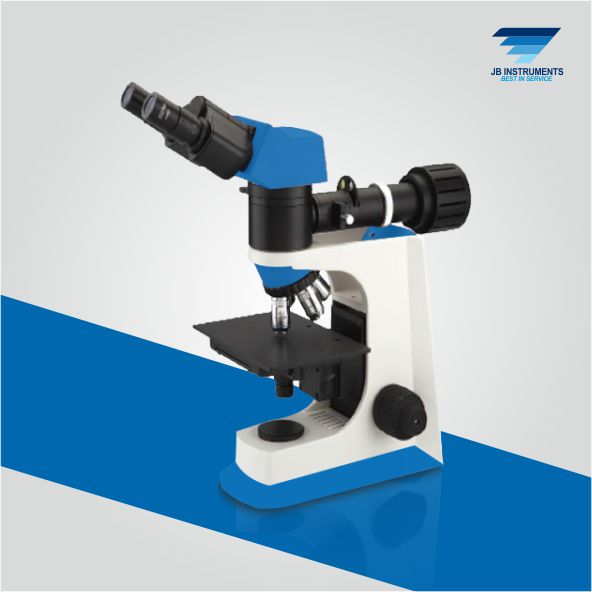

JBM-MM300U/500U Upright Microscope
