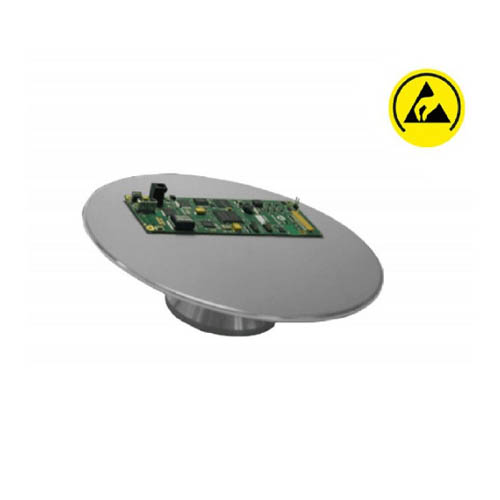

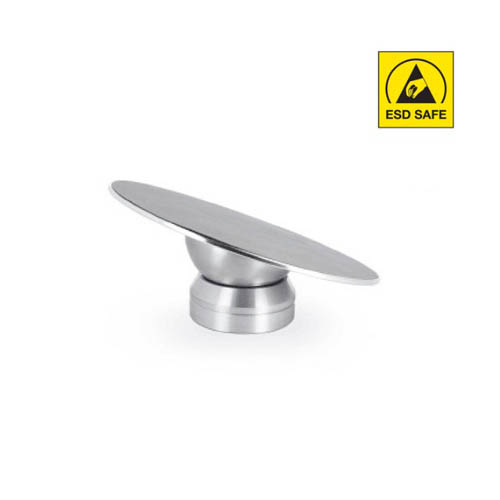

ESD Safe Tilt Stage Diameter 220mm

Quick Overview
Stage Height: 73mm. Tilt Stage Diameter: 220mm. 0-45° Inclined within the Range of 360°. ESD Safe.

Ideal-TEK-TILT-PLUS-Stage ESD Level Adjustable Stage

Tilt Stage

Stage Height 73mm
Tilt Stage Diameter 220mm
Stage Inclination Range 0-45° Inclined within the Range of 360°
ESD Safe ESD Safe
Material Metal
Color Grey
Net Weight 1.38kg (3.04lbs)



Packing List

Packing
Packaging Type Carton Packaging
Packaging Material Corrugated Carton
Inner Packing Material Plastic Bag
Ancillary Packaging Materials Expanded Polystyrene
Minimum Packaging Quantity 1pc
Transportation Carton Carton Packaging
Transportation Carton Material Corrugated Carton
Quantity of One Transportation Carton 1pc

Technical Info

Instructions

Microscope Stage

Microscope stage is usually located under the objective lens of the microscope to place the object to be observed. Usually, it is equipped with mechanical motion devices, and is moved and positioned in XYZ three directions or rotates or tilts around the Z axis and other functions.
Microscope stage usually has a function of moving in the XY horizontal direction, and is required to be perpendicular to the optical axis of the microscope Z direction in the XY horizontal direction.

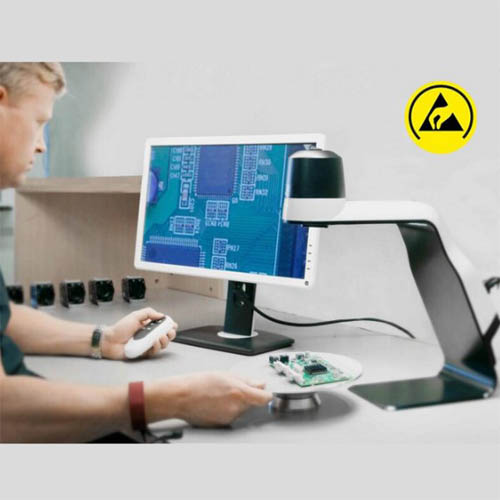

Tilt Stage

The tilt stage is centered on the Z axis of the microscope optical axis, and the XY horizontal direction is used as the baseline. Tilt stage can be used for tilting motion in the front, back, left and right directions to observe the image features of different angles of some objects.

ESD Safe

Static electricity is a charge that is at static or non-flowing state, and static electricity is formed when charges accumulate on an object or surface.
Static electricity can cause malfunction or mis-opeartion of electronic equipment, resulting in electromagnetic interference. In the electronics industry, static electricity can break down integrated circuits and precision electronic components, causing components to age, and can also absorb dust, causing contamination of integrated circuits and semiconductor components, and reducing production yield. In the plastics industry, static electricity can cause film or membrane not wining up uniformly, film and CD plastic discs contaminated with dust, thereby affecting quality. In industrial production, especially in electronic production and processing and inflammable and explosive production sites, electrostatic protection should be taken seriously.ESD means “electro-static discharge.” For the methods of ESD treatment with respect to microscope and components, electrical conductivity of the metal should be utilized on the one hand, and on the other hand, electrostatic materials, electrostatic coating and other methods of treatment should be adopted to solve the electrostatic problem.
Electrostatic coating is to apply coat that can prevent static electricity. It has electrostatic discharge, dust-proof, mildew-proof, wear-resistant, acid and alkali resistance and other characteristics. The surface of the coating does not generate static electricity or the static electricity is discharged to the safe place through the conductor row.
On some components, electrostatic materials may be applied, such as the microscope knob handle, insulation mat, septum, microscope cover etc.

Packaging

After unpacking, carefully inspect the various random accessories and parts in the package to avoid omissions. In order to save space and ensure safety of components, some components will be placed outside the inner packaging box, so be careful of their inspection.
For special packaging, it is generally after opening the box, all packaging boxes, protective foam, plastic bags should be kept for a period of time. If there is a problem during the return period, you can return or exchange the original. After the return period (usually 10-30 days, according to the manufacturer’s Instruction of Terms of Service), these packaging boxes may be disposed of if there is no problem.
